GEP1051 - Switch LEVELONE - Free user manual and instructions

Product Type	Network Switch
Brand	LevelOne
Model	GEP1051
Power Supply	100-240 V AC, 50/60 Hz
Connectivity	5 Gigabit RJ-45 ports
Management	Web interface (HTTP), access via 192.168.1.1
Installation	19-inch rack mount or desktop
Operating Temperature	0 °C to 50 °C
Operating Humidity	10% to 90% non-condensing
Included Accessories	Power cord, quick installation guide, CD-ROM, L-brackets, adhesive feet
LED Indicators	Power LED
Security	Avoid direct light, heat sources, and strong electromagnetic interference
Maintenance	Clean with a dry cloth; do not use liquids
Standards	CE, EN55032 Class A, EN55024, EN61000

Frequently Asked Questions - GEP1051 LEVELONE

How to connect the switch?

Use the provided power cord to plug the power connector into a 100-240 V AC electrical outlet. Ensure proper grounding. The power LED should light up.

How to access the management interface?

Connect an RJ-45 cable between the switch and your computer. Set your computer's IP address to a value in the range 192.168.1.2 to 192.168.1.254, then open a browser and enter 192.168.1.1 in the address bar.

What are the default credentials for management?

The default username is admin and the default password is admin.

How to configure my computer's IP address on Windows?

Go to Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings. Right-click on Local Area Connection, select Properties, then choose Internet Protocol Version 4 (TCP/IPv4) and set a static IP address between 192.168.1.2 and 192.168.1.254.

Can the switch be mounted in a rack?

Yes, install the provided L-shaped brackets on the sides of the switch, then secure it in a standard 19-inch rack using the included screws. Ensure the rack is stable and properly grounded.

What to do if the power LED does not light up?

Check that the power cord is properly connected to the switch and to a functional electrical outlet. Ensure the outlet is powered and the voltage is between 100 and 240 V AC.

What cables are needed to connect devices?

Use standard RJ-45 network cables (Category 5e or higher) to connect computers, routers, or other switches. For fiber optic links, use a suitable SFP module.

How to reset the switch to factory settings?

The manual does not mention a reset button. Consult the full manual on the CD-ROM or download it from the LevelOne website for the exact procedure.

In what environment can the switch be installed?

Install it in a cool, dry indoor location, away from direct sunlight, heat sources, and strong electromagnetic interference. Temperature should be between 0 °C and 50 °C and humidity between 10% and 90% non-condensing.

Where can I download the full manual?

You can download the manual in PDF format for free from our website notice-facile.com. Select the desired language and enter your email address to receive a download link.

USER MANUAL GEP1051 LEVELONE

level® one

GEL-1051

GEP-1051

10-Port Web Smart Gigabit Switch 10-Port Web Smart Gigabit PoE Switch

Quick Installation Guide

English

Deutsch

Français

Español

Italiano

Português

Table of Content

English....2

Deutsch 6

Français....10

Español....14

Italiano....19

Português....23

This Quick Installation Guide only describes the most basic situations and settings. All detailed information is described in the user manual.

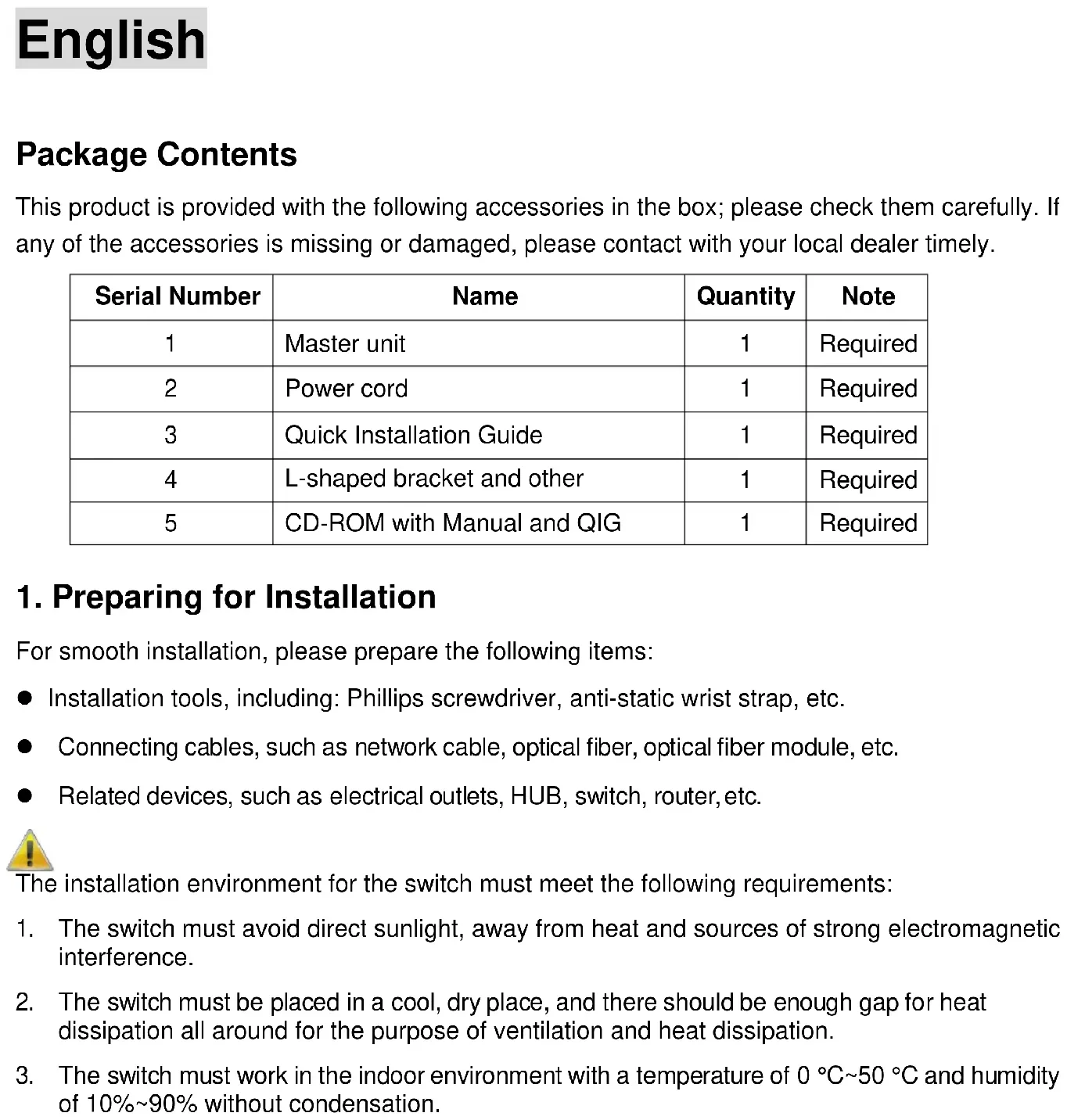

English

Package Contents

This product is provided with the following accessories in the box; please check them carefully. If any of the accessories is missing or damaged, please contact with your local dealer timely.

Serial Number	Name	Quantity	Note
1	Master unit	1	Required
2	Power cord	1	Required
3	Quick Installation Guide	1	Required
4	L-shaped bracket and other	1	Required
5	CD-ROM with Manual and QIG	1	Required

1. Preparing for Installation

For smooth installation, please prepare the following items:

● Installation tools, including: Phillips screwdriver, anti-static wrist strap, etc.
- Connecting cables, such as network cable, optical fiber, optical fiber module, etc.
● Related devices, such as electrical outlets, HUB, switch, router, etc.

The installation environment for the switch must meet the following requirements:

1. The switch must avoid direct sunlight, away from heat and sources of strong electromagnetic interference.
2. The switch must be placed in a cool, dry place, and there should be enough gap for heat dissipation all around for the purpose of ventilation and heat dissipation.
3. The switch must work in the indoor environment with a temperature of 0 ^ 50 ^ and humidity of 10%90% without condensation.

2. Equipment Installation

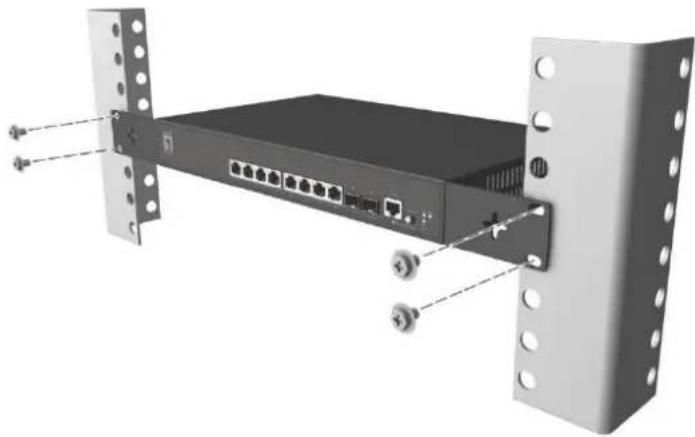

■ Installing the Switch in a Rack

Install the switch on a 19-inch standard rack, and the installation steps are as follows:

1. Check the grounding and stability of the rack;
2. Install the two L-shaped brackets in the accessories on both sides of the switch panel, and fix them with the screws in the accessories:
3. Place the switch in the appropriate location of the rack, and support it using a tray;
4. Secure the L-shaped brackets on the guide slots fixed at both ends of the rack, to ensure that the switch can be mounted on the rack in astable, horizontal manner;
5. Use a power cord to connect the switch power connector with the powersocket.

Diagram of a server rack with ports and connectors, showing port labels and connection points (no text or symbols present)

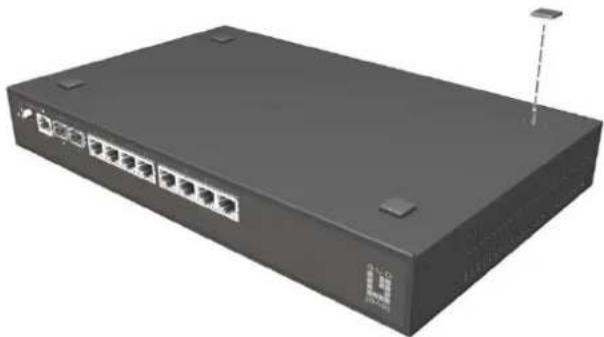

■ Installing the Switch on a Desktop

Install the switch on a desktop, and the installation steps are as follows:

1. Place the switch with its bottom up on a sufficiently large, stable and properly-grounded working table;
2. Remove the adhesive protective paper from the foot pad, and stick the 4 pads in the 4 round slots at the bottom of the casing respectively;
3. Flip over the switch, and place it on the working table stably;
4. Use a power cord to connect the switch power connector with the power socket.

3D rendering of a black server with five Ethernet ports and a small antenna (no text or symbols visible)

1. The switch uses 100-240V, 50/60Hz AC, and make sure that both power supply and grounding are normal before power on.
2. After power on, please check the switch's power indicator (Power) is on, and if so, it indicates that the power supply is connected properly.
3. Do not place heavy objects on the top of the switch.

3. Logging on to the equipment

1. Connect the RJ-45 interface cable of a switch with a computer using a network cable.
2. Set the TCP/IP properties of the computer, see the Appendix: Setting up your computer.

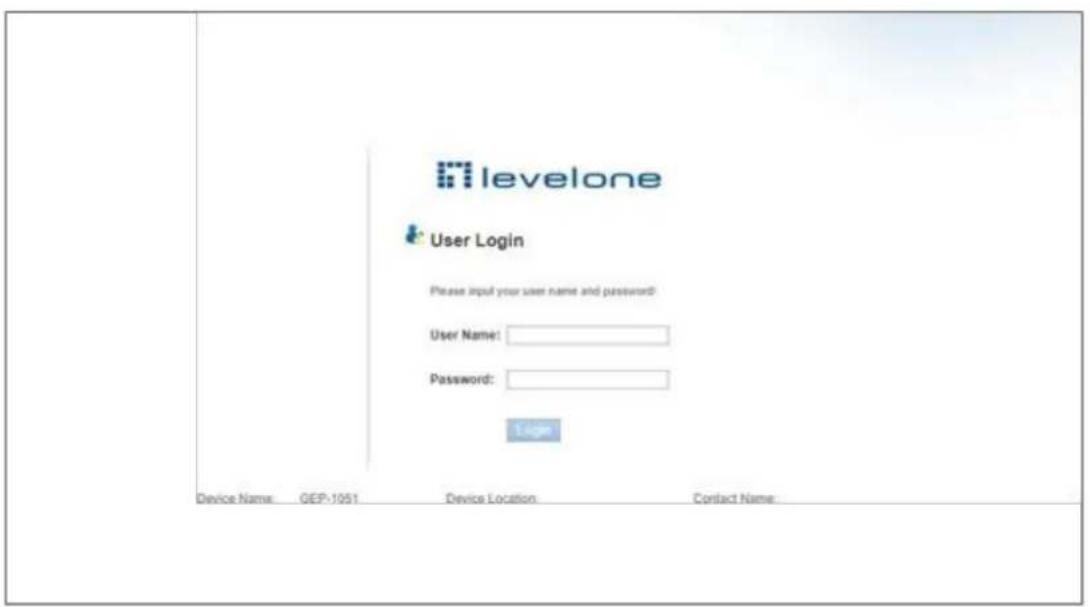

3. Logging on to the equipment: Open a browser and type 192.168.1.1 in the address bar, and then press Enter; in the pop-up login interface, enter the factory logon username "admin", password "admin" and click OK.

Web Management ← → ○ | 192.168.1.1/home/login_levelone.htm ≡ ⚡ ⏱ ...

levelone User Login Please input your user name and password? User Name: Password: Login Device Name: GEP-1051 Device Location Contact Name:

Appendix: Setting up your computer

Windows

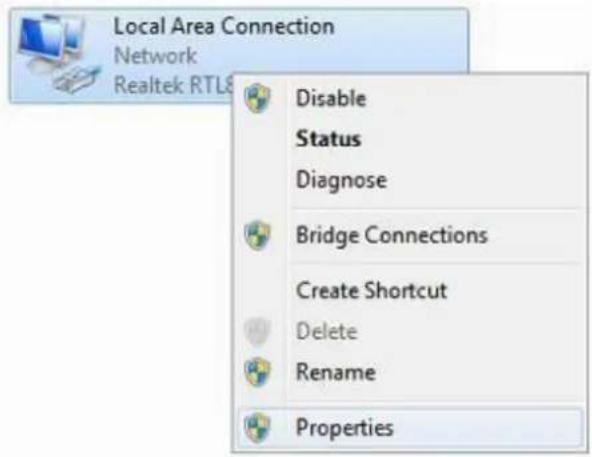

1. Click Start→Control Panel→Network and Internet→Network and Sharing Center→Change adapter settings, right click Local connection and select Properties;

Local Area Connection Network Realtek RTL8 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

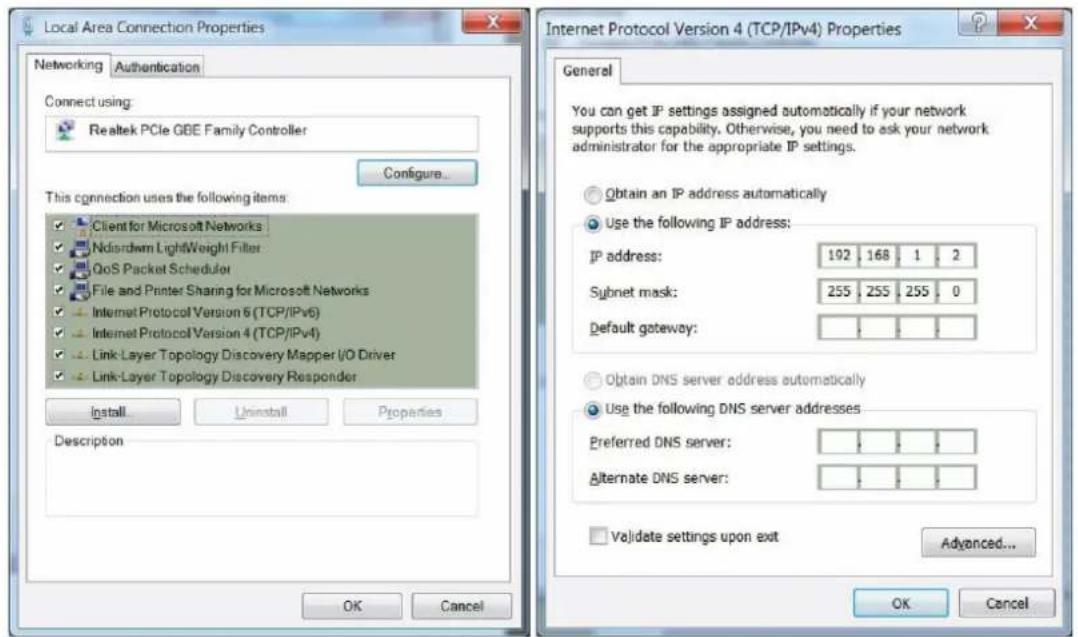

2. Double click Internet Protocol 4 (TCP/IPv4);

Local Area Connection Properties Networking Authentication Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks Nciordwm Lightweight Filter QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 2 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel OK Cancel

1. Set the computer's IP address: The computer's IP address should be any one of the following free IP addresses 192.168.1.2 \~ 192.168.1.254, and then click OK, to return to the previous page, click OK.

Deutsch

Lieferumfang

Diagram of a server rack with ports and connectors, showing port labels and connection points (no text or symbols present)

3D rendering of a black server rack with multiple ports and a small indicator light (no visible text or symbols)

levelone User Login Please input your user name and password! User Name: Password: Login Device Name: GEP-1051 Device Location: Contact Name:

Local Area Connection Network Realtek RTL8 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

Local Area Connection Properties Networking Authentication Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks Ndisndem LightWeight Filter GoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install Uninstall Properties Description Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 2 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel

Diagram of a server rack with ports and connectors, showing mounting hardware (no text or symbols)

3D rendering of a black server rack with five ports and a small antenna (no text or symbols visible)

levelone User Login Please input your user name and password! User Name: Password: Login Device Name: GEP-1051 Device Location Contact Name:

Local Area Connection Network Realtek RTL8 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

2. Double-cliquez sur Internet Protocol 4 (TCP/IPv4);

Local Area Connection Properties Networking Authentication Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks Nordstrom Lightweight Filter QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install. Uninstall Properties Description Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 2 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel OK Cancel

3D diagram of a server rack with ports and connectors, showing port labels and connection points (no text or symbols present)

3D rendering of a black network switch device with multiple ports and a small antenna (no visible text or labels)

!

levelone User Login Please input your user name and password? User Name: Password: Login Device Name: GEP-1651 Device Location: Contact Name:

Local Area Connection Network Realtek RTL8 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

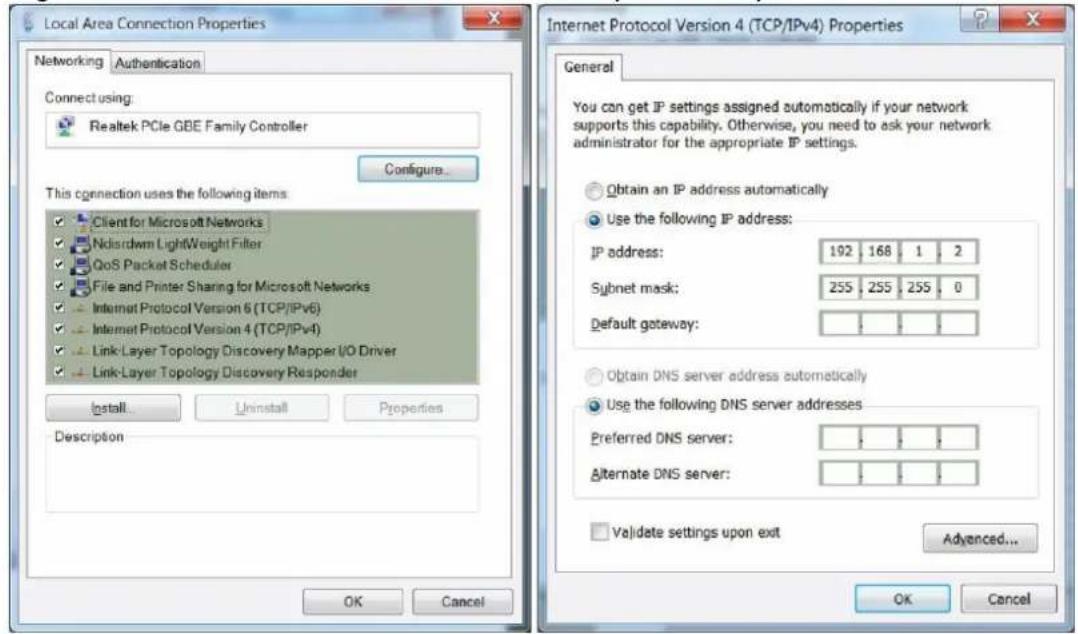

2 Haga doble clic en Protocolo de Internet 4 (TCP/IPv4);

Local Area Connection Properties Networking Authentication Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks Nisdrchm Lightweight Filter QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install. Uninstall Properties Description Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 2 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel OK Cancel

Diagram of a server rack with ports and connectors, showing port labels and connection points (no text or symbols present)

3D rendering of a black network switch device with multiple ports and a small antenna (no visible text or symbols)

levelone User Login Please input your user name and password! User Name: Password: Login Device Name: GEP-1051 Device Location Contact Name:

Local Area Connection Network Realtek RTL8 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

Local Area Connection Properties Networking Authentication Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks Ndiardwm Lightweight Filter QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 2 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel OK Cancel

Diagram of a network switch device with ports and connectors, shown in 3D view (no text or labels)

3D rendering of a black server rack with multiple ports and a small antenna (no visible text or labels)

levelone User Login Please need your user name and password! User Name: Password: Login Device Name: GEP-1051 Device Location Contact Name:

Local Area Connection Network Realtek RTL8 Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

Local Area Connection Properties Networking Authentication Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: Client for Microsoft Networks Ndisrdwm Lightweight Filter QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall... Properties Description Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 2 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel OK Cancel

Legal Signature

CE

Declaration of Conformity

We, the undersigned, Digital Data Communications GmbH

Address Hohe Straße 1, 44139 Dortmund, Germany

Certify and declare under our sole responsibility that the following apparatus

Type Ethemet switch

Brandname LevelOne

Product GEP-1051/GEL-1051

Conforms with the essential requirements of the EMC Directive 2014/30/EC, based on the following specifications applied:

EU harmonised standards

■ EN55032:2015 Class A
■ EN 61000-3-2: 2014 Class A
■ EN 61000-3-3: 2013
■ EN 55024: 2010+A1: 2015

and therefore complies with the essential requirements and provisions of the EMC Directive.

CE

The symbol confirms that this product conforms to the above named standards and regulations.

Amanda(Shu-Wen) Chen

Name (Full Name)

2018/04/10

Date

Geschäftsführerin

Title/Department

Legal Signature

CE

Amanda(Shu-Wen) Chen

Name (Full Name)

2018/04/10

Date

Geschäftsführerin Title/Department Legal Signature
