USER MANUAL SLACHT128 SereneLife

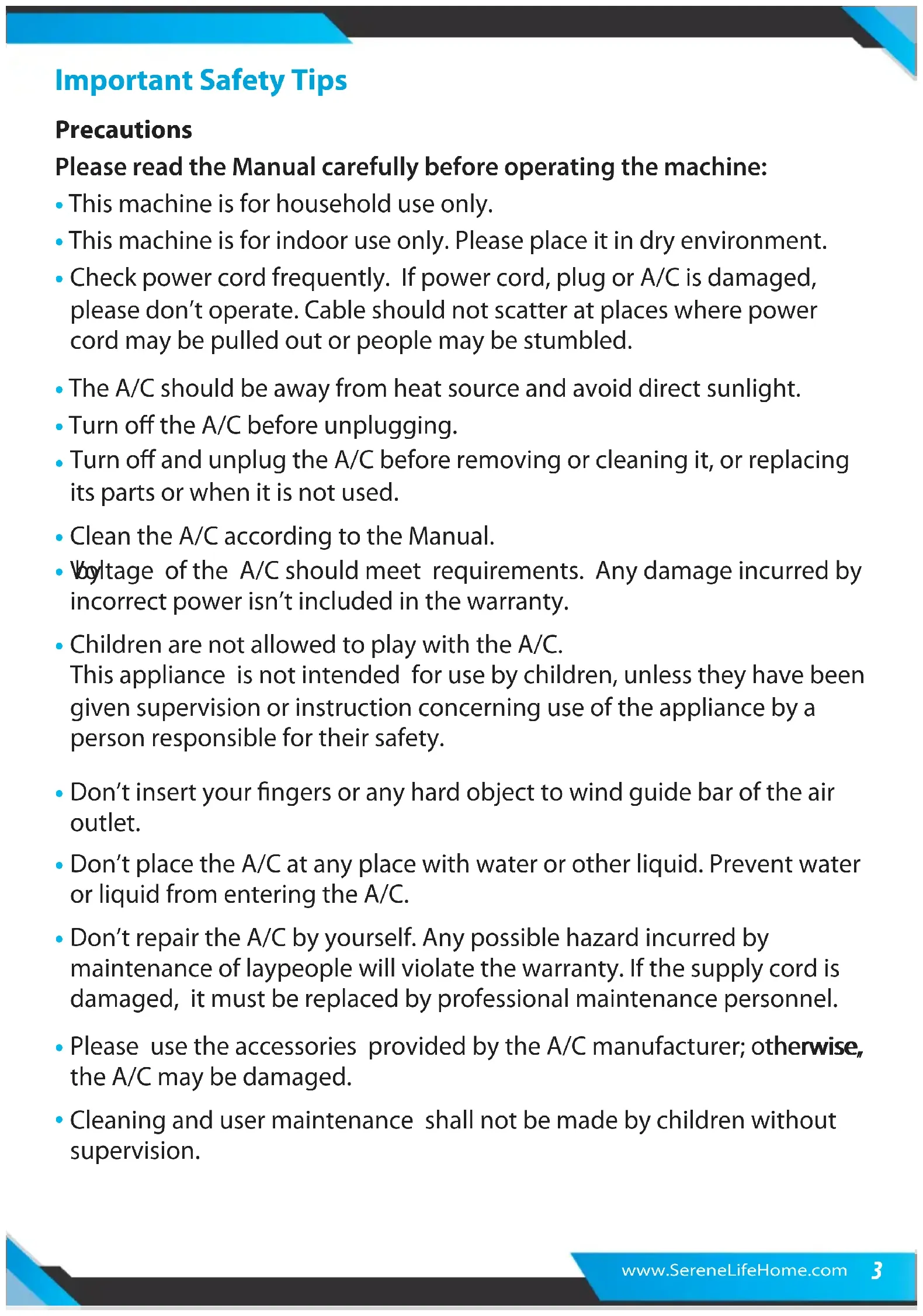

Important Safety Tips Precautions Please read the Manual carefully before operating the machine:

• This machine is for household use only.

• This machine is for indoor use only. Please place it in dry environment.

• The A/C should be away from heat source and avoid direct sunlight.

• Turn off the A/C before unplugging.

Clean the A/C according to the Manual.

Check power cord frequently. If power cord, plug or A/C is damaged, please don’t operate. Cable should not scatter at places where power cord may be pulled out or people may be stumbled. Turn off and unplug the A/C before removing or cleaning it, or replacing its parts or when it is not used. Don’t insert your fingers or any hard object to wind guide bar of the air outlet. Don’t place the A/C at any place with water or other liquid. Prevent water or liquid from entering the A/C. Please use the accessories provided by the A/C manufacturer; otherwise, the A/C may be damaged. Cleaning and user maintenance shall not be made by children without supervision. Voltage of the A/C should meet requirements. Any damage incurred by incorrect power isn’t included in the warranty. Children are not allowed to play with the A/C. This appliance is not intended for use by children, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Don’t repair the A/C by yourself. Any possible hazard incurred by maintenance of laypeople will violate the warranty. If the supply cord is damaged, it must be replaced by professional maintenance personnel.Never insert fingers, pencils or any other objects though the guard. Disconnect the power from the appliance before dismantling, assembling or cleaning. Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a qualified electircian. Do not operate the unit unless it has been fully installed following the guidance provided within this manual. SAFETY INSTRUCTIONS

Avoid touching any moving parts of the appliance.

Do not leave children unsupervised with this appliance.

Do not clean the unit by spraying it or immersing it in water.

DAMAGE MAY BE CAUSED TO THE COMPRESSOR; IF IN DOUBT WE SUGGEST WAITING AT LEAST 24 HOURS FOLLOWING INSTALLTION BEFORE STARTING THE UNIT. This appliance is for indoor use only. This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. Carefully read the instructions before installing and/or operating the unit. Installation must be in accordance with regulations of the country where the unit is used. If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, modified by a qualified electrician. This air conditioner has been tested and is safe to use. However, as with any electrical appliance - use it with care. This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities. It is also not intended for use by those with a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.www.SereneLifeHome.com

Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp objects/edges. Do not use the appliance for any purpose other than its intended use. Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to comply could result in a voided warranty. A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard. Avoid restarting the air conditioner unless 3 minutes have passed since being turned off. This prevents damage to the compressor. Never use the main plug as a switch to start and turn off the air condi- tioner. Use the provided ON/OFF button located on the control panel. The appliance should not be installed in laundry or wet rooms. The appliance must be installed in a room without sources of ignition (for example: open flames, an operating gas appliance or an operating electric heater). The unit must be installed on a solid vertical wall by a competent person. The electricity supply must only be connected after installation is complete. R290 refrigerant gas complies with European environmental directives. R290 has a low GWP (Global Warming Potential) of 3. The air conditioner contains about 245g of R290 refrigerant gas. Do not install or store in an unventilated space with an area smaller than 12m

per unit. The room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion hazard should the refrigerant come into contact with electric heaters, stoves or other sources of ignition. If the appliance is installed, used or stored in an unventilated room, the room must be such as to prevent stagnation of possible leaks or refrigerant gas as there could be a danger of fire or explosion should the refrigerant come into contact with electric heaters, stoves or other sources of ignition. Refrigerant gas may be odourless. Do not use the product and contact he retailer for advice, if damage has occured to the unit which may have compromised the refrigerant system.6 www.SereneLifeHome.com

NOTE: Some pictures and information may vary from the final product. This is due to continual product improvement. The refrigerant system should not be perforated or punctured. Any repairs or maintenance must only be carried out on the unit by a suitably qualified engineer. Before opening and servicing the unit the authorized engineer must be in possesion of a copy of the manufacturer’s service manual and must follow the safety information contained within it to ensure all hazards are minimized.Special Warning:

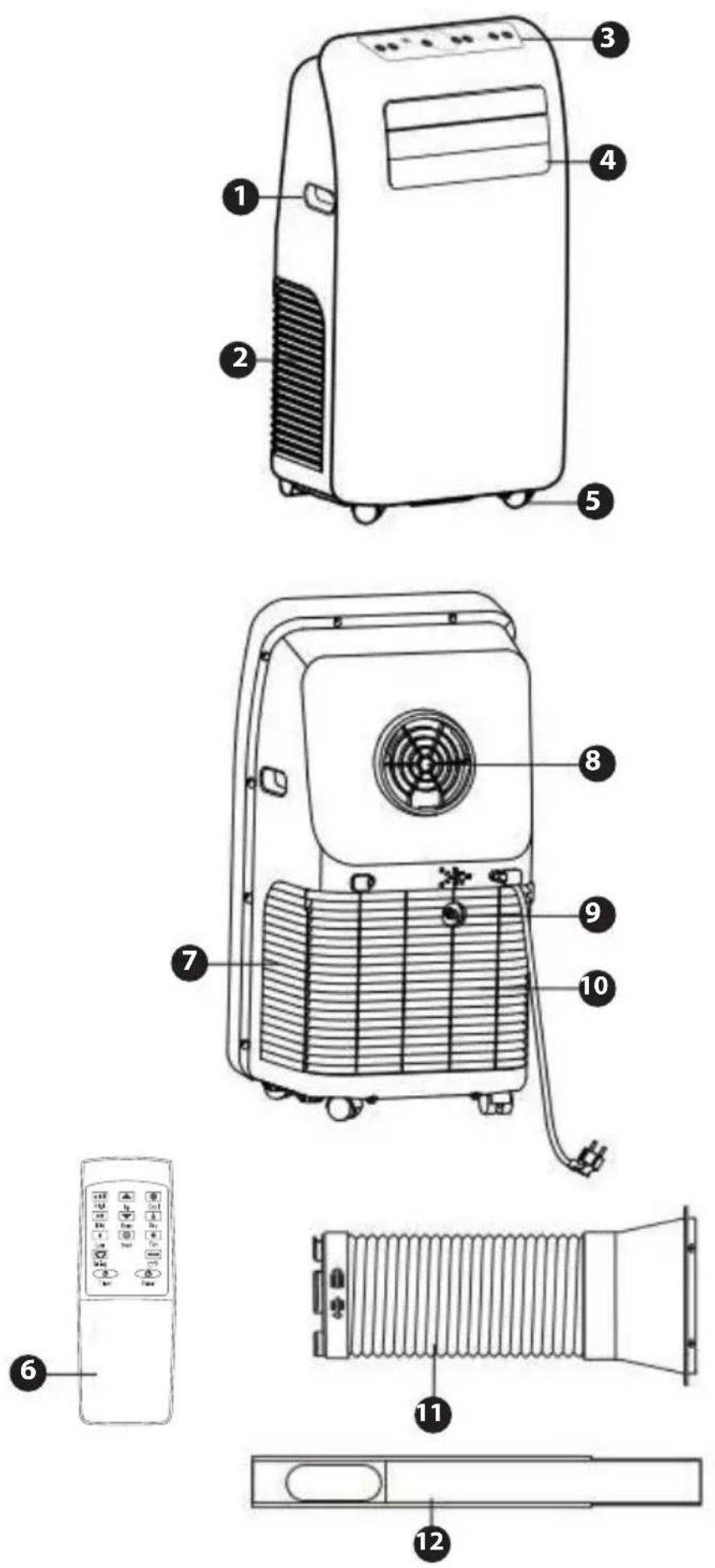

11. Exhaust duct assembly

Place the A/C on even ground and install it vertically, so as to ensure normal operation of the compressor. The A/C should be at least 50cm away from surrounding objects. Keep air inlet and outlet smooth. Place unit in upright position for 2 hours before turning on for first time. In order to run the A/C, plug the power cord first, and then press the power key. The plug should be in good condition and can’t be damaged. Don’t replace the plug with power plug. Don’t use the A/C beside gasoline or any other inflammable liquid . Don’t use spraying agent and other solvent or inflammable substances near the A/C; otherwise, its plastic may deform and electric parts may be damaged.1

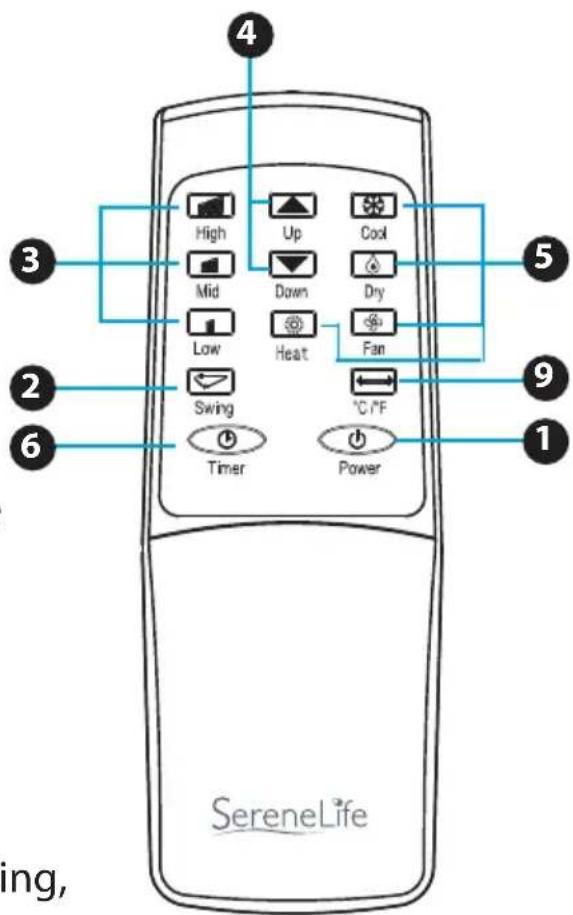

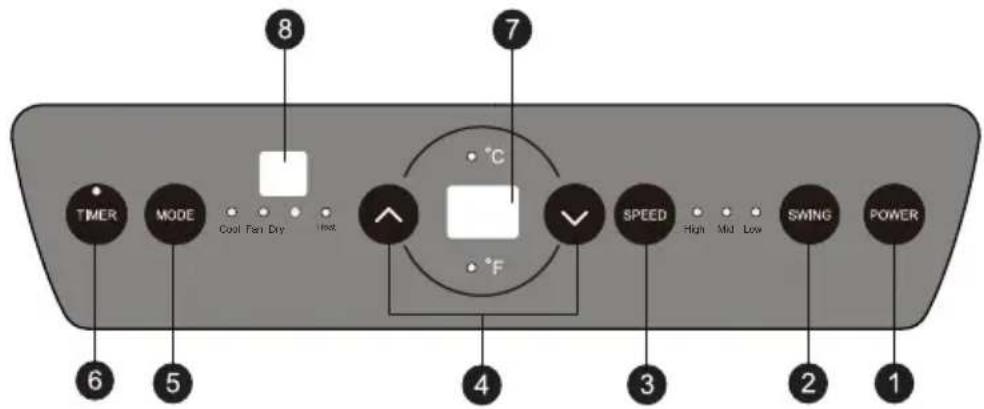

www.SereneLifeHome.comControl Panel and Remote Controller High Cool Fan Dry Mid Low Cooling and Heating Model

Heat www.SereneLifeHome.com

Power key Press the key to turn ON/OFF the A/C.

Swing key Press the key at any time after turning on the A/C to swing the wind guide bar automatically.

Speed key Press the key to choose high/middle /low gear wind speed.

Temperature/ Time Adjusting key Press the key at cooling mode to increase /reduce the setting temperature; press it at timing mode to adjust timing ON/OFF time; press Up and Down keys simultaneously to switch Fahrenheit and Centiade degree temperature.

Mode key Press the key to choose cooling, fan, heating, dehumidification.

°C/°F switching key: Press the key to switch °C and °F.9. Timer key Press the key at standby mode to set ON time. Press this key at ON mode to set OFF time.

Temperature/ Time Display Window This window displays the adjusted temperature and time.

Remote controller receiving window This window is used to receive signal of the remote controller. 8.Product Operation Placement and Installation Placement

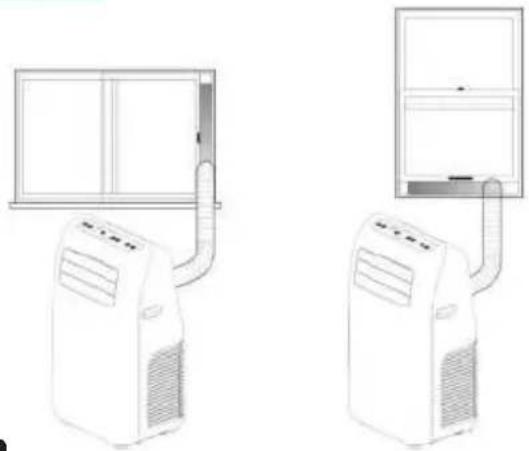

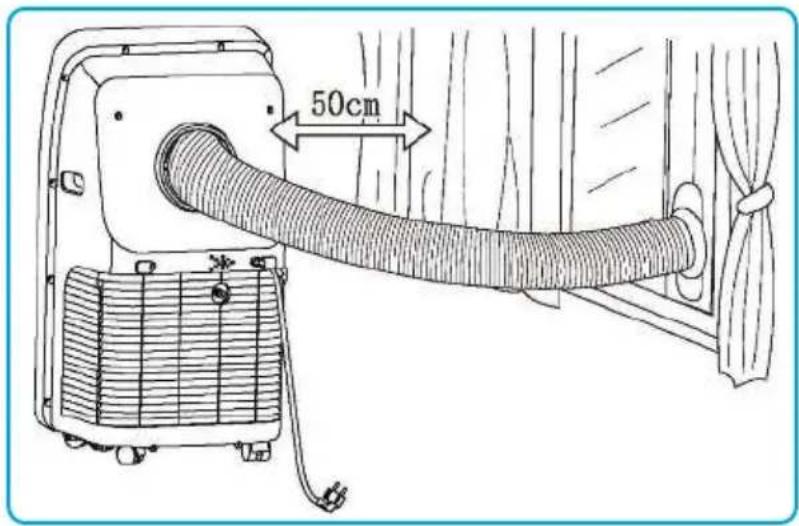

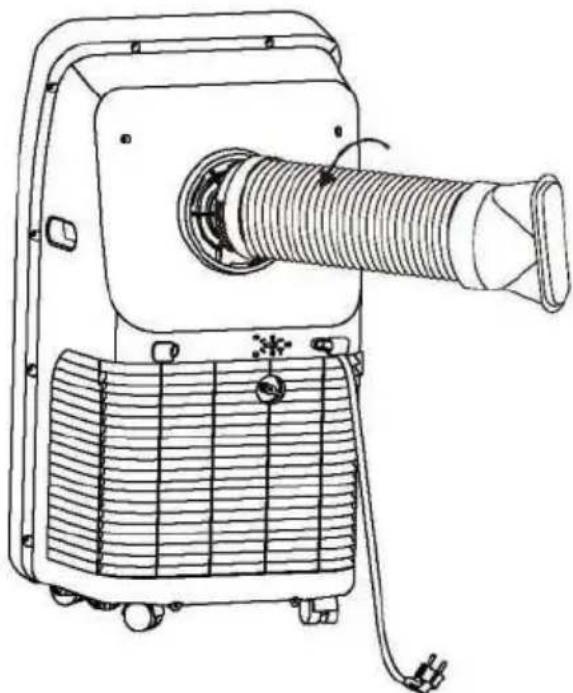

www.SereneLifeHome.com Place it at even and dry place, and keep it at least 50cm. away from its surrounding object. Screw the exhaust duct assembly in the air outlet behind the panel (counterclockwise). Insert the air exhaust hose into the window sealing plate, adjust opening width of window so that the window can match with the sealing plate properly; length of the sealing plate is adjustable.Incorrect Installation

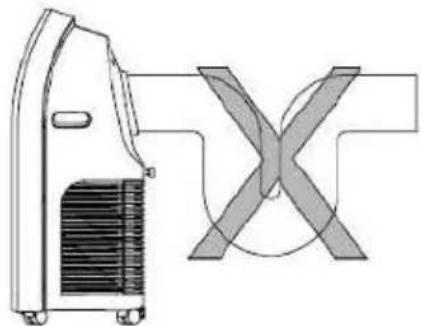

It’s important to keep the exhaust duct smooth. Incorrect installation will affect work of the A/C. The exhaust duct is designed especially for this model. Don’t replace or lengthen it; otherwise, it will result in failure. Ensure air can flow smoothly in the duct. Prevent the exhaust duct from sharp bending. Max. developed length of the exhaust duct is 1,500mm. It’s better to shorten it while in use and keep it horizontal while installation. When the A/C enters cooling mode automatically or cooling mode is selected after power ON, the cooling indicator lamp lights up. Press Speed key to choose High/Mid/Low speed. Press Up/Down key to adjust setting temperature (16°C~30°C)(60°F~86°F). Press Up/Down key to adjust setting temperature (16°C~30°C)(60°F~86°F). Plug in the unit and in standby mode, the ambient temperature will shows on the display screen, you can choose the working mode (Cool or Heat) and the desired temperature according to the ambient temperature. Also, the ambient temperature will shows on the display under Fan Mode and the Dehumidification Mode, and temperature setting is not avaliable in those two modes. When the A/C enters heating mode automatically or heating mode is selected after power ON, the heating indicator lamp lights up. Press Up/Down key to adjust setting temperature (16°C~30°C)(60°F~86°F).Clean and Maintenance DRAINAGE METHOD Fan Mode

Dehumidification Mode When pressing mode key or choosing Fan mode by pressing the remote controller, the wind indicator lamp lights up. Press Speed key to choose High/Mid/Low speed. Temperature can’t be set. In dehumidification mode, the fan is defaulted to run at low speed, and wind speed can’t be adjusted. This product is equipped with automatic water vaporization system. The condenser is cooled with the circulating of condensing water, so as to improve cooling efficiency and save energy. In ON state, pressure the timer key to set OFF time. Press Up and Down keys to set OFF time (1~24H), and the timer indicator lamp lights up. Temperature can’t be set. After entering the dehumidification mode, if room tempeartur e≥17°C (62°F), the compressor is ON. Then contr ol as follows: when room temperatur e ≤15°C (59°F), the compressor is OFF; when temperature increases to room temperatur e≥17°C (62°F), the compressor will start again (in order to protect the compressor, it will be restarted 3min. later). Remove the dehumidification water wedge, insert water manifold, place the other end of the water manifold into the water vessel or drainage passage, as shown in the right figure. When pressing mode key or choosing dehumidification mode by pressing the remote controller, the dehumidification indicator lamp lights up. In standby state, press the Timer key to set ON time. Press Up and Down keys to set ON time (1~24H), and the timer indicator lamp lights up.MAINTENANCE CLEANING

If filter is not that dirty, clean the dust with a vacuum cleaner. www.SereneLifeHome.com

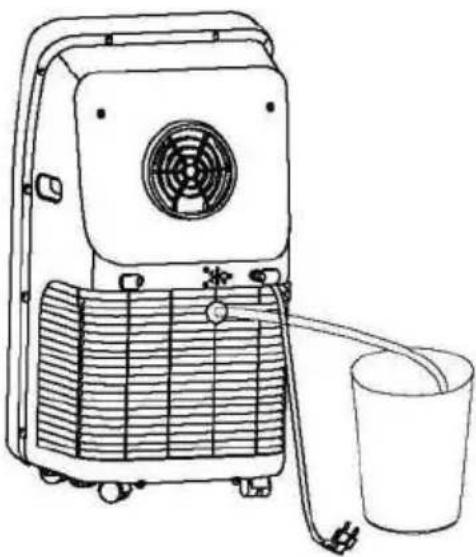

If the internal vessel is full of water, the display screen will display “FL”, and the compressor stops working automatically. After power off, unscrew the water cover, pull out the water plug to drain off water, and it will become normal after being restarted. Notice: In order to avoid electric shock, please turn off the A/C and unplug before maintenance or repair. Unplug before cleaning. Prevent water from spattering in the A/C. Wipe with soft semi-dry cloth. Don’t use chemical reagent, such as benzene, alcohol and gasoline etc; otherwise surface of the A/C and even the whole A/C will be damaged. Vacuum the filter screen once every two weeks. If it is blocked by dust, efficiency of the A/C will be reduced. Take out the air inlet grille and pull out the filter screen at both sides according to the direction shown in the following figures. Use vacuum to remove lint from filters. If filter is dirty, clean in 40°C (104°F) warm water or in water with neutral deterget. Put the filter screen into the warm water (about 40°C or 104°F) added with neutral detergent, dry it at a shady place after cleaning. Pull out the water plug to drain. Run the A/C in fan mode for 2H till the inside is dry. Turn off the A/C and unplug. Wash the filter screen and reassemble it. Dismantle the exhaust duct and keep it properly. Cover the A/C with a plastic bag and place it at a dry place.

• Voltage: 250VAC • Current: 3.15A Troubleshooting The above technical parameters are subject to change without notice. Error-detecting code Multi-functional defection E1 Error of the coil’s temperature sensor E2 Error of indoor temperature sensor

The compressor doesn’t work

TROUBLE CAUSE SOLUTION

www.SereneLifeHome.com Anti-freezing protection: temperature of the coil is too low and the whole A/C is off. When temperature excesses 8°C or 46.4°F, the protection is released and previous working state is recovered. The display panel displays “FL” No displayDirect sunlight In case of any of the following trouble, please contact professional maintenance personnel in time. Notice: When there is any abnormal to the A/C, turn it off and unplug, and then contact professional maintenance personnel. Doors and windows keep open;there are lots of peopleor heat source in roomTime OFF function is startedThe A/C is placed unevenlyIts delay protection is startedAir inlet or air outlet is blockedFilter screen is very dirtyReset circuit breaker on AC cordDraw the curtainClean or replace itRemove the stemThe A/C can be restarted 3 minutesafter being turning off.Close doors and windows, remove heat sourcePlace it at even and firm ground,avoid shakingWait for 3min., turn on aftertemperature decreasesRestart the A/C after power off anddraining, then it will become normalSLACHT128EU Features: www.SereneLifeHome.com

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landÿlls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well -being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Portable Air Conditioner Compact Home AC Cooling and Heating Unit with Built-in Dehumidifier & Fan Modes, Includes Window Mount Kit (12,000 BTU) Lightweight & Portable AC Unit Compact Freestanding Room Air Conditioner (4) Operation Modes: AC Cool / Heat / Dehumidifier / Fan Hassle-Free, Quick Setup Heating & Cooling Simple Electric Air Circulator Function Temp Control Air Circulator Function Automatic Swing Mode: Moving Wind Vents for Air Circulation Convenient Wide-Area Climate Control Room AC Coverage Touch Button Control Panel with Digital LED Display Time, Temperature & Fan Speed Adjustment Settings Includes Universal Window Mount AC Exhaust Kit Removable & Washable Air Filter Screen Modern Style, Sleek Body Housing Energy Efficient: Low Power Consumption Low Noise Level Motor Rolling Wheels for Easy Portability Used for Home, Office, School & Business Rooms

• This product can expose you to a chemical or group of checmicals, which may include ”Acrylonitrile” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/. What’s in the Box:

www.SereneLifeHome.com Technical Specs: AC Cooling Power: 12,000 BTU Heating Power: 12,000 BTU Coverage Area: Cools & Heats Rooms Up to 400’+ Square Feet Rated Power: Cooling: 1370W/ Heating: 1350W Air Flow: 360 Cubic Meters / Hour Operating Modes: Cool / Heat / Fan / Dry (Dehumidifier) Moisture Removal / Dehumidifier: 1.2 Liters / Hour Operating Noise Level: 65 dB(A) Fan Speed Settings: Low/Medium/High Temperature Unit Selectable: °F / °C (Fahrenheit / Celsius) Adjustable Timer Settings: Up to 24 Hours Construction Material: Engineered ABS Housing Battery Operated Remote Control, Requires (2) x ‘AAA’ Batteries, Included Power Cable Length: 4.3’ ft. Power Supply: 220V Dimensions (L x W x H):

• This machine is for household use only.

Heat www.SereneLifeHome.com

Heat www.SereneLifeHome.com

Placement and Installation Placement Installation

Heat www.SereneLifeHome.com

Heat www.SereneLifeHome.com

Heat www.SereneLifeHome.com

Heat www.SereneLifeHome.com

• Dijital Uzaktan Kumanda UYARI:Questions or Comments We are here to help! Phone: [phone] Serenelifehome.com/ContactUs
