Product Type	Ceramic hob
Brand	BRANDT
Model	TV682BT1
Dimensions (approx.)	Width: 58-77 cm, Depth: 51 cm, Height: 6.4 cm
Power supply	220-240 V ~ 32 A or 400 V 2N ~ 16 A
Number of cooking zones	4 zones (including an additional zone)
Zone type	Radiant (ceramic glass)
Max power per zone	Not specified, setting from 1 to 9
Timer	Independent and per cooking zone, up to 99 minutes
Child safety	Yes, control lock
Automatic shut-off	Auto-Stop system (shut-off after 1-10 h depending on power)
Residual heat indicator	Yes (display H or indicator light)
Maintenance and cleaning	Clean with sanitary sponge, special glass scraper for stubborn dirt, white vinegar for limescale marks, special ceramic hob cleaner for weekly maintenance
Safety	Do not use steam cleaner; in case of glass crack, unplug immediately
Spare parts and repairability	Ceramic glass replaceable by after-sales service; power cable replaceable only by manufacturer or qualified professional
General information	Built-in; minimum distance to walls: 4 cm; sealing gasket supplied; household use only

Frequently Asked Questions - TV682BT1 BRANDT

How to clean my BRANDT TV682BT1 ceramic hob?

For light soiling, use a sanitary sponge soaked in hot water. For encrusted or sugary soiling, use a special glass scraper then a sanitary sponge. Hot white vinegar removes limescale marks. A special ceramic hob cleaner with silicone is recommended for weekly maintenance.

What should I do if the glass of my hob cracks?

In case of a crack or fissure, even slight, immediately unplug the appliance to avoid risk of electric shock. Do not use the hob anymore and contact after-sales service for glass replacement.

How to activate child safety?

Press and hold the lock key until the LED lights up and a beep confirms. The hob is then locked: only existing settings remain active, but the 'stop' key remains functional. To unlock, press the lock key again until the LED goes off.

Why does my hob display 'AS' or 'A' and beep?

This is the activation of the 'Auto-Stop system' function: a cooking zone was left on too long and turned off automatically. Press any key to stop the beep. If the problem persists, check the hob usage.

How to set the independent timer?

Hob off only: press and hold the timer key until '0' appears, then set the time from 1 to 99 minutes using the + and - keys. To cancel, press simultaneously the - and + keys of the timer. Note: the independent timer cannot be used when cooking zones are on.

What types of cookware to use on the ceramic hob?

Choose flat and thick-bottomed cookware, stainless steel with sandwich base, thick smooth-bottomed aluminum, or enameled steel. Avoid rough or dented bases that could scratch the surface. The base diameter must be at least equal to the cooking zone.

My hob does not turn on, what to do?

Check that the appliance is plugged in and the circuit breaker has not tripped. Inspect the fuses. If the display remains off, the problem may be due to the electrical connection. Consult the 'Connection' chapter of the manual.

How to use the additional zone?

The additional zone only works when the corresponding main zone is on. Press the Ⓗ key after setting a power level on the main zone. A beep confirms, and the display alternates between power and 'E'. Adjust power if necessary. To deactivate, press Ⓗ again.

Why does the residual heat indicator stay on after switching off?

This is normal: the cooking zone is still hot. Do not touch the zone while the indicator is on to avoid burns. The indicator goes off when the temperature drops below about 60°C.

Can I use a steam cleaner on my hob?

No, using a steam cleaner is not recommended as steam can damage the hob. Use only the cleaning methods recommended in the manual (sanitary sponge, scraper, specific products).

USER MANUAL TV682BT1 BRANDT

EN GUIDE TO INSTALLATION AND USE

Pure electrical circuit lines without any symbols

FR 2 / UTILISATION DE VOTRE APPAREIL

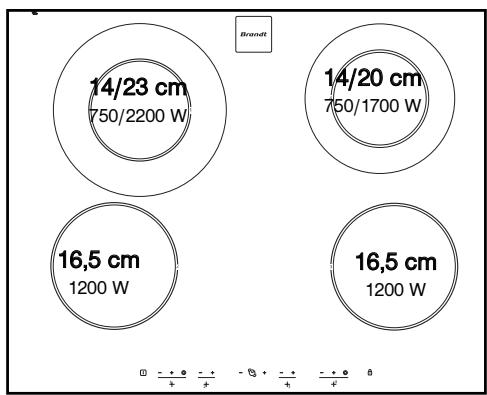

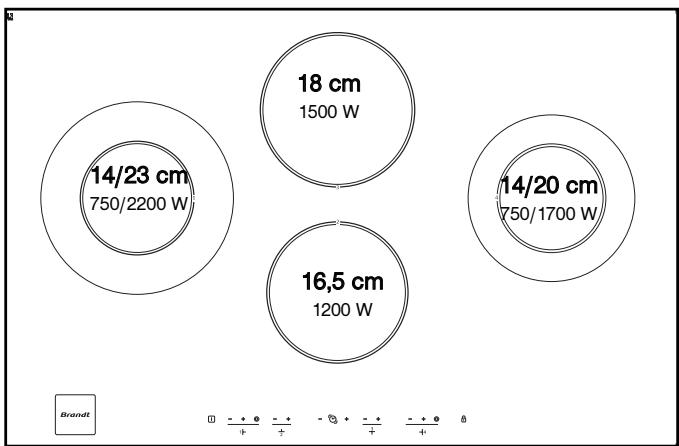

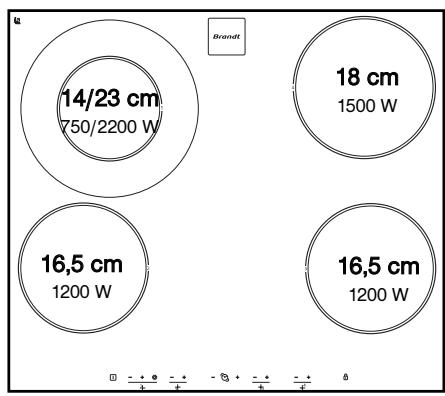

• DESCRIPTION DE VOTRE DESSUS

TV 622

TV 624

TV 682

2 / UTILISATION DE VOTRE APPAREIL

FR

• RECIPIENTS POUR LA VITROCÉRAMIQUE

- Les récipients

You have just acquired a BRANDT hob and we would like to thank you.

We have invested all our dedication and know-how in this appliance so that it would best meet your needs. With innovation and performance, we designed it to be always easy to use.

In the BRANDT product range, you will also find a wide choice of ovens, microwaves, ventilation hoods, cookers, dishwashers, washing machines, driers, fridges and freezers, that you can coordinate with your new BRANDT hob

Visit our website www.brandt.com where you will find all of our products, as well as useful and complementary information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

EN CONTENTS

• Safety instructions ____ 17
• Care of the environment ____ 17
  • Description of your appliance ____ 18

1 / INSTALLING YOUR APPLIANCE

• Choice of location 19
  • Build-in ____ 19
• Connection 20

2 / USING YOUR APPLIANCE

• Description of the top ____ 21
• Cookware for vitroceramics ____ 22
• Description of control panel ____ 23
- Switching on ____ 23
- Adjusting the power level 23
- Switching off the hob 23
• Additional cooking zone ____ 23
- Independent timer ____ 23
- Setting the timer ____ 23
• Using the child safety system ____ 23
- Hob operating safety 24

3 / MAINTAINING YOUR APPLIANCE

• Caring for your appliance ____ 25
- Maintaining your appliance 25

4 / SPECIAL MESSAGES, DIFFICULTIES

• When using for the first time ____ 26
• When switching on ____ 26
• Whilst using ____ 26

5 / COOKING CHART 27

SAFETY INSTRUCTIONS

EN

• SAFETY INSTRUCTIONS

We have designed this cooking hob for use by private individuals in their homes.

These cooking hobs are intended exclusively for cooking beverages and foodstuffs and do not contain any asbestos-based materials.

- Residual heat

While an operating cooking zone is very hot, a lamp or "H" (depending on the models) for this zone, is lit in the indicator.

When a cooking zone is in a stop position and its temperature is high this display remains lit.

After a prolonged power cut another indicator light may appear; it will go out after any key is pressed. However, the temperature of the radiant cooking zones may remain high.

Warning

Do not touch these zones, burn risk.

Do not look for a long time at the halogen lamps in the cooking zones.

- Child safety feature

Your hob has a child safety feature which locks it when stopped or during cooking (see section: using the child safety feature).

Do not forget to unlock before using again.

Electrical danger

Ensure that the power cable of a connected electrical appliance near the hob is not in contact with the cooking zones.

If a crack appears in the surface of the glass, disconnect your appliance immediately to prevent a risk of electric shock.

To do this, remove the fuses or use the circuit breaker.

Do not use your hob until you have replaced the glass worktop.

• CARE OF THE ENVIRONMENT

- This appliance's packing materials are recyclable. Recycle them and play a role in protecting the environment by depositing them in municipal containers provided for this purpose.

- Your appliance also contains many recyclable materials. It is therefore marked with this logo to indicate that used appliances must not be mixed with other waste. Recycling of the appliances organised by your manufacturer will thus

be undertaken in optimum conditions, in accordance with European directive 2002/96/CE relating to electrical and electronic equipment waste. Consult your city hall or your retailer to find the drop-off points for used appliances that is nearest to your home.

– We thank you for your help in protecting the environment.

EN

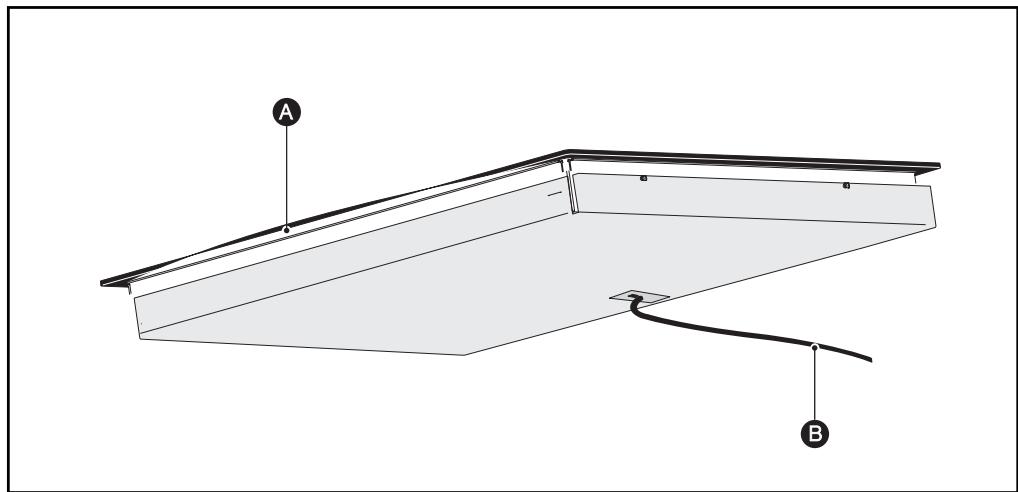

• DESCRIPTION OF YOUR APPLIANCE

A Vitroceramic glass
B Power cord

1 / INSTALLING YOUR APPLIANCE

EN

Your appliance should be positioned so that the mains switch is accessible.

The distance between the edge of your appliance and the side and rear walls (or partitions) must be at least four centimetres (area A).

The hob may be inserted directly in the work-top above the oven in the upper position. (minimum distance 10 mm)

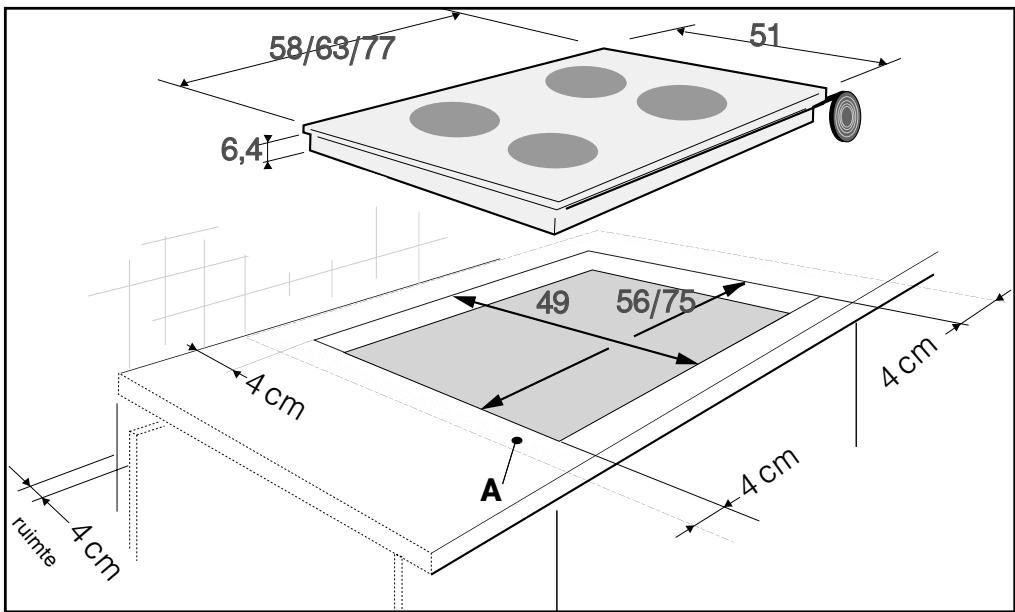

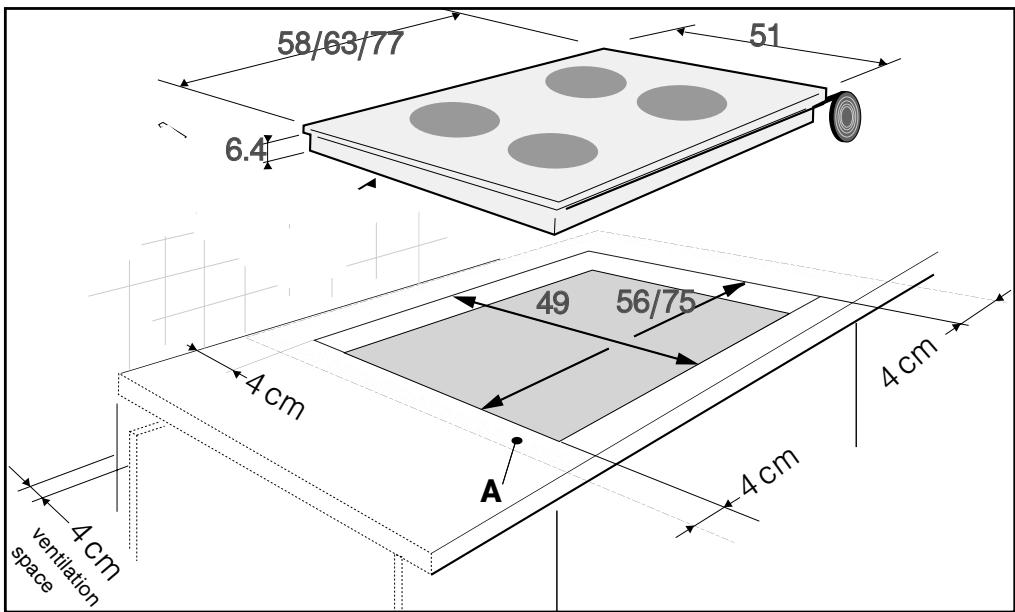

- BUILD-IN

Follow the diagram above.

A joint provides the seal with the worktop.

- This joint is glued under your hob; insert the hob directly in the cut-out.

- This joint is supplied in the envelope; glue it under the hob.

EN 1 / INSTALLING YOUR APPLIANCE

- CONNECTION

These hobs must be connected to the mains using a socket in compliance with publication CEI 60083 or an all-pole circuit-breaker device in compliance with the installation rules in force.

When power is first supplied to your hob, or after an extended power cut, an indicator light will appear on the control panel. Wait for approximately 30 seconds until this information disappears before using your hob (This display is normal and it is intended, if applicable, for your after-sales service. In all cases, the user of the hob should disregard it).

Warning

If the cable is damaged it must be replaced by the manufacturer, its after-sales service or a person with a similar qualification to prevent danger.

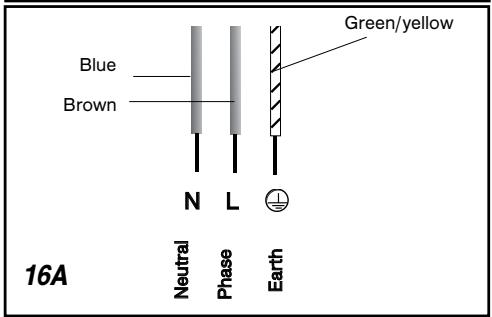

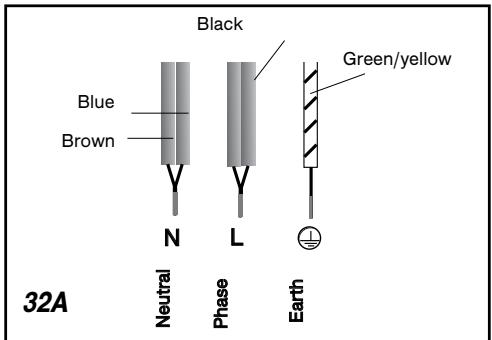

• Connection of 220-240V \~

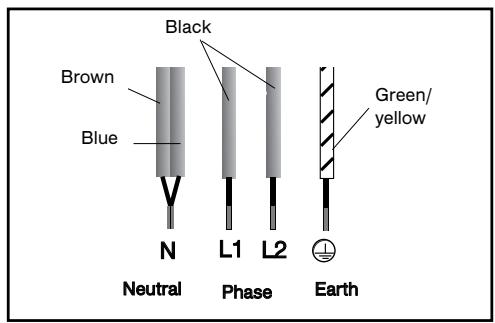

- Connection of 400V 2N \~ - 16A

Separate the 2 phase wires (L1 and L2) before connection.

For a 400 V 2N triphase connection, if your hob malfunctions, check that the neutral conductor is properly connected.

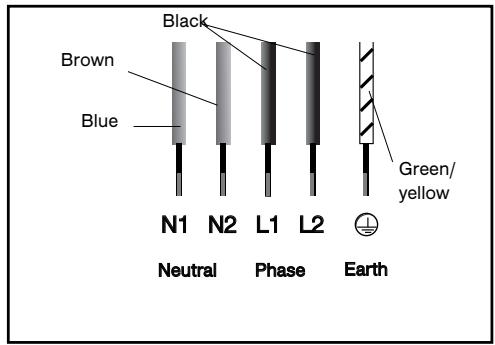

- Connection of 2x230V 2L+2N \~ - 16A

Separate the wires before connection.

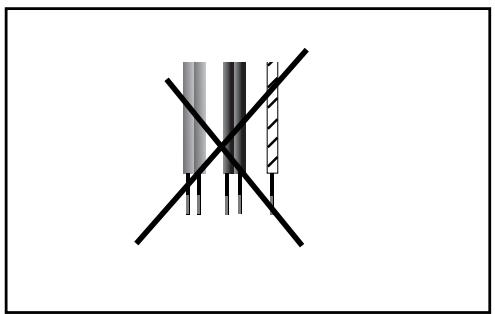

• Connection of 400V 3 \~ - 16A

Pure electrical circuit lines without any symbols

2 / USING YOUR APPLIANCE

EN

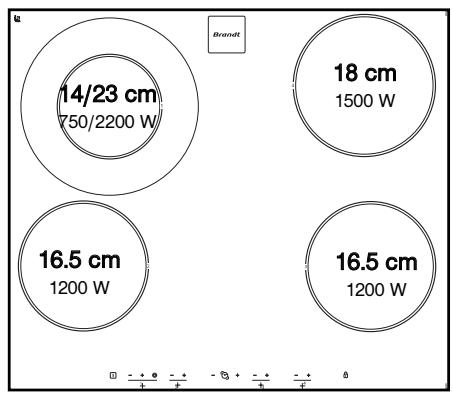

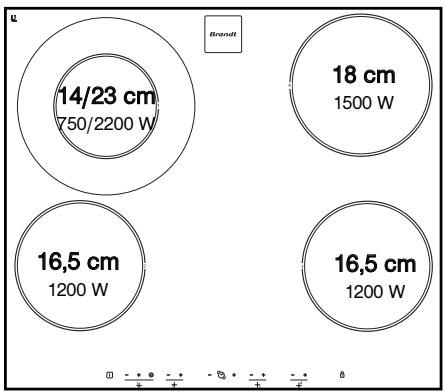

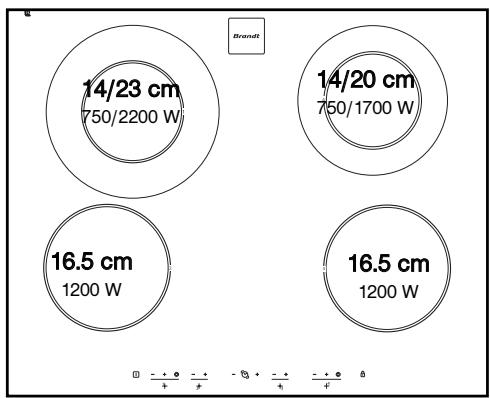

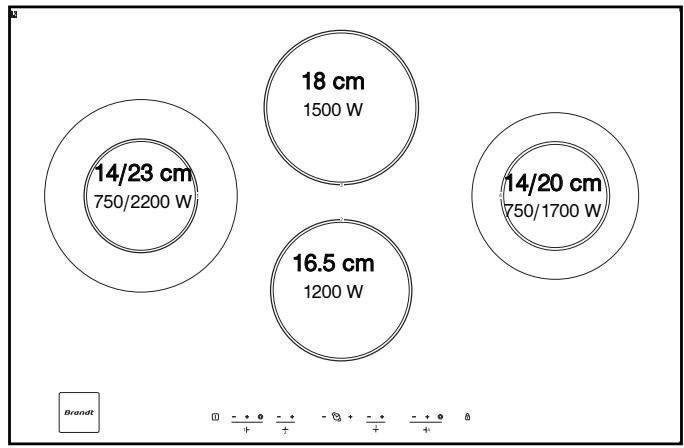

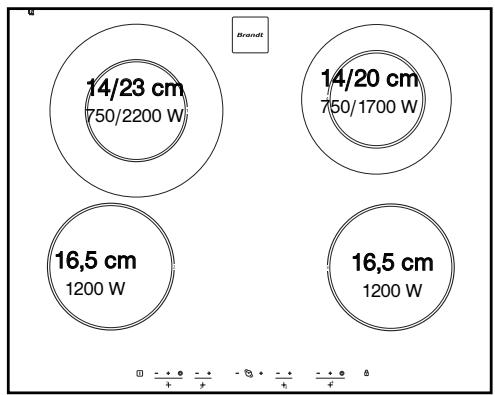

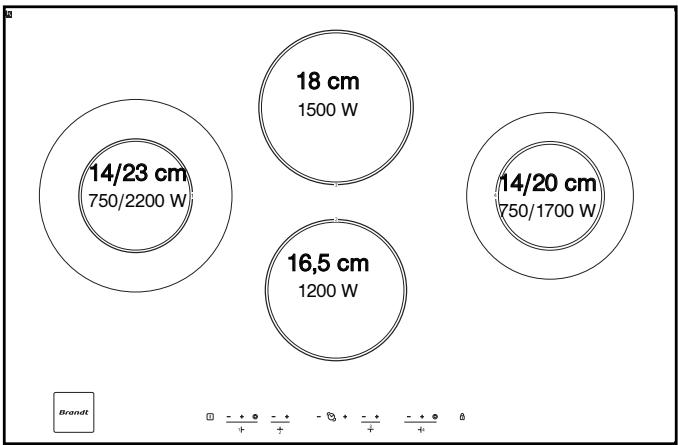

• DESCRIPTION OF THE TOP

TV 622

TV 624

TV 682

EN 2 / USING YOUR APPLIANCE

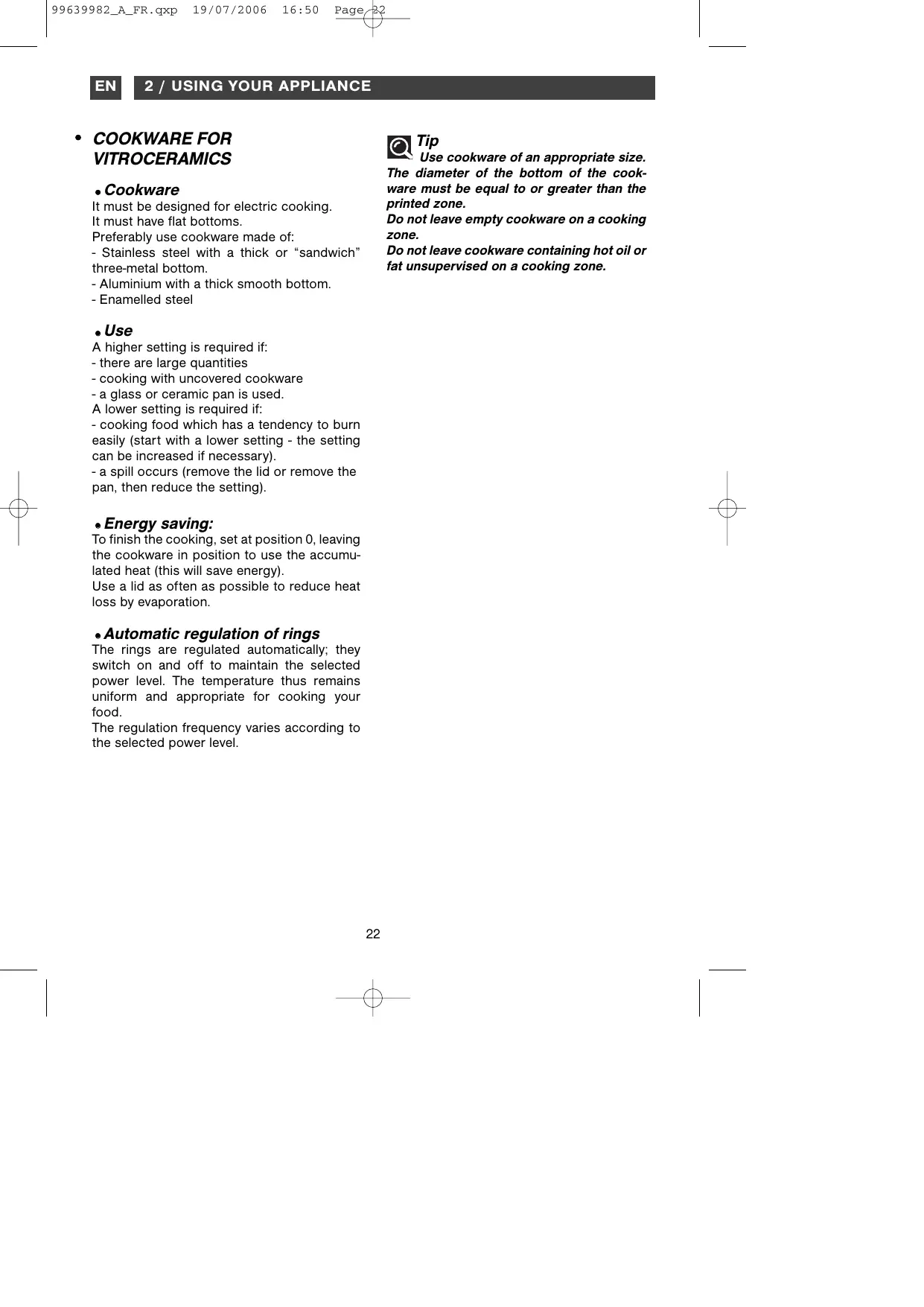

• COOKWARE FOR VITROCERAMICS

• Cookware

It must be designed for electric cooking. It must have flat bottoms.

Preferably use cookware made of:

• Stainless steel with a thick or "sandwich" three-metal bottom.
• Aluminium with a thick smooth bottom.
• Enamelled steel

• Use

A higher setting is required if:

• there are large quantities
• cooking with uncovered cookware
• a glass or ceramic pan is used.

A lower setting is required if:

• cooking food which has a tendency to burn easily (start with a lower setting - the setting can be increased if necessary).
• a spill occurs (remove the lid or remove the pan, then reduce the setting).

• Energy saving:

To finish the cooking, set at position 0, leaving the cookware in position to use the accumulated heat (this will save energy).

Use a lid as often as possible to reduce heat loss by evaporation.

• Automatic regulation of rings

The rings are regulated automatically; they switch on and off to maintain the selected power level. The temperature thus remains uniform and appropriate for cooking your food.

The regulation frequency varies according to the selected power level.

Use cookware of an appropriate size.

The diameter of the bottom of the cookware must be equal to or greater than the printed zone.

Do not leave empty cookware on a cooking zone.

Do not leave cookware containing hot oil or fat unsupervised on a cooking zone.

2 / USING YOUR APPLIANCE

EN

• DESCRIPTION OF CONTROL PANEL

A Hob on/off key.
B Power keys - + for each cooking zone.
C Cooking zone timer keys.

• SWITCHING ON THE HOB

- Press key ☐, table On switch.

- Press keys - + of the cooking zone you wish to use to adjust the power level. Do the same operation for the other cooking zones.

• SWITCHING HOB OFF

To stop a ring press simultaneously for several seconds keys “+” and “-” or key “-” until 0. To stop all the rings of the hob use key ☐

• ADDITIONAL ZONE

The additional cooking zone can be used only when the main heating zone is in operation. To switch it on:

When switching on:

- Setting the power level. - Press the touch control Ⓞ, a beep will confirm your action, alternatively the power setting and an “E” will be displayed, adjust the power if necessary.

To switch it off: - Press the touch control Ⓞ, a beep will confirm your action.

• INDEPENDENT TIMER

1 -Only available when the hob is switched off

3 - Set the duration up to 99 minutes To stop the timer, press simultaneously on “-” and “+”.

Tip

You cannot use the independent timer whilst the cooking zones are switched on.

SETTING THE TIMER

There is a timer for each cooking zone. Use the ⚙ button to select the cooking zone for which you would like to use the timer. For the TV 622 and TV 624 models, an LED lights up.

For the TV 682 model power is indicated by a flashing light

• To use the timer:

1 - Turn on the cooking zone.
2 - Adjust the power.
3 - Select this cooking zone in the timer display.
4 - Select duration by pressing “+” or “-”. When you have finished cooking, the cooking zone turns itself off, the timer shows 0 and a beep sounds.
5 - Press the “+” or “-” touch controls to stop this beeping.

EN 2 / USING YOUR APPLIANCE

- Modifying the timer settings:

1 - Select this cooking zone in the timer display.
2 - Press the “+” or “-” timer touch controls.

• To stop the timer :

1 - Select this cooking zone in the timer display.
2 -Press the “+” and “-” timer touch controls simultaneously for a few seconds or the “-” timer touch control until 0.

- Setting the timer for another zone

Select another zone in the timer display. The display lights up, set the duration.

N.B.

When several timers are functioning, the LED or flashing light in the power display indicates the zone or timer which may be modified or turned off.

• USING THE "CHILD SAFETY" FEATURE

Your cooking hob has a child safety feature which locks controls which are not in use (for cleaning, for example) or during cooking (to keep your settings).

For safety reasons, only the "stop" key is always active and and allows the heating zone to be switched off even if locked.

•How do you lock it?

Keep the locking key held down until the LED above it lights up and a beep confirms your operation.

• Hob locked in operation

The display of the cooking zones in operation indicates, in alternation, the power and the locking symbol 🔒.

When you press the power or timer keys of the zones in operation, the LED of the lock lights up; it will go out after a few seconds,

Only the "stop" key is always active

In the cooking zones which are not in operation, the symbol 🔒 and the LED light up when you press the “on/off” keys.

This display disappears after a few seconds,

• The hob is locked at stop

The LED above the lock key is unlit. Pressing this LED for a short time causes the LED to light up.

The LED is displayed when you press an on/off key in any zone.

• How do you unlock it?

Press the lock key until the LED goes out and a double beep confirms your operation.

Tip

Remember to unlock your hob before reusing it (see section "using child safety" feature).

• HOB OPERATING SAFETY FUNCTIONS

• Auto-Stop system

If you forget to turn off a cooking zone your cooking hob has a safety function "Auto-Stop system" which automatically turns off the forgotten cooking zone after a predefined time (between 1 and 10 hours, depending on the power used).

If this safety function is activated, the disconnection of the cooking zone is signalled by the display "AS" or "A" in the control zone and a beep is emitted for approximately 2 minutes. Simply press any key of the controls to stop it. A double beep will confirm your action.

3 / MAINTAINING YOUR APPLIANCE

EN

• CARING FOR YOUR APPLIANCE

Avoid hard shocks from cookware:

The vitroceramic glass surface is highly resistant, but not unbreakable.

Do not place any hot lids flat on your coo-king hob. A “sucker” effect might damage the vitroceramic top.

Avoid rubbing cookware: in the long term this might cause damage to the decoration of the vitroceramic top.

Do not place cookware on your frame or trimmings (depending on model).

Avoid using cookware with rough or bumpy bottoms: they can capture and transfer particles that may produce stains or scratches on your hob.

These faults, which do not prevent operation or unsuitability for use, are not covered by the guarantee.

Do not store cleaning products or flammable products in the cabinet underneath your cooking hob.

Do not reheat an unopened tin: it might explode.

Of course, this precaution applies to all types of cooking.

For cooking, never use aluminium foil. Never place items wrapped in aluminium foil or packaged in aluminium dishes on your cooking hob.

The aluminium will melt and permanently damage your cooking appliance.

Objects not intended for cooking should never be placed on the hob (risk of powering on, scratches, etc.).

Steam cleaning should never be used. The steam jet could damage your hob.

• MAINTAINING YOUR APPLIANCE

TYPE OF S TAINS/SPOTS	USE	WHAT TO DO
Light.	Cleaning sponges	Thoroughly moisten the zone to be clea-ned with hot water, then wipe off.
Accumulation of baked-on stains/dirt.Sugar spills,melted plastics.	Cleaning spongesScraper for glass.	Thoroughly moisten the zone to be clea-ned with hot water. Use a scraper forglass to remove the large bits, follow withthe rough side of a disinfectant sponge,and then wipe off.
Rings and hard water residue.	White vinegar.	Apply warm white vinegar to the stain, letstand, then wipe with a soft cloth.
Shiny metal colourings.Weekly maintenance.	Special vitroceramic glass product.	Apply a cleaning agent for vitroceramic glass (preferable one with silicone for itsprotective properties) to the surface.
cream special cleaning sponge powder abrasive sponge for delicate crockery

EN 4 / SPECIAL MESSAGES, INCIDENTS

• On first use

YOU OBSERVE THAT:	POSSIBLE CAUSES:	WHAT YOU SHOULD DO:
A special lamp appears.	Working normally.	Nothing.
Your installation blows a fuse.	The electrical connection of your hob is incorrect.	Check that it is compliant.See section on electrical connection.
Only one side works.

• On switching on

YOU OBSERVE THAT:	POSSIBLE CAUSES:	WHAT YOU SHOULD DO:
The hob does not operate and the indicator lights on the control panel do not light up.	The machine is not connected to the power source. The power source or connection is defective.	Inspect the electrical circuit breaker and fuses.
the hob does not function, the information 🔍 is displayed.	The hob is locked	See section on using the child safety system

• Whilst in use

YOU OBSERVE THAT:	POSSIBLE CAUSES:	WHAT YOU SHOULD DO:
The hob has stopped operating and is beeping every 10 seconds approximately and aor F7 is displayed.	There was an overflow or an object is in contact with the control panel.	Clean the hob or remove the object, then begin cooking again.
A series of smallor F7 is displayed.	The electronic circuits have heated.	See “Build-in” section.

Warning

In the event of breakage, crack or fissure, even minimal, of the vitroceramic glass,

immediately disconnect your appliance to prevent a risk of electric shock.

Contact the After-Sales Service Department.

5 / COOKING CHART

EN

• VITROCERAMIC

		FRYBRING TOA BOIL	COOK/BROWNRETURN TO BOILINGBOILING LIGHT BROTHS		COOK/SIMMER			KEEPWARM
		9	8	7	6	5	4	3	2	1
SOUPS	BROTHS
	THICK SOUPS
FISH	COURT BOUILLON
	FROZEN FOODS
SAUCE	THICK, FLOUR-BASED
	BUTTER-BASED WITH EGGS(BEARNAISE, HOLLANDAISE)PREPARED SAUCES
		9	8	7	6	5	4	3	2	1
VEGETABLES	ENDIVES, SPINACH
	DRIED BEANS
	BOILED POTATOES
	GOLDEN BROWN POTATOES
	SAUTEED POTATOES
	DEFROSTING VEGETABLES
MEAT	MEAT, NOT TOO THICK
	STEAKS, IN SKILLET
	GRILLED MEATS (CAST IRON GRILL)
FRYING	FROZEN FRENCH FRIES
	FRESH FRENCH FRIES
		9	8	7	6	5	4	3	2	1
MISCELLANEOUS	PRESSURE COOKER(ONCE IT STARTS WHISTLING)
	COMPOTES
	CRÉPES
	CRÈME ANGLAISE
	MELTED CHOCOLATE
	JAMS
	MILK
	EGGS, FRIED
	PASTA
	JARS OF BABY FOOD(DOUBLE BOILER)
	MEAT STEW
	SPANISH RICERICE PUDDING

PT

Brandt

Simple line drawing of a glass cylinder and a rectangular block with textured patterns, both crossed by black lines (no text or symbols)

pó
esponja abrasiva

4 / MENSAGENS ESPECÍFICAS E INCIDENTES

PT

Pure electrical circuit lines without any symbols

1 / INSTALLATIE VAN HET APPARAAT

NL 1 / INSTALLATIE VAN HET APPARAAT

• KEUZE VAN DE PLAATS

1 / INSTALLATIE VAN HET APPARAAT

NL

• AANSLUITING

NL 2 / GEBRUIK VAN HET APPARAAT

• BESCHRIJVING VAN DE BOVENZIJDE

TV 622

TV 624

TV 682

2 / GEBRUIK VAN HET APPARAAT

NL

- KOOKPOTTEN VOOR PLATEN VAN GLASKERAMIEK

• De kookpotten
