USER MANUAL Perfect Juicer PJ450 Eldom

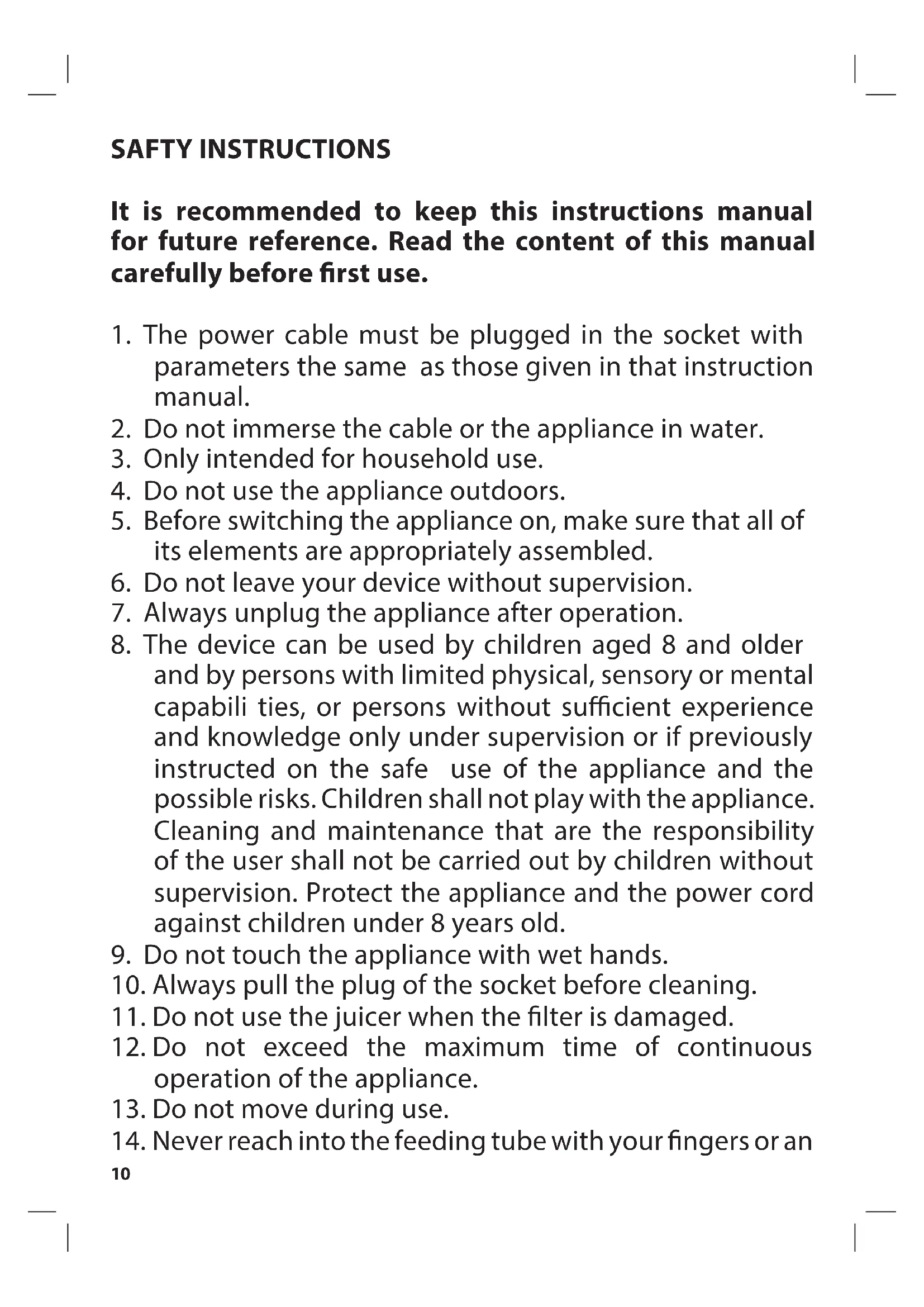

1. The power cable must be plugged in the socket with

parameters the same as those given in that instruction manual.

2. Do not immerse the cable or the appliance in water.

3. Only intended for household use.

4. Do not use the appliance outdoors.

5. Before switching the appliance on, make sure that all of

its elements are appropriately assembled.

6. Do not leave your device without supervision.

7. Always unplug the appliance after operation.

8. The device can be used by children aged 8 and older

and by persons with limited physical, sensory or mental capabili ties, or persons without sucient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

9. Do not touch the appliance with wet hands.

10. Always pull the plug of the socket before cleaning.

11. Do not use the juicer when the lter is damaged.

12. Do not exceed the maximum time of continuous

operation of the appliance.

13. Do not move during use.

14. Never reach into the feeding tube with your ngers or an11

object while the appliance is running.Only the pusher is to be used for this purpose.

15. Do not operate the juicer for more than 40 seconds at

a time when juicing heavy loads and let it cool down suciently afterwards.

16. Never use the appliance if the supply cord is damaged.

If found dama ged in any way,consult the producer’s authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

17. The appliance can be used only with the originally

included accessories.

18. Refer servicing to an authorized service centre. Modifying

the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

WARNING: Improper use of the appliance may cause

WARNING: Plastic bag can be dangerous, to avoid

danger of suocation keep this bag away from babies and children.12

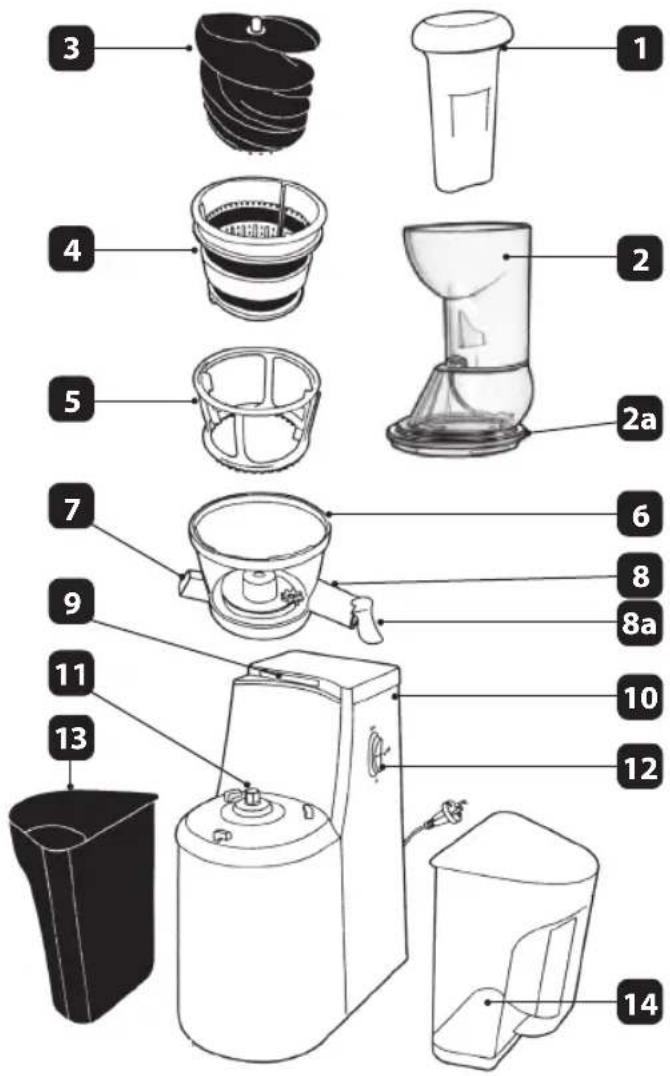

GENERAL DESCRIPTION 1. Pusher2. Lid2a. Plastic tab3. Extracting bolt4. Filter5. Filter base6. Juicer collector7. Pulp spout8. Juice spout8a. Juice spout closure9. Microswitch 10. Main body11. Spindle drive 12. Control knob (On, O, R)13. Pulp container14. Juice jug TECHNICAL DATA- power: 400W- mains voltage: 220-240V~ 50/60Hz- maximum time of continuous operation: 10 minutes- break before continuation of operation: 1 minutePERFECT JUICER is designed for processing most of fruits and vegetables in a more ecient way than traditional juicer. A large dispensing opening for easy juice squeezing from soft fruit, e.g. apples.Before using the appliance- Read these instructions for use carefully before using the appliance - make sure that none of elements are demaged - wash all detachable parts,- assemble the applianceMontage- Place the juice collector (6) into main body (10) and turn right (pic. 1). OPERATING INSTRUCTION

PERFECT JUICER PJ450

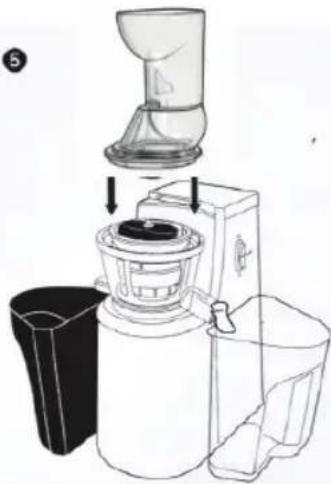

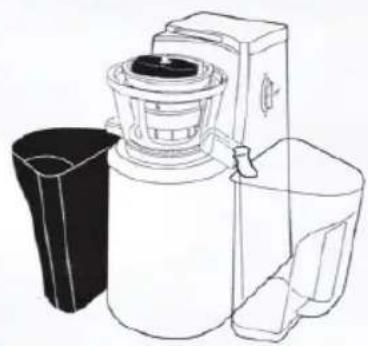

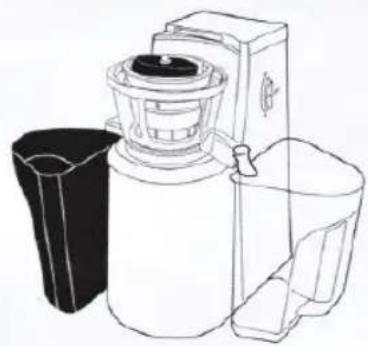

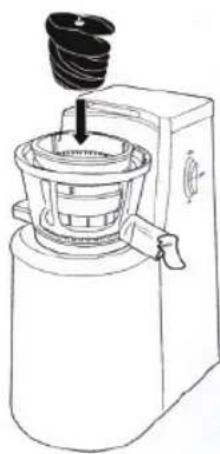

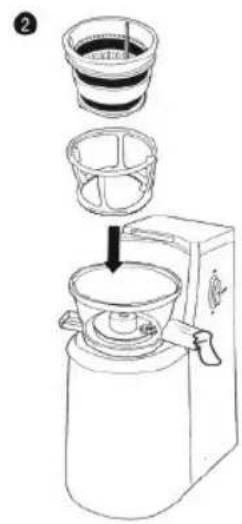

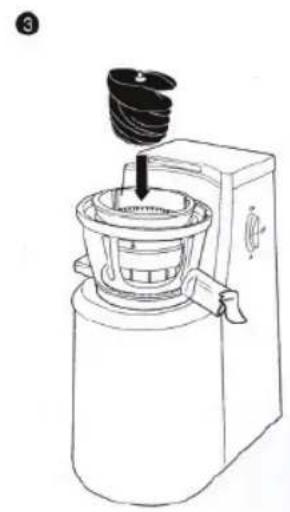

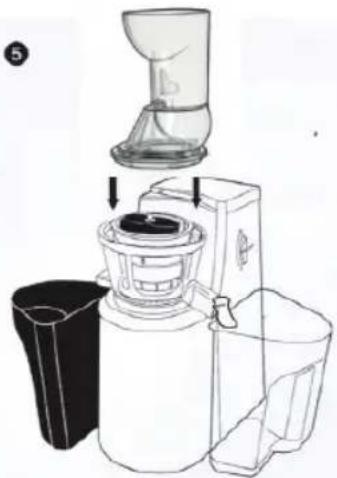

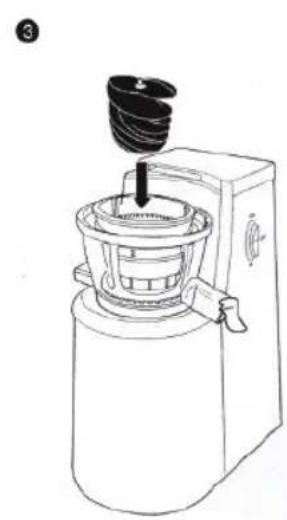

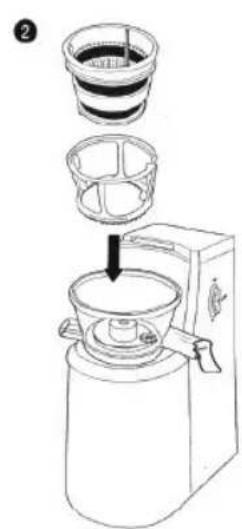

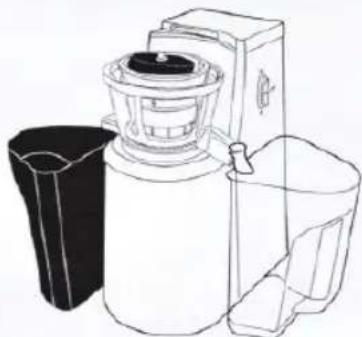

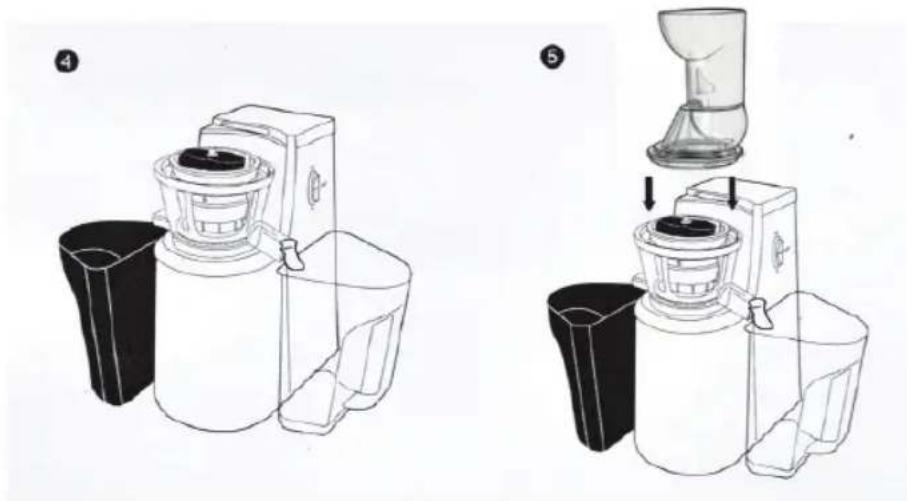

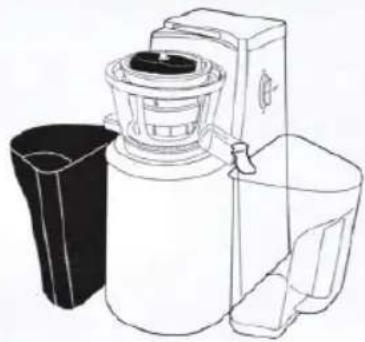

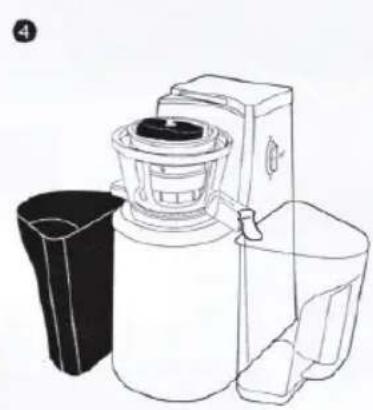

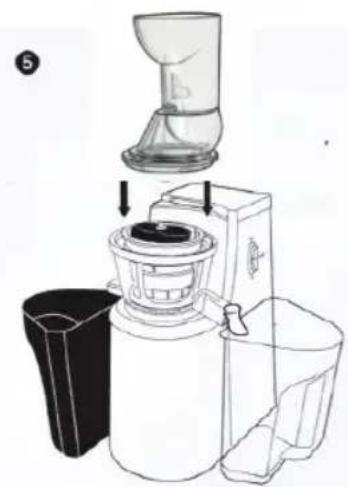

EN13 - In juicer collector (6) set: lter base (5), lter (4) (pic. 4) and extracting bolt(3) (pic. 3), - set the containers (13,14) under the spouts (7,8) (pic. 4) - on the juicer collector (6) put the lid (2) according with the indicators. (pic. 5) and turn it right - Slide the pusher into the feeding tube in the lid (2)

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked. - always operate the product on a at, stable surface - put the plug in the wall socket - slice products into pieces which t into the feeding tube that is in the lid (2). Do not cut products into too small pieces. - make sure the juice jug (14) has been placed under the juice spout (8). - make sure that pulp container (13) has been placed under the pulp spout (7) - switch the appliance on by turning the control knob (12)to the position „ON” - put prepared fruits/vegetables in the feeding tube and gently press them down towards the rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could aect the quality of the end result or evean blocked the appliance. Never insert your ngers or an object into the feeding tube. Only soft fruit, e.g. apples or oranges can be inserted as a whole. The tunnel in the lid is equipped with a special blade that cuts the inserted products, which should be lightly pressed. Inserting hard fruit/vegetables, e.g. beetroot as a whole can damage the blade and the gears. This damage is not covered by the warranty. - The juice will ow directly in the juice jug (14), and the pulp will be collectedin the pulp container (13). - If the Extracting bolt is locked, you need to set the switch (12) to “R” for 3 to 5 seconds. Repeat the process two to three times, then turn o, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blcking element. - After you have processed all ingredients and the juice ow has stopped, switch the appliance o and wait until the lter has stopped rotating - Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.14 TIPS - Clean fruits and vegetables, before juicing - Use fresh fruit and vegetables, as they contain more juice. - Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed. - products should be sliced into pieces which t into the feeding tube that is in the lid (2). Do not cut the food into too small pieces. - do not process the ice or frozen fruits - If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients - Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice. - frozen fruit may be processed only with lter no 3 mounted on - fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches onl y, about 0,5 kg. Before putting the next batch, turn the device o and remove the components for cleaning (see CLEANING). - The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane - When juicing fruit and vegetables of dierent consistency it may help to juice rst soft products, and than hard. CLEANING When device is not used or before cleaning, disconnect it from the network. The appliance is easier to clean if you do so immediately after use. Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance. Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element. Switch the appliance o, remove the plug from the wall socket. Next dissassemble the appliance in the following order: - Remove the pushe (1) - unlock (turn to the left) and remove the lid (2), - unlock (turn to the left)and remove the juice collector (6) together with the base lter (5), lter (4) and extracting bolt (3) and disassemble the appliance. -Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap. -Clean the motor unit with a damp cloth15 Never immerse the motor unit in water nor rinse it under the tap. WARRANTY - only intended for household use, - it cannot be used for commercial purposes - the warranty loses validity in case of inappropriate use ENVIRONMENTAL PROTECTION - the device is made of materials that can be reused or recycled - it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,16 SICHERHEITSANWEISUNGEN Bewahren Sie diese Betriebsanleitung zum späteren Nachschlagen auf.
