SK11A - Juicer Eldom - Free user manual and instructions

Product Type	Juicer (Centrifugal or Masticating)
Brand	Eldom
Model	SK11A
Dimensions (L x W x H)	Approx. 25 x 20 x 40 cm
Weight	Approx. 3.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	Approx. 800 W
Speed Settings	2 speeds (low and high)
Pulp Container Capacity	Approx. 1.5 L
Juice Jug Capacity	Approx. 1 L
Feeding Tube Diameter	Approx. 75 mm (whole fruits)
Material	Stainless steel filter, BPA-free plastic body
Safety Features	Safety lock handle, overload protection, non-slip feet
Cleaning	Detachable parts dishwasher safe (except motor base)
Included Accessories	Pulp container, juice jug, cleaning brush
Spare Parts Availability	Filter, lid, pusher, jug – available online
Warranty	2 years

Frequently Asked Questions - SK11A Eldom

How do I assemble the juicer?

Place the filter basket into the bowl, then attach the lid. Ensure the handle is locked into position. Insert the pulp container and juice jug.

Can I juice whole fruits?

Yes, the feeding tube is wide enough for most whole fruits like apples. For larger fruits, cut them into pieces.

How do I clean the juicer?

Unplug the device. Remove the filter and other parts. Rinse immediately under running water. Most parts are dishwasher safe (top rack).

Why is the juicer vibrating excessively?

Check that the filter is properly inserted and not unbalanced. Ensure the juicer is on a flat, stable surface.

What fruits and vegetables can I juice?

You can juice soft fruits (oranges, berries) and hard vegetables (carrots, beets). Do not juice very hard items like ice or frozen fruits.

How do I change the speed setting?

Turn the control knob to the desired speed. Use low speed for soft fruits and high speed for hard vegetables.

What do I do if the juicer stops working?

First check that the safety lock handle is correctly engaged. Also, the thermal overload protection may have tripped; unplug and wait 15 minutes.

Can I juice leafy greens?

Yes, but it is recommended to roll or bundle leaves and juice them together with other fruits/vegetables for better yield.

Where can I buy replacement parts?

Contact Eldom customer service or check online retailers. Common spare parts include the filter, pusher, and juice jug.

How long does the warranty last?

The standard warranty is 2 years for domestic use. Keep your receipt as proof of purchase.

USER MANUAL SK11A Eldom

Product photo of a white ELOOM blender with red lid, featuring a side view of its green handle and base (no visible text or symbols)

Eldom Sp. z o.o.

Simple line drawing of a cylindrical object with a label pointing to the top-left corner (no text or symbols on the object itself)

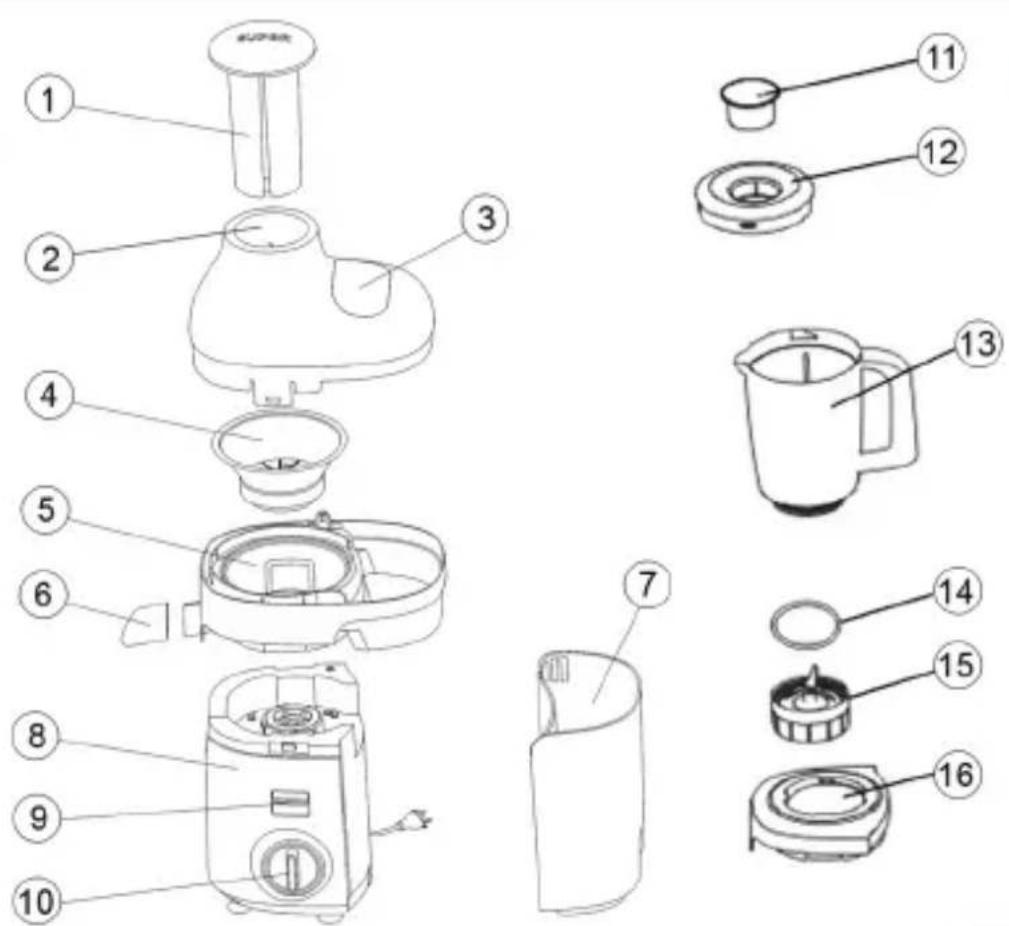

General description

1. Pusher
2. Feeding tuble
3. Lid
4. Filter
5. Juicer collector
6. Juice flowing nozzle
7. Pulp container
8. Main body
9. Lock button
10. Control knob
11. Cap
12. Cover
13. Jug
14. Seal
15. Knife
16. Connector

Technical data

-power: 250W
-mains voltage: 230V \~ 50Hz
- maximum time of continuous
operation: 1 minute
- break before continuation
of operation: 2 minutes

HOW TO USE THE APPLIANCE

Read these instructions for use carefully before using the appliance

• wash all detachable parts,
• assemble the appliance

JUICE EXTRAKTOR

MONTAGE

Make sure that the appliance is disconnected from power network and the switch (10) is set in „0" position Align the juice flowing nozzle with the juice outlet of the central holder and install them (if it is already installed, take the next step directly).

Place the juice collector into the appliance and place the pulp container into the appliance by tilting it forwards slightly.

Insert the top end first and then push home the bottom end

Put the filter in the juice collector and hold the lid over the filter and lower it into position.

Put the top cover on central holder, press it down to fix it on main body lock catch.

When a "click" is heard, top cover is locked. Otherwise, the product will not work.

Slide the pusher into the feeding tube by aligning the groove in the pusher with the small protrusion on the inside of the feeding tube.

Place the juice jug under the spout.

Using the appliance

The appliance will only function if all parts have been properly assembled. Do not release the lock button (9) during operation of the device.

• always operate the product on a flat, stable surface
• put the plug in the wall socket
• wash the fruit and/or vegetables and cut them into pieces that fit into the feeding tube
• make sure the juice jug has been placed under the spout.
• switch the appliance on by turning the control knob to setting 1 (low speed), 2 (normal speed) or P (Pulse). Speed 1 is especially suitable for soft fruits and vegetables such as watermelons, grapes, tomatoes, cucumbers and raspberries. Speed 2 is suitable for all kinds of fruits and vegetables.
• put the pre-cut pieces in the feeding tube and gently press them down towards the rotating filter by means of the pusher.

While you are preparing juice, you can empty the pulp container by switching the appliance off and carefully removing the pulp container.

Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

Do not exert too much pressure on the pusher, as this could affect the quality of the end result and it could even cause the filter to come to a halt.

Never insert your fingers or an object into the feeding tube.

After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating.

TIPS

1. Use fresh fruit and vegetables, as they contain more juice, pineapples, beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are particularly suitable for processing in the juice extractor.
2. You don't have to remove thin peels or skins. Only thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.
3. When preparing apple juice, remember that the thickness of the apple juice depends on the kind of apple you are using. The juicer the apple, the thinner the juice. Choose a kind of apple that produces the type of juice you prefer.
4. Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.
5. Fruits that contain starch, such as bananas, papayas, avocados, figs and mangoes are not suitable for processing in the juice extractor. Use a food processor, blender or bar blender to process these fruits.
6. Drink the juice immediately after yo have extracted it. If it is exposed to air for some time, the juice will lose its taste and nutritional value.
7. To extract the maximum amount of juice, always press the pusher down slowly.

CLEANING

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.

1. Switch the appliance off, remove the plug from the wall socket and wait until the filter has stopped roating.

2. Remove the dirty parts from the motor unit. Disassemble the appliance in the following order:

3. Remove the pulp container

4. Remove the pusher
5. Release the lock by pressing the button (9)

6. Remove the lid

7. Remove the juice collector together with the filter

Take off outlet on central holder.

1. Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.

2. Clean the motor unit with a damp cloth.

Never immerse the motor unit in water nor rinse it under the tap.

BLENDER

MONTAGE

• make sure that the appliance is disconnected from power network and the switch (10) is set in "0" position
• the body (8) has to be placed on a flat and stable surface
• install connector (16) on body (8) from right above, slightly press down, when "click" is heard, lock catch has locked central holder, or else, product will not work
• assemble the jug (13) together with the seal (14) and knife (15). The jug (13) has to be placed on the connector (16) and turned anti-clockwise

The appliance is equipped in a device which protects it against starting it without the properly seated jug (13). In case of problems with starting the blender, it is necessary to check whether the element is properly installed. Do not release the lock (9) during operation of the device.

USING THE APPLIANCE

- place food products in the jug (13). The maximum allowed level is marked on the jug (MAX). In order to avoid splashing it is recommended not to exceed the volume of 0.75 l.

- place the cover (12) on the jug (13) and block it by means of turning it clockwise

- put the cap (11) into the opening in the cover (12)

- connect the appliance to power

- depending on the products processed, select with a switch (10) low or high speed (item 1 or 2)

- in order to turn on impulse work, one shall turn and hold the switch (10) in „P” position.

After releasing the switch it automatically goes back to „0" position.

After completing work one shall set the switch (10) in „0" position, disconnect the appliance from network and wait for the knife (15) to stop.

ATTENTION

It is necessary to observe the time of the appliance continuous work. Exceeding working time and lack of sufficient intervals in the appliance work may lead to irreversible damages to the engine and loss of guarantee.

In case the appliances blocks while operation, disconnect it from power supply before cleaning and wait for the knife to stop. It is not allowed to start the blender without the food products

NOTICE

- In order to obtain the best results in preparing pulps and mousses it is necessary to put small portions of food instead of big ones into the jug.

- In case of processing solid products, it is necessary to cut them into smaller pieces first (2-3 cm).

- Accessories and jug are not adjusted for preparing hot meals.

- It is recommended to use the blender in impulse mode for mixing components of solid consistency in order to prevent from cutting knives blocking.

CARE AND CLEANING

Before attempting to cleaning, one shall disconnect the appliance from supply network.

The elements of the blender may not be washed in dishwashers or in very hot water.

The body (8) and the knife (15) cannot be immersed in water.

The body may be cleaned with a damp cloth with the addition of washing liquid.

Do not clean the knife (15) with bare hands. Use a brush.

Other elements, that is a cap (11), a cover (12), a pot (13) or a connector (16) may be washed in warm water with the additional of washing liquid.

Simple cleaning of the jug and knife:

- empty the jug (13) and fill it in with water.

- place the jug (13) on the body (8) and turn the switch (10) for a couple of times into „P” position.

- discharge water from the jug and rinse it.

It is not allowed to clean the appliance with sharp, abrasive cloths or sponges as it may lead to damaging the appliance.

SAFETY INSTRUCTIONS

• please acquaint precisely with whole of this instruction before using the blender for the first time,
• the power cable must be plugged in the socket with parameters the same as those given in that instruction manual,
• do not immerse the cable or the appliance in water,
• only intended for household use,
• do not use the iron outdoors,
• do not leave children unattended in the vicinity of the appliance,
• before switching the appliance on, make sure that all of its elements are appropriately assembled,
• always unplug the appliance after operation,
• always operate the product with the cover in place
• the lid lock can be released only when the appliance is switched off and the filter is not rotating,
• do not remove the pulp container (7) when the appliance is in operation,
• the device is not intended for use by people (including children) with limited physical, sensorial or mental capabilities unless they are supervised by person responsible for their safety,
• be careful with the knives as they are very sharp. Act with due caution when installing and removing the knives,
• do not touch the appliance with wet hands,
• Do not place such materials as paper, cardboard, plastic, metal, etc. into the jug. It may lead to cutting mechanism blocking, fire or electric shock.
• Do not start the appliance if the jug was not placed on the body in an appropriate manner or without a cap together with a measuring unit.
• While the appliance's operation one shall keep his hand on the cover and push it slightly.
• Before taking the jug out of the engine housing or lifting the cover, one shall turn off the appliance (switch (10) in „0" position) and wait for the blade to stop.
• Always disconnect the appliance from power supply if left without supervision, before the assembly or disassembly and before cleaning.
• The appliance cannot be used with a damaged knife.
• The knife is an exploitation element and it is not covered with guarantee.
• Do not turn on the appliance without food products in it.
• Do not touch the knife with the appliance turned on and after disconnecting the appliance it may be touched only after it stopped.
• Use only with originally enclosed accessories.
• always pull the plug of the socket before cleaning,
• do not use the juicer when the rotating strainer is damaged,
• do not exceed the maximum time of continuous operation of the appliance,
• Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.
• do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.
• never use the if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu,
• refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard
• the appliance can be used only with the originally included accessories

ENVIRONMENT PROTECTION

- the device is made of materials that can be reused or recycled

- it should be handed to the special collection point,

that deals with collection and recycling of electronic and electric devices,

WARRANTY

- only intended for household use,

- it cannot be used for commercial purposes

- the warranty loses validity in case of inappropriate use,
