Type	Juicer (low-speed masticating)
Brand	Eldom
Model	Perfect Juicer PJ600B (also PJ600C/PJ600S)
Power	150 W
Voltage	230 V ~ 50 Hz
Maximum Continuous Operation	10 minutes
Required Break Time	10 minutes
Filter Types	Two filters: A (small meshes for watery juice), B (large meshes for dense juice) + C for frozen fruit
Main Functions	Juicing fruits and vegetables; also includes tofu set for making tofu
Safety Features	Microswitch lock (operates only when properly assembled); overload protection via reverse function (R setting)
Cleaning	Detachable parts dishwasher safe (top rack); motor unit wipe with damp cloth; brush included for cleaning filter
Accessories Included	Pusher, lid with bridge, extracting bolt, filter (2 types + frozen fruit filter), filter base, juice collector, pulp container (13), juice jug (14), cleaning brush, tofu set
Material	Main body: plastic; filter: stainless steel; jugs: plastic
Intended Use	Household only; not for commercial use
Warranty	Standard manufacturer warranty; voided by improper use or commercial use

Frequently Asked Questions - Perfect Juicer PJ600B Eldom

How do I assemble the Perfect Juicer PJ600B?

Ensure the cup (8a) on the bottom of the collector (6) is pushed in. Place the juice collector (6) into the main body (11). Insert the filter base (5), filter (4), and extracting bolt (3) into the collector. Place the pulp and juice containers under the spouts. Put the lid (2) on and turn it clockwise. Slide the pusher into the feeding tube.

What is the maximum continuous operation time?

The maximum continuous operation time is 10 minutes. After that, you must let the appliance cool down for at least 10 minutes before using it again.

What should I do if the extracting bolt gets stuck?

Set the control knob (10) to the Reverse ('R') position for 3 to 5 seconds. Repeat two to three times. If still stuck, turn off, disassemble, and remove the blocking element manually.

Can I process frozen fruits?

Yes, but only with the filter C (for frozen fruit) mounted. Do not process ice or frozen fruits with other filters. Also, ensure you follow the maximum operation time.

How do I clean the juicer?

Unplug and disassemble. Wash all detachable parts with warm water and mild detergent using the included brush. Rinse thoroughly. The parts are dishwasher safe (place on top rack away from heating element). Clean the motor unit with a damp cloth only; never immerse it in water.

What types of filters are available and what are they used for?

There are three filter options: A (small meshes) for watery juice, B (large meshes) for dense juice, and C for frozen fruit. Choose according to your desired juice consistency or ingredient type.

Is it safe to use if the power cord is damaged?

No. If the supply cord is damaged, stop using the appliance immediately. Contact the authorized service centre for repair. Do not attempt to modify or replace the cord yourself.

Can children use this juicer?

Children aged 8 years and older can use the appliance under supervision or if properly instructed. Children should not play with it. Cleaning and maintenance must not be done by children without supervision.

What fruits and vegetables should I avoid?

Avoid very hard and starchy items like sugar cane. Remove thick peels (oranges, pineapples, uncooked beetroots). For small seeds (e.g., chokeberry, raspberry), process in small batches of about 0.5 kg only, and clean between batches.

Does the juicer come with a warranty?

Yes, but only for household use. The warranty is void if used commercially or improperly. For service, refer to the authorized service centre listed in the manual or at www.eldom.eu.

USER MANUAL Perfect Juicer PJ600B Eldom

Perfect Juicer PJ600B/PJ600C/PJ600S

v.2

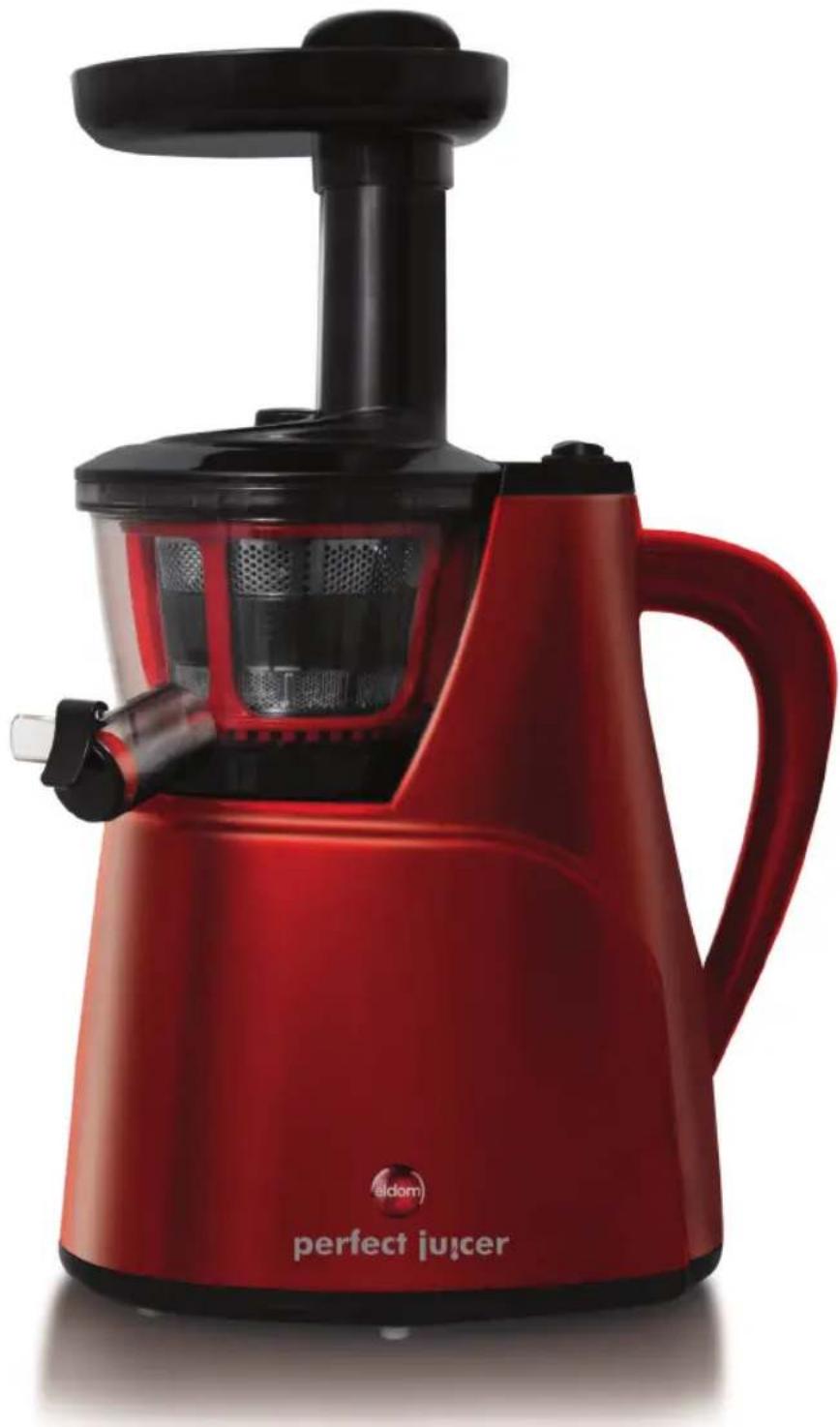

Red modern juice brush maker with black handle and white interior, labeled 'perfect juicer' (no additional text or symbols visible)

Eldom Sp. z o.o.

Two line drawings of a container with handles, labeled 13 and 14 (no text or symbols on the objects themselves)

DANE TECHNICZNE

Stacked cylindrical container with black and silver bands, labeled 'A' at bottom left (no other text or symbols)

Close-up of a black cylindrical device with a textured surface and labeled 'B' (no text or symbols on the device itself)

Black and silver striped cylindrical object with a dotted line indicating a measurement (no text or symbols)

1. Please acquaint precisely with whole of this instruction before using the blender for the first time.

2. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.

3. Do not immerse the cable or the appliance in water.

4. Only intended for household use.

5. Do not use the appliance outdoors.

6. Before switching the appliance on, make sure that all of its elements are appropriately assembled.

7. Do not leave your device without supervision.

8. Always unplug the appliance after operation.

9. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

10. Do not touch the appliance with wet hands.

11. Always pull the plug of the socket before cleaning.

12. Do not use the juicer when the filter is damaged.

13. Do not exceed the maximum time of continuous operation of the appliance.

14. Do not move during use.

15. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.

16. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

17. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

18. The appliance can be used only with the originally included accessories.

19. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

Operating instruction GB

Perfect Juicer PJ600B/PJ600C/PJ600S

GENERAL DESCRIPTION

1. Pusher
2. Lid
   2a. Bridge
3. Extracting bolt
4. Filter
5. Bottom of the filter
6. Juicer collector
7. Pulp spout
8. Juice spout
   8a. Cap

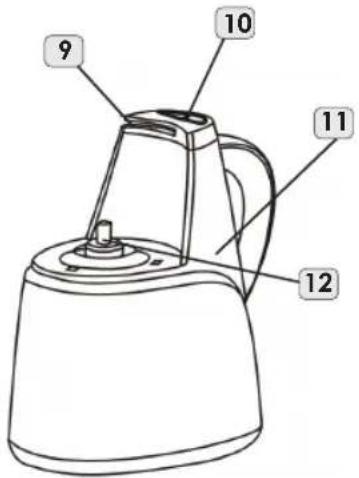

9. Microswitch
10. Control knob (On, Off, R)
11. Main body
12. Drive spindle
13. Pulp container
14. Juice jug
15. Brush for cleaning
    16.Tofu set

TECHNICAL DATA

• power: 150W
• mains voltage: 230V \~ 50Hz
• maximum time
  of continuous operation: 10 minutes
• break before continuation

of operation: 10 minute

3

4

2017年1月1日

-

HOW TO USE THE APPLIANCE

PERFECT JUICER is designed for processing most of fruits and vegetables in a more efficient way than traditional juicer. Apart from standard components, it is also included a tofu set, advices and recipes can be found on-line. Before using the appliance

• Read these instructions for use carefully before using the appliance
• make sure that none of elements are demaged
• wash all detachable parts,
• assemble the appliance

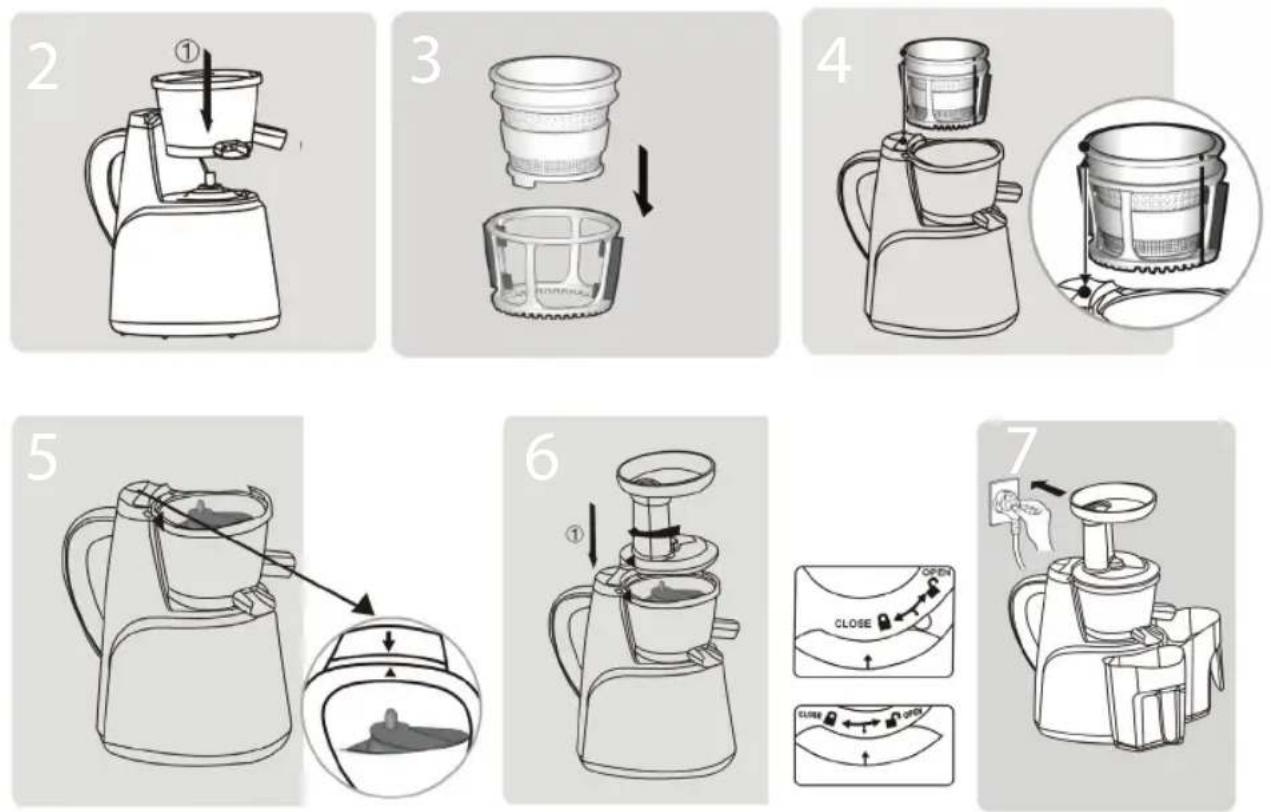

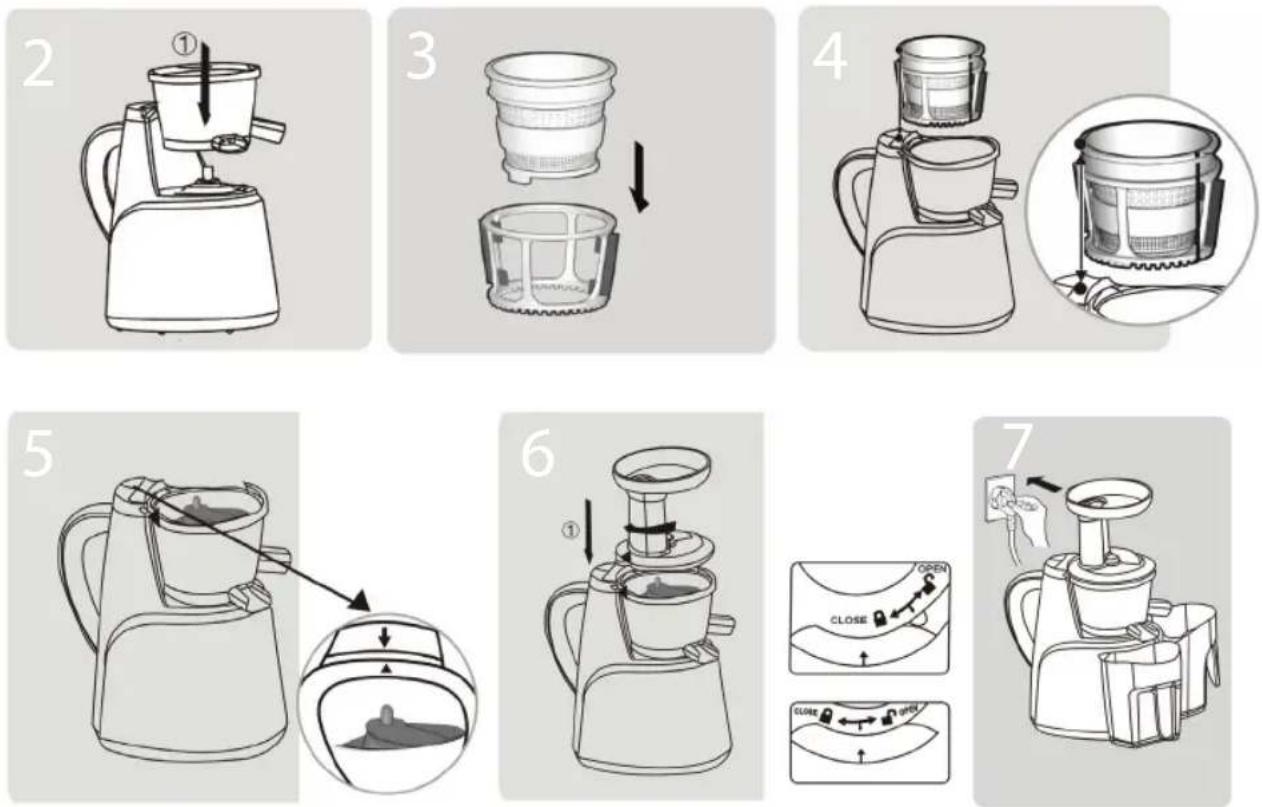

Montage

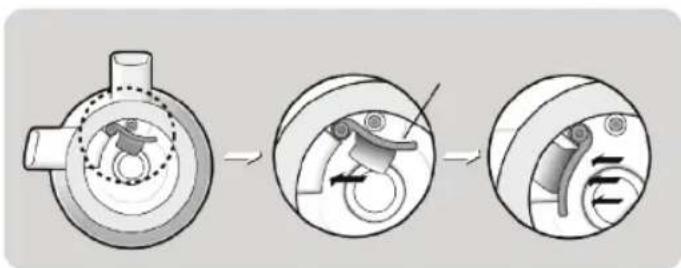

• ensure that the cup (8a) on the bottom of the collector 6 is pushed in (drawing 1)

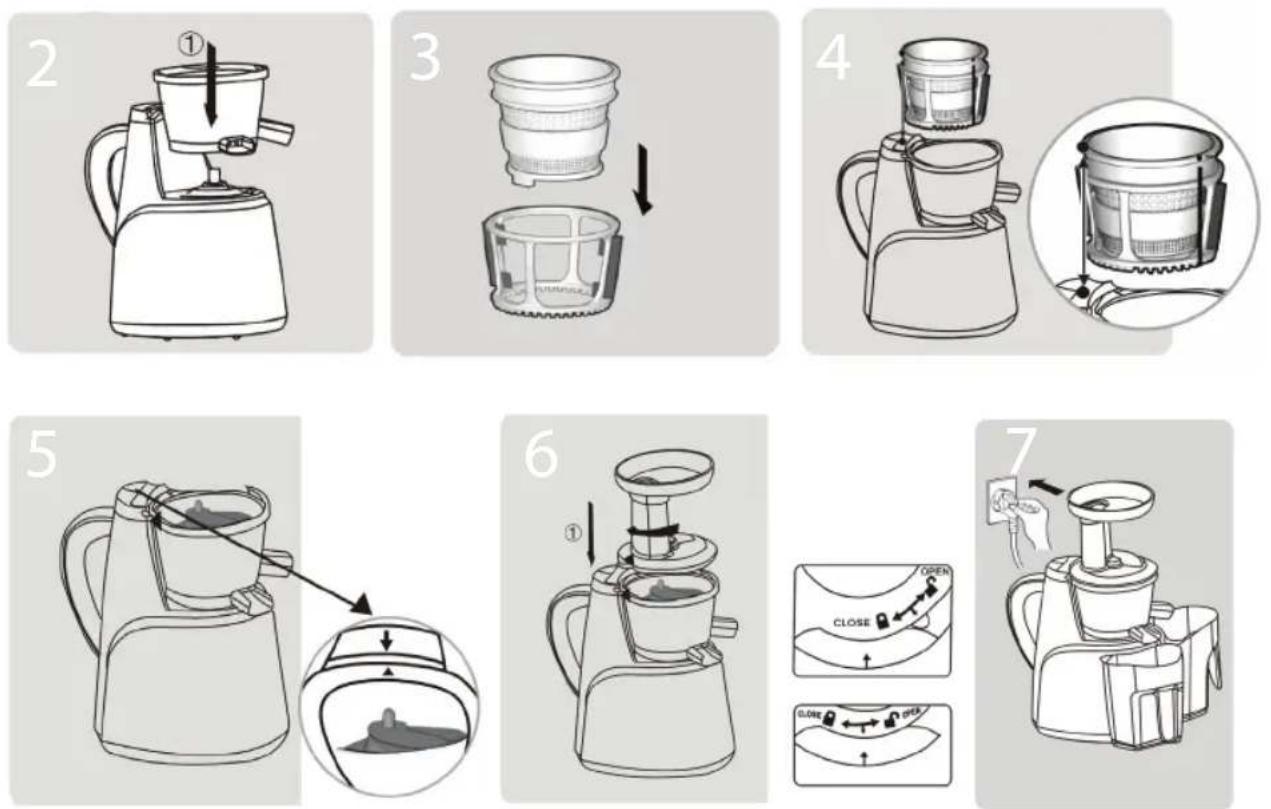

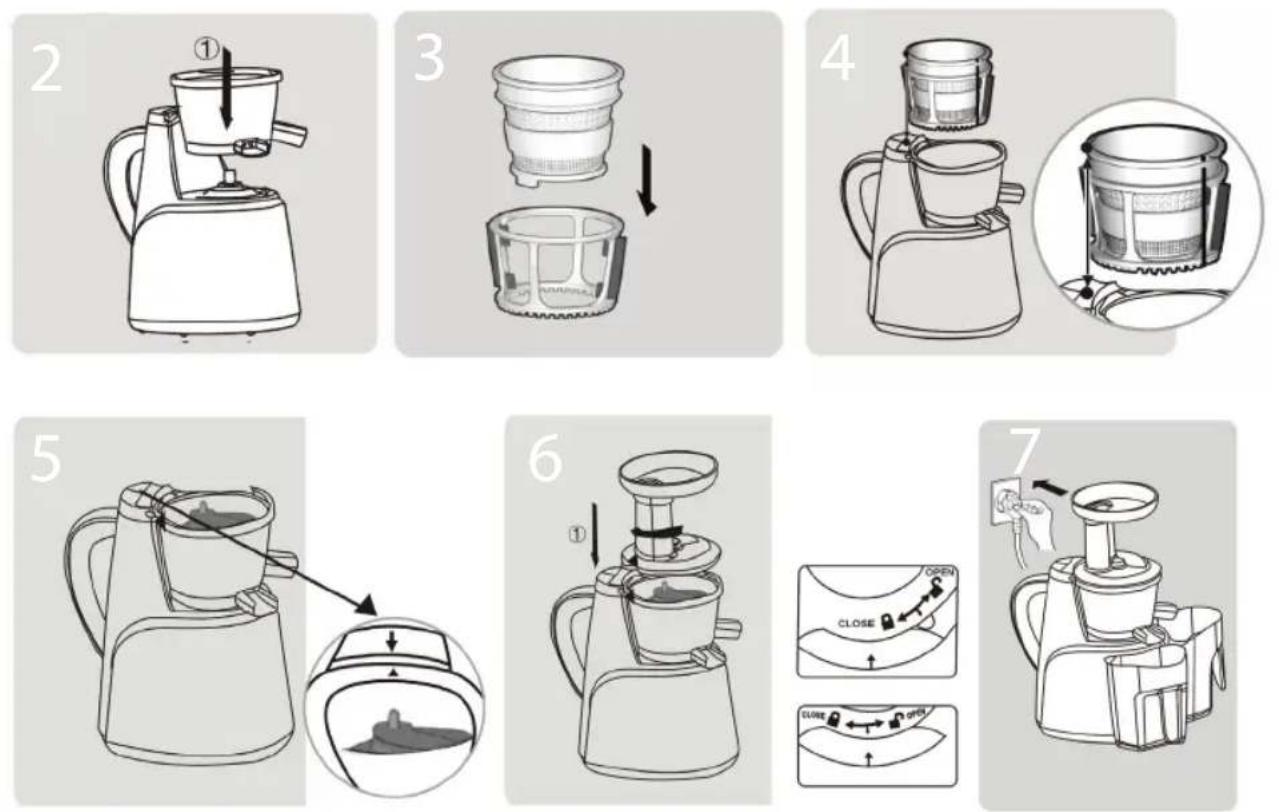

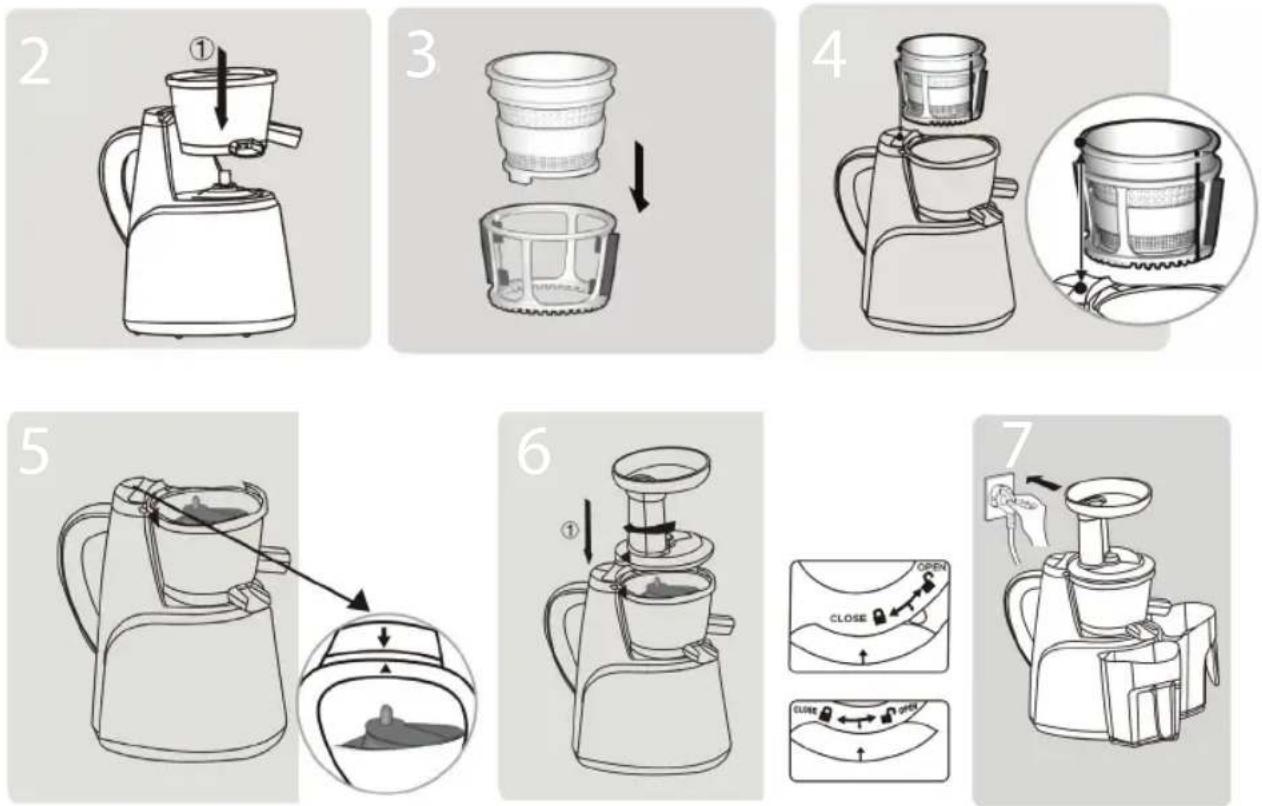

• Place the juice collector (6) into main body (11) (pic. 2).

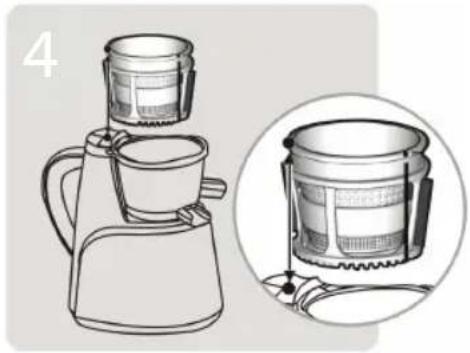

• In juicer collector (6) set: filter base (5), filter (4) (pic. 3) and extracting bolt(3) (pic. 4),
• set the containers (13,14) under the spouts (7,8)

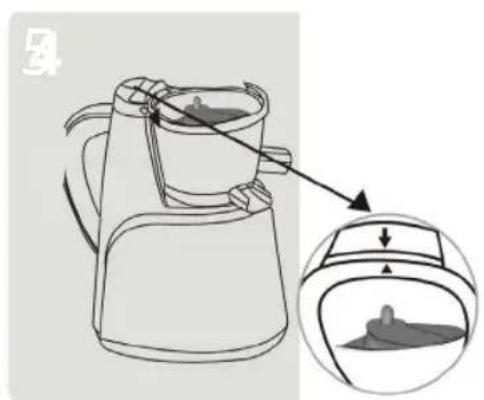

• on the juicer collector (6) put the lid (2) according with the indicators. and turn it right (pic. 6)
• Slide the pusher into the feeding tube in the lid (2)

Three-step diagram showing a mechanical assembly with a valve and housing, connected by a tool (no text or labels)

pic.1

USING THE APPLIANCE

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked.

• always operate the product on a flat, stable surface

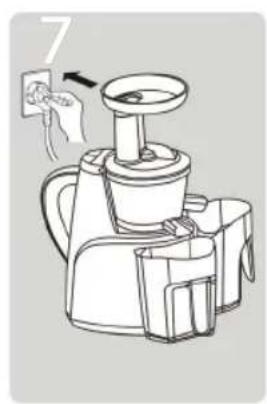

• put the plug in the wall socket
• slice products into pieces which fit into the feeding tube that is in the lid (2). Do not cut products into too small pieces.
• make sure the juice jug (14) has been placed under the juice spout (8).
• make sure that pulp container (13) has been placed under the pulp spout (7)
• switch the appliance on by turning the control knob (12) to the position „ON"
• put prepared fruits/vegetables in the feeding tube and gently press them down towards the rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could affect the quality of the end result or even blocked the appliance.

Never insert your fingers or an object into the feeding tube.

• The juice will flow directly in the juice jug (14), and the pulp will be collected in the pulp container (13).
• If the Extracting bolt is locked, you need to set the switch (10) to "R" for 3 to 5 seconds. Repeat the process two to three times, then turn off, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blcking element.
• After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating
• Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

A- filter with small meshes, watery juice

B- filter with big meshes, dense juice

C- for frozen fruit

Close-up of a black and silver cylindrical container with a dotted line indicating a measurement (no text or symbols visible)

B

Close-up of a black and white textured brush holder (no text or symbols visible)

C

Close-up of a black and silver cylindrical object with horizontal bands (no visible text or symbols)

TIPS

• Clean fruits and vegetables, before juicing
• Use fresh fruit and vegetables, as they contain more juice.
• Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.
• products should be sliced into pieces which fit into the feeding tube that is in the lid (2). Do not cut the food into too small pieces.
• do not process the ice or frozen fruits
• If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients
• Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.
• frozen fruit may be processed only with filter no 3 mounted on
• fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches only, about 0.5 kg. Before putting the next batch, turn the device off and remove the components for cleaning (see CLEANING).
• The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane
• When juicing fruit and vegetables of different consistency it may help to juice first soft products, and than hard.

CLEANING

When device is not used or before cleaning, disconnect it from the network.

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.

Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Switch the appliance off, remove the plug from the wall socket. Next disassemble the appliance in the following order:

• Remove the pushe (1)
• unlock (turn to the left) and remove the lid (2),
• unlock (turn to the left) and remove the juice collector (6) together with the base filter (5), filter (4) and extracting bolt (3) and disassemble the appliance.
  -Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.
  -Clean the motor unit with a damp cloth

Never immerse the motor unit in water nor rinse it under the tap.

WARRANTY

• only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point,
  that deals with collection and recycling of electronic and electric devices,

DOPORUČENÍ PRO OBLAST BEZPEČNOSTI

CZ

Two line drawings of a container with handles, labeled 13 and 14 (no text or symbols on the objects themselves)

TECHNICKÉ ÚDAJE

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

obr. 1

OBSLUHA

Close-up of a black and silver cylindrical object with horizontal bands, labeled 'A' in the corner (no other text or symbols visible)

Close-up of a black plastic container with a textured inner layer, labeled 'B' in the corner (no other text or symbols visible)

Close-up of a black and silver cylindrical object with a dotted line indicating a measurement or edge (no text or symbols visible)

DOPORUČENÍ

Two line drawings of a container or holder with handles, labeled 13 and 14 (no text or symbols on the diagrams themselves)

Technische Daten

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Abb. 1

BEDIENUNG

Stacked cylindrical container with black and silver bands, labeled 'A' (no text or symbols on the object itself)

Close-up of a black cylindrical object with a textured surface, labeled 'B' at the bottom left (no other text or symbols visible)

Stacked cylindrical mechanical component with black and silver bands, labeled 'C' at bottom left (no text or symbols on the component itself)

HINWEISE

Line drawings of three different toothbrushes with numbered labels (13, 14, 15), no text or symbols present.

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

рис.1

Stacked cylindrical container with black and silver bands, labeled 'A' at bottom left (no other text or symbols)

Close-up of a black plastic coffee maker with mesh pattern and label B (no text or symbols on the object itself)

Stacked cylindrical object with black and silver bands, labeled 'C' at bottom left (no other text or symbols)

ПОЛЕЗНЫЕ СОВЕТЫ

Two line drawings of a cup or container, one with handle and label '13', the other with handle and label (no text or symbols on the cups themselves)

URČENIE ODŠTAVOVAČA S NÍZKÝMI OTÁČKAMI PJ600

Three-step diagram showing a mechanical component before and after processing, with no visible text or symbols.

obr. 1

OCHRANA ŽIVOTNÉHO PROSTREDIA

Line drawing of a kitchen blender with handle and spout, no text or symbols present

Diagram showing a mechanical component being inserted into a plastic housing, with no visible text or symbols.

Illustration of a blender with a lid and side view showing its internal structure (no text or symbols)

Line drawing of a kettle with a magnified inset showing internal components (no text or symbols)

Line drawing of a coffee maker with a handle and spout, showing mechanical components and a pointer indicating motion (no text or symbols)

Line drawing of a hand using a power switch to lift a small bowl (no text or symbols)

OBSLUHA

Stacked cylindrical container with black and silver bands, labeled 'A' in corner (no text or symbols on the object itself)

Close-up of a black cylindrical object with a textured surface and patterned top layer, labeled 'B' in the corner (no other text or symbols visible)

Stacked cylindrical mechanical component with black and silver bands, labeled 'C' at bottom left (no text or symbols on body)

POKYNY

Line drawings of three different household appliances: a cup, a tray, and a tool (no text or symbols present)

A PJ600 ALACSONY FORDULATSZÁMÚ GYÜMÖLCSPRÉS RENDELTETÉSE

Three-step diagram showing a mechanical component before and after processing, with no visible text or symbols.

Close-up of a black and silver coffee maker with horizontal bands (no visible text or symbols)

Close-up of a black plastic container with a textured inner layer, labeled 'B' in the corner (no other text or symbols visible)

Black and silver striped cylindrical object with a dotted line indicating a measurement or edge (no text or symbols)

Two line drawings of a container or holder with labeled parts (13 and 14), no text or symbols present.

DATOS TÉCICOS

Three-step diagram showing a mechanical assembly with internal components and directional arrows (no text or symbols)

Fig. 1

MODO DE EMPLEO

Stacked black and silver cylindrical objects with no visible text or symbols

B

Close-up of a black cylindrical object with a textured surface and patterned top layer (no visible text or symbols)

C

Close-up of a black and silver cylindrical object with a dashed line indicating a measurement or edge (no text or symbols visible)

CONSEJOS

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/CZ/
