Eri CW3 - Juicer Eldom - Free user manual and instructions

Product Type	Juicer
Model	Eri CW3
Brand	Eldom
Dimensions (approx.)	25 x 20 x 30 cm
Weight (approx.)	2.5 kg
Power Consumption	300 W
Voltage	220-240 V, 50/60 Hz
Material	Plastic and stainless steel
Juice Container Capacity	1 L
Pulp Container Capacity	1.2 L
Function	Extracts juice from fruits and vegetables
Speed Settings	1 speed
Safety Features	Safety lock mechanism, non-slip feet
Cleaning	Removable parts dishwasher safe; cleaning brush included
Spare Parts Availability	Replacement filter and pusher available
Repairability	Repairable by authorized service centers

Frequently Asked Questions - Eri CW3 Eldom

How do I assemble the juicer before first use?

Wash all removable parts in warm soapy water. Place the motor base on a flat surface. Insert the pulp container, then the filter basket, and finally the feeding tube. Secure the locking arm until it clicks.

Can I juice soft fruits like berries?

Yes, soft fruits can be juiced. Use the low speed setting if available, or alternate with harder fruits for better extraction.

How do I clean the juicer filter?

Rinse the filter immediately after use under running water. Use the included cleaning brush to remove pulp. For stubborn residue, soak in warm water with a little lemon juice.

What should I do if the juicer stops working during operation?

The juicer may have overheated. Unplug it and let it cool for 15-20 minutes. Check that the pulp container is not full, which can block the mechanism.

Is the juicer dishwasher safe?

Most removable parts (except the motor base) are dishwasher safe on the top rack. Check the manual for specific parts.

How much juice can I make at once?

The juice container holds 1 liter. For continuous juicing, stop when the pulp container is full (1.2 L) and empty it.

Can I juice wheatgrass or leafy greens?

Yes, but use a slower feed rate. For best results, roll leafy greens into small balls before inserting.

What fruits or vegetables cannot be juiced?

Avoid very hard items like whole coconut or large pits. Also, do not juice bananas or avocados as they yield puree, not juice.

How do I store the juicer when not in use?

Clean and dry all parts thoroughly. Assemble the juicer loosely or store parts separately in a dry place to prevent odors.

Where can I find replacement parts?

Contact Eldom customer service or visit their website. Common replacement parts include the filter basket and pusher.

USER MANUAL Eri CW3 Eldom

Black and white photo of a Eldom brand juice grater with a lemon cutout (no text or symbols visible)

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
2. Do not immerse the cable or the appliance in water.
3. Only intended for household use.
4. Do not use the appliance outdoors.
5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
6. Do not leave your device without supervision.
7. Always unplug the appliance after operation.
8. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
9. Do not touch the appliance with wet hands.
10. Always pull the plug of the socket before cleaning.
11. Do not exceed the maximum time of continuous operation of the appliance.

12. Do not move during use.

13. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

14. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
15. The appliance can be used only with the originally included accessories.
16. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

eldom

1. Cover
2. Rotating head
3. Juice collector
4. Tap with valve
5. Pin
6. Base

TECHNICAL DATA

• wattage: 30 W
• power supply voltage: 230V \~50Hz
• acceptable continuous work time: 60s
• break before resuming work: 60s (not more than 5 cycles)

INTENDED USE

The CW3 fruit juicer is designed to squeeze the juice out of citrus fruits.

USE

Before using the juicer for the first time:

• Carefully read the contents of this manual.
• Make sure that none of the components are damaged.
• Wash components that come into contact with food.
• Assemble the appliance.

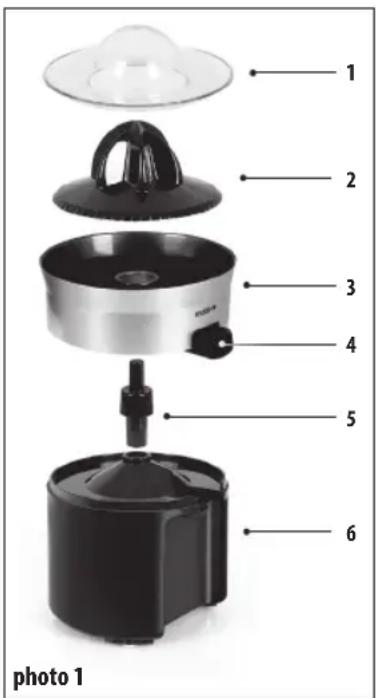

ASSEMBLY (PHOTO 1)

- Place the juice collector (3) on the pin (5) located on the base so that the tap with the valve (4) lies in the recess and then place the head (2).

USE

• Place the assembled unit on a stable and flat surface.
• Connect it to the mains that complies with the specifications indicated on the rating plate.
• Wash fruits and cut them into halves.
• Make sure that the container is placed under the tap (4) and that the tap it is lowered.
• The juicer will start automatically when the fruit presses on the head.

• The appliance is fitted with a mechanism switching the direction of rotation of the head automatically.

• The fruit should be pressed vertically and sensitively. For better results, it is advisable to alternately increase and decrease the pressure.

• The juice will run down to the container and the pulp and seeds will remain on the sieve inside the juice collector (3).
• If too much pulp accumulates, discontinue the work, disconnect the appliance from the mains and clean the collector (3).
• After treating the part of products, the tap (4) may be raised to prevent spillage of the juice. Before using the appliance again, make sure the tap is lowered.
• After the completion of the work, disconnect the appliance from the mains.

CAUTION

Observe the continuous working time of the appliance. Excessive working time and insufficient breaks can lead to irreversible engine damage.

CLEANING AND MAINTENANCE

• Possibility to wash items in the dishwasher: cover (1), rotating head (2), juice collector (3).
• It is recommended to clean the appliance immediately after use.
• Disconnect the appliance from the mains before cleaning.
• Do not immerse the base (6) of the appliance in water. It can be cleaned with a damp cloth.
• The remaining components can be washed in warm water with a small amount of washing liquid.
• Do not clean with sharp, abrasive cloths or sponges.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recovered or recycled.
• The appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• The appliance is intended for personal use at a household.
• It is not intended for professional purposes.
• In case of misuse, the warranty is rendered null and void.
• Only intended for household use.
• It cannot be used for commercial purposes.
• he warranty loses validity in case of inappropriate use.
