CW2 - Juicer Eldom - Free user manual and instructions

Brand	Eldom
Model	CW2
Product Type	Juicer
Color	White
Dimensions (W x D x H)	30 cm x 20 cm x 40 cm
Weight	3 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	500 W
Motor Type	Induction motor
Speed Settings	2 speeds
Pulp Separation	Automatic centrifugal separation
Reverse Function	Yes, to unclog
Juice Container Capacity	1 L
Pulp Container Capacity	1.5 L
Feed Chute Size	Large enough for whole fruits
Safety Features	Locking arm, overload protection, non-slip feet
Dishwasher Safe Parts	All removable parts (jug, lid, strainer, pulp container)
Cleaning Brush Included	Yes
Spare Parts Available	Pulp container, juice jug, strainer, pusher
Repairability Index	7/10
Warranty	2 years

Frequently Asked Questions - CW2 Eldom

How do I assemble the Eldom CW2 juicer?

Place the motor base on a flat surface. Attach the pulp container at the back, then fit the stainless steel strainer basket onto the drive shaft. Lock the lid by aligning the arrows and turning clockwise until it clicks. Finally, place the juice jug under the spout.

Can I juice whole fruits without cutting them?

It is recommended to cut fruits into smaller pieces to fit the feed chute. The chute is large enough for apples and oranges, but hard ingredients like carrots should be cut into chunks to prevent clogging.

How do I clean the juicer parts?

All removable parts (lid, strainer, pulp container, juice jug) are dishwasher safe. Alternatively, wash with warm soapy water and use the included brush to clean the fine mesh strainer. Wipe the motor base with a damp cloth only.

What is the reverse function for?

If ingredients get stuck during juicing, press the reverse button to briefly spin the strainer in the opposite direction. This helps dislodge the blockage. Use it for 2-3 seconds at a time.

Why does the juicer stop during operation?

The juicer has an overload protection feature. If too much pulp builds up or the motor overheats, it will shut off automatically. Let it cool for 15 minutes, then reduce the amount of ingredients you juice at once.

Can I juice leafy greens like spinach?

Yes, but for best results, mix leafy greens with harder ingredients (e.g., celery or cucumber) to help push them through. Roll leaves into a ball before inserting.

How do I store the juicer?

Clean and dry all parts thoroughly. Assemble the juicer loosely to prevent odour, or store parts separately. Keep the motor base in a dry place away from direct sunlight.

What accessories are included?

The package includes a juice jug, pulp container, stainless steel strainer, lid, pusher, and a cleaning brush.

Is there a warranty?

Yes, the Eldom CW2 comes with a 2-year warranty covering manufacturing defects. Keep your purchase receipt.

Can I replace parts if they break?

Spare parts such as the pulp container, juice jug, strainer, and pusher are available through Eldom's service network. Check the product page or contact support.

USER MANUAL CW2 Eldom

Green and clear plastic juicer with lime brush (no text or symbols visible)

Eldom Sp. z o.o.

fot. 01

OPIS OGÓLNY

Close-up of a green plastic fan or impeller with red arrows pointing to the center (no text or symbols visible)

fot. 02

Green plastic ring with red directional arrows, no visible text or symbols

fot. 03

WSKAZÓWKI BEZPIECZENSTWA

Pic. 01

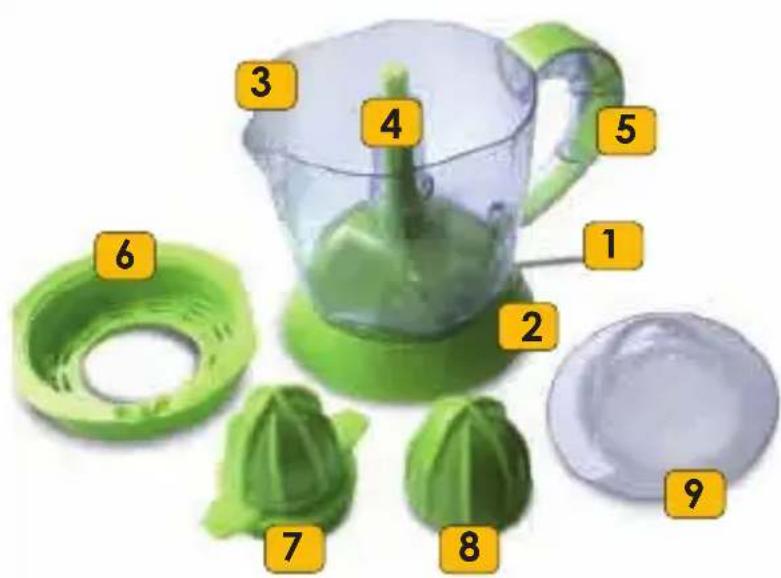

GENERAL DESCRIPTION

1. Power cable
2. Base
3. Container
4. Spindle
5. Handle
6. Pulp stainer
7. Small cone
8. Large cone
9. Cover

TECHNICAL DATA

• power: 40 W
• volume: 11
• voltage: 230 V \~ 50Hz
• maximum continuous operation time: 15 s
• interval between operation cycles: 15 s (no more than 10 cycles

OPERATION

Before first use, clean and dry all the parts of the juicer (see chapter: CLEANING AND MAINTENANCE). Then:

- carefully assemble all the parts:

• place the container (3) on the base (2) and twist it clockwise

• combine the cone (7) with the pulp stainer and place them on the spindle (4)

• unwind the cable (1) coiled around the base

• place the juicer on a flat, hard, stable surface
• wash the fruit and cut them in halves
• choose cone size appropriate to the size of the fruit

The small cone (7) together with the pulp stainer (6) should be placed directly on the spindle.

The large cone (8) should be placed directly on the smaller cone (7) plug the juicer to an electric outlet.

The juicer will start automatically when the fruit is pressed against the cone the fruit should be pressed sensitively in a vertical direction and. For better results, it is recommended to press harder or softer.

The juicer has a mechanism for switching the rotation of the cone automatically when done, unplug the juicer from the outlet.

If the pulp stainer or the juice container is full, stop the juicer, unplug it and clean the pulp stainer or pour the juice to a separate container.

Please, observe the maximum continuous operation time. Exceeding the operation time or failure to observe the operation intervals may result in permanent damage to the motor.

CLEANING AND MAINTENANCE

It is recommended to clean the juicer immediately after use.

• unplug the juicer before cleaning.
• the base of the juicer cannot be put in water.
• clean the juicer with a damp cloth.
• other parts can be washed in warm water with some dishwashing liquid.
• do not clean the juicer with harsh, abrasive cloths or sponges
• not dishwasher-safe.

The container (3) can be detached from the base by twisting it anti-clockwise.

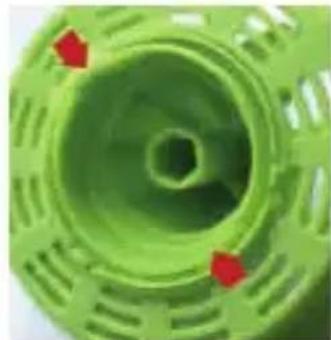

The cone can be detached from the pulp stainer (6) by gently pulling the catches, pic. 02.

Parts of the pulp stainer can be detached by pulling the catches, pic. 03

Close-up of a green plastic turbine impeller with red directional arrows indicating flow or movement (no text or symbols)

pic. 02

Green plastic ring with red arrow indicators (no text or symbols)

pic. 03

SAFETY INSTRUCTIONS

• please read whole of this instruction before using the citrus juicer for the first time,
• the power cable should be plugged to an outlet meeting the parameters specified in the manual,
• do not put the cable or the juicer in water,
• the juicer is designed for household use only,
• do not use the juicer outdoors,
• do not leave children unattended with the juicer,
• before turning on the juicer, make sure that all its parts have been assembled correctly,
• do not leave the operating juicer unsupervised,
• use the device with original accessories only,
• carry the juicer using the handle (5),
• always unplug the juicer after operation and before cleaning,
• the device cannot be operated by persons (including children) with reduced physical, sensory or mental capacity unless such persons are supervised by persons responsible for their safety. Make sure that the children do not play with the device,
• do not touch the juicer with wet hands,
• unplug the juicer before cleaning,
• do not exceed the maximum continuous operating time of the juicer,
• do not move the juicer during operation,
• do not use the juicer if the power cable is damaged, the juicer has fallen down or has been damaged in any other way. Repairs should be made by an authorised service only; list of authorised service points is attached to this manual and available at: www.eldom.eu
• any modifications or use of spare parts that are not original is prohibited and dangerous. Eldom Sp. z o.o. company is not liable for any damage arising from incorrect use of the device

ENVIRONMENTAL PROTECTION

- the device is made of recyclable materials.

- the device should be handed over to a special collection point dealing with recycling of electric and electronic devices.

WARRANTY

• the device has been designed for household use
• the device cannot be used for industrial purposes.
• the warranty will be void if the device is used incorrectly.

Detailed terms of warranty are specified in the attachmen

ODŠTAVNOVAČ CITRUSŮ CW2

fot. 01

CELKOVÝ POPIS

Close-up of a green plastic turbine impeller with red arrows pointing to the center (no text or symbols visible)

fot. 02

Green plastic ring with red markers, no visible text or symbols

fot. 03

BEZPEČNOSTNÍ DOPORUČENÍ

Foto 01

Close-up of a green plastic container with circular opening and red arrows pointing to the interior (no text or symbols)

Foto 02

Green plastic ring with red directional arrows, no visible text or symbols

Foto 03

фото 01

Close-up of a green plastic component with concentric rings and a central hole, marked by red arrows (no text or symbols)

фото 02

Green plastic ring with red directional arrows, no visible text or symbols

фото 03

МЕРЫ БЕЗОПАСНОСТИ
