TC78011LCD - Heating Perel - Free user manual and instructions

Product type	Oil heater
Brand	Perel
Model	TC78011LCD
Power supply	220-240 V~, 50/60 Hz
Nominal thermal power	1.73 kW
Maximum continuous thermal power	2.428 kW
Control type	Electronic with thermostat
Display	LCD with °C/°F selection
Timer	Yes, programmable start and stop
Power levels	3 levels (I, II, III)
Overheat protection	Yes, automatic shutdown
Casters	Yes, with brackets and wing nuts
Cable storage compartment	Yes
Use	Indoor, domestic use only
Safety distance	0.5 m from furniture and other appliances
Children	Do not leave children under 3 years unattended
Cleaning	Damp cloth, do not immerse
Maintenance	No special maintenance
Warranty	24 months (Velleman general conditions)
Repairability	Repairs reserved to manufacturer or approved service center

Frequently Asked Questions - TC78011LCD Perel

How to set the desired temperature?

Press MODE to activate adjustment, then use the +/- buttons to select the temperature. Confirm with MODE.

How to use the timer?

Press MODE until the timer mode is displayed. Use +/- to set the delay for start or stop. Confirm with MODE.

Why is there smell or smoke during first use?

This is normal: protective substances applied to the heating element evaporate. Ventilate the room until it disappears.

Can I use an extension cord?

No, using a power strip or extension cord can cause overload, overheating or fire. Plug directly into a wall outlet.

How to clean the heater?

Turn off and unplug the device, let it cool. Clean with a damp cloth. Do not use harsh solvents or detergents and never immerse it.

What to do if the device turns off by itself?

The overheat protection has activated. Unplug the device, let it cool for 30 minutes, then plug it back in. If the problem persists, contact your dealer.

Is the heater safe for a child's room?

Children under 3 years must be kept at constant distance. Children aged 3 to 8 may only turn on/off under supervision. Never leave the device unattended.

How to change the oil?

The device contains a precise amount of sealed oil. Any repair requiring opening of the reservoir must be done by the manufacturer or its service center. Do not attempt to drain.

What is the power consumption in standby?

In standby mode, auxiliary consumption is 0.002 kW (2 W).

How to store the heater in summer?

Let it cool, clean it, wind the cable in the compartment provided for this purpose, and store it in a dry place away from dust.

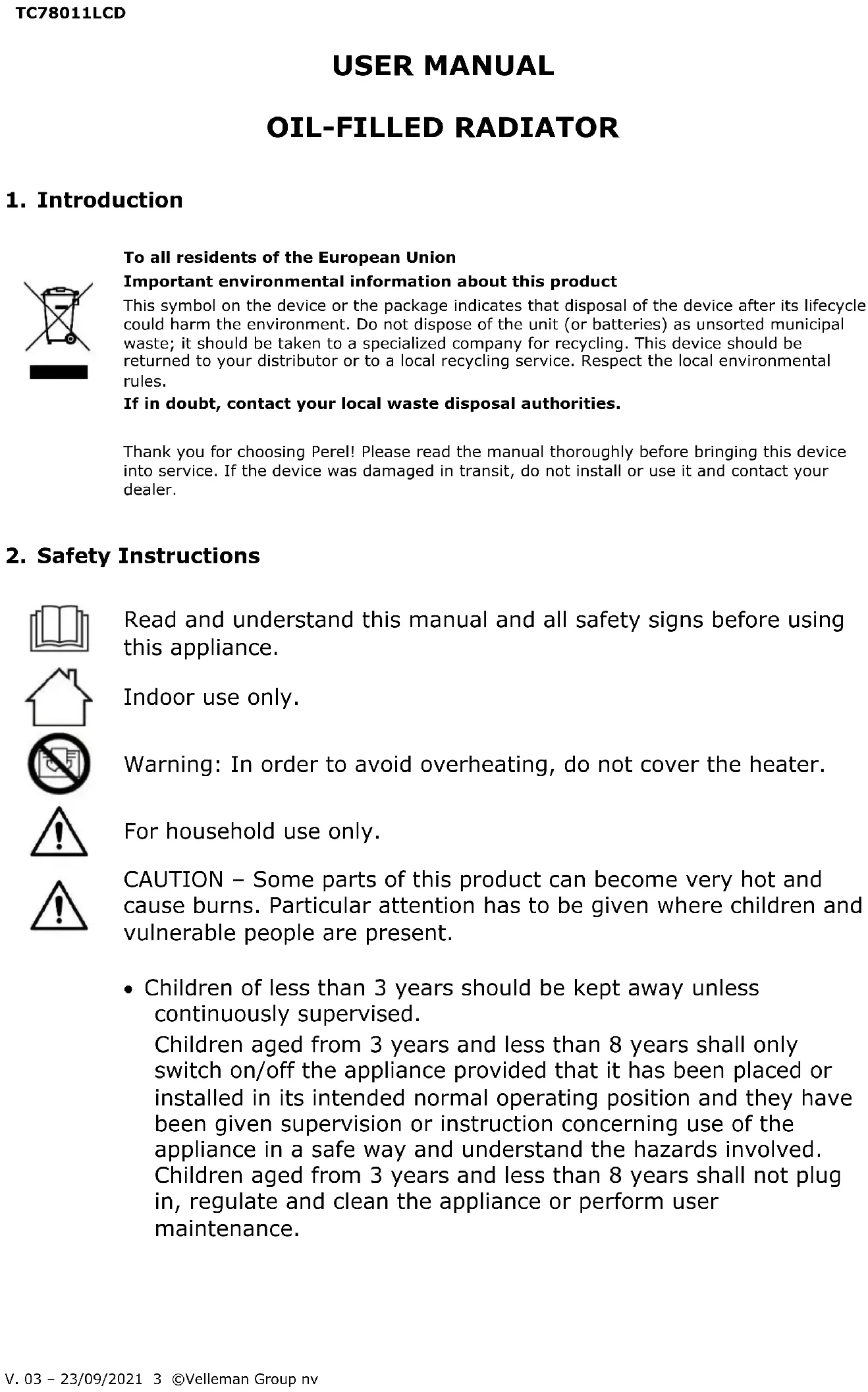

USER MANUAL TC78011LCD Perel

White electric oil resistance heater with multiple heat sinks and wheels (no visible text or symbols)

USER MANUAL 3

HANDLEIDING 9

MODE D'EMPLOI 15

MANUAL DEL USUARIO 21

This product is only suitable for well-insulated spaces or occasional use.

Diagram of a solar power heater with numbered parts labeled 1 through 6 for identification.

USER MANUAL

OIL-FILLED RADIATOR

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Image displaying six symbols: open book, house, no warning sign, and triangular warning triangle with exclamation mark.

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Warning: In order to avoid overheating, do not cover the heater.

For household use only.

CAUTION – Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

- Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. Do not install this appliance immediately below a socket.

- Some parts of this product can become very hot and cause burns. Do not touch the appliance when in use or shortly after use. Do not rest the power cable on the appliance when hot.

- This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The use of an extension lead or multi-plug adaptor is not advised when connecting this appliance to the mains. Connection through these devices could lead to a risk of overloading, overheating and even fire at the extension lead or adaptor due to inadequate connection quality.

- Install the appliance in a vertical position and at a distance of minimum 0.5 m away from furniture and other objects. Never operate the appliance near inflammable or explosive materials or gases.

- Do not use the appliance in rooms when these are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- The first time you use the appliance, a little smoke and smell due to the protective substances applied to the heating element before transport may be given off. This is normal and should not be considered a fault.

- This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak. When scrapping the heater, follow the regulations concerning the disposal of oil.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

Keep this manual for future reference.

4. Technical Specifications

power supply 220-240 V\~, 50/60 Hz

power consumption....2500 W

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,73	kW		manual heat charge control, with integrated thermostat	N.A.
Minimum heat output (indicative)	P_min	0,0	kW		manual heat charge control with room and/or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	2,428	kW		electronic heat charge control with room and/or outdoor temperature feedback	N.A.
Auxiliary electricity consumption					fan-assisted heat output	N.A.
At nominal heat output	el_max	0,002	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N.A.	kW		single-stage heat output and no room temperature control	no
In standby mode	els_B	0,002	kW		two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no

		Other control options (multiple selections possible)
		room temperature control, with presence detection	no
		room temperature control, with open window detection	no
		with distance control option	no
		with adaptive start control	no
		with working time limitation	no
		with black bulb sensor	no
Contact details	Velleman Group nvLegen Heirweg, 33 9890 Gavere, Belgium

5. Overview

Refer to the illustrations on page 2 of this manual.

1	display
2	control panel
3	on-off button

4	cord storage
5	wheels
6	fins

6. Installation

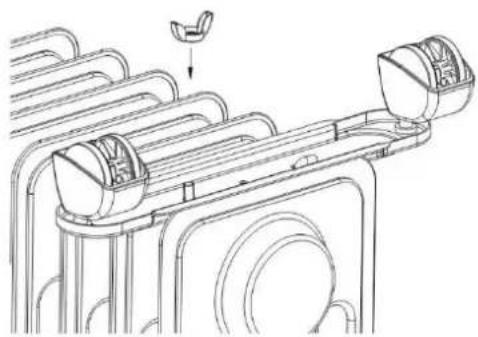

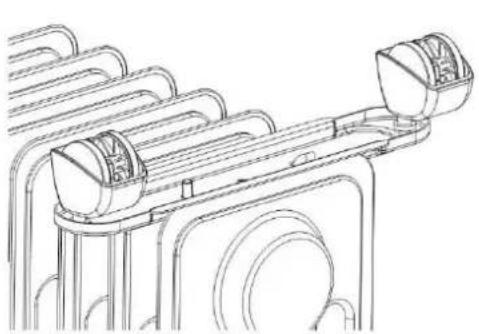

1. Turn the heater upside-down and install a bracket between the outermost fins on each side of the heater.

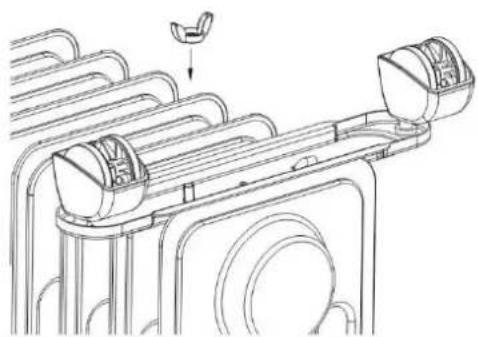

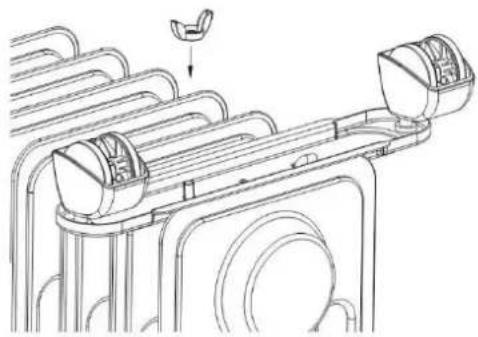

2. Fix the two wheels onto the bracket with two wingnuts.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Install vertically on a flat, dry, stable and non-slippery surface.

7. Operation

7.1 General Operation

1. Insert the power plug into the mains.
2. Press the on-off button. The display blinks once and the appliance is ready for use.

1. Press MODE to enter the setting mode.

24

24

1. Select the measurement unit with ^ C/ ^ F.
2. Now, set the temperature with the increase/decrease button. The set temperature value will be displayed.
3. Press MODE again to enter the timer switch-on mode. Set the switch-on timer with +/-

1. Press MODE again to enter the timer switch-off mode. Set the switch-off timer with +/-

1. Press MODE again to confirm. The heater will start at power level III. Press the on/off button once to select power level II, press twice to select power level I, press thrice to switch off the heater.

24

1. Switch off and disconnect the appliance after use.

7.2 Overheating Protection

This heater is equipped with an overheating protection, which will automatically switch off the heater in case of overheating. If this occurs, please unplug from the mains and allow cooling for 30 minutes before re-connecting and switching on again.

To avoid overheating, check that the appliance is sufficiently ventilated and that the air intakes are unobstructed. Please contact your local dealer if the heater keeps switching off.

8. Cleaning and Maintenance

Before cleaning, switch of the appliance, disconnect from the mains and allow to cool completely.

Never immerse the appliance in water or any other liquid. Protect it from splashes and spraying liquid.

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
