USER MANUAL HDC200B HAMILTON BEACH

840168503 ENV01.qxd:840168500 Ev01.qxd 10/20/09 10:04 AM Page 1

Single-Cup Coffeemaker Page 2

Line drawing of a modern hand mixer with lid and side ports (no text or symbols)

READ BEFORE USE. LIRE AVANT D'UTILISER. LEA ANTES DE USAR.

Hamilton Beach.

COMMERCIAL

840168503

www.commercial.hamiltonbeach.com

10/09

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
3. To protect against electric shock, do not place cord, plug, or coffeemaker in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when the coffeemaker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
6. Coffeemaker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free technical service number for information on examination or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electrical shock, or personal injury.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Do not use appliance for other than intended use.
12. WARNING! To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

WARNING! Shock Hazard: If the plug on this appliance does not fit in your outlet, do not modify the plug and do not use an adaptor. Have an electrician replace the obsolete outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance and should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use a high-wattage appliance on the same circuit with the coffeemaker.

NOTE: For best results, allow the coffeemaker to cool for one minute between brewing cycles.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

840168503 ENv01.qxd:840168500 Ev01.qxd 10/20/09 10:04 AM Page 4

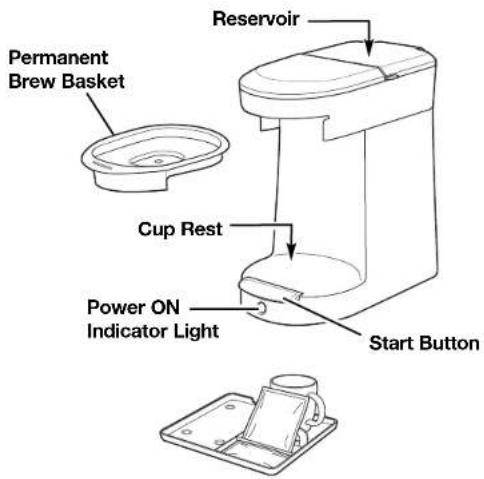

Parts and Features

Permanent Brew Basket Reservoir Cup Rest Power ON Indicator Light Start Button

Coffee Tray (optional accessory, model #CT200B)

Automatic Shutoff: The coffeemaker will automatically shut off after brew cycle is complete.

How to Brew Coffee or Tea

WARNING Burn Hazard.

• Do not use more than 12 ounces (350 ml) of water.
• Fully insert cup under brew basket.
• Do not remove cup until light goes off.
  Overflowing coffee and hot water are a burn hazard.

This coffeemaker can be used with pod-type coffee or tea pods. It is not recommended for use with espresso pods.

1. Plug in coffeemaker.

2. Lift reservoir lid and slide out brew basket. Place ONE coffee or tea pod into brew basket. (Illus. 1.)
   Make sure pod is centered and flat in brew basket.

3. Fill serving cup 12 ounces (350 ml) of cold water. (Illus. 2.)

NOTE: Once the START button is pressed, the unit will brew for one cycle. If the START button has been pressed with no water in the reservoir, allow the unit to complete one brew cycle and the Power ON Indicator Light will go out. If the brew cycle needs to be stopped during brewing, unplug the unit.

1. Pour water carefully into reservoir (behind brew basket) and lower reservoir lid. (Illus. 3.)
2. Place serving cup under brew basket. (Illus. 4.)
3. Press START button. The Power ON Indicator Light will light up to show that coffeemaker is on. Coffeemaker will shut off automatically and light will go off when brew cycle is completed. (Illus. 5.)
4. After you have finished your coffee and the coffeemaker has cooled, use the tab on the front of the brew basket to slide out brew basket and dispose of pod. (Illus. 6.)

If using standard tea bags, follow all directions except in step 2, remove brew basket and brew water directly into cup. Once hot water is brewed, steep tea bag in cup until desired strength is reached. NOTE: For best results, allow coffeemaker to cool for one minute between brewing cycles.

Care and Cleaning

TO CLEAN INSIDE OF COFFEEMAKER: To prolong the life of your coffeemaker, monthly cleaning is recommended. In areas with hard water, more frequent cleaning is necessary.

1. Pour 12 cup of plain white vinegar and 12 cup of cold water into reservoir. Place cup on cup rest under brew basket. A commercial coffee cleaner, such as CleanCaf ^™ , may also be used according to package directions.
2. Press START button once. After 30 seconds, turn OFF.
3. Wait 30 minutes to allow vinegar to clean. Then turn ON again. When brew cycle is finished, wait for unit to cool.
4. Empty cup and rinse. Pour one cup of cold tap water into reservoir. Place cup under brew basket.
5. Press START button. When brew cycle is finished, empty cup. Repeat this process with one more cup of cold tap water.
6. If necessary, repeat Step 5 to remove any remaining vinegar taste.
7. Wash cup and brew basket before making a beverage.

TO CLEAN OUTSIDE OF COFFEEMAKER:

1. Unplug coffeemaker and allow to cool before cleaning.
2. Occasionally wipe water spreader area, above brew basket, with a clean, damp cloth to remove oils and residues from coffee.
3. Permanent brew basket may be washed in dishwasher. Discard disposable brew baskets after each use.
4. To clean all other outside surfaces of coffeemaker, use a clean, damp cloth.

840168503 ENv01.qxd:840168500 Ev01.qxd 10/20/09 10:04 AM Page 8

LIMITED WARRANTY

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase.

If you have a claim under this warranty please contact our TECHNICAL SERVICES DEPARTMENT at 1-866-285-1087 or 910-693-4277. For faster service, locate the model, type, and series numbers on your appliance.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original purchaser. Keep the original sales receipt, as proof of purchase is required to make a warranty claim or the warranty term will be based on the date of manufacture plus one (1) year.

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

8
