USER MANUAL Slide & Lock 40750 HAMILTON BEACH

Visit hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online.

LIRE AVANT UTILISATION

Français.... 14

Exterior view of a Hamilton Beach coffee maker with glass mug and control panel (no visible text or symbols)

Slide & Lock Espresso

Maker with Automatic Milk Reservoir

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
5. To protect against fire, electric shock and injury to persons, do not immerse cord, plug or espresso maker in water or other liquid.
6. Unplug from outlet when espresso maker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. Espresso maker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
8. The use of attachments not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped

or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

1. Do not use outdoors.
2. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
3. Do not place espresso maker on or near a hot gas or electric burner or in a heated oven.
4. To disconnect espresso maker, turn switch OFF ☐ and then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
5. WARNING! To reduce the risk of fire or electric shock, do not remove the bottom cover. No user-serviceable parts are inside. Repair should be done by authorized service personnel only.
6. Do not use appliance for other than intended use.
7. WARNING! Be certain portafilter is securely locked in place when brewing espresso. Scalding may occur if the portafilter locking handle is unlocked (raised up) during the brewing cycle.
8. Do not place espresso maker in a cabinet when in use.
9. Do not connect milk reservoir lid to espresso maker without first connecting lid to milk reservoir.
10. WARNING: Scalding may occur if hand(s) are near cup during brew cycle.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This product is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

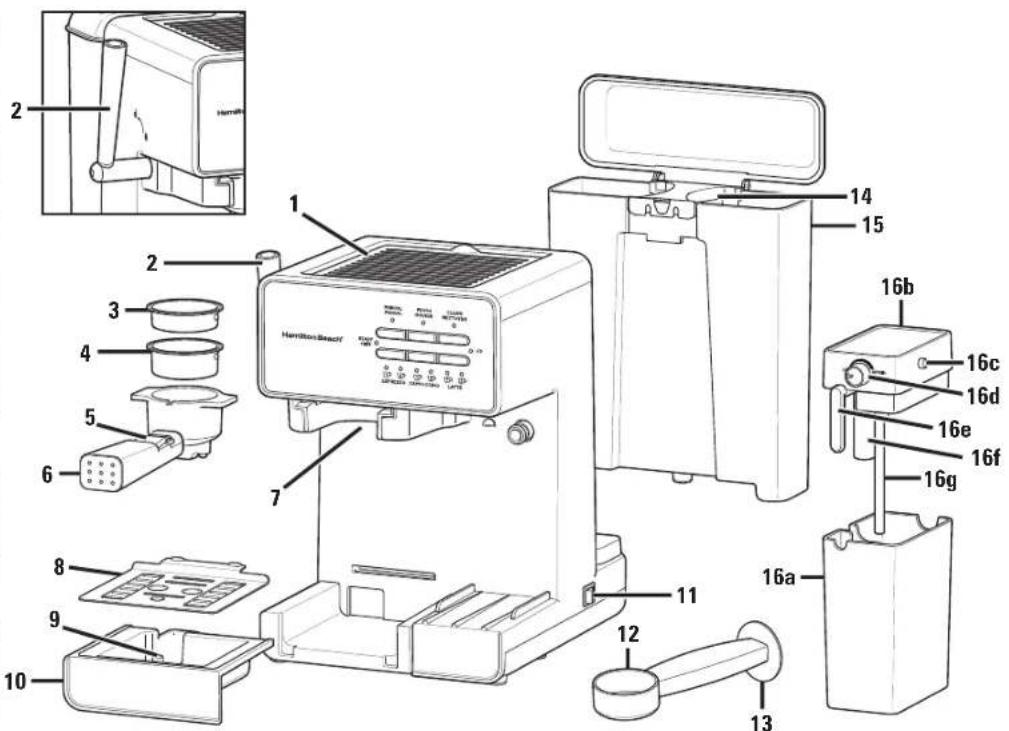

Parts and Features

To order parts, visit:

hamiltonbeach.com/parts

1 Top Cover (removable)
2	Portafilter Locking Handle (with lock and unlock icons)
3 Single-Shot Filter
4 Double-Shot Filter
5 Portafilter Retention Clip
6 Portafilter with Spouts
7 Brew Head
8 Cup Rest (removable)
9 Red Overflow Indicator
10 Drip Tray (removable)
11 ON/OFF (I/OSwitch)
12 Measuring Scoop
13 Tamping Tool
14 Water Reservoir Handle
15 Removable Water Reservoir with Lid
16 Milk Reservoir Assembly
	16a Milk Reservoir
	16b Milk Reservoir Lid
	16c Release Button
	16d Frothing Control Dial
	16e Frothing Nozzle Lever
	16f Frothing Nozzle (with removable cover)
	16g Tube and Tube Seal

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16a 16b 16c 16d 16e 16f 16g

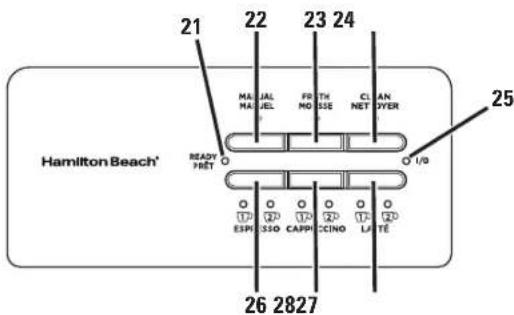

Control Panel

21 READY Light
22 MANUAL Button
23 FROTH Button
24 CLEAN Button

Hamilton Beach' 21 22 23 24 25 26 2827

25	ON/OFF (M)Indicator Light
26	ESPRESSO Button
27	CAPPUCCINO Button
28	LATTÉ Button

Before First Use

(Priming the Pump)

Remove and recycle red plug from beneath Water Reservoir. Wash all removable parts in warm, soapy water. No parts may be washed in a dishwasher.

Water pump must be "primed" before first use to work properly.

Operating without water in Water Reservoir can permanently damage the appliance.

Diagram of a mechanical device with a control panel and directional arrow (no text or symbols)

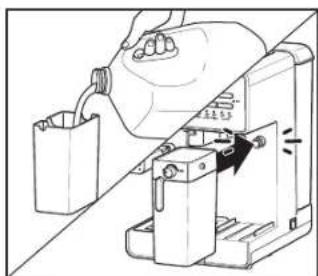

1. Fill Removable Water Reservoir to MAX fill line with cold water. Replace securely, ensuring Water Reservoir is flush on back of unit.

WARNING Electrical Shock Hazard. Do not

immerse machine, cord, or plug in water or any other liquid.

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols present)

1. To remove Milk Reservoir Assembly from unit, press Release Button on right side of Lid and slide it out. Lift Lid and fill with cold water to MAX fill line and replace Lid. Replace Milk Reservoir Assembly by sliding back into machine until it clicks into place.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

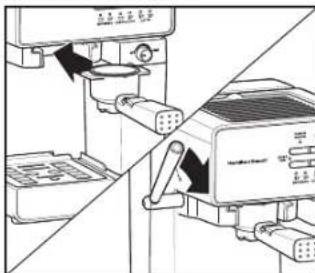

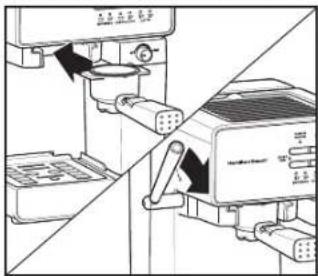

1. Slide empty Portafilter into Brew Head and pull down Portafilter Locking Handle to lock).

Before First Use

(Priming the Pump [cont.])

Line drawing of a coffee maker with a cup and control panel (no text or symbols)

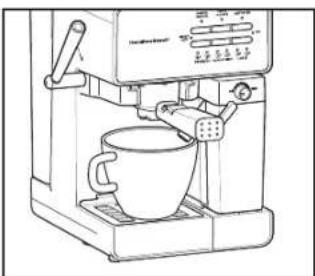

1. Place large empty cup on Cup Rest with Frothing Nozzle directed toward the cup.

Line drawing of a kitchen appliance with an electrical outlet and hand holding a switch (no text or symbols)

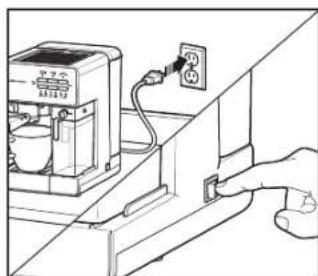

1. Plug into outlet. Press ON (I) Switch. Pump will turn on for 3 seconds to begin priming process. READY Light will pulse while preheating and then become solid.

Line drawing of a hand operating a coffee machine with a cup and control panel (no text or symbols visible)

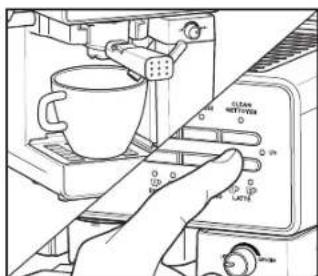

1. Press the LATTÉ button one time to activate LATTÉ Single Shot mode. Once pump starts, let unit run until it shuts off automatically, or until water flows from Portafilter. If water does not flow from Portafilter after unit stops, repeat the process until it does. Machine is now primed and ready to use.

How to Use

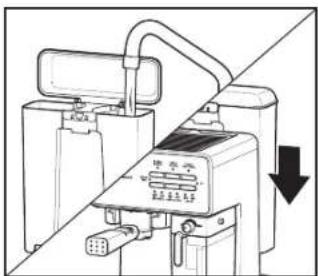

Diagram showing a device with labeled components and a downward arrow indicating a decrease or adjustment.

6
1. Fill Removable Water Reservoir with desired amount of cold water and replace securely on back of unit.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. To remove Milk Reservoir Assembly from unit, press Release Button on right side of Lid and slide it out. Lift Lid and fill with cold milk up to MAX fill line and replace Lid. Replace Milk Reservoir Assembly by sliding back into machine until it clicks into place. NOTE: Use any type of milk: whole, low fat, nonfat, or plant-based milk.

How to Use (cont.)

Diagram showing a cooking process with three containers and a kitchen appliance, no text or symbols present

1. Select either Single-Shot or Double-Shot Filter. Insert into Portafilter by aligning raised dimple on selected Filter with cutout notch on Portafilter. Tum Filter either left or right to lock into place.

Line drawing of a mechanical component with a cylindrical shaft and connector (no text or symbols)

1. Add espresso to Filter and press grounds firmly with Tamping Tool. Do not fill above MAX line. (See How to Fill and Tamp Espresso on page 10).

Diagram showing a kitchen appliance with labeled parts and directional arrows indicating movement or assembly.

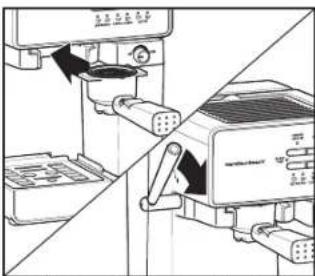

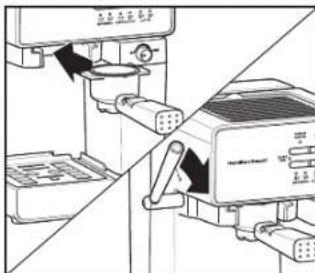

1. Slide Portafilter into Brew Head and pull down Portafilter Locking Handle to ⏻ (lock).

Line drawing of a kitchen appliance with three mugs and a stove (no text or symbols)

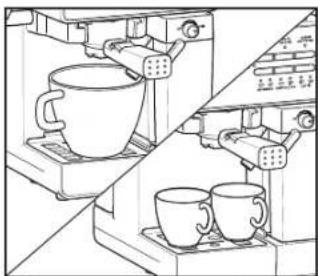

1. Place one or two cups on Cup Rest under Portafilter Spouts. If using one cup, use one wide enough to catch espresso from both spouts.

Line drawing of an electrical circuit breaker with a hand inserting a plug into the socket (no text or symbols)

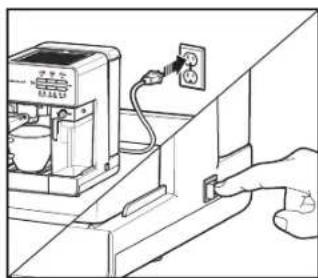

1. Plug into outlet. Press ON (I) Switch to turn the machine on. Pump will turn on for 3 seconds to prime each time unit is powered on. READY Light will pulse while preheating and then become solid when machine is ready to brew. NOTE: If the machine is left on for 30 minutes without using, it will go into sleep mode. Press any button to reactivate.
   NOTE: Drip Tray has a Red Overflow Indicator that will rise when it needs to be emptied. Failure to empty Drip Tray could lead to it overflowing onto counter. When Red Overflow Indicator rises and becomes visible above Cup Rest surface, empty Drip Tray. To remove, pull straight out. Return Drip Tray and Cup Rest to machine.

How to Make an Espresso

Follow steps 1, 3–7 in How to Use on pages 6 and 7.

in Bosch MANUAL MOBLES PRESS MOBLES VEAM MOBLES COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV

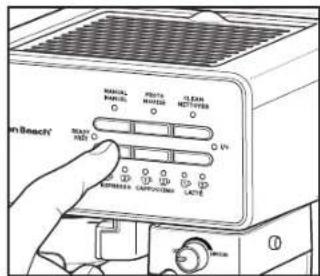

1. Automatic Mode: When READY Light is solid, press ESPRESSO Button, once for (1) a single shot, twice for (2) a double shot. Light will pulse three times for selected cup size, then turn solid when ready to brew. Espresso will begin to dispense. Machine will stop automatically when finished brewing. Allow espresso to drip from Portafilter for 15-20 seconds before removing cup(s).

NOTE: To stop dispensing before cycle is complete, press ESPRESSO Button.

Line drawing of a coffee maker with a side panel and lever mechanism (no text or symbols)

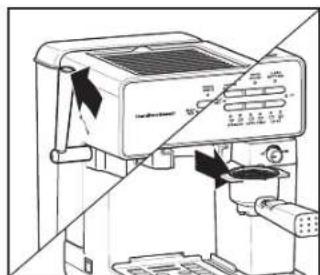

1. Wait about 1 minute before removing Portafilter from machine to allow espresso grounds and excess water still flowing through pump to finish.

NOTE: Some water may continue to drip intermittently from Brew Head. This is normal and a result of product operation. Lift Portafilter Locking Handle up to 📋 (unlock). Slide Portafilter from Brew Head.

OR ON Beach MANUAL MODEL H171 BASIK C2AM NETTOBER OFFICE CAPTICUMA LATE

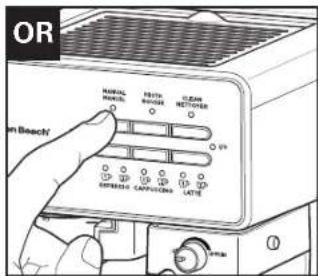

1. MANUAL Mode: When READY Light is solid, press MANUAL Button. MANUAL light will pulse three times and then turn solid when ready to brew. Espresso will begin dispensing. When desired amount of espresso is dispensed, press MANUAL Button again to stop dispensing or pump will automatically stop after 90 seconds. Allow espresso to drip from Portafilter for 15-20 seconds before removing cup(s).

Illustration of two hands using a tool to remove seeds from a container, separated by a diagonal line (no text or symbols)

Illustration of a hand washing a pipe with a water tap, no text or symbols present

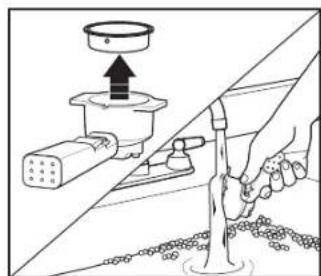

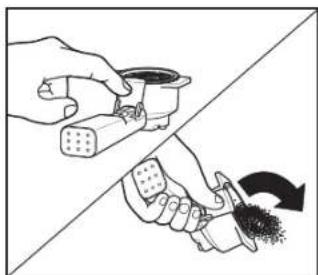

1. To empty grounds, move Portafilter Retention Clip up and over Filter. Keeping thumb on clip, tilt Portafilter and discard espresso grounds.

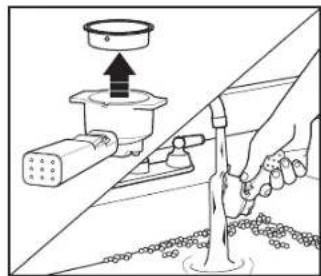

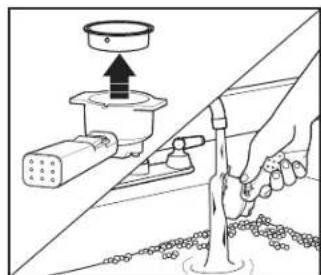

2. Allow Portafilter to cool. Align raised dimple on Filter with cutout notch on Portafilter to unlock, then remove. Clean Filter and Brew Head after each use. Follow Care and Cleaning instructions on page 10. DO NOT allow grounds to remain in Filter; this can clog Filter and cause unit to malfunction.

How to Make a Cappuccino

Follow steps 1–7 in How to Use on pages 6 and 7.

Line drawing of a kitchen setup with a cup, blender, and blender (no text or symbols)

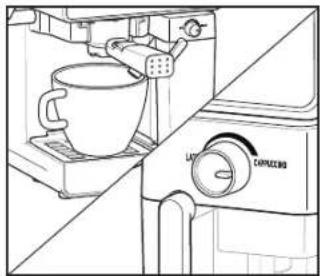

1. Turn Frothing Control Dial to CAPPUCCINO. NOTE: The amount of froth can be adjusted to personal preference by rotating Dial toward LATTE before or during the brewing cycle.

MAKE MOVE MOVE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE CHANGE EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECTS EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECT S EFFECTS

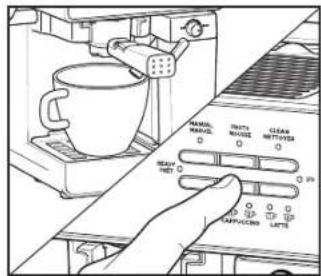

1. Place a cup on Cup Rest under Portafilter Spouts. Ensure Frothing Nozzle is directed toward the cup. When READY Light is solid, press CAPPUCCINO Button, once (1) for a small cup or twice (2) for a larger cup. CAPPUCCINO light will pulse three times for selected cup size, then turn solid when ready to brew. Milk will begin to dispense, followed by espresso. Machine will stop automatically when finished brewing. Allow espresso to drip from Portafilter for 15-20 seconds before removing cup. NOTE: Clean the Frothing Nozzle after every other use. See How to Clean Frothing Nozzle on page 10.

How to Make a Latté

Follow steps 1–7 in How to Use on pages 6 and 7.

PRESSO CAPPUCCINO UPLE PAXUNI

MANUAL MANUAL BUTS PANEAL CLEAR SWITCHER BEET RED ON ON ON ON ON ON ON ON ON ON ON ON ON

1. Tum Frothing Control Dial to LATTÉ. NOTE: The amount of froth can be adjusted to personal preference by rotating Dial toward CAPPUCCINO before or during the brewing cycle.

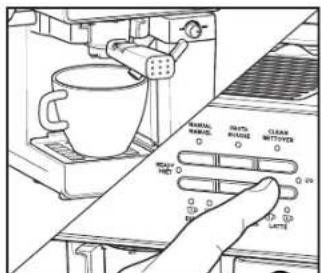

2. Place a cup under Portafilter Spouts. Ensure Frothing Nozzle is directed toward cup. When READY Light is solid, press LATTE Button, once (17) for a small cup or twice (23) for a larger cup. LATTE light will pulse three times for selected cup size then turn solid when ready to brew. Milk will begin to dispense followed by espresso. Machine will stop automatically when finished brewing. Allow espresso to drip from Portafilter for 15-20 seconds before removing cup. NOTE: Clean the Frothing Nozzle after every other use. See How to Clean Frothing Nozzle on page 10.

For Additional Frothed Milk or Frothed Milk Separately

To add additional frothed milk to a cappuccino or latté, or to froth milk separately for hot chocolate, macchiato, chai latté, etc., place cup on Cup Rest. Ensure Frothing Nozzle is directed toward cup. When READY Light is solid, press FROTH Button. FROTH light will pulse three times and then turn solid when ready. Frothed milk will dispense. Press FROTH Button again to stop when desired amount is reached.

How to Fill and Tamp Espresso

Diagram illustrating a chemical process with labeled steps: pouring dark granular material into a container, dropping into a bottle, and finally adding granular material.

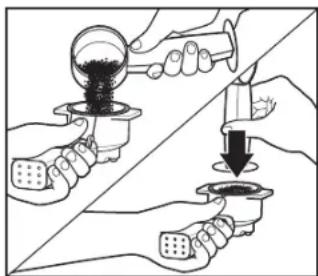

1. Put a Single-Shot or Double-Shot Filter in Portafilter. Fill with espresso-ground coffee, running your finger across top to push off excess grounds. Make sure coffee is even and level before tamping.
2. Using Tamping Tool, press down firmly and evenly on grounds to form a "puck" of coffee. Do not twist coffee as you push it down.

Care and Cleaning

How to Clean Frothing Nozzle

1. Place large empty cup on Cup Rest with Frothing Nozzle directed toward the cup. Ensure there is water in Water Reservoir. Empty Milk Reservoir, replace Lid, and slide Milk Reservoir Assembly back onto machine. The Milk Reservoir Assembly must be in place to run the CLEAN cycle.
2. Press CLEAN Button. Light will be solid. Water will pump through Frothing Nozzle into cup and into Milk Reservoir for 15 seconds, then automatically shut off. Discard contents of cup and Milk Reservoir. NOTE: To prevent Frothing Nozzle from clogging, remove Nozzle cover and clean at the end of each session of use.

How to Clean Milk Reservoir Assembly

Discard any remaining milk. Rinse and wash all parts of the Milk Reservoir Assembly thoroughly with warm soapy water. Rinse and dry well. Do not use abrasive cleaners or scouring pads.

NOTE: Unused milk can be refrigerated in Milk Reservoir Assembly.

Illustration of hands holding a small object with a magnified view, no text or symbols present

1. Use a twisting motion as you pull Tamping Tool up and away from coffee to "polish" puck. Keep tamped coffee below the MAX line inside Filter. Clean excess grounds from Portafilter to ensure proper fit under Brew Head and to avoid leaks.

WARNING Electrical Shock Hazard. Disconnect power before wiping exterior of unit or brew head. Do not immerse cord, plug, or machine in any liquid.

How to Clean Filters

Single-shot Filter and Double-shot Filter should be cleaned frequently to prevent blockage. Scrub the Filters with a scouring brush, then soak Filters in hot, soapy water for 15 minutes. Thoroughly rinse Filters and let air-dry.

General Cleaning

1. Slide Portafilter without coffee into Brew Head and move Portafilter Locking Handle to 6(lock).
2. Place a container under Portafilter wide enough to catch water from both spouts. Ensure there is water in the Water Reservoir.
3. Press ON (I) Switch to turn the machine on; READY Light will pulse. Once the READY Light is solid, press the MANUAL Button and dispense at least 1 cup (237 mL) of water for best results.
4. Press OFF (○) Switch to turn the machine off. Unplug.
5. Wipe exterior and Brew Head with soft, damp cloth.
6. Wash all parts with warm, soapy water and dry thoroughly. DO NOT wash any parts in a dishwasher.

Care and Cleaning (cont.)

How to Descale

Mineral deposits will affect operation and Espresso Maker must be descaled once a month or if the machine has not been used in a long time.

1. Add 8 oz. (237 mL) white vinegar and 16 oz. (473 mL) of cold water to Water Reservoir.
2. Insert Portafilter without Filter or coffee. Place a container on Cup Rest under Portafilter.
3. Plug into outlet. Press ON (I) Switch to turn the machine on. READY Light will pulse and then become solid when machine is ready.

4. Press MANUAL Button and brew for 1 minute. Press MANUAL Button again to stop brewing. This allows vinegar to clean.

5. Empty container and place back on Cup Rest. Wait 20 minutes, then press MANUAL Button and brew for 1 minute. Press MANUAL Button again to stop brewing. Empty container and place back on Drip Tray.

6. Empty Water Reservoir and fill to MAX line with clean water. Press MANUAL Button, and brew for 1 minute. Press MANUAL Button again to stop brewing. Empty container and place back on Drip Tray. Repeat process 3 times. Machine is cleaned and ready to brew.

Tips for Making Espresso

• For best results, use fresh-ground, dark espresso roast coffee.
• If preground espresso coffee is used, store unused portion in an airtight container and keep in a cool, dark area for up to one week.
• The grind of the coffee will affect the taste of the coffee and how the appliance works. If grind is too coarse, water will flow too fast through coffee and result in a weaker flavor. If grind is too fine, flavor may be too strong or bitter, and grounds may clog filter.
• For hotter espresso, preheat Filter and Portafilter by first brewing water into cups for a few seconds and then emptying brewed water.

CAUTION

Burn Hazard. Filter and portafilter are hot.

• Espresso beans may be ground in a coffee grinder. For best results, use Hamilton Beach Custom Grind™ Coffee Grinder or Hamilton Beach 2-14 Cup Burr Coffee Grinder on espresso setting. If grinding espresso in a store or using a burr mill, use a setting that is one to two notches coarser than the espresso setting.
• Grind your espresso so that it looks gritty, like salt or sand. It is too fine if it looks like powder and feels like flour. If coffee is ground too fine, water will not flow through coffee.
• Always use cold water to make coffee. Warm water or other liquids could cause damage to the appliance.
• For best-tasting results, use filtered water or bottled water.

Troubleshooting

Espresso will not flow out.

• Ensure water level in Water Reservoir is between the MIN and MAX lines. If Water Reservoir has run dry, Espresso Maker may need to be reprimed. Follow "Before First Use (Priming the Pump)" to reprime.
• Ensure Water Reservoir has been fully inserted onto the Espresso Maker by aligning hook feature on back of machine.
• Espresso grounds may be overpacked in Filter. Ensure espresso grounds do not exceed MAX line inside Single-Shot or Double-Shot Filter.
• Ensure Filter is inserted properly into Portafilter by aligning the raised dimple on the side of the Filter with the cutout notch on the Portafilter.
• Filter could be clogged. Always clean Filter after each use.
  • Coffee grounds are too fine. Use a coarser grind.

Espresso is too strong, bitter, or has no crema.

• Too much ground coffee used. Ensure espresso grounds do not exceed MAX line inside Single-Shot or Double-Shot Filter. We recommend filling to 1/8 inch below the rim of the Filter (about 8 g for Single-Shot Filter or 15 g for Double-Shot Filter).
  • Coffee grounds are too fine. Use a coarser ground.

Espresso is too weak.

• Use fresh-ground espresso coffee and firmly tamp grounds.
• When using MANUAL mode, longer brew time produces weaker espresso. Recommended serving size per single-shot espresso is 1-1.5 oz. (29-44 mL), or for double-shot espresso 2-3 oz. (58-88 mL).
• Coffee grounds may be too coarse. Ensure grounds used are espresso grounds, or coffee was ground to an espresso-size grind. Grind size should resemble sand.
• Ensure there is sufficient ground coffee in Single-Shot or Double-Shot Filter.
• Try a different brand or roast of coffee.

Espresso Maker is noisy when operating.

• Espresso makers require high-pressure pumps, so it is normal for machine to be loud. However, if Water Reservoir does not contain water, attempting to brew will cause a loud noise. Water level in Water Reservoir should be between MIN and MAX lines. If Reservoir has run dry, machine may need to be reprimed. Follow "Before First Use (Priming the Pump)" to reprime.

Difficult to froth milk.

• Always use fresh, cold milk (skim milk is recommended).
• Always clean Frothing Nozzle after each use. See Care and Cleaning section.

Drip Tray overflows.

- Drip Tray has a Red Overflow Indicator that will rise when it needs to be emptied. Failure to empty Drip Tray could lead to it overflowing onto counter. When Red Overflow Indicator rises and becomes visible above Cup Rest surface, empty Drip Tray. Return Drip Tray and Cup Rest to machine.

Top 3 lights flashing.

• Water Reservoir is empty. Ensure Water Reservoir is filled with cold water between the MIN and MAX fill lines.
  • Coffee grounds are too fine. Use a coarser grinder.

Bottom 6 lights flashing.

- Milk Reservoir Assembly is not in place. If brewing in CAPPUCCINO, LATTÉ or FROTH modes, ensure Milk Reservoir Assembly is correctly installed.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Attn: Consumer Affairs, 261 Yadkin Road, Southern Pines, NC 28387, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/customer-service in Canada. For faster service, include the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Diagram of a mechanical device with a control panel and directional arrow (no text or symbols)

Diagram of a hand operating a mechanical device with a tool, showing no text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Line drawing of a coffee maker with a cup and control panel (no text or symbols)

Line drawing of a kitchen appliance with an electrical outlet and hand holding a switch (no text or symbols)

Line drawing of a hand operating a coffee machine with a cup and control panel (no text or symbols visible)

Technical line drawing of a mechanical device with a hand operating it (no text or symbols present)

Diagram showing a device with labeled components and a downward arrow indicating a decrease or change.

Diagram showing a cooking process with three containers and a kitchen appliance, no text or symbols present.

Line drawing of a mechanical component with a cylindrical shaft and connector (no text or symbols)

Diagram showing a kitchen appliance with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a kitchen appliance with three mugs and a stove (no text or symbols)

Line drawing of an appliance with a hand interacting with a switch (no text or symbols)

in Bosch MANUAL MOBLES PRESS MOBLES VEAM MOBLES COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV COV

Line drawing of a microwave oven with a side arm and control panel (no text or symbols)

Illustration of two hands using a tool to brush or brush onto a surface, with no text or symbols present.

Diagram showing a hand washing a pipe with a water tap, no text or symbols present

Line drawing of a kitchen setup with a mug, a blender, and a control panel (no text or symbols)

MANUAL MANUAL BEETS PANEAL CLEAR SWITCHER HORNY RED ON ON ON ON ON ON ON ON ON ON ON

Diagram of coffee machine control panel with labeled buttons and a hand operating the switch

Diagram illustrating a coffee brewing process with labeled steps and hands using different methods to generate or prepare.

Illustration of hands holding a small object with a magnified view, no text or symbols present

Diagram of a mechanical device with a diagonal line and a downward arrow, no visible text or symbols

Diagram of a hand operating a mechanical device with a tool, showing no text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Line drawing of a coffee maker with a cup and control panel (no text or symbols)

Line drawing of a kitchen appliance with an electrical outlet and hand holding a switch (no text or symbols)

Line drawing of a hand operating a coffee machine with a cup and control panel (no text or symbols visible)

Technical line drawing of a mechanical device with a hand operating it (no text or symbols present)

Diagram showing a device with labeled components and a downward arrow indicating a decrease or change.

Diagram showing a cooking process with three containers and a kitchen appliance, no text or symbols present

Line drawing of a mechanical component with a cylindrical shaft and connector (no text or symbols)

Technical diagram showing a kitchen setup with labeled components and directional arrows indicating movement or flow.

Line drawing of a kitchen appliance with three mugs and a stove (no text or symbols)

Line drawing of an appliance with a hand interacting with a switch (no text or symbols)

Diagram of a coffee maker with a diagonal line indicating crossed-out components (no text or symbols present)

Illustration of two hands exchanging a container and a tray, separated by a diagonal line (no text or symbols)

Illustration of a hand using a tool to clean or wash water, showing mechanical components and surface finish (no text or symbols)

Line drawing of a kitchen setup with a mug, blender, and blender (no text or symbols)

MANUAL MANUAL 0 OUTPUT MANUAL 0 CLEAR METHEVER 0 BEET NET 0 ON 0 CAPSICUM 0 LITTLE

Diagram illustrating a coffee cup being poured into a container using a spoon, with a downward arrow indicating the process.

Illustration of hands holding a small object with a magnified view, no text or symbols present

Mixcoac, Benito Juárez
