Product type	Drip coffee maker
Brand	Hamilton Beach
Model	49995RC
Capacity	12 cups (1.8 L)
Coffee maker type	Drip coffee maker
Carafe material	Glass
Programmable	Yes, with 24-hour timer
Auto shut-off	Yes, 2 hours
Pause and serve function	Yes
Water level indicator	Yes, graduated on the reservoir
Permanent filter	Included
Dimensions (L x W x H)	30 x 20 x 35 cm
Weight	2.5 kg
Power supply	220-240 V, 50-60 Hz, 1000 W
Color	Black / Stainless steel
Cord length	1.0 m
Maintenance	Regular cleaning of the reservoir and carafe; descaling every 3 months
Safety	Auto shut-off; cool-touch surface
Spare parts	Carafe, permanent filter, filter basket available
Repairability	Repairability score: 8.5/10 (standard parts)

Frequently Asked Questions - 49995RC HAMILTON BEACH

How to program the Hamilton Beach 49995RC coffee maker?

Press the Program button, set the start time with the arrows, then confirm. The display will show the programmed time.

What is the maximum capacity of the coffee maker?

The coffee maker has a capacity of 12 cups (1.8 L). Use the graduation on the reservoir to measure water.

Can I use paper filters?

Yes, you can use size 4 paper filters, but a permanent filter is included to reduce waste.

How to clean the Hamilton Beach 49995RC coffee maker?

Wash the carafe and filter basket with warm soapy water. Wipe the body with a damp cloth. Descale regularly with white vinegar.

What to do if the coffee maker does not turn on?

Check that the outlet works and the cord is properly plugged in. Ensure the reservoir is correctly positioned. If the problem persists, contact customer service.

Coffee brews slowly, what to do?

This may be due to limescale buildup or a clogged filter. Descale the machine and change the filter if necessary.

Does the pause and serve function work?

Yes, remove the carafe during the cycle: a valve stops the flow. Replace the carafe to continue. Do not leave the carafe removed for more than 30 seconds.

How to descale the coffee maker?

Fill the reservoir with a mixture half water, half white vinegar. Run a full cycle, then two cycles with clear water to rinse.

Where to find spare parts for this model?

Parts like the glass carafe, filter basket, and permanent filter are available on the Hamilton Beach website or from authorized dealers.

Is the auto shut-off adjustable?

No, the auto shut-off is set to 2 hours after the end of the brew cycle. It cannot be changed.

USER MANUAL 49995RC HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
5. To protect against electric shock, do not place cord, plug, or coffeemaker in water or other liquid.
6. Unplug from outlet when the coffeemaker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

7. Coffeemaker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.

8. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

9. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Do not use appliance for other than intended use.
14. WARNING: To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
15. CAUTION! Cut Hazard: Removable single-serve pack holder contains a sharp blade. Use caution when handling.
16. CAUTION! Cut Hazard: Piercing nozzle is sharp. Use caution when cleaning.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

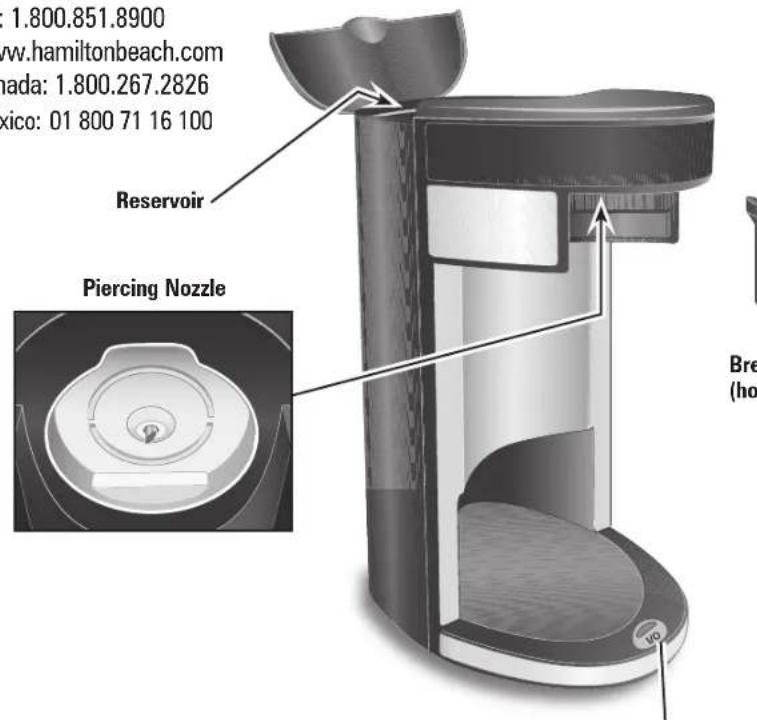

Parts and Features

*To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

México: 01 800 71 16 100

ON/OFF (I/O) Button

How to Brew a Single-Serve Pack

NOTE: It can take up to 2 minutes before brewed coffee starts dispensing into your cup or travel mug. Total brew time average is 4 minutes. For best results, allow the coffeemaker to cool for at least 2 minutes between brewing cycles.

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (10 ounces [296 ml]).
• Fill reservoir with cup or travel mug of water into which the coffee will be brewed.
• Fully insert cup or travel mug under brew basket.
• For best results, use K-Cup ^® * packs.

Diagram showing a wall-mounted power socket connected to a device with arrows indicating movement or force (no text or symbols present)

Close-up of hands assembling a mechanical component with a downward arrow indicating motion (no text or symbols)

Place a pack into the single-serve pack holder.

Cross-sectional diagram of a device with internal components and an arrow indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical device with a hand interacting with the top part (no text or symbols visible)

Press down on brew basket handle to lock and puncture the foil lid on the pack.

*K-Cup is a registered trademark of Keurig, Inc. Use of the K-Cup trademark does not imply any affiliation with or endorsement by Keurig, Inc.

CAUTION zard.

Removable single-serve pack holder has a sharp blade. Use caution when handling.

Press down on edge of the pack until the pack snaps into place and hole is punched in the bottom. Do not remove foil.

How to Brew a Single-Serve Pack (cont.)

Two-panel illustration showing hands pouring liquid from a cup into a bowl (no text or symbols)

Fill reservoir with cup or travel mug into which the coffee will be brewed.

Close-up of a mechanical component with a curved arrow indicating rotation or force, no visible text or symbols

(No text)

Two-step diagram showing a device being processed, with one emitting air and the other adding a cup (no text or symbols)

Diagram showing a mechanical device with a rotating arrow and a circular component inside, no text or symbols present.

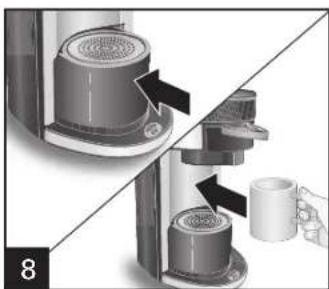

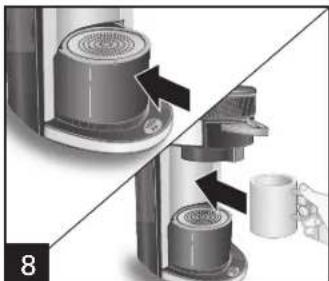

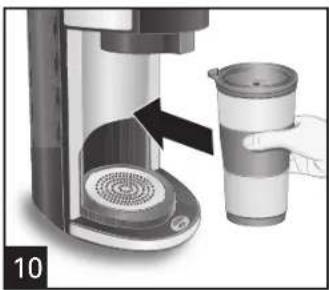

Use the taller cup position for a larger cup, such as a travel mug.

Close-up of a hand holding a cup and a water dispenser, with no visible text or symbols

Close-up of a hand holding a cup and a water dispenser, with no visible text or symbols

Illustration showing a hand pressing a wall socket connected to an electrical outlet with a plug (no text or symbols)

Illustration showing a hand pressing a button on a wall socket connected to an electrical outlet with a plug (no text or symbols present)

Press ON/OFF (I/O) button. The power ON indicator light will light up to show that coffeemaker is on.

Hand pressing a button on a device, showing an upward arrow (no text or symbols)

Hand pressing a button on a device, showing an upward arrow (no text or symbols)

Pull up on brew basket handle to unlock and remove.

Coffeemaker will shut off automatically and light will go off when brew cycle is completed.

Press the ON/OFF (I/O) button again to STOP brewing midcycle.

Allow 2 minutes to cool in between brews.

Brew basket and single-serve pack holder should be rinsed after every use.

How to Brew Ground Coffee or Soft Pod

This unit is for use with Melitta ^®† pods, available in the coffee aisle of your local grocery store.

NOTE: It can take up to 2 minutes before brewed coffee starts dispensing into your cup or travel mug. Total brew time average is 4 minutes. For best results, allow the coffeemaker to cool for at least 2 minutes between brewing cycles.

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (10 ounces [296 ml]).
• Fill reservoir with cup or travel mug of water into which the coffee will be brewed.
• Fully insert cup or travel mug under brew basket.
• Remove single-serve pack holder before adding coffee grounds to brew basket.

Diagram showing a power outlet connected to a device with arrows indicating direction (no text or symbols)

Diagram showing a hand pressing down on a mechanical component, with arrows indicating motion (no text or symbols present)

To remove single-serve pack holder, press down on the single-serve pack holder tab; then lift out.

CAUTION zard.

Removable single-serve pack holder has a sharp blade. Use caution when handling.

Cross-sectional diagram of a mechanical component with internal cavities and a central pile (no text or symbols)

Add ground coffee or pod to brew basket. WARNING! Burn Hazard: To avoid overflow, keep ground coffee below MAX fill line.

Illustration of a food processing step: mixing ingredients into a bowl, then adding a filter to a final container (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with directional arrows (no text or symbols)

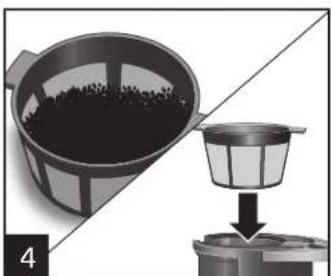

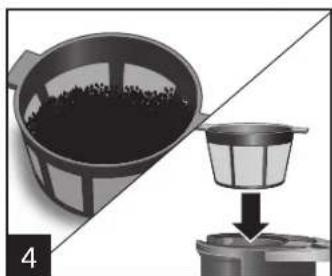

Or add finely ground coffee to removable holder. Place holder in brew basket. (2 Tablespoons [30 ml] is the MAX amount of any type of grounds.)

Push down to lock.

¹ Melitta is a registered trademark of Melitta Haushaltsprodukte GmbH & CoKG. Use of the Melitta trademark does not imply any affiliation with or endorsement by Melitta Haushaltsprodukte GmbH & CoKG.

How to Brew Ground Coffee or Soft Pod (cont.)

Illustration showing hands pouring liquid from a cup into a kitchen sink (no text or symbols)

Fill reservoir with cup or travel mug into which the coffee will be brewed.

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

Diagram showing two mechanical devices with ventilation and a mug, no text or symbols present

Diagram showing a mechanical device with a rotating arrow and a perforated base (no text or symbols)

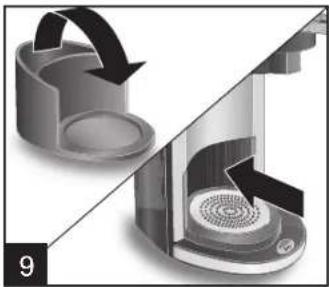

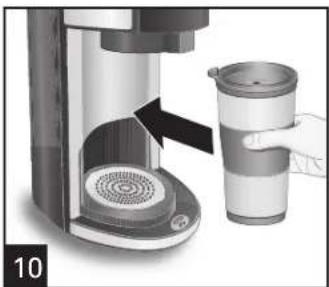

Use the taller cup position for a larger cup, such as a travel mug.

Close-up of a coffee maker with a hand holding a cup, showing the interior and side view (no text or symbols visible)

Illustration showing a hand pressing a power socket connected to an electrical outlet (no text or symbols present)

Press ON/OFF (I/O) button. The power ON indicator light will light up to show that coffeemaker is on.

Coffeemaker will shut off automatically and light will go off when brew cycle is completed.

If finer ground coffee is used, coffee will continue to drip after the light has gone off.

Press the ON/OFF (I/O) button again to STOP brewing midcycle.

Allow 2 minutes to cool in between brews.

Brew basket and single-serve pack holder should be rinsed after every use.

Care and Cleaning

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).

Electrical outlet with two socket and plug, showing a black arrow pointing to the plug (no text or symbols)

Product photo of a white vinegar with a clear lid and side-mounted device (no visible text or symbols)

Pour 1/2 cup (118 ml) of plain white vinegar and 1/2 cup (118 ml) of cold water into reservoir.

Illustration of a coffee maker with a hand holding a mug, showing internal components and a black arrow indicating motion (no text or symbols)

Place a cup underneath to catch the water/vinegar solution.

Close-up of a hand pressing a button on a cylindrical mechanical component (no visible text or symbols)

Electrical outlet connected to a cable, showing power plug insertion (no text or symbols)

Illustration of a hand washing a coffee machine with a lid and fan (no text or symbols)

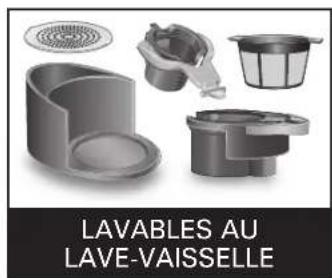

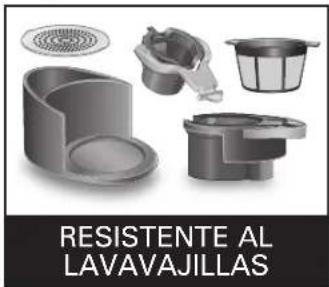

Product illustration of a dishwasher-safe kitchen sink with various kitchen components (no text or symbols on the items themselves)

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Press the ON/OFF (I/O) button once. After 30 seconds, unplug unit and allow vinegar to clean. After 30 minutes, plug in unit and allow it to finish the brew cycle. When brew cycle is finished, wait for unit to cool. Empty cup and rinse. Repeat steps 1–4 with 1 cup (237 ml) of cold tap water instead of 1/2 cup (118 ml) of vinegar and 1/2 cup (118 ml) of water.

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Coffee tastes bad. • Coffeemaker needs cleaning.Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.Poor coffee quality and freshness.Poor water quality (use filtered or bottled water).
Water on counter under unit.	• Overfilled water reservoir. Also check cup used to fill reservoir. Some mugs/cups do not pour cleanly and can dribble water down the side of the cup and onto counter.
Coffeemaker will not brew.	• Make sure you have allowed for the 2 minutes of cool-down time.• Check for water in water reservoir. If there is no water in the reservoir and the brew button is pushed, the unit will not brew.
Coffee overflows from brew basket.	• Use removable holder for ground coffee.• Use a lesser amount of ground coffee.When using whole bean coffee, a standard automatic drip coffee grind will yield best results.Be careful not to overgrind, since very finely ground coffee can cause overflow in this unit.
Coffee overflows from mug or travel mug.	• To prevent coffee overflowing from a mug/travel mug, use the same mug/travel mug to brew into that was used to fill the water reservoir. Do not add more than 10 ounces (296 ml) of water.
Water remaining in reservoir.	• Added too much water. Remove single-serve pack and replace brew basket. Repeat brewing cycle.
Noise or steam at the end of brew cycle.	• Reduce amount of water in reservoir.Brew a different type of single-serve pack.

Troubleshooting (cont.)

PROBLEM PROBABLE CAUSE

Coffee not dispensing. • Piercing nozzle is clogged with coffee grounds. Turn unit off; unplug. Allow unit to cool completely. To remove any built-up coffee grounds, insert end of bent paper clip into eye of piercing nozzle.
Water reservoir fills too slowly.	• Unit hasn't cooled down. Allow 2 minutes between brewing cycles.• Try filling water reservoir before pushing down brew basket handle to pierce single-serve pack.Start brewing cycle.
Failed foil seal. • There is variability in the single-serve pack manufacturing process which causes some types of single-serve packs to be weaker at the seams. Let cool 2 minutes between brewing, use less water, or try a different brand.

Notes

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Bouton MARCHE/ARRÊT (I/O)

3D rendering of a gray cylindrical container with a circular side and a perforated top lid (no text or symbols)

Diagram showing a power outlet connected to a wall-mounted device, with arrows indicating connection (no text or symbols present)

Close-up of hands assembling a mechanical component with a downward arrow indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with an arrow indicating direction (no text or symbols present)

Cross-sectional diagram of a mechanical device with a hand pressing a button (no text or symbols visible)

Illustration showing hands pouring liquid from a cup into a sink (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or force, no visible text or symbols

[Non-Text]

Two-step diagram showing a device being processed, with no visible text or symbols.

[Non-Text]

Diagram showing a mechanical device with a rotating arrow and a circular component, no text or symbols present.

Close-up of a hand holding a coffee maker with a cup, showing mechanical components and a clear lid (no text or symbols visible)

Diagram showing a hand using a power outlet to switch a wall socket, with an electrical plug inserted (no text or symbols present)

Illustration of a hand pressing down on a mechanical device with an upward arrow (no text or symbols)

Diagram showing a power outlet connected to a device with arrows indicating connection (no text or symbols present)

Mechanical diagram showing a hand pressing down on a mechanical component, with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical component with internal cavities and a central pile (no text or symbols)

Illustration of a food preparation step: mixing ingredients into a bowl, then adding a filter to a container (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with directional arrows (no text or symbols)

Illustration showing hands pouring liquid from a cup into a kitchen sink and a washing machine (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or force, no visible text or symbols

Illustration showing a hand pressing a button labeled 'UK' onto a wall, and a close-up of an electrical socket with power plug (no text or symbols)

Diagram showing a device being processed with a mug, featuring a fan and base mount (no text or symbols present)

Diagram showing a device being processed with a mug, featuring a fan and base mount (no text or symbols present)

Diagram showing a mechanical device with a rotating component and a base plate (no text or symbols)

Close-up of a coffee maker with a hand holding a cup, showing the interior and side view (no text or symbols visible)

Illustration showing a hand pressing a button labeled 'UK' on a wall, and a close-up of an electrical socket with power plug (no text or symbols)

Electrical outlet with two socket plugs connected to a plug (no text or symbols visible)

Product photo of a white wine jar and its open lid (no visible text or symbols)

Illustration of a coffee maker with a hand holding a mug, showing the interior and side view (no text or symbols)

Close-up of a hand pressing a button on a circular mechanical component (no visible text or symbols)

Electrical outlet with two socket and plug, showing a black arrow pointing to the plug (no text or symbols)

Hand washing a coffee maker with a cloth inside (no text or symbols visible)

Top-down view of a circular mechanical component with concentric rings and a central knob (no text or symbols visible)

Cross-sectional diagram of a modern kitchen appliance showing internal structure and ventilation duct (no text or labels)

3D rendering of a gray cylindrical container with a circular perforated lid above it, no text or symbols visible.

Bandeja de Goteo*

Diagram showing a power outlet connected to a device with arrows indicating connection (no text or symbols present)

Close-up of hands assembling a mechanical component with a downward arrow indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with an arrow indicating direction (no text or symbols present)

Cross-sectional diagram of a mechanical device with a hand pressing a button (no text or symbols visible)

Two-panel illustration showing a hand pouring liquid from a cup into a kitchen sink, and another pouring liquid from a pot into a machine (no text or symbols)

Close-up of a mechanical device with a curved arrow indicating motion or force, no visible text or symbols

Two-step diagram showing a device being processed, with no visible text or symbols.

Diagram showing a mechanical assembly with arrows indicating direction, no text or symbols present

Close-up of a coffee maker with a hand inserting a cup into it (no visible text or symbols)

Illustration showing a hand pressing a power socket on a wall while connecting to an electrical outlet with cable (no text or symbols)

Hand inserting a device into a coffee maker (no text or symbols visible)

Diagram showing a power outlet connected to a device with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing hand turning a component into a housing (no text or symbols)

Cross-sectional diagram of a mechanical component with internal cavities and a central pile (no text or symbols)

Diagram showing a container filled with granular material being combined with a feeding bowl (no text or symbols)

Mechanical assembly diagram showing a cylindrical component being cut with arrows indicating motion (no text or symbols)

Two-panel illustration showing a hand pouring liquid into a container on a sink, and another with a bowl pouring liquid from a container (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols visible)

Mechanical assembly diagram showing two stages of a device with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with a rotating arrow and a circular component, no text or symbols present.

Close-up of a coffee maker using a cup, showing the lid and side panel (no text or symbols visible)

Illustration showing a hand pressing a button on a wall and connecting a plug into a socket (no text or symbols)

Electrical outlet with two socket, connected to a plug (no text or symbols visible)

Product photo of a white vinegar and its digital cream machine (no visible text or symbols)

Illustration of a coffee maker with a hand pouring liquid into its cup (no text or symbols visible)

Close-up of a hand pressing a button on a cylindrical object (no text or symbols visible)

Electrical outlet with two power plugs connected to a cable (no text or symbols visible)

Illustration of a hand washing a coffee machine with a lid and cloth (no text or symbols)

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon
