Brand	Tefal
Model	Intense Dry Control Linen Dry DU4130
Product type	Dehumidifier
Dehumidification capacity	25 L/day (at 30°C, 80% RH)
Tank capacity	5 L
Dimensions (W x D x H)	33 x 42 x 65 cm
Weight	14.5 kg
Power supply	220-240 V ~ 50 Hz
Power	430 W
Refrigerant	R134A (150 g)
Noise level	52 dB(A)
Main functions	Humidity control (50%, 60%, 70%), continuous mode, 2 speeds, timer 1-24h, delayed programming, laundry drying (DRY), oscillation (SWING)
Display	Temperature and relative humidity
Pre-filter	Washable (nano)
Continuous drainage	Possible (PVC hose Ø12 mm)
Safety	Automatic shut-off when tank full, automatic defrost, compressor protection
Maintenance	Regularly clean the pre-filter, empty the tank, clean the tank
Use	Room from 10°C to 35°C
Casters	Yes, for easy movement
Spare parts and repairability	Filter accessible and washable, removable tank; repair by authorized center

Frequently Asked Questions - Intense Dry Control Linen Dry DU4130 TEFAL

How to turn on the appliance?

Plug in the appliance, then press the ON/OFF (A) button. The screen displays the room temperature and humidity. The appliance starts in continuous mode.

How to set the desired humidity level?

Use the (B) button to select the levels 50%, 60% or 70%. The appliance automatically maintains the humidity at the chosen level by stopping or restarting the compressor.

How to use the laundry drying function (DRY)?

Press the DRY (D) button (models DU4116/DH4120/DU4120 and DH4130/DU4130). Continuous dehumidification and louver oscillation are activated for optimal drying.

What to do when the FULL (tank full) indicator light turns on?

The appliance beeps and the FULL (H) indicator flashes. Turn off the appliance with button (A), unplug it, empty the tank and replace it. The indicator goes off after a few seconds.

How to clean the pre-filter?

Turn off and unplug the appliance. Remove the pre-filter/nano (see manual), clean it with a vacuum cleaner or lukewarm water, let it dry, then reassemble. Never use the appliance without the filter.

How to use continuous drainage?

Turn off and unplug the appliance. Remove the drainage plug (13) and connect a PVC hose with an inner diameter of 12 mm. Make sure the hose has sufficient slope for drainage.

What does the defrost indicator (I) mean?

The DEFROST (I) indicator lights up when the appliance is in automatic defrost mode. The compressor stops temporarily. Check that the pre-filter is clean. Operation resumes automatically after defrost.

Why does the appliance not absorb enough humidity?

Check the filter cleanliness, the air intake/outlet grilles are not obstructed, the ambient temperature is between 10°C and 35°C, and that doors/windows are closed. If the problem persists, contact an authorized center.

How to set the delayed shut-off (Timer)?

With the appliance running, press the PROG/TIMER (F) button to select the number of hours (1 to 24). The indicator (G) lights up. The appliance shuts off automatically at the end of the delay.

How to start the appliance after a delayed programming?

With the appliance off, press PROG/TIMER (F) to set the delay before start (1 to 24h). You can also select the desired speed and humidity level. The indicator (G) flashes, then the appliance starts automatically.

USER MANUAL Intense Dry Control Linen Dry DU4130 TEFAL

Illustration of a white rectangular electronic device with a lid and side panel (no text or symbols)

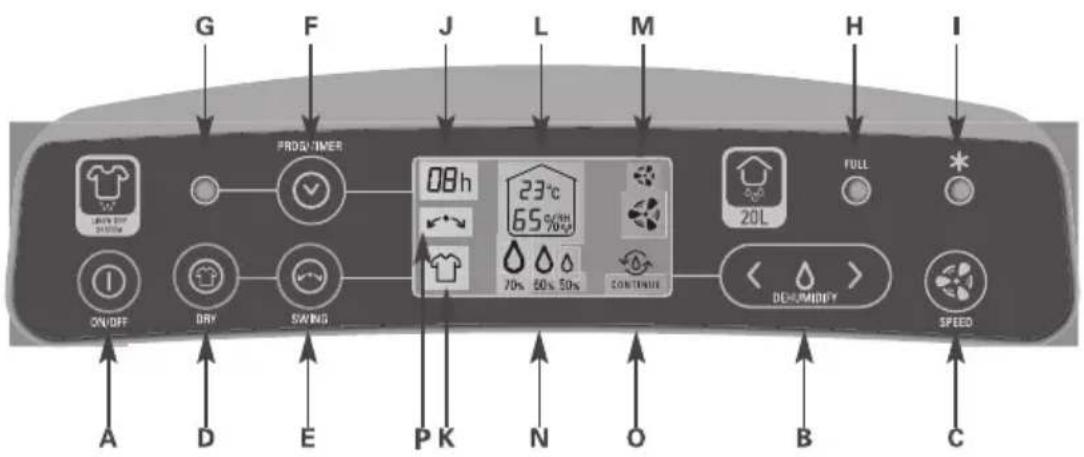

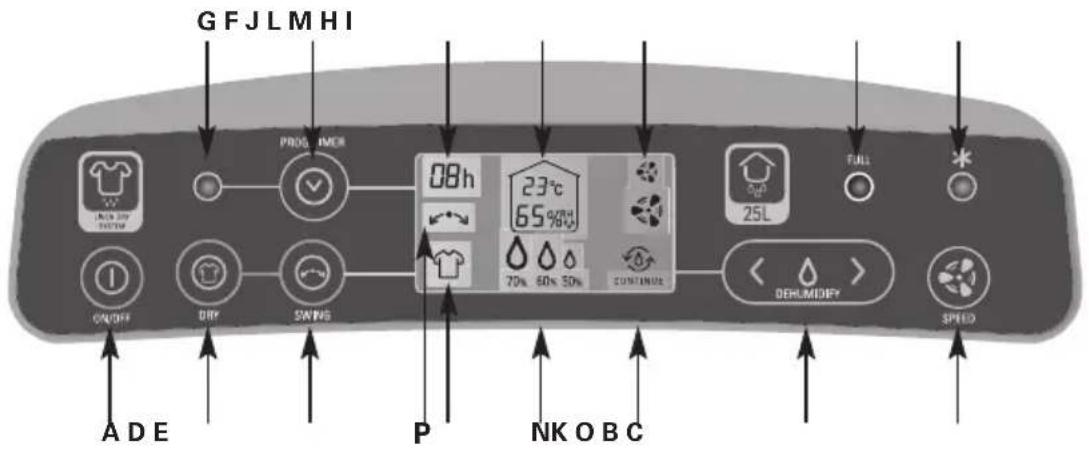

Tableau de commande

Control panel

A - ON/OFF button
B - Objective relative humidity selection button
C - Speed selection button
D - DRY function button (Mod. DU4116/DH4120/DU4120 & DH4130/DU4130)
E - SWING function button (Mod. DU4116/DH4120/DU4120 & DH4130/DU4130)
F - PROG/TIMER function button
G - Prog/Timer indicator lamp
H - Tank full indicator lamp
I - Automatic defrosting indicator lamp

Display screen

J - Display of defined times (Prog and Timer)
K - Selection clothes drying (Mod. DU4116/DH4120/DU4120 & DH4130/DU4130)
L - Display of temperature and relative humidity of the room
M - Selection 2 speeds
N - Objective relative humidity factor 50%, 60%, 70% (humidity control)
O - Continuous dehumidification indicator lamp
P - Air outlet vent swing action (Mod. DU4116/DH4120/DU4120 & DH4130/DU4130)

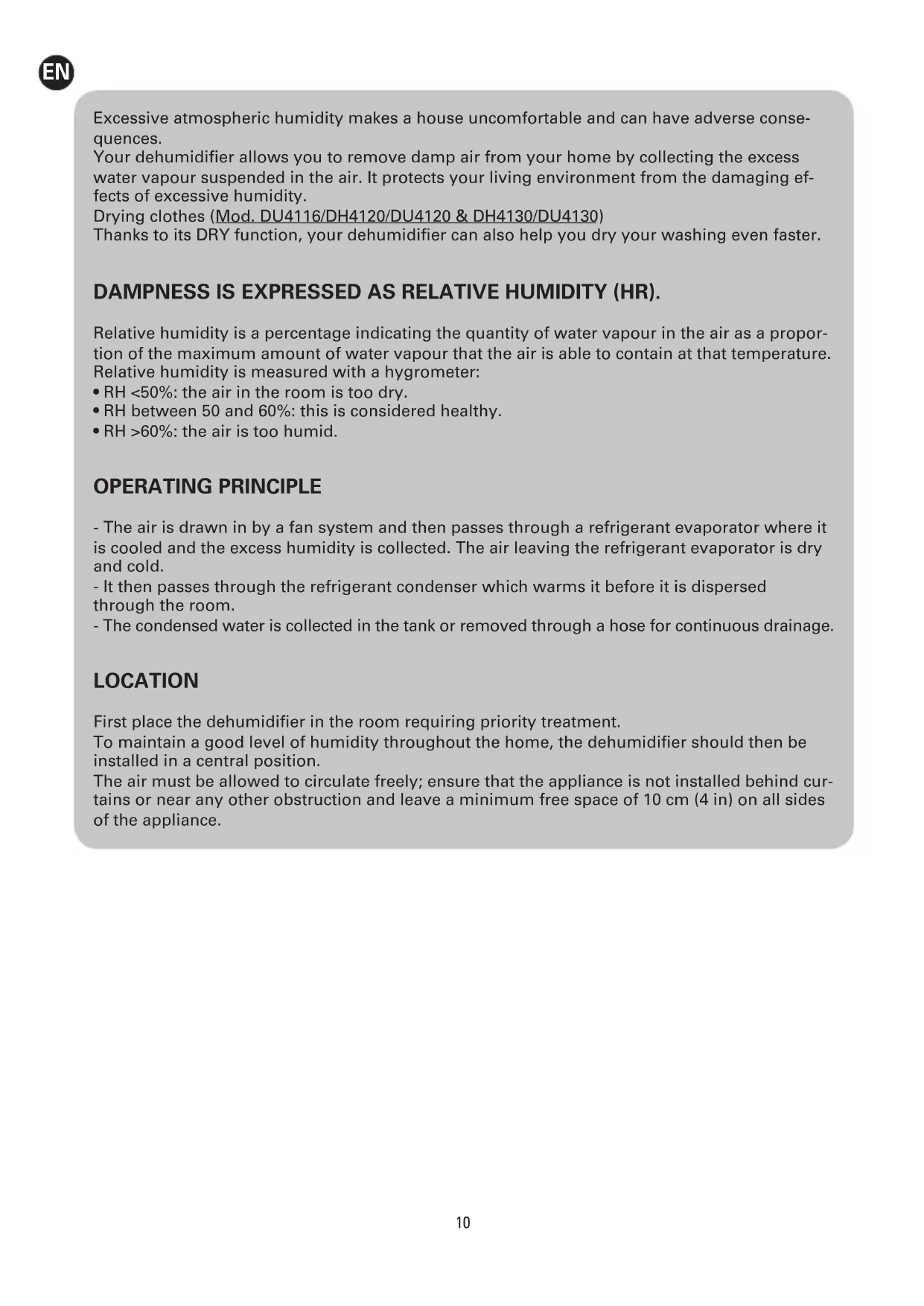

Excessive atmospheric humidity makes a house uncomfortable and can have adverse consequences.

Your dehumidifier allows you to remove damp air from your home by collecting the excess water vapour suspended in the air. It protects your living environment from the damaging effects of excessive humidity.

Thanks to its DRY function, your dehumidifier can also help you dry your washing even faster.

DAMPNESS IS EXPRESSED AS RELATIVE HUMIDITY (HR).

Relative humidity is a percentage indicating the quantity of water vapour in the air as a proportion of the maximum amount of water vapour that the air is able to contain at that temperature. Relative humidity is measured with a hygrometer:

• RH <50%: the air in the room is too dry.
• RH between 50 and 60% : this is considered healthy.
• RH >60%: the air is too humid.

OPERATING PRINCIPLE

- The air is drawn in by a fan system and then passes through a refrigerant evaporator where it is cooled and the excess humidity is collected. The air leaving the refrigerant evaporator is dry and cold.

- It then passes through the refrigerant condenser which warms it before it is dispersed through the room.

- The condensed water is collected in the tank or removed through a hose for continuous drainage.

LOCATION

First place the dehumidifier in the room requiring priority treatment.

To maintain a good level of humidity throughout the home, the dehumidifier should then be installed in a central position.

The air must be allowed to circulate freely; ensure that the appliance is not installed behind curtains or near any other obstruction and leave a minimum free space of 10 cm (4 in) on all sides of the appliance.

START-UP OF THE APPLIANCE

Before using your appliance for the first time, check that the supply voltage matches that indicated on the appliance.

Your appliance has to operate with an earthed plug. It is a class I appliance.

Before switching on your appliance, make sure that:

• the appliance is positioned in accordance with these instructions,
• the air inlet and outlet grills are completely unobstructed,
• the appliance is placed on a flat and stable surface.
• the tank float (8 Fig.1 - Safety instructions) moves freely in its housing.

Plug the lead in and press the start button (A).

On the display, the pictogram (L) appears indicating the temperature and relative humidity of the room,

Your appliance starts up in continuous operation. You can also define the mode you want to use by selecting the functions described in the following section.

After switching off using the OFF button (without unplugging), when the appliance is switched on it automatically starts in the previous configuration.

OPERATION

• HUMIDITY CONTROL Function

To set the target relative humidity, select one of the values, 70%, 60% or 50%, using the button (B). If the 70% function is selected, this means that the air will be dehumidified until the relative humidity falls to 70%. The appliance with regulate automatically if the relative humidity is below 70% (the compressor will stop but the fan will continue to operate).

The compressor will start again if the relative humidity exceeds 70%.

The same applies if 60% or 50% is selected.

• CONTINUOUS Function

The unit dehumidifies the room continuously if the CONTINUOUS function (O) is activated using button (B), regardless of the ambient humidity.

- SPEED Function

Press button (C) to select:

gentle ventilation

: high ventilation

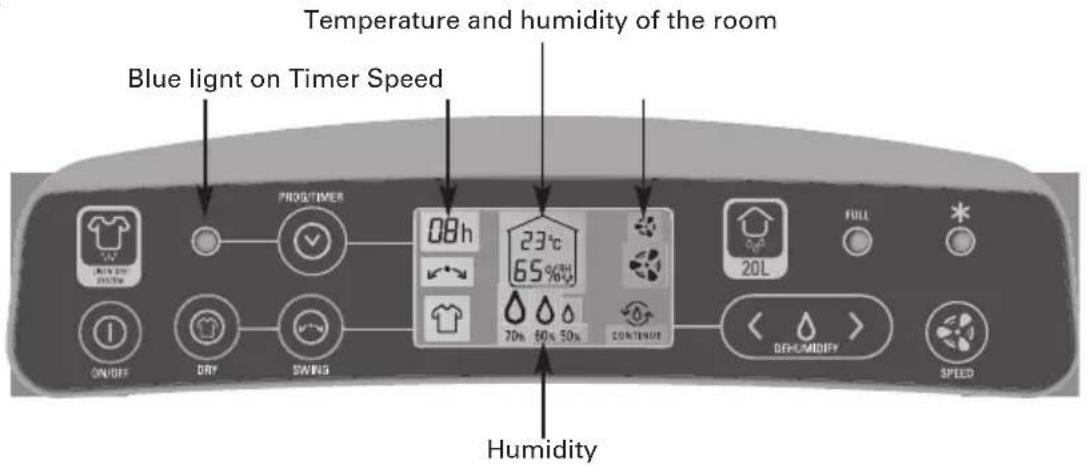

- TIMER Function

This function allows you to define an operating time for your appliance from 1 to 24 hours in preset conditions:

With your appliance switched on you can define:

• The ventilation speed (button C)
• The target humidity rate (button B)

And on models DU4116/DH4120/DU4120 and DH4130/DU4130, select:

• The drying clothes function (button D)
• The Swing function (button E)

=> Then select the number of hours of operation required before automatic shutdown by pressing the "PROG/TIMER" key (F).

The indicator light (G) will be lit up for the entire duration of the programmed operation.

The appliance will automatically switch off at the end of the selected time.

PLEASE NOTE: the appliance will regulate itself automatically to maintain the target humidity rate during the period of operation.

If you wish to exit the program, select "00 H" or stop the appliance with button A; the light will switch off.

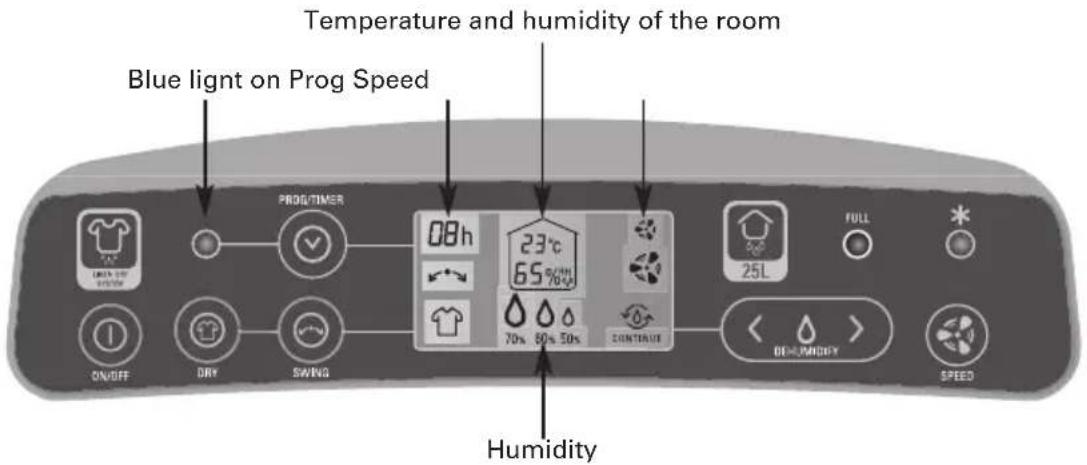

- Fonction PROG

This function allows you to set your appliance for deferred start-up from 1 to 24 hours in previously defined conditions.

With your appliance switched off, press the "PROG/TIMER" key (F) as many times as necessary to define the number of hours before automatic start-up.

Your appliance is programmed for continuous start-up but, at your convenience, you can also select:

• The speed (button C)
• The target humidity rate (button B)

And on models DU4116/DH4120/DU4120 and DH4130/DU4130:

• The drying clothes function (button D)
• The Swing function (button E)

The indicator light (G) will be lit up awaiting automatic operation of the appliance.

PLEASE NOTE: the appliance will regulate itself automatically to maintain the target humidity rate during the period of operation.

If you wish to exit the program, select "00 H" or start the appliance with button A; the light will switch off.

- DRY Function for Drying clothes (Mod DU4116/DH4120/DU4120 & DH4130/DU4130)

Press the DRY (D) button to start the clothes drying function.

Continuous dehumidification and swing of the air outlet vent will start up automatically for enhanced clothes drying.

Press the "SWING" button (E): the air outlet vent will automatically swing, providing enhanced distribution of dry air around the room.

• DEFROSTING INDICATOR LIGHT

If light (I) comes on, the dehumidifier is in defrosting mode. The compressor shuts down and will start up again automatically after the defrosting phase.

NOTE: Check that the pre-filter is clean.

• FULL indicator light

The appliance beeps and the indicator (H) flashes when the tank is full or incorrectly positioned. The indicator stops flashing and the dehumidifier starts up again once the tank is emptied and replaced.

• FILTER

It is essential to switch off your appliance using button (A) and to unplug it before any operation.

• Your appliance is fitted with a removable cleanable pre-filter/nano which must be cleaned regularly.
• Remove the pre-filter/nano (Fig.3 - Safety instructions) and clean it with a vacuum cleaner.
• Re-fit the pre-filter/nano (Fig.4-5 - Safety instructions).
• Never use the appliance without its pre-filter/nano.

• EMPTYING THE TANK

It is essential to switch off your appliance using button (A) and to unplug it before any operation.

When the tank is full:

- The appliance shuts down and the red FULL indicator light (H) comes on

- Remove the tank gently from the appliance (Fig.6 - Safety instructions), empty the water and put the tank back into the appliance.

The red FULL indicator light (H) should switch off in a few seconds.

• CONTINUOUS DRAINAGE (see Fig 7 - Safety instructions).

It is essential to switch off your appliance using button (A) and to unplug it before any operation.

Use a PVC pipe, 12 mm in diameter (the 12mm diameter is the internal diameter of the hose).

• Remove the plug (13) then connect the pipe to the drainage outlet.
• Ensure that the slope between the 2 ends of the pipe allows water to flow away normally.

CARE

• It is essential to switch off your appliance using button (A) and to unplug it before any cleaning operation.
• It can be cleaned with a damp cloth.
• Clean the water tank regularly.
• Clean the air inlet pre-filter regularly.
• Important: Never use abrasive cleaners, these will damage the surfaces.

TRANSPORT

• Drain the tank before transport.
• The appliance is easy to move, thanks to its rollers.
• Note: Your appliance includes a refrigeration compressor; laying the appliance on its side can cause a malfunction.

STORAGE

• When the appliance is not in use, it must be stored in a dry place.
  • Take care to empty the water tank.

TECHNICAL CHARACTERISTICS

CHARACTERISTICS DH4110	/DU4110 DU4116	DH4120/DU4120	DH4130/DU4130
Voltage and frequency 220-	240V / 50Hz 220-24	40V / 50Hz 220-24	V / 50Hz 220-240V / 50Hz
Power (W) (30°C RH 80%) 2	40W 240W 310 W	430 W
Humidity absorption capacity (L/day) (30°C, RH 80%)	16 L 16 L	20 L	25 L
Humidity absorption capacity (L/day) (26,7°C, RH 60%)	8 L	8 L	12 L	13,5 L
Weight (kg)	12,9kg	12,9kg	14kg	14,5kg
Ambient temperature (°C)	10°C - 35°C	10°C - 35°C	10°C - 35°C	10°C - 35°C
Refrigerant / weight	R134A (166g)	R134A (166g)	R134A (150g)	R134A (145g)
Pre-filter/nano	√	√	√	√
Tank capacity (L)	5L	5L	5L	5L
Dimensions (cm)	L33 x D42 x H65	L33 x D42 x H65	L33 x D42 x H65	L33 x D42 x H65
Noise level - dB(A)*	47 dB(A)	52 dB(A)	52 dB(A)	52 dB(A)

* (on low speed under specific operating conditions)

IN CASE OF PROBLEM

• Never dismantle your appliance. A poorly repaired appliance may pose risks to the user.
• Before contacting an approved Service Centre in our network, ensure that the appliance is in a normal operating position and that the air inlet and outlet grills are completely unobstructed.

Type of problem Points to check
The appliance does not work when switched on.	- Water tank full.- Positioning of the tank.- Connection of the appliance.
The dehumidification capacity is too low.	- That the filter is clean.- The temperature is too low.- Obstruction of the air inlet and outlet grills.
The desired level of comfort is not reached after the appliance has been operating for a long time.	- Doors and windows are closed.- That the filter is clean.- Source of steam in the room.- Size of room too large.
The appliance is too noisy. - The appliance is placed on a flat and stable surface.
The appliance stops.	- Water tank full or not in place.- Temperature too high or too low.- Bad humidity setting.
The full indicator light is on.	- In case of first use, water tank not in place.- Water tank is full.
The appliance freezes.	- Check filter is clean.- Room temperature too low.- Clear the air inlet and outlet grilles.
The air outlet vent does not open.(Mod. DU4116/DH4120/DU4120, DH4130/DU4130)	- Vent blocked on opening=> Switch off and restart appliance

ENVIRONMENT PROTECTION FIRST!

① Your appliance contains valuable materials which can be recovered or recycled. Models DH4110/DU4110, DU4116/DH4120/DU4120, DH4130/DU4130 also contain a fluorinated greenhouse gas as a cooling agent (R134A) under the Kyoto Protocol, whose global warning capacity is 1300 times higher than carbon dioxide (CO2). The fluorinated greenhouse gas contained in this appliance must not be released into the atmosphere.
Leave it a local civic waste collection point.
