USER MANUAL RDWL515A2000 HONEYWELL

Installation and Operation Guide

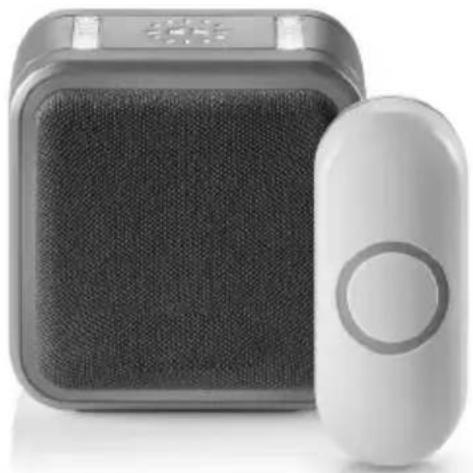

Portable Wireless Doorbell

RDWL515A2000

Read before installing

Preparation

In the box you will find

Doorbell

Doorbell Wall Mounting Bracket

Wallcho

Round Head Screws

Push Button

Push Button Mounting Bracket and Adhesive Pad

CR2032 Battery

Flat Head Screws

To install you will need

Phillips Screwdriver

Standard Screwdriver

Drill and 1/4 in. (6 mm) drill bit

3 AA alkaline batteries

Overview

Just follow these simple steps:

1. Install batteries.
2. Set up the doorbell and your preferences.
3. Install the doorbell and the push button.

Safety

Before proceeding with the installation, please note the following safety warnings:

• Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.

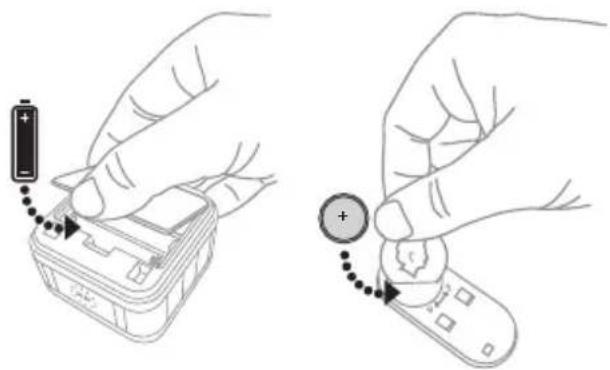

Install Batteries

1. Open the doorbell battery cover and install 3 AA alkaline batteries.
2. Open the push button battery cover and install the CR2032 battery.

Setup and Operation

Press the push button to test whether it is paired with the doorbell. The doorbell will light up and ring. If it does not, see "Connect a Push Button" on page 6.

Change the Tune

Press the Music button to change the doorbell tune.

Every time you press the Music button, the tune will change. Stop pressing the Music button when you hear the tune you want.

Ding Dong

Westminster

Piano

Fantasy

Soft Alert

Smart Sax

Glocken

Clock-ding-dong

Contemporary

Change the Light Pattern

Press the Sunlight button to change the lights that flash when the doorbell rings.

Press the Sunlight button1 time 2 times 3 times 4 times

Halo light and top lights

Halo light only Top lights only No lights

Change the Halo Light Color

Press the push button.

Within 12 seconds, press the Sunlight button.

Every time you press the Sunlight button, the halo light will change colors. Stop pressing the Sunlight button when you see the color you want:

Light Blue

Green

White

Purple

Red

Yellow

Dark Blue

Operation

Adjust the Volume

Press the Volume Up or Volume Down buttons to adjust the volume of the Doorbell.

Mute the Doorbell

Press the Mute button to silence the doorbell.

Set the Mute

You can also mute the doorbell for specific amounts of time. Press the Mute button...

Mute button shows Doorbell is mute
1 time doorbell is mute
2 times 3 hours
3 times 6 hours

Mute button shows Doorbell is mute
4 times 9 hours
5 times 12 hours
6 times no longer mute

Installation

Choose a location that is not near a heat source or on something that moves (like a door). For non-mounting locations, choose a place where the doorbell will be easy to see and hear.

Install Doorbell

If you are not mounting the doorbell to the wall, place it where you want it.

1. Screw the doorbell wall mounting bracket to the wall using the included screws and anchors (if necessary).

Drill 1/4 inch holes for the anchors.

1. Hang the doorbell on the mounting bracket.

Install Push Button

1. Mount the push button bracket in the desired location. Use the screws -OR- Use the adhesive backing. If using the adhesive backing, clean the surface first.

2. Snap the push button onto the mounting bracket.

Note: If you need to remove the push button, use a small screwdriver to release the tab.

Accessories

You can connect up to 4 accessories to your doorbell, including other push buttons, window or door opening sensors, and motion sensors.

If you try to connect more accessories than the max number, the doorbell will sound two beeps.

Connect a Motion Sensor

1. Press and hold the Setting button on the doorbell for three seconds.

The halo light will circle.

1. Within 20 seconds of pressing the Setting button, wave or make some other kind of motion in front of the motion sensor.

Connect a Push Button

Follow these steps to change the ring and halo light color for an existing doorbell, too.

1. Press and hold the Setting button on the doorbell for three seconds. The halo light will circle.

2. Press the push button.

3. Within 12 seconds of pressing the push button, press the Music button to select the ring for that push button.

4. Within 12 seconds of pressing the push button, press the Sunlight button to select a halo light color for that push button.

Secret Knock

You can set up a Secret Knock that makes a different ring and halo light color for each push button. The Secret Knock is triggered by pressing the push button quickly 3 times.

1. Press the push button 3 times quickly.
2. Within 12 seconds of pressing the push button, press the Music button to select the ring for the Secret Knock.
3. Within 12 seconds of pressing the push button, press the Sunlight button to select a halo light color for the Secret Knock.

Maintenance

Your doorbell and push button require no maintenance except to periodically change the batteries.

If using the correct batteries, battery life should be approximately:

• Up to 2 years for the doorbell; replace with 3 AA alkaline batteries
• Up to 2 years for the push button; replace with a CR2032 lithium battery

Low Battery Notification

When doorbell batteries are low the bottom edge of the halo light flashes yellow every 6 seconds until batteries are replaced.

When the push button batteries are low, two beep sounds are heard after the normal tune.

Reset

This process removes all pairings, including the push button that came with this doorbell:

1. Remove the doorbell battery.
2. Press and hold the Setting button, and replace the battery at the same time.
3. The halo light will circle, and the doorbell is returned to its factory default settings.

Specifications

Doorbell Push Button
Operating Temperature 23°F to 104°F (-5°C to 40°C)-4°F to 122°F (-20°C to 50°C)
ActivLink™ 916.8 MHz 916.8 MHz
Range (open field) 350 ft. (106 m) 350 ft. (106 m)
Sound Level (typical) 84dBA -
RF Power -	<1.2W
Battery Type	Input: 3 x AA (1.5 V) alkaline	CR2032
Battery Life (5 activations/day)	Up to 2 years	Up to 2 years
Rain proof	N/A	Pass UL1598 rain test.

Troubleshooting

If Then
The doorbell does not work	1. Press the Mute button until all of the Mute lights are off. 2. Make sure the correct batteries (3 AA alkaline cells, 1 CR2032) are installed with the correct polarity. 3. The doorbell might be out of range; try the doorbell in a different location. 4. Reconnect the doorbell. See “Connect a Push Button”.
Two ‘beep’ sounds are heard after the normal tune	Replace push button battery with a new CR2032.
The halo light flashes yellow at the bottom edge	Replace doorbell batteries with 3 new AA alkaline batteries.
Range is reduced	1. Metal structures including uPVC door frames can reduce the range. Don’t mount the the doorbell or push button on or near metal structures. 2. Move the doorbell closer to the push button. 3. Weak batteries will reduce range. In cold conditions (below 41°F [5°C]), batteries may need to be replaced more often.
