Product type	Wired decorative doorbell chime
Brand	Honeywell
Model	RCW3506N
Power supply	4 LR14 (C size) alkaline batteries or 16 V 10 VA transformer (Honeywell RCA900N)
Sound level	90 dB(A) at 1 m
Operating temperature	0 °C to +40 °C
Battery life	Approximately 12 months (5 uses per day)
Number of supported doorbell circuits	Up to 3
Compatibility	Doorbells with normally open contacts, including wired doorbells marked "B"
Available melodies	Ding Dong, St Clements, Westminster, Tubular Chime, Warm Brass, Fantasy, Alert
Volume control	Yes, dedicated button
Programming button	Yes, to change the melody without pressing the doorbell and for last doorbell recall
LED indicators	Transmission channel, low battery
Use	Indoor only
Box contents	Chime, 2 mounting screws, 2 wall anchors
Warranty	1 year from purchase date (Honeywell)
Certifications	FCC Part 15, Industry Canada, NMB-003 Class B

Frequently Asked Questions - RCW3506N HONEYWELL

How to install the Honeywell RCW3506N doorbell?

Remove the cover, attach the base to the wall with the provided screws. Connect the doorbell and transformer wires according to the wiring diagram (step 4 of the manual). For battery power, insert 4 LR14 (C size) alkaline batteries.

What type of power supply can I use?

You can use either 4 LR14 (C size) alkaline batteries or a 16 V 10 VA transformer (UL approved Honeywell RCA900N). For an illuminated doorbell, a transformer is required.

How to change the doorbell melody?

Press the doorbell, then while the LED is flashing, press the melody selection button ♪ until you hear the desired one. The last melody heard is saved.

Can the doorbell be used with illuminated buttons?

Yes, illuminated doorbell buttons can be used when the chime is powered by a transformer (Honeywell RCA251N recommended).

What if the chime does not ring?

Check that the volume is not at minimum. Make sure the batteries are correctly installed (polarity) and not low. For wired installation, check connections and use at least 20 AWG wire.

How to adjust the volume?

Use the volume adjustment button on the chime. Turn it to increase or decrease the sound level.

What does the flashing low battery indicator mean?

The LED flashes when the batteries are nearly depleted. Replace all 4 batteries with new LR14 (C size) alkaline batteries only.

Can I paint the doorbell cover?

Yes, the wooden cover can be painted, stained, or varnished. Unscrew the 4 screws before painting and reinstall them after drying. Follow the paint manufacturer's instructions.

What is the maximum doorbell wire length?

The wire/cable length must not exceed 46 m (150 ft). Use at least 20 AWG wire.

How to reset or program a melody without pressing the doorbell?

Press and hold the programming button ● until the LED for the desired channel lights up. Release, then use the melody selection button ♪ while the LED is flashing.

USER MANUAL RCW3506N HONEYWELL

Installation Instructions

RCW35 and RCW25 Series (51366SL)

Decorative Wired Chimes

RCW250N, RCW251N, RCW35N,

RCW3501N, RCW3502N, RCW3503N,

RCW3504N, RCW3505N, RCW3506N

69-2173EFS-03

Installation Instructions

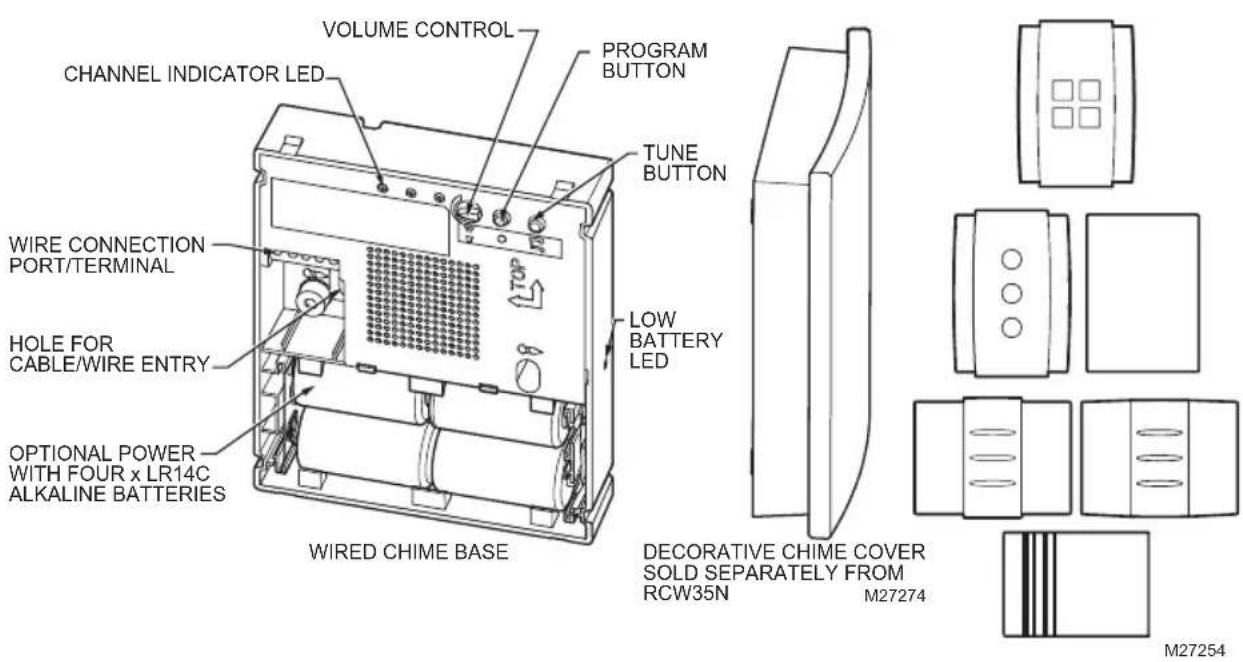

Contents

Safety....3

Checking pack contents....4

Installation....5

Power supply 6

Mount the chime....7

Wiring - transformer powered 8

Wiring - battery powered....10

Operate Push 11

Volume control 11

Change tunes....12

Program button....14

Finishing the wood cover 15

Specifications....16

Troubleshooting 17

Disposal and recycling 18

Guarantee....18

Declaration 18

69-2173EFS-03 ii

RCW35 Series and RCW25 Series

1 69-2173EFS-03

Installation Instructions

Compatible with most bell pushes, with standard normally open contacts, including Honeywell wired pushes marked with "B."

Can work with up to 3 push circuits.

Illuminated bell push buttons can be used when the chime is powered by a transformer (Honeywell RCA900N).

69-2173EFS-03 2

69-2173EFS_B.indd 2 4/17/2008 11:15:45 AM

Safety

Before proceeding with the installation, please note the following safety warnings:

• Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.
• Chime is for indoor use only.
• Avoid mounting location which can expose chime to splashing or dripping liquid.
• Use UL approved transformer for connection to mains.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like; danger of damage if battery is incorrectly replaced. Replace only with the same or equivalent type.

3 69-2173EFS-03

Installation Instructions

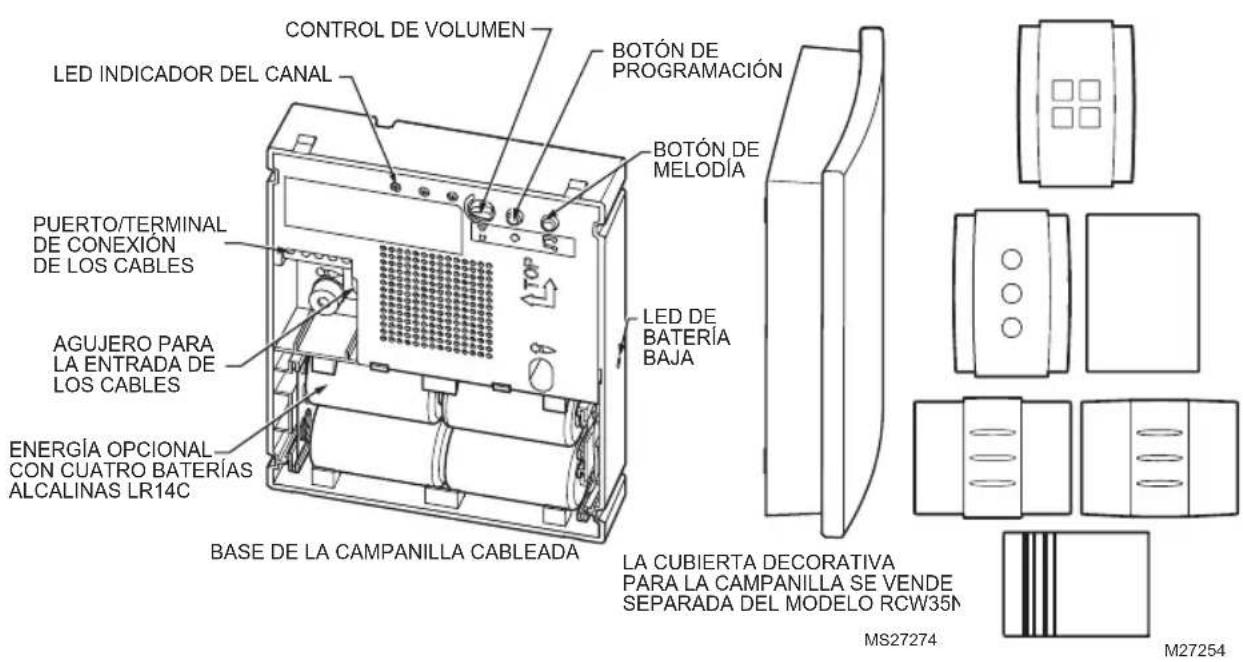

Checking Pack Contents

• Chime
• 2 x fixing screws for chime
• 2 x wall plugs

You will need:

• Wired push
  • 20 AWG minimum bell wire
  • 4 mm cross-head screwdriver
• A small flat bladed screwdriver
  • 1/4-in. (6 mm) masonry drill bit
• 4 x LR14 'C' Alkaline batteries OR transformer (16V 10 VA) Honeywell part number RCA900N

69-2173EFS-03 4

Installation

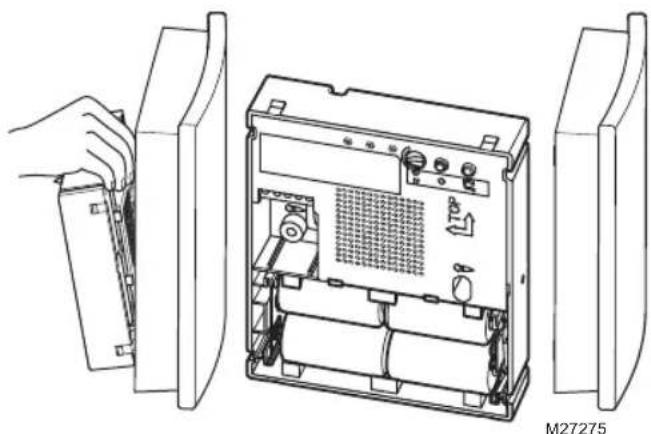

1. Open the chime cover

Technical line drawing of an open electronic device showing internal components and a hand holding a cable (no text or symbols)

5 69-2173EFS-03

69-2173EFS_B.indd 5 4/17/2008 11:15:45 AM

Installation Instructions

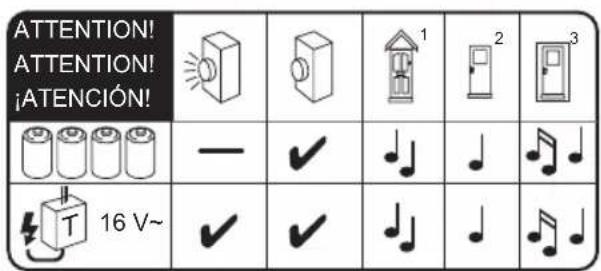

Power Supply

1. Determine the type of power supply and type of wired push required to suit your installation. Use 4 x LR14 'C' size alkaline batteries; OR a 16V, 10VA transformer as recommended in the table below below:

M27276

69-2173EFS-03 6

69-2173EFS_B.indd 6 4/17/2008 11:15:45 AM

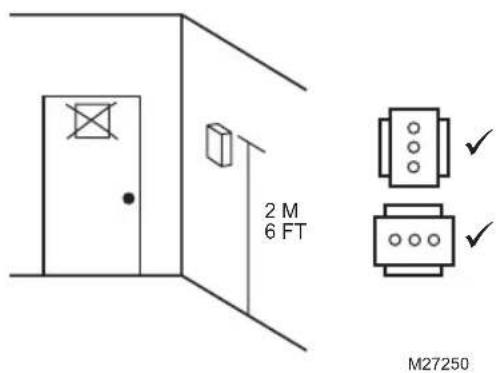

Mount the Chime

1. Mounting holes are marked with a screw symbol.

7 69-2173EFS-03

69-2173EFS_B.indd 7 4/17/2008 11:15:45 AM

Installation Instructions

Wiring

Connect the wires from door push and transformer (where used) to the chime terminals as detailed in step 4. The wires can be surface mounted or direct from opening in the wall and enter the rear of the chime housing using the wire guide channels provided.

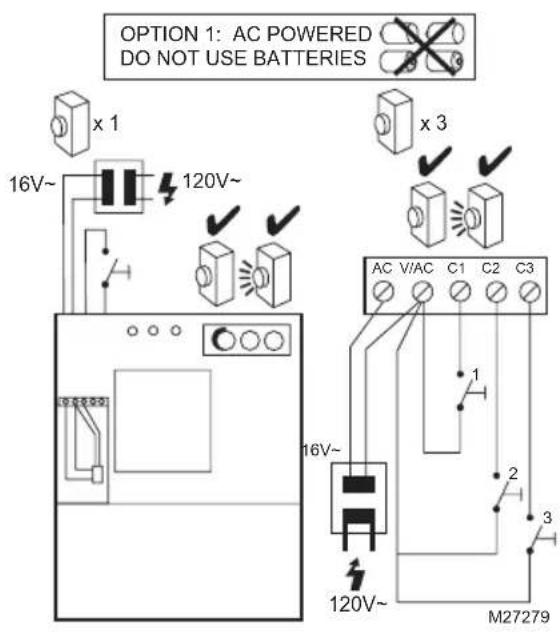

4a. Transformer powered - Wiring for standard/lighted push via a 16V 10VA transformer.

69-2173EFS-03 8

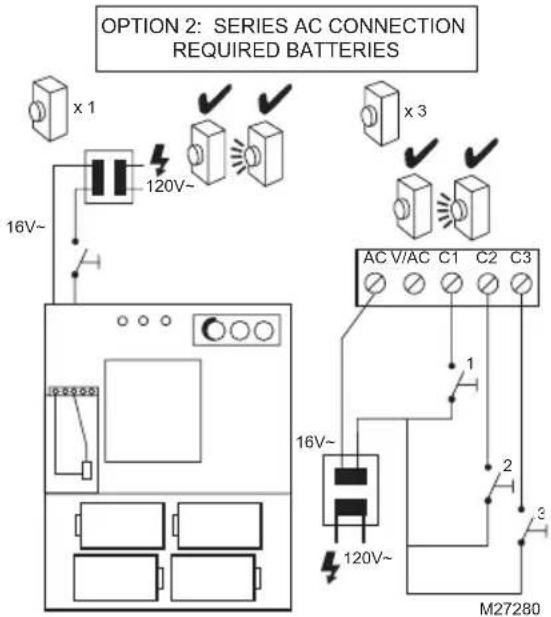

RCW35 Series and RCW25 Series

Note: Wire/cable length should not exceed 150 ft. (50 m).

9 69-2173EFS-03

Installation Instructions

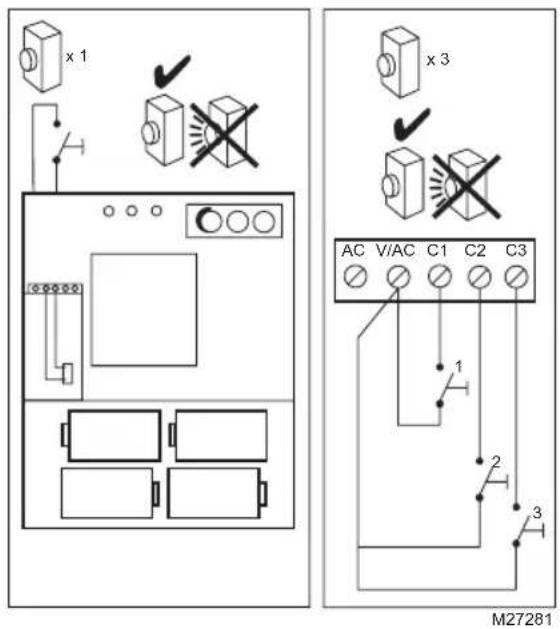

4b. Battery powered - Wiring for standard (non-lighted) push only.

Note: Wire/cable length should not exceed 150 ft. (50 m).

69-2173EFS-03 10

69-2173EFS_B.indd 10 4/17/2008 11:15:46 AM

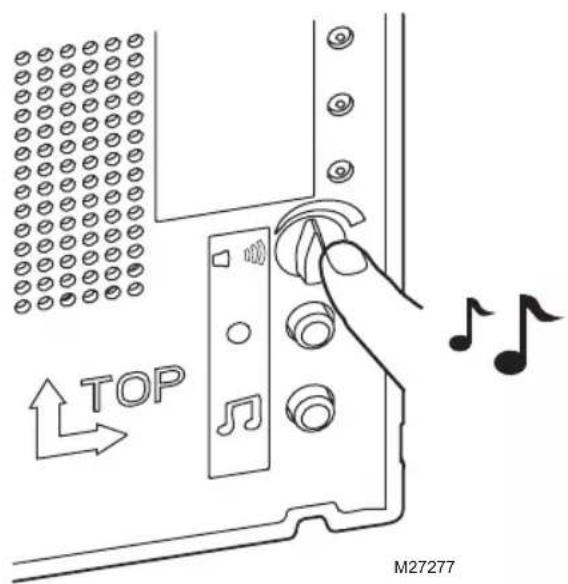

Operate Push

1. Chime will play the default tune. The associated channel LED will illuminate.
2. To adjust volume.

11 69-2173EFS-03

Installation Instructions

To Change Tune

1. Chime tunes are provided plus an additional alert tone.

Tunes Table
	Ding Dong
	St Clements
	Westminster
	Tube Chime
	Warm Brass
	Fantasy
!	Alert

69-2173EFS-03 12

RCW35 Series and RCW25 Series

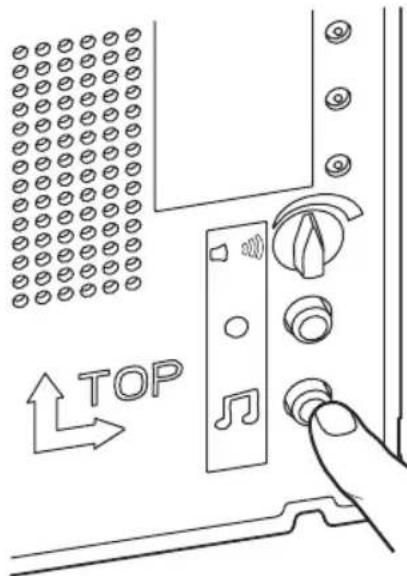

Press push button, chime will play tune, while the Channel LED on chime is flashing, press and release tune button ⏻. Press and release ⏻ button again to cycle through the available tunes until you hear the tune you want to play.

The last tune played will be stored after Channel LED stops flashing.

To confirm, press the push button and chime will play tune you want.

M27278

13 69-2173EFS-03

Installation Instructions

Program Button

1. The Program button can be used to:

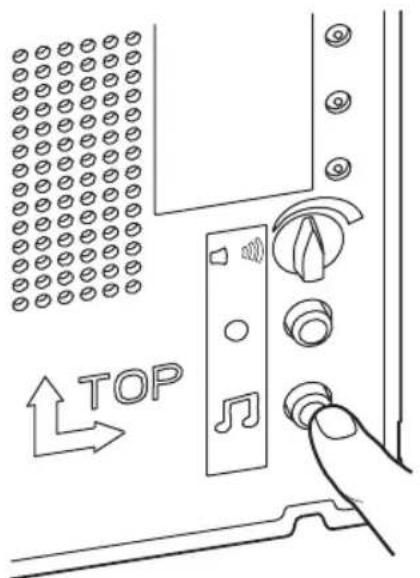

- Change the tune of the associated push without pressing the push button. Press and hold the program button ●. The channel LED will illuminate in sequence. Release the program button when channel LED for the related push illuminates. The chime will play the latest tune, channel LED will flash. While channel LED is flashing, tune can be changed using the tune select button

- Recall A short push of the program button ● will flash the Channel LED linked to the last push that was used.

69-2173EFS-03 14

1. Clip on the front cover.

2. For customizable wood covers only: Choose your paint, wood stain/ varnish or wall paper and then apply to the cover. Follow manufacturers' advice on the paint/vanish.

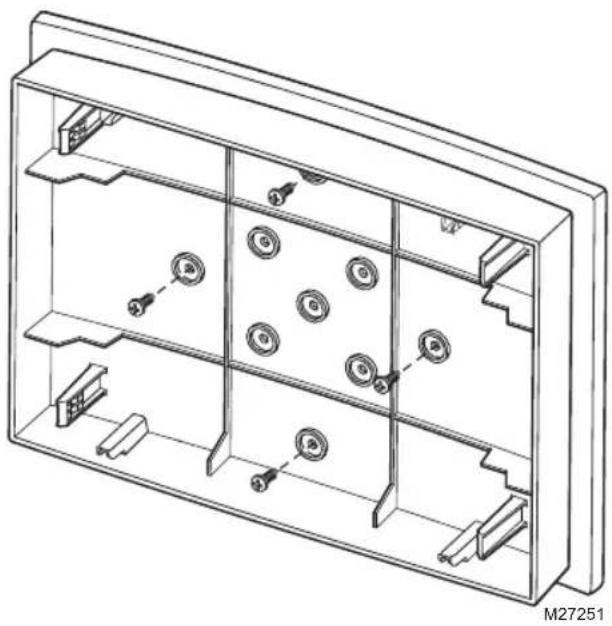

It is possible to unscrew the four screws shown below for finishing. Ensure you screw it back with the same screws provided! Once completed, clip it onto the base.

Technical line drawing of a multi-panel electronic device housing with mounting holes and internal compartments (no text or symbols)

15 69-2173EFS-03

Installation Instructions

Specification Chime
Operating Temperature 32°F	to 104°F0°C to +40°C
Sound Level (typical) 90dBA	@ 3 ft (1m)
Power Supply 4 x LR14 C size	alkaline batteriesOR16V 10VA transformer (UL approved) Honeywell part numberRCA900N
Battery Life (if applicable)(5 operations/day)	12 months

69-2173EFS-03 16

Troubleshooting

When the illuminated bell push is operated, very dim / no light appears on the push... Check the power supply. You should use a 16V 10VA transformer connection for an illuminated push. Follow step 4.

The chime does not work...

• Check that the wiring is done correctly according to step 4, using minimum 20AWG wire. If using batteries:
• Check that the batteries are the correct type, LR14 'C' cells. Only use alkaline batteries.
• Check that the batteries are fitted correctly (with correct polarity).
• Check that batteries are not too low.

The chime does not sound...

- Check that the volume control is not at the minimum setting.

Low battery light flashes...

- When the chime battery is low, an amber LED located at the side of the chime will flash. Install new batteries in the chime, type LR14 'C' cells. Only use alkaline batteries.

The icons keep on flashing...

- The push associated with the icon is stuck. Check the push.

17 69-2173EFS-03

Installation Instructions

Disposal & Recycling

Batteries and waste electrical products should not be disposed of with household waste. Please recycle where these facilities exist. Check with your local authority or retailer for recycling advice.

Guarantee

Honeywell guarantees this product for 1 year from the date of purchase. Proof of purchase is required; this does not affect your statutory rights. If you require further information about your product, call the Honeywell helpline at 1-800-468-1502.

Declaration

Honeywell hereby declares that this product complies with Part 15 of the FCC rules and Industrial Canada standards. This device operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Caution:

Changes or modification not expressly approved by the party responsible for regulatory compliance could void the user's authority to operate the equipment.

RCW35 Series and RCW25 Series

19 69-2173EFS-03

69-2173EFS_B.indd 19 4/17/2008 11:15:46 AM

Honeywell International Inc.

ACS, Environmental and Combustion Controls

1985 Douglas Drive, Golden Valley, MN 55422

www.honeywell.com

Printed in U.S.A. on recycled

paper containing at least 10%

post-consumer paper fibers.

® U.S. Registered Trademark.

© 2008 Honeywell International Inc.

69-2173EFS—03 M.S. Rev. 04-08

69-2173EFS_B.indd 20 4/17/2008 11:15:47 AM
