USER MANUAL RCW3504N HONEYWELL
Installation Instructions
RCW35 and RCW25 Series (51366SL)
Decorative Wired Chimes
RCW250N, RCW251N, RCW35N,
RCW3501N, RCW3502N, RCW3503N,
RCW3504N, RCW3505N, RCW3506N
Installation Instructions
Contents
Safety....3
Checking pack contents....4
Installation....5
Power supply 6
Mount the chime....7
Wiring - transformer powered 8
Wiring - battery powered....10
Operate Push 11
Volume control 11
Change tunes....12
Program button....14
Finishing the wood cover 15
Specifications....16
Troubleshooting 17
Disposal and recycling 18
Guarantee....18
Declaration 18
69-2173EFS-03 ii
RCW35 Series and RCW25 Series


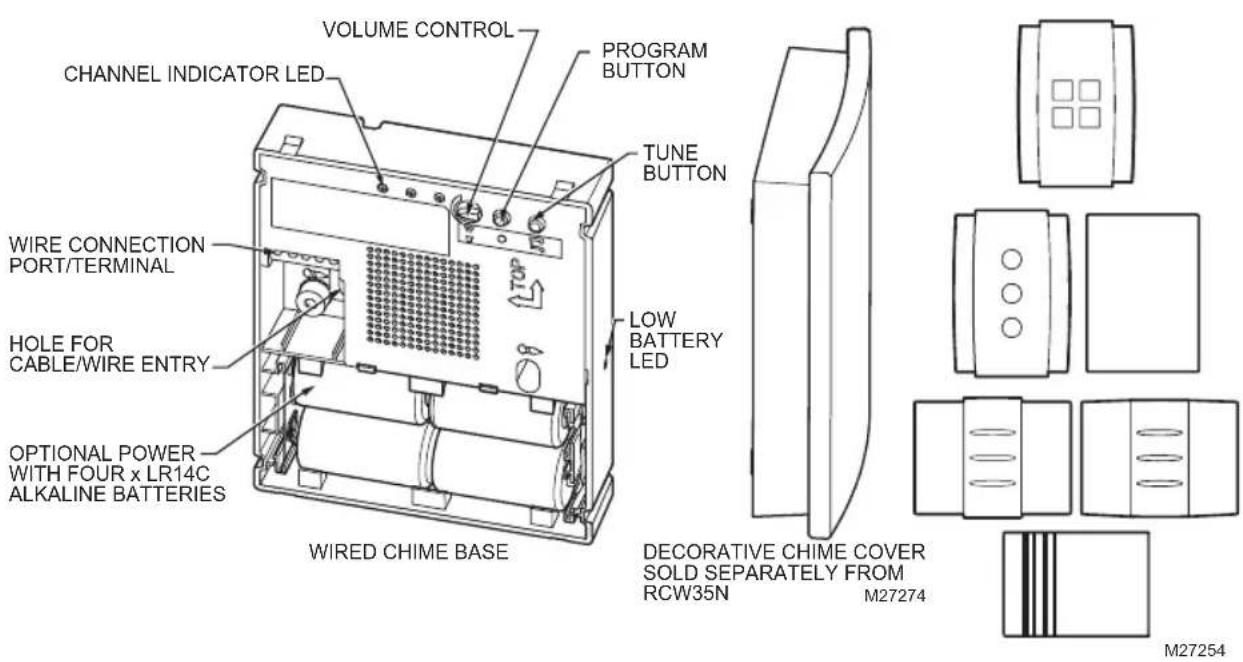

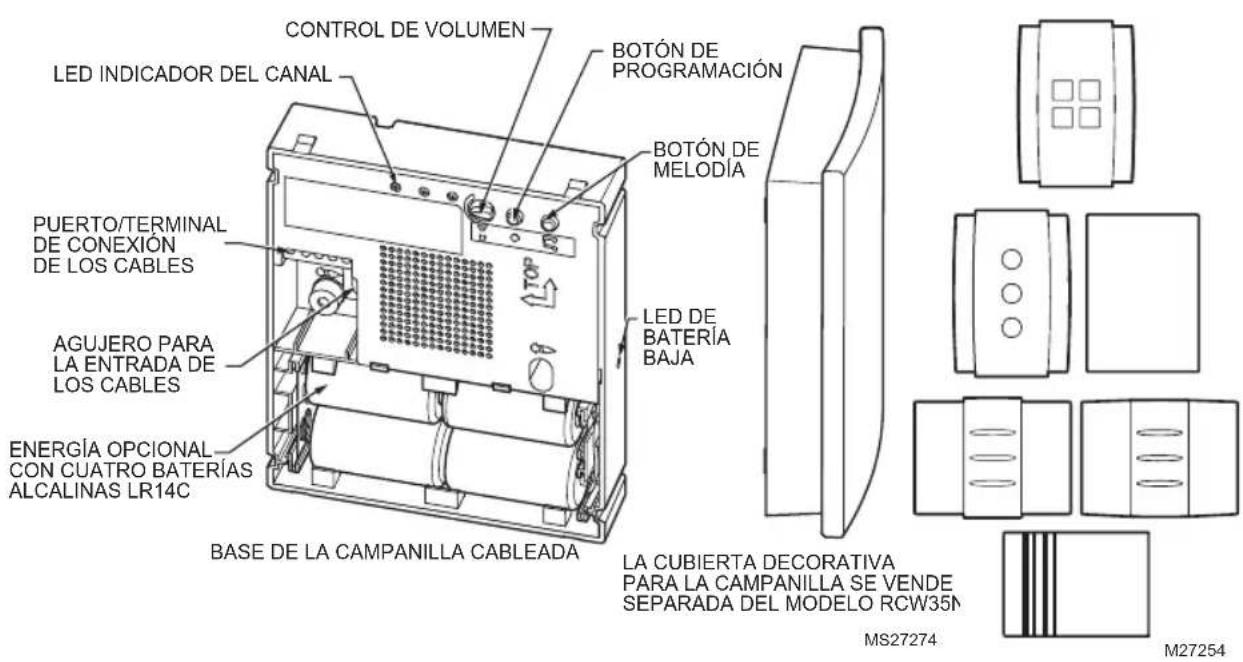

VOLUME CONTROL CHANNEL INDICATOR LED PROGRAM BUTTON TUNE BUTTON WIRE CONNECTION PORT/TERMINAL HOLE FOR CABLE/WIRE ENTRY OPTIONAL POWER WITH FOUR x LR14C ALKALINE BATTERIES TOP LOW BATTERY LED Wired CHIME BASE DECORATIVE CHIME COVER SOLD SEPARATELY FROM RCW35N M27274 M272541 69-2173EFS-03
Installation Instructions
Compatible with most bell pushes, with standard normally open contacts, including Honeywell wired pushes marked with "B."
Can work with up to 3 push circuits.
Illuminated bell push buttons can be used when the chime is powered by a transformer (Honeywell RCA900N).
69-2173EFS-03 2
69-2173EFS_B.indd 2 4/17/2008 11:15:45 AM
Safety
Before proceeding with the installation, please note the following safety warnings:
- Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
- Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.
- Chime is for indoor use only.
- Avoid mounting location which can expose chime to splashing or dripping liquid.
- Use UL approved transformer for connection to mains.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like; danger of damage if battery is incorrectly replaced. Replace only with the same or equivalent type.
3 69-2173EFS-03
Installation Instructions
Checking Pack Contents
- Chime
- 2 x fixing screws for chime
- 2 x wall plugs
You will need:
- Wired push
• 20 AWG minimum bell wire
• 4 mm cross-head screwdriver - A small flat bladed screwdriver
• 1/4-in. (6 mm) masonry drill bit - 4 x LR14 'C' Alkaline batteries OR transformer (16V 10 VA) Honeywell part number RCA900N
69-2173EFS-03 4
Installation

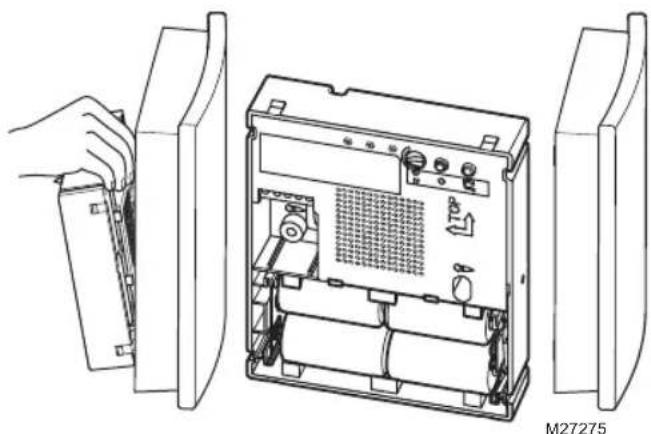

- Open the chime cover
69-2173EFS_B.indd 5 4/17/2008 11:15:45 AM
Installation Instructions
Power Supply

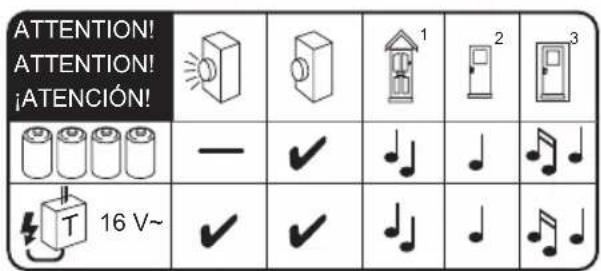

- Determine the type of power supply and type of wired push required to suit your installation. Use 4 x LR14 'C' size alkaline batteries; OR a 16V, 10VA transformer as recommended in the table below below:
69-2173EFS-03 6
69-2173EFS_B.indd 6 4/17/2008 11:15:45 AM

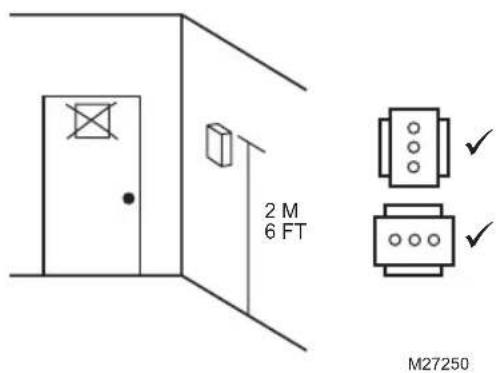

Mount the Chime
- Mounting holes are marked with a screw symbol.
69-2173EFS_B.indd 7 4/17/2008 11:15:45 AM
Installation Instructions
Wiring
Connect the wires from door push and transformer (where used) to the chime terminals as detailed in step 4. The wires can be surface mounted or direct from opening in the wall and enter the rear of the chime housing using the wire guide channels provided.
4a. Transformer powered - Wiring for standard/lighted push via a 16V 10VA transformer.


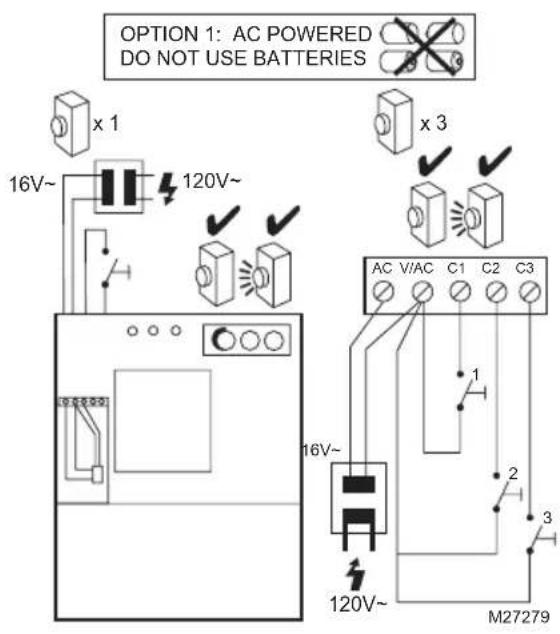

OPTION 1: AC POWERED DO NOT USE BATTERIES x 1 16V~ 120V~ x 3 AC V/AC C1 C2 C3 16V~ 120V~ M2727969-2173EFS-03 8
RCW35 Series and RCW25 Series
Note: Wire/cable length should not exceed 150 ft. (50 m).


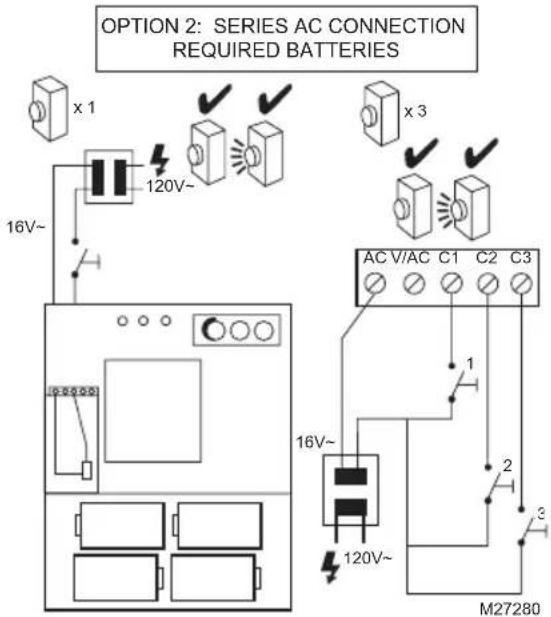

OPTION 2: SERIES AC CONNECTION REQUIRED BATTERIES x 1 120V~ 16V~ AC V/AC C1 C2 C3 16V~ 120V~ M272809 69-2173EFS-03
Installation Instructions

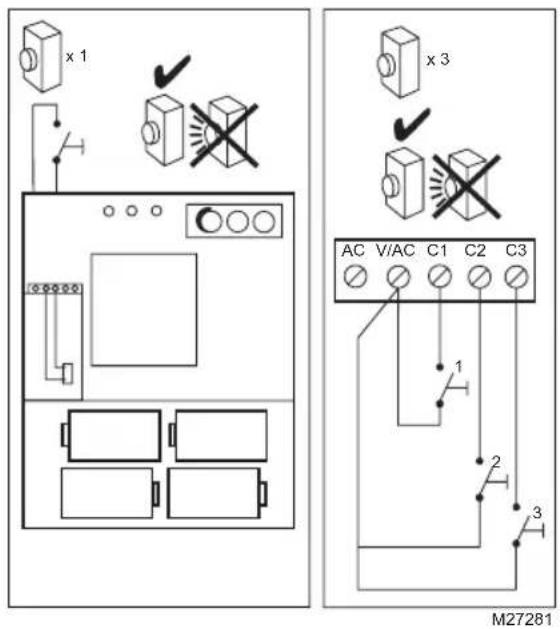

4b. Battery powered - Wiring for standard (non-lighted) push only.
Note: Wire/cable length should not exceed 150 ft. (50 m).
69-2173EFS_B.indd 10 4/17/2008 11:15:46 AM

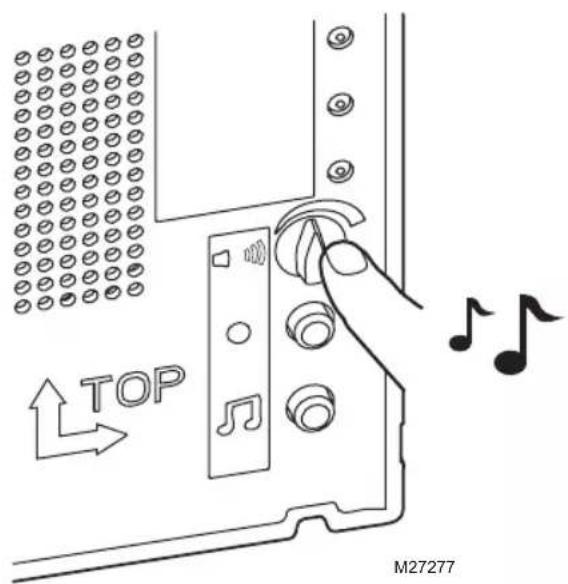

Operate Push
- Chime will play the default tune. The associated channel LED will illuminate.
- To adjust volume.
69-2173EFS_B.indd 11 4/17/2008 11:15:46 AM
Installation Instructions
To Change Tune
- Chime tunes are provided plus an additional alert tone.
| Tunes Table | |
| Ding Dong | |
| St Clements | |
| Westminster | |
| Tube Chime | |
| Warm Brass | |
| Fantasy | |
| ! | Alert |
69-2173EFS-03 12
RCW35 Series and RCW25 Series


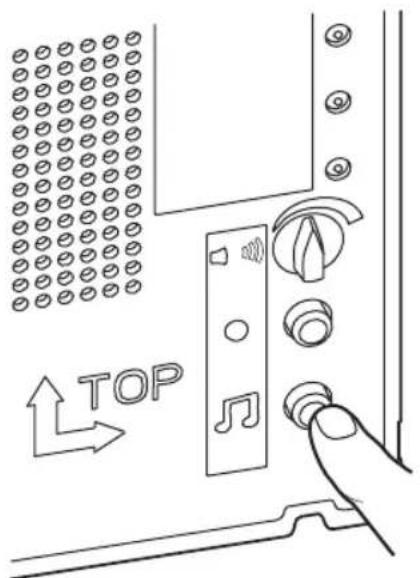

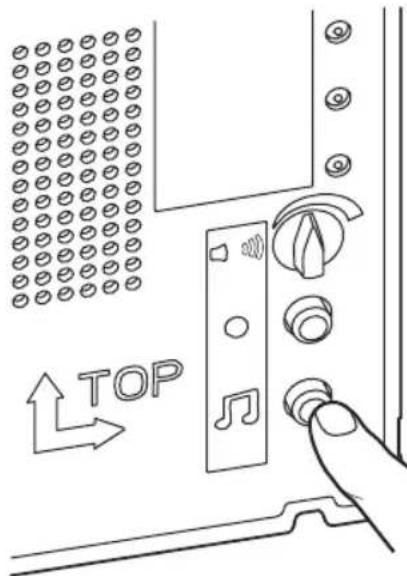

TOPPress push button, chime will play tune, while the Channel LED on chime is flashing, press and release tune button ⏻. Press and release ⏻ button again to cycle through the available tunes until you hear the tune you want to play.
The last tune played will be stored after Channel LED stops flashing.
To confirm, press the push button and chime will play tune you want.
13 69-2173EFS-03
Installation Instructions
Program Button
- The Program button can be used to:
- Change the tune of the associated push without pressing the push button. Press and hold the program button ●. The channel LED will illuminate in sequence. Release the program button when channel LED for the related push illuminates. The chime will play the latest tune, channel LED will flash. While channel LED is flashing, tune can be changed using the tune select button
- Recall A short push of the program button ● will flash the Channel LED linked to the last push that was used.
69-2173EFS-03 14
-

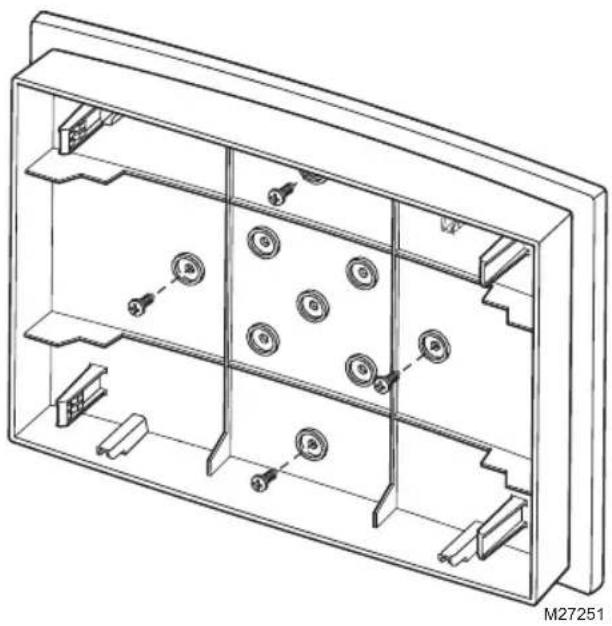

Clip on the front cover.
-
For customizable wood covers only: Choose your paint, wood stain/ varnish or wall paper and then apply to the cover. Follow manufacturers' advice on the paint/vanish.
It is possible to unscrew the four screws shown below for finishing. Ensure you screw it back with the same screws provided! Once completed, clip it onto the base.
Installation Instructions
| Specification Chime | |
| Operating Temperature 32°F | to 104°F0°C to +40°C |
| Sound Level (typical) 90dBA | @ 3 ft (1m) |
| Power Supply 4 x LR14 C size | alkaline batteriesOR16V 10VA transformer (UL approved) Honeywell part numberRCA900N |
| Battery Life (if applicable)(5 operations/day) | 12 months |
69-2173EFS-03 16
Troubleshooting
When the illuminated bell push is operated, very dim / no light appears on the push... Check the power supply. You should use a 16V 10VA transformer connection for an illuminated push. Follow step 4.
The chime does not work...
- Check that the wiring is done correctly according to step 4, using minimum 20AWG wire. If using batteries:
- Check that the batteries are the correct type, LR14 'C' cells. Only use alkaline batteries.
- Check that the batteries are fitted correctly (with correct polarity).
- Check that batteries are not too low.
The chime does not sound...
- Check that the volume control is not at the minimum setting.
Low battery light flashes...
- When the chime battery is low, an amber LED located at the side of the chime will flash. Install new batteries in the chime, type LR14 'C' cells. Only use alkaline batteries.
The icons keep on flashing...
- The push associated with the icon is stuck. Check the push.
17 69-2173EFS-03
Installation Instructions
Disposal & Recycling
Batteries and waste electrical products should not be disposed of with household waste. Please recycle where these facilities exist. Check with your local authority or retailer for recycling advice.
Guarantee
Honeywell guarantees this product for 1 year from the date of purchase. Proof of purchase is required; this does not affect your statutory rights. If you require further information about your product, call the Honeywell helpline at 1-800-468-1502.
Declaration
Honeywell hereby declares that this product complies with Part 15 of the FCC rules and Industrial Canada standards. This device operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution:
Changes or modification not expressly approved by the party responsible for regulatory compliance could void the user's authority to operate the equipment.
RCW35 Series and RCW25 Series
19 69-2173EFS-03
69-2173EFS_B.indd 19 4/17/2008 11:15:46 AM
Honeywell International Inc.
ACS, Environmental and Combustion Controls
1985 Douglas Drive, Golden Valley, MN 55422
www.honeywell.com
Printed in U.S.A. on recycled
paper containing at least 10%
post-consumer paper fibers.
® U.S. Registered Trademark.
© 2008 Honeywell International Inc.
69-2173EFS—03 M.S. Rev. 04-08
