USER MANUAL RDWL311A2000 HONEYWELL

Installation and Operation Guide

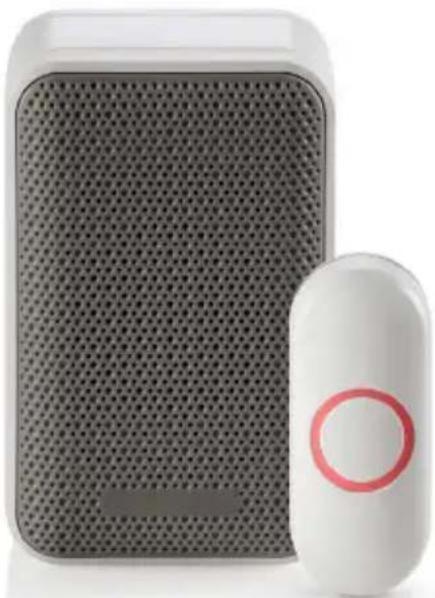

Portable Wireless Doorbell

White rectangular device with mesh grille next to a white USB port with a red circular button (no text or symbols visible)

RDWL311A2000

Read before installing

Preparation

In the box you will find

Blank rectangular frame with rounded corners (no text or symbols)

Doorbell

Wall Anchor

Round Head Screw

Push Button

Push Button Mounting Bracket and Adhesive Pad

CR2032 Battery

Flat Head Screws

To install you will need

Phillips Screwdriver Standard Screwdriver Drill and 1/4 in. (6.3 mm) drill bit

4 AA alkaline batteries

The push button supplied with this kit is pre-programmed to operate with the doorbell. If it is not, see "Connect a Push Button" on page 4.

Overview

Just follow these simple steps:

1. Install batteries.
2. Set up the doorbell and your preferences.
3. Install the doorbell and the push button.

Safety

Before proceeding with the installation, please note the following safety warnings:

- Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.

- Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.

Install Batteries

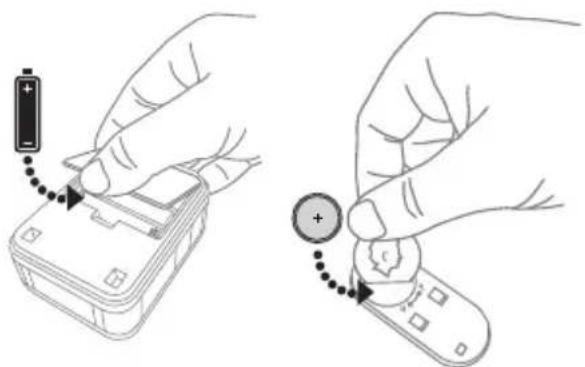

1. Open the battery cover and install 4 AA alkaline batteries.
2. Open the battery cover and install the CR2032 battery.

Illustration showing two hands operating a device with battery and remote control (no text or symbols)

Setup and Operation

Press the push button to test whether it is paired with the doorbell. The doorbell will ring. If it does not, see "Connect a Push Button" on page 4.

Change the Tune

Press the Music button to change the doorbell tune.

Every time you press the Music button, the tune will change. Stop pressing the Music button when you hear the tune you want:

Illustration of a hand pressing down on a musical note (no text or symbols present)

Ding Dong Westminster Soft Alert Smart Sax

Installation

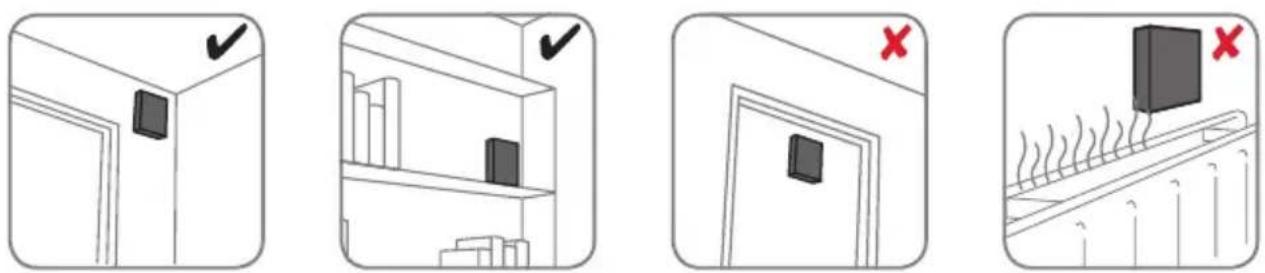

Choose a location that is not near a heat source or on something that moves (like a door). For non-mounting locations, choose a place where the doorbell will be easy to hear.

Install Doorbell

If you are not mounting the doorbell to the wall, place it where you want it.

1. Mount the screw on to the wall using the supplied anchor if necessary. Leave 2 mm of the screw sticking out from the wall.

Drill 1/4 inch (6.3 mm) holes for the anchor.

1. Hang the doorbell on the screw.

Install Push Button

1. Mount the push button bracket in the desired location.

Use the screws

-OR-

Use the adhesive backing. If using the adhesive backing, clean the surface first.

1. Snap the push button onto the mounting bracket.

Line drawing of a hand holding a device with a curved arrow pointing to the top part (no text or symbols)

Technical diagram showing a mechanical or electrical component with labeled parts and directional arrows

-OR-

Line drawing of a hand holding a key inserted into a socket, with no text or symbols present

Simple line drawing of a door handle and lock mechanism (no text or symbols)

Line drawing of a hand holding a finger with an arrow indicating clockwise motion (no text or symbols)

Note: If you need to remove the push button, use a small screwdriver to release the tab.

Accessories

You can connect 2 accessories to your doorbell, including other push buttons,

window or door opening sensors, and motion sensors.

If you try to connect more accessories than the max number, the LED on the side blinks red.

Simple line drawing of a vertical structure with musical notes and a base, no text or symbols present

Connect a Motion Sensor

1. Press and hold the Setting button on the doorbell for three seconds.

The LED on the side turns on with an amber color.

1. Within 20 seconds of pressing the Setting button, wave or make some other kind of motion in front of the motion sensor.

Illustration of a hand pressing down on a device panel with a gear icon (no text or symbols)

Illustration of a hand with a curved arrow and a device on top (no text or symbols)

Connect a Push Button

Follow these steps to change the ring for an existing doorbell, too.

1. Press and hold the Setting button on the doorbell for three seconds. The LED on the side turns on with an amber color.

2. Press the push button.

3. Within 12 seconds of pressing the push button, press the Music button to select the ring for that push button.

Illustration of a hand inserting a card into a grid, with a gear icon and musical note symbol (no text or labels)

Line drawing of a hand holding a small object, no text or symbols present

Illustration of a hand pressing down on a musical note (no text or symbols present)

Secret Knock

You can set up a Secret Knock that makes a different ring for each push button. The Secret Knock is triggered by pressing the push button quickly 3 times.

1. Press the push button 3 times quickly.
2. Within 12 seconds of pressing the push button, press the Music button to select the ring for the Secret Knock.

Maintenance

Your doorbell and push button require no maintenance except to periodically change the batteries.

If using the correct batteries, battery life should be approximately:

- Up to 2 years for the doorbell; replace with 4 AA alkaline batteries

- Up to 2 years for the push button; replace with a CR2032 lithium battery

Low Battery Notification

When the doorbell batteries are low, the LED on the side turns on.

When the push button batteries are low, two beep sounds are heard after the normal tune.

Reset

This process removes all pairings, including the push button that came with this doorbell:

1. Remove the doorbell battery.
2. Press and hold the Setting button, and replace the battery at the same time.
3. The doorbell will beep several times rapidly, and is returned to its factory default settings.

Specifications

Doorbell Push Button
Operating Temperature 23°F to 104°F (-5°C to 40°C) -4°F to 122°F (-20°C to 50°C)
Honeywell ActivLinkTM 916.8 MHz 916.8 MHz
Range (open field) 250 ft. (76 m) 250 ft. (76 m)
Sound Level (typical) 80dBA -
RF Power - <1.2W
Battery Type Input: 4 x AA (1.5 V) alkaline each CR2032
Battery Life (5 activations/day) Up to 2 years	Up to 2 years
Rain proof	N/A	Pass UL1598 rain test.

Troubleshooting

If	Then
The doorbell does not work	1. Make sure the correct batteries (4 AA alkaline cells, 1 CR2032) are installed with the correct polarity.2. The doorbell might be out of range; try the doorbell in a different location.3. Reconnect the doorbell. See “Connect a Push Button”.
Two ‘beep’ sounds are heard after the normal tune	Replace push button battery with a new CR2032.
The LED on the side turns on	Replace doorbell batteries with 4 new AA alkaline batteries.
Range is reduced	1. Metal structures including uPVC door frames can reduce the range. Don’t mount the the doorbell or push button on or near metal structures.2. Move the doorbell closer to the push button.3. Weak batteries will reduce range. In cold conditions (below 41°F [5°C]), batteries may need to be replaced more often.

For help please visit resideo.com or call 1-800-633-3991.
