Product type	Electronic preselect counter
Brand	Kübler
Model	CODIX 924
Dimensions (W x H x D)	48 x 48 x 91 mm
Panel cut-out	45 x 45 mm (+0.6 mm)
Weight	Approx. 125 g
Power supply	100–240 VAC ±10% (50/60 Hz), 24 VAC ±10%, or 10–30 VDC
Power consumption	Max. 9.5 VA (AC) or 5 W (DC)
Display	LCD 2 lines, 6 digits, positive or negative, optional backlight (green, red, red-green)
Main functions	Pulse counting, tachometer/frequency meter, hour meter; two presets; relay or optocoupler outputs; programming via keys; teach function; prepositioning
Max. counting frequency	55 kHz (pulses), 65 kHz (frequency meter)
Inputs	INP A, INP B (signal), RESET, GATE, LOC.INP, MPI; programmable NPN/PNP
Outputs	Output 1: NO relay contact or NPN optocoupler; Output 2: changeover relay or NPN optocoupler
Operating temperature	-20 °C to +65 °C
Protection rating	IP65 front panel
Maintenance and cleaning	Clean front panel with a soft damp cloth; no internal maintenance required
Safety	Protection class 2 (front panel); do not open; use external fuses; flush mounting
Repair	Return to manufacturer or supplier; opening prohibited

Frequently Asked Questions - CODIX 924 Kübler

How to program the preset values?

In operating mode, press the Prog/Mode key until PR1 or PR2 is displayed. Use the decade keys (T1 to T6) to set the value. Press Prog/Mode to confirm or wait 3 seconds after the last key press.

How to use the teach function?

Program the MPI input to tEAch. Select the preset to modify with Prog/Mode, then briefly activate the MPI input. The current value is then taken as the new preset.

How to reset the counter manually?

Press the Reset key (red key) to reset the counter to zero (up mode) or to preset 2 (down mode). You can also use the electrical RESET input.

What input types are available for pulse counting?

Types include: Cnt.dir (counting/direction), up.dn (up/down counting), up.up (totalization), quad, quad2, quad4 (phase discriminator), A/B and (A-B)/A.

How to configure the tachometer/frequency meter?

In the programming menu, select the FrEqu function (frequency meter). Choose the input type (A, A-B, A+B, quad, A/B, or (A-B)/A), set the multiplication/division factor, decimal point, moving average, and start-up delay.

How to set the decimal point?

In the main configuration menu, parameter dP. Options: 0 (no decimal), 0.0 (1 decimal), 0.00 (2 decimals), 0.000 (3 decimals), 0.0000 (4 decimals), 0.00000 (5 decimals).

How to lock the keys?

Use the static input LOC.INP. In the menu, set Loc.InP to ProG (programming lock), SEt (preset adjustment lock), or both. Activate the LOC input to lock.

What does the error message 'Err 1' mean?

The message Err 1 indicates that the prepositioning value (SETPt) is outside the allowed range (-999999 to 999999). Check and correct the value in the SEtPt menu.

How to connect the power supply and outputs?

Use the pluggable screw terminals. For AC supply: terminal 14 (N) and 15 (L). For DC: terminal 14 (N) = GND, 15 (L) = +. Relay outputs connect to terminals 9-13. Observe max. wire sizes (2.5 mm² for supply, 1.5 mm² for inputs).

How to perform a prepositioning (Setpoint)?

Program the MPI input to SEt. In the SEtPt menu, set the desired value. Briefly activate the MPI input: the counter is then preset to this value (up mode) or to the sum preset 2 + SETPt (down mode).

USER MANUAL CODIX 924 Kübler

Electronic Preset Counter

With two presets

Models

LCD positive

LCD positive, green backlighting

LCD negative, red backlighting

LCD negative, red-green backlighting

Impulszähler: cnt.dir, up.dn, up.up, quad, quad2, quad4, A/B, (A-B)/Ax100%

Frequenzzähler: A, A-B, A+B, quad, A/B, (A-B)/Ax100%

Zeitzähler: FrErun, Auto, InpA.InpB, InpB.InpB

Add, Sub, AddAr, SubAr, AddBat, SubBat, AddTot, SubTot, Trail, TrailAr 4-stufiger RESET-Mode

Funcct Funcct Count

Menü Grundfunktion

Add/Sub/Trail < 1 ms

4-30 VPegel Low: 0 ... 2VDC

High: 3,5 ... 30 VDC

SELV, CLASS II (Limited

Po w e r S c

	HTL	5V
A	65 kHz	9 kHz
A - BA + BA / B(A-B)/A	65 kHz	9 kHz
Quad	30 kHz	9 kHz

4-30 V-Pegel Low: 0 .. 2VDC

High: 3,5 .. 30 VDC

Electronic Preset Counter

With two presets

Models

LCD positive

LCD positive, green backlighting

LCD negative, red backlighting

LCD negative, red-green

backlighting

Table of Contents

1 Preface 4

2 Safety instructions and Warnings 4

2.1 Use according to the intended purpose 4
2.2 Mounting in a control panel 4
2.3 Electrical Installation 5
2.4 Cleaning and maintenance 5

3 Description 6

4 Display/Operating elements 6

5 Inputs 6

5.1 INP A, INP B 6
5.2 RESET 6
5.3 GATE 6
5.4 LOCK INPUT 6
5.5 MPI 6

6 Outputs 7

6.1 Output 1 7
6.2 Output 2 7
6.3 Active Outputs 7

7 Programming 7

7.1 Entering the programming 7
7.2 Choice of main menus 7
7.3 Entering a Submenu 7
7.4 Selecting the menu items 7
7.5 Setting the menu items 7
7.6 Accepting the setting 7
7.7 Ending the programming 7
7.8 Programming Menu 8

7.8.1 Default parameters 8
7.8.2 Table: Parameter Sets 8
7.8.3 Setting the Basic Function 8
7.8.4 Pulse Counter 9
7.8.5 Tacho/Frequency meter 11
7.8.6 Timer 13

7.9 Setting the presets 17

7.9.1 Setting via Decade Keys 17
7.9.2 Setting with Teach-In Function 17
7.9.3 Setting the tracking presets (trail) 17

7.10 Set Function 17

8 Error message 17

9 Connections 18

9.1 Signal and Control Inputs 18
9.2 Supply voltage and Outputs 18

9.2.1 Version with relays 18
9.2.2 Version with Optocouplers 18

10 Technical Data 18

10.1 General Data 18
10.2 Pulse counter 18
10.3 Tacho/Frequency meter 18
10.4 Timer 19
10.5 Signal and Control inputs 19
10.6 Outputs 19
10.7 Supply voltage 19

10.8 Sensor supply voltage 19
10.9 Climatic Conditions 19
10.10 EMC 19
10.11 Device safety 20
10.12Mechanical Data 20
10.13Connections 20

11 Scope of Delivery 20
12 Ordering codes 20
13 Frequencies (typical) 20

13.1 Pulse counter 20
13.2 Frequency meter 21

14 Input modes: Pulse counting 22
15 Input modes: Timing 24
16 Input modes: Frequency meter 25
17 Output operations 26
18 Dimensional Drawings 28

1 P r e f a c e

Please read this instruction manual entirely and carefully before installation and start-up. Please observe all warnings and advice, both for your own safety and for general plant safety. If the device is not used in accordance with this instruction manual, then the intended protection can be impaired.

2 Safety instructions and Warnings

Please use the device only if its technical condition is perfect. It should be used only for its intended purpose. Please bear in mind safety aspects and potential dangers and adhere to the operating instructions at all times.

Defective or damaged devices should be disconnected from the mains immediately and taken out of operation. The device shall not be opened. Use the repair service of the manufacturer.

Only connect the device to the electricity networks provided to that purpose.

The safety of the system in which the device is integrated is the responsibility of the installer.

Disconnect all electricity networks prior to any installation or maintenance work.

Use exclusively cables approved in your country and designed for your temperature and power ranges. Installation and service work shall be carried out exclusively by qualified personnel.

The device must compulsorily be protected with approved external fuses. The value of these fuses can be found in the technical information.

This symbol is used on the device to remind of the existence of dangers, which are referred to in this manual.

2.1 Use according to the intended purpose

The preset counter detects and measures pulses, times and frequencies up to max. 60 kHz and offers a wide variety of different operating modes. At the same time, the preset counter processes programmed presets. Use for any purpose over and beyond this will be deemed as not in accordance with its intended purpose and thus not complying with the requirements.

The application area for this device lies in industrial processes and controls, in the fields of manufacturing lines for the metal, wood, plastics, paper, glass, textile and other like industries. Over-voltages at the terminals of the device must be kept within the limits of Over-voltage Category II.

The device must only be operated when mounted in a panel in the correct way and in accordance with the section "Technical Data".

The device is not suitable for use in hazardous areas and for areas excluded in EN 61010 Part 1. If the device is used to monitor machines or processes in which, in the event of a failure of the device or an error made by the operator, there might be the risk of damaging the machine or causing an accident to the operators, it is your responsibility to take the appropriate safety measures.

The device has been designed for indoor operation. It may nevertheless be used outdoors, provided the technical data is adhered to. In this case, take care to provide suitable UV protection.

2.2 Mounting in a control panel

CAUTION

Mount the device away from heat sources and avoid direct contact with corrosive liquids, hot steam or similar.

Provide a free space of 10mm all around the device for its ventilation.

The device should be mounted so that the terminals are out of the reach of the operator and cannot be touched by him. When mounting the device, consider the fact that only the front side is classified as accessible for the operator.

Mounting instructions

1. Remove the mounting clip from the device.
2. Insert the device from the front into the panel cut-out, ensuring the front-panel gasket is correctly seated.
3. Slide the fixing clip from the rear onto the housing, until the spring clamps are under tension and the upper and lower latching lugs have snapped into place.

Note: In case of proper installation, IP65 can be reached on the front side.

2.3 Electr

DANGER

The device must be disconnected from any power supply prior to any installation or maintenance work. Make sure that no more voltages LIABLE TO CAUSE AN ELECTROCUTION are present.

AC-powered devices must only be connected to the low-voltage network via a switch or circuit breaker installed close to the device and marked as their disconnecting device.

Installation or maintenance work must only be carried out by qualified personnel and in compliance with the applicable national and international standards.

Take care to separate all extra-low voltages entering or exiting the device from hazardous electrical conductors by means of a double or reinforced insulation (SELV circuits).

DANGER

The device must be protected externally for its proper operation. Information about the prescribed fuses can be found in the technical information.

The relay outputs are not protected internally in the device. Without suitable protection of the relay outputs, undesired heat development or even fire may occur. The relay outputs must be protected externally by the manufacturer of the plant. It must also be made sure that, even in case of a malfunction, the values stated in the technical data are under no circumstances exceeded.

• During installation, make sure that the supply voltage and the wiring of the output contacts are both fed from the same mains phase, in order not to exceed the maximum permitted voltage of 250V.
• The cables and their insulation must be designed for the planned temperature and voltage ranges. Regarding the type of the cables, adhere to the applicable standards of the country and of the plant. The cross sections allowed for the screw terminals can be found in the technical data.
• Before starting the device, check the cables for proper wiring and tightening. The screws of

i unused screw terminals must be screwed to the stop, so that they cannot loosen and get lost.

- The device has been designed for overvoltage category II. If higher transient voltages cannot be excluded, additional protection measures must be taken in order to limit the overvoltage to the values of CAT II.

Advice on noise immunity

All connections are protected against external sources of interference. The installation location should be chosen so that inductive or capacitive interference does not affect the device or its connecting lines! Interference (e.g. from switch-mode power supplies, motors, clocked controllers or contactors) can be reduced by means of appropriate cable routing and wiring.

Measures to be taken:

• Use only shielded cable and control lines. Connect shield at both ends. The conductor cross-section of the cables should be a minimum of 0.14 mm ^2 .
• The shield connection to the equipotential bonding should be as short as possible and with a contact area as large as possible (low-impedance).
• Only connect the shields to the control panel, if the latter is also earthed.
• Install the device as far away as possible from noise-containing cables.
• Avoid routing signal or control cables parallel to power lines.

2.4 C l e a n i n

The front side of the unit should only be cleaned using a soft damp (water!) cloth. Cleaning of the embedded rear side is not planned and is the responsibility of the service personnel or of the installer.

In normal operation, this device is maintenance-free. Should the device nevertheless not operate properly, it must be sent back to the manufacturer or to the supplier. Opening and repairing the device by the user is not allowed and can adversely affect the original protection level.

3 Description

6-digit multifunction LCD display

Easy-to-read 2-line LCD-display with annunciators for both the displayed preset and the status of the two outputs

Simultaneous display of the actual value and of the presets or auxiliary counters

Versions with/without backlit display

Add./Sub. Preset counter with two presets

Relay or optocoupler outputs

Easy-to-program

Simple preset entry via the front keys or via the Teach-In function

Step or tracking preset

Pulse, frequency, time or batch counter

Preset counter, Batch counter or Total Counter (cumulative count)

Set function for pulse and time counter

Multiplication and division factor (00.0001 ..

99.9999) for pulse counter and frequency meter

Averaging and Start Delay for frequency meter

Input modes:

Pulse counter: cnt.dir, up.dn, up.up, quad, quad2, quad4, A/B, (A-B)/Ax100%

Frequency meter: A, A - B, A + B, quad, A/B, (A-B)/Ax100%

Timer: FrErun, Auto, InpA.InpB, InpB.InpB

Output operations:

Add, Sub, AddAr, SubAr, AddBat, SubBat,

AddTot, SubTot, Trail, TrailAr

4-stage RESET-Mode

3-stage keypad locking (Lock)

MPI input for Display Latch, Teach-In function or Set function

Supply voltage 100 ... 240 VAC ± 10%, 24 VAC or 10 .. 30 VDC

4 Display / Opera

8 11 R -0.0.0.0.0 -0.0.0.0.0 ±0.0.0.0.0 9 10 12 P T6 T4 T2 T5 T3 T1 Pr

T1-6 Decade key T1 ... T6

P Prog/Mode key

R Reset key

8 Current count value / main counter

9 Preset value/ Total count/ Batch counter

10 Run display for Timer

11 Shows which preset value is being displayed

12 Shows which preset output is active

Pr Keys necessary for programming the parameters (highlighted in grey)

5 Inputs

5.1 INP A, INP B

Signal inputs: function acc. to operating mode.

Max. frequency 60 kHz, can be damped in the programming menu to 30 Hz.

Pulse counter: Count inputs

Frequency meter: Frequency inputs

Timer: Start input or

S t a r t /

5.2 RESET

Dynamic reset input: resets the pulse counter or timer to zero (adding mode) or to preset value 2 (subtracting mode). The reset input can be inhibited in the programming menu.

Pulse counter: RESET input

Frequency meter: no function

T i m e r : R

5.3 G A T E

Static gate input: function depending on operating

mode. n g e l e m e n t s

Pulse counter: no counting while active

Frequency meter: no counting while active

Timer: time measurement while

a c t i v e t i m e m n o t a c

5.4 L O C K I N

Static keypad lock input for presets or programming. Lock-out level can be set in the programming menu.

5 . 5 M P I

Input. Programmable as Display Latch, Set or Teach-In input.

6 Outputs

6.1 Output

Relay with potential-free make (NO) contact or optocoupler with open emitter and collector

6.2 Output

Relay with potential-free make (NO) contact or optocoupler with open emitter and collector.

6.3 A c t i v e

An active output will be shown on the display as I or II

For safety switching the relays or optocoupler outputs can be inverted, i.e. the relay will be de-energized or the optocoupler output disabled when the presets are reached. To do this, the parameters Pr.OUT1 and Pr.OUT2 must be set to (for permanent signal) or (for timed signal).

7 Programming

7.1 Enter i

Press the Reset key and Prog/Mode key simultaneously for 3 s

Proc no PROG ΔΔΔΔΔΔ

⇒ The security prompt appears in the display

Programming can be exited again using the Prog/Mode key.

Press key T2 to continue with the programming

PROG YES

⇒ The security prompt appears in the display

Enter the main menu by pressing the Prog/Mode key

7.2 Choice of main menus

The menus are selected using the keys T2 (next) and T1 (back)

7.3 Enter in

The Submenu is opened with the Prog/Mode key and the first menu item is displayed.

7.4 Selecting the menu items

The Prog/Mode key is used to select a menu item within the Submenu

7.5 Setting the menu itemst s

The T2 key is used to select the individual settings for the menu items

When setting count values, each decade has a key assigned to it. Each time the key is pressed, the value increments by one

7.6 A c c e p t i

Pressing the Prog/Mode key causes the current setting to be accepted. Programming then switches to the next menu item.

7.7 Ending the programming

During programming, it is possible to exit the programming at each menu item by pressing the reset key.

Press the Reset key

⇒ The security prompt appears in the display

Pressing the Prog/Mode key acknowledges this prompt and causes the programming menu to start again from the beginning. The previously-programmed values are preserved. These can now be changed or checked again.

Pressing the decade key T2 selects the termination of the programming

⇒ The security prompt appears in the display

Pressing the Prog/Mode key acknowledges this prompt and terminates the programming; the modified settings are saved in the EEPROM.

⇒ The text SAVE is displayed for 2 s

7.8 Program

7.8.1 Default parameter

Note: Three default parameter sets have been permanently stored; these can be adapted as required. With each acknowledgment of the parameter sets, all parameters will be reset to the values listed in the table.

The dEFAuL P.USER can be freely programmed.

Menu Parameter Sets

Default setting Parameter set 1

Default setting Parameter set 2

Default setting Parameter set 3

Freely programmable User settings

Factory settings are highlighted in grey

7.8.2 Table: Parameter Sets

P.SET 1 P.SET 2 P.SET 3
Func C	o u	n	t
InP.PoL P	n	P	P
FiLtEr	on	oFF	oFF
Count	Cnt.dir	uP.dn	Quad
MPi	LAtch	LAtch	Set
kpc.Inr	ProG	ProG	ProG
ModE	Add	Sub	TrAiL
$Actor	01.0000	01.0000	01.0000
diViSo	01.0000	01.0000	01.0000
dP	0	0	0.00
SEtPt	000000	000000	0000.00
CoLor	red.Grn	red.Grn	red.Grn
rESmd	Man.EL	Man.EL	Man.EL
PrES 1	on	on	on
Pr.Out 1
t.Out 1		00.10
Pr.Out 2
t.Out 2		00.10	00.10

7.8.3 Setting the Basic Function

Funct	Basic function menu
Funct Count	Programming menuPulse counter (7.8.4)
Funct i nter	Programming menuTimer/Hour meter (7.8.6)
Funct tEcho	Programming menuTacho/Frequency meter (7.8.5)

7.8.4 Pulse Counter

7.8.4.1 Mainmenu for the Signal and

C o n t r

Mainmenu for programming the signal and control inputs

Input polarity

PNP: switching to Plus for all inputs in common

NPN: switching to 0 V for all inputs in common

Filter for the signal inputs InpA and InpB

Maximum count frequency

Damped to approx. 30 Hz (for control with mechanical contacts)

Count Input mode

Count/Direction

INP A: count input
INP B: count direction input

Differential counting [A - B]

INP A: count input add INP B: count input sub

Totalising [A + B]

INP A: count input add INP B: count input add

Quadrature input

INP A: count input 0° INP B: count input 90°

Quadrature with pulse doubling

INP A: count input 0° INP B: count input 90° Each pulse edge of INP A will be counted

Quadrature x4

INP A: count input 0° INP B: count input 90° Each pulse edge of INP A and INP B will be counted.

Ratio measurement [A / B]

Inp A: count input A Inp B: count input B

Percentage differential counting

[(A - B) / A in %] Inp A: count input A Inp B: count input B

User input

When the MPI input is activated the display is "frozen" and remains "frozen" until the MPI input is deactivated. Internally the preset counter continues counting.

When the MPI input is activated the current count value for the preset that has just been selected will be adopted as the new preset value. See also 7.9

When the MPI input is activated the preset counter will be set to the value specified in the parameter SEtPt. See also 7.10

Lock input

When the Lock input is activated the programming is inhibited.

When the Lock input is activated the setting of the preset values is inhibited.

When the Lock input is activated the setting of the preset values and the programming are both inhibited.

7.8.4.2 Mainmenu for Output operations

Node Node Add

Mainmenu for determining the operation of the outputs

Count mode ADD

Outputs active when count status ≥ preset value Reset to zero

Count mode SUBTRACT

Output 1 active when count status ≤ preset value 1 Output 2 active when count status ≤ 0 Reset to preset 2

Count mode ADDING with automatic reset

Output 1 active when count status ≥ preset value 1 Output 2 (timed signal) active when count status = preset value 2 Automatic reset to zero when count status = preset value 2 Reset to zero

Count mode SUBTRACTING with automatic reset

Output 1 active when count status < preset value 1 Output 2 (timed signal) active when count status = 0 Automatic reset to preset 2 when count status = 0 Reset to preset 2

Count mode ADDING with automatic reset and Batch counter

Output 2 (timed signal) active when main counter = preset value 2 Automatic reset to zero when main counter = preset 2 Batch counter counts the number of automatic repetitions of preset 2 Output 1 active when Batch counter > preset 1 Manual reset sets both counters to zero. Electrical reset only sets the main counter to zero.

Count mode SUBTRACTING with automatic reset and Batch counter

Output 2 (timed signal) active when main counter = zero Automatic reset to preset 2 when main counter = zero Batch counter counts the number of automatic repetitions of preset 2 Output 1 active when Batch counter ≥ preset 1 Manual reset sets main counter to preset value 2, batch counter to zero Electrical reset only sets the main counter to preset value 2

Count mode ADDING with automatic reset and Total counter

Output 2 (timed signal) active when main counter = preset value 2 Automatic reset to zero when main counter = preset value 2 Total counter counts all the count pulses from the main counter Output 1 active when total counter > preset value 1 Manual Reset sets both counters to zero Electrical reset only sets the main counter to zero

Count mode SUBTRACTING with automatic reset and Total counter

Output 2 (timed signal) active when main counter = zero Automatic reset to preset value 2 when main counter = zero Total counter counts (sub from preset value 1) all count pulses from main counter Output 1 active when Total counter ≤ zero Manual reset sets both counters to the preset values Electrical reset sets only main counter to preset value 2

Tracking Preset mode

When preset 2 is changed then preset 1 automatically tracks it. Reset to zero Preset 1 relative to preset 2 (see also section 17. Output operations)

Tracking Preset mode with automatic reset

When preset 2 is changed then preset 1 automatically tracks it. Reset to zero. Automatic reset to zero when main counter = preset value 2. Preset 1 relative to Preset 2 (see also section 17. Output operations)

7.8.4.3 Main menu for con

i Manual reset (with red key) and electrical reset (reset input)

Mainmenu for matching the input pulses and display

rESn no rES rESn EL rES

No reset possible (red key and reset input inhibited)

Multiplication factor

Multiplication factor can be programmed from 00.0001 to 99.9999.

Only electrical reset possible (reset input)

The setting 00.0000 will not be accepted

Division factor

Division factor can be programmed from 01.0000 to 99.9999. The setting <01.0000 will not be accepted

7.8.4.5 Preset 1

See below 7.8.6.5

7.8.4.6 Preset 2

See below 7.8.6.8

Decimal point setting

Decimal point (only optical function)

0 no decimal place

0.0 1 d e c i 0.00 2 d e c i m a l p l

0.00 0 3 decimal places

0 . 0 0 0 0 0 0 . 0 0 0 0 0 5

7.8.5 Tacho/Frequency meter

7.8.5.1 Mainmenu for the Signal and Control inputs

a c e s I n P u t Mainmenu for programming the signal and control inputs 4 d e c i m a l p l a c e

Set value

Set value can be programmed from -999999 to 999999

A previously programmed decimal point will be displayed

Input polarity

InPPoL PnP InPPoL nPn

PNP: switching to Plus for all inputs in common

NPN: switching to 0 V for all inputs in common

Display colour (for device 6.92x.x1x3.xx0)

Display colour

upper line red

lower line red

Filter for the signal inputs Inp A and Inp B

maximum count frequency

Display colour

upper line red

lower line green

damped to approx. 30 Hz (for control with mechanical contacts)

7.8.4.4 Mainmenu for reset mode

Setting the reset mode

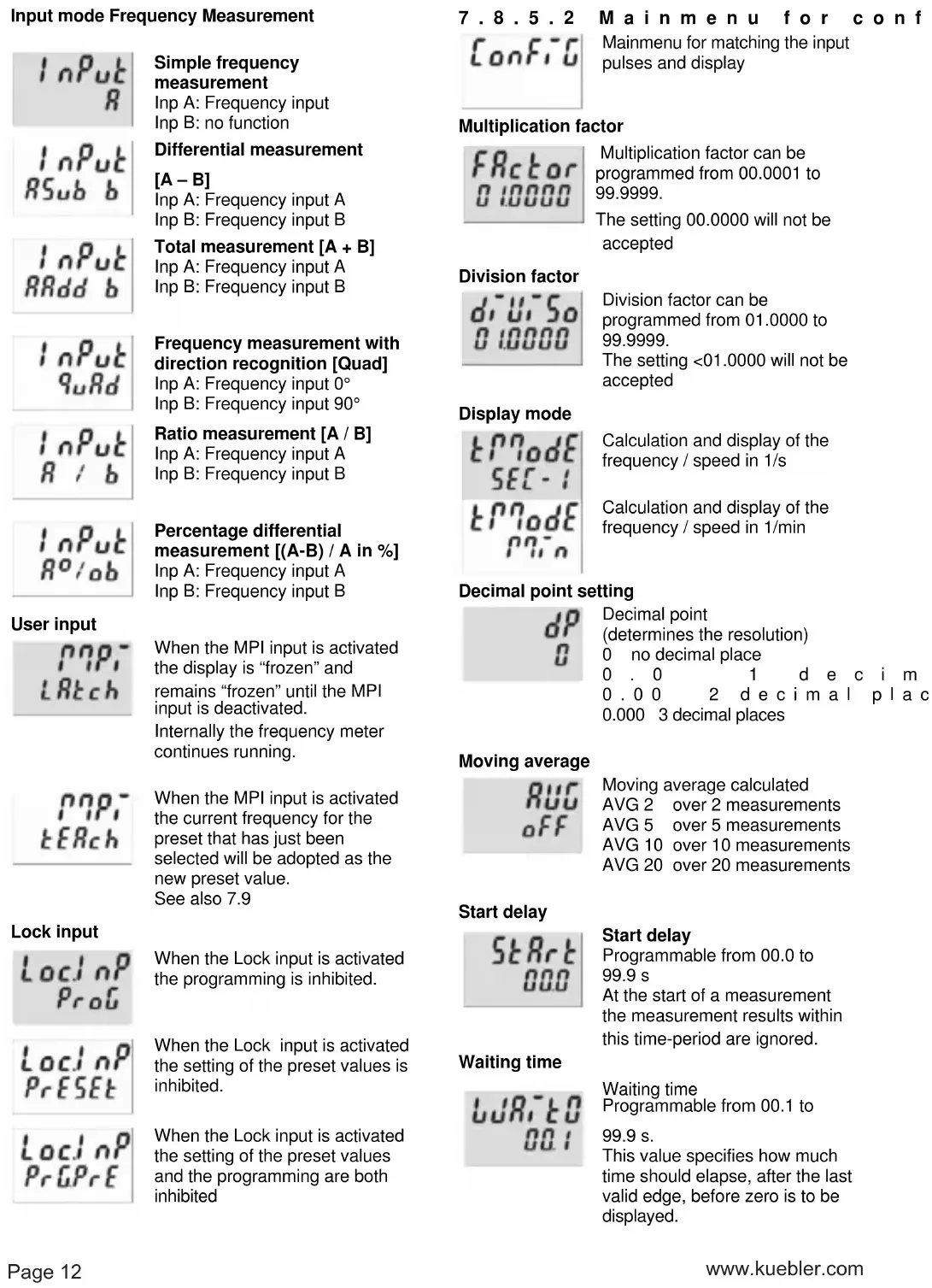

Input mode Frequency Measurement

Simple frequency measurement

Inp A: Frequency input

Inp B: no function

Differential measurement

[A-B]

Inp A: Frequency input A

Inp B: Frequency input B

Total measurement [A + B]

Inp A: Frequency input A

Inp B: Frequency input B

Frequency measurement with direction recognition [Quad]

Inp A: Frequency input 0°

Inp B: Frequency input 90°

Ratio measurement [A / B]

Inp A: Frequency input A

Inp B: Frequency input B

Percentage differential measurement [(A-B) / A in %]

Inp A: Frequency input A

Inp B: Frequency input B

User input

When the MPI input is activated the display is "frozen" and remains "frozen" until the MPI input is deactivated.

Internally the frequency meter continues running.

When the MPI input is activated the current frequency for the preset that has just been selected will be adopted as the new preset value.

See also 7.9

Lock input

When the Lock input is activated the programming is inhibited.

When the Lock input is activated the setting of the preset values is inhibited.

When the Lock input is activated the setting of the preset values and the programming are both inhibited

7.8.5.2

Main menu for conf

Mainmenu for matching the input pulses and display

Multiplication factor

Multiplication factor can be programmed from 00.0001 to 99.9999.

The setting 00.0000 will not be accepted

Division factor

Division factor can be programmed from 01.0000 to 99.9999.

The setting <01.0000 will not be accepted

Display mode

Calculation and display of the frequency / speed in 1/s

Calculation and display of the frequency / speed in 1/min

Decimal point setting

Decimal point (determines the resolution) 0 no decimal place

0.0 1 d e c i m 0.00 2 d e c i m a l p l a c 0.000 3 decimal places

Moving average

Moving average calculated

AVG 2 over 2 measurements

AVG 5 over 5 measurements

AVG 10 over 10 measurements

AVG 20 over 20 measurements

Start delay

Start delay

Programmable from 00.0 to 99.9 s

At the start of a measurement the measurement results within this time-period are ignored.

Waiting time

Waiting time

Programmable from 00.1 to 99.9 s.

This value specifies how much time should elapse, after the last valid edge, before zero is to be displayed.

Display colour (for device 6.92x.x1x3.xx0)

Display colour

Upper line red

Lower line red

Display colour

Upper line red

Lower line green

7.8.5.3 Preset 1

See below 7.8.6.5

7.8.5.4 Preset 2

See below 7.8.6.6

7.8.6 Timer

7.8.6.1 Mainmenu for the Signal and

C o n t r

Mainmenu for programming the signal and control inputs

Input polarity

PNP: switching to Plus for all inputs in common

nPn: switching to 0 V for all inputs in common

Filter for the signal inputs Inp A and Inp B

for electronic control of the signal inputs

for mechanical control of the signal inputs(for control with mechanical contacts)

Input mode Time measurement

Start: Edge to Inp A

Stop: Edge to Inp B

Start: 1. Edge to Inp B

Stop: 2. Edge to Inp B

Timing can only be controlled via the Gate input

Inp A and Inp B: no function

The timer is reset by means of a RESET (to zero when adding, to preset 2 when subtracting) and then starts timing again.

Timing is stopped with adding operations when preset 2 is reached.

Timing is stopped with subtracting operations when zero is reached.

A RESET during the timing process also causes this to stop.

Inp A and Inp B: no function.

o l i n p

Gate control for Timing

Timing takes place when the Gate input is not active.

Timing takes place when the Gate input is active

User input

When the MPI input is activated the display is "frozen" and remains "frozen" until the MPI input is deactivated.

Internally the preset timer continues counting.

When the MPI input is activated the current count value for the preset that has just been selected will be adopted as the new preset value.

See also 7.9

When the MPI input is activated the preset timer will be set to the value specified in the parameter SEtPt. See also 7.10

Lock input

When the Lock input is activated the programming is inhibited.

When the Lock input is activated the setting of the preset values is inhibited.

When the Lock input is activated the setting of the preset values and the programming are both inhibited.

7.8.6.2 Mainmenu for the output operations

Mainmenu for determining the operation of the outputs

Count mode ADD

Outputs active when count status

preset value Reset to zero

Count mode SUBTRACT

Output 1 active when count status ≤ preset value 1 Output 2 active when count status ≤ 0 Reset to preset 2

Count mode ADDING with automatic reset

Output 1 active when count status > preset value 1 Output 2 (timed signal) active when count status = preset value 2 Automatic reset to zero when count status = preset value 2 Reset to zero

Count mode SUBTRACTING with automatic reset

Output 1 active when count status ≤ preset value 1 Output 2 (timed signal) active when count status = 0 Automatic reset to preset 2 when count status = 0 Reset to preset 2

Count mode ADDING with automatic reset and Batch counter

Output 2 (timed output) active when main counter = preset value 2 Automatic reset to zero when

main counter = preset value 2 Batch counter counts the number of automatic repetitions of preset 2 Output 1 active when batch counter > preset 1 manual reset sets both counters to zero electrical reset sets only main counter to zero

Count mode SUBTRACTING with automatic reset and Batch counter

Output 2 (timed signal) active when main counter = zero Automatic reset to preset 2 when main counter = zero Batch counter counts the number of automatic repetitions of preset 2 Output 1 active bei Batchzähler > Preset 1

Manual reset sets main counters to preset value 2 and batch counter to zero Electronic reset only sets the main counter to preset value 2

Count mode ADDING with automatic reset and Total counter

Output 2 (timed signal) active when main counter = preset value 2 Automatic reset to zero when main counter = preset value 2 Total counter counts all the count pulses from the main counter Output 1 active when total counter > preset value 1 Manual Reset sets both counters to zero Electronic reset only sets the main counter to zero

Count mode SUBTRACTING with automatic reset and Total counter

Output 2 (timed signal) active when main counter = zero Automatic reset to preset value 2 when main counter = zero Total counter counts (sub from preset value 1) all count pulses from main counter Output 1 active when Total counter < zero Manual reset sets both counters to the preset values Electronic reset sets only main counter to preset value 2

Tracking preset mode

When preset 2 is changed then preset 1 automatically tracks it. Reset to zero

Preset 1 relative to preset 2 (see also section 17. Output operations)

Tracking Preset mode with automatic reset

When preset 2 is changed then preset 1 automatically tracks it. Reset to zero.

Automatic reset to zero when main counter = preset value 2. Preset 1 relative to Preset 2 (see also section 17. Output operations)

7.8.6.3 Mainmenu for configuration

Mainmenu for matching the time ranges and display

Unit of time

Unit of time: seconds Decimal point setting determines the resolution

Unit of time: minutes Decimal point setting determines the resolution

Unit of time: hours Decimal point setting determines the resolution

Unit of time: Hrs. Min. Sec.

Decimal point setting (Resolution)

Decimal place (determines the resolution) 0 no decimal place

0.0 1 d e c i m a l p l 0.00 2 d e c i m a l p l a c e s 0.000 3 decimal places

Set value

Set value can be programmed from 000000 to 999999 A previously programmed decimal point will be displayed

Display colour (for 6.92x.x1x3.xx0]

Display colour upper line red lower line red

Display colour upper line red lower line green

7.8.6.4 Mainmenu for reset mode

Setting the reset mode

Manual reset (with red key) and electrical reset (reset input)

No reset possible (red key and reset input inhibited)

Only electrical reset possible (reset input)

Only manual reset possible (red key)

7.8.6.5 Mainmenu for Preset 1

Mainmenu for turning preset 1 ON/OFF

Preset 1 ON

Preset 1 OFF and no function

ADD mode output operations: permanent signal at Output 1, becomes active when count > Preset 1

SUB mode output operations: permanent signal at Output 1, becomes active when count < Preset 1

ADD mode output operations: permanent signal at Output 1, becomes passive when count > Preset 1

SUB mode output operations: permanent signal at Output 1, becomes passive when count ≤ Preset 1 Pr.Out 1 __7__ ADD mode output operations: timed signal at Output 1, becomes active when count ≥ Preset 1. (Activation only in positive direction) SUB mode output operations: timed output at Output 1, becomes active when count ≤ Preset 1 (Activation only in negative direction) Pr.Out 1 __5__ ADD mode output operations: timed signal at Output 1, becomes passive when count >_ Preset 1. (Deactivation only in positive direction) SUB mode output operations: timed output at Output 1, becomes passive when count ≤_ Preset 1. (Deactivation only in negative direction). Pr.Out 1 __0__. ADD mode output operations: timed signal at Output1, becomes active with positive direction and when count >_ Preset 1 and subsequently active with negative direction and when count ≤ Preset 1 SUB mode output operations: timed signal at Output 1, becomes active with negative direction and when count <_ Preset 1 and subsequently active with positive direction and when count > Preset 1 Pr.Out 1 __u__- ADD mode output operations: timed signal at Output1, becomes passive with positive direction and when count >_ Preset 1 and subsequently passive with negative direction and when count ≤ Preset 1 SUB mode output operations: timed output at Output 1, becomes passive with negative direction and when count ≤ Preset 1 and subsequently passive with positive direction and when count > Preset 1 t.Out 1 000: Duration of timed signal of Output 1, programmable from 00.01 to 99.99 s. Timed signal is post-triggered

7.8.6.6 Mainmenu for Preset 2

PrES 2 PrOut2

Mainmenu for Preset 2

ADD mode output operations: permanent signal at Output 2, becomes active when count > Preset 2 SUB mode output operations: permanent signal at Output 2, becomes active when count < zero

ADD mode output operations: permanent signal at Output 2, becomes passive when count > Preset 2 SUB mode output operations: permanent signal at Output 2, becomes passive when count < zero

ADD mode output operations: timed signal at Output 2, becomes active when count > Preset 2 (Activation only in positive direction). SUB mode output operations: permanent signal at Output 2, becomes active when count < zero (Activation only in negative direction)

ADD mode output operations: timed signal at Output 2, becomes passive when count > Preset 2 (Deactivation only in positive direction) SUB mode output operations: permanent signal at Output 2, becomes passive when count < zero (Deactivation only in negative direction).

ADD mode output operations: timed signal at Output 2, becomes active with positive direction and when count > Preset 2 and subsequently with negative direction and when count < Preset 2 SUB mode output operations: timed signal at Output 2, becomes active with negative direction and when count < zero and subsequently with positive direction and when count > zero

Preset 2 and subsequently with negative direction and when count < Preset 2

SUB mode output operations: timed signal at Output 2, becomes passive with negative direction and when count < zero and subsequently with positive direction and when count > zero

Duration of timed signal of Output 1, programmable from 00.01 to 99.99 s.

Timed output is post-triggered.

Active:

Relay or optocoupler are activated when the preset value is reached.

Passive:

Relay becomes de-energized or the optocoupler disabled when the preset value is reached.

7.9 Setting the presets

7.9.1 Setting via Decade Keys

In programming mode Preset 2 will always be displayed in the lower line. This is except for the output operations AddBat, SubBat, AddTot and SubTot.

Press the Prog/Mode key until the preset to be changed is displayed - PR1 or PR2

Press any decade key

→ Display switches to the editor mode

Set the desired preset value using the decade keys

Press the Prog/Mode key to confirm the value and save it

→ Display switches to the editor mode of the next preset PR2 or PR1

Approx. 3 s after the last press of the decade keys or by pressing the Reset key the new preset value will be accepted and the counter will switch back to operating mode.

7.9.2 Setting with Teach-In Function

Program the MPI input to tEAch

In programming mode, select the preset to be changed using the Prog/Mode key

Briefly activate the MPI (NPN or PNP input logic)

⇒ The current count value will be adopted as the new preset value

The preset value can subsequently be further modified via the decade keypad.

7.9.3 Setting the tracking presets (trail)

If a tracking preset has been programmed, the value for Preset 2 can be set either via the decade keypad or via the Teach-IN function.

However the value for Preset 1 must be entered via the decade keypad. In this instance, it is not possible to use the Teach-In function.

7.10 Set Function

Both the pulse counter and the timer can be set to a default value by means of the Set function.

Programme the MPI input to SEt

Set menu item SEtPt to the desired value

Briefly activate the MPI (NPN or PNP input logic)

⇒ For add. output operations the pulse counter or timer will be set to the SEtPt default value
⇒ For sub. output operations the pulse counter or timer will be set to the amount of the value of Preset 2 and the value of SEtPt.

8 Error message

Err 1 Set value is outside the permitted range

9 Connections

1 2 3 4 5 6 7 8 10 17 18 19 30 9 10 11 12 13 14 15

9.1 Signal and Control Inputs

N°	D e	s i
1	AC: 24 VDC/80 mADC: UB connected through	Sensor supply voltage
2	GND (0 VDC) Common connection	Signal and Control inputs
3	INP A Signal input A
4	INP B Signal input B
5	R E S E T	R e s e t i n
6	L O C K K	e y p a d l o
7	G A T E G	a t e i n p u
8	M P I U s e	r i n p u t

9.2 Supply

9.2.1 Version with relay

N°	Designation	Function
9	Relay contact C.1	Output 1
10	Relay contact N.O.1
11	Relay contact C.2	Output 2
12	Relay contact N.O.2
13	Relay contact N.C.2
14	AC: 100 ... 240 VAC ± 10% N~AC: 24 VAC N~DC: 10..30 VDC	Supply voltage
15	AC: 100 ... 240 VAC ± 10% L~AC: 24 VAC L~DC: GND (0 VDC)	Supply voltage

9.2.2 Version with Optoc

N°	Designation	Function
9	C o l l e c t o r 1	Output 1
10	Emitter
11	Emitter 2	Output 2
12	Not connected
13	Collector 2
14	AC: 100 ... 240 VAC ± 10% N~DC: 10..30 VDC	Supply voltage
15	AC: 100 ... 240 VAC ± 10% L~DC: GND (0 VDC)	Supply voltage

10 Technical Data

g 10.1 General Data
	h a t i
Display	LCD positive or negative, backlit2 x 6-digit
Digit height	upper line lower line special characters	9 mm7 mm2 mm
Overload/Underload	Blinking, 1 sCounter loses up to 1 decade no pulses
Data retention	>10 years, EEPROM
Operation	8 keys
u t k

10.2 Pulse counter

Count frequency max. 55 kHz (see section 13. frequencies typ.)

Response time of the outputs:

Relays	o	l	t	a	g	e	a	n
	Add/Sub/Trail					< 13 ms
s	With automatic repeat					< 13 ms
	A/B ; (A-B)/A					< 34 ms
Optocouplers
	Add/Sub/Trail					< 1 ms
	With automatic repeat					< 1 ms
	A/B ; (A-B)/A					< 23 ms

10.3 Tacho/Frequency meter

Frequency range	0,01 Hz to 65 kHz (see section 13. frequencies typ.) In case of frequencies <10 Hz, the waiting time must be increased accordingly to obtain the display of a value.
Measuring principle	≤76.3 Hz Time interval (period measurement) >76.3 Hz Gate time Gate time approx.13.1 ms
Measuring error	<0.1% per channel

Response time of the outputs:

1-channel operation < 100 ms @ 40 kHz < 350 ms @ 65 kHz

2-channel operation < 150 ms @ 40 kHz < 600 ms @ 65 kHz

10.4 Timer

Seconds 0.001 s ... 999 999 s

Minutes 0.001 min ... 999 999 min

Hours 0.001 h .. 999 999 h

h . m i n . s 0 0 h 9 9 h .

Min. time measurable 500μs

Measuring error < 50 ppm

Response time of the outputs:

R e l a y s < 1 3

Optocoupler < 1 ms

10.5 Signal and Control inputs

SELV circuits, reinforced / double insulation

Polarity: programmable NPN/PNP for all inputs in common

Input resistance 5 kΩ

Pulse shape any

Switching level with AC supply:

HTL level Low: 0 ... 4 VDC

High: 12 ... 30 VDC

4-30 V level Low: 0 ... 2VDC

High: 3,5 ... 30 VDC

Switching level with DC supply:

HTL level Low: 0 ... 0,2 x UB

High: 0,6 x UB ... 30 VDC

4-30 V level Low: 0 ... 2 VDC

High: 3,5 ... 30 VDC

Minimum pulse length of the Reset input: 1 ms

Minimum pulse length of the Control inputs:10 ms

10.6 Outputs

Output 1

Relay with make contact

Prescribed fuse: 3A

programmable as NC or NO

Switching voltage max. 250 VAC/110 VDC

Switching current max. 3 A AC/ V DC

mi n . 3 0

Switching capacity max. 750 VA / 90 W

The maximum values shall in no case be exceeded!

Mechanical service life (switching cycles) 2x10 7

N° of switching cycles at 3 A/250 V AC 1x10 5

N° of switching cycles at 3 A/ 30 V DC 1x10 5

or NPN optocoupler

Switching capacity 30 VDC/10 mA

U_CESAT for IC = 10 mA: max. 2.0 V

U_CESAT for IC = 5 mA: max. 0.4 V

Output 2

Relay with changeover contact

Prescribed fuse: 3A

Switching voltage max. 250 VAC/150 VDC

Switching current max. 3 A AC/ A DC

mi n . 3 0

Switching capacity max. 750 VA/90 W

The maximum values shall in no case be exceeded!

0 min. 01s...

5Mechanical service life (switching cycles) 20x10 ^6 s

N° of switching cycles at 3 A/250 V AC 5x10 ^4

N° of switching cycles at 3 A/ 30 V DC 5x10 4

mor N\$PN optocoupler

Switching capacity 30 V DC/10 mA

U_CESAT for IC = 10 mA: max. 2.0 V

U_CESAT for IC = 5 mA: max. 0.4 V

1 0 . 7 S u p p l y v o l

AC supply: 100 ... 240 V AC / max. 9.5 VA

50/ 60 Hz, Tolerance ± 10%

ext. fuse protection: T 0.1 A

24 VAC +/- 10% / max. 6 VA

50 / 60 Hz

ext. fuse protection: T 0,315 A

DC supply: 10 ... 30 V DC/ max. 5 W

re ve r s e

SELV, CLASS II (Limited

Power Source)

ext. fuse protection T 0.2 A

10.8 Sensor su

(Voltage output for external sensors)

SELV circuits, reinforced / double insulation

for AC supply: 24 V DC ±15%, 80 mA

for DC supply: max. 80 mA, external voltage

supply is connected through

10.9 Climatic C

Operating temperature: -20°C .. +65°C

Storage temperature: -25°C .. +75°C

Relative humidity: RH. 93% at +40°C,

A l t i t u d e : n o n -c o t o 2 0

10.10 EMC

Noise immunity: EN 61000-6-2

with shielded signal and

control cables

Noise emission: EN 55011 Class B

10.11 Device safety

Design to: EN 61010 Part 1

Protection Class: Protection Class 2 (front side)

Only the front side is classified as accessible for the operator.

Application area: Pollution level 2

o v e r

Insulation: Front: double insulation,

Rear side: basic insulation,

Signal inputs and und sensor power supply: SELV

10.12 Mechanical Data

H o u s i n g :

P a n e l -

to DIN 43 700, RAL 7021

Dimensions: 48 x 48 x 91 mm

Panel cut-out: 45 ^+0,6 x 45 ^+0,6 mm

Installation depth: ca. 107 mm incl. terminals

Weight: ca. 125 g

Protection: IP65 (front, device only)

Housing material: Polycarbonate UL94 V-2

Vibration resistance: 10 - 55 Hz / 1 mm / XYZ

(EN 60068-2-6): 30 min in each direction

Shock resistance:

EN 60068-2-27 100G / 2 ms / XYZ

3 times in each direction

EN 60068-2-29 10G / 6 ms / XYZ

2000 times in each direction

10.13 Connections

Supply voltage and outputs:

Plug-in screw terminal, 7-pin, RM5.08

Core cross section, max. 2.5 mm ^4

Signal and control inputs:

Plug-in screw terminal, 8-pin, RM 3.81

Core cross-section, max. 1.5 mm ^4

11 Scope of Delivery

Delivery includes:

Preset counter

Mounting clip

Instruction manual

12 Ordering codes

* 24 VAC power supply on request

13 Frequencies (typical)

13.1 Pulse counter

HTL level

AC supply	typ. Low	2,5 V
		t	y	p	.
DC supply 12V	typ. Low		2 V
		t	y	p	.
DC supply 24V	typ. Low		2,5 V
		t	y	p	.

	Add Sub Trail	AddAr SubAr AddBat SubBat TrailAr	AddTot SubTot
Cnt.Dir	55 kHz	2,8 kHz	2,7 kHz
Up.Dn Up.Up	29 kHz	2,8 kHz	2,7 kHz
Quad Quad 2	28 kHz	1,4 kHz	1,3 kHz
Quad 4	18 kHz	1,2 kHz	0,9 kHz
A/B (A-B)/A	29 kHz

4-30 V level

typ. Low 1,0 V

typ. High 4,0 V

	Add Sub Trail	AddAr SubAr AddBat SubBat TrailAr	AddTot SubTot
Cnt.Dir	9 kHz 2,7	kHz 2,4 kHz
Up.Dn Up.Up	9 kHz 2,7	kHz 2,4 kHz
Quad Quad 2	9 kHz 1,2	kHz 1,2 kHz
Quad 4	9 kHz 1,2	kHz 0,9 kHz
A/B (A-B)/A	9 kHz

1 3 . 2 Frequency meter

HTL level

AC supply typ. Low 2,5 V

		t	y	p	.
DC supply 12V	typ. Low	2 V
		t	y	p	.
DC supply 24V	typ. Low	2,5 V
		t	y	p	.

H	i	g	h	2	2
H	i	g	h	1	0
H	i	g	h	2	2

4-30 V level

	H	T
A	65 kHz	9 kHz
A - BA + BA / B(A-B)/A	65 kHz	9 kHz
Quad	30 kHz	9 kHz

L	o	w		1	,	0
H	i	g	h		4	,	0
L					5

NOTE: Switching levels of the input

Switching levels with AC supply:

HTL level Low: 0 .. 4 VDC

High: 12 .. 30 VDC

4-30 V level Low: 0 .. 2VDC

High: 3,5 .. 30 VDC

Switching levels with DC supply:

HTL level Low: 0 .. 0,2 x UB

High: 0,6 x UB .. 30 VDC

4-30 V level Low: 0 .. 2 VDC

High: 3,5 .. 30 VDC

14 Input modes: Pulse counting

Function DiagramNote: No counting when GATE input is activeP = Preset			PNP: Count on rising edgeNPN: Count on falling edge
C n			np A: Count inputnp B: Count directionAdd: Display 0 --> PresetSub: Display Preset -> 0
U p			np A: Count input addnp B: Count input subAdd: Display 0 --> PresetSub: Display Preset -> 0
U p			np A: Count input 1 addnp B: Count input 2 addAdd: Display 0 --> Preset
Q u			A 90° Bnp A: Count inputCount on one edgenp B: Reverse directionAdd: Display 0 --> PresetSub: Display Preset -> 0
Quad 2			A 90° Bnp A: Count inputCount on rising and on falling edgesnp B: Reverse directionAdd: Display 0 --> PresetSub: Display Preset -> 0

Function DiagramNote: No counting when GATE input is active		PNP: Count on rising edgeNPN: Count on falling edge
Quad 4		A 90° BInp A: Count inputCount on rising and on falling edgesInp B: Count inputCount on rising and on falling edges,Reverse directionAdd: Display 0 --> PresetSub: Display Preset -> 0
A / B	INPACounts A0111234INPBCounts B0123344Display010.50.330.660.751	Inp A: Count input 1Inp B: Count input 2Formula:A / B
( A -	B) / AINPACounts A0111234INPBCounts B0123344Display0%0%-100%-200%-50%-33%0%	Inp A: Count input 1Inp B: Count input 2Formula:(A-B)/A x100

15 Input modes: Timing

Function Diagram PNP: Count on rising edge									NPN: Count on falling edge
In A	INP A								Inp A: StartInp B: StopAdd: Display 0 --> PresetSub: Display Preset -> 0
	INP B
	GATE
	ADD
	SUB
In B	INP B								Inp A: no functionInp B: Start/StopAdd: Display 0 --> PresetSub: Display Preset -> 0
	GATE
	ADD
	SUB
F r R	GATE								Inp A: no functionInp B: no functionControl of the timing only via the GATE inputAdd: Display 0 --> PresetSub: Display Preset -> 0
	ADD
	SUB
Auto	GATE								Inp A: no functionInp B: no functionControl of the timing via RESET (manual or electrical)Add: Display 0 --> PresetSub: Display Preset -> 0
	RESET
	PRESE
	ADD
	SUB

16 Input modes: Frequency meter

Function Diagram PNP: Count on rising edge		NPN: Count on falling edge
A		Inp A: Frequency inputInp B: no function
A s	u b B	Inp A: Frequency input 1Inp B: Frequency input 2Formula:A - B
A a	d d B	Inp A: Frequency input 1Inp B: Frequency input 2Formula:A + B
Q u	a d	A 90° BInp A: Frequency input 1Inp B: Reverse direction
A / B		Inp A: Frequency input 1Inp B: Frequency input 2Formula:A / B
( A -	B ) / A	Inp A: Frequency input 1Inp B: Frequency input 2Formula:(A-B)/A x100

17 Output operations

M o	d e	D i a g r a m	M	o d e	D i a g r a m
A d	d		S u	b
A d d	A r		S u b	A r
A d d	B at		S u b	B at
A d d	T o t		S u b	T o t

M o	d e	D i a g r a m
T r	a i l
	RESET
	PR1
	PR2
	PR1
	COUNTER
	OUT P1Δ +/-PR1
	OUT P1Δ +PR1
	OUT P1Δ -PR1
	OUT P2
T r a	i l A r
	RESET
	PR1
	PR2
	PR1
	COUNTER
	OUT P1Δ +/-PR1
	OUT P1Δ +PR1
	OUT P1Δ -PR1
	OUT P2

18 Dimensional Drawings

Dimensions in mm [inch]

48 [1.89] 48 [1.89] 45 [1.77] 15,5 [0.61] max. 10,5 [0.413] 4,25 [0.167] 91 [3.583] 7 [0.276]

Panel cut-out

45⁺⁰°⁰ [1.772⁺⁰°²⁴] 45⁺⁰°⁵ [1.772⁺⁰°²⁴]

CODIX 924

Kubler 123458 123456

Kübler

Add, Sub, AddAr, SubAr, AddBat, SubBat, AddTot, SubTot, Trail, TrailAr

Funcct Funcct Count

Add; Sub; Trail < 13 ms

SELV, CLASS II (Limited

Power Source)

	H	T
A	65 kHz 9 kHz
A - BA + BA / B(A-B)/A	65 kHz 9 kHz
Quad	30 kHz 9 kHz

B	a	s		1	,	0
H	a	u	t		4	,	0
L					5

45+0.6 [1.772+0.024] 45+0.6 [1.772+0.024]

CODIX 924

Kubler 123458 123456

Kübler

Contatore di impulsi: cnt.dir, up.dn, up.up, quad, quad2, quad4, A/B, (A-B)/Ax100%

Frequenzimetro: A, A-B, A+B, quad, A/B, (A-B)/Ax100%

Add, Sub, AddAr, SubAr, AddBat, SubBat, AddTot, SubTot, Trail, TrailAr

e a d e P i PROG YES

rESn'd no rES rESn'd EL rES

Overflow/ lampeggio, 1 sec.

SELV, CLASS II (Limited

Power Source)

	H	T
A	65 kHz 9 kHz
A – BA + BA / B(A-B)/A	65 kHz 9 kHz
Quad	30 kHz 9 kHz

L 5

Frecuencimetro: A, A - B, A + B, quad, A/B, (A-B)/Ax100%

AddTot, SubTot, Trail, TrailAr

Func t Func t Count

SELV, CLASS II (Limited

Power Source)

Fusible externo: T 0,2 A

	H	T
A	65 kHz 9 kHz
A-BA+B(A-B)/A	65 kHz 9 kHz
Quad	30 kHz 9 kHz
