Product type	Non-contact voltage detector
Brand	Testboy
Model	114
Voltage range	12 - 1000 V AC
Minimum detectable voltage	12 V AC (with flashlight activated)
Voltage alarm	Red LED and vibration
Integrated flashlight	High-power LED, up to 60 hours battery life
Power supply	2 AAA 1.5 V batteries
Protection rating	IP40
Overvoltage category	CAT III 1000 V
Safety standard	IEC/EN 61010-1 (DIN VDE 0411)
Warranty	5 years (upon presentation of invoice)
Intended use	By specialists, indoors
Cleaning	Dry cloth
Recycling	WEEE compliant; used batteries to be returned to collection points
Certification	CE
Country of origin	Germany (Testboy GmbH)
Number of batteries included	Not specified (batteries not included)

Frequently Asked Questions - 114 Testboy

How to detect voltage below 110 V?

Turn on the flashlight using the switch. The device can then detect AC voltages from 12 V AC.

What to do if the lamp does not light up in the presence of voltage?

First check the device on a known voltage source (e.g. socket). If the lamp does not light up, the voltage may be masked by shielded cables, thick insulation, or too great a distance. Make sure the batteries are in good condition.

What are the five safety rules to follow?

1. Disconnection; 2. Protection against re-energization; 3. Verify absence of voltage on 2 poles; 4. Grounding and short-circuiting; 5. Cover adjacent live parts.

How to replace the batteries of the Testboy 114?

Using a screwdriver, lift the battery compartment by the notch. Insert two AAA 1.5 V batteries observing polarity.

What is the warranty of the device?

Testboy offers a 5-year warranty upon presentation of the invoice. Damage from drops or handling errors is excluded.

Can I use the device on shielded or screened cables?

Detection may be affected by shielded/screened cables. In this case, the device may not indicate a present voltage. It is recommended to verify with another method.

How to dispose of the device at end of life?

In accordance with the WEEE directive, do not dispose of the device with household waste. Return it to a collection point for electronic waste. Used batteries must be deposited at a designated collection point.

What measurement category (CAT) corresponds to the Testboy 114?

The device is certified CAT III 1000 V, allowing measurements on building installations with typical short-circuit current < 50 kA.

Can I test voltage on a power outlet?

Yes, but before use, always check the device on a known voltage source (e.g. power outlet) to ensure proper operation. The non-contact voltage test is not suitable for determining if a line is de-energized.

Where can I contact the manufacturer in case of a problem?

Contact Testboy GmbH at +49 (0)4441 / 89112-10 or via their website. For any warranty claim, return the device unopened and without third-party intervention with the invoice.

USER MANUAL 114 Testboy

Testboy 1.23 31.0000 50000

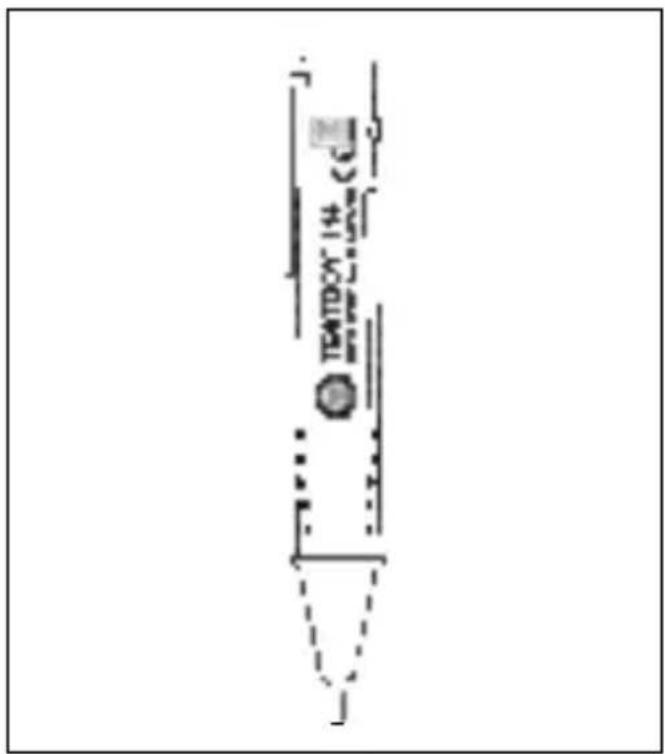

Diagram showing a vertical line with labeled points and a circular symbol, possibly representing a technical or engineering schematic.

Testboy® 114

Version 1.0

de Testboy® 114 3
Bedienungsanleitung
en Testboy® 114 13
Operating instructions
fr Testboy® 114 23
Mode d'emploi
it Testboy® 114 33
Istruzioni per l'uso
es Testboy® 114 43
Instrucciones de empleo
pt Testboy® 114 55
Instruções de serviço
Testboy® 114 66
Gebruiksaanwijzing
Testboy ^® 114 77
Instrukcja obsługi
ru Testboy ^® 114 87
Инструкция по эксплуатации
CS Testboy® 114 99
Návod k obsluze

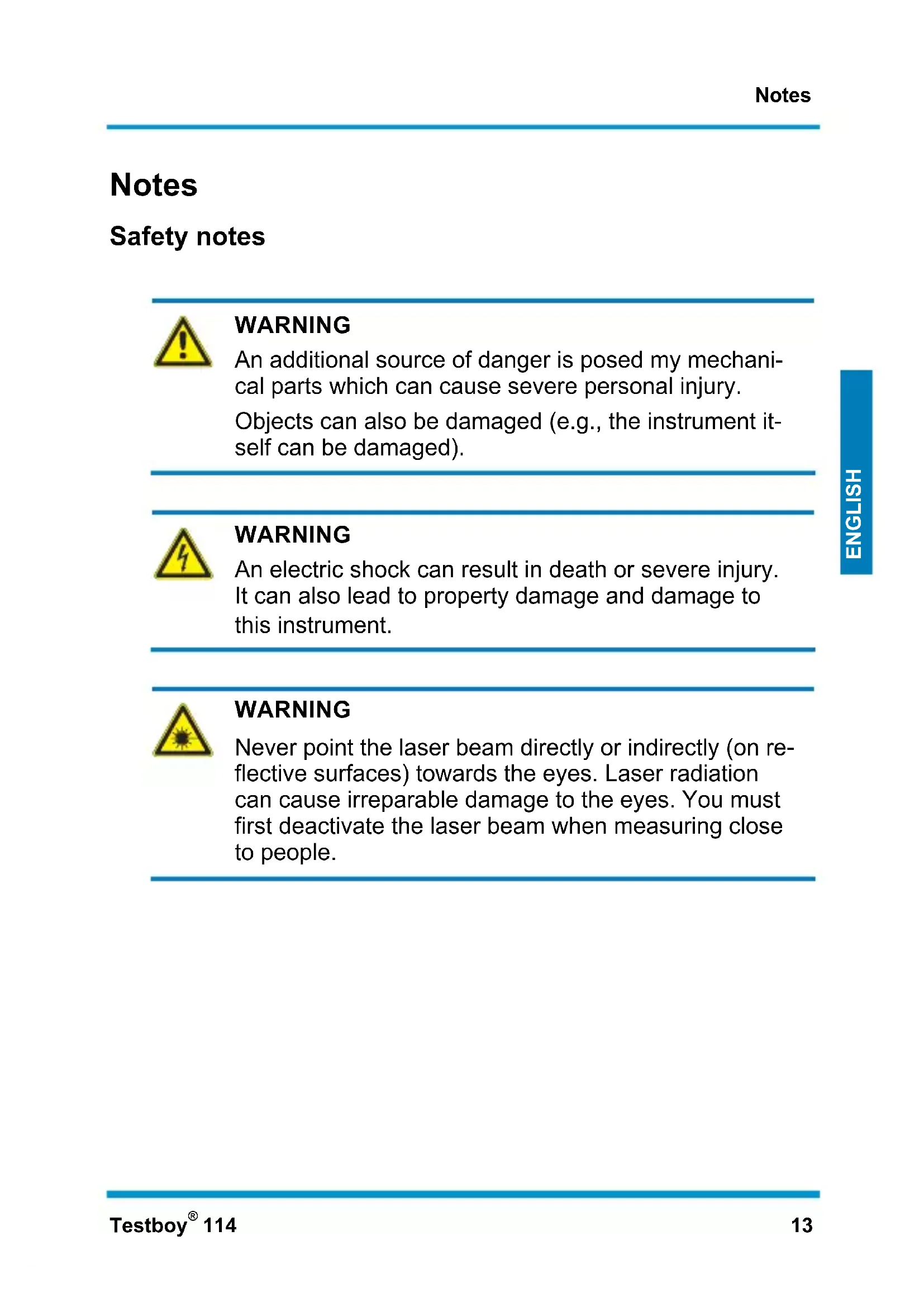

Hinweise

Sicherheitshinweise

WARNUNG

An additional source of danger is posed my mechanical parts which can cause severe personal injury.

Objects can also be damaged (e.g., the instrument itself can be damaged).

WARNING

An electric shock can result in death or severe injury. It can also lead to property damage and damage to this instrument.

WARNING

Never point the laser beam directly or indirectly (on reflective surfaces) towards the eyes. Laser radiation can cause irreparable damage to the eyes. You must first deactivate the laser beam when measuring close to people.

General safety notes

WARNING

Unauthorized changes or modifications of the instrument are forbidden – such changes put the approval (CE) and safety of the instrument at risk. In order to operate the instrument safely, you must always observe the safety instructions, warnings and the information in the "Proper and Intended Use" Chapter.

WARNING

Please observe the following information before using the instrument:

Do not operate the instrument in the proximity of electrical welders, induction heaters and other electromagnetic fields.
After an abrupt temperature fluctuation, the instrument should be allowed to adjust to the new temperature for about 30 minutes before using it. This helps to stabilize the IR sensor.
Do not expose the instrument to high temperatures for a long period of time.
Avoid dusty and humid surroundings.
Measurement instruments and their accessories are not toys. Children should never be allowed access to them!
In industrial institutions, you must follow the accident prevention regulations for electrical facilities and equipment, as established by your employer's liability insurance organization.

Please observe the following five safety rules:

1 Disconnect.
2 Ensure that the instrument cannot be turned back on again.
3 Ensure isolation from the main supply voltage (check that there is no voltage on both poles).
4 Earth and short-circuit.
5 Cover neighbouring parts that are under live electrical load.

Proper and intended use

This instrument is intended for use in applications described in the operation manual only. Any other usage is considered improper and non-approved us-age and can result in accidents or the destruction of the instrument. Any misuse will result in the expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries during longer periods of inactivity in order to avoid damaging the instrument.

We assume no liability for damages to property or personal injury caused by improper handling or failure to observe safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operating instructions. Read the instructions completely before beginning the initial commissioning. This instrument is CE approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice © Testboy GmbH, Germany.

Disclaimer and exclusion of liability

The warranty claim expires in cases of damages caused by failure to observe the instruction! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from:

failure to observe the instructions,
changes in the product that have not been approved by Testboy,
the use of replacement parts that have not been approved or manufactured by Testboy,
the use of alcohol, drugs or medication.

Correctness of the operating instructions

These operating instructions have been created with due care and attention. No claim is made nor guarantee given that the data, illustrations and drawings are complete or correct. All rights are reserved in regards to changes, print failures and errors.

Disposal

For Testboy customers: Purchasing our product gives you the opportunity to return the instrument to collection points for waste electrical equipment at the end of its lifespan.

The EU Directive 2002/96/EC (WEEE) regulates the return and recycling of waste electrical and electronics equipment. As of 13/08/2005, manufacturers of electrical and electronics equipment are obliged to take back and recycle any electrical devices sold after this date for no charge. After that date, electrical devices must not be disposed of through the "normal" waste disposal channels. Electrical devices must be disposed of and recycled separately. All devices that fall under this directive must feature this logo.

Disposing of used batteries

As an end user, you are legally obliged (by the relevant laws concerning battery disposal) to return all used batteries. Disposal with normal household waste is prohibited!

Contaminant-laden batteries are labelled with the adjacent symbol which indicates the prohibition of disposal with normal household waste.

The abbreviations used for heavy metals are:

$$ \mathbf {C d} = \text { C a d m i u m }, \mathbf {H g} = \text { m e r c u r y }, \mathbf {P b} = \text { l e a d }. $$

You can return your used batteries for no charge to collection points in your community or everywhere where batteries are sold!

Five year warranty

Testboy instruments are subject to strict quality control standards. The instrument is covered by a warranty for a period of five years against malfunctions during the course of your daily work (valid only with invoice). We will repair production or material defects free of charge upon return if these have not been caused by misuse or abuse and if the instrument has not been opened. Damage resulting from a fall or improper handling is excluded from the warranty.

Please contact:

Testboy GmbH Tel: [phone]

Certificate of quality

All aspects of the activities carried out by Testboy GmbH relating to quality during the manufacturing process are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process.

Declaration of Conformity

This product fulfils the specifications contained in the Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

Operation

Thank you for choosing a Testboy ^® 114.

Non-contact voltage tester from 12 V AC
High performance LED flashlight
Vibrates if voltage is detected.

Non-contact voltage test

The Testboy ^® 114 is capable of detecting wires carrying live voltages using its built-in circuits in its tip.

If a voltage of 110 V AC or more is detected, the white cap will glow red (1a) and the device vibrates. To detect voltages below 110 V AC, switch the flashlight on using the switch (1b). Now voltages from 12 V AC can be detected.

A flowing current is not required!

1b -2 1a

Check the voltage tester before use against a known voltage supply (e.g. a power socket) to ensure that it is working correctly.

When using the Tester, if tip does not glow, voltage could still be present. The Tester indicates active voltage in the presence of electrostatic fields of sufficient strength generated from the source (MAINS) voltage. If the field strength is low, the Tester may not provide indication of live voltages. Lack of an indication occurs if the Tester is unable to sense the presence of voltage which may be influenced by several factors including, but not limited to:

• Shielded wire/cables
• Thickness and type of insulation
• Distance from the voltage source
• Fully-isolated users that prevent an effective ground
• Receptacles in recessed sockets/ differences in socket design
  • Condition of the Tester and Batteries

Use caution with voltages above 30 V ac as a shock hazard may exist.

FOR USE BY COMPETENT PERSONS

Anyone using this instrument should be knowledgeable and trained about the risks involved with measuring voltage, especially in an industrial setting, and the importance of taking safety precautions and of testing the instrument before and after using it to ensure that it is in good working condition.

The single-pole phase testing is not appropriate to determine whether a line is live or not. For this purpose, the double-pole voltage test is always required.

Definition of measurement categories.

Measurement category II:

Measurement category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage mains installation. Typical short-circuit current is < 10kA.

Measurement category III:

Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage mains installation. Typical short-circuit current is < 50kA.

Measurement category IV:

Measurement category IV is applicable to test and measuring circuits connected at the source of the building's low-voltage mains installation. Typical short-circuit current is >>50kA.

Read the instruction before use. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

All parts of the device and its accessories are not allowed to be changed or replaced, other than authorized by the manufacturer or his agent.

For cleaning the unit, use a dry cloth.

Flashlight

Turn on the built-in flashlight with the switch (1b). Using a high-performance LED a burning time of up to 60 hours per set of batteries is possible! The life of the LED is over 100,000 hours.

Changing the batteries

Insert a screwdriver in to the notch (2) and pry the battery compartment cover off. Make sure you insert the batteries the right way round!

Do not dispose of batteries in normal household rubbish! Use an authorised local collection point!

Technical data

Voltage range 12 - 1000 V AC

Power supply 2 x 1.5 V AAA Micro

Degree of protection IP 40

Overvoltage category CAT III 1000 V

Testing standard IEC/EN 61010-1

(DIN VDE 0411)
