1 Short description This digital display is an easy-to-use, microprocessor-con-

rolled device for the display (and the acquisition) of measu- red temperature values. The temperatures are measured by means of Pt100 or Ni100 resistance thermometers. They can display either the current measured value, the maxi- mum value or the minimum value. In case of power switch-

ff, the maximum and minimum values are stored in an EEPROM. The values are restored as soon as the display is powered again. The Latch input is isolated electrically from the signal input by means of an optocoupler. It allows storing the current measured value.

he supply voltage (10 .. 30 V DC) is isolated electrically from the signal input by means of a DC/DC converter. 2 Safety instructions and warnings Only use this display – in a way according to its intended purpose – if its technical condition is perfect – adhering to the operating instructions and the general safety instructions.

1. Before carrying out any installation or maintenance

work, make sure that the power supply of the digital display is switched off.

2. Only use this digital display in a way according to its in-

3. If its technical condition is perfect.

4. Adhering to the operating instructions and the general

safety instructions.

5. Adhere to country or user specific regulations.

6. The digital display is not intended for use in areas with

risks of explosion and in the branches excluded by the standard EN 61010 Part 1.

7. The digital display shall only operate if it has been cor-

rectly mounted in a panel, in accordance with the chap- ter “Main technical features”.

2.1 Use according to the intended purpose

The digital display only may be used as a panel-mounted device. Applications of this product may be found in indu- strial processes and controls, in the branch of the manufac- turing lines for the metal, wood, plastics, paper, glass, textile, etc., processing industries. Overvoltages at the terminals of the digital display must be limited to the values of overvoltage category II. If the digital display is used to monitor machines or proces- ses in which, in case of a failure of the device or an error made by the operator, there might be risks of damaging the machine or causing accidents to the operators, it is up to you to take appropriate safety measures. !12 3 Mounting

3.1 Installation1. The digital display shall not be installed near to contac-tors or motor starters.

. We recommend the use of wire end ferrules in order toavoid short-circuits between adjacent terminals.3. In order to keep the interferences at the measuring inputas low as possible, the signal and power supply wiresmust be routed separately. . Use shieded cables for all signal/probe wirings and avoid2. The display shows the following message.

5.1 Switching to programmingTo switch to the programming mode: 1. switch the power supply of the device off, press simulta-neously both keys on the front side, and then switch thepower supply on again.

3-wire resistance thermometer

3.2.2 Supply voltage and Latch input connection

1 10 ... 30 V DC2 0 V DC (GND)3 Latch inputrouting the signal/probe wirings parallel to each other.The shield shall only be grounded at one point in order to void ground loops.Important note:Before carrying out any installation or maintenance work,make sure that the power supply of the digital display isswitched off.

After switching on the supply voltage:1. a display test is carried out(Duration: 2 seconds)2. Device type and softwareversion are displayed(Duration: 2 seconds))3. the selected probe is displayed (Duration: 2 seconds).4. the display is ready to operate andthe measured value is displayed.e

key 5. to reach the following decade, press the left-hand/red key6. if negative numerical values are required, set the left de-cade to “–” or “–1”.2. and press simultaneously the right/grey key.

Inputting a correction value allows acting upon the dis- played result. These correction values may be Setting the correction value Selection in the menu

5.4.6 Maximum value acquisition

The maximum value may be saved and consulted during operation (see 6.1) Selection in the menu Maximum value acquisition on Maximum value acquisition off

5.4.4 Temperature unit

Unit Selection in the menu Display in °C Display in °F positive or negative. The input is always made with one de- cimal place.

5.4.6.1 Resetting the maximum value

This allows defining whether the maximum value can be reset during operation or not. However, the maximum value can only be reset if the maximum value display is the active function (see 6.1). If the maximum value is reset, the cur- rent measured value becomes the new maximum value. Selection in the menu The maximum value can be reset using the red key The maximum value cannot be reset

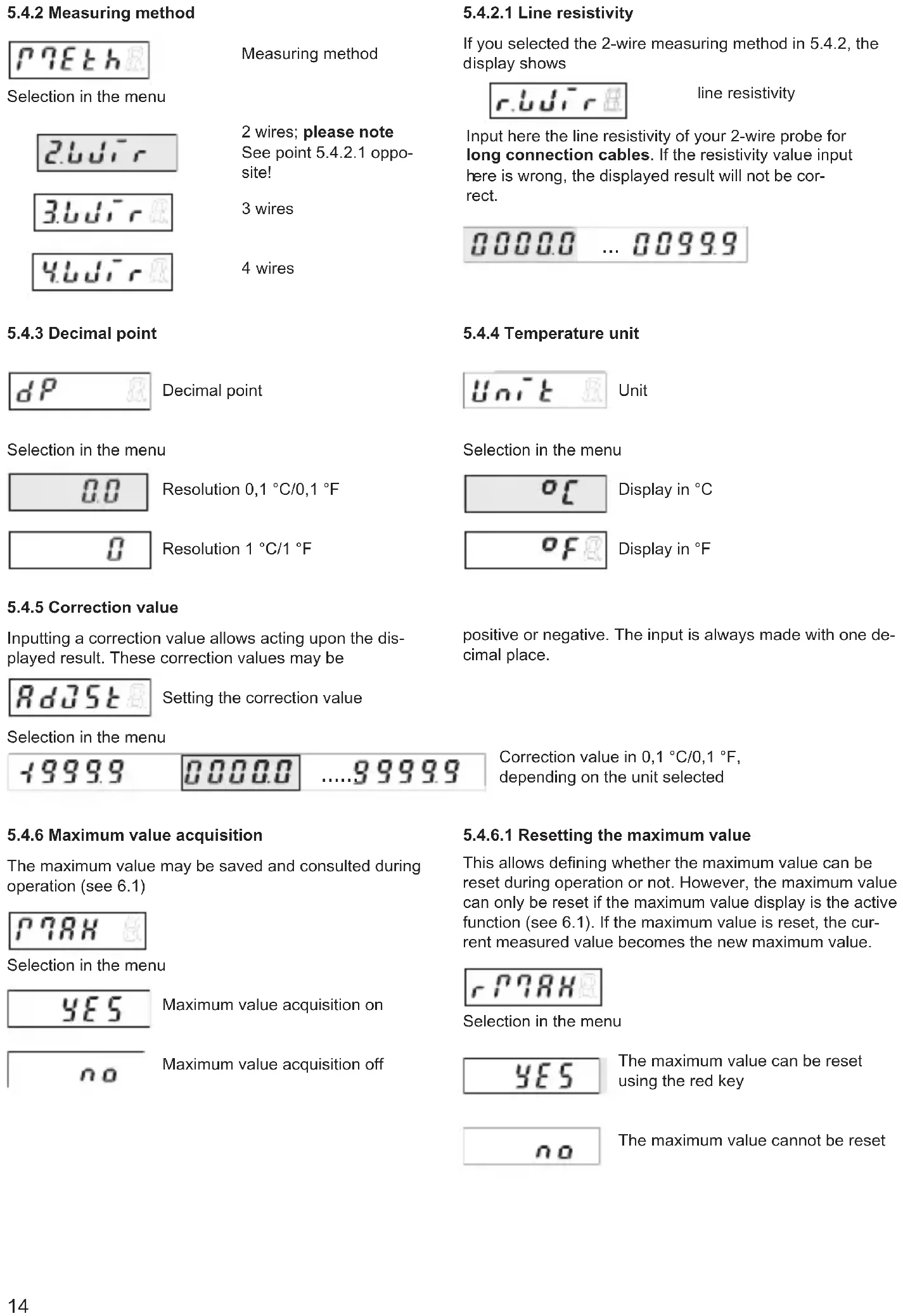

5.4.2 Measuring method

wires Selection in the menu

Input here the line resistivity of your 2-wire probe for long connection cables. If the resistivity value input

ere is wrong, the displayed result will not be cor- rect.

If you selected the 2-wire measuring method in 5.4.2, the

5.4.7 Minimum value acquisition

The minimum value may be saved and consulted during operation (see 6.1) Selection in the menu

inimum value acquisition on Minimum value acquisition off

5.5 End of programming

When programming is finished, end the prorgamming rou- tine as follows: Selection in the menu Programming restarts. The set values can be checked and modified. Programming is finished. The set va- lues are used in operation.

eset during operation or not. However, the minimum value can only be reset if the minimum value display is the active function (see 6.1). If the minimum value is reset, the current measured value becomes the new minimum value. Selection in the menu The minimum value can be reset

sing the red key The minimum value cannot be reset

6.1 Switching the display during operation

press the right-hand/grey key to select among the following functions: –current measured value –minimum value –maximum value. Press the key once to display the designation of the active display function for 2 seconds. If, during this time, the right- hand grey key is pressed a second time, the display swit- ches to the following display function. This is confirmed by a 2-second display of the designation of the new function. After these 2 seconds, the display shows, depending on the selection, the maximum value, the minimum value or the current measured value.

1. Current measured value, press once the right-hand/grey

4. Current measured value, press once the

for 2 s: after 2 s:16

6.2 Saving the momentary value (Display-Latch)

In case of a High Signal at the Latch input, the current mea-

ured value is frozen on the display. The minimum and ma- ximum value acquisition continues operating in the background. 7 Troubleshooting and alarm messages

7.1 Display does not light up

f the display does not light up, check the supply voltage or the power supply cables. Do not open the housing by force.

7.2 Measuring rang overflow or underflow

Measuring range overflow Ranges see 8.1 Measuring range underflow Ranges see 8.1

Probe broken or input signal exceeds the allowable range 8 Main technical features Operation: by means of two front panel keys DIsplay: 5-digit display, red 7-segment LED’s, Height of the figures 8 mm Display range: (see temperature range), with leading zeros suppression Measuring range over- flow, indicated by ooooo on the display. Measuring range underflow, indicated by uuuuu on the display.

8.1 Electrical features

inearity error Ni100: < 0,2 % for the whole measuring range at an ambient temperature of 20°C Temperature drift: 0,1 K/Kambient Measuring rate: 5 measurements/second, fixed Display refresh:

• times per second Display Latch input: DIsplay stop for the current measured value, active for log. 1 Switching log. 0: 0 p. 2
• VDC level log. 1: 4 p. 30
• VDC Supply voltage: 10 V DC, electrically separated, with Verpolschutz Current consumption: max. 40 mA Test voltage: 500 Veff; 50/60 Hz; 1 min Data backup: EEPROM p. 30

8.2 Mechanical features

Housing: Housing for control panel 48 x 24 mm according to DIN 43 700, RAL 7021 Dimensions: (W x H x D): 48 x 24 x 66 mm Panel cut-out: (W x H): 45+0,6 x 22,2+0,3 mm Mounting depth: approximately 59 mm Weight: approximately 50 g Protection level: IP 65 (on the front side) Connection: Screw terminal, RM 5.08, 7 poles Connection diameter: single-wire 0,14 .. 1,5 mm2 thin wire 0,14 .. 1,5 mm2 wire dimensionsAWG 26-16Connections

5. Pt100/Ni100 (Sensor-input

8.3 Environment conditions

torage temperature: -25 °C ... +70 °C 9 Scope of delivery Digital display Clamp Front panel for clamp mounting, Panel cut-out 50 x 25 mm Front panel for screw mounting, Panel cut-out 50 x 25 mm Seal Multilingual operating instructions 1 set of self-adhesive symbols 10 Order code
