Palladio PSG101 - Subwoofer Sonus Faber - Free user manual and instructions

Product Type	In-wall subwoofer
Brand	Sonus Faber
Model	Palladio PSG101
Installation	Flush-mounted in wall or false ceiling (cut-out using provided template)
Included accessories	Magnetic grille, cutting template, protective shell
Available options	Square magnetic grille, pre-mounting kit, Premium kit (wood panel, string grille, frame)
Safety	Stable wall mounting; minimum distance 4 cm from studs; do not expose to high volume near ears; harmless electromagnetic field
Amplifier recommendations	Minimum power per channel according to listening distance (e.g., 40 W at 2 m for 82 dB SPL)
Nominal impedance	4 Ω (reference for power table)
Warranty	According to regulations of the country of purchase; covers manufacturing defects
After-sales support	Contact the retailer or official Sonus Faber distributor
Maintenance and cleaning	Clean with a soft, dry cloth; do not use abrasive products
Repairability	Service only by an authorized Sonus Faber service center; do not disassemble yourself
Packaging materials	Recyclable; do not dispose of with household waste
Listening configuration	Can be used in stereo configuration or with an additional subwoofer; avoid subwoofer symmetry

Frequently Asked Questions - Palladio PSG101 Sonus Faber

How to install the PSG101 subwoofer in a wall?

Use the provided template to mark the cutout area, ensure a distance of at least 4 cm between the edge of the hole and the nearest stud. Cut the hole, connect the audio cables respecting polarity, insert the speaker and secure it with the provided screws.

Which amplifier to use with the PSG101?

Choose an amplifier suitable for the 4 Ω nominal impedance and 92 dBSPL sensitivity. For a listening distance of 2 m, a minimum power of 40 W per channel is recommended. Refer to the table in the manual for other distances.

Can I paint the subwoofer grille?

Yes, the magnetic grille can be painted as you wish. Perform the painting in an open area away from the speaker to avoid any damage.

How to orient the midrange-tweeter assembly if applicable?

The PL-664 (and PC-664P) model allows orienting the assembly. Remove the 4 screws, position the support panel according to the desired orientation (horizontal or vertical) and retighten. Note: the PSG101 is a subwoofer, this function applies to models with midrange-tweeter.

What to do in case of a technical issue?

First contact your retailer or the official Sonus Faber distributor. You can also write to [e-mail]. Keep the proof of purchase and original packaging for possible service center shipment.

The subwoofer produces a humming sound, what to do?

Move the audio cables away from the power supply cables. Electromagnetic fields from mains cables can induce humming. Also check connections and polarity.

Can I use the PSG101 outdoors?

No, this subwoofer is designed for indoor installation (wall or false ceiling). Do not expose it to moisture or weather.

How to remove the subwoofer from the wall?

Completely unscrew the fixing screws to release the locking system. Use a tool like an Allen key to pry on the wood panel if present. Perform the operation with devices turned off.

What optional accessories are available?

You can purchase separately: a square magnetic grille (for in-ceiling models), a pre-mounting kit for new construction, and a Premium kit including a wood front panel and a string grille.

How to clean the subwoofer?

Use a soft, dry cloth to dust the surface. Never use chemical or abrasive products. For the grille, you can gently dust it with a low-power vacuum cleaner.

USER MANUAL Palladio PSG101 Sonus Faber

Technical diagram showing a multi-layered assembly with labeled components and directional arrows indicating flow or movement.

Simple line drawing of a circular object with a pointer and scale, mounted on a flat panel (no text or symbols)

3.3 - TAGLIARE LUNGO IL PERIMETRO SEGNATO

Simple line drawing of a rectangular frame with a recessed square and a small cylindrical object inside (no text or symbols)

Simple line drawing of a rectangular frame with an oval cutout and a small rectangular object inside (no text or symbols)

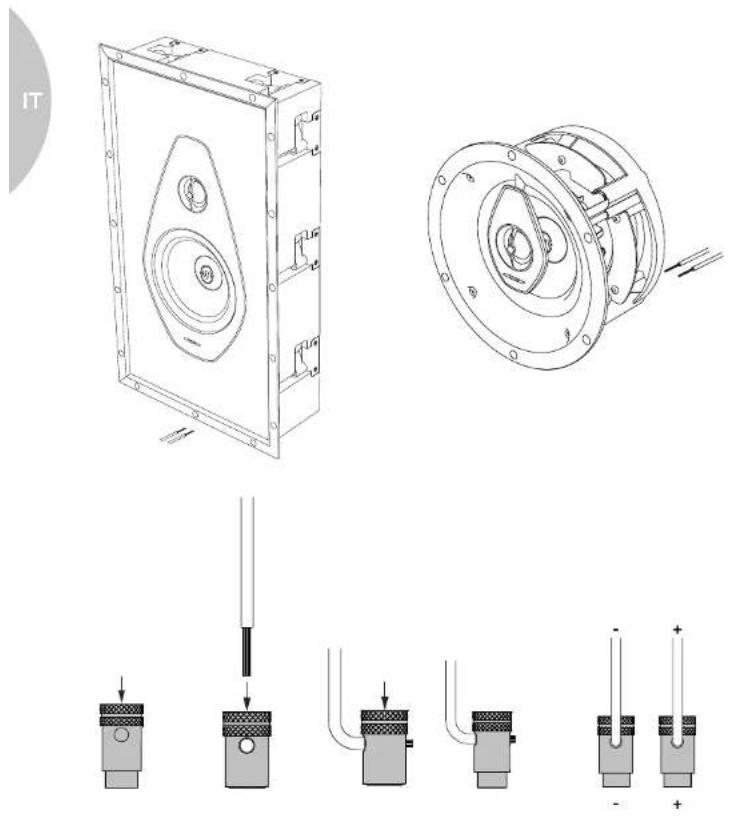

3.4 - COLLEGARE I CAVI AUDIO AL DIFFUSORE

Technical line drawings of mechanical components and their assembly, including a 3D box and a multi-view assembly with internal components (no text or symbols)

3.5 - INSERIRE IL DIFFUSORE NEL FORO PRATICATO

Technical line drawing of a speaker assembly with two views (top and side), showing internal components without any text or symbols.

Technical line drawing showing a lifting mechanism and a mechanical assembly (no text or symbols)

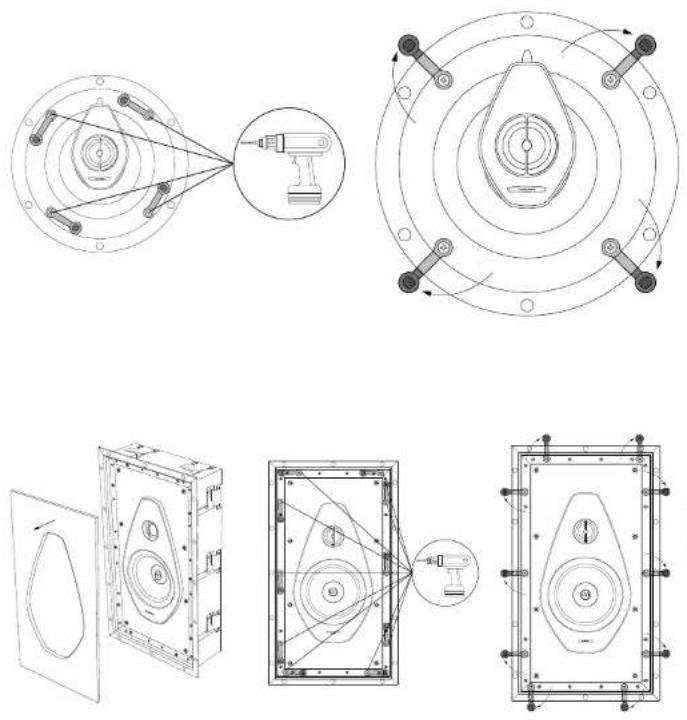

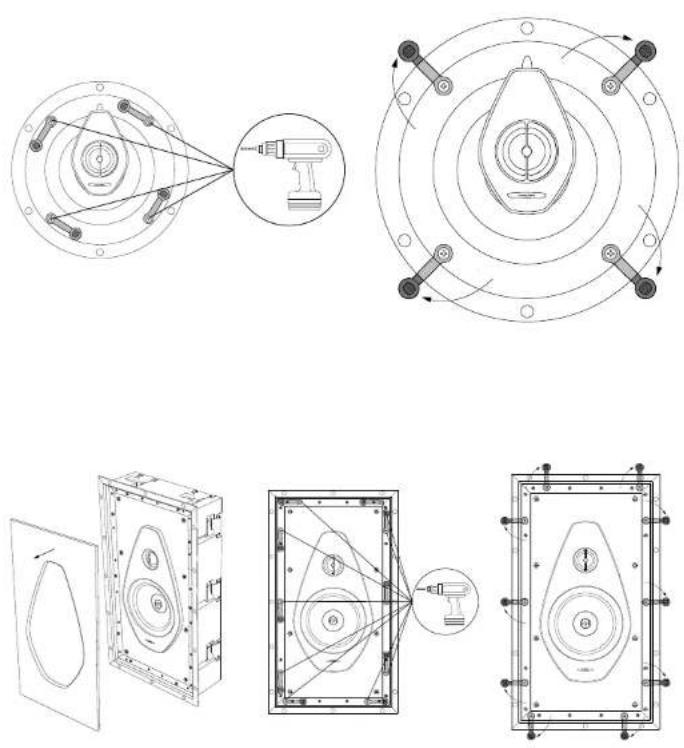

3.7 - FISSARE IL DIFFUSORE ACUSTICO ALLA PARETE

Technical diagram showing mechanical assembly and component layout with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with circular components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing with three circular components and an inset view of a mechanical component (no text or symbols)

Technical line drawing of a mechanical housing with circular components and mounting holes (no text or symbols)

Technical drawing of a mechanical assembly with labeled components and dimensions

Technical line drawing of a multi-tiered cylindrical mechanical or electrical enclosure with concentric circular components (no text or symbols)

Technical line drawing of a multi-chamber electrical enclosure with circular components and mounting brackets (no text or symbols)

3.9 - APPLICARE LA GRIGLIA MAGNETICA

Technical line drawing of a mechanical enclosure with a door and mounting base (no text or symbols)

Simple line drawing of a rectangular frame with a circular inset showing a small object (no text or symbols)

Technical line drawing of a mechanical assembly with a U-shaped component and mounting holes (no text or symbols)

Simple line drawing of a door with two circular ovals and a small rectangular object below (no text or symbols)

Technical line drawing showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with two views, one showing internal components and the other showing a magnified inset (no text or symbols)

< 40mm <1.6m

Technical line drawings of two mechanical housing components with internal cavities and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with circular components and mounting holes (no text or symbols)

Technical line drawing of a multi-tiered mechanical or electrical enclosure with circular components and mounting brackets (no text or symbols)

4.3.2 - MASCHERA TENDIFILO

Technical line drawings of three mechanical components: a vertical frame, a diagonal cable with a pull-up, and a vertical post with a close-up inset (no text or symbols)

4.3.3 CORNICE VERNICIABILE

Technical line drawing of a mechanical assembly with a U-shaped component and a magnified inset showing internal components (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a component detail (no text or labels)

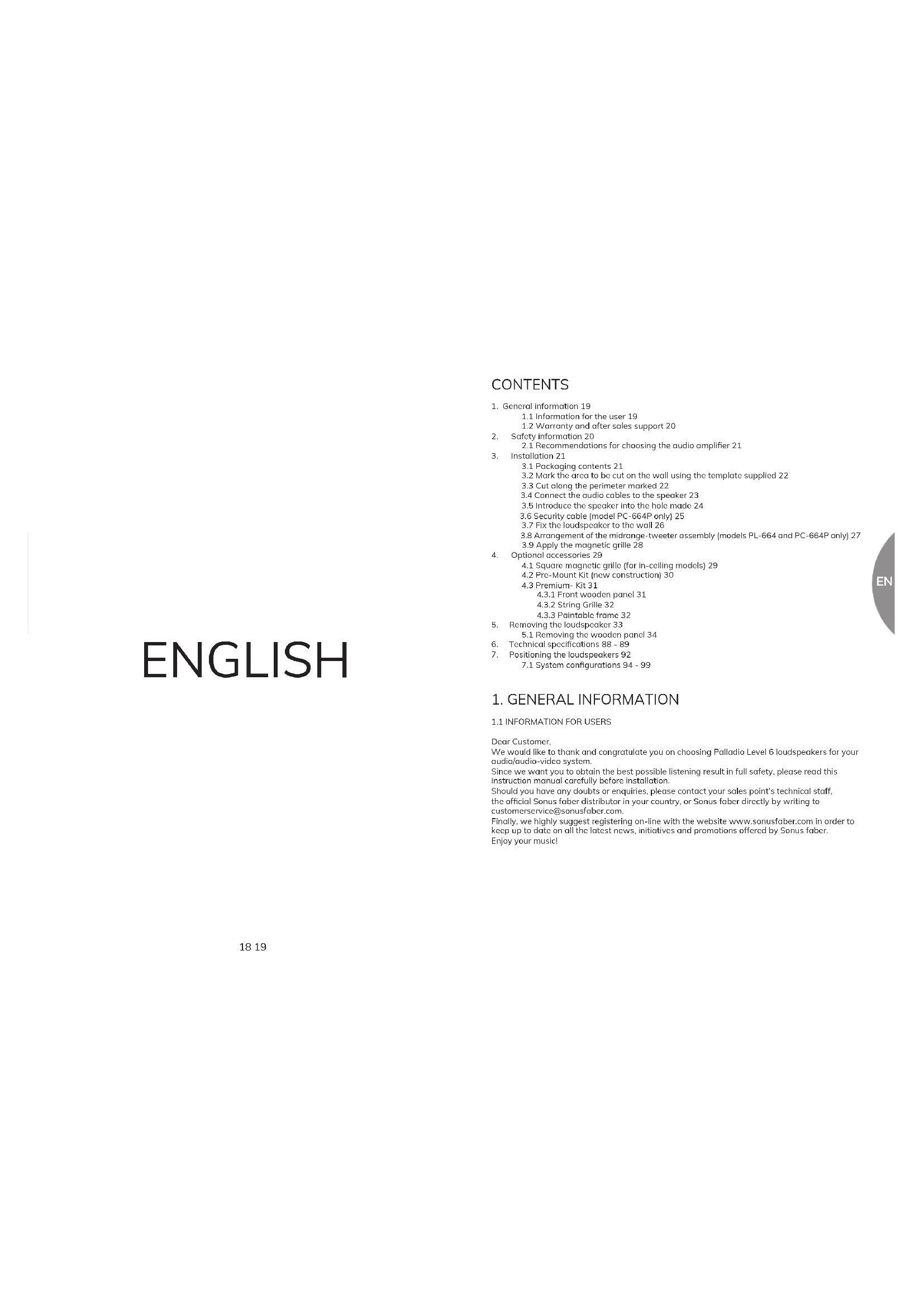

1.1 Information for the user 19

1.2 Warranty and after sales support 20

1. Safety information 20

2.1 Recommendations for choosing the audio amplifier 21

1. Installation 21

3.1 Packaging contents 21

3.2 Mark the area to be cut on the wall using the template supplied 22

3.3 Cut along the perimeter marked 22

3.4 Connect the audio cables to the speaker 23

3.5 Introduce the speaker into the hole made 24

3.6 Security cable (model PC-664P only) 25

3.7 Fix the loudspeaker to the wall 26

3.8 Arrangement of the midrange-tweeter assembly (models PL-664 and PC-664P only) 27

3.9 Apply the magnetic grille 28

1. Optional accessories 29

4.1 Square magnetic grille (for in-ceiling models) 29

4.2 Pre-Mount Kit (new construction) 30

4.3 Premium-Kit 31

4.3.1 Front wooden panel 31

4.3.2 String Grille 32

4.3.3 Paintable frame 32

1. Removing the loudspeaker 33

5.1 Removing the wooden panel 34

1. Technical specifications 88 - 89

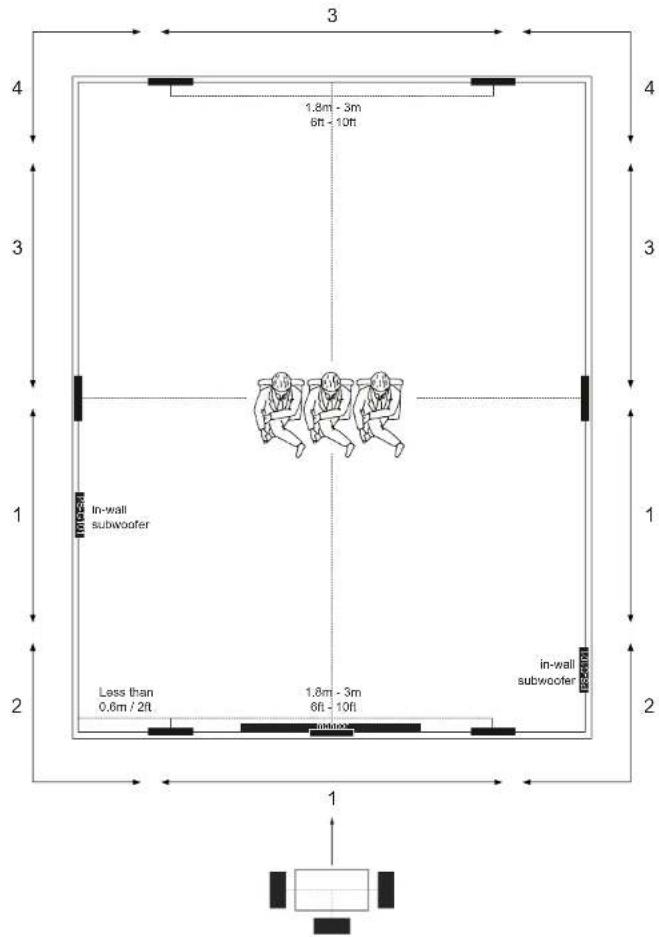

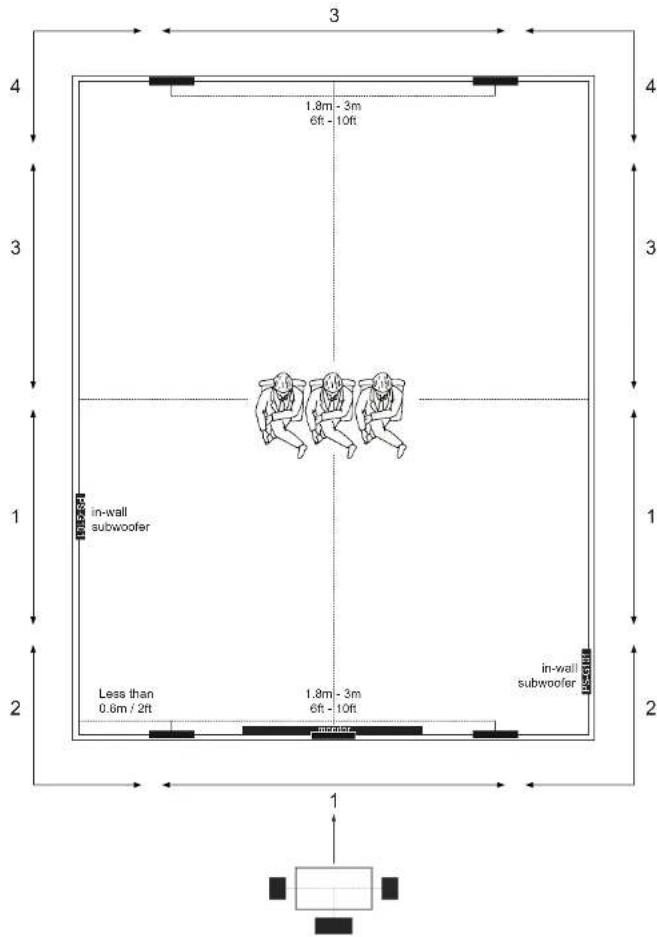

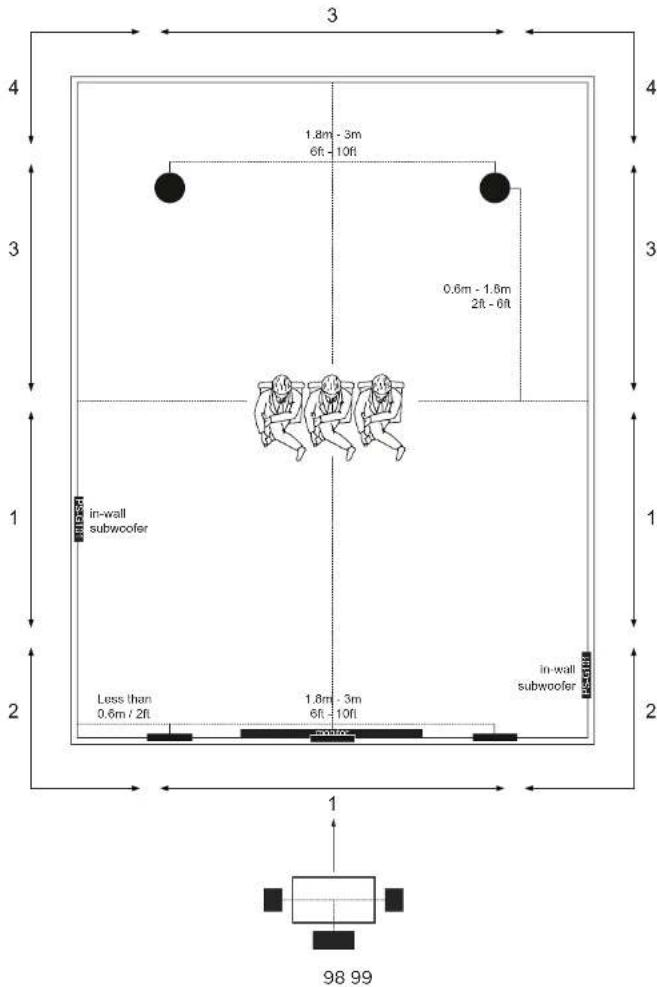

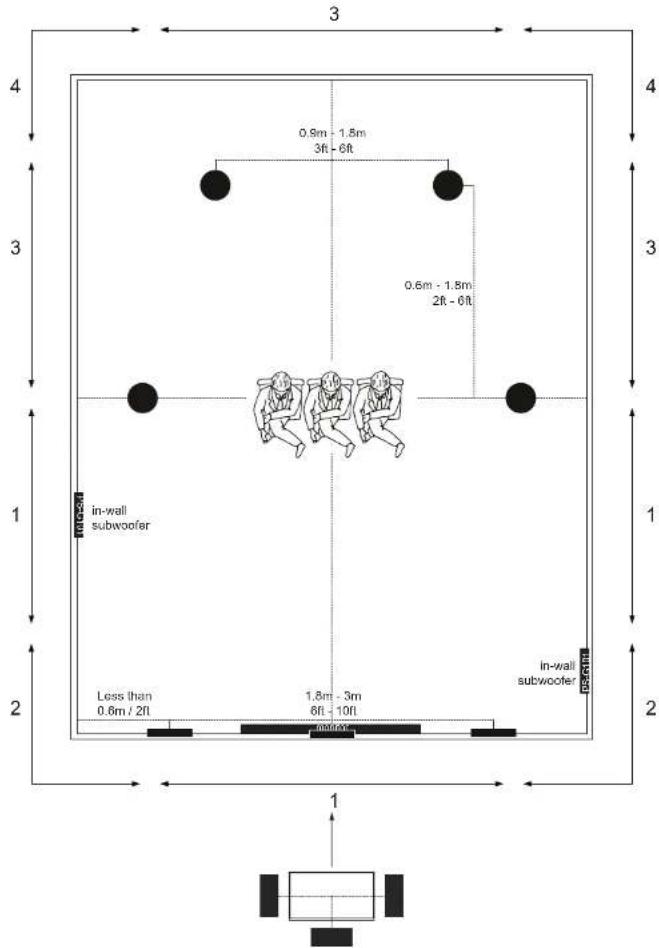

2. Positioning the loudspeakers 92

7.1 System configurations 94 - 99

1. GENERAL INFORMATION

1.1 INFORMATION FOR USERS

Dear Customer,

We would like to thank and congratulate you on choosing Palladio Level 6 loudspeakers for your audio/audio-video system.

Since we want you to obtain the best possible listening result in full safety, please read this instruction manual carefully before installation.

Should you have any doubts or enquiries, please contact your sales point's technical staff,

the official Sonus faber distributor in your country, or Sonus faber directly by writing to [e-mail].

Finally, we highly suggest registering on-line with the website www.sonusfaber.com in order to keep up to date on all the latest news, initiatives and promotions offered by Sonus faber.

Enjoy your music!

1.2 WARRANTY AND AFTER SALES SUPPORT

Palladio Level 6 loudspeakers are designed and manufactured according to the highest quality standards.

Should, however, a fault or a malfunction occur, the loudspeakers are covered by warranty. In compliance with the regulations in force in the country where the loudspeakers were purchased. In such cases, please contact the dealer from whom you purchased your loudspeakers, or the official Sonus faber distributor for your country; the contact information for all the distributors can be found on our website:

• https://www.sonusfaber.com/distributori-store/
• https://www.sonusfaber.com/en/distributors-stores/
  The following should also be kept in mind for your convenience:
  • The warranty on the loudspeakers covers any manufacturing defects:
• Keep the receipt as proof of purchase to show to the retailer if necessary:
• Keep the original packaging of the loudspeakers so that they can be transported or shipped to an authorised service centre without undergoing damage;
• The loudspeakers must be accompanied by a description of the malfunction or defect encountered.
  The product warranty will be void under the following conditions:
• If the product has been disassembled or modified by persons other than a Sonus faber authorised service centre;
• If the product has been used in a manner that is not consistent with the indications contained within this manual.

2. SAFETY INFORMATION

• This instruction manual must be read carefully and kept in an accessible location for any needs that may arise.
  • Make sure that in-wall/in-ceiling fixing is suitably stable.
• Previously check that the capacity of the mounting surface is sufficient to support the weight of the loudspeaker/s.
• Avoid staying in close proximity to the loudspeakers while the audio system is operating at high volume. This can cause permanent damage to your hearing. Children must be kept at a safety distance of least 50 cm from the loudspeaker.
• The speakers generate an electromagnetic field that is harmless to humans and pets, but can compromise the proper functionality of electronic equipment, such as CRT monitors or TVs, when placed in close proximity. If this occurs, increase the equipment's distance from the loudspeakers.
• The technology underlying the speakers' functionality is based on the principles of electromagnetism, and the user should therefore avoid operating equipment that generates strong electromagnetic fields, as these could affect the loudspeaker's proper functionality.
• Do not connect the loudspeakers parallel to each other or directly to a constant voltage sound distribution system (100 V, 70.7 V or similar) without an adapter transformer. This could result in a serious system overload, with possible damage to the loudspeaker and/or the amplifier.
• Do not place audio cables and electrical power cables in close proximity to one another. An electromagnetic field is present in the vicinity of the power cables, which can cause an unpleasant humming noise. If this should occur, move the audio cables and electrical power cables away from each other.
• The connections must be made with the equipment turned off. Pay attention to the polarities of the terminals during connection

2.1 - RECOMMENDATIONS FOR CHOOSING THE AUDIO AMPLIFIER

The output power data required by amplifier in average conditions of use, depends on the features of the loudspeaker system (nominal impedance and sensitivity) and listening conditions (average acoustic level and listening point). In the case of loudspeaker with nominal impedance of 4 Ω and sensitivity of 92 dBSPL, the following table is given

LISTENING DISTANCE	AMPLIFIER OUTPUT POWER (MINIMUM, PER CHANNEL) *	CORRESPONDING INPUT POWER (PER CHANNEL) *
2 m 40 W 0,8 W
2.5 m 63 W 1,3 W
3 m 90 W 1,8 W
3,5 m	175 W	7,3 W
* for an average volume level at a listening distance equal to 82 dBSPL

Audio programs with higher peak factors require even higher amplification powers. As it can be seen, the cost in terms of amplification is not so much the maintenance of the listening level as the management of the very short moments in which the musical signal has extraordinarily high levels.

Loudspeaker systems for household use. They must not be used for high volume and continuous sound distribution, as, for example discotheque or sound reinforcement. In this type of application, the powers in question are incompatible with correct operation of the loudspeaker system and can lead to irreversible faults and, in some cases, the start of a fire

3. INSTALLATION

3.1 - PACKAGING CONTENTS

• Speaker
• Magnetic grille
• Template for the hole
• Protective cover

Every optional accessory, which can be purchased separately, is illustrated in Chapter 4.

The packaging materials can cause pollution. These materials must not be disposed of as domestic waste, and must be brought to a waste collection and recycling centre.

Do not leave the packaging materials within the reach of children! They could pose a risk of poisoning or suffocation if ingested.

3.2 - MARK THE AREA TO BE CUT ON THE WALL USING THE TEMPLATE SUPPLIED.

Previously, make sure that the cutting area is between the two uprights! For correct operation of the fixing system, maintain a distance of at least 4 cm between the lateral edge of the hole and the nearest upright.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a circular object with a crosshair overlay, no text or symbols present.

3.3 - CUT ALONG THE PERIMETER MARKED

Simple line drawing of a rectangular frame with a centered rectangular cutout and a small ruler inside (no text or symbols)

Simple line drawing of a rectangular frame with an oval cutout and a horizontal bar inside (no text or symbols)

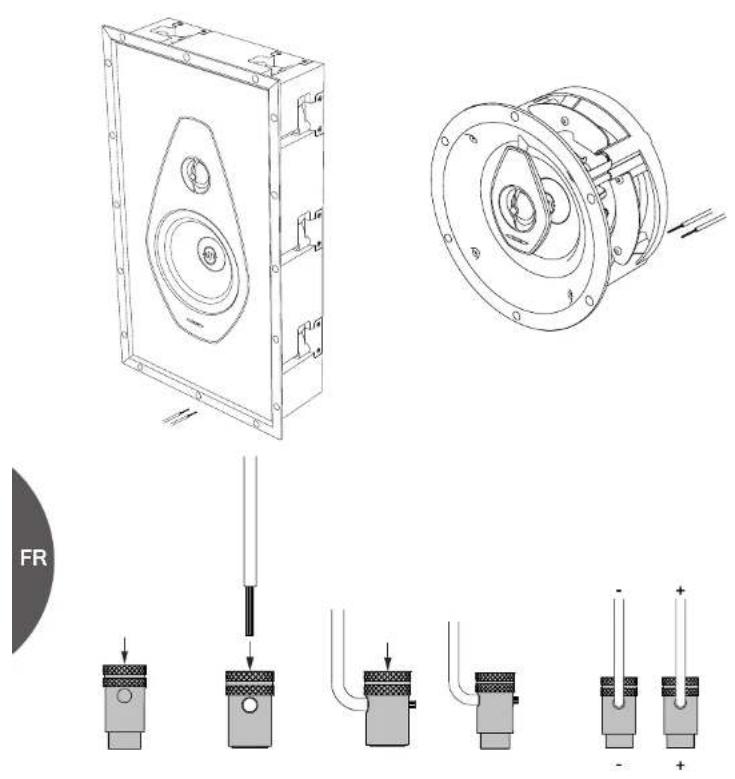

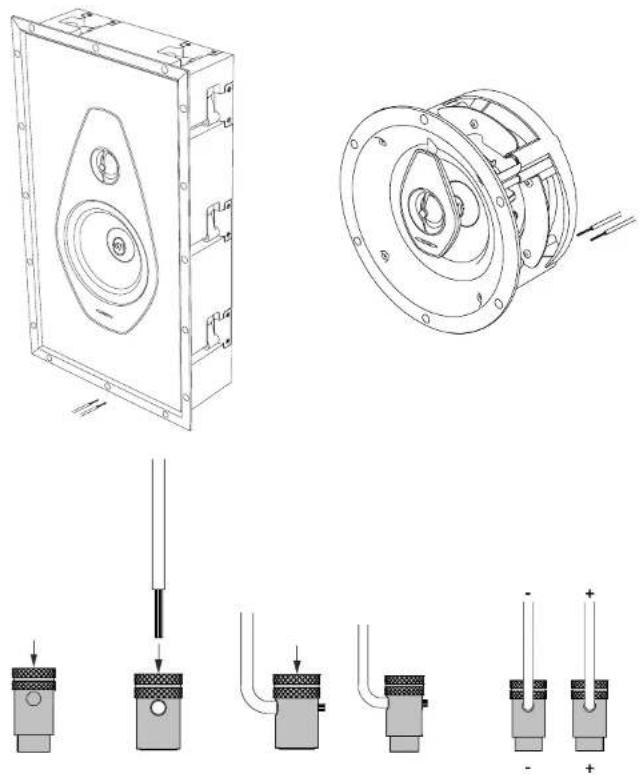

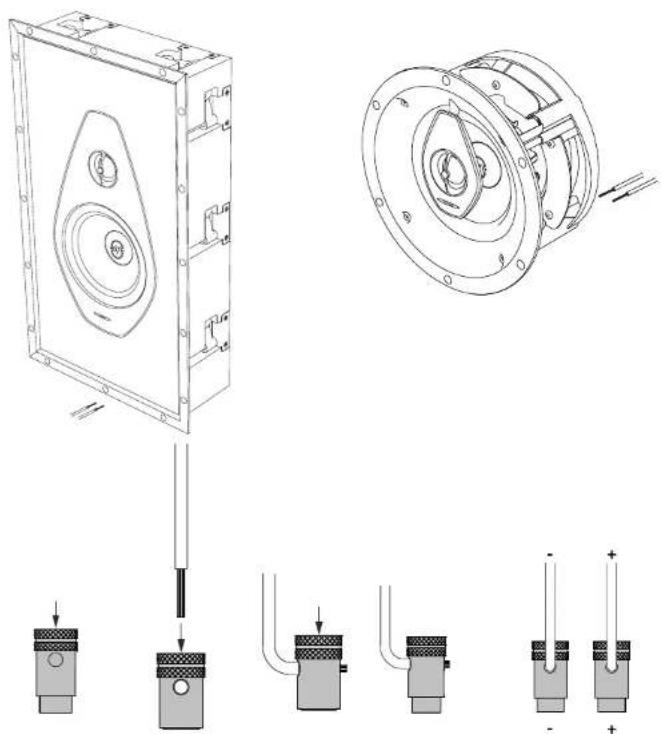

3.4 - CONNECT THE AUDIO CABLES TO THE SPEAKER

Technical line drawings of mechanical components and their assembly, including a housing, fan, and multiple cylindrical parts (no text or symbols present)

Pay attention to the polarities of the terminals during connection. The connections must be made with the equipment turned off!

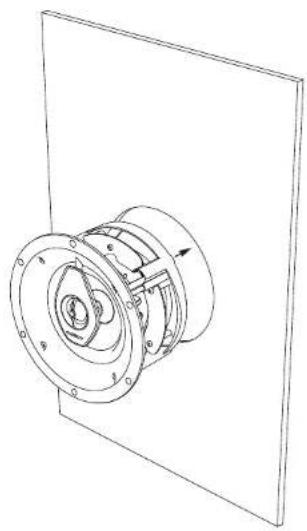

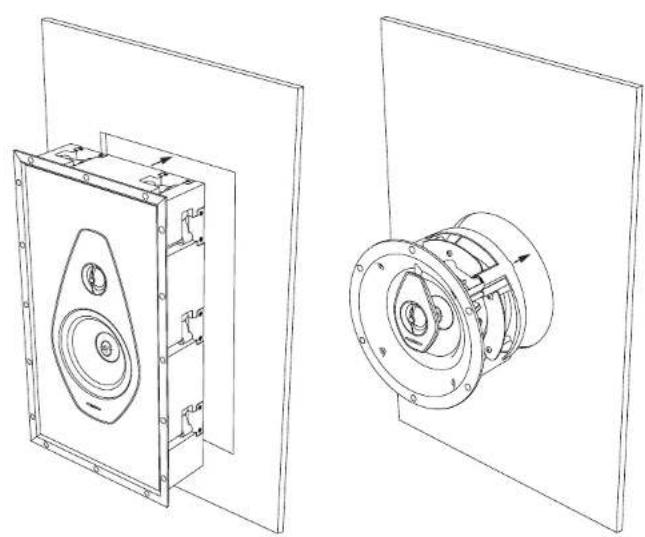

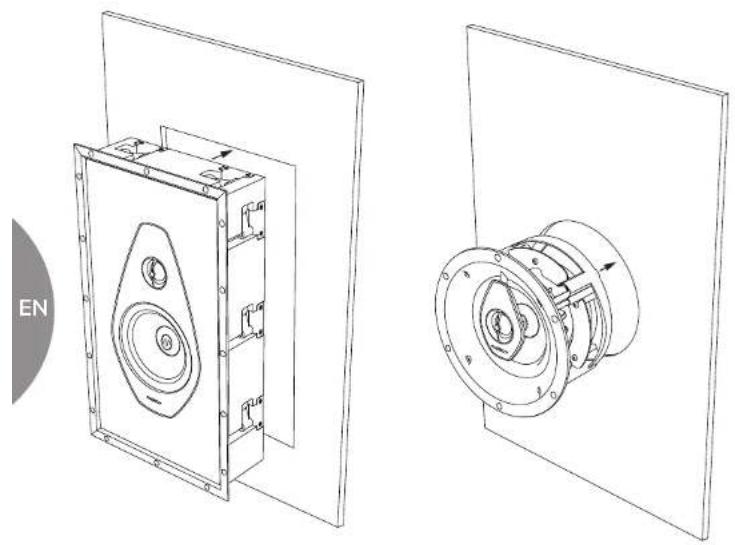

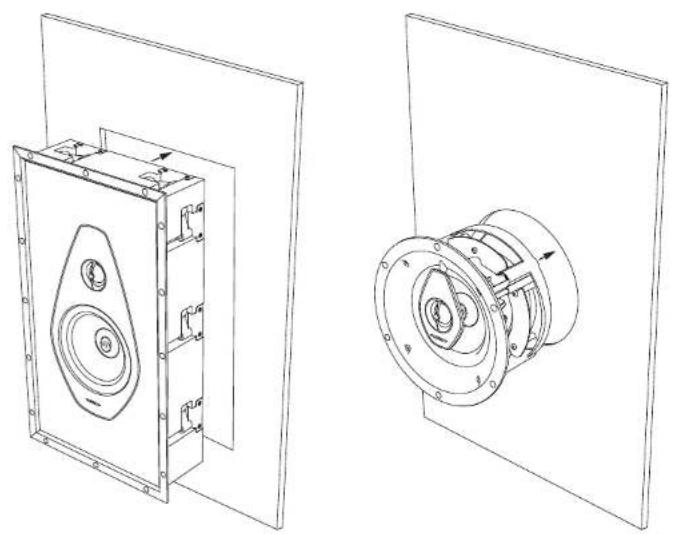

3.5 - INTRODUCE THE LOUDSPEAKER INTO THE HOLE MADE

Technical line drawing of a mechanical assembly with two views: front view and side view, no text or symbols present.

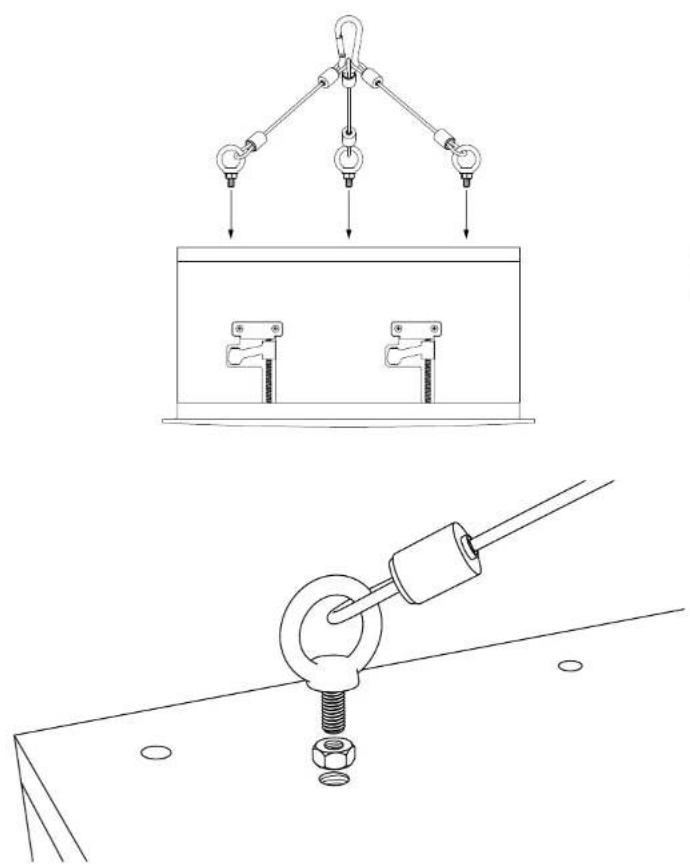

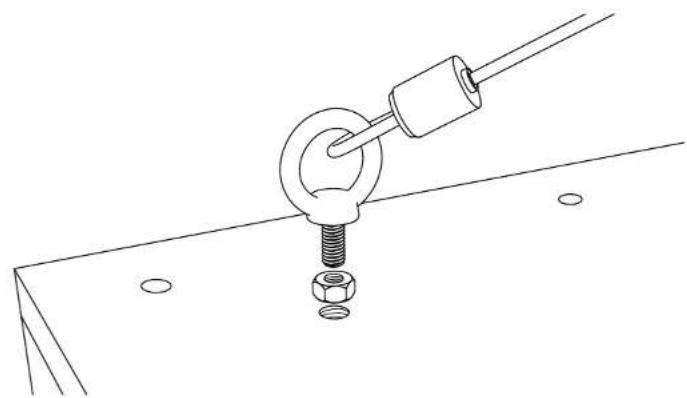

3.6 - SECURITY CABLE (MODEL PC-664P ONLY)

Technical line drawing showing a lifting mechanism and a mechanical assembly (no text or symbols)

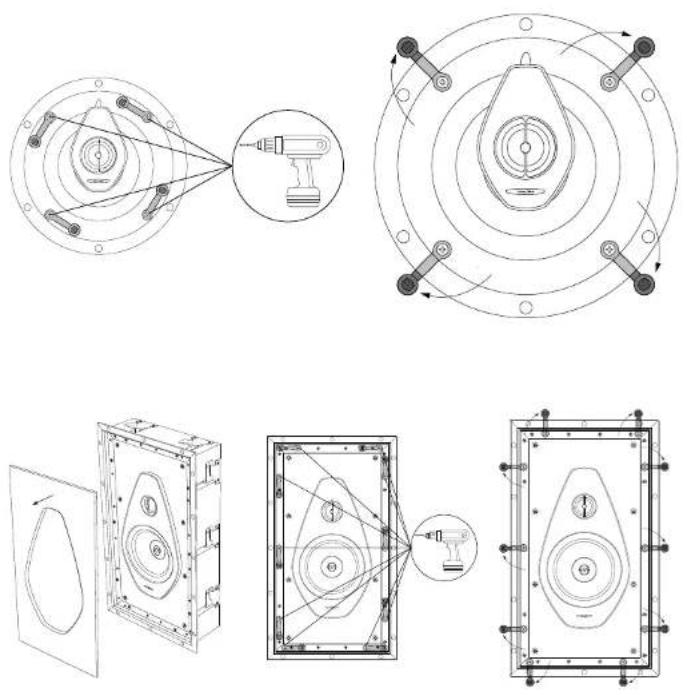

Tighten the locking screws fully home without force, to prevent damage to the locking system!

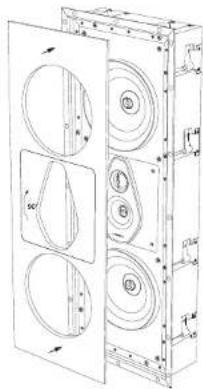

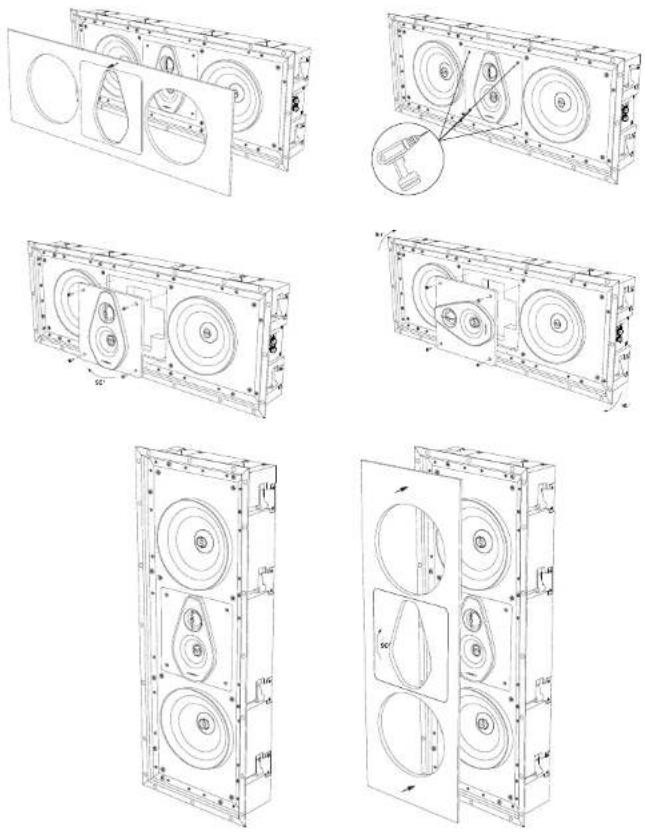

3.8 - ARRANGEMENT OF THE MIDRANGE-TWEETER ASSEMBLY (MODELS PL-664 AND PC-664P ONLY)

The PL-664 model is set-up to be installed both horizontally and vertically. To arrange the midrange-tweeter assembly according to desired use, remove the 4 screws completely as in the figure, position the loudspeaker support panel and re-introduce the screws.

As in figure 4.3.1, two versions of the wooden panel are available to allow both arrangements.

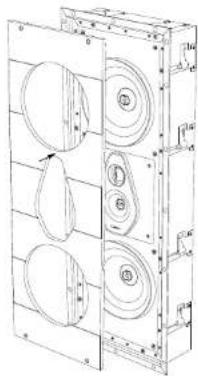

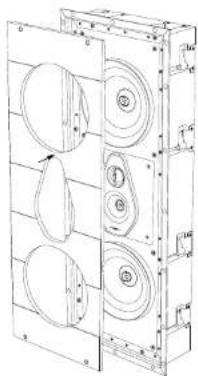

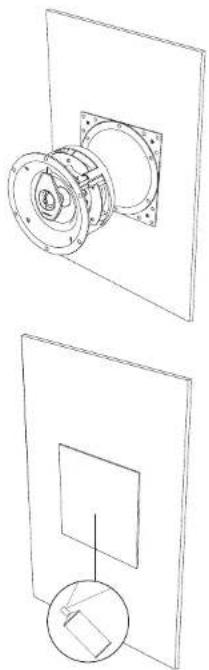

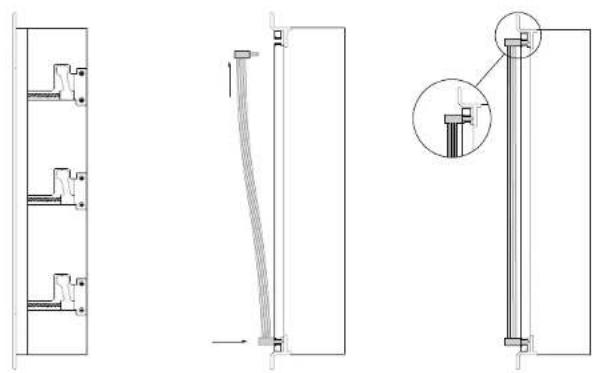

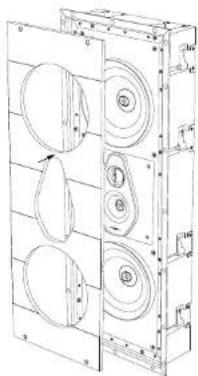

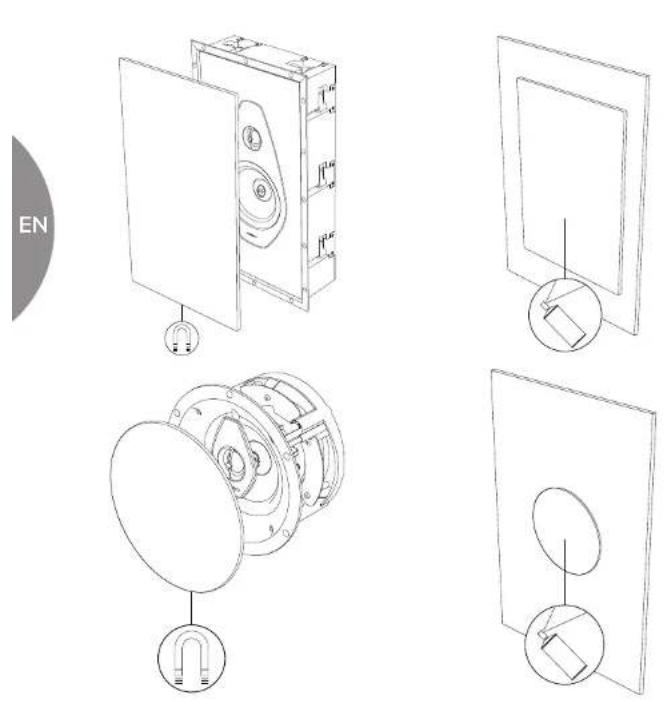

3.9 - APPLY THE MAGNETIC GRILLE.

4. OPTIONAL ACCESSORIES

4.1 - SQUARE MAGNETIC GRILLE (FOR IN-CEILING MODELS)

Diagram showing a mechanical component with arrows pointing to a circular feature, enclosed in a rectangular frame (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and mounting base (no text or symbols)

Technical line drawing of a mechanical component with flanged housing and mounting plate (no text or symbols)

Simple line drawing of a rectangular frame with a vertical line and a magnified inset showing a small rectangle (no text or symbols)

The grille can be painted as desired.
Painting is recommended outdoors and away from the speaker.

Before introducing the speaker into the hole, screw the relevant support to the wall. The grille can be painted as desired.
Painting is recommended outdoors and away from the speaker.

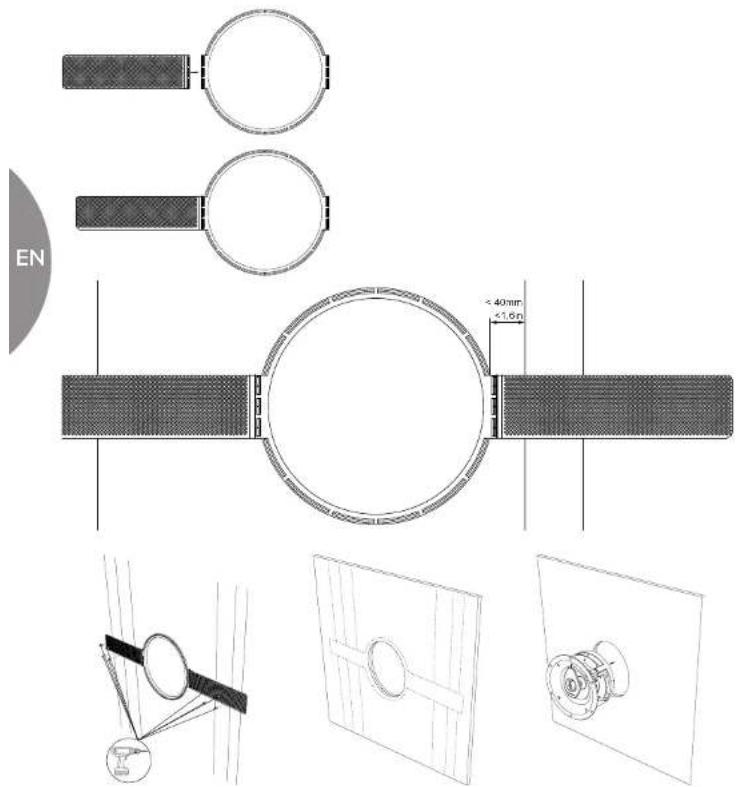

4.2 - PRE-MOUNT KIT (NEW CONSTRUCTION)

The pre-mount kit is available if the Palladio Level 6 collection speakers must be installed in a new construction. For additional information, consult the relevant user manual contained in the packaging of the same.

EN < 40mm +1.6m

Mount the two lateral wings at the central support until the confirmation "click" is heard. Maintain a distance of at least 40 mm from the central support to any other element inside the wall.

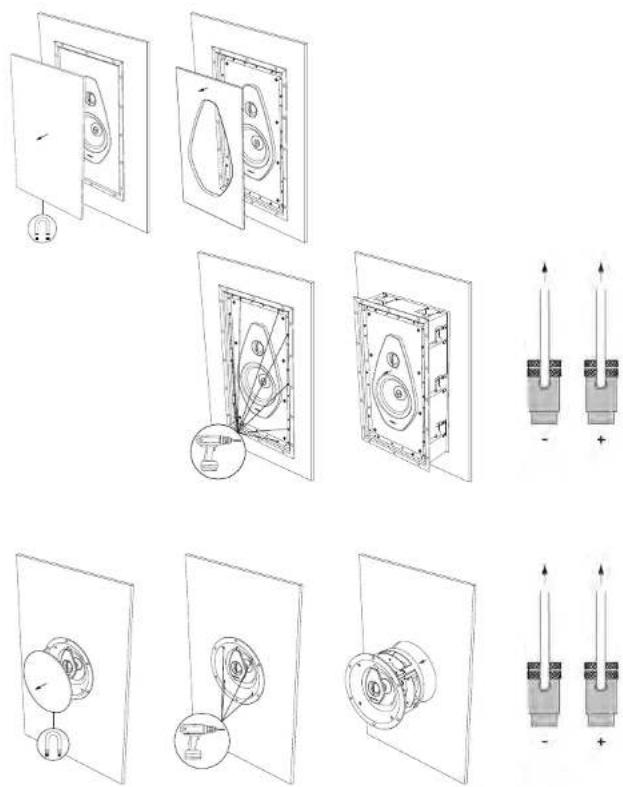

4.3 PREMIUM-KIT

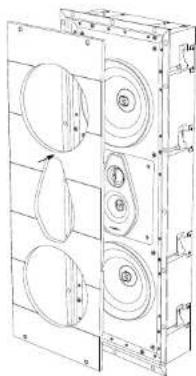

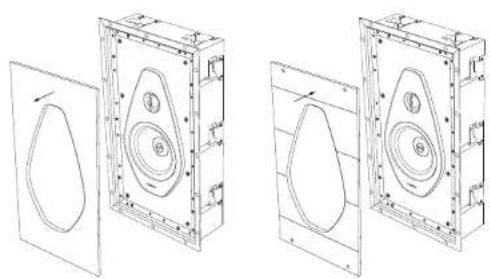

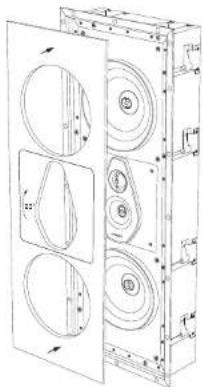

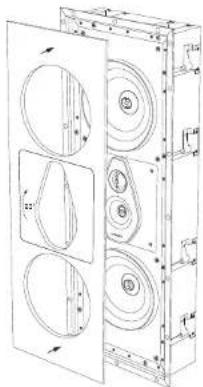

4.3.1 - FRONT WOODEN PANEL

Technical line drawings of two mechanical housing components with internal cavities and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical line drawing of a multi-tiered mechanical or electrical enclosure with circular components and mounting brackets (no text or symbols)

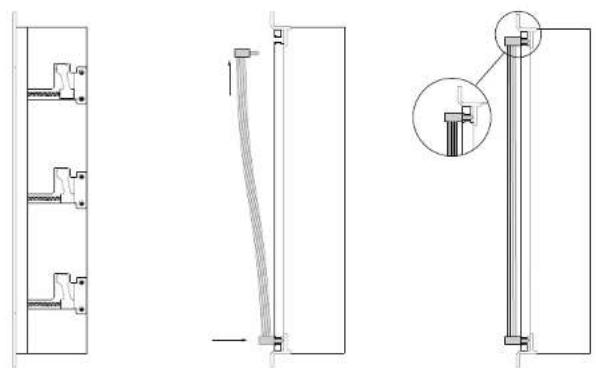

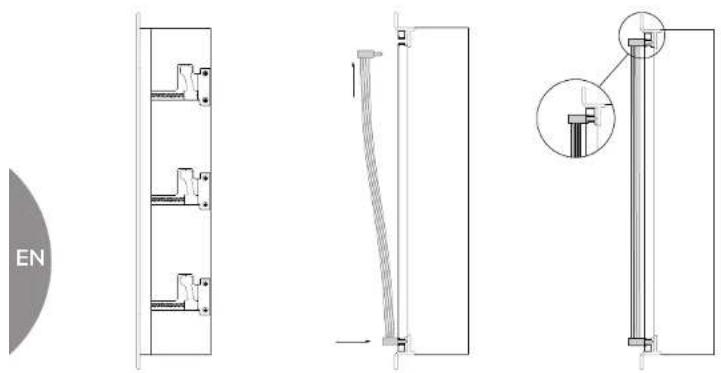

4.3.2 - STRING GRILLE

Technical line drawings of three mechanical components with no visible text or symbols

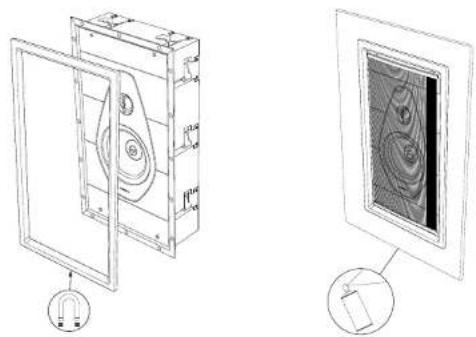

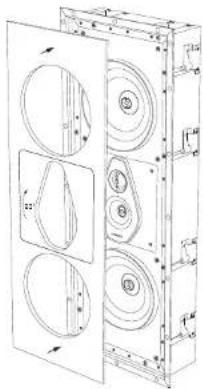

4.3.3 - PAINTABLE FRAME

Technical line drawing of a mechanical device with internal components and a magnified inset showing internal structure (no text or symbols)

The frame can be painted as desired.
Painting is recommended outdoors and away from the speaker.

1. REMOVING THE LOUDSPEAKER


Technical diagram showing exploded view and assembly of a mechanical component with labeled parts and directional arrows

	Loosen the screws to end run to guarantee complete release of the locking system and easy loudspeaker removal.
	Perform the operation with the appliances off!

5.1. REMOVING THE WOODEN PANEL

Technical line drawing of a mechanical assembly with an inset magnified detail (no text or symbols)

Use any tool, for example an Allen wrench as in the figure, to delicately lever and slide the wooden panel out.

FRANÇAIS

TABLE DES MATIÈRES

Technical diagram showing a mechanical assembly with labeled components and dimensions

Simple line drawing of a circular object with internal markings, no text or symbols present

3.3 - DÉCOUPER LE LONG DU PÉRIMÈTRE MARQUÉ

Simple line drawing of a rectangular frame with a recessed inner rectangle and a small cylindrical object inside (no text or symbols)

Simple line drawing of a rectangular frame with an oval cutout and a horizontal bar inside (no text or symbols)

3.4 - CONNECTER LES CÂBLES AUDIO À L'ENCEINTE

Technical line drawings of mechanical components and wiring, including a speaker chamber and motor assembly (no text or symbols)

3.5 - INSÉRER L'ENCEINTE DANS LE TROU RÉALISÉ

Technical line drawing of a speaker assembly with two views (top and side), no text or symbols present.

Technical line drawing showing a lifting mechanism and a mechanical assembly (no text or symbols)

3.7 - FIXER L'ENCEINTE AU MUR

Technical diagram showing mechanical assembly and component layout with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and an inset magnified view of a component.

Technical line drawing of a mechanical housing with dual circular components and mounting holes (no text or symbols)

Technical drawing of a mechanical assembly with dimension annotations and component labels

Technical line drawing of a multi-tiered mechanical or electrical enclosure with circular components and mounting holes (no text or symbols)

Technical line drawing of a multi-chamber industrial enclosure or rack unit with circular cutouts and mounting brackets (no text or symbols)

3.9 - APPLIQUER LA GRILLE MAGNÉTIQUE

Technical line drawing of a door panel with internal components and a U-shaped base (no text or symbols)

Simple line drawing of a rectangular frame with a circular inset showing a small rectangular object (no text or symbols)

Technical line drawing of a mechanical assembly with a U-shaped component and a circular base (no text or symbols)

Simple line drawing of a door with an oval and a circular component below (no text or symbols)

Diagram showing a mechanical component with arrows pointing to a circular component mounted on a square plate, with an inset image of a tool (no text or symbols present)

Technical line drawing of a mechanical assembly with a flanged component mounted on a rectangular plate (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and mounting base (no text or symbols)

Simple line drawing of a rectangular frame with a vertical line and an inset circular detail showing a small object (no text or symbols)

Technical diagram showing mechanical assembly with magnified views and component details, including a 40mm scale and cross-sectional views.

Technical line drawings of two views of a mechanical housing or enclosure with internal components (no text or symbols)

FR

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting holes (no text or symbols)

Technical line drawing of a multi-tiered mechanical or electrical enclosure with circular components and mounting brackets (no text or symbols)

4.3.2 - GRILLE EN CORDES TENDUES

4.3.3 - CADRE (PEINTURE POSSIBLE)

Technical line drawing of a mechanical assembly with a door and housing (no text or symbols)

Diagram of a framed picture with a magnified inset showing a small object (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up detail (no text or symbols)

Pure technical line drawing of layered components without any text, numbers, or symbols

Simple line drawing of a circular object with internal markings, no text or symbols present

Simple line drawing of a rectangular frame with a centered rectangular cutout and a small cylindrical object inside (no text or symbols)

Simple line drawing of a rectangular frame with an oval cutout and a horizontal bar inside (no text or symbols)

3.4 - DIE AUDIO-KABEL AM LAUTSPRECHER ANSCHLIESSEN

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical enclosure with mounting flanges and internal components (no text or symbols)

Technical line drawing of a mechanical component with mounting flanges and a central housing (no text or symbols)

Diagram illustrating a mechanical lifting or lifting mechanism with three vertical supports and downward force arrows, showing two separate states below.

Technical line drawing of a mechanical assembly with a spring, nut, and rod (no text or symbols)

3.7 - DEN LAUTSPRECHER AN DER WAND BEFESTIGEN

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical diagram of a mechanical housing with numbered components and an inset view of a bracket detail.

Technical drawing of a mechanical housing with labeled components and dimension annotations

Technical drawing of a mechanical assembly with dimension annotations and component labels

Technical line drawing of a multi-tiered mechanical enclosure with circular components and mounting holes (no text or symbols)

Technical diagram of a multi-chamber air vent system with labeled components and directional arrows indicating flow or movement.

Technical line drawings of various mechanical components with cutouts and mounting holes (no text or symbols)

Technical line drawings of three mechanical components: a vertical frame, a diagonal pipe with a central rod, and a vertical column with a close-up inset showing internal detail (no text or symbols)

4.3.3 - LACKIERBARER RAHMEN

Technical line drawing of a mechanical device with internal components and a magnified inset showing internal structure (no text or symbols)

Technical diagram showing exploded and assembled views of a mechanical device with labeled components and polarity indicators

Technical line drawing of a mechanical assembly with an inset magnified detail (no text or symbols)

https://www.sonusfabcr.com/distributori-store/

- https://www.sonusfaber.com/en/distributors-stores/

Technical diagram showing layered components with labeled parts and directional arrows, likely representing a technical or engineering layout.

Simple line drawing of a circular object with internal markings, no text or symbols present

Simple line drawing of a rectangular frame with a recessed square and a small cylindrical object inside (no text or symbols)

Simple line drawing of a rectangular frame with an oval cutout and a horizontal bar inside (no text or symbols)

Technical line drawings of mechanical components including a speaker, housing, and multiple ports (no text or symbols present)

Technical line drawing of a speaker assembly with two views (top and side), no text or symbols present.

Technical diagram showing a lifting mechanism and a mechanical assembly with labeled components, including a pulley system and a bolted joint.

76 77

Technical line drawings of mechanical components and assembly, including circular and rectangular views with no visible text or symbols.

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical diagram of a mechanical housing with numbered components and an inset view highlighting a specific part.

Technical line drawing of a mechanical housing with two circular components and mounting holes (no text or symbols)

Technical drawing of a mechanical assembly with dimension annotations and numbered components

Technical line drawing of a multi-tiered cylindrical mechanical or electrical enclosure with concentric circular components (no text or symbols)

Technical line drawing of a multi-chamber industrial enclosure with circular components and directional arrows (no text or symbols)

Technical line drawing of a multi-chamber electrical enclosure with a door and mounting base (no text or symbols)

Simple line drawing of two overlapping rectangular panels with a circular inset showing a small object (no text or symbols)

Technical line drawing of a mechanical assembly with a U-shaped component and mounting holes (no text or symbols)

Simple line drawing of a door with two ovals and a circular inset showing a handle (no text or symbols)

Technical line drawing showing two views of a mechanical component with a magnified inset (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Technical diagram showing mechanical assembly with magnified views and component details, including a 40mm scale and cross-sectional views.

Technical line drawings of a mechanical housing with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical line drawing of a multi-tiered electrical enclosure or module with circular components and mounting brackets (no text or symbols)

Technical line drawings of three mechanical components: a vertical panel, a diagonal rod with a curved wire, and a vertical column with a bracket (no text or symbols present)

4.3.3 - ОКРАШИВАЕМЯ РАМКА

Technical line drawing of a mechanical assembly with a U-shaped component and a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up detail (no text or symbols)

* see instruction's manual for more information.
** unfiltered& unequalized. External filtering required.

1. Recommended for clear reproduction of the bass sounds
2. Extreme configuration for maximum acoustic output
3. Recommended for clear reproduction of the bass sounds (additional subwoofer)
4. Extreme configuration for maximum acoustic output (additional subwoofer)

NOTE

If two subwoofer units are used, it is greatly recommended to install one on the left and one on the right of the listening area. Do not position the subwoofers symmetrically to each other with respect to the main listening point.

7. POSITIONNEMENT DES ENCEINTES

7.1 CONFIGURATIONS DU SYSTEME

LEGENDE - POSITIONNEMENT DE CAISSON(S) DE BASSES

1.8m - 3m 6ft - 10ft 0.5m - 1.8m 2ft - 6ft Less than 0.6m / 2ft in-wall subwoofer 1.8m - 3m 6ft - 10ft in-wall subwoofer 0.3m - 0.6m 1ft - 2ft monitor

OPTION 2:
5.1 IN-WALL - CHANNEL SYSTEM

1.8m - 3m 6ft - 10ft in-wall subwoofer Less than 0.6m / 2ft 1.8m - 3m 6ft - 10ft in-wall subwoofer in-wall subwoofer 1 2 3 4 1 2 3 4

96 97

OPTION 2/B:
7.1 IN-WALL - CHANNEL SYSTEM

3 4 1.8m - 3m 6ft - 10ft In-wall subwoofer Less than 0.6m / 2ft 1.8m - 3m 6ft - 10ft in-wall subwoofer in-wall subwoofer 1 2 3 4 1 2 1

OPTION 3:
5.1 IN-WALL / IN-CEILING - CHANNEL SYSTEM

3 4 1.8m - 3m 6ft - 10ft 3 0.6m - 1.8m 2ft - 6ft in-wall subwoofer Less than 0.6m / 2ft 1.8m - 3m 6ft - 10ft in-wall subwoofer 98 99 1 2 3 4

OPTION 3/B:
7.1 IN-WALL / IN-CEILING - CHANNEL SYSTEM

0.9m - 1.5m 3ft - 6ft 0.6m - 1.8m 2ft - 6ft in-wall subwoofer Less than 0.6m / 2ft 1.8m - 3m 6ft - 10ft in-wall subwoofer in-wall subwoofer 1 2 3 4 1

© COPYRIGHT 2019

World copyright reserved

Sonus faber reserves the right to change any technical and/or aesthetical feature of its products at any time without any previous notice.
