USER MANUAL OFZ 34211 A2 OK

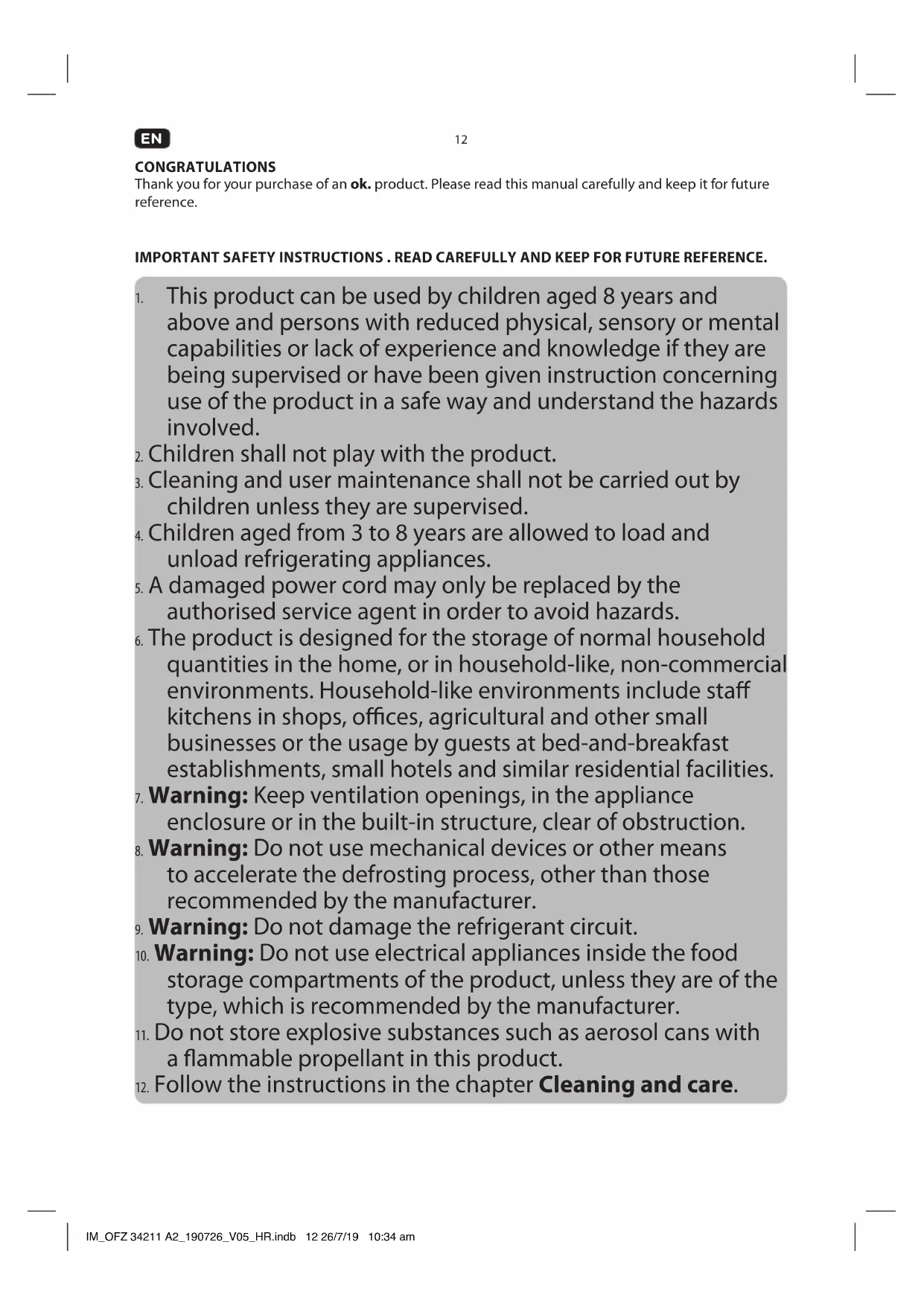

CONGRATULATIONS Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS . READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning use of the product in a safe way and understand the hazards involved.

2. Children shall not play with the product.

3. Cleaning and user maintenance shall not be carried out by

children unless they are supervised.

4. Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

5. A damaged power cord may only be replaced by the

authorised service agent in order to avoid hazards.

6. The product is designed for the storage of normal household

quantities in the home, or in household-like, non-commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or the usage by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

7. Warning: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

8. Warning: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

9. Warning: Do not damage the refrigerant circuit.

10. Warning: Do not use electrical appliances inside the food

storage compartments of the product, unless they are of the type, which is recommended by the manufacturer.

11. Do not store explosive substances such as aerosol cans with

a ammable propellant in this product.

12. Follow the instructions in the chapter Cleaning and care.

13. Warning: The refrigerant and insulation blowing gas are

ammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.

14. To avoid contamination of food, please respect the following

instructions: -Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. -Clean surfaces, that come into contact with food, as well as the accessible drainage system on a regular basis. -Store raw meat and sh in suitable containers in the freezer, to avoid the foodstus coming into contact with other items stored in the freezer. -Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. -One-, two- and three-star compartments are not suitable for the freezing of fresh food. -If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

15. WARNING: When installing the unit, make sure that the

power cord is not pinched or damaged.

16. WARNING: Do not place portable multiple power outlets or

power adapters at the back of the equipment.

17. Read this manual thoroughly before rst use. It contains important information for your safety as

well as for the use and maintenance of the equipment.

18. Do not place any objects on top of the product.

19. Never immerse electrical parts of the product in water or any other uids during cleaning or

operation. Never hold the product under running water.

20. Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord,

the product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.

21. The mains voltage must match the information on the rating label of the product.

22. Only unplugging from the power socket can separate the product completely from the mains.

23. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

24. Keep this product including power cord and power plug away from all heat sources such as ovens,

hot plates and other heat-producing products/objects.

25. Only unplug from the power socket by the plug itself. Do not pull on the cord.

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

27. Use this product in dry indoor areas only and never outdoors.

28. This product is not intended for commercial use. It is designed for household use only.

29. Make sure that electrical components, live parts and the power cord do not become wet.

30. Use accessories supplied with the device or recommended by the manufacturer only!

31. Do not cover the product while in use. Fire hazard!

32. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

33. WARNING! Do not portable socket-outlets and portable power suppliers at the rear of the

appliance. Caution: Risk of re! Flammable materials. WARNING! During usage, service and disposal of the appliance, please pay attention to symbol on the side, which is located on the rear of the appliance (rear panel or compressor). It is warning symbol that indicates the risk of re. There are ammable materials in the refrigerant pipes and compressor. Make sure, that any source of re / open ame is out of the proximity of the device during usage, service and disposal. INTENDED USE This product is suitable for freezing food and beverages only. Any other use may damage the device or cause injuries. The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specied purpose. IM_OFZ 34211 A2_190726_V05_HR.indb 14 26/7/19 10:34 am15

A. Temperature control MIN MID MAX B. Shelves C. Power cord with plug D. Adjustable feet, in front E. Lower door hinge F. Door G. Door handle (not assembled) H. Upper door hinge CONTENT 1 x Freezer 1 x Ice cube tray 1 x User manual 1 x warranty card

BEFORE FIRST TIME USE

• Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care.

• After you have installed the refrigerator, wait for 6 hours before you connect it to the mains to permit the cooling system to regain full capacity. IM_OFZ 34211 A2_190726_V05_HR.indb 15 26/7/19 10:34 am16

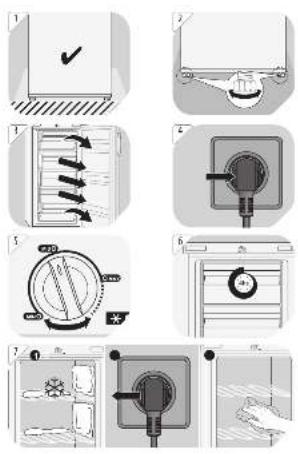

INSTALLATION Note: The installation should be performed by at least 2 persons to avoid dangers. Fig.

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Ensure, that the product is in a horizontal position to enable the correct working of the cooling circuit. Fig.

The freezer is equipped with four drawers and one hatch at the bottom. The drawers can be removed for cleaning, but must be used to store the food. OPERATION Fig.

Plug in the power plug into an appropriate mains socket outlet. Fig.

Turn the temperature regulator to the desired setting. Fig.

Allow the product to pre-cool for about 6 hours before putting in the food. TEMPERATURE REGULATOR The level MIN - MID - MAX does not mean a specic temperature. The lower the setting is (as closer to MIN), the higher the interior temperature. Note:

• The most common temperature for the freezer should be -18°C or lower.

• To determine the temperature of the product, obtain a suitable thermometer, and place it inside the product.

• The temperature of the product depends on the setting of the temperature regulator.

• Please make sure the door is closed properly and is not obstructed by foods.

• Never store warm or hot foodstus in the freezer, as this will impair the cooling performance of the appliance and will also defrost other foodstus. DEFROSTING Fig.

Defrost the freezer when the layer of ice on the surface reaches 3 to 4 mm. Remove all foods from the freezer. Unplug the freezer and open the door. After the ice has molten, wipe up the water and clean the interior. Note: In order to reduce the build-up of ice, make sure, that no items are stored in contact with the walls of the appliance, the door is opened only for a short period of time and never store warm/hot appliances in the freezer. IM_OFZ 34211 A2_190726_V05_HR.indb 16 26/7/19 10:34 am17

Adjustment of the door hinges Note:

• If necessary, and if the premises require it, the mounting of the door can be changed. To do this, follow the following instructions in the given order.

• The following tools are required: Socket wrench or wrench 8 mm, phillips screwdriver, slotted screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

1. Remove the two plastic covers and put them aside.

2. Hold the door rmly, remove the two screws and pull the top hinge out of the door.

3. Remove the door from the lower hinge pin by gently pulling it upwards. Gently place it on a patted

surface, to avoid damaging it. Remove the lower hinge bracket on the right side of the unit and remove the leveling foot on the left side. Reverse their positions. Note: For detailed information see overview illustration

Caution After you have placed the refrigerator upright on its feet, wait for 6 hours before you connect it to the mains to permit the cooling system to regain full performance.

4. Install the lower hinge on the left side of the refrigerator. Install the adjustable foot on the right side

of the refrigerator. Unscrew also the stopper piece at the bottom of the door, turn it and x it to the opposite side.

5. Remove the hinge pin from the top hinge and screw it back into the hinge from the other side. Install

the door onto the lower hinge pin, now located on the left side of the appliance.

6. Install the upper hinge and hinge cover on the left side of the unit. Place the plastic cover on the hole

on the right side of the top of the refrigerator to cover the screw holes. Note: When installing the door, ensure that the top of the door is level with the top of the cabinet. If the door is not level, the rubber gasket will not make a good seal with the cabinet which can cause the appliance to malfunction.

INSTALLING THE DOOR HANDLE

7. Remove the two blind plugs at the desired side of the door.

8. Install the handle with screws provided.

9. Clip the two provided caps onto the screws.

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air ow around the refrigerator and freezer.

• If a layer of ice has built, defrost the unit. A thick layer of ice aects the transmission of the cold, thus the energy consumption will be increased.

• When opening and taking out food, only open the door shortly. A shorter door opening time reduces the amount of ice forming on the freezer walls.

• Select the temperature regulator setting according to the lling amount of the product.

• Use the glass plate, the side tray and if necessary baskets to store the food. If the energy of the product is used eciently, the energy consumption can be minimized.

• Only place cold or cooled down foodstus in the freezer. Never insert hot items.

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment for cleaning. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. the glass plate can be taken out for cleaning. DECOMMISSIONING If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories.

• Let the door open to avoid the formation of unpleasant odors and mold. IM_OFZ 34211 A2_190726_V05_HR.indb 18 26/7/19 10:34 am19

TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer. Problem Possible causes Solution Product does not work • Interrupted power supply • Check the power supply Temperature in the compartments is not low enough.

• The door is not closed rmly or it is opened to often.

• Re-arrange the food so that the door can be closed rmly.

• The ambient temperature is lower than +10°C or higher than +43°C

• The product is intended to be operated in an ambient temperature of +10°C to +43°C TECHNICAL DATA Voltage : 220 - 240 V~ Frequency : 50 Hz Rated current : 0.5 A Energy Consumption kWh/24h kWh/year

Ambient temperature : 10°C - 43°C Net capacity of freezer : 153L Measurement (H x W x D) : 550 X 550 X 1420 mm Depth with door open : 1050 mm This product is intended to be used in climate classes from T-SN. Climate class Ambient temperature T +16 to +43 °C SN +10 to +38 °C DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Refrigerants must be evacuated and disposed of by a qualied specialist in accordance with federal and local regulations before the appliance is scraped. IM_OFZ 34211 A2_190726_V05_HR.indb 19 26/7/19 10:34 am20

EU Product Data Sheet OFZ 34211 A2 The information in this product data sheet is presented in accordance with Article 3, letter b) in connection with Appendix III of delegated regulation (EU) No. 1060/2010 of the Commission on completing Council Directive 2010/30/ EU of the European Union and of the Council with regard to the labelling of household cooling appliances relating to energy consumption. a) Supplier's trademarks b) Model identier OFZ 34211 A2 c) Household cooling appliance models

category 8 d) Energy eciency class

A++ e) Community eco-label in accordance with Council Regulation (EEC) No. 66/2010 n/a Symbol Value Unit f) Annual energy consumption

n/a L Cellar Compartment V

n/a L Wine storage compartment V wma n/a L Storage area for fresh comestibles V

n/a L Chill compartment V

n/a L Ice cube making compartment and zero-star compartment n/a L One-star compartment V

n/a L Two-star compartment V

21 L Three-star compartment V

n/a L Freezer compartment (four-star compartment) V

132 L h) Design temperature “other compartments” n/a

Information regarding frost-free conditions for each compartment: Other Compartment n/a Cellar Compartment n/a Wine storage compartment n/a Storage area for fresh comestibles n/a Chill compartment n/a Ice cube making compartment and zero-star compartment n/a One-star compartment n/a Two-star compartment yes Three-star compartment n/a Freezer compartment (four-star compartment) yes j) Storage time in the event of breakdown (“temperature increase time”) 16.7 h k) Freezing capacity 10 Kg/24h l) Climatic Class

Household refrigerating appliance categories: 1 = Refrigerator with one or more storage areas for fresh comestibles; 2 = Refrigerator with cellar zone, cellar compartment, cooling appliance and wine cabinet; 3 = Refrigerator with chilling zone and refrigerator with a zero-star compartment; 4 = Refrigerator with a one-star compartment; 5 = Refrigerator with a two-star compartment; 6 = Refrigerator with a three-star compartment; 7 = Cooling units and freezers; 8 = Upright freezer; 9 = Chest freezer; 10 = Multi-purpose cooling units and other cooling appliances.

Range: A+++ (highest eciency) to D (lowest eciency)

On the basis of standard testing results over a 24-hour period. Actual consumption depends on the use and location of the appliance.

• = compartment -6°C or colder; *** = Deep-freeze storage area -18°C or colder; **** = Freezer and deep-freeze storage areas -18°C or colder and with a minimum freezing capacity.

"other compartment" is a compartment that is not a wine storage area and which is intended for the storage of certain comestibles at a higher temperature such as + 14 °C.

Climatic class SN: This appliance is intended for operation at a surrounding temperature between + 10°C and +32°C ; Climatic class N: This appliance is intended for operation at a surrounding temperature between + 16°C and +32°C ; Climatic class ST: This appliance is intended for operation at a surrounding temperature between + 16°C and +38°C ; Climatic class T: This appliance is intended for operation at a surrounding temperature between + 16°C and +43°C. IM_OFZ 34211 A2_190726_V05_HR.indb 20 26/7/19 10:34 am21

n/a L Vriezer compartiment (vier-sterren compartiment) V
