Product type	Water and dust vacuum cleaner with spray and extraction function
Brand	Numatic
Model	George GVE3722
Dimensions (L x D x H)	360 x 370 x 510 mm
Weight	11 kg
Supply voltage	230 V ~ 50 Hz
Motor power	1060 W
Tank capacity (dry)	15 litres
Tank capacity (wet)	9 litres
Solution tank capacity	6 litres
Noise level (dry)	78.6 dB(A)
Protection class	II (double insulation)
Power cord length	10 m
Filtration type	Bag and filter (dry); filter suitable for wet
Main functions	Dry and wet suction, spray and extraction for carpet and upholstery cleaning
Recommended use	Indoor, domestic and commercial use (hotels, schools, hospitals, etc.)
Safety	Safety float valve, automatic shut-off in case of overflow
Maintenance and cleaning	Regularly clean filters, float valve, and empty the tank; do not immerse in water
Spare parts and repairability	Use only genuine Numatic parts; consult a qualified person
General information	Complies with IEC 60335-2-69; do not use for biological or explosive waste

Frequently Asked Questions - George GVE3722 Numatic

How to use the vacuum in wet mode?

First empty the dust tank if necessary. Make sure the float valve is working properly. Plug in the appliance and suck up the liquid. If foam or liquid comes out of the exhaust port, immediately stop the machine and check the float.

What to do if foam comes out of the exhaust port?

Stop the machine and unplug it. Let the liquid drain out through the port. Check that the float valve is working properly and empty the container if necessary. Then restart the machine.

How to clean the filter?

Unplug the vacuum. Remove the filter according to the instructions in the manual. Clean it with clean water if necessary and let it dry completely before reinstalling. Replace it if damaged.

What to do if the vacuum no longer sucks?

Stop and unplug the appliance. Check that the hoses, wands, and floor tools are not blocked. For dry mode, check the dust bag and filter. For wet mode, check the float valve and empty the container.

Can I vacuum hot ashes or lit cigarette butts?

No, never use the vacuum to suck up hot ashes or lit cigarette butts. This poses a fire risk.

How to replace the power cord?

The power cord must be replaced only by a qualified person using a genuine Numatic part. Do not attempt to repair it yourself.

What is the tank capacity for dry waste?

The tank capacity for dry waste is 15 liters. For liquids it is 9 liters, and for cleaning solution it is 6 liters.

Is the vacuum suitable for commercial use?

Yes, this vacuum is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, and offices, in addition to normal household use.

How to maintain the safety float valve?

Regularly clean the float valve to prevent it from sticking. Check that it is not damaged and that it works properly before each use in wet mode.

What detergents can I use with the spray function?

Use only cleaning preparations approved by Numatic. If necessary, use an anti-foaming agent. Follow the safety instructions on the detergent container.

USER MANUAL George GVE3722 Numatic

Original Instructions -

Warning! Read instructions before using the machine.

Warnhinweis:

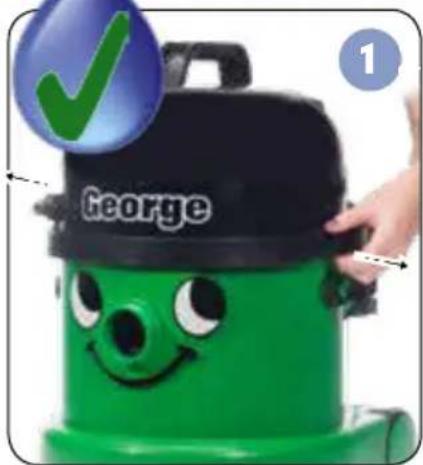

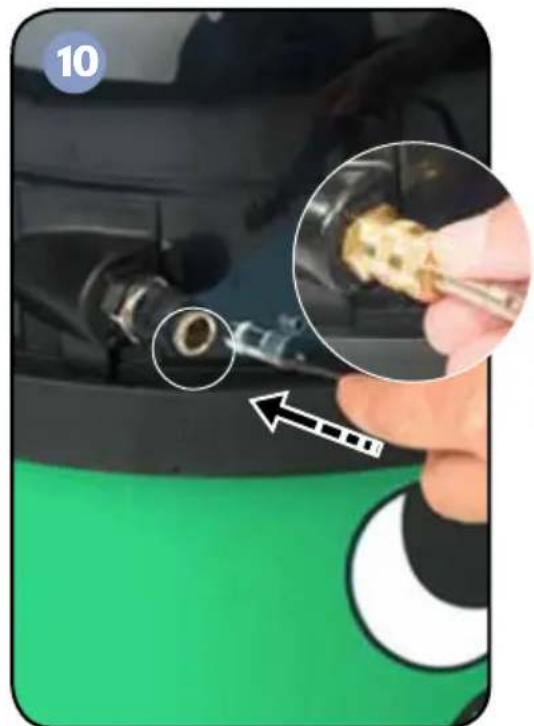

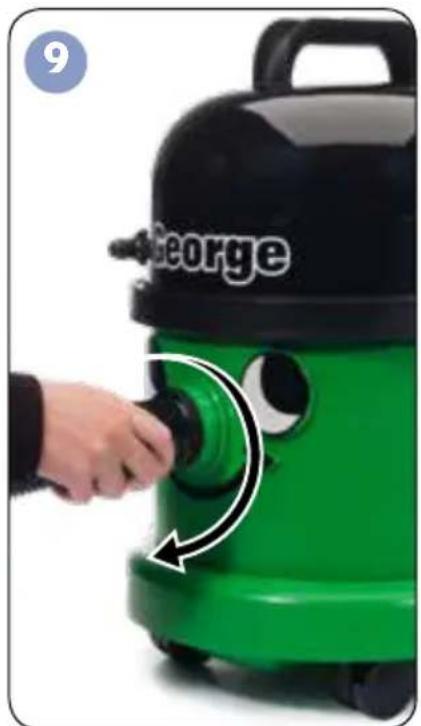

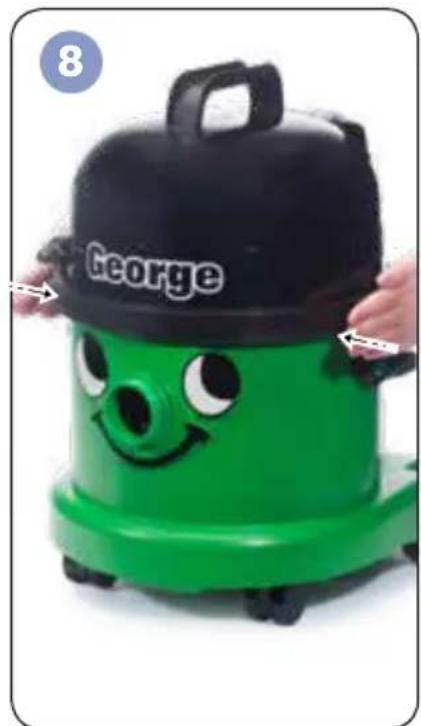

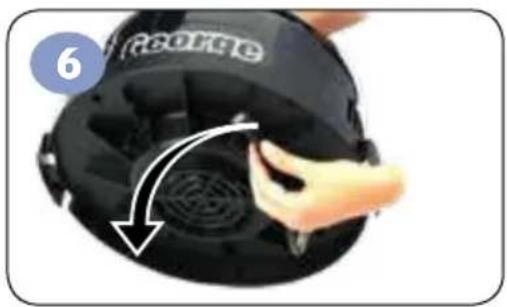

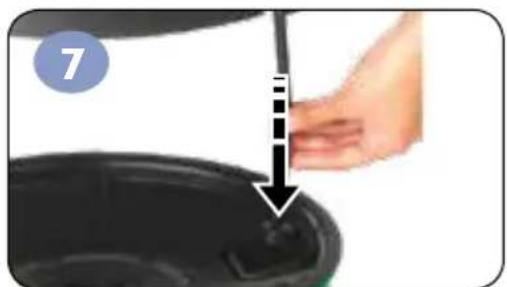

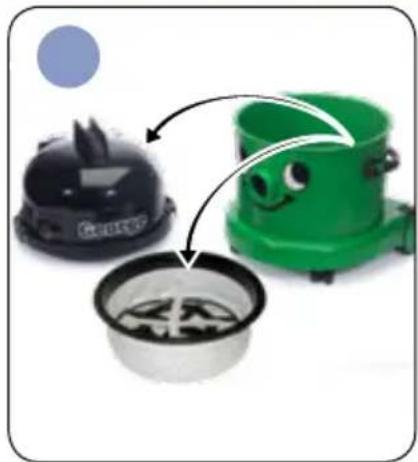

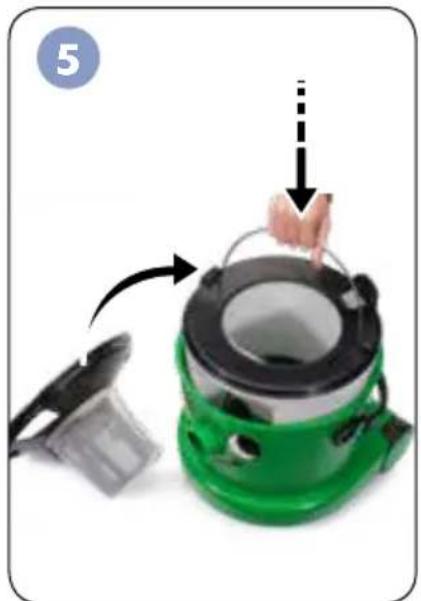

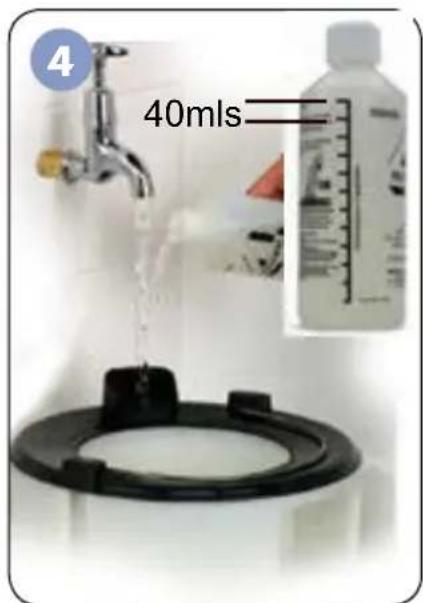

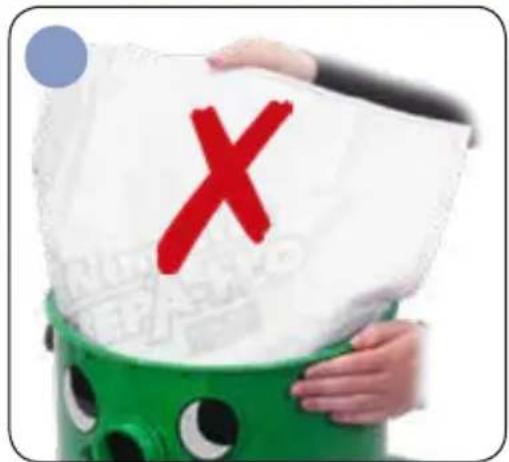

Wet - Assembling the machine for extraction use --- Montage der Maschine

Montage de la machine --- Machine samenstellen / opbouwen

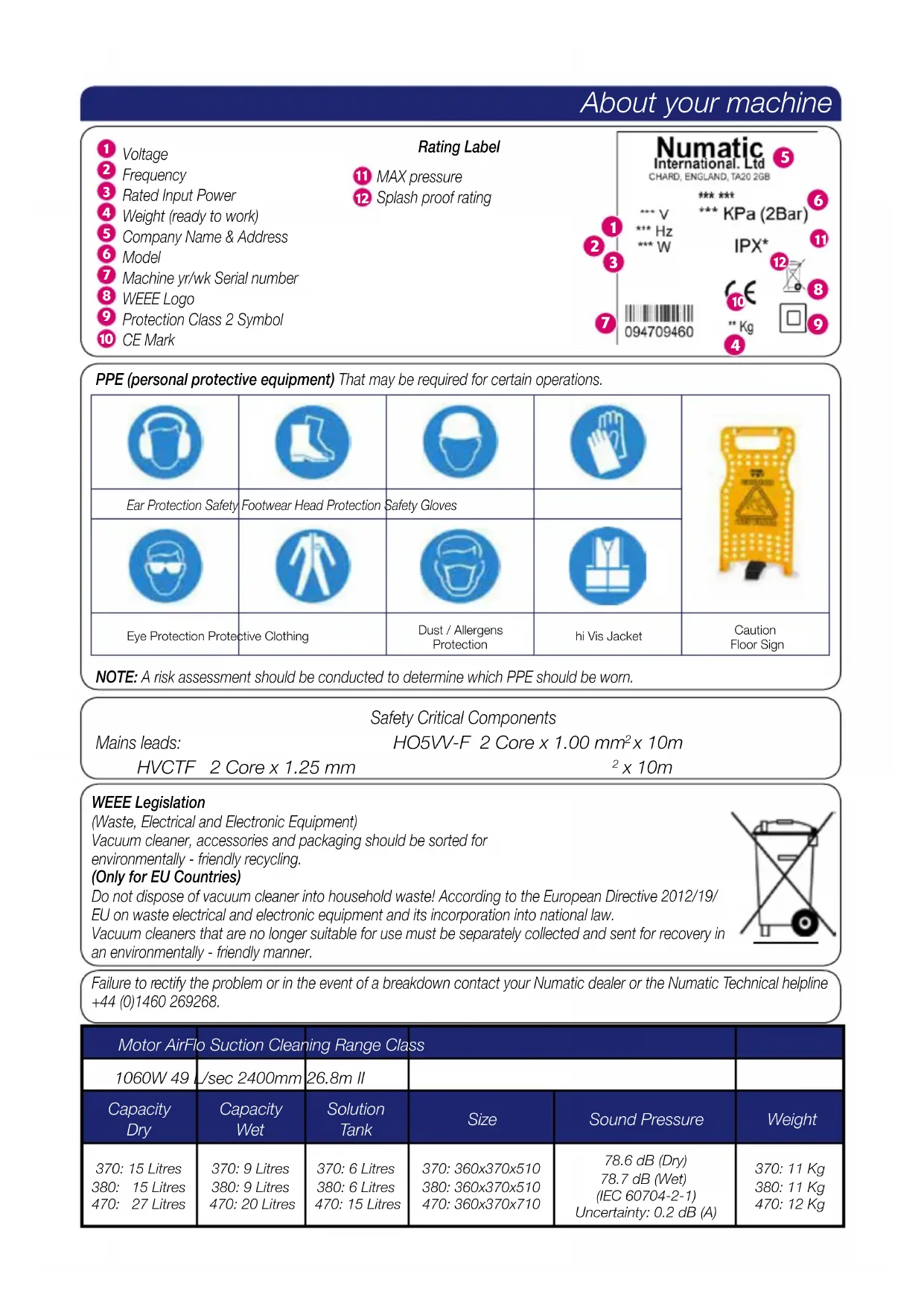

Weight (ready to work)

Company Name & Address

Model

Machine yr/wk Serial number

WEEE Logo

Protection Class 2 Symbol

CE Mark

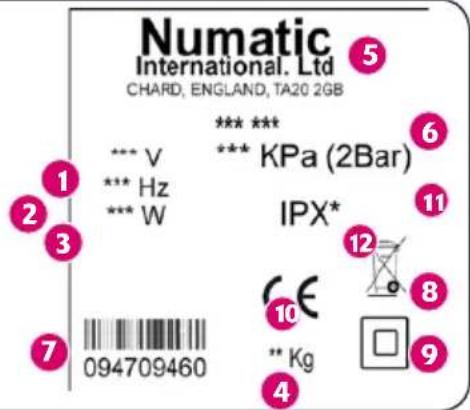

Rating Label

MAX pressure

Splash proof rating

PPE (personal protective equipment) That may be required for certain operations.

Ear Protection Safety	Footwear Head Protection	Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	hi Vis Jacket	Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Components

Mains leads:

HO5V-F 2 Core x 1.00 mm² x 10m

HVCTF 2 Core x 1.25 mm

^2 × 10m

WEEE Legislation

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone].

Motor AirFlo Suction Cleaning Range Class
1060W 49 L/sec 2400mm	26.8m II
Capacity Dry	Capacity Wet	Solution Tank	Size	Sound Pressure	Weight
370: 15 Litres	370: 9 Litres	370: 6 Litres	370: 360x370x510	78.6 dB (Dry)	370: 11 Kg
380: 15 Litres	380: 9 Litres	380: 6 Litres	380: 360x370x510	78.7 dB (Wet)	380: 11 Kg
470: 27 Litres	470: 20 Litres	470: 15 Litres	470: 360x370x710	(IEC 60704-2-1) Uncertainty: 0.2 dB (A)	470: 12 Kg

Information for wet and dry use vacuum cleaners

Warning!

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

The machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

Children being supervised are NOT to play with the machine. This appliance is intended to be assembled, cleaned and maintained by an adult. This machine is not a toy.

Caution

If foam/liquid comes out of machine exhaust, switch off immediately. Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine. Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dust. You should contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only. This machine shall be stored indoors only.

When moving from one place to another, consider the weight of the machine.

Notes

You must ensure that the filtration system fitted to the machine is suitable for the material being collected.

This product complies with the requirements of IEC/EN 60335-2-69 2012.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage, switch off, remove the plug from the socket outlet, and inspect the floor tool, wands and hose for debris. If the floor tool, wands and hose are clear, replace the dust bag and clean the filter.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

Do

• Use a bag and filter at all times when using 'dry'.
• Keep your machine clean.
• Keep filters clean.
  Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
  Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part.
• Keep diffuser filter (where fitted) clean.

Don't

Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
Immerse in water for cleaning.
- Allow any inexperienced repairs. Call the experts.
Use wet if float valve is not functioning or fitted.
Use to suck up hot ashes, or lighted cigarette ends.
- Run the machine over the power cable during operation as a hazard may occur.
Pull on the cable to unplug the machine from the power supply.
- Walk over-wet carpets, upholstery or fabrics.
- Walk on clean carpets until fully dry.
Spray onto people or animals.
- Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.

This machine can be used for dry pick up, wet pick up and cleaning carpet and upholstery

Spray extraction machines only

• Use only approved cleaning preparations.
• Use defoamer if necessary.

Use of detergents

When using any detergent with this machine, please ensure you have read the safety data on the container and you are familiar with the procedures to clear up spills, inhalation, skin and eye contact.

Dry Mode maintenance/fault finding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.

Wet mode / Spray extraction maintenance/fault finding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change. Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

If the spray nozzle is blocked a pin maybe used to clear the blockage.

No spray from nozzle and the pump tone changes, the solution tank is empty, refill the solution tank.

Flush the system with clean water after use.

After use always inspect the machine for damage.

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and filter are fitted.

Regularly examine the power cord.

Check dust bag frequently.

Check filters are clean.

Weekly - as daily and:

Check for any worn or damaged parts and replace immediately.

Do not steam clean or pressure wash.

Produktplakette

Nennspannung

Frequenz

Leistung

(Nutz-) Gewicht

^ 2X 10m

We have data under our a rarebity that to be looking equipment fulily all therelevant provin out of the following EU Directives.

Machinry Directio 2005/12/E

BMC Directive 2014/30, EU

FaHS Direcive 2011/GSEU

Machine Description: Viscu Cnir

Machine Type GvLTCTT. Hw Series

Reevernt standards upon which conformity caed ncc

2017-2018-2019-2020

ENGU335-2-682011

EN60335-2-18 2011

EN5214-3905:31:300+2-2011

EN:50142:1997+A1:2331+A2:008

EN 62233:2008

A 1000000000000000000000000000000000000000000000000000000000000000000000000

Name: Ayn Bayes

Signe

hynn-1iee2g2nlll

C- and S

18269

Develop next Manager

GB

DECLARATION DF

CONFORMITE EUROPLENNE

Machinary Dective 2006/42/EC

EMM Dinertwe 2014/30/EU

RoHS Directive 1011/68/EU

Description Machine: Aspirate

Type: Gw, Cr, CrT Ww Sioes.

La presente cariomre inclus.nes nomes d'appliabationsulcanos

1000000000000000000000000000000000000000000

0409351-68:2012

[460]5-1-8:2012

EX55014:2006-A1:2007-A7:2012

E:50041:1997-41:2001+A2:238

Ex 203 209

for each n , in order to obtain the following result.

MachinreryDriective 006/42/EC

CMCDire:2014/3/16

RoHS Destructive 2011,165/EL

Machery Direct 2006/47CC

EMC Directive 2014/30/EU

RoHS Directiv 2011/65/EJ

Omscanying machine: satay

Maie:OVE,CT,T,IV# Series.

Helicante normen wanaop de conienireit g

LN60001.2012+AL2014-011.2014

EN603.15-2-69:2002

FN60325-1-58:2012

[CN.SD241:2G6+4A:203+A7:201]

[39012:1997-22201-47:253

EN62233 2008

Machinry Dirextive 2006/11/EC

EMC Directive 2014/30/EU

HOHS DReactive 2011/65/EU

Duscrii do equipamnt Aspas at

100GVLCT.CIT.HWJN

HartmasabasacgusAchmndjdee

LN-035-1:201+AC204+411:2014

[6032-2-69.201]

EN60335-2-68:2012

EN55014-1:20CE+41:2009+A2211

CN 53004-2:1957-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7

EN6231-2008

Hn 1000000000000000000000000000000000000000000000000000000

oh antuca 30 do segnnte sigmation:

No

Ayn Enwos

C

X

Assimilator Xar

kullnllnngnllnlr

Gard 1921

1

AAT

PT

17

DICHIARAZIONE

D

CONFORMITA'UE

Sutwupnepnneepnnnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneepnneep

sucnnttne ture rdisgnizinl relatie aie sound durttte cmmllr:

Machinery Oirestwe 2006/42/EC

EMC Dircdve 2034,30/EU

Rolls Directive 2011/65/FU

Desigine dela machina, asprapcivere

Modlin:Gof,CT.CTT,HN# Series

Harma tuiis didinirr confumitv

5N6015:2012+2214+A112014

3N603352692012

ENGUH36-58:2012

155012004-12002-A201

EN55142:1997A1:2001A2:2008

102293:2008

Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND.
