USER MANUAL HD 10214 S Classic Kärcher

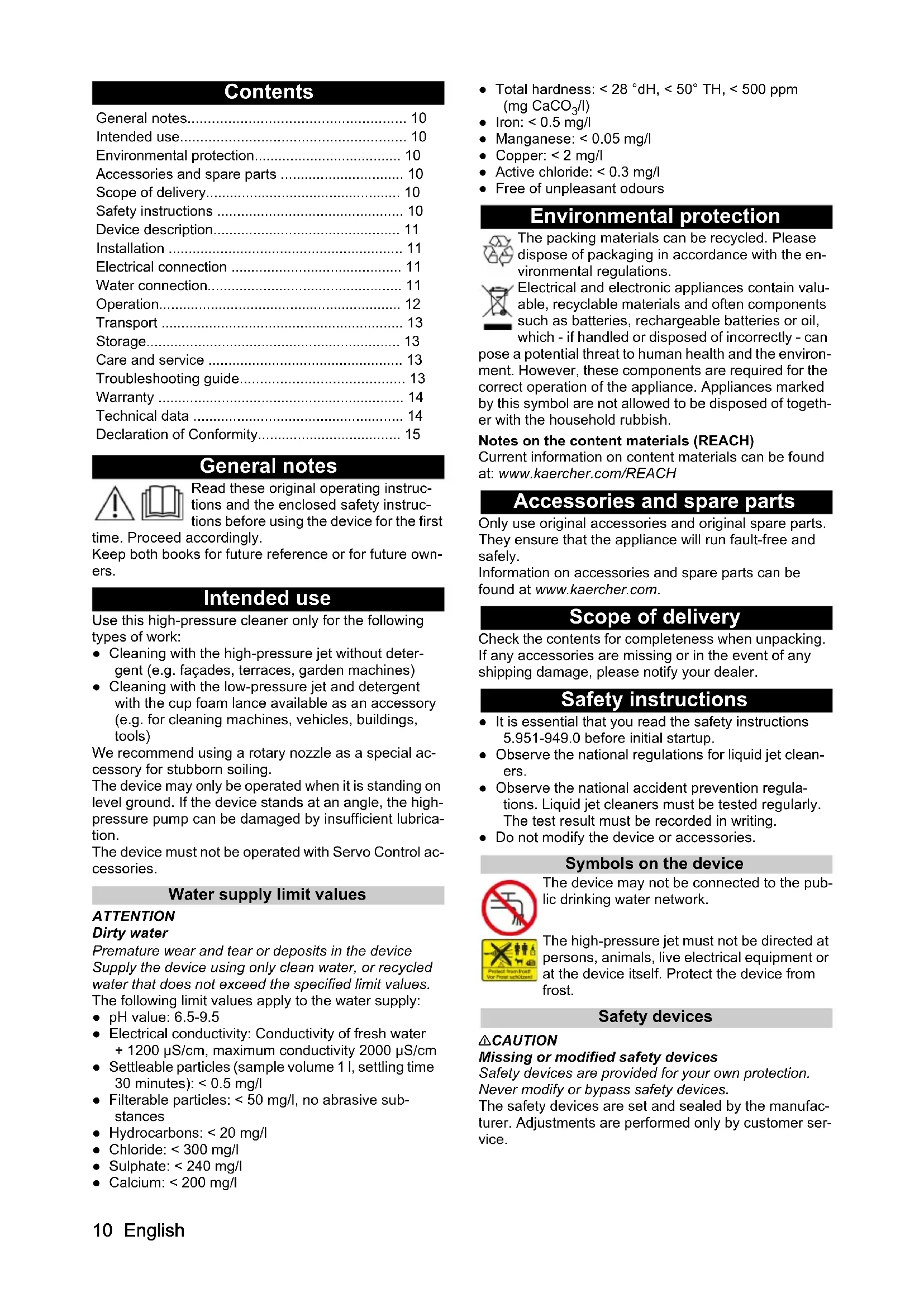

dB(A)86919193 HD 10/21-4 S HD 10/25-4 S HD 13/18-4 S HD 17/15-4 S10 English Contents General notes Read these original operating instruc- tions and the enclosed safety instruc- tions before using the device for the first time. Proceed accordingly. Keep both books for future reference or for future own- ers. Intended use Use this high-pressure cleaner only for the following types of work: ● Cleaning with the high-pressure jet without deter- gent (e.g. façades, terraces, garden machines) ● Cleaning with the low-pressure jet and detergent with the cup foam lance available as an accessory (e.g. for cleaning machines, vehicles, buildings, tools) We recommend using a rotary nozzle as a special ac- cessory for stubborn soiling. The device may only be operated when it is standing on level ground. If the device stands at an angle, the high- pressure pump can be damaged by insufficient lubrica- tion. The device must not be operated with Servo Control ac- cessories. Water supply limit values ATTENTION Dirty water Premature wear and tear or deposits in the device Supply the device using only clean water, or recycled water that does not exceed the specified limit values. The following limit values apply to the water supply: ● pH value: 6.5-9.5 ● Electrical conductivity: Conductivity of fresh water + 1200 µS/cm, maximum conductivity 2000 µS/cm ● Settleable particles (sample volume 1 l, settling time 30 minutes): < 0.5 mg/l ● Filterable particles: < 50 mg/l, no abrasive sub- stances ● Hydrocarbons: < 20 mg/l ● Chloride: < 300 mg/l ● Sulphate: < 240 mg/l ● Calcium: < 200 mg/l ● Total hardness: < 28 °dH, < 50° TH, < 500 ppm (mg CaCO

• /l) ● Iron: < 0.5 mg/l ● Manganese: < 0.05 mg/l ● Copper: < 2 mg/l ● Active chloride: < 0.3 mg/l ● Free of unpleasant odours Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer. Safety instructions ● It is essential that you read the safety instructions 5.951-949.0 before initial startup. ● Observe the national regulations for liquid jet clean- ers. ● Observe the national accident prevention regula- tions. Liquid jet cleaners must be tested regularly. The test result must be recorded in writing. ● Do not modify the device or accessories. Symbols on the device The device may not be connected to the pub- lic drinking water network. The high-pressure jet must not be directed at persons, animals, live electrical equipment or at the device itself. Protect the device from frost. Safety devices 몇 CAUTION Missing or modified safety devices Safety devices are provided for your own protection. Never modify or bypass safety devices. The safety devices are set and sealed by the manufac- turer. Adjustments are performed only by customer ser- vice. General notes p. 10
• Intended use p. 10
• Environmental protection p. 10
• Accessories and spare parts p. 10
• Scope of delivery p. 10
• Safety instructions p. 10
• Device description p. 11
• Installation p. 11
• Electrical connection p. 11
• Water connection p. 11
• Operation p. 12
• Transport p. 13
• Storage p. 13
• Care and service p. 13
• Troubleshooting guide p. 13
• Warranty p. 14
• Technical data p. 14
• Declaration of Conformity English 11 Pressure switch When the trigger on the high-pressure gun is released, the pressure switch switches off the high-pressure pump and the high-pressure jet stops. The pump switches on again when the trigger is pulled. Pressure relief valve When the water quantity is reduced via the pressure and quantity regulator on the trigger gun, the overflow valve opens and part of the water flows back to the suc- tion side of the pump. Motor circuit breaker The motor circuit breaker shuts off the device if power consumption it too high. Device description Device overview Illustration A 1 Oil drain screw 2 Oil level gauge 3 Bleed screw 4 Type plate 5 Power switch 6 Hose hook, cable hook 7 Push handle 8 Union nut 9 High-pressure nozzle 10 Spray lance EASY!Lock Classic 11 High-pressure gun EASY!LOCK Classic 12 Safety latch 13 Trigger 14 High-pressure hose EASY!LOCK Classic 15 Spray lance holder 16 Accessory compartment 17 Pressure and quantity regulation 18 EASY!Lock high-pressure connection 19 Fine filter 20 Water connection Colour coding ● Control elements for the cleaning process are yel- low. ● Control elements for maintenance and servicing are light grey. Installation Fastening the push handle p. 15

1. Plug the push handle connection onto the pipe

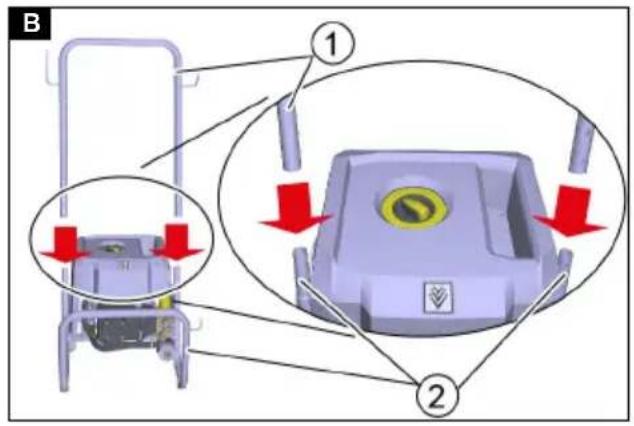

frame. Illustration B 1 Push handle 2 Pipe frame

2. Secure both joints with screws, washers and nuts.

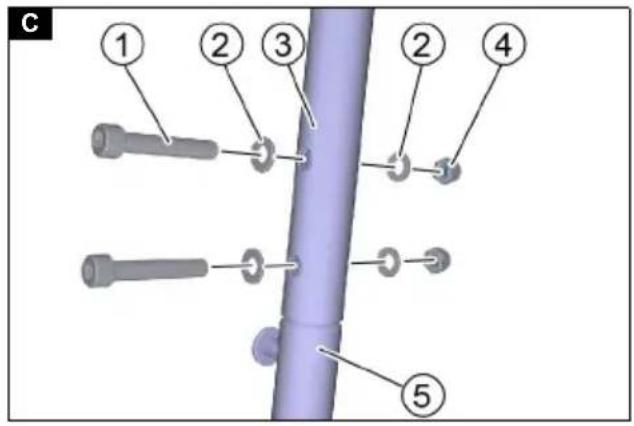

Illustration C 1 Screw M8x45 2 Washer 8 3 Push handle 4 Nut M8, self-locking 5 Pipe frame Installing the oil bleed screw

1. Unscrew the plug and dispose of it.

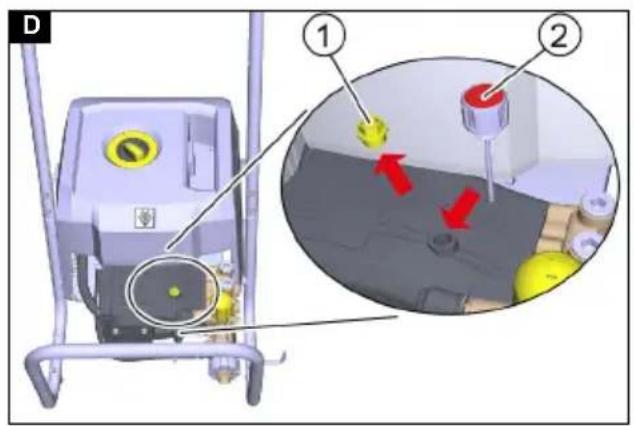

Illustration D 1 Plugs 2 Bleed screw

2. Screw in and tighten the bleed screw.

ATTENTION Risk of damage If the plug is not replaced with the bleed screw before operation, the high-pressure pump may be damaged. Be sure to replace the plug with the bleed screw. Check the oil level

1. Position the device on a level surface.

2. The oil level must be in the middle of the oil level dis-

the oil (see "Technical data"). Installing accessories Note The EASY!Lock system connects components quickly and safely via a single turn of the quick-release thread.

1. Plug the high-pressure nozzle onto the spray lance.

2. Fit the union nut and hand-tighten (EASY!Lock).

3. Connect the spray lance to the high-pressure gun

and hand-tighten (EASY!Lock).

4. Connect the high-pressure hose to the high-pres-

sure gun and high-pressure connection of the de- vice and tighten hand-tight (EASY!Lock). Electrical connection DANGER Risk of injury from electric shock Use a plug to connect the device to the mains grid. Per- manent connection to the mains grid is prohibited. The plug is used for mains isolation. Only connect the device to an AC power source. Use an extension cable with sufficient diameter (see "Technical data"). Unwind the extension cable completely from the cable drum.

1. Unwind the mains cable and place on the ground.

2. Plug the mains plug into the socket.

Water connection Connection to a water line 몇 WARNING Return flow of dirty water into the drinking water network Health risk Observe the regulations of your water supply company. According to applicable regulations, the device must never be used with the drinking water network without a system separator. Use a system separator from KÄRCHER or a system separator as per EN 12729 Type BA. Water that has flowed through a system sep-12 English arator is classified as undrinkable. Always connect the system separator to the water supply and never directly to the water connection on the device.

1. Check the supply pressure, supply temperature and

supply volume of the water supply (see chapter Technical data).

2. Connect the system separator to the water connec-

tion of the device using a water supply hose (for the requirements placed on the water supply hose see chapter Technical data).

3. Open the water inlet.

Sucking water from a container

1. Screw the suction hose with filter onto the water

connection (for the order number see chapter Tech- nical data).

2. Vent the device (see chapter Vent the device).

1. Unscrew the high-pressure nozzle from the spray

2. Allow the device to run until the escaping water is

free of air bubbles.

3. In the case of venting problems, allow the device to

run for 10 seconds and then switch it off. Repeat the procedure several times.

4. Switch off the device.

5. Screw the high-pressure nozzle onto the spray

lance. Operation DANGER High-pressure water jet Risk of injury Never fasten the trigger in the actuated position. Push the safety latch of the high-pressure gun forwards every time before starting work with the device. Hold the high-pressure gun and spray lance with both hands. 몇 WARNING Defective device and accessories, defective supply lines and connections Danger of injury The device may only be operated when in a correct op- erating condition. High-pressure operation Note The device is equipped with a pressure switch. The mo- tor only starts up when the high-pressure gun is open.

1. Set the power switch to "1".

2. Unlock the trigger gun by pushing the safety latch to

3. Pull the trigger of the high-pressure gun.

4. Adjust the working pressure and water quantity by

turning (infinitely adjustable) the pressure and quan- tity regulator (+/-) Operation with detergent 몇 WARNING Incorrect handling of detergents Health risk Adhere to the safety instructions stated on the detergent packaging. ATTENTION Unsuitable detergents Damage to the device and the objects to be cleaned Use only detergents approved by KÄRCHER. Observe the dosing recommendations and notes pro- vided with the detergent. Use detergents sparingly to help conserve the environ- ment. Note KÄRCHER detergents ensure fault-free operation. Ask us for a consultation, request our catalogue or our de- tergent information sheets. Note A cup foam lance (optional)is needed for operating with detergent.

1. Unscrew the container.

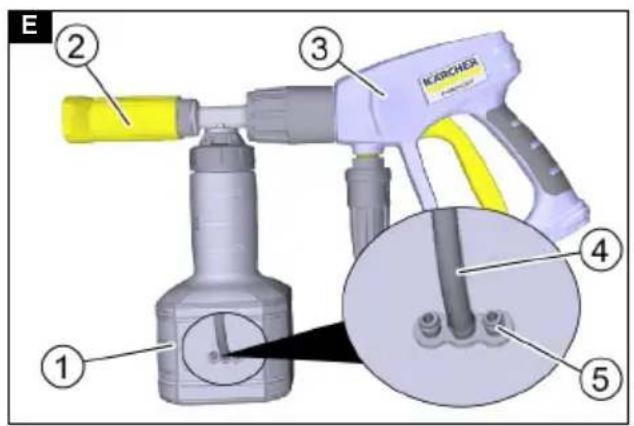

Illustration E 1 Container 2 Foam nozzle 3 High-pressure gun 4 Suction hose 5 Gate Detergent mixing: 3=high, 2=medium, 1=low

2. Plug the desired gate into the suction hose.

3. Fill the detergent into the container.

4. Screw the container onto the foam nozzle.

5. Disconnect the spray lance from the high-pressure

6. Connect the cup foam lance to the high-pressure

gun and hand-tighten.

7. Start up the high-pressure cleaner.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and

let it work for a while (do not let it dry).

2. Rinse off the loosened dirt with the high-pressure

jet. After operating with detergent The cup foam lance must be flushed after use to prevent the formation of detergent deposits.

1. Unscrew the container.

2. Pour the remaining detergent back into the original

3. Fill the container with clear water.

4. Screw the container onto the cup foam lance nozzle.

5. Operate the cup foam lance for approx. 1 minute to

Interrupting operation

1. Close the high-pressure gun.

The device switches off.

2. Push the safety latch forwards.

The high-pressure gun is secured. Continuing operation

1. Push the safety latch backwards.

The high-pressure gun is unlocked.

2. Open the high-pressure gun.

The device switches on. Finishing operation

1. Close the water inlet.

2. Open the high-pressure gun.

3. Set the trigger to "I/ON" and allow the device to run

4. Close the high-pressure gun.

5. Set the power switch to "0/OFF".English 13

6. Pull the mains plug out of the socket only when your

8. Open the high-pressure gun until the device is com-

pletely depressurised.

9. Push the safety latch forwards.

The high-pressure gun is secured. Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transport and storage. Transporting the device in vehicles: Secure the de- vice in accordance with the respectively applicable guidelines to prevent it from slipping or overturning. Transporting the device over longer distances: Pull or push the device using the push handle. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transport and storage. Store the device indoors only. Storing the device

1. Place the spray lance with the high-pressure gun on

the two spray lance supports.

2. Roll up the mains cable and hang it over the cable

3. Wind up the high-pressure hose and hang it on the

hose hook. Frost protection ATTENTION Frost Destruction of the device through freezing water Drain all water from the device. Store the device in a frost-free location. If frost-free storage is not possible:

2. Pump commonly available anti-freeze through the

device. Note Use commonly available, Glycol-based vehicle anti- freeze. Observe the handling instructions of the anti- freeze manufacturer.

3. Allow the device for run for a maximum of 1 minute

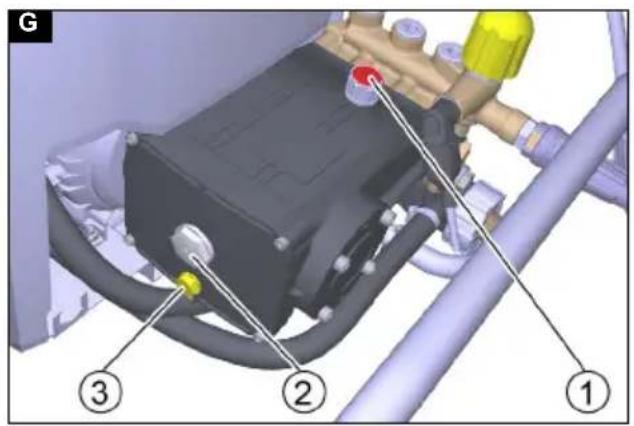

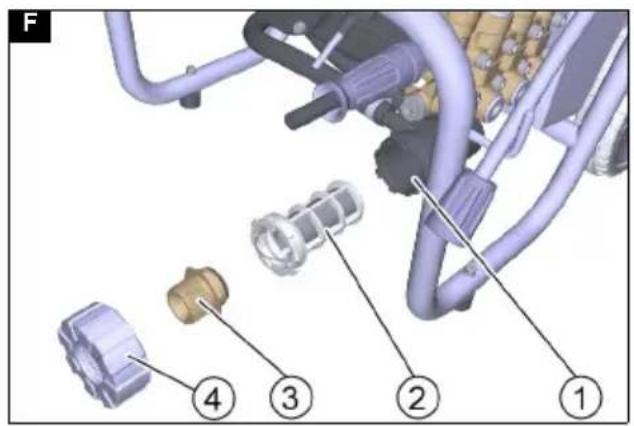

until the pump and lines are empty. Care and service DANGER Inadvertently starting up device Risk of injury, electric shock Switch off the device immediately and unplug the mains plug before performing work. Note Old oil may only be disposed of at designated collection points. Please dispose of any old oil at these locations. Pol- luting the environment with old oil is punishable by law. Safety inspection/maintenance contract You can agree on regular safety inspections or close a maintenance contract with your dealer. Please seek ad- vice on this. Maintenance intervals Each time before use Check the mains cable for damage. Have a damaged cable replaced immediately by the authorised Customer Service or a qualified electri- cian. Check the high-pressure hose for damage. Immediately replace a damaged high-pressure hose. Check the device for leaks. 3 drops of water per minute are permissible. Contact Customer Service in the case of more serious leaks. Weekly Check the oil level. Contact Customer Service im- mediately if the oil is milky (water in oil). Clean the fine filter. Illustration F 1 Filter housing 2 Fine filter 3 Connection nozzle 4 Union nut a Unscrew the union nut. b Pull out the connection nozzle. c Pull the fine filter out of the filter housing. d Rinse the fine filter with clear water or blow it out with compressed air. e Insert the fine filter into the filter housing. f Attach the connection nozzle. g Screw on the union nut and hand-tighten. Every 500 operating hours, at least annually Have the device serviced by Customer Service. Change the oil in the high-pressure pump. Illustration G 1 Bleed screw 2 Oil level gauge 3 Oil drain screw a Unscrew the oil drain plug. b Drain the oil into a suitable collection container. c Screw in and tighten the oil drain screw. d Unscrew the bleed screw. e Fill in new oil slowly so that air bubbles can es- cape. See the "Technical data" section for the oil volume and type. f Re-install the bleed screw. Troubleshooting guide DANGER Inadvertently starting up device, touching live com- ponents Risk of injury, electric shock Switch off the device before performing any work on the device. Remove the mains plug. Have all checks and work on electrical parts performed by a qualified electrician. In case of any malfunctions not mentioned in this chap- ter, contact the authorised Customer Service. The device cannot be started

a Set the power switch to "0/OFF". b Allow the device to cool for at least 15 minutes. c Set the trigger to the "I/ON" position.

4. Contact Customer Service in the case of electrical

faults. Device does not reach required pressure

1. Check that the high-pressure nozzle is the right size

(see chapter "Technical data").

2. Clean or replace the nozzle.

3. Vent the device (see chapter "Venting the water con-

5. Check the water supply volume (compare with the

The water quantity is too low

1. When using a long high-pressure hose or a high-

pressure hose with a small diameter, fit a larger high-pressure nozzle to the spray lance. The pump is leaking. Up to 3 drops of water per minute are permissible. In case of more serious leaks, have the device checked by Customer Service. The pump knocks

1. Check the water supply volume (compare with the

required volume specified in the "Technical data" chapter).

2. Vent the device (see chapter "Venting the water con-

The detergent dosing volume is too low

1. Check that the cup foam lance used matches the

flow rate of the device.

2. Refill the cup of the cup foam lance.

3. Plug a larger gate onto the suction hose.

4. Check the suction hose and cup foam nozzle for de-

tergent deposits. Remove deposits using lukewarm water.

5. Contact Customer Service if necessary.

The foam formation is too low

1. Check that the cup foam lance used matches the

flow rate of the device.

2. Check the suction hose and cup foam lance for de-

tergent deposits. Remove deposits using lukewarm water.

3. Contact Customer Service if necessary.

Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Technical data HD 10/21-4 S HD 10/25-4 S HD 13/18-4 S HD 17/15-4 S Country variant Country EU EU EU EU Electrical connection Voltage V 400 400 400 400 Phase ~3333 Frequency Hz 50 50 50 50 Maximum permissible mains grid impedance Ω - 0.04

Water connection Feed pressure (max.) MPa1111 Input temperature (max.) °C 60 60 60 60 Input amount (min.) l/min 20 20 25 31,6 Suction height (max.) m 0,5 0,5 0,5 0,5 Minimum water supply hose length m 7,5 7,5 7,5 7,5 Minimum water supply hose diameterin1111 Suction filter order number 4.730-012.0 4.730-012.0 4.730-012.0 4.730-012.0 Device performance data Nozzle size of standard nozzle 050 045 075 105 Water operating pressure with standard nozzle MPa21251815English 15 Exception according to Regulation (EU) 2019/1781 An- nex I Section 2 (12): j) Subject to technical changes without notice. Declaration of Conformity We hereby declare that the machine described below com- plies with the relevant basic safety and health require- ments in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: High-pressure cleaner Type: 1.367-xxx Currently applicable EU Directives 2000/14/EC 2006/42/EC (+2009/127/EC) 2011/65/EU 2014/30/EU 2009/125/EC Commission Regulation(s) (EU) 2019/1781 Harmonised standards used EN 60335-1 EN 60335-2-79 EN IEC 63000: 2018 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 1997 + A1: 2001 + A2: 2008 EN 61000-3-2: 2014 EN 61000-3-3: 2013 HD 10/21-4 S Classic EN 61000-3-11: 2000 HD 13/18-4 S Classic HD 10/25-4 S Classic HD 17/15-4 S Classic EN 62233: 2008 National standards used

Applied conformity evaluation method 2000/14/EG: Annex V Sound power level dB(A) HD 10/21-4 S Classic Measured: 84 Guaranteed: 86 HD 13/18-4 S Classic Measured: 89 Guaranteed: 91 HD 10/25-4 S Classic Measured: 89 Guaranteed: 91 HD 17/15-4 S Classic Measured: 91 Guaranteed: 93 The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: [phone] Fax: [phone] Winnenden, 2022/08/01 We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construc- tion as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: High-pressure cleaner Type: 1.367-xxx Currently applicable UK Regulations S.I. 2001/1701 (as amended) S.I. 2008/1597 (as amended) S.I. 2012/3032 (as amended) Operating pressure (max.) MPa 27 31 24
