Product type	Juice extractor
Brand	Adler
Model	AD 4128
Power supply	220-240 V ~ 50/60 Hz
Rated power	1000 W
Maximum power	2000 W
Speeds	2 speeds: Low (1) and High (2)
Maximum operating time	3 minutes without interruption, then 20 minutes rest
Pulp container capacity	Large container included
Filter material	Stainless steel (grater and sieve)
Bowl and lid material	Plastic
Safety	Safety switch (lock), locking handle
Dishwasher-safe parts	Lid, separator bowl, pulp container, juice jug
Non-dishwasher-safe parts	Motor base, stainless steel filter (hand wash only)
Cleaning the motor base	Wipe with a damp cloth, do not immerse
Accessories included	Pusher, pulp container, juice jug, filter, lid, separator bowl
Repairability	Repairs by a qualified professional only
Warranty	Different conditions for commercial use

Frequently Asked Questions - AD 4128 ADLER

What is the power of the Adler AD 4128 juice extractor?

The extractor has a rated power of 1000 W and a maximum power of 2000 W.

How long can I use the extractor continuously?

The maximum operating time is 3 minutes without interruption, after which you must let the appliance cool down for 20 minutes.

What are the two speeds available and when to use them?

The switch has 3 positions: '0' for off, '1' for Low speed and '2' for High speed. Use low speed for soft fruits and high speed for hard fruits like carrots.

Can I wash the parts in the dishwasher?

Yes, the lid, separator bowl, pulp container and juice jug are dishwasher safe. Do not put the motor base or stainless steel filter in the dishwasher.

How to clean the stainless steel filter?

Rinse the filter immediately after use under running water. For deep cleaning, soak it in hot soapy water for about 10 minutes. Use a soft brush if necessary, avoid abrasive pads.

What if the filter is clogged with dried pulp?

Soak the filter in hot soapy water to soften the pulp. Gentle brushing may help. Avoid letting pulp dry to preserve the extractor's efficiency.

Does the appliance have a safety device?

Yes, the extractor is equipped with a safety switch that prevents accidental startup and a locking handle that must be closed for the appliance to operate.

Can I use the extractor without the lid?

No, the appliance must only be used with the lid in place and the locking handle closed for safety reasons.

How to start the extractor?

Make sure all parts are properly installed and the locking handle is closed. Plug in the appliance and set the switch to position '1' or '2' according to the desired speed.

What if the appliance does not start?

Check that the safety lock is engaged and the lid is correctly positioned. The safety switch prevents startup if these conditions are not met.

USER MANUAL AD 4128 ADLER

ADLER brand juice<|im_start|> Greenland tea maker with clear glass and yellow liquid, no visible text or symbols on the device itself.

AD 4128

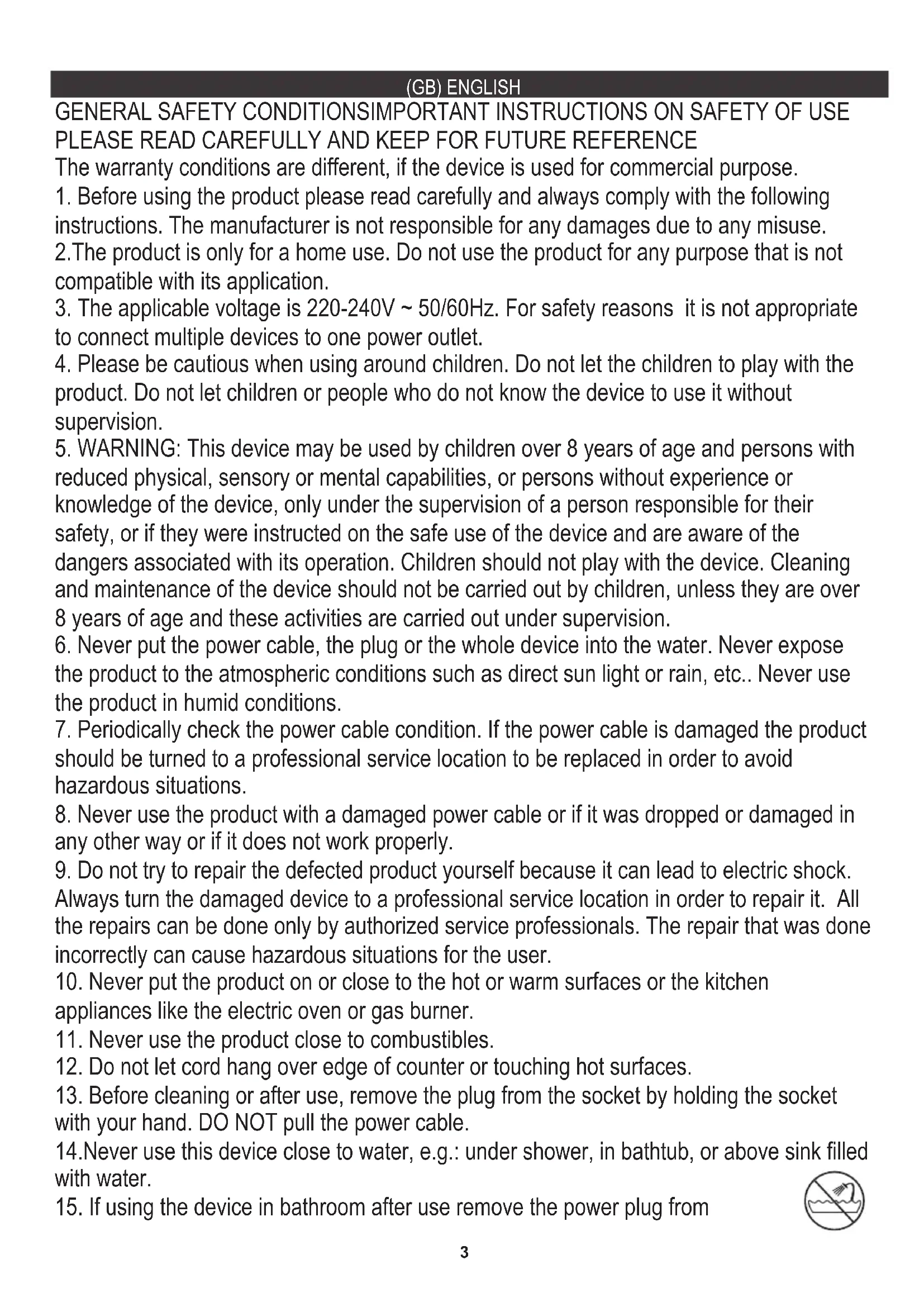

GENERAL SAFETY CONDITIONSIMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only for a home use. Do not use the product for any purpose that is not compatible with its application.
3. The applicable voltage is 220-240V \~ 50/60Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
6. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
7. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
8. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly.
9. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
11. Never use the product close to combustibles.
12. Do not let cord hang over edge of counter or touching hot surfaces.
13. Before cleaning or after use, remove the plug from the socket by holding the socket with your hand. DO NOT pull the power cable.
14. Never use this device close to water, e.g.: under shower, in bathtub, or above sink filled with water.
15. If using the device in bathroom after use remove the power plug from

the power socket, because water proximity presents risk, even if the device is turned off.

1. Do not allow the device or power adaptor to wet. If the device falls into water, immediately remove the power plug or power adaptor from the socket. If the device is powered, do not put hands in the water. Have the device checked by the qualified electrician before using it again.
2. Do not touch the device with wet hands.
3. The device has to be turned off after every use.
4. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
5. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.
6. Before you turn on your device, make sure that all parts are installed correctly. Plug it only with put on cover (8), well established security arm (11), properly installed feeder (2).
7. Before each use, check out the juicer filter. If you see any cracks or damage, do not use the device.
8. Use the device only when the safety lock is closed.
9. Do not touch the blades of small mesh filter and stainless steel grater (9).
10. Use only accessories supplied by the manufacturer.
11. Do not remove the container to a pulp during the operation.
12. During operation, do not put your hands or any objects into feeder (2). To push fruits, use only the pusher (1).
13. Fruits should be put into feeder during operation, you can not fill feeder with fruit or vegetable at a standstill.
14. Be careful not to overload the juicer, do not use too much force to push products through the filling hole (2).
15. Always unplug the appliance and disconnect the power cord from the unit when not in use, or want to start cleaning it.
16. Do not disassemble the juicer if it is plugged into a power outlet.
17. Open safety lock after switching off the appliance and filter stops.
18. Do not immerse the motor part in water or any other liquid.
19. The device can not work longer than 3 minutes without interruption. After three minutes, wait 20 minutes.
20. During the extrusion of thick juice juicers do not switch on more than 1 minute.

DESCRIPTION OF DEVICE

1. Pusher 2. Feeder

2. Pulp container 4. Power cord

5.3-position switch 6. Base with motor

1. Spout 8. Cover

2. Grater and filter sieve 10. Juice and pulp separating bowl

3. Safety locking handle 12. Safety switch

BEFORE FIRST USE

1. Wash the parts of the unit, which will be in contact with food.

2. Try to assemble and disassemble the unit for a few times before start working with the units.

ASSEMBLING THE DEVICE

1. Place the juice and pulp separating bowl (10) on the base (6).
2. Install the stainless steel grater and filter sieve (9) and then put the cover on (8).
3. Be careful not to touch the sharp teeth on the bottom of the sieve.
4. Make sure that the sieve sits properly on its base, so that the gear on the bottom of the sieve bowl engages the gear in the base.
5. Make sure that the grater and filter sieve are not too loose on the base and that they rotate evenly.
6. Close the safety locking handle (11).
7. Insert the large pulp container (3) correctly, place the juice jug on the opposite side of the juicer. NOTE: Before turning the device on, make sure that all parts are properly installed.

USE

1. Place the juicer on a smooth, flat and stable surface.
2. Wash the fruit or vegetables you want to use. In case they do not fit in the feeder (2), cut them into smaller pieces.
3. Make sure the juicer is assembled correctly.
4. Make sure that the stainless steel filter (9) has been thoroughly washed.
5. Make sure the juice jug is placed under the spout (7).
6. Put the plug into the power socket and turn on the device by setting the switch to the '1' or '2' position. Depending on the fruit or vegetables used, use the speed switch (5) to change the speed to low (switch in '1' position) or high (switch in '2' position).
7. With the engine running, place the fruit (or vegetables) in the feeder (2). Use the pusher (1) to push them down. To get as much juice as possible, push the fruit slowly.
8. Juice will start to drain into the jug and the pulp will start to collect in the container on the other side. To empty the pulp container (3), switch off the juicer. Do not empty the container when the device is running and be careful not to overfill it, it may damage the device.
   NOTE: The machine is fitted with a safety switch (12). It prevents the juicer from being started unintentionally.

DISASSEMBLY OF THE DEVICE

1. Turn the 3 position switch (5) to the '0' position. Unplug the power cord of the juicer from the power socket. Release the safety handle (11).
2. Remove the cover (8).
3. Remove the juice and pulp separating bowl (10), then pull the stainless steel grater and filter basket (9) upwards.

CLEANING AND MAINTENANCE

1. For easy cleaning - immediately after each use rinse removable parts under running water (to remove wet pulp). Allow parts to dry.
2. After disassembling the unit all removable parts may be washed in hot soapy water.
3. The cover (8) with the feeder (2), juice and pulp separating bowl (10), pulp container (3) and juice jar are dishwasher safe.
4. Wipe the motor base (6) with a damp cloth.
5. Do not soak the stainless steel grater and filter sieve (9) in bleach.
6. Always treat the filter (9) with care as it can be easily damaged.
7. Discoloration of the plastic may occur with strongly colored fruit and vegetables. To help prevent this, wash parts immediately after use.
8. If discoloration does occur, the plastic parts can be soaked in 10% lemon juice and water or they can be cleaned with a non-abrasive cleaner. To assist with cleaning soak the stainless steel grater and filter sieve (9) in hot soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the filter it may clog the fine pores of the filter mesh thereby lessening the effectiveness of the juicer.
   NOTE: Never immerse the motor part in water or rinse under the tap.
9. Do not use abrasive pads or aggressive agents for cleaning.

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Nominal power: 1000W

Maximum power: 2000W

Maximum operation time: 3min - 20 minutes break

Two speeds mode: Hi - switch in position '2', Low - switch in position '1'.

Please transfer cardboard packaging to waste paper. Pour the polyethylene bags (PE) into the plastic container Worn device should be returned to the appropriate point storage because it is dangerous in the device ingredients may pose a threat to the environment. The electrical device should be handed over to limit its reuse and use. If in the device there are batteries you have to take out and give to the point stored separately.
