Power Titan 1200 XL PerfectCream&Crush - Hand blender CECOTEC - Free user manual and instructions

Product Type	Immersion blender with accessories
Brand	Cecotec
Model	Power Titan 1200 XL PerfectCream&Crush
Reference	04293
Rated Power	1200 W
Voltage / Frequency	220-240 V ~ 50 Hz
Motor	Powerful 1200 W motor with variable speed and Turbo function
Speed Control	Rotary speed selector and Turbo button for maximum power
Included Accessories	Blender shaft with blades, whisk for egg whites, beaters, potato masher, 600 ml chopper bowl, IceBlade blade for ice, mixing glass with lid
Chopper Bowl Capacity	600 ml
Maximum Filling Capacity (Chopper Bowl)	Meat 300 g, spices 80 g, nuts 250 g, cheese 250 g, onion 300 g
Mixing Glass Capacity	800 ml
Whisk Capacity (Cream)	1000 ml (max 6 egg whites)
Blade Material	Stainless steel (estimated)
Chopper Bowl Material	Plastic (estimated)
Color	Black (Power TitanBlack)
Care and Cleaning	Dishwasher safe: glass, blender shaft, whisks, chopper bowl, blades. Motor and lid: damp cloth. Do not immerse.
Safety	Very sharp blades, do not leave unattended, do not immerse motor, do not blend hot foods, unplug before cleaning
Maximum Recommended Usage Time	Whisk: 1 minute; hard foods: 10 seconds; chopping: 10-15 seconds
Warranty	2 years (excluding misuse and consumable parts)
After-Sales Service	Official Cecotec Customer Service: [phone]
Spare Parts and Repairability	Blades, whisks, chopper bowl and other accessories available through customer service. Do not disassemble yourself.
General Information	Domestic use only. Supplied with instruction manual. Weight and dimensions not provided.

Frequently Asked Questions - Power Titan 1200 XL PerfectCream&Crush CECOTEC

How to use the chopper bowl?

Cut the food into 1-2 cm pieces, place the blade (normal or IceBlade) in the container, add the food, attach the lid, then the motor. Plug in and press the connection button. Do not exceed the maximum capacities indicated (meat 300 g, etc.). After use, unplug and clean.

Can I wash the parts in the dishwasher?

Yes, the glass, blender shaft, whisks, chopper bowl container and blades (normal and IceBlade) are dishwasher safe. Do not use too much detergent. The motor and lid should be cleaned with a damp cloth. Never immerse the motor.

Can the blender crush ice?

Yes, thanks to the special IceBlade blade for crushing ice. Use it in the chopper bowl. Do not exceed 10 seconds of continuous operation and allow to cool between uses.

How to change accessories?

The Fix Plus system makes assembly and disassembly easy. Align the motor handle with the accessory and click into place. To remove, pull while pressing the release button if present (not mentioned, but generally on Cecotec). Ensure the appliance is unplugged before changing accessories.

What is the maximum usage time?

For the whisk, do not exceed 1 minute continuously. For hard foods (chopping), limit to 10 seconds. For normal blending, take breaks. The Turbo function may cause overheating if used too long.

Can I blend hot soups?

No, do not introduce hot ingredients for blending or chopping. Allow food to cool before blending. The measuring glass does not support hot liquids. Also, steam may eject the lid and cause burns.

What to do if the appliance jams?

Unplug the appliance immediately. Remove the food blocking the blades. Clean the blades carefully. Do not attempt to force the motor. If the jam persists, contact Cecotec customer service.

How to use the potato masher?

Place the potato masher on the blender shaft. Plug in, select a high speed with the selector. Dip into cooked vegetables and press the operation button. Move gently until the desired texture. Unplug after use.

What is the warranty of the appliance?

The warranty is 2 years from the date of purchase, with an invoice. It covers manufacturing defects, but not normal wear, damage due to incorrect use or repairs by unauthorized persons. Contact customer service at [phone].

How to safely clean the blades?

The blades are very sharp. Handle them with care. Wash them in the dishwasher or by hand with a brush. Do not touch them directly. After blending salty foods, rinse immediately with water to prevent corrosion.

USER MANUAL Power Titan 1200 XL PerfectCream&Crush CECOTEC

Product display of a Cecotec brand blender with various kitchen utensils and a clear cup (no visible text or symbols)

Safety instructions 6

1. Parts and components 28
2. Before use 29
3. Operation 29
4. Cleaning and maintenance 31
5. Technical specifications 31
6. Disposal of old electrical appliances 32
7. Technical support and warranty 32

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. All safety instructions should be closely followed when using the appliance.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Unplug from outlet when not in use, before assembling or disassembling parts, and before cleaning.

Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support

Service of Cecotec in order to avoid any type of danger.

Do not use the product outdoors, close to electric plates, gas, flames or inside an oven.

Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or countertop.

The blades inside the product are very sharp, handle them carefully to avoid any possible cut.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

Do not plug the appliance into the power supply until it is fully assembled and make sure it is unplugged before disassembling the appliance or handling its blade.

Do not place hot ingredients inside the appliance.

This product is designed only for household use.

Do not use the blender for longer than 1 minute and do not blend hard food for longer than 10 seconds.

Do not introduce any utensil inside the product during operation in order to reduce risk of injuries to persons or damage to the product. Please handle it with care.

Take special care when handling the sharp cutting blades, emptying the container and also when cleaning the device.

This product can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Do not introduce any utensil inside the product during operation in order to reduce risk of injuries to persons or damage to the product.

The device may cause injury if misused.

The appliance must be at room temperature after each process.

Make sure to keep the measuring lid in its position when blending hot liquids or ingredients.

Be careful when pouring hot liquids into the device as it can be ejected out of the appliance due to a sudden steaming.

The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

This product can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Supervise children, they shall not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Keep this appliance and its power cord out of reach of children under the age of 8.

INSTRUCTIONS DE SÉCURITÉ

Fix Plus System: Enables an easier assembly and disassembly of the blender and its attachments.

Main body (handle)

Fig. 1

1. Speed-control dial
2. Power button
3. Turbo button
4. Main housing

Fig. 2

1. Blade

Fig. 3

1. Blending cup for blades or whisks

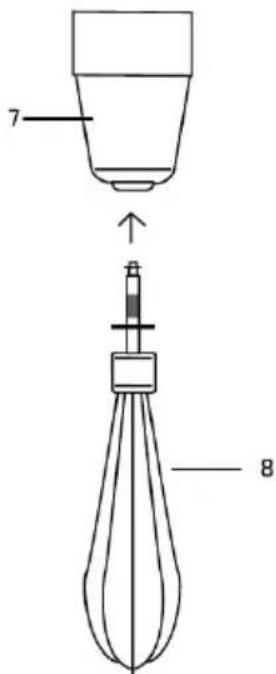

Fig. 4

1. Balloon whisk's attachment
2. Balloon whisk

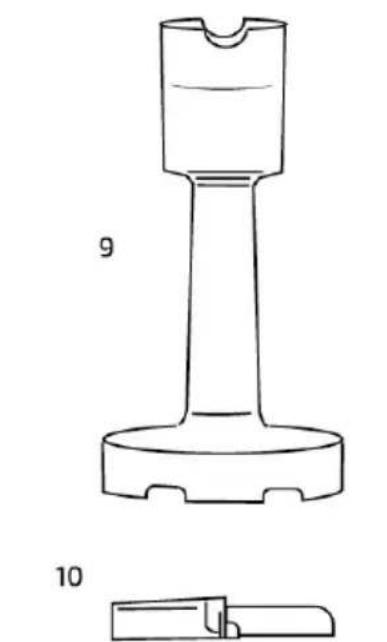

Fig. 5

1. Potato masher
2. Blade

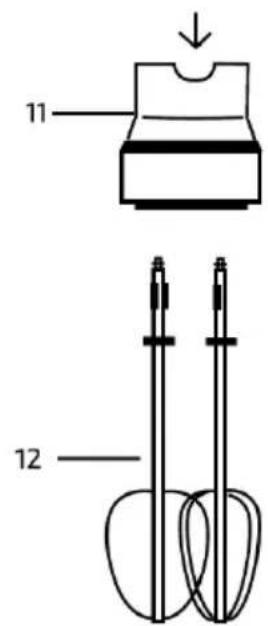

Fig. 6

1. Blending whisk attachment
2. Blending whisks

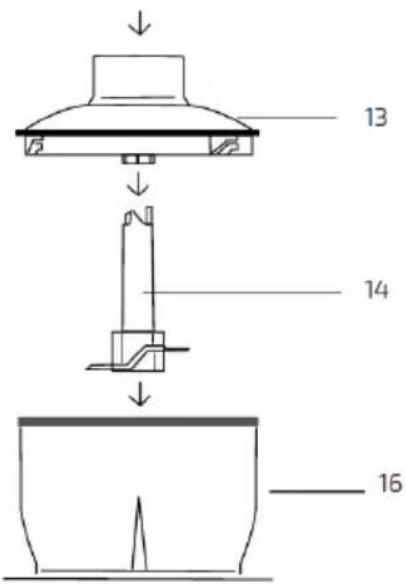

Fig. 7

Fig. 7.1.

1. Mincer lid

2. Mincing blade

3. IceBlade (special balde for ice)

4. Mincer container

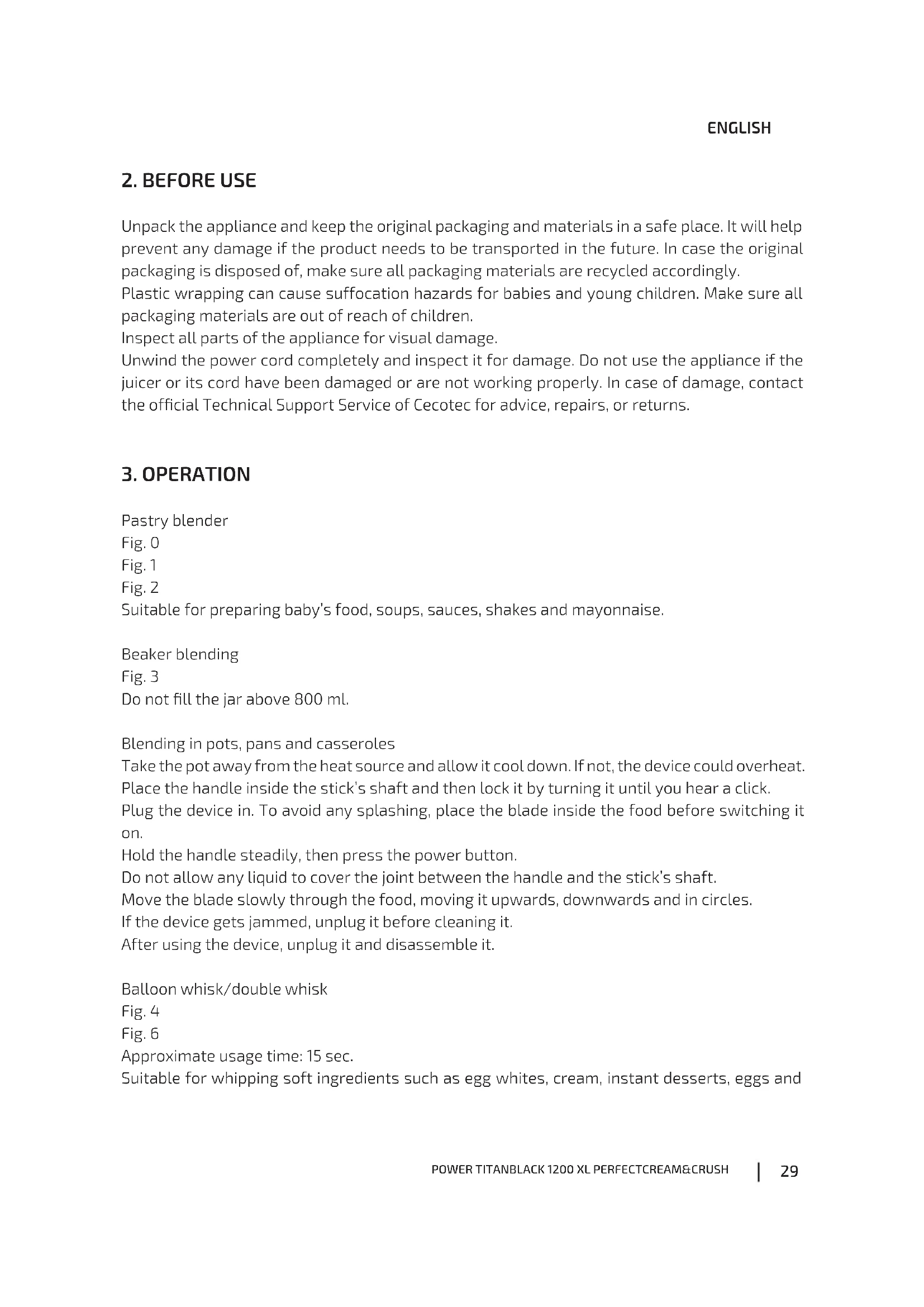

2. BEFORE USE

Unpack the appliance and keep the original packaging and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

Plastic wrapping can cause suffocation hazards for babies and young children. Make sure all packaging materials are out of reach of children.

Inspect all parts of the appliance for visual damage.

Unwind the power cord completely and inspect it for damage. Do not use the appliance if the juicer or its cord have been damaged or are not working properly. In case of damage, contact the official Technical Support Service of Cecotec for advice, repairs, or returns.

3. OPERATION

Pastry blender

Fig. 0

Fig. 1

Fig. 2

Suitable for preparing baby's food, soups, sauces, shakes and mayonnaise.

Beaker blending

Fig. 3

Do not fill the jar above 800 ml.

Blending in pots, pans and casseroles

Take the pot away from the heat source and allow it cool down. If not, the device could overheat.

Place the handle inside the stick's shaft and then lock it by turning it until you hear a click.

Plug the device in. To avoid any splashing, place the blade inside the food before switching it on.

Hold the handle steadily, then press the power button.

Do not allow any liquid to cover the joint between the handle and the stick's shaft.

Move the blade slowly through the food, moving it upwards, downwards and in circles.

If the device gets jammed, unplug it before cleaning it.

After using the device, unplug it and disassemble it.

Balloon whisk/double whisk

Fig. 4

Fig. 6

Approximate usage time: 15 sec.

Suitable for whipping soft ingredients such as egg whites, cream, instant desserts, eggs and

ENGLISH

sugar.

Do not try to whisk harder mixtures as margarine as you may damage the balloon whisk.

Assemble the whisk wire with the whisk's attachment.

Fit the blender's handle inside the whisk attachment, then lock it by until you hear a click.

Place the food in the container. Do not whisk more than 6 egg whites or 1000 ml of cream at the same time. Do not let any liquid get above the whisks.

Plug the device in and press the power button.

After use, unplug and disassemble it.

Potato masher

Fig. 5

Place the food inside a blending jar or a sufficiently large mixing container.

Plug the device to a power supply.

Select the settings on the adjustable potato masher.

Select high speed on the speed-control dial.

Place the potato masher inside the ingredients and press the power button to activate it.

Move the potato masher gently through the ingredients until the desired texture is achieved.

Turn the motor off by releasing the power button before taking the potato masher out of the container and unplug the device.

Mincer, 600 ml

Fig. 7/7.1

Suitable for mincing meat, cheese, vegetables, spices, bread, biscuits and nuts.

Remove any bone inside the ingredients to be processed and cut food into 1-2 cm thickness.

Assemble the mincing blade or the special IceBlade for crushing ice inside the container through the fastener.

Place the food inside the container.

Replace the lid and turn it to lock it.

Place the blender handle and turn it to lock it.

Make sure to hold the container firmly and connect the device to the power supply. Then, press the power button.

After using the device, unplug it from the power supply, disassemble the parts and wash them properly.

Turbo button

Press this button while using the device to run the device at maximum power and speed.

Note: The blender may overheat if this function is used for a long time.

Speed-control dial

Turn the speed-control dial to change the blades' speed and choose whichever suits you best.

Comparative table

Food Maximum amount (in grams) Approximate time (in seconds)
Meat 300 10-15
Spices 80 15
Nuts 250 15
Cheese 250 15
Bread 1 loaf 15
Hard boiled eggs 6 5
Onion 300 10

These data are approximate and depend on many different factors.

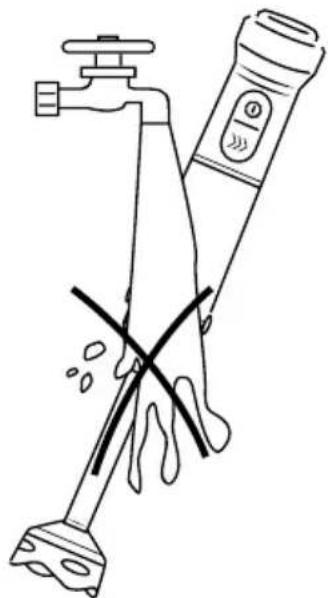

4. CLEANING AND MAINTENANCE

Fig. 8

Disconnect the appliance from the power supply and allow it to cool down before cleaning.

After processing very salty foodstuff, rinse the blades with water immediately.

Use a soft, damp cloth to clean the product's motor and container lid.

The following parts are dishwasher safe: Cup, stick, balloon whisks, blending whisks, balloon whisks, mincing container, mincing blade and IceBlade special for crushing ice.

Do not use too much cleaning agent or descaler in your dishwasher.

Do not immerse the appliance in water or other liquid.

Do not use abrasive cleaners or scouring pads to clean the product.

Please handle the blades carefully, they are very sharp.

After processing coloured food, the plastic parts of the appliance may lose colour. It is suggested to clean these parts with vegetable oil before washing them in the dishwasher.

5. TECHNICAL SPECIFICATIONS

Product reference: 04293

Product: Power TitanBlack 1200 XL PerfectCream&Crush

Rated power: 1200 W

220-240 V\~, 50 Hz

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

7. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

1. PIÈCES ET COMPOSANTS

Img. 0

Diagram showing two mechanical components with arrows indicating assembly or movement, no text or symbols present.

Simple line drawing of a cylindrical container with a lid and labeled dimension '6' (no text or symbols on the object itself)

Fig./Img./Abb./Rys./Obr. 3

7 8

Fig./Img./Abb./Rys./Obr.4

Technical line drawing of a mechanical component with two views (9 and 10), no text or symbols present.

Fig./Img./Abb./Rys./Obr.5

11 12

Fig./Img./Abb./Rys./Obr.6

Line drawing of a mechanical tool or bracket component (no text or symbols)

Fig./Img./Abb./Rys./Obr.7.1

13 14 16

Fig./Img./Abb./Rys./Obr.7

Line drawing of a hand holding a water droplet and a pen-like device, with no text or symbols present.

Fig./Img./Abb./Rys./Obr.8
