Product Type	Tire pressure gauge and inflator
Brand	Westfalia
Model	Maxi 928583
Category	Pressure gauge
Pressure range	0 to 12 bar
Gauge diameter	7.5 cm
Hose length	Approx. 55 cm
Accuracy	± 0.1 bar
Compressed air connection	R ¼"
Display units	bar and psi (dual scale)
Functions	Pressure measurement, inflation, deflation
Power supply	Compressed air (pneumatic)
Intended use	Car, motorcycle, truck, bicycle tires
Maintenance	Oil the trigger pin seal regularly
Cleaning	Avoid dirt entering the nozzle
Storage	Indoor, dry, protected from dust and extreme temperatures
Safety	Use only with compressed air; do not use oxygen or flammable gases
Included accessories	Dual-face connector, air hose, gauge with trigger, quick-connect coupler, deflation button, hanger
Weight (estimated)	Approx. 0.3 kg
Calibration status	Not calibrated
Repairability	Do not disassemble; contact customer service

Frequently Asked Questions - Maxi 928583 Westfalia

How do I measure tire pressure with this device?

Place the dual-face connector on the tire valve. Read the pressure on the gauge: the outer scale indicates bar, the inner scale indicates psi.

What is the maximum pressure this device can measure?

The pressure range is 0 to 12 bar (approx. 0 to 174 psi). Do not exceed this limit.

How do I inflate a tire with the device?

Connect the air hose to the device, then attach the quick coupler to a compressed air source. Place the dual-face connector on the valve and press the trigger to inflate. Release to read the actual pressure.

How do I deflate a tire if the pressure is too high?

Use the deflation button on the device to slowly reduce the pressure to the desired value.

What type of compressed air source should I use?

Use only clean, oil-free compressed air. Never use oxygen or flammable gases.

How do I maintain the device?

Add a few drops of oil to the trigger pin seal at regular intervals. Avoid letting dirt enter the compressed air nozzle.

What should I do if the device is damaged?

Stop using immediately and have the device repaired by a specialist or contact Westfalia customer service. Do not attempt repairs yourself.

Where can I find the recommended tire pressure for my vehicle?

Check the vehicle manual, or look on the door pillar or behind the fuel filler cap. Use the manufacturer's recommended pressure.

Is this device suitable for bicycle tires?

Yes, the device can be used on bicycle tires, as well as car, motorcycle, and truck tires, thanks to the dual-face connector.

How should I store the device after use?

Store the device in a dry place, protected from dust and extreme temperatures. Use the provided hanger to hang it. Keep out of reach of children.

USER MANUAL Maxi 928583 Westfalia

Compressed Air Tester Maxi

Art. 92 85 83

GB Original Instructions

Close-up of a car air lift with attached pressure gauge and metal handle (no text or symbols visible)

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

If you pass the device on to third parties, enclose these instructions.

Chers clients,

Technical diagram of a gas lift with labeled parts including a pusher, pressure gauge, and hose assembly

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

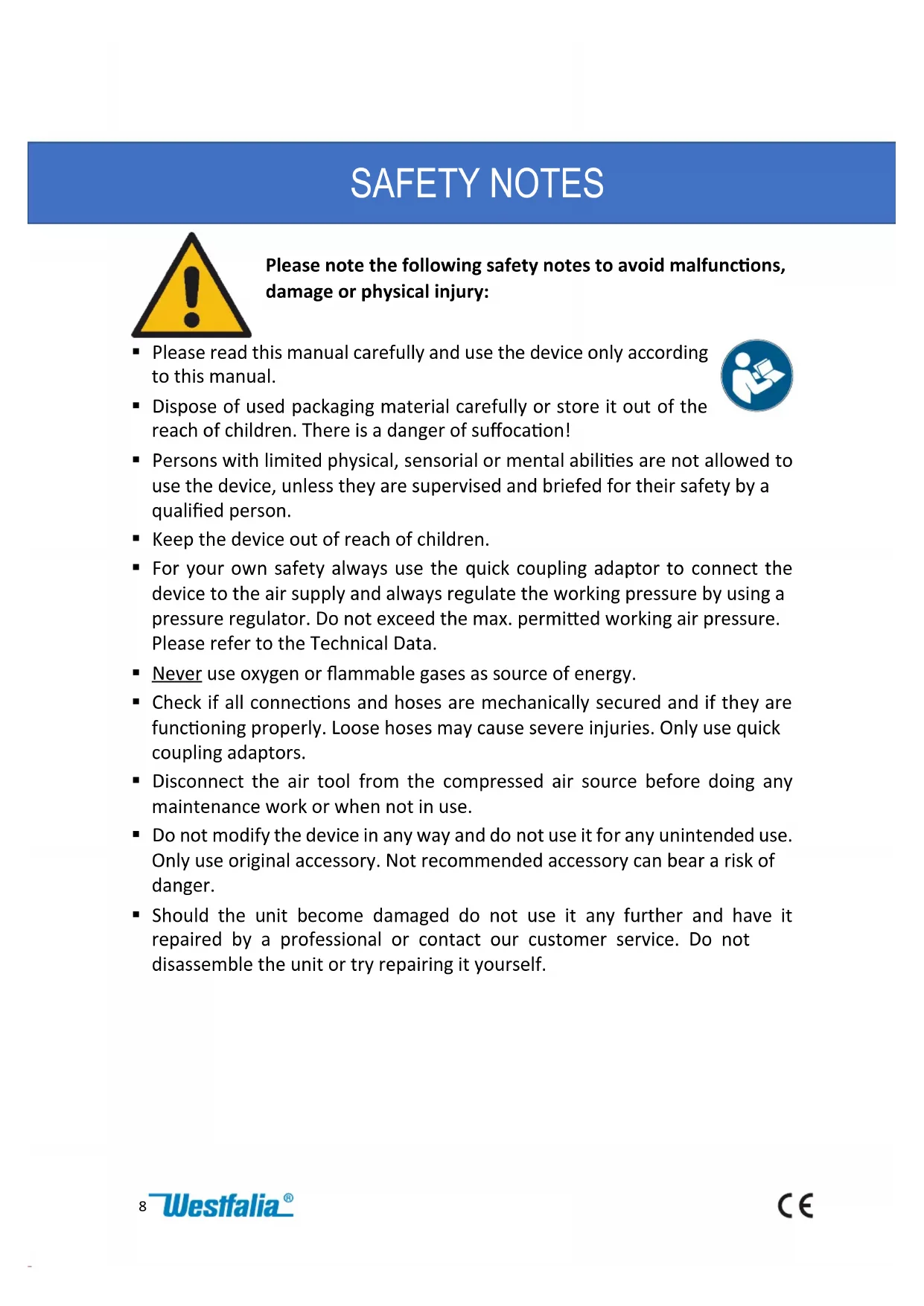

Please note the following safety notes to avoid malfunctions, damage or physical injury:

- Please read this manual carefully and use the device only according to this manual.

■ Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!

- Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.

- Keep the device out of reach of children.

- For your own safety always use the quick coupling adaptor to connect the device to the air supply and always regulate the working pressure by using a pressure regulator. Do not exceed the max. permitted working air pressure. Please refer to the Technical Data.

■ Never use oxygen or flammable gases as source of energy.

- Check if all connections and hoses are mechanically secured and if they are functioning properly. Loose hoses may cause severe injuries. Only use quick coupling adaptors.

- Disconnect the air tool from the compressed air source before doing any maintenance work or when not in use.

- Do not modify the device in any way and do not use it for any unintended use. Only use original accessory. Not recommended accessory can bear a risk of danger.

- Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

OPERATION

Intended Use

• The device is designed to check the air pressure and to fill or deflate tyres, such as car, motorcycle, truck, or bicycle tyres.
• The intended use also includes an operation following the operating instructions.
• Any use beyond these parameters (different media, applying force) or any changes (reconstruction, no original accessory) can lead to serious risks and is regarded as use that is contrary to the intended purpose.

Before first Use

Unpack the device and check all parts for any damage in transit. Dispose of packaging materials or store them out of reach of children. There is risk of suffocation!

Notes

• The optimum air pressure of the car tyre not only provides safe performance and durability of your tyres – using the right tyre pressure, recommended by the automobile manufacturer, also can safe fuel.
• You will find the details on the comfortable minimum pressure for your tyres in the instruction manual of your vehicle or e.g. at the door pillar or behind the petrol cap.
• The compressed air, to refill the tyre, has to be oil free. Do not connect an oiler ahead of the unit. It is recommended to use a separate compressed air hose only for working with the device, because there may be oil residues on other compressed air hoses.

Measuring

1. Put the twin hold-on connector (1) on the tyre valve.
2. Read the existing pressure from the manometer (3).
   Outer rim of the scale = the unit in bar (1 bar = 100 kPa)
   Inner rim of the scale = the unit in psi.

Filling

1. Screw the air hose (2) and the device together.
2. Connect the quick coupling connector (5) of the device with a compressed air supply.

3. Put the twin hold-on connection (1) on the tyre valve.

4. Press the trigger (4), compressed air flows into the tyre.

The moment you are filling in the air, the manometer (3) shows a pressure that is a little bit higher than the actual tyre pressure. When you release the trigger, you can read the actual tyre pressure on the manometer.

Deflation of Air

If the tyre pressure is too high, use the deflation button (6) and slowly reduce the air pressure to the desired value.

Cleaning and Maintenance

• Do not allow foreign substances and dirt to enter the compressed air nozzle.
• Do not expose the manometer to vibrations or mechanical stress.
• Add a few drops of oil to the sealing of the trigger pin in regular intervals. Apart from that the device is maintenance free.

Storing

• Store the device indoors in a dry place that is protected from dust, dirt and extreme temperatures.
• Store the device out of reach of children.
  For storing the device, use the hanger (7).

Technical Data

Pressure Range: from 0 – 12 bar

Diameter of Pressure Gauge: 7.5 cm

Tube Length with Hold-on Connector: approx. 55 cm

Manometer Accuracy: ± 0.1 bar

Compressed Air Connection: R ¼"

Manometer not calibrated

CONSIGNES DE SÉCURITÉ

declare by our own responsibility that the product

Compressed Air Tester Maxi

Article No. 92 85 83

is according to the basic requirements, which are defined in the European Directives and their amendments.

2006/42/EG

2006/42/EG

Maschinen

Machinery

EN 1953:2013, EN 12645:2014

Hagen, 6 ^th of January 2023

Thomas Klingbeil,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
