Product type	Tire pressure gauge with inflation and deflation gun
Brand	Westfalia
Model	928579
Pressure range	0 to 10 bar
Pressure gauge accuracy	± 0.1 bar
Pressure gauge diameter	6 cm
Hose length	Approx. 44 cm
Units of measurement	Bar (outer scale) and psi (inner scale)
Power connector	Quick coupling R ¼"
Power type	Compressed air (oil-free)
Main functions	Pressure measurement, inflation, deflation
Deflation button	Yes, for slow pressure reduction
Trigger	Yes, to control the air flow
Valve connector	With lever clamping mechanism, suitable for tire valves
Compatible vehicles	Cars, motorcycles, trucks, bikes
Maintenance	Add a few drops of oil to the release pin seal regularly; no other maintenance required
Cleaning	Do not let dirt enter the nozzle; clean with a dry cloth
Storage	In a dry place, protected from dust and extreme temperatures; out of reach of children; use the provided hanger
Safety	Never use oxygen or flammable gas; always use a quick coupler and pressure regulator; do not exceed 10 bar; check connections
Packaging materials	Dispose of or store out of reach of children (choking hazard)
Included accessories	Gun, air hose, pressure gauge, hanger, quick coupler, valve connector
Repairability	Do not disassemble or repair yourself; contact customer service in case of damage
Estimated weight	Approx. 300 g

Frequently Asked Questions - 928579 Westfalia

What is the pressure range of this Westfalia 928579 gauge?

The gauge measures pressure from 0 to 10 bar, with an accuracy of ±0.1 bar. The outer scale is in bar, the inner one in psi.

Can I use this inflation gun for all types of tires?

Yes, it is designed for car, motorcycle, truck, and bike tires. Make sure to use the appropriate valve connector.

How do I deflate a tire with this device?

Use the deflation button (3) located on the gun. Press gently to reduce the pressure to the desired value while monitoring the gauge.

What compressed air source should I use?

Use oil-free compressed air. Never connect oxygen or flammable gas, and do not exceed the maximum pressure of 10 bar.

How do I clean and maintain the gauge?

Regularly add a few drops of oil to the release pin seal. Clean the exterior with a dry cloth and prevent dirt from entering the nozzle.

Where should I store the device after use?

Store it in a dry place, protected from dust and extreme temperatures. Use the provided hanger to hang it up and keep it out of reach of children.

What should I do if the gauge is damaged?

Stop using it immediately and contact Westfalia customer service or a specialist. Do not attempt to repair the device yourself.

How do I connect the device to a compressed air source?

Use the quick coupler (4) at the end of the hose. Connect it to your air compressor, making sure the pressure does not exceed 10 bar and that you use a pressure regulator.

Why does the displayed pressure differ during inflation?

During inflation, the gauge shows a slightly higher pressure than the actual pressure. Release the trigger to read the exact pressure.

Is this device suitable for beginners?

Yes, it is easy to use. Read the provided user manual carefully and follow the safety instructions to avoid any risk of injury.

USER MANUAL 928579 Westfalia

Compressed Air Tester

Art. 92 85 79

GB Original Instructions

Air pressure gauge and black hose assembly (no text or symbols visible)

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

If you pass the device on to third parties, enclose these instructions.

Chers clients,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

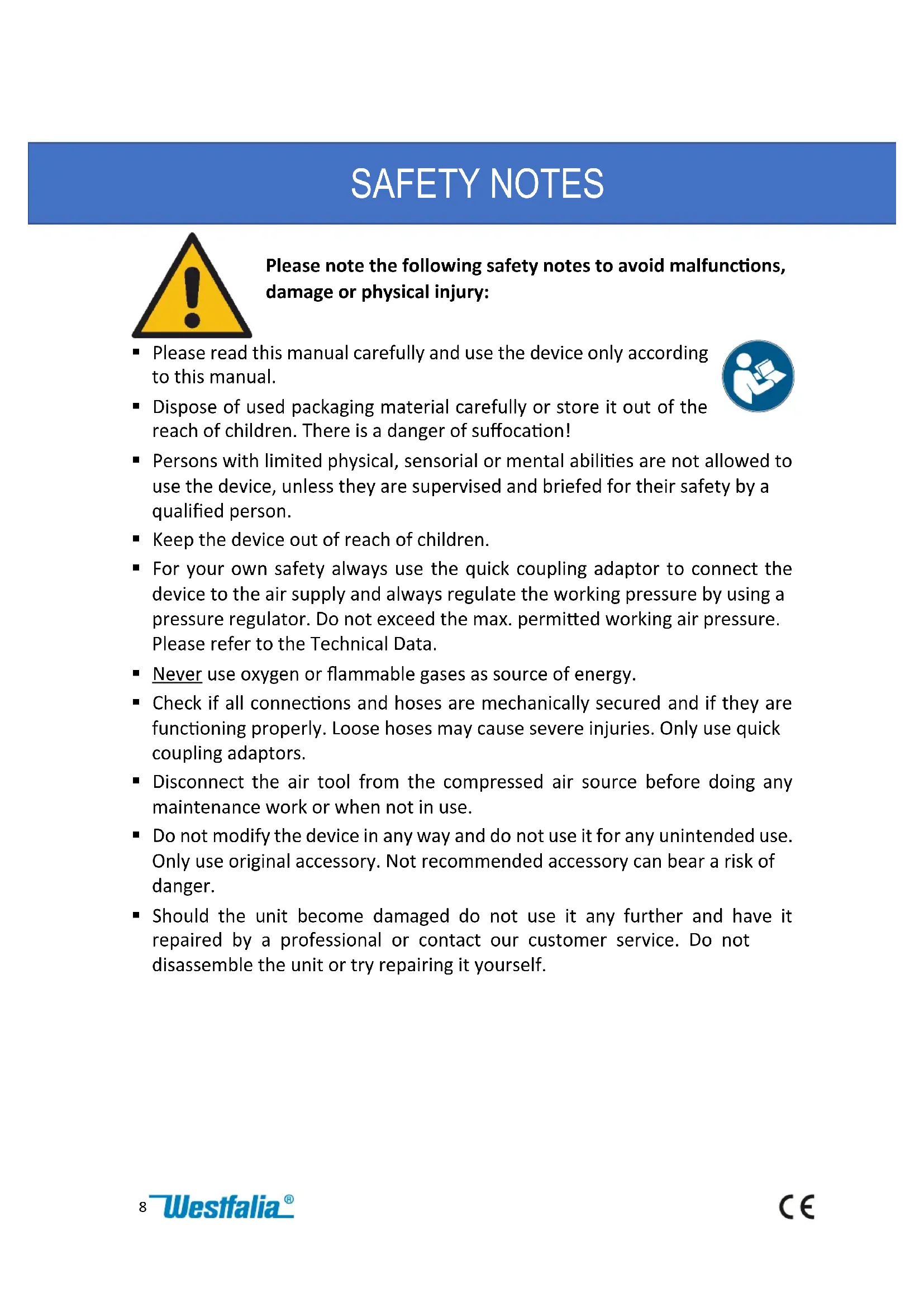

Please note the following safety notes to avoid malfunctions, damage or physical injury:

- Please read this manual carefully and use the device only according to this manual.

■ Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!

- Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.

- Keep the device out of reach of children.

- For your own safety always use the quick coupling adaptor to connect the device to the air supply and always regulate the working pressure by using a pressure regulator. Do not exceed the max. permitted working air pressure. Please refer to the Technical Data.

■ Never use oxygen or flammable gases as source of energy.

- Check if all connections and hoses are mechanically secured and if they are functioning properly. Loose hoses may cause severe injuries. Only use quick coupling adaptors.

- Disconnect the air tool from the compressed air source before doing any maintenance work or when not in use.

- Do not modify the device in any way and do not use it for any unintended use. Only use original accessory. Not recommended accessory can bear a risk of danger.

- Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

OPERATION

Intended Use

• The device is designed to check the air pressure and to fill or deflate tyres, such as car, motorcycle, truck, or bicycle tyres.
• The intended use also includes an operation following the operating instructions.
• Any use beyond these parameters (different media, applying force) or any changes (reconstruction, no original accessory) can lead to serious risks and is regarded as use that is contrary to the intended purpose.

Before first Use

Unpack the device and check all parts for any damage in transit. Dispose of packaging materials or store them out of reach of children. There is risk of suffocation!

Notes

• The optimum air pressure of the car tyre not only provides safe performance and durability of your tyres – using the right tyre pressure, recommended by the automobile manufacturer, also can safe fuel.
• You will find the details on the comfortable minimum pressure for your tyres in the instruction manual of your vehicle or e.g. at the door pillar or behind the petrol cap.
• The compressed air, to refill the tyre, has to be oil free. Do not connect an oiler ahead of the unit. It is recommended to use a separate compressed air hose only for working with the device, because there may be oil residues on other compressed air hoses.

Measuring

1. Put the valve connector (5) on the tyre valve. To do this, please press down the lever to unlock the clamping mechanism. As soon as you release the lever, the plug clamps at the valve.
2. Read the existing pressure from the manometer (1).
   Outer rim of the scale = the unit in bar (1 bar = 100 kPa)
   Inner rim of the scale = the unit in psi.

Filling

1. Screw the air hose (7) and the pistol (8) together.

2. Connect the quick coupling connector (4) of the device with a compressed air supply.

3. Put the valve connection (5) on the tyre valve.

4. Press the trigger (6), compressed air flows into the tyre.

The moment you are filling in the air, the manometer (1) shows a pressure that is a little bit higher than the actual tyre pressure. When you release the trigger, you can read the actual tyre pressure on the manometer.

Deflation of Air

If the tyre pressure is too high, use the deflation button (3) and slowly reduce the air pressure to the desired value.

Cleaning and Maintenance

• Do not allow foreign substances and dirt to enter the compressed air nozzle.
• Do not expose the manometer to vibrations or mechanical stress.
• Add a few drops of oil to the sealing of the trigger pin in regular intervals. Apart from that the device is maintenance free.

Storing

• Store the device indoors in a dry place that is protected from dust, dirt and extreme temperatures.
• Store the device out of reach of children.

For storing the device, use the hanger (2).

Technical Data

Pressure Range: from 0 – 10 bar

Diameter of Pressure Gauge: 6 cm

Tube Length: approx. 44 cm

Manometer Accuracy: ± 0.1 bar

Connection of Quick Coupling Adapter: R ¼"

CONSIGNES DE SÉCURITÉ

declare by our own responsibility that the product

Compressed Air Tester

Article No. 92 85 79

is according to the basic requirements, which are defined in the European Directives and their amendments.

2006/42/EG

2006/42/EG

Maschinen

Machinery

EN 1953:2013, EN 12645:2014

Hagen, 6 ^th of January 2023

Thomas Klingbeil,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
