USER MANUAL CL4850SO Sub-Zero

Classic Series Refrigeration

Use and Care Guide

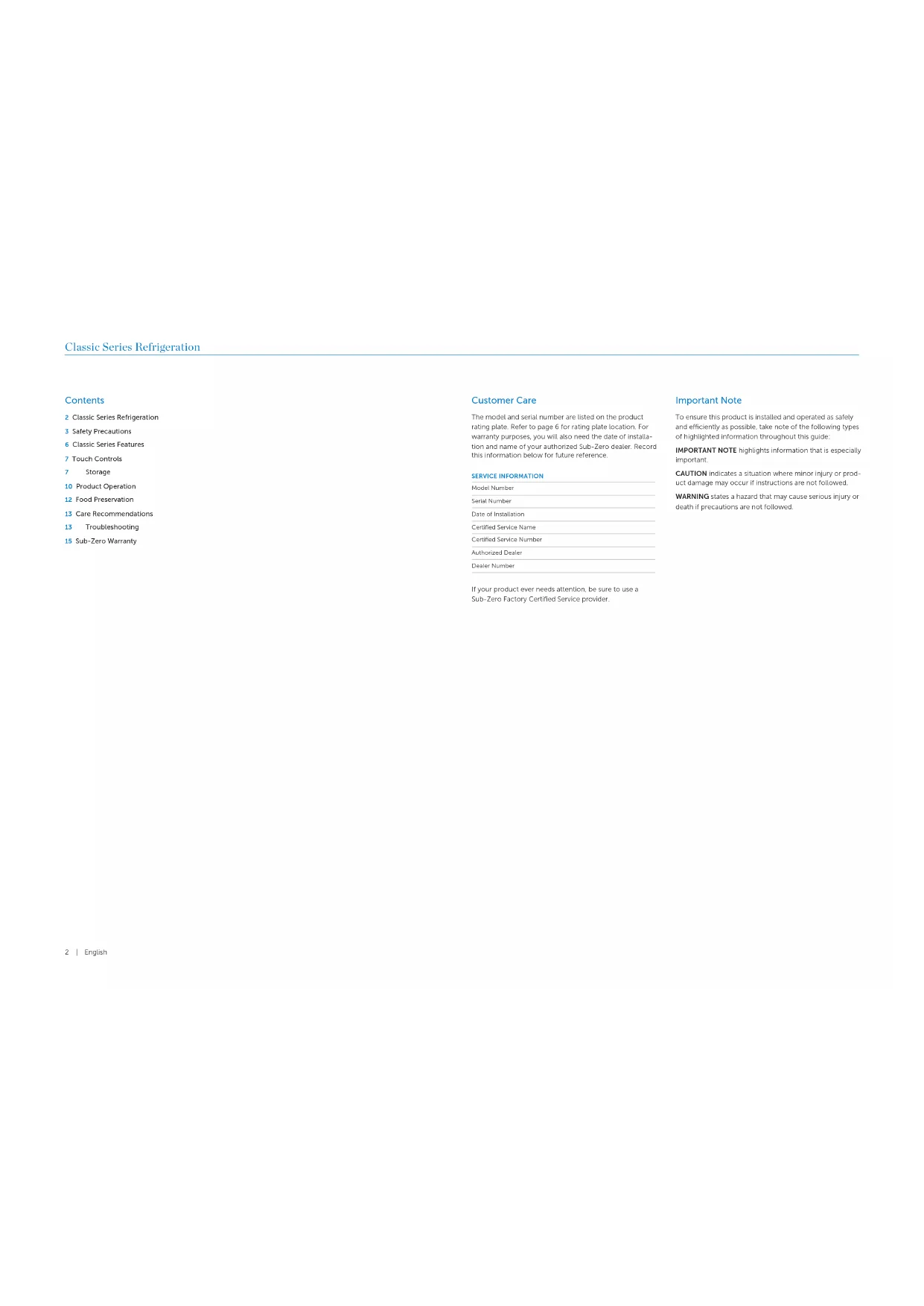

2 Classic Series Refrigeration
3 Safety Precautions
6 Classic Series Features
7 Touch Controls
7 Storage
10 Product Operation
12 Food Preservation
13 Care Recommendations
13 Troubleshooting
15 Sub-Zero Warranty

Customer Care

The model and serial number are listed on the product rating plate. Refer to page 5 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certified Service Name

Certified Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a Sub-Zero Factory Certified Service provider.

Important Note

To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially important.

CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or death if precautions are not followed.

IMPORTANT SAFEGUARDS

WARNING

This appliance is only intended for residential use.

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING

This appliance contains flammable refrigerant and must be handled, installed, serviced, and decommissioned by authorized personnel. Once decommissioned, consult local authorities for disposal instructions.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

IMPORTANT SAFEGUARDS

WARNING

This symbol indicates risk of fire/flammable materials.

WARNING

To minimize the risk of ignition due to improper installation, replacement parts, or service procedures, only refrigeration technicians with flammable refrigerant training who are aware of the dangers of dealing with high voltage electricity and refrigerant under pressure are allowed to work on this equipment.

CAUTION

Appliances without a four-star compartment are not suitable for freezing foodstuffs.

CAUTION

To avoid food contamination, respect the following:

• Regularly clean surfaces that come into contact with food and accessible drainage systems.
• Clean ice and water dispensers that have not been used in 48 hours. Dispense and discard ice and water if the ice and water have not been used in more than five days.
• Do not allow raw meat and fish to touch other food in the refrigerator. Store in suitable containers.
• One-, two-, and three-star compartments are not suitable for freezing fresh food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

IMPORTANT SAFEGUARDS

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

CAUTION

Incorporated ice makers must be installed by the manufacturer or its service agent.

WARNING

Do not expose this appliance to rain.

IMPORTANT NOTE: Allowing doors or drawers to remain open for an extended period increases the temperature inside the appliance.

WARNING

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves and drawer dividers in place so that children may not easily climb inside.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residential type environments
  • bed and breakfast type environments
  • catering and similar non-retail applications

Classic Series Features

FEATURES

1 Product Rating Plate
2 Touch Control Panel
3 Flip Up Dairy Compartment
4 Adjustable Door Shelves
5 Refrigerator Shelves
6 Refrigerator Storage Drawers
7 Freshness Cards
8 Freezer Shelves
9 Freezer Storage Drawers
10 Ice Maker
11 Removable Ice Bin with Handle
12 Air Purification System
13 Internal Water Dispenser
14 External Ice and Water Dispenser
15 Water Filtration System (behind grille)
16 Condenser (behind grise)

16 15 5 12 2 6 1 3 4 13 7

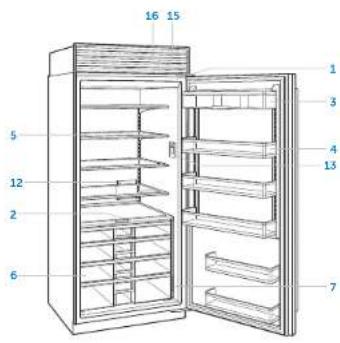

All Refrigerator Model

Technical diagram of a refrigerator with numbered parts for identification

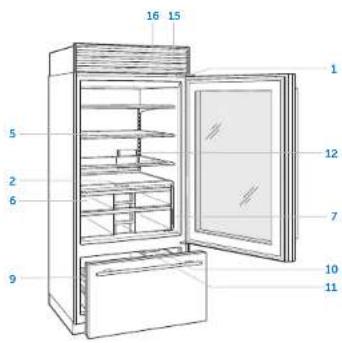

Over-and-Under Model (glass door model shown)

Technical diagram of an open refrigerator with numbered compartments and labeled parts

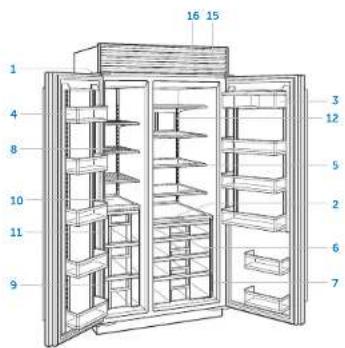

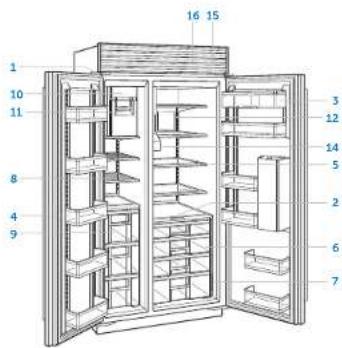

Side-by-Side Model

16 15 8 2 11 9 1 4 10

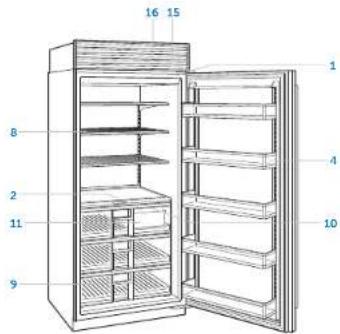

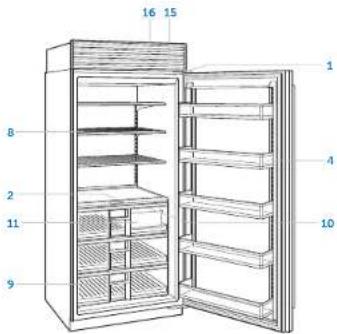

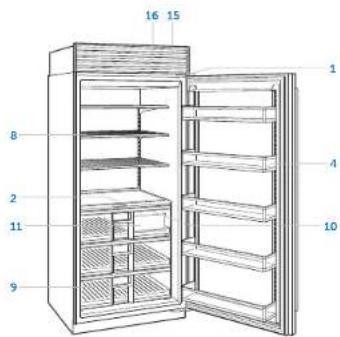

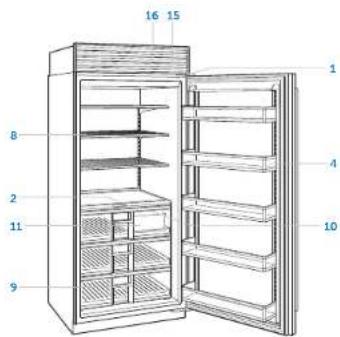

All Freezer Model

Technical diagram of an open refrigerator with numbered compartments for identification

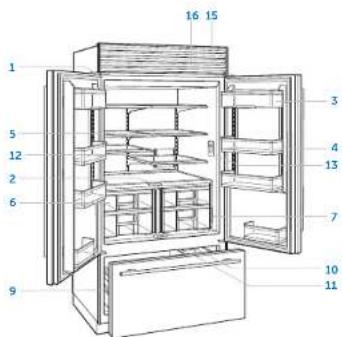

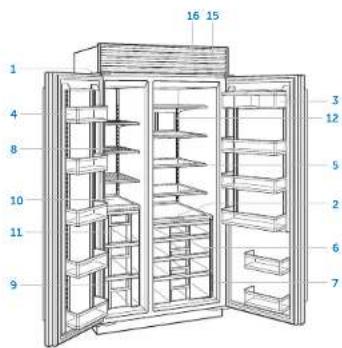

French Door Model

Technical diagram of an open refrigerator with numbered compartments and labeled parts

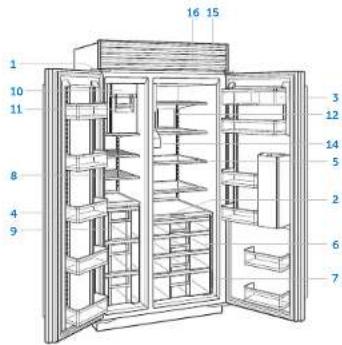

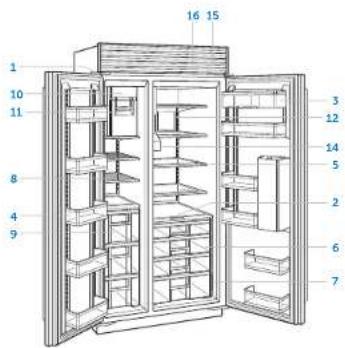

Side-by-Side Model with External Dispenser

Touch Control Panel

For initial start-up, touch and hold ① on the control panel for 2 seconds.

The recommended temperatures are preset at -18°C for a freezer and 3°C for a refrigerator. The temperatures are adjustable in one-degree increments. The combination model has two temperature zones.

To adjust temperature:

1 Touch the temperature to be adjusted.

2 Touch + or - until the desired temperature is displayed. Refer to the illustration below.

To adjust additional settings, touch ⚙️ on the control panel. Refer to the illustration below.

Dual-zone home screen

Single-zone home screen

SETTINGS

Adjust refrigerator drawer temperature and humidity
Turn ice maker and max ice on or off
Turn air purifier on or off
Adjust soft on lighting and accent lighting (it applicable)
Turn right mode on or off
Turn the internal dispenser on or off (if applicable)
I um door alarm on or off and adjust duration
Adjust door alarm volume and tone
Turn water filter reminder on or off
① Turn the unit on or off
Turn Sabbath on or off
^ C %F Adjust temperature units
Select language
① System information
View troubleshooting and service information

Dual Refrigeration®

This Sub-Zero features a unique Dual Refrigeration® system to keep food fresher longer.

With the Sub-Zero Dual Refrigeration® system, individual refrigerator and freezer systems have been designed to maintain accurate, consistent temperatures and proper humidity levels for longer food life expectancy. Dual Refrigeration® eliminates transfer of fresh food odors to frozen food and ice and does not freeze the moisture out of the air in the fresh food section.

Refrigerator Storage

ADJUSTABLE DOOR SHELVES

To reposition a door shelf or dairy compartment:

1 To remove, lift the shelf from the bottom and slide out. Refer to the illustration below.

1. To install, place in the desired position and slide the shelf down onto the guides.

IMPORTANT NOTE: If the door opening is limited to 90°, door shelves may need to be removed before removing a storage drawer or glass shelf.

Door shelf removal

Refrigerator Storage

FLIP-UP DAIRY COMPARTMENT

The bottom of the dairy compartment rotates upward to accommodate taller items below. For models without vertical dividers in the compartment, the entire bottom rotates upward. For models with a vertical divider, one section rotates upward. Refer to the illustration below.

Flip-up dairy compartment

GLASS SHELVES

To reposition a glass shelf:

1 To remove, tilt the shelf up, then lift up and out. Refer

to the illustration below.

2 To install, insert the shelf in the tracks along the back

wall, then lower the front until it locks into position.

IMPORTANT NOTE: Use care when handling glass shelves to prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature

before immersing in warm water.

Glass shelf removal

REFRIGERATOR DRAWERS

To remove and install a refrigerator drawer:

1 To remove, pull the drawer open until it stops.

2 Lift the front of the drawer slightly and pull straight out. Refer to the illustration below

3 To install, pull the drawer carrier out and align the

bottom of the drawer with the carner:

4 Slide the drawer back into position

To reposition a refrigerator drawer divider:

1 To remove, pull the divider straight up.

2 To install, align tabs on the divider with notches in the drawer and push down.

Refrigerator drawer removal

Freezer Storage

WIRE SHELVES

To reposition a wire shelf:

1 To remove, tilt the shelf up, then lift up and out.

2 To install, insert the shelf in the tracks along the back wall, then lower the front until it locks into position.

FOLD-UP FREEZER SHELF

For models with an ice dispenser, the fold-up shelf rotates up and down to accommodate large or small items.

Fold-up freezer shelf

Freezer Storage

FREEZER DRAWERS

To remove the freezer baskets (over-and-under models):

1 Pull the drawer open until it stops

2 Lift the upper and lower freezer baskets up and out. Refer to the illustration below.

To install the freezer baskets (over-and-under models):

1 Insert the lower basket into the four corner retainers

2 Position the upper basket onto the side rails and slide back until it clicks.

Expandable freezer basket—for over-and-under models (excludes 30° model), the left side of the upper freezer basket is adjustable to allow for tail item storage in the lower basket. Slide to the right or left to adjust. Refer to the illustration below.

Freezer basket removal

Expandable freezer basket

To remove a freezer drawer (all freezer and side-by-side models):

1 Pull, the drawer open until it stops.

2 Pull the two plastic tabs located behind the bottom two corners of the drawer forward, then lift up and cut. Refer to the illustration below.

If the door opening is limited to 90", the top drawer must be removed before removing the middle or lower drawer.

To install a freezer drawer (all freezer and side-by-side models):

1 Push the drawer slides in.

2 Align the drawer with the slides and push back until it stops.

3 Press down on the front of the drawer to engage the slides.

Freezer drawer removal

ICE BIN

To remove the ice bin (over-and-under models):

1 Pull the freezer drawer open until it stops.
2 Lift the ice bin up and out. Refer to the illustration below.
To remove the ice bin (side-by-side models):
1 Pull the ice bin forward until it stops.
2 Lift the ice bin straight up. Refer to the illustration below.
3 To install, pull the carrier out and align the bottom of the ice pin with the carrier.
4 Slide the ice bin back into position.

Over-and-under models

Side-by-side models

To remove the ice bin (side-by-side dispenser models):

1 Pull the ice bin forward until it stops.
2 Lift to clear the carrier assembly along the back, then pull forward and out. Refer to the illustration below.

Side-by-side dispenser models

Temperature

TEMPERATURE CONTROL

To optimize food preservation, the refrigerator drawer temperature is adjustable automatically or manually. All drawers are set to the same temperature and cannot be adjusted individually.

Auto Mode—automatically adjusts the refrigerator drawer temperature 2° below the refrigerator set temperature, but cannot go below 1°C.

Manual Mode—manually adjust the refrigerator drawer up to 2° above or below the refrigerator setpoint, but cannot go below 1°C or above 6°C.

To adjust temperature:

1 Touch

2 Touch

3 Touch "A" or "M" to toggle between modes.

4 Touch + or - to adjust the temperature manually.

Humidity

HUMIDITY CONTROL

Some foods, particularly vegetables, require enhanced levels of humidity to maximize freshness. The refrigerator drawer humidity level is adjustable. Select "Enhanced" to make sure produce lasts to its full potential. All drawers are set to the same level and cannot be adjusted individually.

To adjust humidity:

1 Touch

2 Touch

3 Touch to toggle between settings.

Air Purification System

Many fresh foods emit ethylene gas, a naturally-occurring compound that hastens food ripening and spoilage. If your unit is equipped with an air purification system, the cartridge has been factory installed and is located on the back wall of the refrigerator.

To turn on air purification, touch on the options screen.

WARNING

This appliance contains a UV emitter. Do not stare at the light source.

AIR PURIFICATION CARTRIDGE

The air purification cartridge lasts approximately one year. "Snooze/Refresh" appears on the control panel when the cartridge needs to be replaced. Touch "Snooze" to delay the reminder for 24 hours or until the cartridge can be replaced.

To replace the air purification cartridge:

1 To access the air purification cartridge, slide the door to the left.
2 Grasp the black cover from the top and rotate downward. The cartridge pops out and can be removed. Refer to the illustration below.
3 Remove the new cartridge from packaging and insert with the connector pointing downward.
4 Close the black cover, then slide the door to the right.
5 Follow the instructions on the control panel. The cartridge life cycle resets for approximately one year.

Air purification cartridge

Ice Maker

To operate the ice maker:

1 To turn on the ice maker, touch on the options screen. A single highlighted cube indicates the ice maker is turned on 📋 indicates the max ice feature is turned on
2 To turn off the ice maker, touch until no cubes are highlighted.

After initial start-up, discard the first few batches of ice. The ice may contain impurities from new plumbing connections.

Max ice increases ice production up to 30% for a 24-hour period. During that period, some components may run at a higher speed resulting in a unique audible tone. This is typical and will revert back after 24 hours or when the ice bin is full.

Ice may fuse together if not used regularly. To avoid, discard the ice and allow the ice maker to replenish.

Turn off the ice maker if the ice bin is removed for an extended period. The unit is equipped with a 3-minute delay after the ice bin is removed, to ensure cubes are not ejected before the ice maker is turned off or the ice bin is installed.

Night Mode

Night mode automatically reduces interior light brightness when low ambient light is detected. 🙏 appears in the upper-left corner of the control panel display when night mode is turned on.

appears when low ambient light is detected. The interior light brightness remains reduced for three minutes, even if the ambient light changes. Touch to increase brightness.

To turn night mode on or off:

1 Touch

2 Touch

Sabbath

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Sabbath mode automatically turns on the interior lights at a reduced brightness. The lights stay on when the door is closed. The lights cannot be turned off in Sabbath mode. Sabbath mode automatically turns off after 74 hours. All lighting preferences return to the previous setting when Sabbath mode is turned off.

To turn on Sabbath:

1 Touch

2 Touch and hold for 3 seconds.

To turn off Sabbath:

1 Touch and hold 10 up to 10 seconds.

Ice and Water Dispenser

The 1.2 L internal water tank must fill before water flows from the dispenser. Press and hold the water dispenser paddle for up to 60 seconds until water is dispensed.

CAUTION

Limit continuous ice and water dispenser operation to seven minutes or less.

INTERNAL DISPENSER

The internal ice and water dispenser is designed to accommodate a 0.5 L pint glass. The removable water grille located below the dispenser collects water drops. Refer to the illustration below.

FUNCTION

Touch and hold to dispense ice.

Touch and hold to disperse water.

For a water-only dispenser, depress the paddle with a glass to dispense water. Water flow stops when the glass is removed. Refer to the illustration below.

Internal ice and water dispenser Water dispenser

EXTERNAL DISPENSER

ice and water are dispensed through the door.

The removable water grille located below the dispenser collects water drops. Refer to the illustration below. This is not a drain. Do not pour water into the water grille.

To dispense large quantities of ice and water, use the dispenser located inside the refrigerator. Refer to the illustration below

FUNCTION

Turn light on or off.
Touch to select ice, then press the paddle with a glass to dispense
Touch to select water, then press the paddle with a glass to dispense.
Press and hold to lock and unlock the dispenser.

Removable water grille

Food Preservation

Food Preservation Tips-To reduce the risk of spoilage, minimize food handling. Store fruits and vegetables separately. Store meats in the original packaging, once opened, re-wrap tightly.

Ethylene Gas—Many fresh foods emit ethylene gas, a naturally-occurring compound that hastens food ripening and spoilage. Sub-Zero refrigerators come with an air purification system based on technology developed by NASA that scrubs the air of ethylene and odor every 20 minutes. To reduce spoilage, do not store ethylene-producing fruits and vegetables with those that are ethylene-sensitive.

e ^+ Indicates an ethylene-producing food.
e⁻ Indicates an ethylene-sensitive food.
Humidity—The optimal humidity varies for different foods. To keep food fresher longer, store foods in the areas designated in the following charts.

FRESH VEGETABLES
Artichokes		1-2 weeks	Freezing fresh vegetables is not recommended
Asparagus 7-3 weeks
Bean sprouts		7-9 days
Beans (green or lima)	e ^-	7-10 days
Beets without tops		5-4 months
Bok choy	e ^-	5 weeks
Broccoli 1-2 weeks	e ^-
Cabbage	e ^-	3-6 weeks
Carrots	e ^-	1-5 months
Cauliflower 3-4 weeks	e ^-
Celery 1-2 months
Corn		5-8 days
Cucumbers	e ^-	10-14 days
Eggplant*	e ^-	1-2 weeks
Fresh herbs 1-3 weeks	e ^-
Garlic*		6-7 months
Ginger* 6 months
Jicama*		1-2 months
Kale	e ^-	1-2 months
Leeks		2 months
Lettuce	e ^-	2-3 weeks
Mushrooms		1-2 weeks
Onions		1-6 months
Parsley	e ^-	1-2 months
Peas (sugar, snap, snow)	e ^-	1-2 weeks
Peppers (bell or chile)	e ^-	2-3 weeks
Potatoes*		5-10 months
Radishes 1-2 months
Shallots 6 months
Spinach 10-14 days	e ^-
Squash (soft rind)	e ^-	1-2 weeks
Tamarillos		7-10 days
Water chestnuts		2-4 months

*Do not refrigerate.

FRESH FRUITS
Apples 1-2 months Freezing*
Apricots 1-2 weeks	e+		fresh fruitsis notrecommended
Avocados†	e+	2-4 weeks
Bananas* 1-4 weeks	e-
Blueberries 10-18 days
Cantaloupe 2-5 weeks	e+
Cherries 2-6 weeks
Figs 7-10 days	e+
Grapefruit 6-8 weeks
Grapes 2-3 weeks
Honeydew melon 3-4 weeks*
Kiwifruit 4-6 weeks	e-
Lemons		1-6 months
Limes		6-8 weeks
Mangos†	e+	2-3 weeks
Nectarines	e+	2-4 weeks
Oranges		3-6 weeks
Peaches 2-4 weeks
Pears†	e+	2-3 weeks
Pineapple		2-4 weeks
Plums	e+	2-5 weeks
Raspberries		3-6 days
Strawberries		7-10 days
Tomatoes*	e+	1-3 weeks
EGGS AND DELI
Eggs (fresh) 3 weeks	Freezing
Egg substitute (opened)		3 days	equs and delis notrecommended
Egg, tuna, or ham salad		3-5 days
Lunch meat, thinly sliced		1-2 days

*Do not refrigerate. *Ripen on the counter before refrigeration

SOUP
Stew with meat	3-4 days	2-3 months
Vegetable soup	3-4 days	2-3 months
MEATS, FISH, AND POULTRY
Bacon	7 days	1 month
Beef steaks, roast	3-5 days	6-12 months
Bluefish, perch	2 days	2-3 month
Corned beef 5-7 days	1 month
Ham (whole)	7 days	1-2 months
Hamburger	1-2 days	3-4 months
Meat dishes (cooked)	3-4 days	2-3 months
Pork and veal chops	3-5 days	4-8 months
Poultry (cooked)	3-4 days	4-6 months
Poultry (raw)	1-2 days	9 months
Salmon, mackerel	4 days	5-9 months
Sausage (raw)	1-2 days	1-2 months
Shrimp	1 day	6 months
Smoked breakfast links, patties	7 days	1-2 months
DAIRY
Butter	3 months	1 year
Cottage cheese	1-2 weeks	4 weeks
Cream cheese	2 weeks	Not recomm.
Process cheese	6-4 weeks	6-8 months
Whole or skim milk	1-2 weeks	Not recomm.
Yogurt	1 month	Not recomm.

Cleaning

STAINLESS STEEL EXTERIOR

Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural tuster, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel.

INTERIOR CLEANING

To clean interior surfaces and all removable parts, wash with a mild solution of soap, water, and baking soda. Rinse and dry thoroughly. Avoid getting water on the lights and control panel.

CAUTION

Do not use vinegar, rubbing alcohol, or other alcohol-based cleaners on any interior surface.

VACATIONS

For extended vacations, turn power off at the control panel. Empty the unit and block doors open slightly to let fresh air in and keep the interior dry.

CONDENSER

CAUTION

Before cleaning the condenser, turn power off at the control panel. Wear gloves to avoid injury from sharp condenser fins.

The condenser is located behind the flip-up grille. Clean the condenser every 6–12 months.

To clean the condenser:

1 Turn power off at the control panel.
2 Full out on the bottom edge of the grille and rotate upward. Refer to the illustration below.
3 Use a soft bristle brush and vacuum to remove dust and lint from the condenser. To avoid damaging condenser fins, vacuum in the direction of the fins.

CAUTION

Failure to clean the condenser could result in temperature loss, mechanical failure, or damage.

Condenser location

Troubleshooting

UNIT OPERATION

No lights or cooling.

1 Verify power is on.
2. Verify electrical power to the unit and home circuit breaker is on.

No lights in the refrigerator or freezer.

1 The door may have been left ajar, which has disabled lights to eliminate excess heat. If the lights are out, close the door for one hour. If the lights are still out, contact Sub-Zero Factory Certified Service.
2 LED interior lighting must be replaced by Sub-Zero Factory Certified Service.

No refrigerator shelf light.

1 Verify the shelf is properly installed in the tracks along the back wall.
2 Verify nothing to tall container or food is preventing the shell from engaging the tracks along the back wall.

Frost, condensation, or ice buildup inside the unit.

1 Verify the condenser is clean.
2 Verify the door is closing properly.
3 Verify the door has not been left ajar.
4 Verify the door gasket does not have rips or tears. If it does, contact Sub-Zero Factory Certified Service.
5 If icing is heavy, turn the unit off and use a hair dryer to melt the ice. The hair dryer should be set on low and kept moving at all times. Once the ice has melted, wipe up any water with a cloth or paper towel.

High temperatures, the unit runs excessively, or the unit is giving off too much heat.

1 Verify the condenser is clean.

1. Verify the door is closing properly.

2. Verify the door has not been left ajar.

4 Increased ambient temperatures may cause the compressors to run longer.

5 If the temperature display shows 38" and 0", but is not cooling, the unit may be in Showroom Mode. Contact Sub-Zero Factory Certified Service

No water from the dispenser.

1 Wait one hour, then try the dispenser again. Contact Sub-Zero Factory Certified Service if unresolved.

Troubleshooting

ICE PRODUCTION

No ice.

1 Verify the ice cube indicator appears on the control panel display.
2 Verify the ice maker has been on for at least 24 hours.
3 Verify the freezer temperature is near -18°C.
4 Verify the ice bin is properly installed.
5 Verify the ice maker arm in the down position.
6 Verify water is being supplied to the unit.

Blue or green ice.

1 Possible copper supply line corrosion. Contact a plumber to clean or replace.

Black flecks in the cubes.

1 Stop use and contact Sub-Zero Factory Certified Service.

Bad taste.

1 Defrost the freezer and clean with soap and water.
2 Place coffee grounds or charcoal briquettes in the freezer to absorb odor.

Hollow cubes.

1 Clean the condenser. Contact Sub-Zero Factory Certified Service if unresolved.

ODOR

1 Clean the unit before using for the first time. This will clear any odors that may have been trapped during shipping.
2 Replace the air purification cartridge.
3 Clean the unit and shelving thoroughly.
4 Cover uncovered food.

SERVICE

• Maintain the quality built into your product by contacting Sub-Zero Factory Certified Service.
• When contacting service, you will need the model and serial number of your unit. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.
• For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. This information should be recorded on page 2 of this guide.

SERVICE (FOR AUSTRALIA ONLY)

• Yearly maintenance is recommended.
- Maintain the quality built into your product by contacting Sub-Zero Factory Certified Service.
- When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 6 for rating plate location.
- For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. This information should be recorded on page 2.
- For Australia only, contact: Sub-Zero Group Australia Pty Ltd Level 10, 469 La Trobe Street Melbourne Victoria 3000 Phone [phone] subzero-wolf.com.au

SERVICE (FOR UNITED KINGDOM ONLY)

Sub-Zero & Wolf Ltd

9 The Street, Heybridge, Maldon, Essex, CM9 4XB

020 8418 3800

[e-mail]

www.subzero-wolf.co.uk

Warranty

Sub-Zero International Limited Warranty

FOR RESIDENTIAL USE

FULL TWO YEAR WARRANTY\*

For two years from the date of original installation, this Sub-Zero product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Sub-Zero under the above warranty must be performed by Sub-Zero factory certified service, unless otherwise specified by Sub-Zero, Inc. Service will be provided during normal business hours.

FULL FIVE YEAR SEALED SYSTEM WARRANTY

For five years from the date of original installation, this Sub-Zero product warranty covers all parts and labor to repair or replace, under normal residential use, these parts that prove to be defective in materials or workmanship; compressor, condenser, evaporator, drier and all connecting tubing. All service provided by Sub-Zero under the above warranty must be performed by Sub-Zero factory certified service, unless otherwise specified by Sub-Zero, Inc. Service will be provided during normal business hours.

For more information regarding your Sub-Zero product warranty, contact your authorized Sub-Zero dealer. Warranties must comply to all country, state, city, local and or ordinance.

^a Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects.

*Replacement water filters and air purification cartridges are not covered by the product warranty.

SUBZERO

Sub-Zero, Sub-Zero 9 Design, Sub-Zero 6 Snowflake Design, Dual Refrigeration. The Living Kitchen, Great American Ritchens The Fine Art of Kitchen Design, Wall, Wall 9 Design, Wolf Gourmet, W & Design, red colors knows, Cave, and Cave & Design are registered Trademarks and service marks of Sub-Zero Cropa Inc. and its subsidiaries. All other trademarks are property or their respective owners in the United States and other counties.

Technical diagram of a refrigerator with numbered compartments and labeled parts

Labeled diagram of a refrigerator interior showing numbered compartments and doors

Technical diagram of an open refrigerator with numbered compartments and shelves

Modelo side-by-side

16 15 8 2 11 9 1 4 10

Technical diagram of a refrigerator with numbered compartments and doors, showing internal shelves and doorways.

Technical diagram of an open refrigerator with numbered compartments and labeled parts

Modelo side-by-side con dispensador externo

- Sub-Zero & Wolf Ltd 9 The Street, Heybridge, Maldon, Essex, CM9 4XB 020 8418 3800 [e-mail] www.subzero-wolf.co.uk

Labeled diagram of a refrigerator interior showing numbered compartments and doors

Technical diagram of an open refrigerator with numbered compartments and shelves

Modèle Side-by-Side

16 15 8 2 11 9 1 4 10

Technical diagram of an open refrigerator with numbered compartments and labeled parts

Technical diagram of an open refrigerator with numbered compartments and labeled parts

1 Effleurez 2 Effleurez pendant 3 seconds.

9 The Street, Heybridge, Maldon, Essex, CM9 4XB 020 8418 3800

[e-mail]

www.subzero-wolf.co.uk

Garantie

Technical diagram of a refrigerator with numbered compartments for identification

Labeled diagram of an open refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered compartments and shelves

Modello parallelo

Technical diagram of a refrigerator with numbered compartments and labeled parts

Technical diagram of an open refrigerator with numbered parts for identification

Technical diagram of an open refrigerator with numbered compartments and labeled parts

9 The Street, Heybridge, maldon, Essex, CM9 4XB

020 8418 3800

[e-mail]

www.subzero-wolf.co.uk

Technical diagram of a refrigerator with numbered compartments and labeled parts

Labeled diagram of a refrigerator interior showing numbered compartments and doors

Technical diagram of an open refrigerator with numbered compartments and shelves

Side-by-Side-Modell

Technical diagram of a refrigerator with numbered compartments and door frame annotations

Labeled diagram of an open refrigerator with numbered parts for identification

French-Door-Modell

Technical diagram of an open refrigerator with numbered compartments and labeled parts

HOCHKLAPPBARES MILCHPRODUKTEFACH

KLAPPBARES GEFRIERSCHRANKREGAL

9 The Street, Heybridge, Maldon, Essex, CM9 4XB 020 8418 3800

[e-mail] www.subzero-wolf.co.uk

Garantie

Classic Series Koeling

Inhoud

Labeled diagram of an open refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered compartments and shelves

Zij-aan-zijmodel

Technical diagram of a refrigerator with numbered compartments and door frame annotations

Labeled diagram of an open refrigerator with numbered parts for identification

Frans deurmodel

Technical diagram of an open refrigerator with numbered compartments and labeled parts

LS WATER WATERHOODER WATERHOODER

Geen lampjes of koeling.

9 The Street, Heybridge, Maldon, Essex, CM9 4XB 020 8418 3800

[e-mail] www.subzero-wolf.co.uk

Garantie

Labeled diagram of a refrigerator interior showing numbered compartments and doors

叠排式型号（所示为玻璃门型号）

Technical diagram of an open refrigerator with numbered compartments and shelves

并排式型号

16 15 8 2 11 9 1 4 10

所有冷冻室型号

Technical diagram of an open refrigerator with numbered compartments for identification

法式门型号

Technical diagram of an open refrigerator with numbered compartments and labeled parts

带外部饮水机的并打式型号

触摸控制面板

- Sub-Zero & Wolf Ltd

9 The Street, Heybridge, Maldon, Essex, CM9 4XB

020 8418 5800

[e-mail]

www.subzero-wolf.co.uk

质保

Sub-Zero国际有限质保

供住宅使用

两年质保*

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Rengyension, The Living Kitchen, Great American Kitchen, The Fine Art of Kitchen Design, Wnt., Wolf & Design, Wolf Gourner, W & Design, and Coored Knits, Coastal Cave & Designs, for Sub-Zero Group, Inc. 及其子公司的注册商标及商标标记，所有其他商标均为本公司住所在美国和新加坡（或属）的市场。

SUBZERO

SUB-ZERO, INC. P.O. BOX 44848 MADISON, WI 53744 USA SUBZERO.COM 800.222.7820

9050855 REV-A 9/2021
