USER MANUAL HS720B SCHEPPACH

Rocking log saw Translation of original instruction manual

Table of contents: Page:

• After unpacking check all parts, including the scope of delivery, for transport damage. In the event of complaints the carrier and manufacturer must be informed immediately.

• Later claims will not be recognised.

• Familiarise yourself with the product by means of theoperatinginstructionsbeforeusingfortherst time.

• With accessories as well as wearing parts and re- placement parts use only original spare parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide the article number as well as type and year of manufacture for your equipment.

2. Safety instructions

• We have marked points in the operating instruc- tions that impact your safety with this symbol: m

• Observe all of these notes before and while work- ing with the saw.

• Store these safety instructions safely.

• Unused devices should be stored in a dry, locked place and out of reach of children.

• Keep tools sharp and clean in order to be able to work better and more safely.

• Pay attention to what you are doing. Remain sen- sible when working. Do not use the product when you are fatigued.

• Do not use any products on which the switch can- notbeswitchedonando󰀨.

• Warning! The use of other insertion tools and other accessories can entail a danger of injury.

• Warning: Pull out the mains plug or disconnect the fuel supply by pressing the fuel valve before un- dertaking any maintenance work described in this manual.

• Pass the safety instructions on to all persons who work on the machine.

• Caution! There is a danger of injury to hands and ngersfromtherotatingsawblade.

• Do not expose the saw to rain and do not use the machine in a damp or wet environment.

• Ensure good lighting.

• Donotuseinthevicinityofcombustibleuidsor gases.

• Wear suitable work clothing! Loose clothing or jew- ellery can be caught by the rotating saw blade.

• When working outdoors, anti-slip footwear is rec- ommended.

• Tie long hair back in a hair net.

• Avoid abnormal posture.

• The operating personnel must be at least 18 years of age. Trainees must be at least 16 years of age and may only work on the machine under supervision.

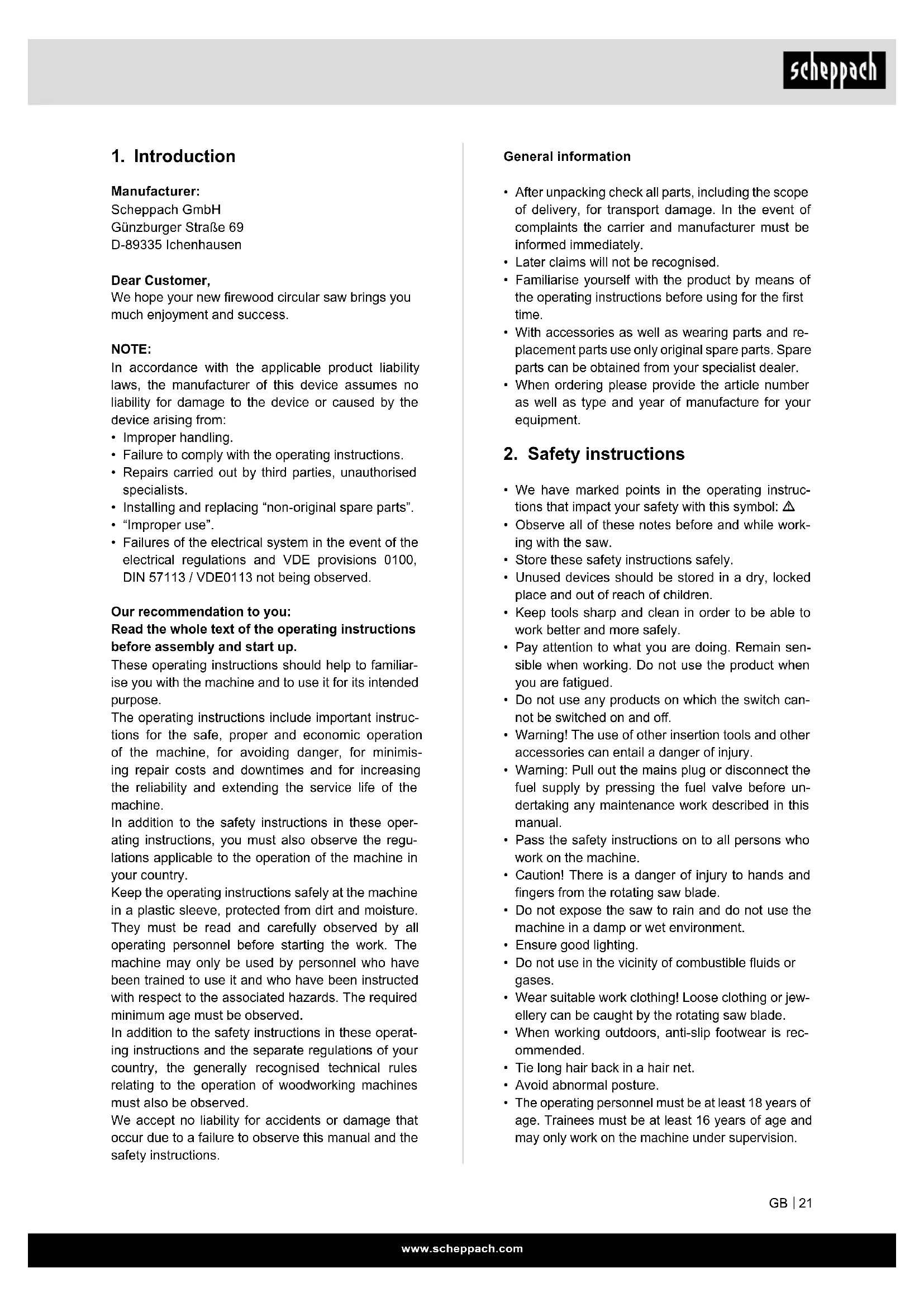

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, Wehopeyournewrewoodcircularsawbringsyou much enjoyment and success. NOTE: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Failure to comply with the operating instructions.

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing “non-original spare parts”.

• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed. Our recommendation to you: Read the whole text of the operating instructions before assembly and start up. These operating instructions should help to familiar- ise you with the machine and to use it for its intended purpose. The operating instructions include important instruc- tions for the safe, proper and economic operation of the machine, for avoiding danger, for minimis- ing repair costs and downtimes and for increasing the reliability and extending the service life of the machine. In addition to the safety instructions in these oper- ating instructions, you must also observe the regu- lations applicable to the operation of the machine in your country. Keep the operating instructions safely at the machine in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The machine may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed. In addition to the safety instructions in these operat- ing instructions and the separate regulations of your country, the generally recognised technical rules relating to the operation of woodworking machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.www.scheppach.com

• The safety, operating and maintenance informa- tion of the manufacturer, as well as the dimensions speciedinthetechnicaldata,mustbeobserved.

• The relevant accident prevention regulations and the other generally accepted safety rules must be observed.

• Make sure that you have secure footing and always maintain your balance.

• Check the product for potential damage!

• All components and protective devices must be carefully inspected to ensure that they are fault-free and function as intended prior to continued use of the machine.

• Check whether the moving parts function faultless- ly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions mustbefullledtoensurefault-freeoperationofthe product.

• Damaged protective devices and parts must be re- paired properly or replaced by a recognised spe- cialistworkshopunlessotherwisespeciedinthe usage instructions.

• This product conforms to the applicable safety regulations. Repairs may only be performed by a specialist using original spare parts. Otherwise, ac- cidents can occur.

• Wear suitable personal protective equipment. This includes: - Hearing protection to prevent the risk of develop- ing hearing loss; - Respiratory protection to avoid the risk of inhal- ing damaging dust. - Wear gloves when handling saw blades and rough materials. Saw blades must be carried in a container whenever practical.

• The operator must be informed about the condi- tionsthat a󰀨ect the noiselevels (e.g.saw blades designed to reduce noise, care of saw blade and machine).

• Faults in the machine, including the guards and the saw blade, must be reported to the person respon- sible for safety as soon as they are discovered.

• When transporting the machine, use only the trans- port devices and never use the guards for handling and transport.

• All operators must be adequately trained in the use, setting and operation of the machine.

• Do not saw any material to be cut that contain for- eign bodies such as wires, cables or cords.

• Danger of poisoning! Exhaust gases, fuel and lu- bricants are poisonous, exhaust gases and fuel va- pours may not be inhaled.

• Arrange the workpiece stack to be processed and thenishedworkpiecesclosetothenormalwork- place of the operator.

• Onlyuseoriginal,undamagedangesasspecied by the manufacturer and those that are suitable for the purpose.

• Keep children away from the product with the en- gine running.

• Keep the workplace free of wood debris and parts lying around.

• Disorder in the work area can lead to accidents.

• Do not allow other persons, especially children, to touch the product. Keep such persons away from the workplace.

• Personnel working on the machine must not be dis- tracted.

• Observe the direction of rotation of the engine and saw blade. Only use saw blades whose maximum permissible speed is not less than the maximum spindle speed of the circular saw and the material to be cut.

• Under no circumstances should the saw blades be braked by pushing against the side after switching o󰀨thedrive.

• Only install saw blades that are free of cracks and not deformed.

• Only use saw blades recommended by the manu- facturer and which comply with EN 847-1.

• Faulty saw blades must be replaced immediately.

• Do not use saw blades that do not correspond to thecharacteristicsspeciedintheseusageinstruc- tions.

• Safety equipment on the machine must not be dis- assembled or made unusable.

• Replace worn table or swivel frame insert.

• Working position always to the side of the saw blade.

• Do not load the machine so much that it comes to a standstill.

• Make sure that cut-o󰀨 pieces of wood are not caughtbythesprocketofthesawbladeandung away.

• Never remove loose fragments, chips or jammed wood pieces from the running saw blade.

• To rectify faults or remove jammed pieces of wood, switchthemachineo󰀨.Pulloutthemainsplugor close the fuel valve.

• If the sawing gap has increased due to wear, re- placetheswivelframeortableinlay.Switcho󰀨the machine and pull out the mains plug or close the fuel valve.

• Only carry out modications, adjustments, meas- urements and cleaning work when the engine is switchedo󰀨.

• Pull out the mains plug or close the fuel valve.

• Before switching on, make sure that keys and ad- justing tools are removed.

• Switch o󰀨 the motor and pull out the mains plug, or disconnect the fuel supply by pressing the fuel valve when leaving the workplace.

• All protective and safety equipment must be reas- sembled immediately after repair or when mainte- nance is completed.www.scheppach.com

• The machine may only be used, maintained or re- paired by persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unau- thorised changes to the machine.

• The machine may only be operated with original ac- cessories and original tools from the manufacturer.

• Any use beyond this is improper use. The manufac- turer is not responsible for the resulting damages; the user solely bears the risk.

• Only use saw blades that comply with the Europe- an standard DIN EN 847-1.

• Ensure adequate lighting.

• Make sure that the machine is stable on solid ground during assembly.

• The area around the machine must be free of trip hazards.

• The machine is equipped with an electronic brake, do not brake the machine by the saw blade.

• The maximum workpiece weight should be no more than 35kg due to one-man operation and the ergonomic risks and must not exceed 50kg in order to prevent overloading the swivel frame. Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

• To avoid personal injury or material damage, take extra care when handling fuel.

• Fuelisextremely ammable, the vapoursare ex- plosive and toxic!

• Avoid smoking cigarettes, cigars or pipes in the work area and extinguish all possible sources of re.

• Only use approved fuel tanks.

• Never open the tank cover or add fuel to the engine when the engine is running.

• The engine must be cooled down before refuelling.

• Never refuel the product indoors.

• Never store the product or the fuel tank near open amesorpossiblesourcesofsparks.

• Neverllfueltanksinsideavehicle,onatruckor trailer with a cover.

• Always place the canister on solid ground at a safe distancefromthevehicleforrelling.

• If fuel is splashed on your clothes, please change immediately.

• Donotoverllthefueltank.

• Close the fuel tank and fuel container carefully.

• If the fuel tank needs to be emptied, this must be done outdoors.

• Never transport the saw with the engine running.

• The machine must be on a horizontal, level oor duringoperationandtheooraroundthemachine must be level, well maintained and free of waste suchaschipsandcut-o󰀨workpieces.

• Do not use the machine at locations with a high risk ofre. Warning! This machine generates an electromag- netic eld during operation. This eld can impair active or passive medical implants under certain cir- cumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operat- ing the machine.

The rewood circular saw is designed exclu- sively with the o󰀨ered tool for machining wood. The machine complies with the applicable EC machinery directive.

• The rocking log saw is designed as a one-man op- erating station and is only to be used outdoors.

• Only the operator may work or load the product, only two people may transport the product. Pull out the mains plug or close the fuel valve before trans- port.

• The rocking log saw is a transportable circular saw. Itcanonlybeusedforcross-cuttingrewoodwith feed rocker in accordance with the technical data.

• The saw is designed exclusively for cross-cutting rewoodwithamaximumlengthof1m.

• Benutzen Sie die Säge nicht, um andere Werkstof- fe zu schneiden.

• Do not use the saw to cut other materials.

• Regardless of the wood diameter, only one work- piece may be placed on the swivel frame.

• Observe all safety and danger notices on the ma- chine and keep them complete and in legible con- dition.

• The working area and surroundings of the machine must be kept free of disruptive foreign bodies in or- der to prevent accidents.

• Basically, the timbers to be cut must be free of for- eign bodies such as nails and screws.

• Only use the machine when in a technically fault- less condition, appropriately and in compliance with the operating instructions and with full knowledge of safety and hazards. In particular, rectify malfunc- tions that could impair safety immediately (or com- missionrecticationworksaccordingly).

• Thesafety,operating andmaintenancespecica- tions of the manufacturer, as well as the dimensions speciedinthetechnicaldata,mustbeobserved.

• The applicable accident prevention regulations and the other generally accepted safety rules must be complied with.www.scheppach.com

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual resid- ual risks can arise during operation.

• Dangerofinjuryforngersandhandsduetothe rotating saw blade with improper guiding of the workpiece.

• Risk to health from wood dust or wood chippings. Thetypeofwoodanddegreeofdryinghasaninu- ence on the exposure to dust. Use a chip extraction system if necessary.

• Wearing personal protective equipment such as protective goggles and dust masks is mandatory.

• Risk to health due to noise. The permissible noise level is exceeded during operations. It is essential that personal protective equipment, such as hear- ing protection, is worn.

• Hazard due to electrical power, with the use of im- proper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main.

• Residual risks can be minimised if the “safety in- structions” and the “Proper use” are observed along with the whole of the operating instructions.

• Injuries due to defective saw blade. Check the in- tegrity of the saw blade regularly and before each use.

• When using special accessories, the operating in- structions enclosed with the special accessories must be observed and read carefully.

• The noise emission can be reduced by using a spe- cicsawblade.

• Never refuel the product in enclosed spaces.

• Before switching on the engine, you must clean the tank and the product of petrol residues.

• Heatedpetrolexpands.Donotllthefueltankto the brim, but leave some space so that warm petrol can expand.

• The fuel cap has a ventilation slot for the escape of fuel vapours.

• Always use an original tank cover.

• Failure to observe the petrol safety instructions can trigger res and explosions, it can cause serious injuries and damage the device and other people’s property.

• Filling petrol into a running or hot engine can trigger an explosion.

• Beforerellingwithpetrol,alwaysswitcho󰀨theen- gine and let it cool down for a few minutes.

• Remove wood chippings and other debris from the device. Keep the product clean to increase its per- formance.

• The engine, transmission and exhaust get very hot in a few minutes when the engine is running. Do not touch these parts of the machine under any cir- cumstances.

• Beforeservicingtheproduct,youmustrstswitch o󰀨theengineandallowtheengineandtransmis- sion to cool down.

• Remember, exhaust fumes are dangerous. Never switch on the device in enclosed spaces.

• Dispose of used engine oil in accordance with local regulations.

• Switcho󰀨theengineimmediatelyifyounoticeany unusual noises or vibrations.

• Unusual noises or vibrations are usually warnings of major problems. Attention: Danger of accidents! The wood must always rest on both sides of the saw blade in the prism of the swivel frame. (see arrows)www.scheppach.com

Attention: Danger of accidents! Wear safety shoes. Attention: Danger of accidents! Wear hearing protection. Wear safety goggles. Attention: Danger of accidents! Read the operating manual before commissioning! Attention! Tool continues to run after power discon- nected! Disconnect the device from the power supply before carrying out any maintenance, clean- ing or repair work! For machines equipped with a combustion engine, close the fuel valve!

6. Operator training

• Pass the safety instructions on to all persons who work on the machine.

• The operating personnel must be at least 18 years of age. Trainees must be at least 16 years of age and may only work on the machine under supervision.

• Personnel working on the machine must not be dis- tracted.

• Keep children away from the mains-connected ma- chine.

• Wearclose-ttingclothing.Removejewellery,rings and watches.

• Ensure that all of the safety information and danger notices on the machine are in legible condition.

• Cautionwhenworking:Dangerofinjuryforngers and hands due to the rotating cutting tool.

• Regular breaks must be taken during operation.

• Safety shoes and protective clothing must be worn during operation.

Sound power level in dB at 230 V / 400 V Idle L

Sound pressure level at workstation in dB Idle LqAeq / Machining LqAeq 92 / 95 Sound power level in dB Petrol Idle L

Sound pressure level at work- station in dB Idle LqAeq / Machining LqAeq 94 / 99 The stipulated values are emission values and so do not necessarily represent safe work station values. Although there is a correlation between emission levels and exposure levels, it is not possible to reli- ably determine whether additional precautionary measures will be required or not based on this. Fac- torsthatinuencetheexposurelevelpresentatany given time in the work area include the nature of the working area, other noise sources, e.g. the number of machines and neighbouring work processes. The permissible working values may vary from country to country. However, the information should enable the operator to evaluate the hazards and risks.

• To transport the rocking log saw, latch the swivel lock in position (1).

• Transport the rocking log saw by the handle (2).

• When transporting the rocking log saw with petrol engine, insert the transport handle (3) through 2 loops and, for safety, slightly turn it, and lift and transport it using the transport handle.

• Bring a second person for transport.

8. Scope of delivery

• Spark plug wrench (for the petrol version)

• Operating instructions WARNING! The product and the packaging are not children’s toys! Do not let children play with plastic bags, lms or small parts! There is a dan- ger of choking or su󰀨ocating!

The machine is delivered fully assembled and ready for immediate use.

10. Setup and calibration

• Make sure that the machine is stable on solid ground during assembly.

• The workplace must be well lit.

• The area around the machine must be free of trip hazards.

• For your safety in the workplace, fasten the saw to theoorwithscrews(8x80mm)orgroundspikes/ anchors (8x230mm) to prevent it tipping or sliding.www.scheppach.com

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains power connection as well as the extension lead used must also comply with these regulations and the local regulations. Check the electrical connection cables for damage regularly. Ensure that the connection cables are dis- connected from electrical power when checking for damage. Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use con- nection cables with the marking „H 07 RN“. The printing of the type designation on the cable is mandatory. Damaged electrical connection cables The insulation on electrical connection cables is often damaged. Causes are:

• Pressure points, where connection cables are passed through windows or doors.

• Kinks where the connection cables have been im- properly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to insulation damage! 3-phase motor 400 V / 50 Hz Mains voltage 400 V / 50 Hz Mains power connection and extension leads must be 5-core = 3 P + N + SL. - (3/N/PE). Extension cables must have a minimum cross section of 1.5 mm² (≤ 25 m). Extension cables must have a minimum cross sec- tion of 2.5 mm² (> 25 m). The mains power connection is protected with a 16A slow-blow fuse. The RCD circuit breaker must have a 30 mA trip rating. When connecting to the mains or in the event of the machine being moved to another location, the turn- ing direction must be checked. It may be necessary to change the polarity. Turn the pole changing device in the device connector. Motor braking device The brake brakes the drive motor of the sawing shaft within 10 s. The electric braking is interrupted after max. 14 s. If the braking process takes longer than 10 s, the machine must no longer be operated because the brake is defective. It is essential to disconnect the machine from the power supply. Only a qualied electrician may be assigned with troubleshooting. Operating mode / duty cycle The electric motor is designed for operating mode S6 - 20 %. S6 = Continuous operation with intermittent load 20% = Based on 10 min: 2 min. load; 8 min. idle mode. Iftheengineisoverloaded,itswitcheso󰀨automati- cally because a thermostat protects the motor from overloading. After a cool-down period (time varies) the motor can be switched back on again. Electrical connection test

• Switch on the machine at the operating switch; the sawing shaft starts running. Attention! Check direction of rotation

• The direction of rotation of 3-phase motors must be checkedwhentheyareconnectedforthersttime or if they are relocated. If necessary the polarity must be changed with the phase inverter (Fig. A)

• Whenswitchingo󰀨,thesawingshaftisbrakedwith- in 10s. Change of direction of rotation Fig. A m AC motor

• The mains voltage must be 220-240 V/50 Hz.

• Extension leads up to 25 m long must have a mini- mum cross section of 1.5 mm², and over 25 m long must have a minimum cross section of 2.5 mm².

• The mains power connection is protected with a 16 A slow-blow fuse.

• The RCD circuit breaker must have a 30 mA trip rating. m Connections and repair work on the electrical equipment may only be carried out by electricians.www.scheppach.com

Please also read the enclosed operating manual for the petrol engine!

• Priortocommissioningthedeviceforthersttime: Remove the cable ties from the tension spring. Open the protective cover (1) and mount the ten- sion springs as displayed in the image.

• Observe the safety instructions before the commis- sioning.

• All safety devices and aids must be installed.

• Check the swivel frame; it must return to the start- ing position by itself. Check that the saw blade is properly seated and that the running direction is correct.

• Function test before starting work.

• Perform a brake test prior to commencing work.

• Tostartupthesaw,presstheon/o󰀨switch.

• The saw is designed exclusively for cross-cutting rewoodwithamaximumlengthof1metre.

• The smallest permissible wood diameter is 60 mm.

• With both hands on the handle, swivel the swivel frame towards the saw blade.

• After the saw has come to a complete standstill, pull out the mains plug or close the fuel valve.

• Only carry out modications, setting, measuring andcleaningworkwhentheengineisswitchedo󰀨. Wait until the rotating tool has come to a standstill and pull out the mains plug or close the fuel valve.

• On/o󰀨 switch Switching on Press the green I button Switching o󰀨 Press the red O button Please provide the following information in the event of any enquiries:

• Engine manufacturer; engine type

• Type of current for the motor

• Machine data - type plate

• Electrical control data When returning the engine always send in the complete drive unit with electrical control. m m Petrol engine Only valid for petrol versions Engine oil m The oil has been drained for transport. If the oil tray is not lled with engine oil before the engine is started, this will result in permanent damage to the engine and a loss of the engine warranty. Topping up with fuel m WARNING Petrol is highly ammable:

• Only store petrol in the designated containers.

• Only refuel the unit outdoors and do not smoke whenlling.

• Petrol must be lled before starting the engine. While the engine runs or if the engine is hot, the fuel cap must not be opened and petrol must not belled.

• If petrol overows, no attempts should be made to start the engine. Instead, the machine must be removed from the area contaminated with petrol. Do not try to start the engine until the fuel vapours have evaporated.

• For safety reasons, fuel tank and other tank caps must be replaced if damaged.

• Never store petrol near a source of sparks. Always use a tested canister. Keep petrol away from chil- dren.

• Replace defective silencers.

• Openthepetrolcapandllthefueltankwithpetrol up to the lower point of the tank cover.

• Useafunnelandmeasuringcontainerforlling.Do notoverllthetank.

• Only use fresh, clean, unleaded fuel.

• Never mix oil with petrol.

• Purchase fuel in quantities that can be used within 30 days to ensure that the fuel is fresh. Attention: Use standard unleaded petrol with max. 5% bioethanol component. m WARNING Always only use a safety petrol canister. Do not smoke when lling petrol. Remove any oil or petrol residues. Switch the engine o󰀨 before lling petrol and let the engine cool for several minutes.www.scheppach.com

Starting the engine Only valid for petrol version Follow the procedure below for cold starting:

1. Turn the fuel valve (B) to the right to the

2. Turn the choke lever (A) on the engine

fully to the left, to the “ON” position.

3. Set the throttle lever (C) to the half-open

4. Turn the ignition switch (E) to ON.

5. Pull the recoil starter handle (D) slow-

lyseveraltimessothatthepetrolows into the carburettor. Then hold the recoil starter handle (D) and pull the cord out a little until you feel resistance. Then pull the cord out in one quick movement and let the cord wind up again slowly. Do not let the cord recoil. If necessary, pull the recoil starter handle (D) several times until the engine starts. 6. Let the engine warm up for a few seconds. Then gradually move the choke lever (A) to the right to the “OPEN” position. Restarting an engine that is already warm from previous operation does not normally require the use of the choke.

1. Turn the fuel valve (B) to the right to the open position.

2. Set the throttle lever (C) to the half-open position.

3. Turn the ignition switch (E) to ON.

4. Then hold the recoil starter handle (D) and pull the cord out a little until you feel resistance. Then pull out the recoil starter handle (D) in one quick movement and let the cord wind up again slowly. Do not allow the recoil starter handle (D) to recoil. After the engine has started, move the throttle lever (C) to the full throttle position so that the saw blade can reach its maximum speed. Work complete

• Slowly move the throttle (C) to the stop position.

• Bring the swivel frame to the transport position and secure it with the swivel frame lock. The HS720 und HS720B provides maximum safety thanks to its enclosed sawing area.

• Open the protective cover (1).

• Insert the material to be cut.

• Close the protective cover (1).

• Swivel the rocking frame (2) with hand grip (A) or (B) to the saw blade and saw through the material to be cut.

• Swivel the rocking frame (2) back and open the protective cover.

• Add more material to be cut and close the protective cover again.

15. Sawing operation

1. After the machine has been switched on, wait until

the saw blade has reached full speed.

2. Place the wood in the swivel frame.

3. Hold the handle of the swivel frame with both

hands and guide it evenly towards the saw blade.

4. Only apply enough pressure on the swivel frame

when sawing so that the speed of the saw blade does not drop.

5. Remove the sawn wood from the swivel frame af-

ter it has returned to its original position and the saw blade is covered. Now place the next piece of wood on. m Attention!

• Do not leave the machine unattended during op- eration.

• Switchthemachineo󰀨,removethemainsplugor close the fuel valve when stopping work. Work complete

• Switcho󰀨thedrivemotorwiththeOn/O󰀨switch.

• Wait until the saw blade has come to a complete stop.

• Pull out the mains plug or close the fuel valve.

• Observe the general maintenance information.

• Bring the swivel frame to the transport position and secure it with the swivel frame lock.

16. Maintenance and service

m Only carry out maintenance, modication, adjustment and cleaning work when the engine is switched o󰀨 and the mains plug connector is disconnected or the fuel valve is closed.

• Keep the instructions with the machine.

• Keep the machine clean.

• Wear safety goggles when cleaning.

• Attention!Dangerofreduetochipsintheevent thecleaningcarriedoutisinsu󰀩cient. Before starting the maintenance or checks, clean the work area and have suitable tools at hand and in good condition. The time intervals relate to normal operating condi- tions. If the machine is subjected to heavier loads, these times must be reduced accordingly. Clean the machine cladding, panels and control levers with a soft, dry cloth or a cloth that has been slightly moistened with neutral cleaning agent. Do not use any solvents such as alcohol or petrol as these may damage the surfaces. Keep oils and lubricants out of reach of unauthorised persons. Read through the instructions on the con- tainers carefully and follow them closely. Avoid direct contact with the skin and wash o󰀨 thoroughly after use. m Check all safety devices after all maintenance or cleaning work. 1www.scheppach.com

Servicing Switchtheengineo󰀨andletitcooldown.Pulloutthe mains plug or close the fuel valve. Check the general condition of the machine. Check for loose screws, misalignment or jamming of moving parts, part breakages and other conditions that could impair safe operation. Remove all foreign objects and other materials that have collected on the saw blade and on the unit. Clean the machine after every use. Then use a high-quality, low-viscosity machine oil to lubricate all moving parts. m Never use a high-pressure cleaner to clean your machine. Water can penetrate sealed areas of the machine and the transmission housing and cause damage to spindles, gear wheels, bearings or the engine. The use of high-pressure cleaners shortens the service life and reduces the ease of maintenance. Experienced craftsmen can carry out small repairs on the machine themselves.

• Check the saw blade at regular intervals. Only use saw blades that are free of cracks and not de- formed. Only use tools that comply with the Euro- pean standard DIN EN 847-1.

• Replace worn swivel frame bearings immediately.

• Check all safety devices after all maintenance or cleaning work.

• Check that no tools or miscellaneous parts are on or in the machine before putting it back into operation.

• Remove any sawdust accumulations that may arise at the discharge. Service information With this product, it is necessary to note that the fol- lowing parts are subject to natural or usage-related wear, or that the following parts are required as con- sumables. Wearing parts*: Saw blade; swivel frame inserts

• may not be included in the scope of delivery! Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

17. Cleaning the air lter

Only valid for petrol version Clean the air lter after 50 operating hours. If it is already worn out, replace it.

3. Wash it with detergent and water and dry it thor-

oughly with a clean cloth.

absorbent cloth to remove the excess oil.

18. Tensioning the drive belt

• The engine must have cooled down.

• Remove the belt guard to gain access to the belt.

• Loosen the 4 screws (A) under the motor plate on both sides.

• Loosen the counternut (B).

• Using the clamp screw (C), tighten the drive belt if the belt gives more than 10-15 mm (when pressing your thumb on it).

• Tighten the lock nut (B) and the 4 screws (A) again.

• Attach the belt guard again. When you remove or attach the drive belt, make sure thatyourngersdonotgetcaughtbetweenthebelt and the roller.

19. Changing the oil

Recommended engine oil SAE 10W-30 or 10W-40 (depending on the operating temperature)

The oil must be replaced every 50 operating hours whilsttheengineiso󰀨andinwarmcondition.Todo so,itmaybenecessarytolettheenginerunbriey. Place a suitable collection bucket with min. 1 litre vol- ume under the oil drain screw (A). Firstopentheoildrainscrew(A)andthentheoilll- ingnozzle(B)anddraino󰀨alltheengineoilusinga suitable hose or pipe. Closetheoildrainscrew(A)againandll0.6litresof freshengineoilintotheoilllingnozzle(B). Then check the oil level using the oil dipstick (B) and correct the oil level if necessary. Dispose of oil as per local regulations.

20. Saw blade replacement

Wait until stationary and allow to cool down. Pull out the mains plug or disconnect the spark plug connector! Observethemax.speedspeciedonthesawblade and select a saw blade suitable for your machine.

• Thesawbladecanonlybereplacedintherewood cutting position.

• Loosen the top and bottom screws on the protective cover approx. 5 mm and open the protective cover.

• To lock the saw blade into place, insert the locking pin (1) through the corresponding opening on the saw blade guard. To do this, insert the pin complete- ly and straight into the hole. Use the corresponding hole (depending on the saw blade type) so that the pin is at the lowest point (bottom of the tooth).

• Loosen the saw blade with the supplied open-end spanner.

• Removesawbladeangeandsawblade.

• Clean the clamping surfaces. The clamping surfac- es must be free of dirt, grease, oil and water.

• Insert the new saw blade.

• Mountthesawbladeangeagainandtightenthe clamp screw with 90Nm. Use the open-ended spanner supplied.

Do not extend the spanner with a tube or similar and do not tighten the screw by hitting the open-ended spanner with a hammer.

• Remove the locking pin. m Attention! When inserting the saw blade, make sure the running direction is correct!

• Store the machine and its accessories in a dark, dry and frost-free place that is inaccessible to children

• Store the machine in the transport position.

• The optimum storage temperature lies between 5 and30˚C.

• Cover the machine to protect it from dust or moisture.

• Store the operating manual with the tool.

22. Disposal and recycling

Notes for packaging The packaging materials are recyclable. Please dispose of packaging in an environmen- tally friendly manner. Notes on the electrical and electronic equipment act [ElektroG] Waste electrical and electronic equip- ment does not belong in household waste, but must be collected and dis- posed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. munici- pal works yards). - Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to takethembackoro󰀨ertodosovoluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please con- tact the manufacturer’s customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, di󰀨erent regulations may apply to the dis- posal of waste electrical and electronic equipment. You can nd out how to dispose of the disused device from your local authority or city adminis- tration. Fuels and oils

• Before disposing of the unit, the fuel tank and the motor oil tank must be emptied!

• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!

• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.www.scheppach.com

Important note in the case of repairs: For return delivery of the device for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre. Fault Possible cause Remedy The saw does not brake when switching the machineo󰀨 Brake is defective Have the brake replaced Saw blade is loose after the engine is switched

Fixing nut not tight enough Tightenxingnut;right-handthread(90Nm) Burnt areas on the cutting surface Blunt saw blade Sharpen saw blade by a specialist Incorrect saw blade Replace saw blade Engine does not start Spark plug cable unplugged. Connect the spark plug cable securely to the spark plug No fuel or old fuel Fill with clean, fresh petrol Choke not in open position Move the throttle lever to the choke position during a cold start Fuel line clogged. Clean the fuel line Contaminated spark plug. Clean the spark plug, set the gap or replace spark plug Engineooded Wait a few minutes before restarting, but do not allow the engine to prime Engine oil level low The oil monitor prevents the engine from starting if the oil level is too low: Check the oil level Engine runs erratically Spark plug cable loose Connect and fasten the spark plug cable Engine runs with choke Turn the choke lever to OFF Fuel line clogged or old fuel Cleanthefuellineandllthetankwithclean,fresh petrol Ventilation blocked Clean the ventilation Water or contamination in the fuel system Emptythetankandllitwithfreshfuel. Contaminatedairlter Cleanorreplacetheairlter Incorrect carburettor setting Contact service Engine overheating Engine oil level low Fill crankcase with correct oil. Contaminatedairlter Cleantheairlter Airowrestricted Remove and clean the housing. Carburettor not adjusted correctly Contact service. Engine does not start Mains fuse blown Check mains fuse Extension lead defective Replace the extension lead Connection to the engine or switch not

Have this checked by an electrician Engine or switch faulty Have this checked by an electrician Incorrect engine rota- tional direction Capacitor defective Have this checked by an electrician Polarity reversed Change direction of rotation with phase inverter Incorrect connection Have an electrician change the polarity of the wall socket poles Engine not supplying power, fuse tripping Cross section of the extension cable insu󰀩cient See “Electrical connection” Overload due to blunt saw blade Replace the saw blade Saw blade jammed Switcho󰀨themachine,pulloutthemainsplugand release the blockage m Electrical maintenance work may only be carried out by a qualied electrician!www.scheppach.com

106/109 Negotovost K wa/LqAeq

106/112 Negotovost K wa/LqAeq

24. Declaration of conformity
