USER MANUAL Multigroomer 7 MGK7320 BRAUN

• not with all models 2a*/

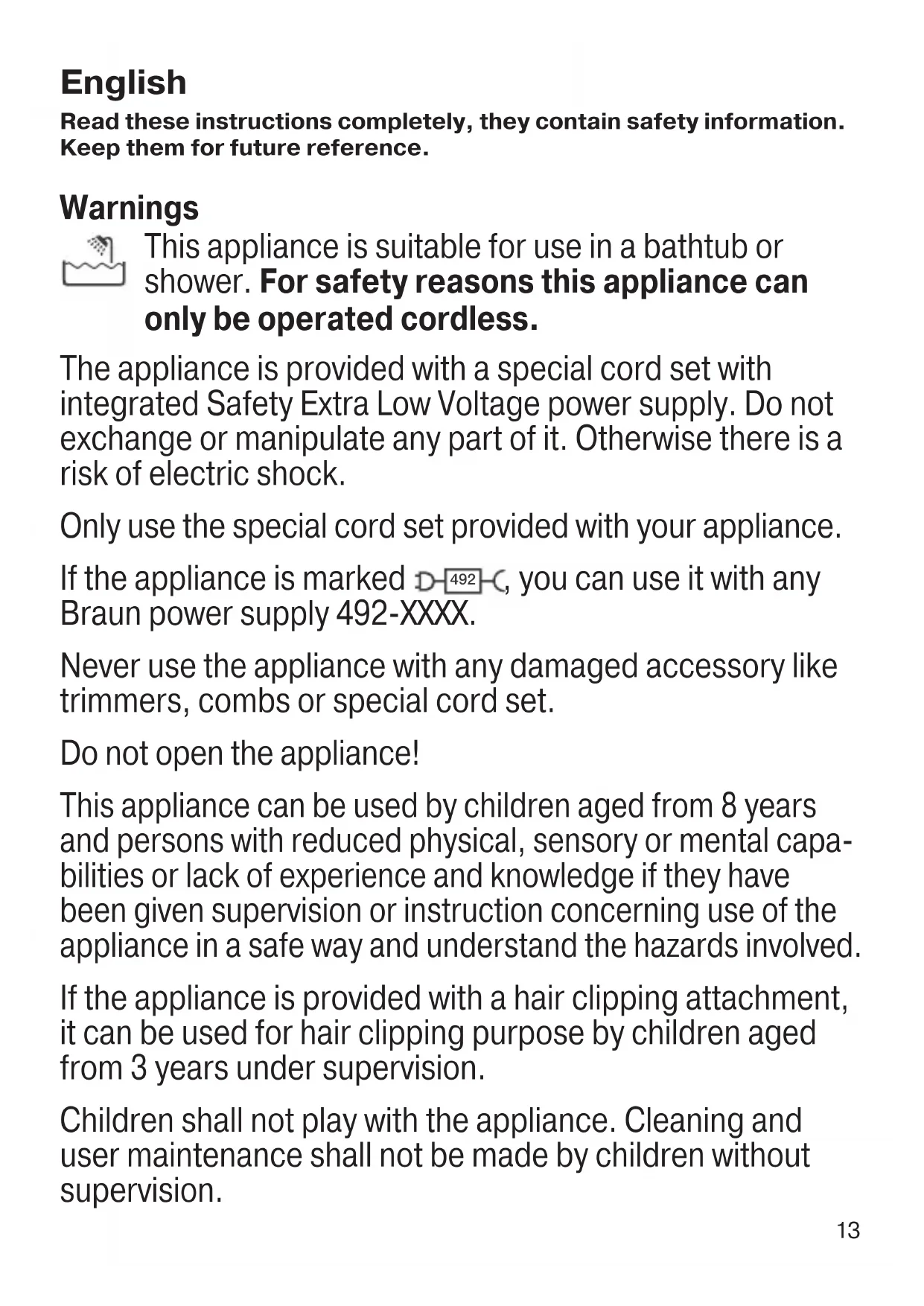

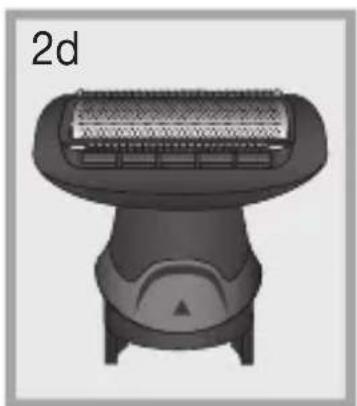

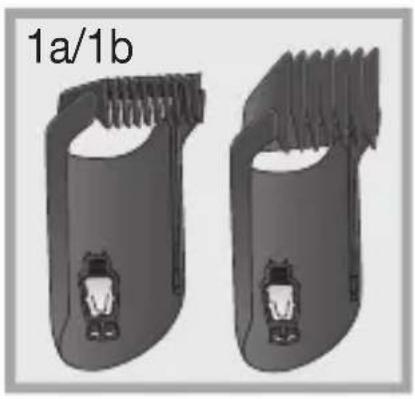

, you can use it with any Braun power supply 492-XXXX. Never use the appliance with any damaged accessory like trimmers, combs or special cord set. Do not open the appliance! This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 91977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 1391977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 13 10.09.21 09:3810.09.21 09:3814 Description 1a Sliding beard comb (3–11 mm in 2 mm steps)* 1b Sliding hair comb (13–21 mm in 2 mm steps)* 1c Release button sliding combs 1d Fix comb 1 (1 mm)*/** 1e Fix comb 2 (2 mm)*/** 2a Trimmer head*/** 2b Ear & nose trimmer head* 2c Detailed trimmer head* 2d Body groomer head* 2e Mini foil shaver head* 2f Body trimmer head* 2g Sensitive comb* 3 On/off button 4 Charging indicator 5 Power socket 6 Special cord set** 7 Charging stand*

• not with all models ** design can differ For electric specifications, see printing on the special cord set. Charging Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.

• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.

• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity. Charging indicator (4)

• The charging indicator blinks green when the appliance is being charged.

• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green. 91977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 1491977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 14 10.09.21 09:3810.09.21 09:3815

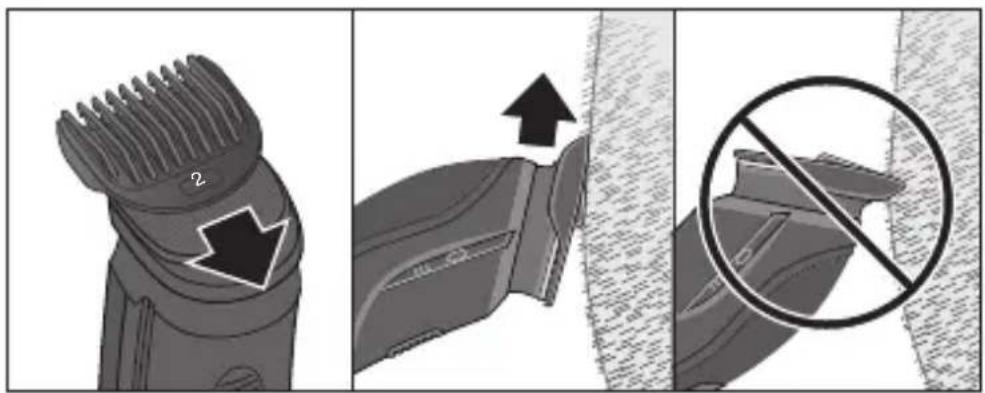

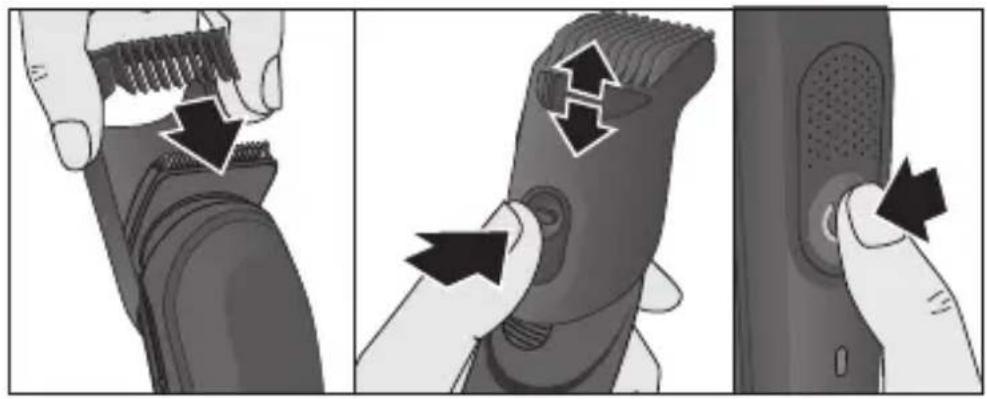

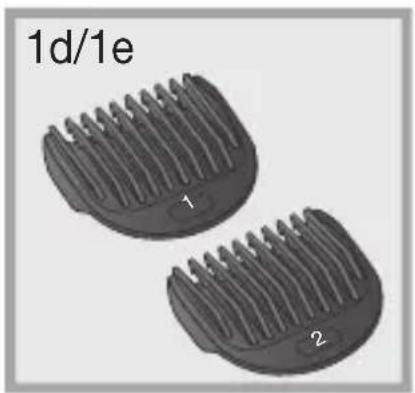

• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains. Usage Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button (3). Travel lock Press the on/off button (3) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains. Beard Trimming / Hair Clipping Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length. Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

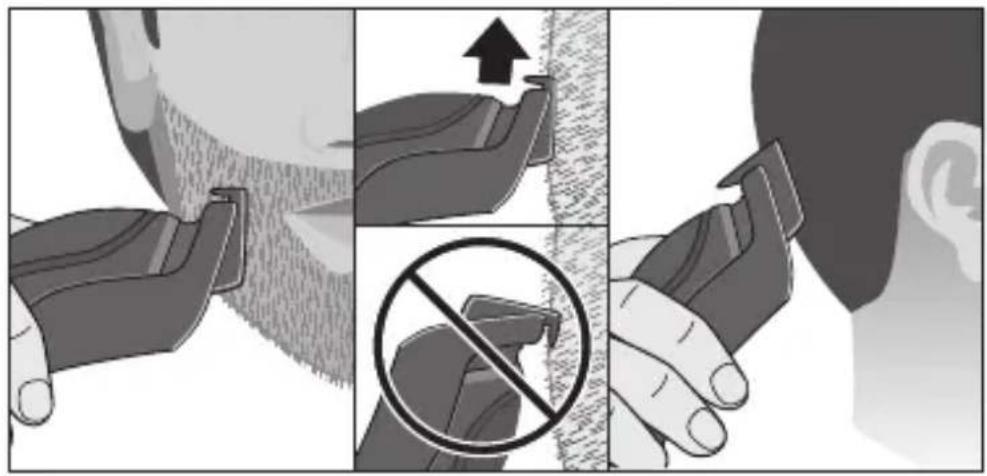

• Trim against hair growth by guiding the flat comb part over the skin.

• Do not force the appliance through the hair faster than it can be cut.

• Avoid clogging the comb with hair. Remove and clean it from time to time. Precision and Contour Trimming Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2c) or the mini foil shaver (2e) for shaping sideburns, moustaches and partial short beards. Ear/Nose Trimming

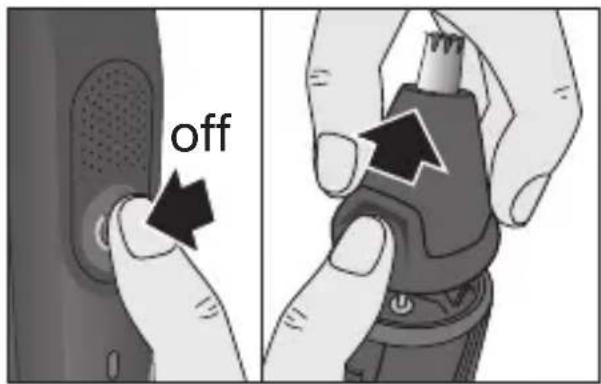

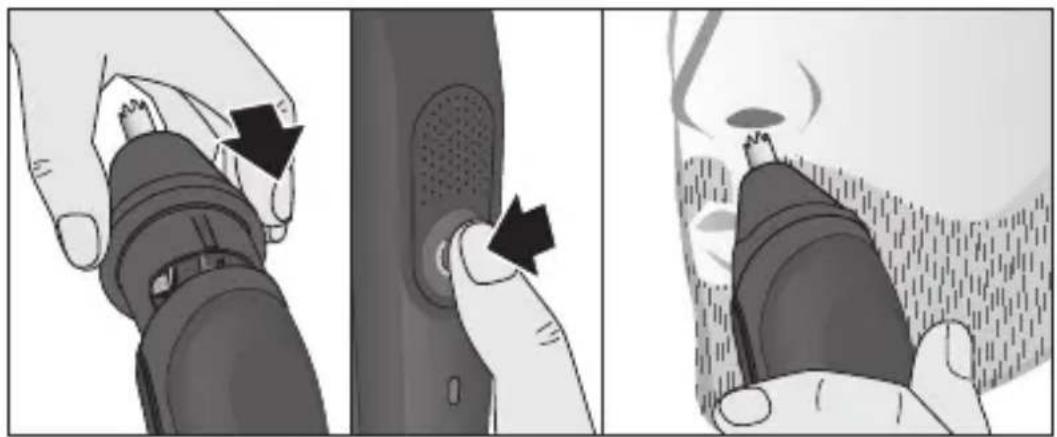

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.

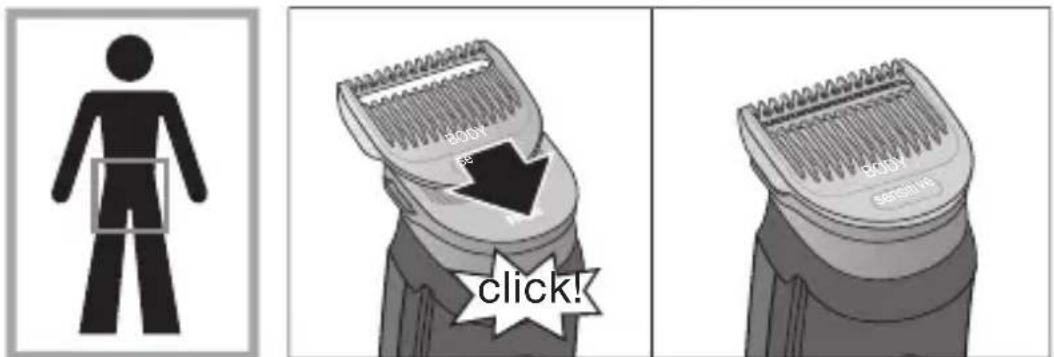

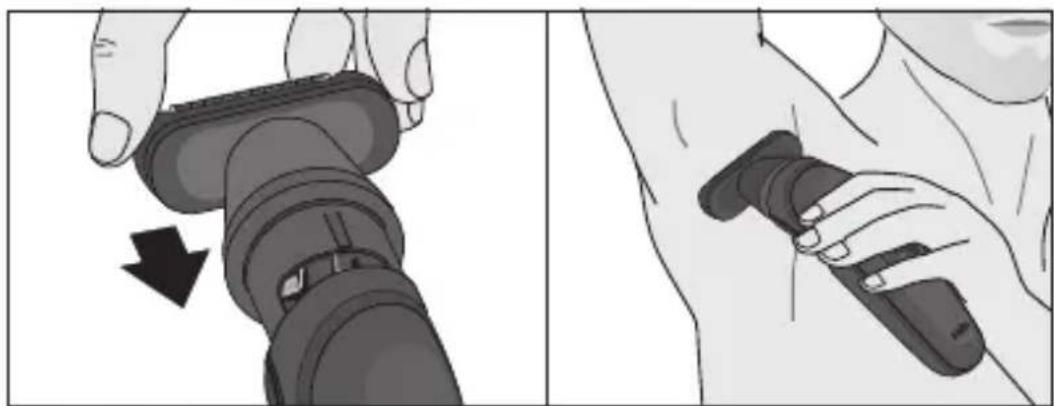

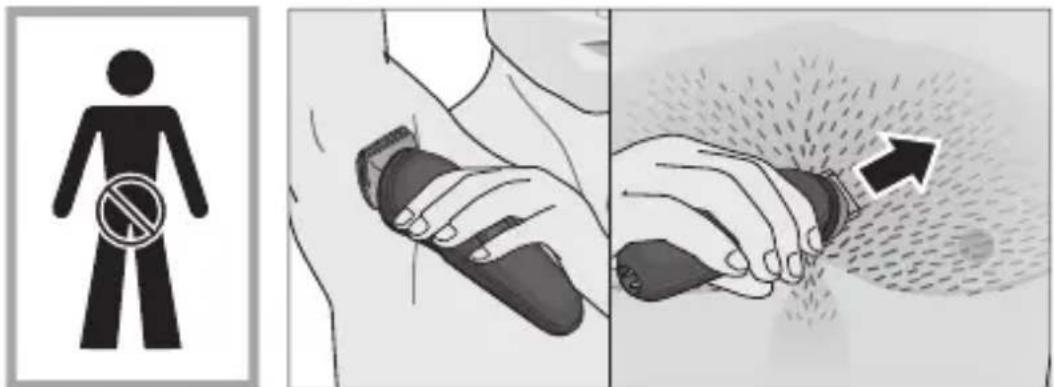

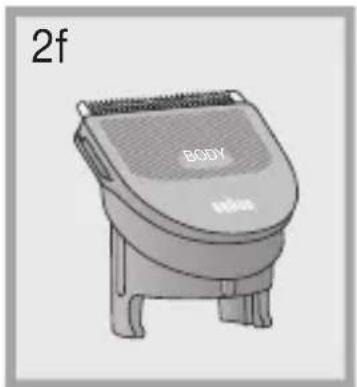

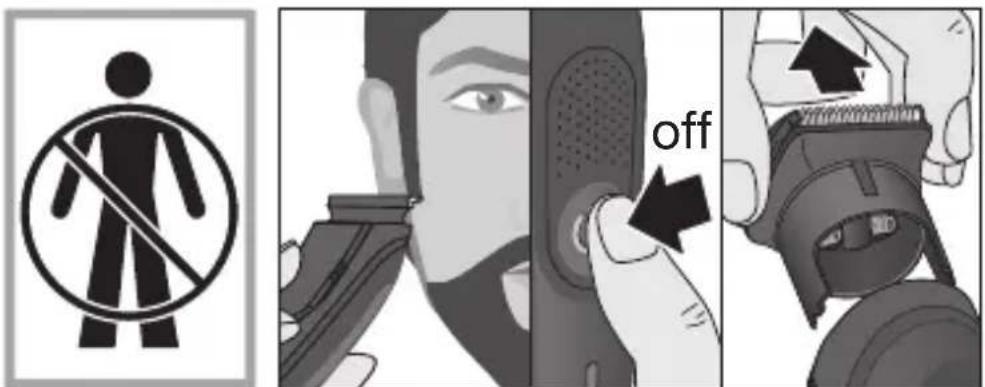

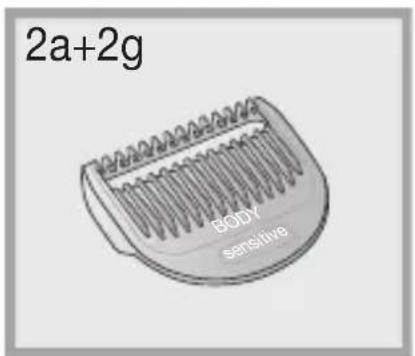

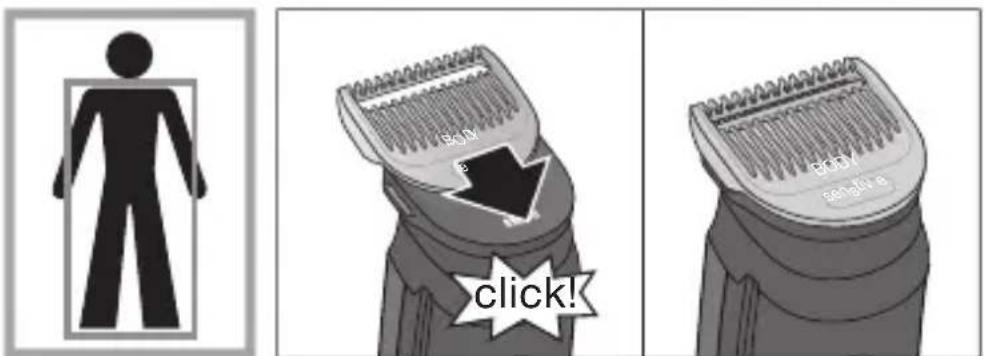

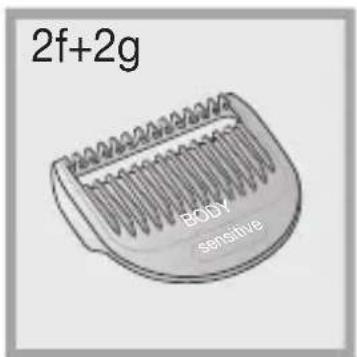

• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4˝) into nose or ear. Body grooming Remove any head and click the body groomer head (2d) or one of the trimmer heads (2a, 2f) onto the handle. Use the body groomer head on dry skin only. Do not use it in delicate areas. Use the trimmer head (2a) only with the sensitive comb attached for body grooming. For delicate areas use the trimmer heads only with the sensitive comb attached. 91977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 1591977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 15 10.09.21 09:3810.09.21 09:3816 Cleaning and maintenance

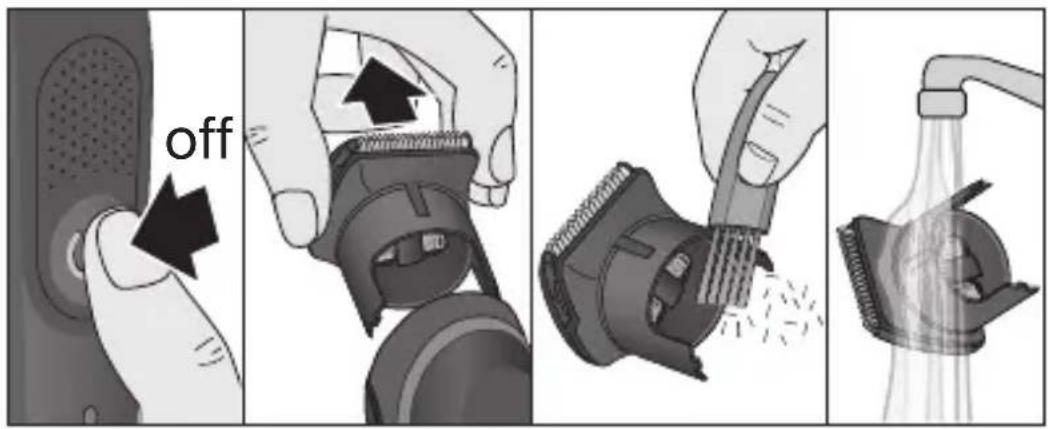

• Switch off the appliance.

• Take off any head and comb.

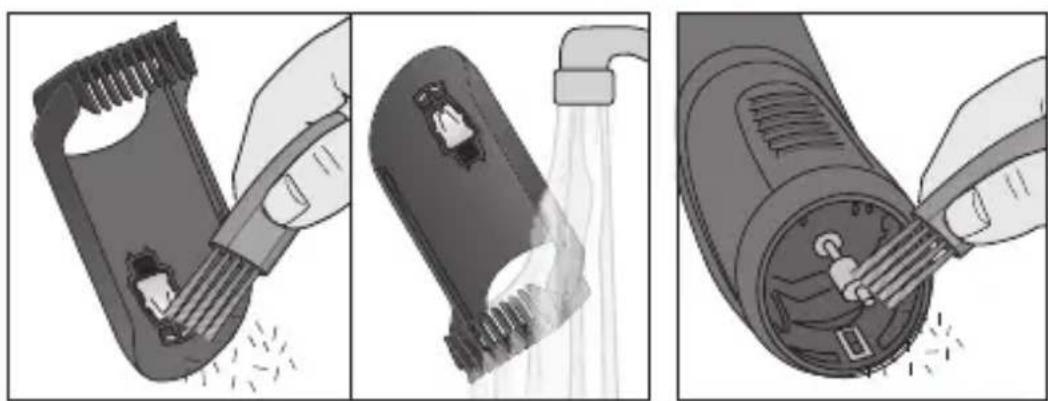

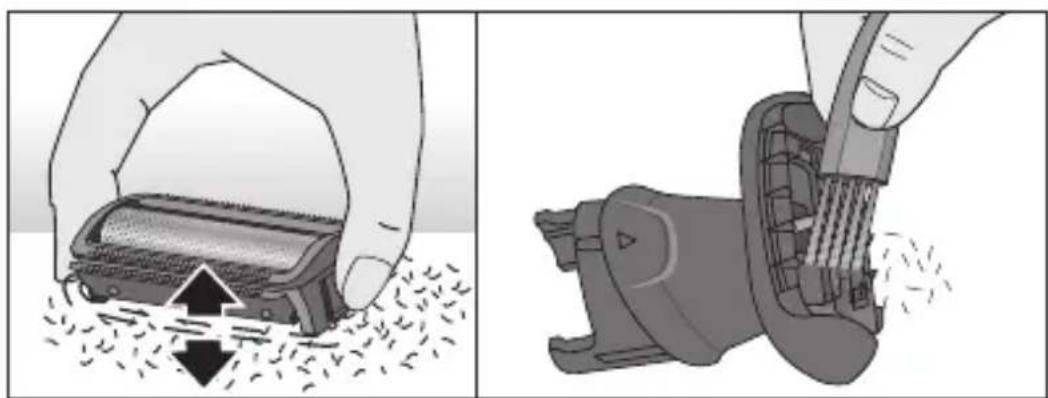

• Use the brush to clean the heads, combs and the appliance. Do not clean the foil of the body groomer head and mini foil shaver head with the brush as this may damage it.

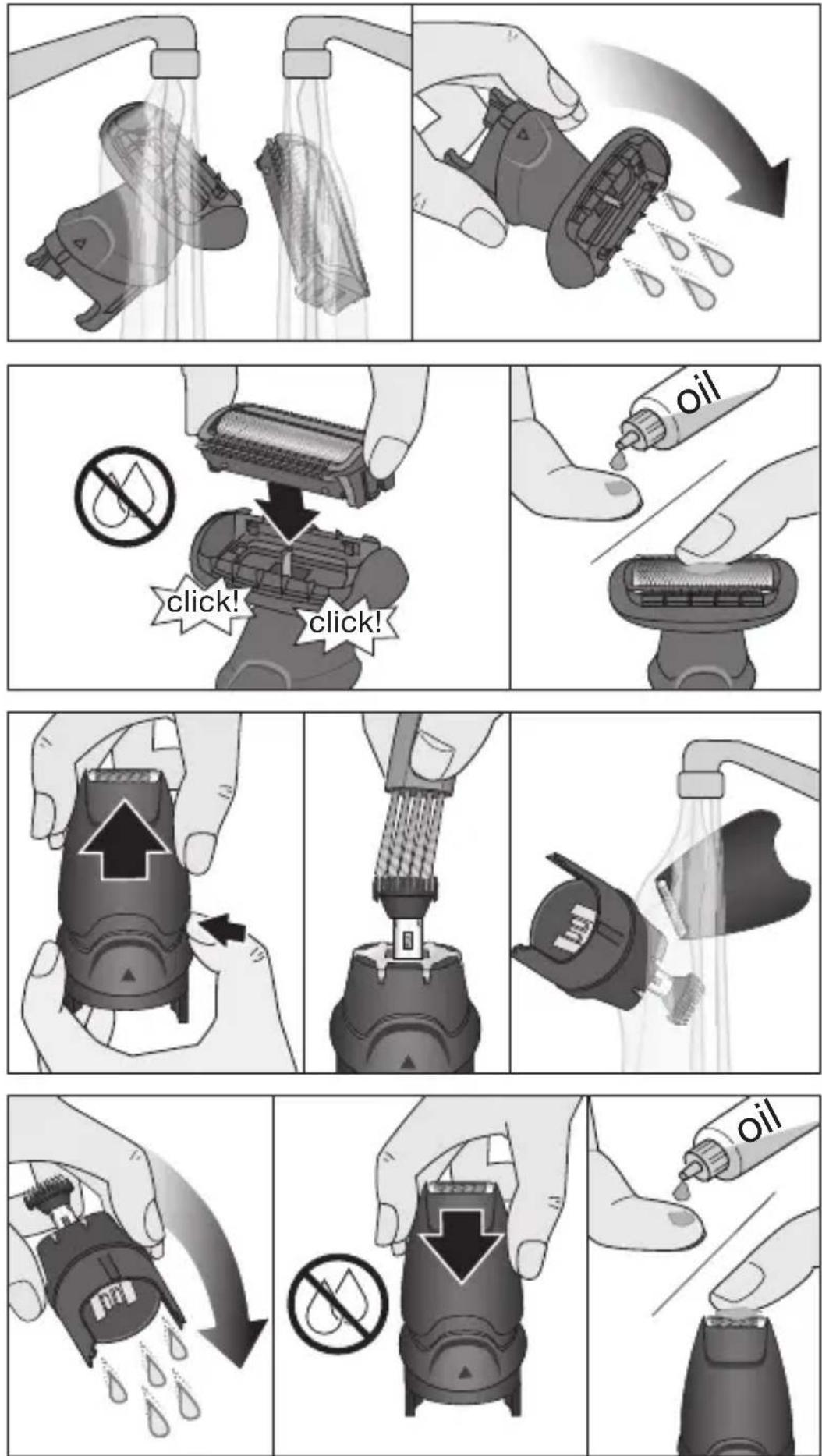

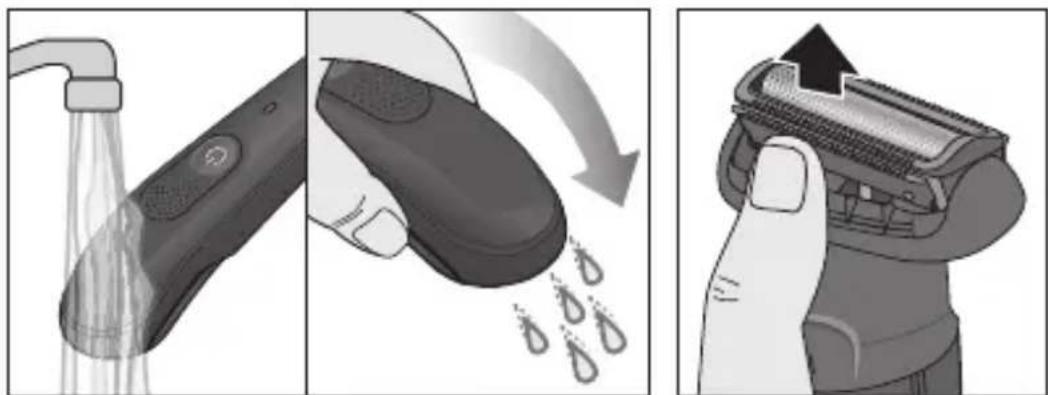

• The mini foil shaver head can be disassembled for proper cleaning. In case the foil frame is pulled out, it can just be clicked into the housing again.

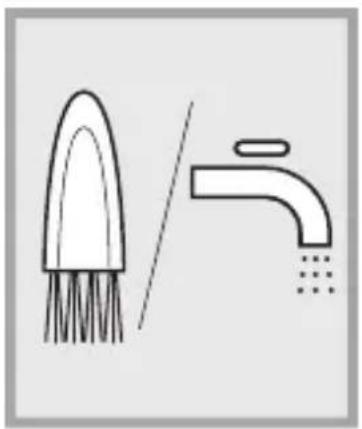

• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.

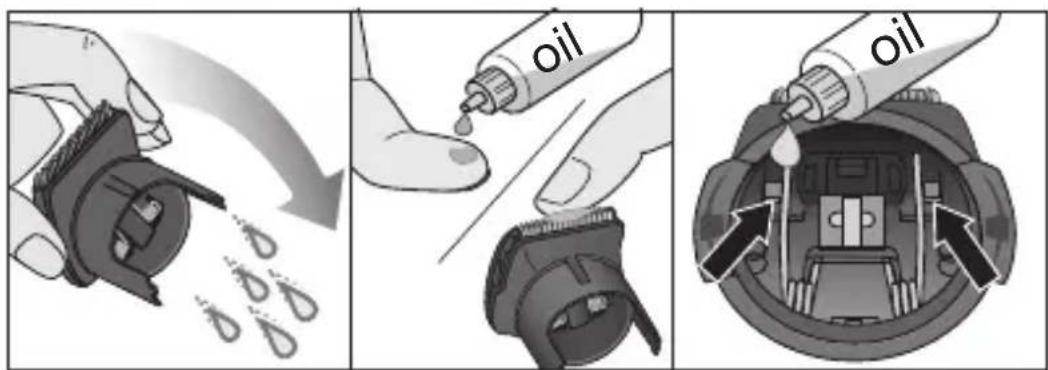

• To keep the attachments working properly, oil the trimmer and the foils with a drop of light machine oil (not included) regularly. Environmental notice Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. Subject to change without notice. Guarantee We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. Depending on availability replacement might result in a different color or an equivalent model. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. 91977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 1691977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 16 10.09.21 09:3810.09.21 09:3817 To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law. For Australia & New Zealand only: In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefi ts given by this warranty are in addition to other rights and remedies of the consumer law. For warranty claims please contact: Procter & Gamble Australia Pty Ltd Level 4, 1 Innovation Road Macquarie Park, NSW 2113 Telephone (AU): 1 800 641 820 Telephone (NZ): 0 800 108 909 Email (AU and NZ): Visit link https://pgconsumersupport.secure.force.com/ContactUs/emailus Our Warranty This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty). Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with 91977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 1791977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 17 10.09.21 09:3810.09.21 09:3818 this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance. Our Warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infi rm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture. To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without aff ecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers). If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us. Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for Australia 1800 641 820 or New Zealand 0800 108 909 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. 91977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 1891977969_Type5544_MGK7331_7330_7321_7320_MN_ANZ.indd 18 10.09.21 09:3810.09.21 09:3819 Français Lisez attentivement ces instructions car elles contiennent des informations sur la sécurité. Conservez-les pour une consultation ultérieure. Attention Cet appareil peut être utilisé dans le bain ou sous la douche. Pour des raisons de sécurité, l’appareil ne peut être utilisé que sans fil. Cet appareil est fourni avec un câble spécial, qui possède une alimentation électrique sécurisée intégrée à très basse tension. Ne changez ou ne manipulez aucune partie de ce dernier, sous risque de recevoir un choc électrique. Utilisez uniquement le câble spécial fourni avec votre appareil. Si l’appareil porte la référence
