Brand	Braun
Model	Multigroomer 3 MGK3325
Product type	Multigroomer trimmer (beard, hair, nose, ears)
Power supply	Rechargeable via special mains adapter integrated in cable
Charging time	Approximately 10 hours
Battery life	Up to 50 minutes of cordless shaving
Charging temperature range	5 to 35 °C
Operating temperature range	15 to 35 °C
Cutting lengths (beard)	3 to 11 mm in 2 mm steps (sliding comb)
Cutting lengths (hair)	13 to 21 mm in 2 mm steps (sliding comb)
Fixed combs	1 mm and 2 mm
Included accessories	Main trimmer head, precision head, nose/ear head, sliding beard comb, sliding hair comb, 2 fixed combs, cleaning brush, special power cord
Cleaning	Heads and combs washable under water; wipe and dry completely before reassembling
Maintenance	Regularly apply a few drops of light machine oil (not included)
Safety	Use only the supplied power adapter; do not open the device; keep dry; children from 8 years under supervision
Warranty	2 years (manufacturing or material defects)
Charge indicator	Indicator light on the power cord

Frequently Asked Questions - Multigroomer 3 MGK3325 BRAUN

How do I change the combs or heads of the trimmer?

Always turn off the device before changing an accessory. To remove a sliding comb, press the lock button (1c) and slide it off. For heads, gently pull to remove and insert the new one by clipping it in.

Can I use the device in the shower?

No, the device must be kept dry. Do not use it under water and do not clean it by immersing it in water. Only the heads and combs can be rinsed under running water after removal.

How long does it take to charge the battery?

Full charging time is approximately 10 hours. The ambient temperature should be between 5 and 35 °C for optimal charging.

How do I know if the battery is charging or fully charged?

The charge indicator (6) on the power cord lights up continuously when the device is charging. There is no full charge indication: unplug after at least 10 hours.

What is the battery life after a full charge?

Battery life is approximately 50 minutes of cordless trimming.

How to clean the trimmer after use?

Turn off the device and remove the head and combs. Brush off hair residues. Heads and combs can be rinsed under running water, then dried completely before reassembling. Do not use abrasive cleaners.

Do I need to oil the trimmer?

Yes, to maintain good operation, regularly apply a few drops of light machine oil (not included) to the blades.

What should I do if the trimmer no longer cuts properly?

First check that the device is fully charged. Then clean the head and combs, and remove any trapped hair. If the problem persists, oil the blades. If damaged, contact a Braun service center.

Can I use the device while it is plugged in?

No, the device operates only on battery. It must be unplugged after charging for cordless use.

What accessories are included in the box?

The box contains: a main trimmer head, a precision head, a nose and ear head, a sliding comb for beard (3-11mm), a sliding comb for hair (13-21mm), two fixed combs (1mm and 2mm), a cleaning brush, and a special power cord.

USER MANUAL Multigroomer 3 MGK3325 BRAUN

Black BRAN-branded hairbrush with a power button and 'BRAUN' logo (no additional text or symbols)

Two-panel illustration showing a hand holding a tool with a cross mark and a close-up of the tool's handle (no text or symbols)

Type 5513

www.braun.com

Deutsch 5

English 9

Français 15

Español 19

Português 23

Italiano 27

Nederlands 31

Dansk 34

Norsk 37

Svenska 40

Suomi 43

Türkçe 46

Ελληνικά 52

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

TR 0850 220 0911

GR 210-9478700

HK (852) 2986 9886

(DKSH Consumer Service

Centre)

Braun GmbH

Four-panel illustration showing a person using a hairdryer tool to adjust the ear area, with arrows indicating the process (no text or symbols present)

Deutsch

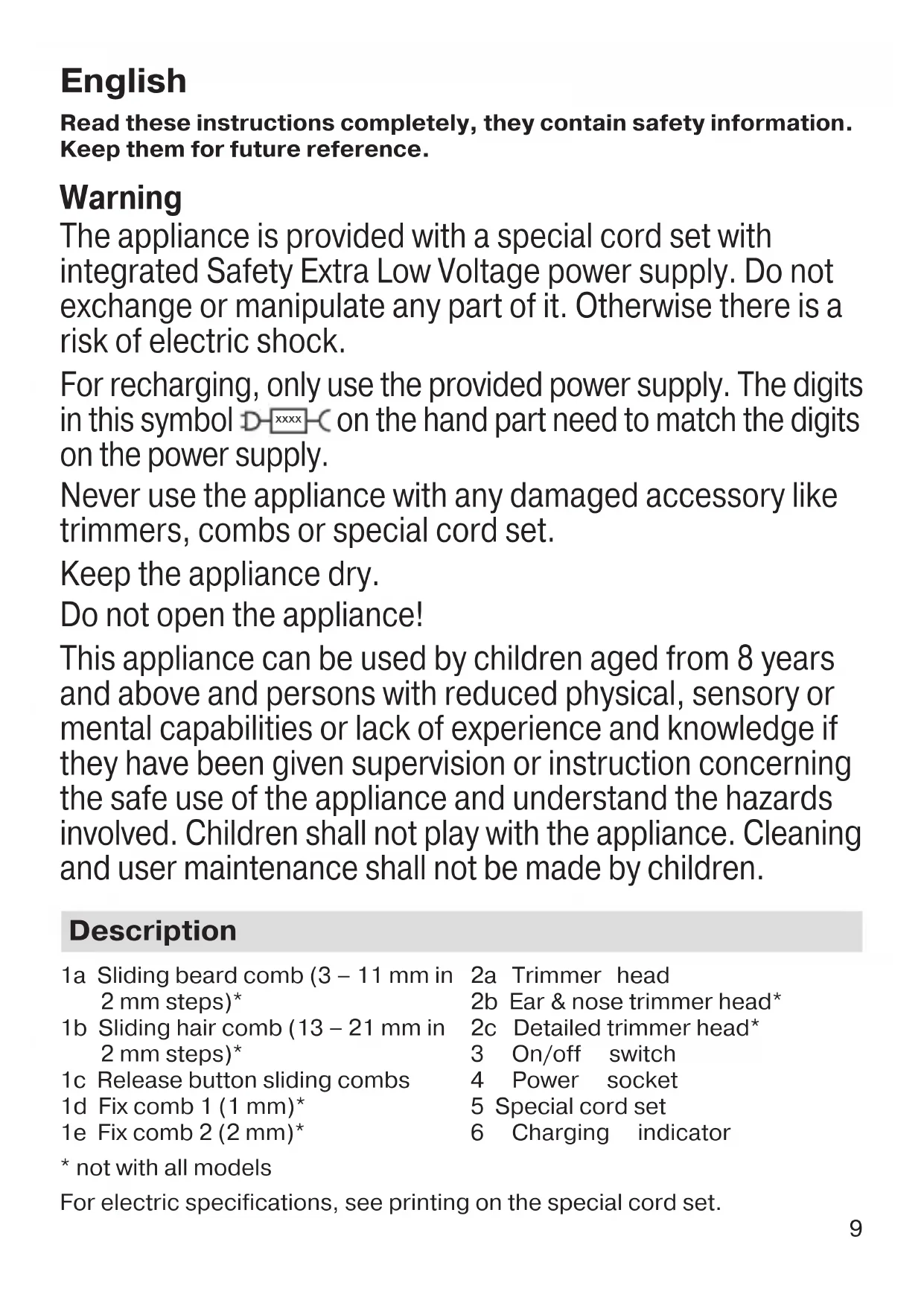

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

For recharging, only use the provided power supply. The digits in this symbol D-xxxx-C on the hand part need to match the digits on the power supply.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Keep the appliance dry.

Do not open the appliance!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

Description

1a Sliding beard comb (3 - 11 mm in 2 mm steps)*
1b Sliding hair comb (13 – 21 mm in 2 mm steps) ^
1c Release button sliding combs
1d Fix comb 1 (1 mm)*
1e Fix comb 2 (2 mm) ^
2a Trimmer head
2b Ear & nose trimmer head*
2c Detailed trimmer head*
3 On/off switch
4 Power socket
5 Special cord set
6 Charging indicator

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance via the special cord set (5) to an electrical outlet with the motor switched off.
• A full charge takes approx. 10 hours and provides up to 50 minutes of cordless operation time.
• The charging indicator (6) in the special cord set lights up continuously when the appliance is being charged.
• Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity.

Usage

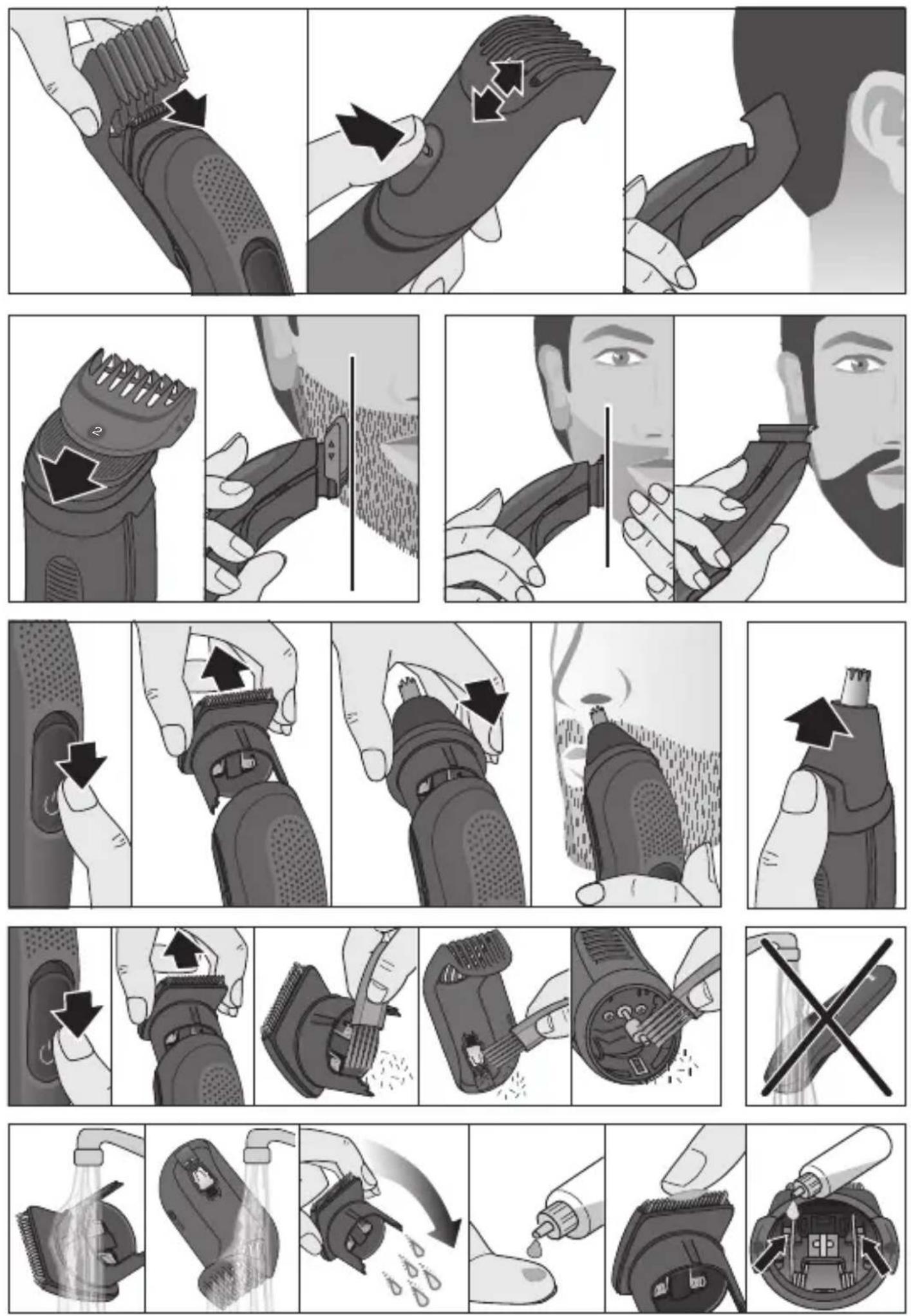

Attach or exchange the attachments only when the appliance is switched off. To turn the appliance on, slide the on/off switch (3) up.

Beard Trimming / Hair Clipping

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.
• Do not force the appliance through the hair faster than it can be cut.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, moustaches and partial short beards.

Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4") into nose or ear.

Cleaning and maintenance

- Switch off the appliance.

• Take off head and comb.

- Use the brush to clean the heads, combs and the appliance.

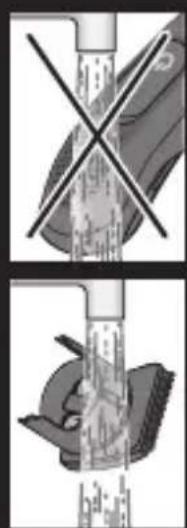

- The removed head and the combs can be cleaned under running water. Let them dry completely before reattaching them.

- To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.

D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense.

For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. [phone] Fax. [phone] Email: [e-mail]

QUEENSLAND

Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. [phone] Fax. [phone] Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd Shop 4, 9 Evans Road, Rooty Hill, NSW 2766 Tel. [phone] Fax. [phone] Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre Shop B2, Parkholme Shopping Centre 319 Oaklands Road, Parkholme Adelaide, SA 5043 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW ZEALAND

Key Service Ltd 34A Cryers Road East Tamaki Auckland New Zealand (PO Box 38569, Howick, Auckland, New Zealand) Tel. [phone] Fax. [phone] Email: [e-mail]
