PCWKS 1229 G - Kettle PROFICOOK - Free user manual and instructions

Product type	Electric kettle
Brand	ProfiCook
Model	PCWKS 1229 G
Filling capacity	Max. 1 litre
Power consumption	1400–1600 W
Supply voltage	220–240 V ~, 50–60 Hz
Protection class	I
Net weight	Approx. 0.94 kg
Automatic shut-off	Yes, after boiling
Overheat protection	Yes, in case of lack of water
Illuminated switch	Yes, illuminated
Filling opening	Automatic closing
Water level indicator	Yes
Base with cable wrap	Yes
Care	Clean with a damp cloth; descale with citric acid
Safety instructions	Do not open the lid during boiling; do not immerse the base

Frequently Asked Questions - PCWKS 1229 G PROFICOOK

How to descale the kettle?

Use a commercially available descaling agent based on citric acid, following the indicated dosage. Then boil clean water 3 to 4 times to remove residues. Do not use vinegar.

Why does the kettle turn off before the water boils?

This may be due to heavy limescale buildup or an overloaded electrical circuit. Descale the appliance and ensure the socket is suitable for the power (1600 W max).

Can I open the lid while the water is heating?

No, this is dangerous. Wait until boiling is finished and the appliance has cooled down. The lid must always be closed during operation to avoid burns.

How to clean the exterior of the kettle?

Unplug and let cool. Use a slightly damp cloth, without abrasive cleaners. Never immerse the housing, base, or kettle in water.

What is the maximum water capacity?

1 liter, between the MIN and MAX marks on the level indicator. Do not exceed the MAX mark.

What to do if the appliance does not turn on?

Check the electrical outlet with another appliance, the fuse, and the power plug. If everything is normal, let it cool for 15 minutes (overheat protection). If the problem persists, contact customer service.

Can I use the kettle with a different base?

No, only use the supplied base. The base is specific to model PCWKS 1229 G to ensure safety.

Is the power cord removable?

No, the cord is fixed but can be wrapped under the base for convenient storage.

How to know if the water is boiling?

The appliance turns off automatically when boiling. The light indicator goes off. You can also observe steam and bubbles.

Can I heat something other than water?

No, this kettle is designed only for heating water. Do not heat milk, soup, or other liquids, as they could damage the appliance.

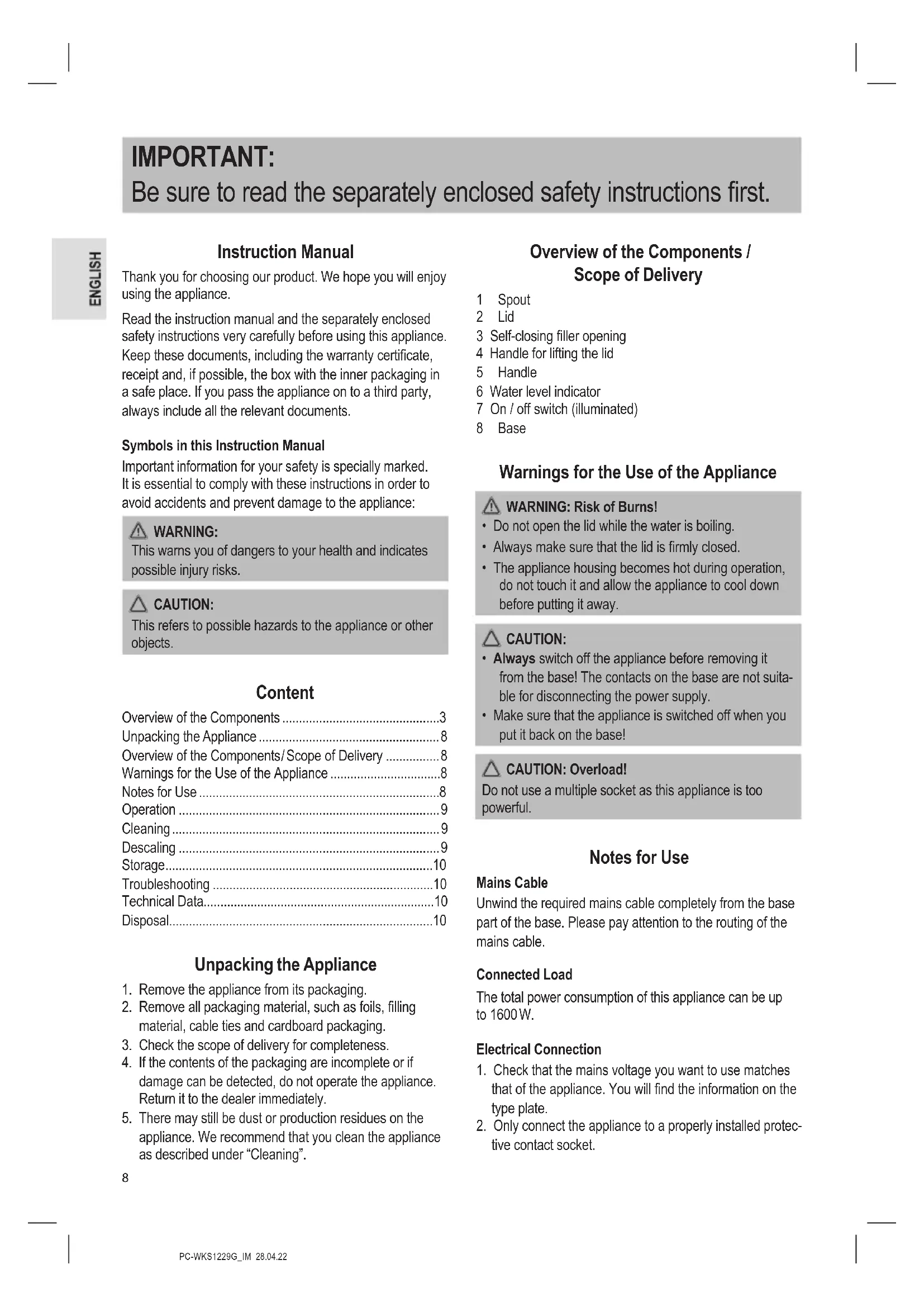

USER MANUAL PCWKS 1229 G PROFICOOK

Modern glass coffee maker with water-filled liquid and a black handle, labeled MAX 1.0L and 0.5L/MIN (no text beyond labels)

Be sure to read the separately enclosed safety instructions first.

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Content

Overview of the Components ....3

Unpacking the Appliance 8

Overview of the Components/Scope of Delivery ....8

Warnings for the Use of the Appliance 8

Notes for Use 8

Operation 9

Cleaning 9

Descaling 9

Storage....10

Troubleshooting 10

Technical Data....10

Disposal....10

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.
5. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Spout
2 Lid
3 Self-closing filler opening
4 Handle for lifting the lid
5 Handle
6 Water level indicator
7 On / off switch (illuminated)
8 Base

Warnings for the Use of the Appliance

WARNING: Risk of Burns!

• Do not open the lid while the water is boiling.
  • Always make sure that the lid is firmly closed.
• The appliance housing becomes hot during operation, do not touch it and allow the appliance to cool down before putting it away.

CAUTION:

• Always switch off the appliance before removing it from the base! The contacts on the base are not suitable for disconnecting the power supply.
• Make sure that the appliance is switched off when you put it back on the base!

CAUTION: Overload!

Do not use a multiple socket as this appliance is too powerful.

Notes for Use

Mains Cable

Unwind the required mains cable completely from the base part of the base. Please pay attention to the routing of the mains cable.

Connected Load

The total power consumption of this appliance can be up to 1600 W.

Electrical Connection

1. Check that the mains voltage you want to use matches that of the appliance. You will find the information on the type plate.
2. Only connect the appliance to a properly installed protective contact socket.

Switching the Appliance On/Off

• Switch on (switch position: I):
  Switch on the appliance with the switch. The control lamp lights up.
• Switching off (switch position: O):
  Switch off the appliance with the switch. The control lamp goes out.

Preparation

Before using the appliance for the first time, boil it 3 times with fresh water. Use only clear water without additives.

Operation

1. Place the appliance on a flat surface.
2. Close the appliance with the lid. It must audibly click into place. Always make sure that the lid is firmly closed.
3. Fill in clear water through the filler opening (maximum 1 litre). You can read the fill level on the appliance's water level indicator.
4. Always use fresh, cold water.
5. The water level must be between the MIN and MAX marks.

6. You do not need to remove the lid to fill in water. There is a self-closing filler opening in the lid. The flap opens automatically when water pressure is applied.

7. Place the kettle flush on the base.

8. Switch on the appliance with the switch. The control lamp lights up.

Interrupting / Ending Operation

There are two ways to interrupt or end the cooking process:

1. The appliance switches off automatically after the cooking process. The control lamp goes out.

2. To end or interrupt the cooking cycle prematurely, set the switch to the O position.

3. Always switch off the appliance before removing it from the base! The contacts on the base are not suitable for disconnecting the power supply.

4. Make sure that the appliance is switched off when you put it back on the base!

- Unplug the mains plug from the socket.

• Empty the water container.

• Only hold the appliance by the handle.
• Keep the lid closed when pouring out.
• Open and close the lid only with the handle on the lid.

- The appliance becomes hot during operation, do not touch it and allow the appliance to cool down before putting it away.

Cleaning

WARNING:

• Always switch off the appliance and disconnect the mains plug from the socket before cleaning. Wait until the appliance has cooled down.
• Do not immerse the appliance or the base in water or other liquids. It could cause an electric shock or fire.

CAUTION:

• Do not use a wire brush or other abrasive objects.
• Do not use sharp or abrasive cleaning agents.
• Clean the perforated surface of the spout from the inside with a nylon brush.
• Rinse the water reservoir with clean water. Dry it with a cloth.
• Clean the lid and the housing after use with a slightly damp cloth.

Descaling

• The intervals for descaling depend on the hardness of the water and the frequency of use.
• If the appliance switches off before the water boils, descaling is necessary.
• Do not use vinegar, but a commercially available descaling agent based on citric acid. Dose according to the instructions.
• After descaling, boil fresh water several times (approx. 3 to 4 times) to remove residues. Do not use this water for consumption.

Storage

• Clean the appliance as described and allow it to dry completely.
  • We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place.

Winding Device for Mains Cable

You can wind up the mains cable at the bottom part.

Troubleshooting

Problem Possible Cause	Remedy
The appliance does not switch on.	The appliance has no power supply. Check the	power socket with another appliance.
		Insert the mains plug correctly.
		Check the house fuse.
	The appliance is defective. Contact our service department or a specialist.
	After operating without water or with too little water, the appliance has not yet cooled down sufficiently.	Let the appliance cool down for 15 minutes.
The appliance switches off before cooking.	The inside of the kettle is heavily calcified or the power socket circuit is overloaded.	Descale according to instructions.
		Check the mains connection.
The appliance does not switch off.	The lid is not closed. Close the lid until it clicks into place.

Technical Data

Model: PC-WKS 1229 G

Power supply: 220–240 V\~, 50–60 Hz

Power consumption: 1400–1600 W

Protection class:....I

Filling capacity: max. 1 litre

Net weight: .... approx. 0.94 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
