09191 - Food Processor N8WERK - Free user manual and instructions

Brand	N8WERK
Model	09191
Product type	Food processor / Blender
Article reference	09191
Model number	15410D0
Power supply	220 - 240 V~, 50/60 Hz
Power	Max. 800 W
Protection class	I
Delivery contents	Motor unit, 700 ml mixing bowl, 350 ml mixing bowl, flat blade attachment, cross blade attachment, splash guard lid, storage lid, take-away lid, instruction manual
Main bowl capacity	700 ml
Small bowl capacity	350 ml
Main functions	Blend, grind, mix, crush ice, beat, stir
Maximum food temperature	50 °C
Continuous operation time	Cross blade attachment: 1 minute max; flat blade attachment: 30 seconds max
Bowl material	Food-grade plastic
Blades	Stainless steel blades (flat and cross blade attachments)
Care and cleaning	Motor unit: wipe with a damp cloth; blade attachments: hand wash; other accessories: dishwasher or warm soapy water
Spare parts and repairability	Original accessories available; repairs only by the manufacturer or a qualified professional
Safety	Overload protection; automatic shut-off if jammed; child safety (not for use by children)
Warranty	Legal warranty; excludes normal wear, improper use, unauthorized repairs
After-sales service	DS Produkte GmbH, Germany; website: n8werk.net
Disposal	Device subject to WEEE directive (2012/19/EU); do not dispose of with household waste

Frequently Asked Questions - 09191 N8WERK

What foods can I prepare with the N8WERK 09191 food processor?

The appliance is designed to blend and mix foods such as fruits, vegetables, hard cheese, nuts, coffee beans, or herbs. It is not suitable for hot foods or liquids (max 50 °C).

How do I assemble the appliance before use?

Place the motor unit on a stable surface. Choose a mixing bowl, pour in the ingredients (do not exceed the capacity mark). Screw the chosen blade attachment onto the bowl (clockwise). Turn the bowl over and attach it to the motor unit by aligning the locking notches. Turn the bowl clockwise until it locks to start.

What is the maximum continuous operating time?

For the cross blade attachment: 1 minute maximum. For the flat blade attachment: 30 seconds maximum. After each use, let the appliance cool down for a few minutes before restarting.

How do I clean the different parts?

The motor unit can be wiped with a damp cloth. The blade attachments should be hand washed under running water with dish soap. The mixing bowls and lids are dishwasher safe or can be washed in warm soapy water. Dry all parts before storing.

What should I do if the appliance does not start?

Check that the blade attachment is properly screwed onto the bowl and that the bowl is securely attached to the motor unit. Make sure the plug is properly inserted and the outlet works. Check the fuse in the electrical panel.

What should I do if the appliance stops during use?

The appliance may stop if the blades are jammed (food stuck) or if it is overloaded. Unplug it, remove the blade attachment, carefully remove the cause of the jam, or remove some contents. If it has been running too long, let it cool down for a few minutes.

Can I use the appliance for hot foods?

No, the food temperature must not exceed 50 °C. Using hot foods or liquids poses a risk of burns and may damage the appliance.

Are the blades dishwasher safe?

No, the blade attachments are not dishwasher safe. They should be cleaned by hand under running water with a little dish soap.

What is the warranty on the appliance?

The appliance comes with a legal warranty. Excluded are damages due to improper use, unauthorized repairs, normal wear, or use of non-original parts.

Where can I get spare parts or contact customer service?

Visit the website n8werk.net for spare parts and accessories. For any questions, contact customer service via this website. The importer is DS Produkte GmbH, Am Heisterbusch 1, 19258 Gallin, Germany.

USER MANUAL 09191 N8WERK

Black and white photo of a Newer blender with open lid, plastic cup, and fruit bowl (no text or symbols visible)

DE

Gebrauchsanleitung

Operating Instructions

Mode d'emploi

GEFAHR - STROMSCHLAG- GEFAHR

Before Initial Use 14

Use 14

Cleaning and Storage 15

Troubleshooting 15

Disposal 16

Warranty and Limitations of Liability 16

Technical Data 16

Customer Service / Importer 16

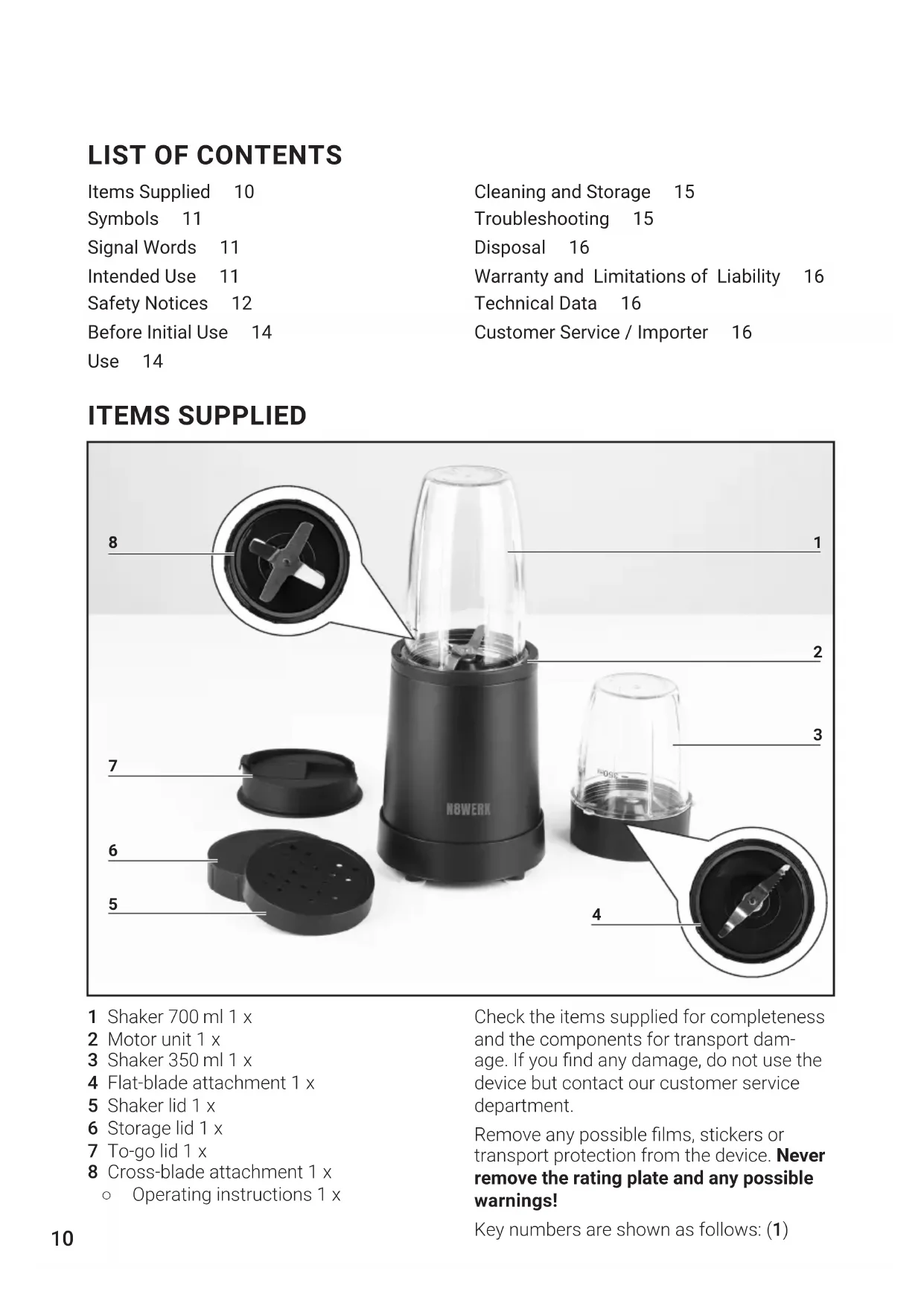

ITEMS SUPPLIED

NEWERK 1 2 3 4 5 6 7 8

1 Shaker 700 ml 1 x
2 Motor unit 1 x
3 Shaker 350 ml 1 x
4 Flat-blade attachment 1 x
5 Shaker lid 1 x
6 Storage lid 1 x
7 To-go lid 1 x
8 Cross-blade attachment 1 x
○ Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any possible films, stickers or transport protection from the device. Never remove the rating plate and any possible warnings!

Key numbers are shown as follows: (1)

Dear Customer,

We are delighted that you have chosen the N8WERK Nutrition Mixer and hope you have a lot of fun with it.

If you have any questions about the product and about spare parts/accessories, contact the customer service department via our website: n8werk.net

Information About the Operating Instructions

Before using the product for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the product. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read operating instructions before use!

Suitable for use with food.

Alternating voltage

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

NOTICE – may result in risk of damage to material

INTENDED USE

■ The device is designed to be used to chop up and blend different types of food, such as fruit, vegetables, hard cheese, nuts, coffee beans or herbs.

■ The device is not suitable for hot food or liquids.

■ The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.

■ Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.

■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

SAFETY NOTICES

This device may be used by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.

■ The device must not be used by children. Keep children and animals away from the device and the connecting cable!
■ The device is not a toy!
■ The device is not designed to be operated with an external timer or a separate remote control system.

■ Never immerse the motor unit and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.
■ The device must always be disconnected from the mains power when it is left unattended and before it is assembled, disassembled or cleaned.
■ Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable are damaged, they must be replaced or repaired by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

- It is essential to follow the instructions in the “Cleaning and Storage” chapter.

■ Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

■ Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

DANGER - DANGER OF ELEC- TRIC SHOCK

■ Use and store the device only in closed rooms.

■ Do not operate or store the device in rooms with high humidity.

If the motor unit falls into water while it is connected to the mains power, pull the mains plug out of the plug socket immediately. Only after this should you retrieve the motor unit from the water. Never attempt to pull it out of the water while it is connected to the mains power!

■ Never touch the motor unit and the connecting cable with wet hands when the motor unit is connected to the mains power.

If the motor unit has fallen into water or other liquids, do not use it. Before using it again, have it checked by the manufacturer, customer service department or an authorised distributor in order to avoid possible hazards.

WARNING – DANGER OF INJURY

- Keep children and animals away from the packaging material. There is a danger of suffocation.

■ The blades are sharp. Be careful when handling the blade attachments. There is a danger of cuts!

■ Never fill the shakers with hot food or liquids! The contents must not be hotter than 50°C. There is a danger of burns.

■ Lay the connecting cable in such a way that it does not present a trip hazard. The connecting cable may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

WARNING - DANGER OF FIRE

■ Do not cover the device during operation.

■ Do not operate the device in the vicinity of combustible material.

■ Do not place any combustible materials (e.g. cardboard, plastic, paper or candles) on or in the device.

■ Do not stick any objects into the device openings and make sure that they are always kept free of dirt or other blockages.

NOTICE – RISK OF DAMAGE TO MATERIAL AND PROPERTY

■ Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.

■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

■ Do not operate the device without any contents to prevent overheating.

■ Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.

■ Always pull the mains plug and never the mains cable to disconnect the device from the mains power.

■ Do not carry or pull the device by the connecting cable.

■ Lay the connecting cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces.

■ Protect the device from heat, naked flames, direct sunlight, extreme tem-

peratures and impacts. Also protect the motor unit from wet conditions and persistent moisture.

■ Do not place or lay any heavy objects on the device or the connecting cable.

BEFORE INITIAL USE

There may still be some production residues on the device. To avoid harmful effects to your health, clean the accessories thoroughly before using them for the first time (see the "Cleaning and Storage" chapter).

USE

Please Note!

■ Inspect the device for damage each time before you use it. Only use it if it is undamaged and has been correctly assembled!
■ Never place the motor unit on a soft surface. The ventilation openings on the bottom of the motor unit must not be covered.
■ Never insert the blade attachment into the motor unit without a shaker.
■ Do not move the device during operation. Ensure sufficient stability and hold the device firmly.
■ Do not detach the shaker from the motor unit during operation. Before detaching it, switch off the device and wait until the blades have come to a standstill.
■ The device is not suitable for constant operation. Operate the cross-blade attachment for no more than approx. 1 minute and the flat-blade attachment for no more than approx. 30 seconds without interruption to prevent the motor from overheating. Then allow the device to cool down for a few minutes before it is switched on again.

We recommend also adding a little liquid to the mixing container when you want to process frozen ingredients.

1. Place the motor unit (2) on a kitchen unit or another dry, flat and stable surface.
2. Fully unwind the connecting cable and connect it to a plug socket.

3. Select a shaker (1 or 3) and add the ingredients you want. When you do this, do not exceed the maximum fill level (marking on the shakers)!

4. Select a blade attachment:

- The flat-blade attachment (4) is intended to be used for grinding hard and dry foodstuffs such as nuts, Parmesan cheese or coffee beans. It is not suitable for liquids!

- The cross-blade attachment (8) is intended to be used for chopping up ice cubes, fruit, vegetables, herbs and for blending, whipping and stirring drinks and creams.

1. Screw the blade attachment clockwise onto the shaker. IMPORTANT: The plastic housing of the blade attachment contains a sealing ring. This ensures that the shaker does not leak. Make sure that the sealing ring is correctly inserted in the groove!

2. Turn the shaker upside down and place the blade attachment into the motor unit. The three locking lugs on the shaker must be placed in the matching recesses in the motor unit.

3. To switch on the device, hold the motor unit securely with one hand and use your other hand to rotate the shaker as far as it will go clockwise.

4. To switch it off, turn the shaker anticlockwise.

5. Wait until the blades have come to a complete standstill. Then remove the shaker.

6. Turn over the shaker and unscrew the blade attachment.

7. If the blended ingredients are not to be consumed straight away, screw on the shaker one of the lids (5, 6 or 7). IMPORTANT: With the storage lid, make sure that the sealing ring is inserted correctly in the groove so that the shaker does not leak.
8. Clean the accessories immediately after each use to prevent germ formation (see the "Cleaning and Storage" chapter). Do not allow any food residues to dry on.

CLEANING AND STORAGE

Please Note!

■ The motor unit and the blade attachments are not suitable for cleaning in the dishwasher!
■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surfaces.

• Wipe down the motor unit (2) if necessary with a damp cloth.
• Clean the blade attachment (4, 8) under running water with a little detergent.
• Clean the rest of the accessories with warm water and detergent or in the dishwasher.
• Allow all parts to dry completely or dry them with a tea towel before storing them away.
• Store the device in a cool and dry place protected from dust and direct sunlight out of the reach of children and animals.

Some types of fruit and vegetables may stain the plastic parts. This is normal and quite safe and does not constitute grounds for warranty claims.

TROUBLESHOOTING

If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The device does not work.

The blade attachment (4, 8) is not correctly screwed on the shaker.

▶ Correct the fit.

The blade attachment (4, 8) is not fitted correctly in the motor unit (2).

▶ Correct the fit.

The mains plug is not inserted in the plug socket correctly.

▶ Correct the fit.

The plug socket is defective.

▶ Try another plug socket.

There is no mains voltage.

▶ Check the fuse of the electrical distributor (fuse box).

The device switches off.

Food is blocking the blades.

▶ Detach the blade attachment (4, 8) and carefully remove the blockage.

The device is overloaded because the contents are too thick or something has become caught in the blades.

▶ Detach the blade attachment (4, 8) and remove some of the contents or add liquid and carefully remove the blockage.

The device is overloaded because it was switched on for too long without a break.

▶ Pull out the mains plug and allow the device to cool down for a few minutes.

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

WARRANTY AND LIMITATIONSOFLIABILITY

The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• failure to follow the operating instructions
• improper or unsuitable handling
• repairs which are not carried out properly
• unauthorised modifications
• use of outside parts or spare parts
• use of unsuitable additional parts or accessories

TECHNICAL DATA

Article number: 09191

Model number: 15410D0

Voltage supply: 220 - 240 V\~ 50 / 60 Hz

Power: max. 800 W

Protection class: I

ID of operating instructions: Z 09191 M N8W V1 0820 md

CUSTOMER SERVICE / IMPORTER

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin

Germany

[phone]*

* Calls to German landlines are subject to your provider's charges.

All rights reserved.
