Product type	Blender with cooking function
Brand	Tefal
Model	Soup & Co XL BL9081
Power	1100 W
Maximum temperature	100 °C
Maximum programming time	59 minutes
Bowl material	Stainless steel Bolinox bowl
Blades	Removable stainless steel blade
Automatic programs	Cream Soup (P1), Purée Soup (P2), Steam cooking (P3), Autoclean (P3 or P4)
Additional functions	Manual mode, blender mode, crushed ice function, keep warm
Safety	Bowl and lid safety lock, overload protection, temperature protection, red heating indicator
Maintenance	Autoclean program, manual cleaning of bowl and blade, do not immerse the motor unit
Available spare parts	Blade, seal gasket, cooking basket (depending on model), lid plug
Included accessories	Cooking basket (depending on model), recipe booklet
Power supply	Alternating current, grounded outlet
Warranty	Manufacturer warranty (see service booklet)

Frequently Asked Questions - Soup & Co XL BL9081 TEFAL

How to use the automatic program mode?

Place the ingredients in the bowl, lock the lid and position the bowl on the motor unit. Press the P button to select the program (P1, P2, P3...), then confirm with OK. The red indicator lights up and cooking starts. Adjust the time with the + and - buttons if necessary. At the end, 3 beeps sound.

What to do if the appliance does not work?

First check that the plug is connected and that the bowl and lid are correctly positioned and locked (a flashing Ⓐ logo indicates incorrect locking). If the screen displays STOP or SECU, reduce the amount of ingredients or add liquid. For any other problem, contact an authorized service center.

How to clean the bowl after use?

Use the Autoclean program (P3 or P4) with 1 liter of hot water and 2-3 drops of dish soap. Once finished, unplug, unlock the lid and remove the gasket. Clean the bowl with a sponge, rinse with running water. The motor unit can be cleaned with a damp cloth. Never immerse the motor unit.

How to disassemble the blade from the bowl?

Place the bowl on a flat surface. Hold the blade with a cloth (be careful of sharp blades). Turn the bowl over while holding the blade, then turn the locking ring to unlock. The blade can then be removed. To reassemble, place the gasket on the blade, insert it into its housing, then lock the ring.

Can I put the bowl in the dishwasher?

No. The bowl, lid, gasket and blade must be washed by hand with warm soapy water. The removable blade is not dishwasher safe. The motor unit must never be immersed. Use a non-abrasive sponge to avoid scratching the lid.

What is the maximum capacity of the bowl?

The manual does not specify an exact capacity in liters. Never exceed the MAX mark engraved inside the bowl. For soups, ensure the liquid level covers the mini mark. In case of overflow, reduce the volumes.

How to use the crushed ice function?

Place a maximum of 6 to 8 ice cubes in the bowl. Press the Ice button. The function runs for 30 seconds. You can stop at any time with the OFF button. This function should not be used with other ingredients.

What does the 'SECU' display mean?

The SECU display accompanied by a flashing red indicator means that the bowl is empty or the preparation is too low in liquid. Add liquid up to the minimum level (mini mark) to resume operation.

Can I steam food with this appliance?

Yes, if your model is equipped with the cooking basket (depending on model). Fill the bowl with 0.5 liters of cold water, place the food in the basket, then select program P3 (steam cooking) for 30 minutes adjustable. The basket allows cooking vegetables, meat or fish simultaneously.

How to maintain the seal gasket?

Remove the gasket from the lid after each use (grip it between thumb and index finger and pull). Wash it with warm soapy water. Regularly check that it is not cut or damaged. If damaged, replace it with a new gasket from an authorized service center.

USER MANUAL Soup & Co XL BL9081 TEFAL

Line drawing of a kitchen blender with control panel and digital display (no text or symbols)

b3

F*

E

D

D Ensemble Bol blender

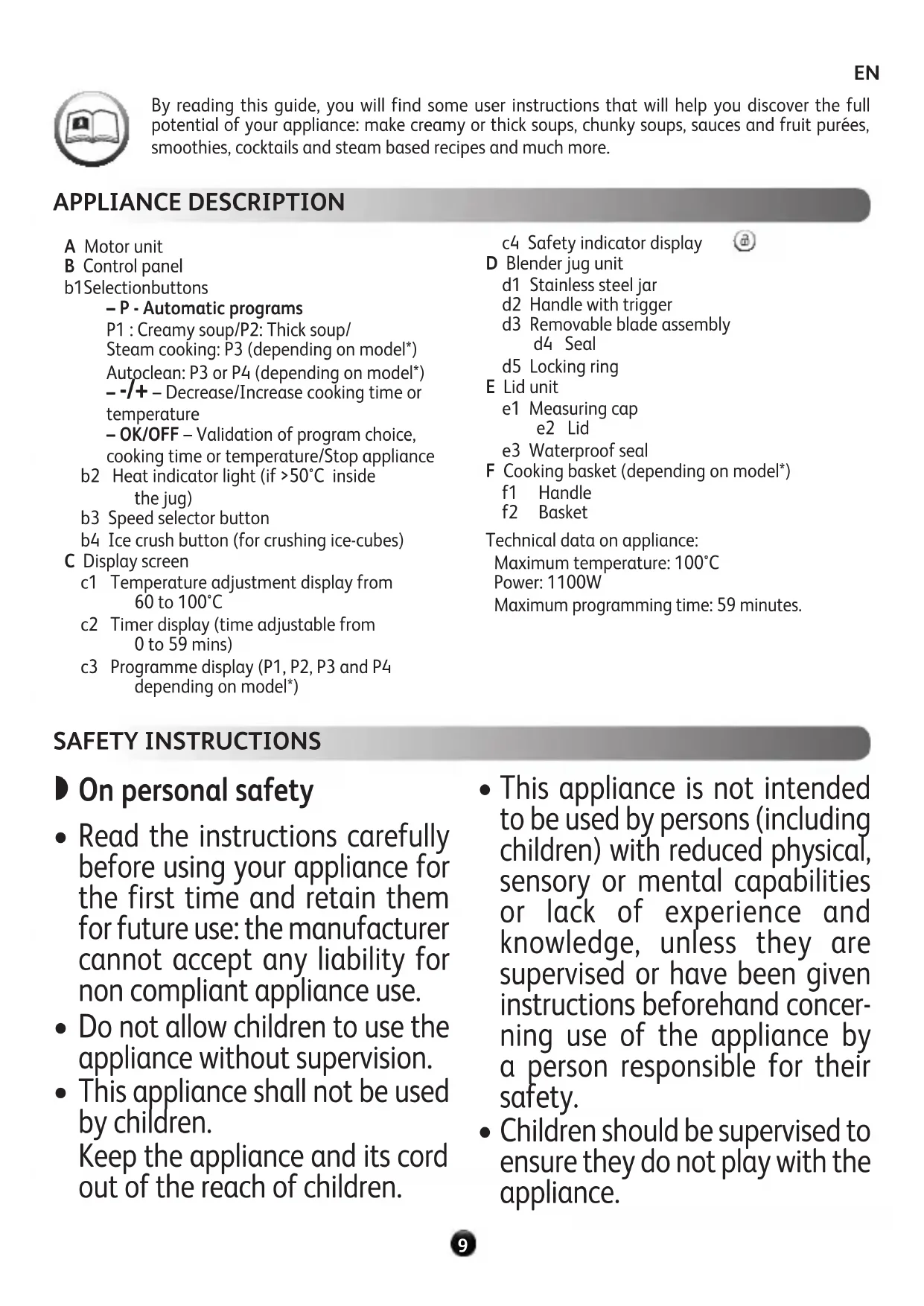

APPLIANCE DESCRIPTION

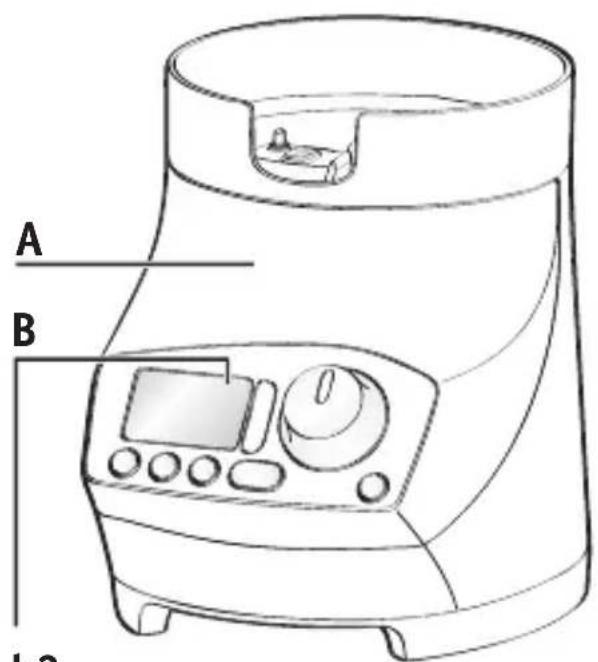

A Motor unit

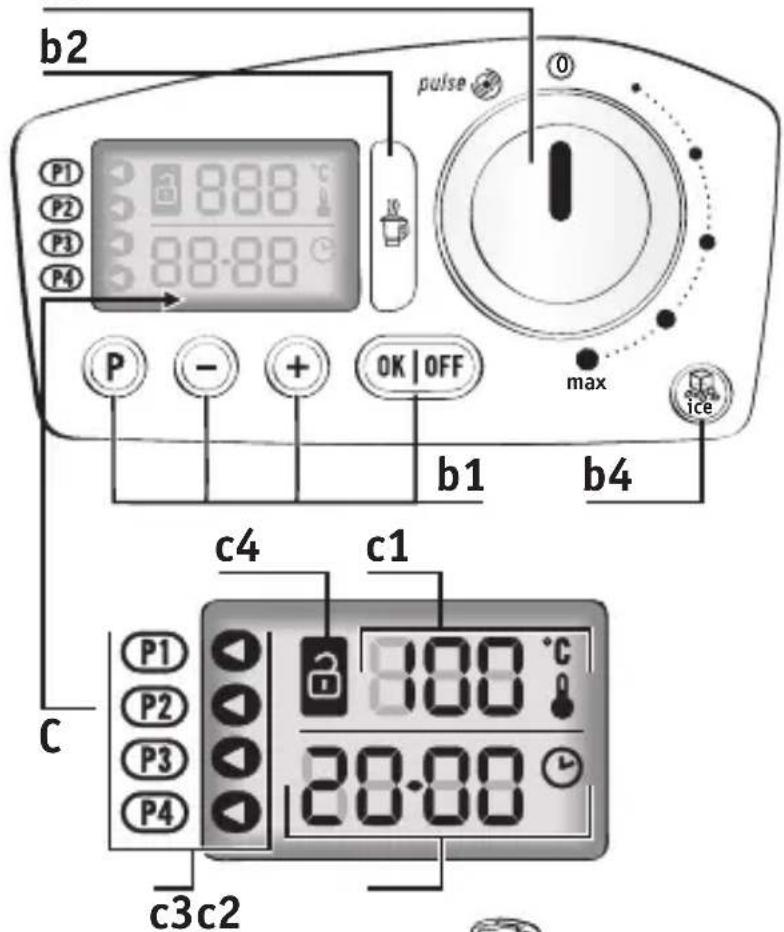

B Control panel

b1 Selectionbuttons

- P - Automatic programs

P1 : Creamy soup/P2: Thick soup/

Steam cooking: P3 (depending on model*)

Autoclean: P3 or P4 (depending on model*)

- -/+ - Decrease/Increase cooking time or temperature

- OK/OFF – Validation of program choice, cooking time or temperature/Stop appliance

b2 Heat indicator light (if >50°C inside the jug)

b3 Speed selector button

b4 Ice crush button (for crushing ice-cubes)

C Display screen

c1 Temperature adjustment display from 60 to 100°C

c2 Timer display (time adjustable from 0 to 59 mins)

c3 Programme display (P1, P2, P3 and P4 depending on model*)

c4 Safety indicator display

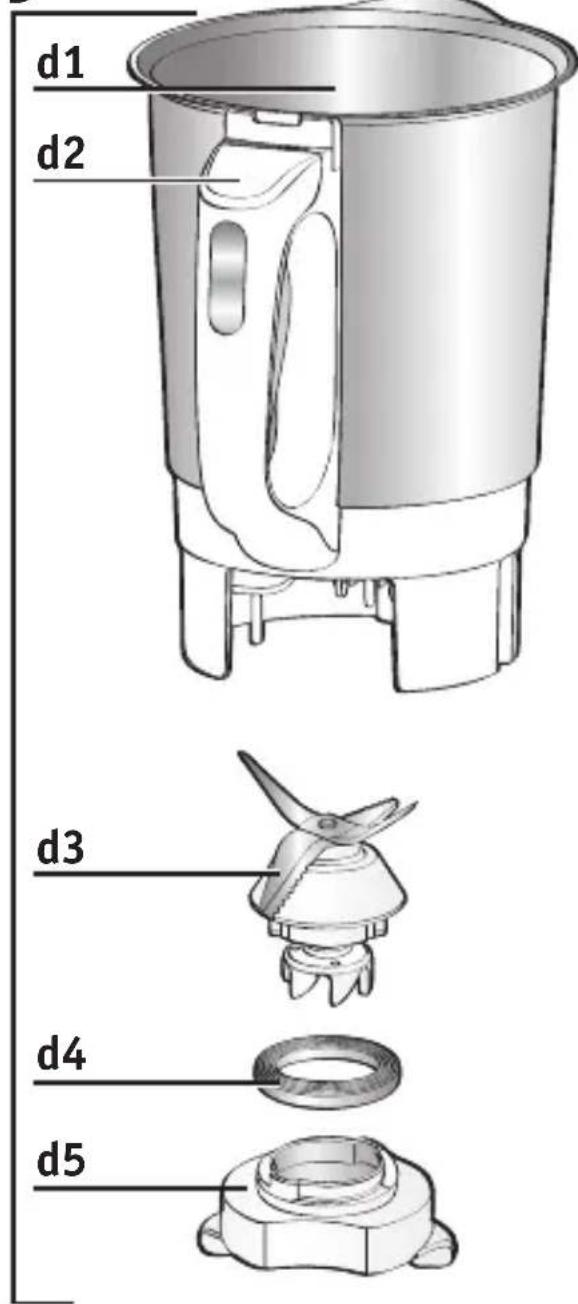

D Blender jug unit

d1 Stainless steel jar

d2 Handle with trigger

d3 Removable blade assembly d4 Seal

d5 Locking ring

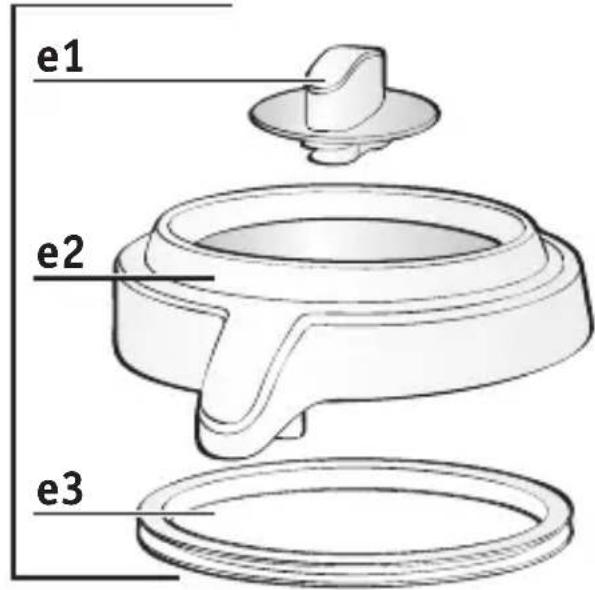

E Lid unit

Technical data on appliance:

Maximum temperature: 100°C

Power: 1100W

Maximum programming time: 59 minutes.

SAFETY INSTRUCTIONS

On personal safety

• Read the instructions carefully before using your appliance for the first time and retain them for future use: the manufacturer cannot accept any liability for non compliant appliance use.
• Do not allow children to use the appliance without supervision.
• This appliance shall not be used by children.

Keep the appliance and its cord out of the reach of children.

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.

- Keep the appliance out of the reach of children.

- WARNING: When using the appliance, some parts reach high temperatures (stainless steel side of jug, transparent parts of the lid and cap, metallic sections under the jug, basket) and are subject to residual heat after use. They can cause burns. Handle the appliance by the cold plastic parts (handles, motor unit) during heating and until complete cool down. The red heat indicator light comes on if there is a risk of burning.

- Do not use your appliance if it is not working correctly, if it has been damaged or if the power cord or plug have been damaged. To avoid any danger have the cord replaced by an approved service centre (see list in the service booklet).

- The appliance is designed for domestic use only and at an altitude below 2000 m. The manufacturer shall not accept any liability and reserves the right to cancel the guarantee in the event of commercial or inappropriate use or failure to follow the instructions.

- This appliance is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

▶ European markets only:

- Keep the appliance and its cord out of reach of children under 8 years of age.

• Children shall not play with the appliance.

- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or by persons with little or no knowledge of the appliance, as long as they are under proper supervision and have received instructions as to the safe use of the appliance, and as long as they understand the implicit risks.

- This appliance may be used by children as long as they are at least 8 years old, they are properly supervised and have received instructions as to the safe use of the appliance, and as long as they understand the implicit risks. Cleaning and

maintenance of the appliance should not be carried out by children without supervision, unless they are over 8 years of age and are being supervised by an adult.

- WARNING: Your appliance releases steam which can cause burns.

Handle the lid and measuring cap with care (use an oven glove or pot holder if necessary). Hold the measuring cap by the central section.

• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• Do not start up the appliance if the measuring cap is not placed in the hole in the lid and/or if the seal is not positioned in the lid.
• WARNING: Be aware of the risk of injury in the event of incorrect use of the appliance.

- The blades are very sharp: handle them with care so as not to injure yourself whilst emptying the jar, cleaning, or fitting and dismounting the blade assembly.

• WARNING: Be careful to avoid any spillage on the connector during cleaning, filling or pouring.
• Please check the instruction manual on how to adjust the speed settings and operational time of each programme.
• Please check the instruction manual on how to assemble and attach the accessories to the appliance.
• Please check the instruction manual on how to clean and maintain your appliance.

• When cleaning the appliance, always follow the instructions.

• Unplug the appliance.

• Do not clean when hot.
• Clean with a damp cloth or sponge.
• Do not put the appliance in water or under a running tap.

On connection to power supply

• The appliance must be plugged into a socket with an earth connection.
• The appliance is designed to work with alternating current only. Check that the voltage on your appliance's data plate

corresponds to your domestic power supply.

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.
• Always unplug the appliance from the power supply if you leave it unattended and before assembling, dismantling and cleaning it.
• Any error in connection will invalidate the guarantee.
• Never pull on the power cord when unplugging the appliance.
• Do not immerse the appliance, cord or plug in liquid.
• Do not immerse this appliance in water or any other liquid.
• The power cord must be kept out of the reach of children and must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp edges.

On incorrect use

• Never turn on the blender jug without ingredients or with dry products only.
  • Always add solid ingredients before pouring in any liquid ingredients, without exceeding

the limit marker of MAX engraved inside the jug. (Cf. Fig. 8). If the blender is too full, boiling water may spurt out. Make sure there is enough liquid to cover the min limit marker (Cf. Fig. 7).

• Some recipes may cause sudden overflowing, due to the formation of bubbles, particularly when using frozen vegetables. In this case, it is up to you to reduce the quantities accordingly.
• Do not place your fingers or any other object in the jug while the appliance is in operation.
• Do not use the jug as a container for freezing or sterilisation purposes.
• Place the appliance on a stable, heat-resistant, clean, and dry surface.
• Do not place the appliance next to a wall or a cupboard: the steam may damage them.
• Do not let your hair, a scarf or a tie amongst other things hang over the jug whilst the appliance is in operation.
• Do not put any of the accessories in the microwave.

• Do not use the appliance outdoors.

• Never exceed the maximum quantity indicated in the instructions.

• Put the appliance away once it has cooled down.

- Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

- For your safety, do not use accessories or spare parts other than those provided by the approved after-sales service centres.

BEFORE FIRST USE

Your appliance has 3 operating modes:

• Automatic program mode: temperature, cooking and mixing times are pre-programmed to make soups and to carry out automatic steam cooking.
• Manual Mode: personalised adjustments in temperature and cooking time for one use can be made according to your preferences.
• Blender Mode: select the motor speed without using the cooking function to make some tasty smoothies or cocktails.

Positioning of the jug and the lid unit

• Before using for the first time, wash all the accessories (D, E and F) in hot soapy water except for the motor unit (A).
• Make sure that all packaging is removed before operating the appliance.
• Place the seal on the lid (Cf. Fig. 1).
• To steam cook, put the basket with the sliced vegetables in position and fill up the jug with 0.5 litres of cold water without exceeding the bottom of the basket (Cf. Fig.13 a; b; c).
• Position the lid (E) on the jar (D) (Cf. Fig. 2), lock the lid without pressing by turning it in the direction of the arrow (Cf. Fig. 3).
• Position the blender jar (D) on the motor unit (A) until you hear it click (Cf. Fig. 4).
• The appliance only starts up once the jug and lid are correctly in place and are locked onto the motor unit.

In the event of incorrect positioning or locking of one or the other (Cf. Fig. 5 and 6), the lock sign 📄 starts to flash when you activate a function.

Installing the blade assembly in the jar (\*depending on the model)

• Fitting the removable blade assembly (*depending on the model Cf. Fig. 11 a; b; c):
• Make sure that the seal is properly positioned over the blade assembly (Cf. 11.a).
• Pick up the blade assembly using a cloth and place it in its slot at the bottom of the jar, making sure you carefully position the blade assembly grips in the jar grooves (Cf. 11.b).
• Return the jar keeping the blade assembly in its slot (Cf. 11.c).
• Lock the blade assembly section using the locking ring (Cf. 11.c).

• Dismounting the removable blade assembly (*depending on the model Cf. Fig. 11.d):
  Place the jar on a work surface.

• Use a cloth to help hold the blade assembly.

• Return the jar while holding the blade assembly.
• Turn the locking ring to unlock the blade assembly.

Warning: the blades are very sharp: handle them with care so as not to injure yourself whilst fitting, dismounting and cleaning the jar and the blade assembly.

PROGRAM MODE

Once the water and the ingredients are placed into the jug or into the steam basket, lock the lid and position the jug onto the motor unit (see before first use).

Select one of the automatic programs suggested below (P button) and validate (OK button). The red indicator light illuminates and a 'beep' will sound to inform you that the cooking has started.

Introducing the suggested automatic programs
	Temperature (Max)	Adjustable times Mixing
P1 - Creamy soup (thin texture)	100°C	30 min. (+ or -10 min)	Max speed 1 min
P2 - Chunky Soup (texture dense)	100°C	40 min. (+ or -10 min)	Min speed 13 secs
P3 - (only for model with cooking basket) – Steam cooking with cooking basket and 50 cl water (depending on model*)	100°C	30 min. (+ or -20 min)	No
P3 - (or P4 for model with cooking basket) - Autoclean: automatic cleaning programme	100°C	30 s. (adjustable up to 1 min)	Max speed

When the program is finished, the appliance gives out 3 beeps.

Unlock the jug by pressing the trigger (d2) located on the inside of the handle (cf. Fig. 9) and serve immediately or leave the jug in place to keep warm (up to 40 minutes).

PRACTICAL GUIDANCE

- Make sure you have enough liquid to cover the Min limit marker (Cf. Fig. 7). and take care not to exceed the MAX limit marker engraved inside the jug (Cf. Fig. 8).

- Some recipes may cause sudden overflowing, due to the formation of bubbles, particularly when using frozen vegetables. In this case, it is up to you to reduce the quantities accordingly.

- Time and temperature information is flashing: you can modify this information. Adjust the time as required with the aid of the + (increase) and - (decrease) buttons, depending on the ingredients used and the amount to be made (see table of the cooking times for soups in the recipe booklet).

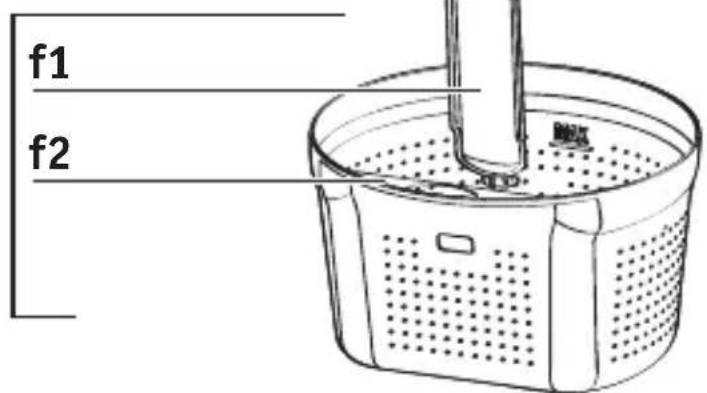

- With the cooking basket (depending on model*) you can steam cook (use P3 with 0.5 litres of water), or for chunky soup recipes and cooking whole ingredients such as meat, fish, vegetables at the same time as your soup (use P1 or P2).

- At the end of the programs, the appliance automatically keeps the recipe warm for 40 minutes so it remains ready to be consumed. To stop warming, simply press the OFF button.

• If you open the lid, press the trigger or remove the jug, the warming process will automatically stop.
• When the program has started, you can stop the appliance at any time by pressing the P button (2 beeps will sound). The program is then in pause mode and you can restart it by pressing the P button again or by pressing the OK button (a beep signal will be emitted).
• If you choose the wrong program by mistake and you wish to cancel it, press the OFF button for 2 seconds and that will allow you to restart the times and the temperatures.

MANUAL MODE

• Adjust the cooking time with the aid of the + (increase) and - (decrease) buttons, depending on the ingredients used and the amount to be made (see table of the cooking times for soups in the recipe booklet).
• You have to then validate the time chosen by pressing the OK button.
• The temperature information is flashing, you can change this information. Adjust the cooking

temperature with the aid of the + (increase) and - (decrease) buttons.

• You then have to validate the temperature chosen by pressing the
• OK button.
• The red indicator light illuminates and a ‘beep’ will sound to inform you that the cooking has started.
• At any point you can adjust the motor onto either:
• slow speed (position 1) to mix liquid ingredients (e.g. to make sauces).
• quick speed (position 2 onwards) to mix solid ingredients.

BLENDER MODE (without cooking)

- Select a speed by turning the speed selector to the right. The mixing starts and the time appears on the screen.

In blender mode, you can select up to 5 speeds with different mixing types.

The pulse speed can be found to the left of position 0.

• Turn the speed selector to position 0 to stop the appliance.
• Press on the trigger (d2) then remove the blender jug (D). If you wish to program an operation time which stops automatically:
• Adjust the operation time with the aid of the + (increase) and - (decrease) buttons.
• Select a speed by turning the speed selector. The count time appears on the screen.
• The motor stops automatically at the end of the count time.

Ice crushing button: The "Ice" button starts the ice crushing operation; this takes 30 seconds. You can stop the appliance as required by pressing the "OFF" button. You can crush a maximum of 6 to 8 ice cubes.

CLEANING THE APPLIANCE

• Do not immerse the appliance in water. Never put the motor unit (A) under hot running water.
• Clean the jug immediately after use.
• Fill up the jug with 1 litre of hot water along with 2 or 3 drops of washing up liquid Only use the recommended amount of water and washing up liquid. An excess of washing up liquid creates more foam and consequently can lead to overflowing.
• Use the automatic Autoclean programme: P3 or P4 (depending on model*) to carry out a prewash of the bowl.
• Once the program has stopped, unplug the appliance.
• Press on the trigger (d2) then remove the blender jug (D).
• Place the jug on a flat surface.
• Unlock the lid by turning it a quarter turn clockwise. Remove the lid with care.
• When the lid is cool, remove the carrier seal. To do so, grip it between your thumb and index finger, then pull to extract it. The seal dismounts without risk of deterioration (Cf. Fig. 12).

• Finish cleaning the jug with the aid of a sponge.

• Rinse the inside of the jug and the lid under running water.

• In the event of the heated part of the jug getting extremely dirty, leave to soak for a few hours in a mix of water and washing up liquid to help get it clean.

• Take care when cleaning the blades (d3) in the blender jug and when you empty the bowl as they are sharp.

• Use a damp cloth to clean the motor unit (A). Dry it carefully.
• The detachable parts (lid, seal, measuring cap, cooking basket) can be cleaned with a sponge and hot soapy water.
• To preserve the appearance and service life of the lid of your appliance, hand wash it. Do not use the abrasive side of the sponge to avoid scratches.
• The removable blade is not dishwasher safe — wash it under running water using a brush.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

PROBLEMS	CAUSES	SOLUTIONS
The appliance does not work.	It is not plugged in.	Plug your appliance into the mains power supply.
	The jug and the lid are not in the correct place or are not locked correctly.	Check that the jug and the lid are correctly positioned and locked following the diagrams in the instructions
Excessive vibrations.	The appliance is not placed on a flat surface, the appliance is not stable	Place the appliance on a flat stable surface.
	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
Leak through lid.	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
	The lid is not positioned or locked correctly	Lock the lid firmly onto the jug
	The waterproof seal is not present	Position the carrier seal on the lid.
	The waterproof seal has been cut through or damaged	Change the seal or contact an approved service centre
The blades do not rotate easily	Pieces of food too big or too hard	Reduce the size or quantity of the ingredients processed.Add some liquid
Display “STOP”	Motor overload caused by too large an amount of ingredients or pieces of food that are too hard or too large	Let the motor cool down and reduce the amount of ingredients in the jug.
Displays “SECU” + red indicator light is flashing	Empty jug, nearly empty or not enough liquid in recipe	Add liquid up to the jug’s minimum level marker (Cf. Fig. 7)
Displays “Err” + red indicator light is flashing	The heating element does not work	Contact the Customer Relations Helpline - see contact list
Displays « ntc » + red indicator light is flashing	The temperature sensor is no longer working	Contact the Customer Relations Helpline - see contact list
Motor stops during use, without any fault being displayed.	If the jug and lid are not correctly assembled and fastened, the safety motor overload will be triggered.	Leave it to cool down for 30 minutes and reduce the quantity of ingredients to process.

Your appliance still doesn't work?

Contact the Customer Relations Helpline - see contact list.

RECYCLING

- Disposal of packaging materials and the appliance.

The packaging is made of exclusively environmentally safe materials that can be disposed of according to current recycling regulations.

To dispose of your appliance, consult the appropriate department of your local authority.

• Expired electronic or electrical products:

Think of the environment!

Your appliance contains valuable materials which can be recovered or recycled. Please take it to a local waste collection point where it will be disposed

DESCRIZIONE DELL'APPARECCHIO

A Blocco motore

b1 Selection buttons

BESCHRIJVING VAN HET APPARAAT

A Motorblok

B Bedieningspaneel

HET APPARAAT SCHOONMAKEN

UW APPARAAT WERKT NIET. WAT NU?
