| Product type | Food processor |
| Brand | Tefal |
| Model | Vita Compact FP4101 |
| Power supply | Mains |
| Voltage | 220-240 V |
| Frequency | 50/60 Hz |
| Power | 800 W |
| Main bowl capacity | 2.5 L |
| Blender bowl capacity | 1.5 L |
| Bowl material | Plastic |
| Color | White |
| Included accessories | Metal blade, vegetable cutting discs (grater, slicer), whisk, emulsifier, centrifugal juicer, mini chopper, grinder |
| Functions | Mix, chop, cut, grate, slice, whisk, emulsify, centrifugal juice, grind |
| Safety | Accessory locking, overheating protection |
| Cleaning | Dishwasher-safe accessories (except motor block) |
| Usage | Household use only |
| Dimensions (L x l x h) | 30 x 25 x 25 cm |
| Weight | 3.5 kg |
| Cable length | 1 m |
| Warranty | 2 years |
| Repairability | Spare parts available from authorized service |
Frequently Asked Questions - Vita Compact FP4101 TEFAL
User questions about Vita Compact FP4101 TEFAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Food Processor in PDF format for free! Find your manual Vita Compact FP4101 - TEFAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Vita Compact FP4101 by TEFAL.
USER MANUAL Vita Compact FP4101 TEFAL


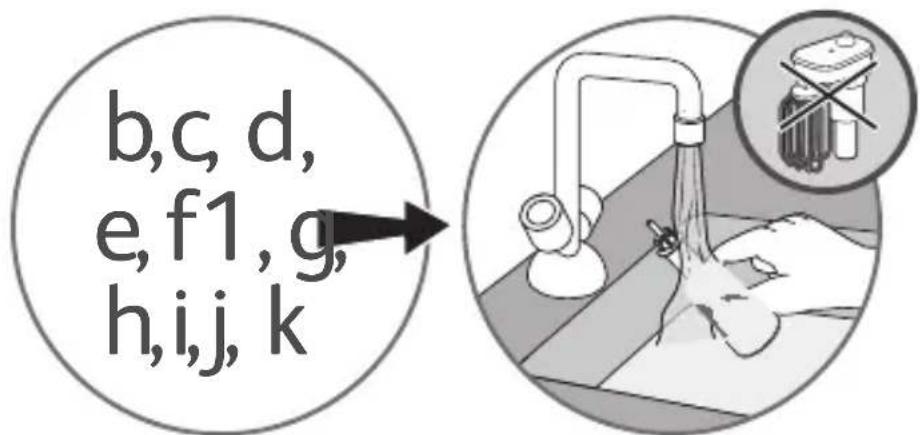

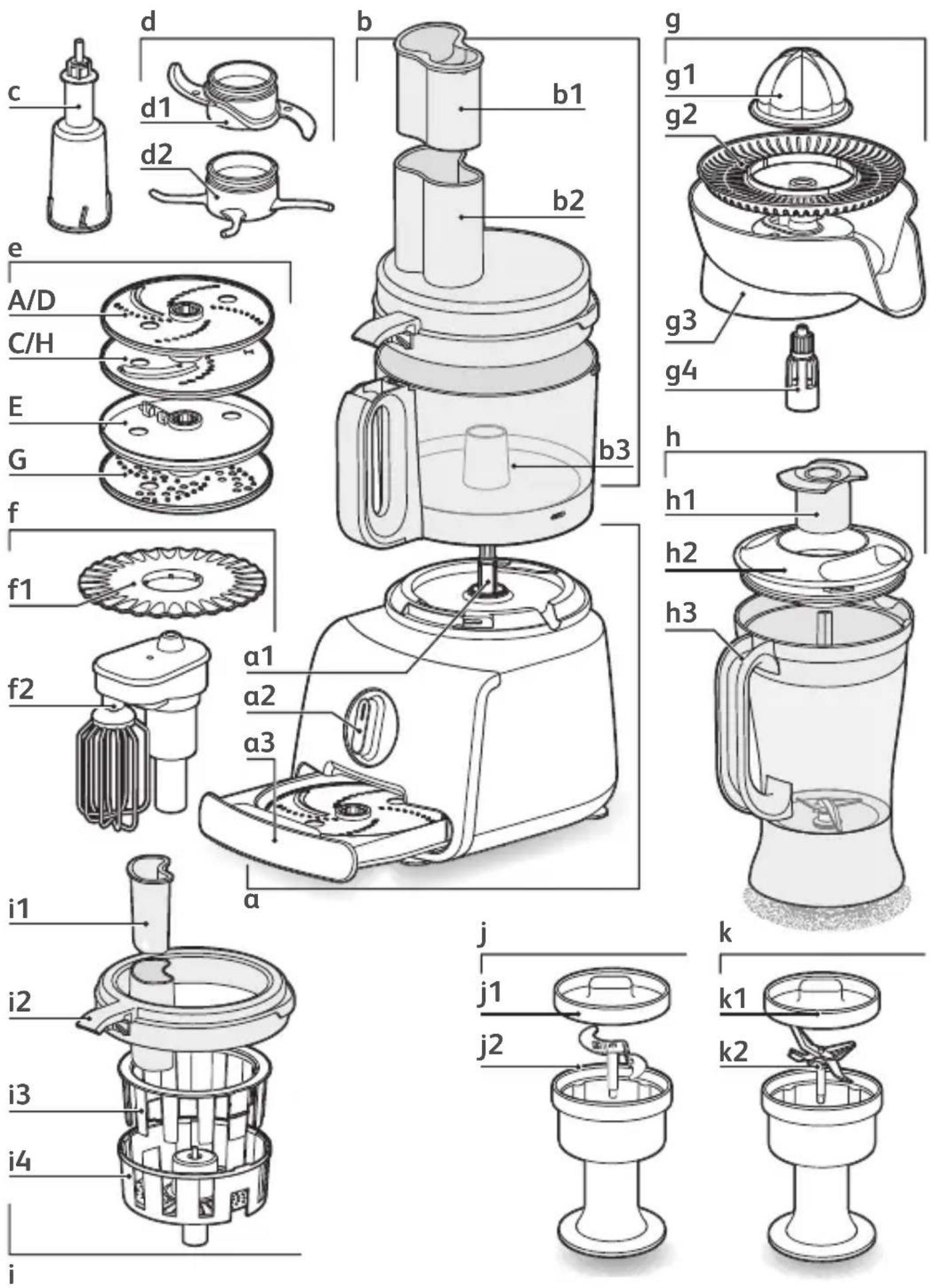

b,c,d, e,f1,g, h,i,j,kfig.1a fig.1b


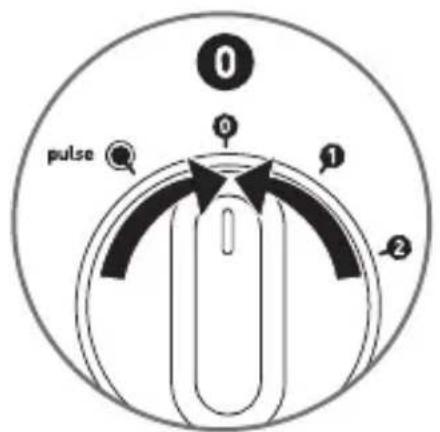

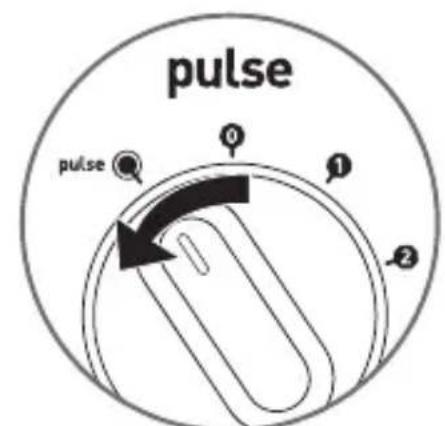

pulse pulse 0 1 2text_image
① ② pulse 0 ① ②


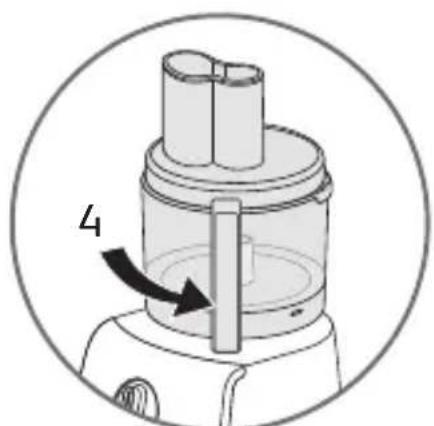

Diagram of a blender with a handle and label '4' indicating a step, enclosed in a circle (no text or symbols beyond the label)fig.3c


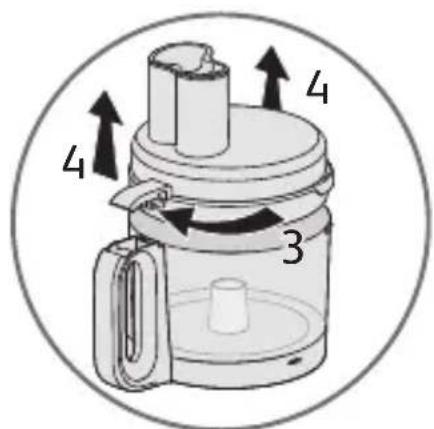

4 3 4fig.4bfig.4a fig.4c


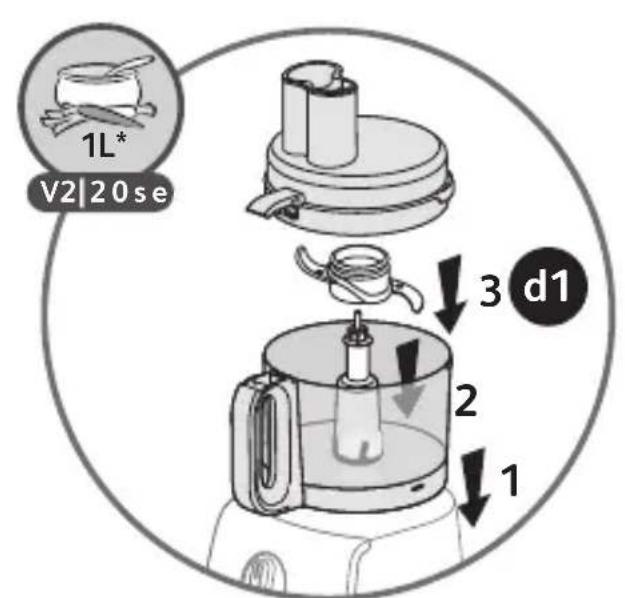

1L* V2|20se 3 d1 2 1fig.5a fig.5b


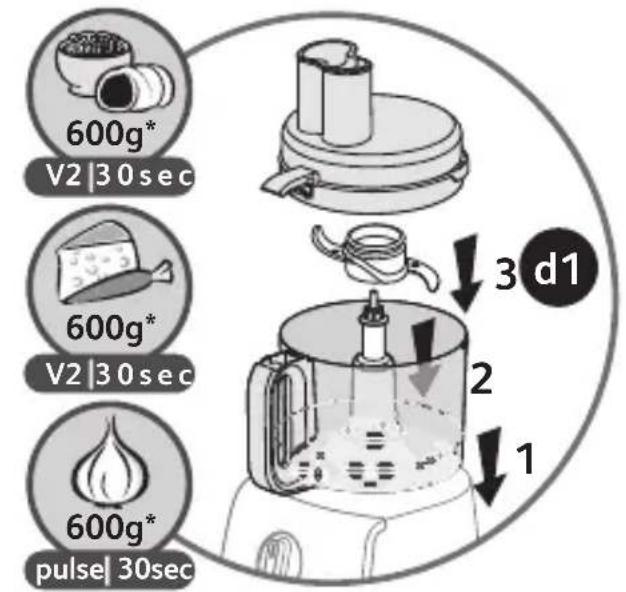

600g* V2|30 sec 600g* V2|30 sec 600g* pulse|30sec 3 d1 2 1


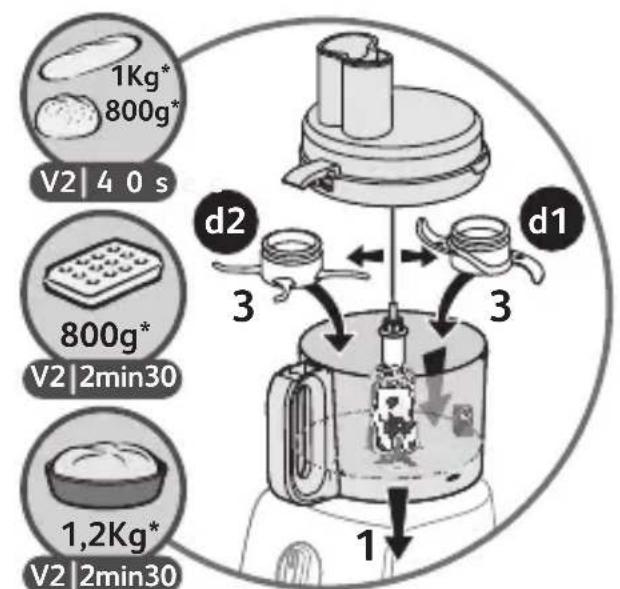

1Kg* 800g* V2|4 0 s 800g* V2|2min30 1,2Kg* V2|2min30 d2 d1 3 3 1fig.5c
fig.6


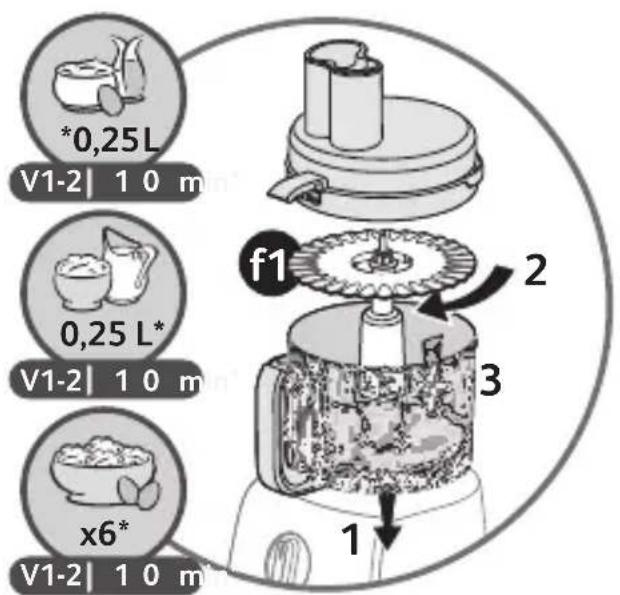

*0,25 L V1-2 | 10 m 0,25 L* V1-2 | 10 m x6* V1-2 | 10 m f1 2 3 1^* =MAX


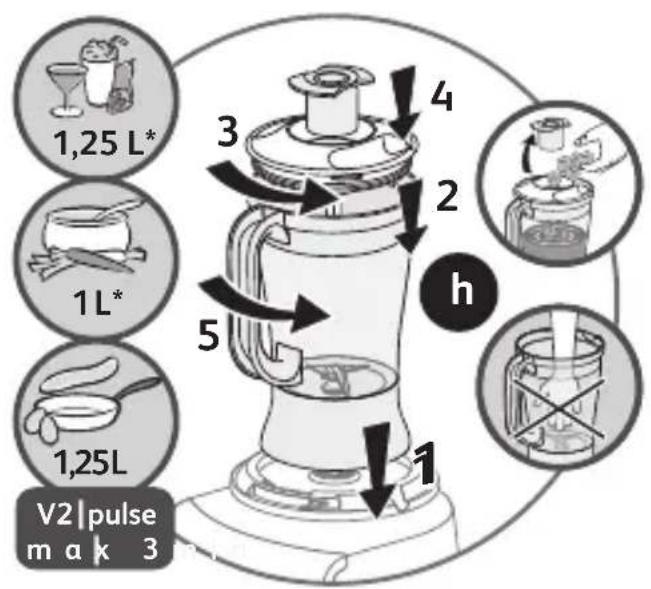

1,25 L* 1 L* 1,25L V2 | pulse m a k 3 h 1 2 3 4 5


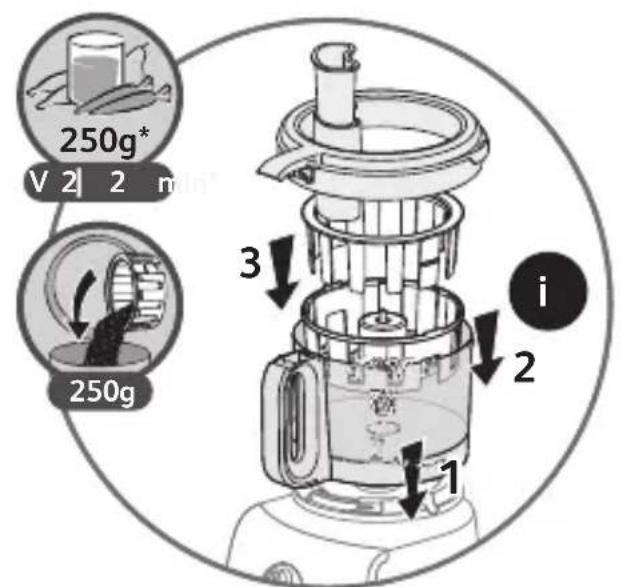

250g* V 2 | 2 min 250g 3 i 2 1fig.10 fig.11


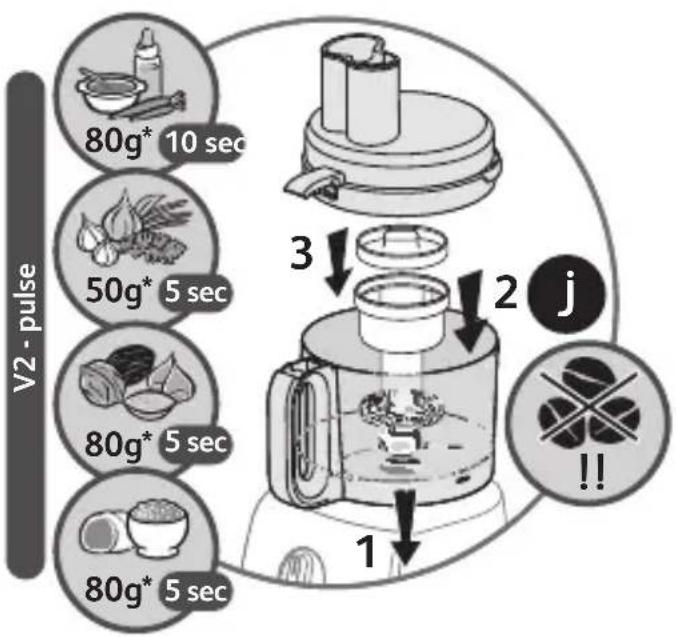

V2 - pulse 80g* 10 sec 50g* 5 sec 80g* 5 sec 80g* 5 sec 3 2 j 1 !!!


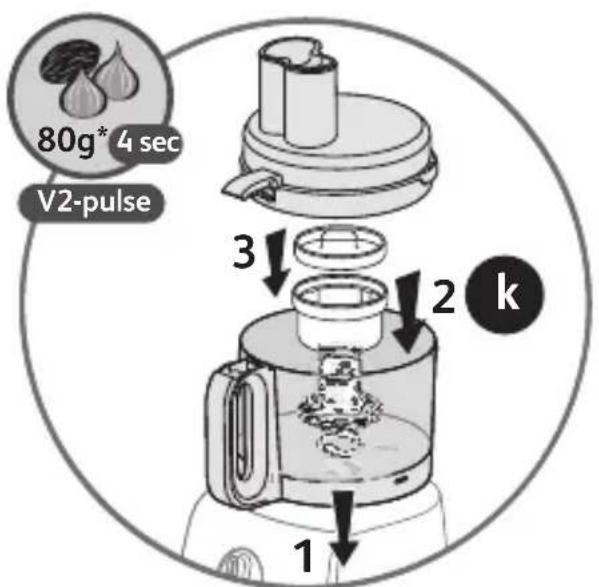

80g* 4 sec V2-pulse 3 2 k 1fig.12 fig.13


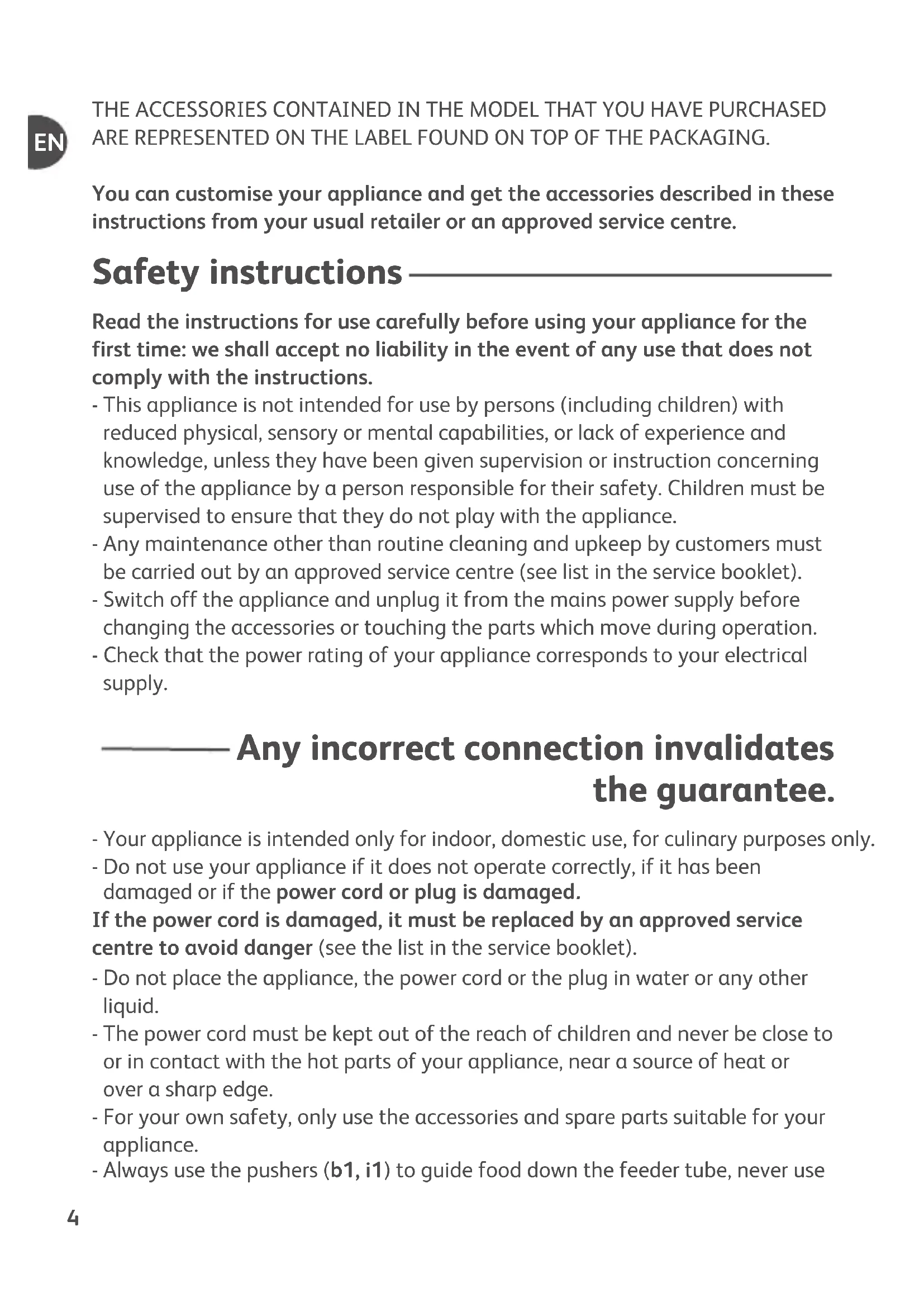

1 2 3LES ACCESSOIRES, CONTENUS DANS LE MODELE QUE VOUS VENEZ D'ACHETER, SONT REPRESENTES SUR L'ETIQUETTE SITUEE SUR LE DESSUS DE L'EMBALLAGE

You can customise your appliance and get the accessories described in these instructions from your usual retailer or an approved service centre.
Safety instructions
Read the instructions for use carefully before using your appliance for the first time: we shall accept no liability in the event of any use that does not comply with the instructions.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
- Any maintenance other than routine cleaning and upkeep by customers must be carried out by an approved service centre (see list in the service booklet).
- Switch off the appliance and unplug it from the mains power supply before changing the accessories or touching the parts which move during operation.
- Check that the power rating of your appliance corresponds to your electrical supply.
Any incorrect connection invalidates the guarantee.
- Your appliance is intended only for indoor, domestic use, for culinary purposes only.
- Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged.
If the power cord is damaged, it must be replaced by an approved service centre to avoid danger (see the list in the service booklet).
- Do not place the appliance, the power cord or the plug in water or any other liquid.
- The power cord must be kept out of the reach of children and never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge.
- For your own safety, only use the accessories and spare parts suitable for your appliance.
- Always use the pushers (b1, i1) to guide food down the feeder tube, never use
your fingers, a fork, a spoon, a knife or any other object when the appliance is in operation.

- Never run your appliance empty.
- Never run the blender jug (h3) without ingredients, without lid (h2) or with dry products only and do not pour boiling liquids into it.
- Use your appliance on a flat, clean and dry surface.
- Do not put accessories into a microwave oven and do not sterilise them.
- Do not allow long hair, scarves, ties etc. to dangle over the accessories during operation.
- The appliance must be unplugged when no longer in use, during cleaning or in the event of a power cut.
- Handle the metal blade (d1), the blade of the blender (h), the mini chopper (j), the grinder (k) and the vegetable cutter (e) discs with care: they are extremely sharp. You must remove the metal blade (d1) from the spindle (c) before emptying the bowl of its content.
- Do not use the accessories as storage containers (for freezing - cooking - heat sterilization).
- Do not use the filter (i3) or the base (i4) of the juice extractor if they are damaged.
- Do not use the mixer (f2) or the emulsifying disc (f1) to prepare heavy dough.
Cleaning
- Unplug the appliance.
- For easier cleaning, rinse the accessories quickly after use.
- Wash and dry the accessories: they can be washed in the dishwasher, in water or under running water except for the body of the mixer (f2) and the motor unit (a).
Wipe these with a damp sponge.
- Pour hot water with a few drops of liquid soap into the blender jug (h3). Close the lid (h2), with its measuring cap (h1). Give a few pulses. Unplug the appliance. Rinse the jug. Wipe with a damp sponge.
- The blades of the accessories are very sharp. Handle with care.
Tip
If your accessories become stained by food (carrots, oranges, etc.), rub them with a cloth dipped in vegetable oil, then clean as usual.
What to do if your appliance does not work
If your appliance does not work, check:
- that it is plugged in correctly.
- that the accessories are correctly locked.
Your appliance still does not work? Contact an approved service centre (see list in service booklet).
End-of-life electronic products
Think of the environment!
Your appliance contains many materials that may be recycled or recovered. Leave it at a local civic waste collection point.
Disposal of packaging and the appliance

The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area.
For disposing of the appliance itself, please contact the appropriate service of your local authority.
