Product type	Electric fan heater
Brand	Emerio
Model	PH117296.1
Power supply	220-240 V ~ 50-60 Hz
Rated power	2000 W (max)
Minimum power	1000 W
Temperature range	16 °C to 40 °C
Timer	0 to 24 hours
Child lock	Yes
Remote control	Yes (CR2025 battery included)
Control type	Electronic with digital display
Number of power levels	2 (low heat 1000 W, high heat 2000 W)
Overheat protection	Yes, automatic shut-off
Assembly required	Feet and casters to be attached (screws supplied)
Recommended use	Indoor, well-insulated rooms
Safety distance	Minimum 1 m from flammable materials
Cleaning	Damp cloth, no detergent
Storage	Clean, dry place
Warranty	2 years
Country of origin	Switzerland (Emerio Switzerland AG)

Frequently Asked Questions - PH117296.1 Emerio

How to clean the heater?

Always unplug the appliance and let it cool down. Clean the exterior with a damp cloth, then dry with a soft cloth. Do not use detergents or abrasives and do not let water enter the interior.

What to do if the heater turns off by itself?

This is probably due to overheating. Turn off the appliance, unplug it and let it cool down for at least 30 minutes. Check that the air inlet and outlet grilles are not blocked, then plug it back in.

How to activate the child lock?

Press and hold the child lock button (padlock symbol) on the control panel until you hear a beep. The lock icon appears. To deactivate, repeat the operation. You can also use the remote control.

What type of battery does the remote control need?

The remote control uses a CR2025 button battery. Insert it respecting polarity. Remove it if not used for a long time.

How to set the timer?

Press the timer button (clock) to set the operating time from 0 to 24 hours. The 'h' icon displays. Once the time has elapsed, the appliance turns off automatically. To cancel, set to '0h'.

Can I use this heater in a bathroom?

No, this heater is not designed for humid rooms such as bathroom, laundry room, or near a pool. Use it only in dry locations.

How to assemble the feet and casters?

Turn the appliance upside down on a stable surface. Attach the two feet with the supplied screws, then insert the four casters into the feet. Make sure everything is tight before righting the appliance.

What does the 'DO NOT COVER' symbol mean?

This symbol (a crossed-out square) indicates that you should never cover the heater, as it could cause overheating and a fire hazard. Do not place any clothing, towels or other objects on it.

How to set the desired temperature?

Use the '+' and '-' buttons on the control panel or the '°C' button on the remote control to adjust the temperature between 16 °C and 40 °C. The value flashes for a few seconds then becomes steady.

What to do in case of malfunction or defect?

First consult the user manual. If the problem persists, contact your retailer or after-sales service. Do not attempt to open or repair the appliance yourself. Keep your receipt for the 2-year warranty.

USER MANUAL PH117296.1 Emerio

White rectangular electronic device with black wheels and a digital display on top (no text or symbols visible)

Panel heater (EN)

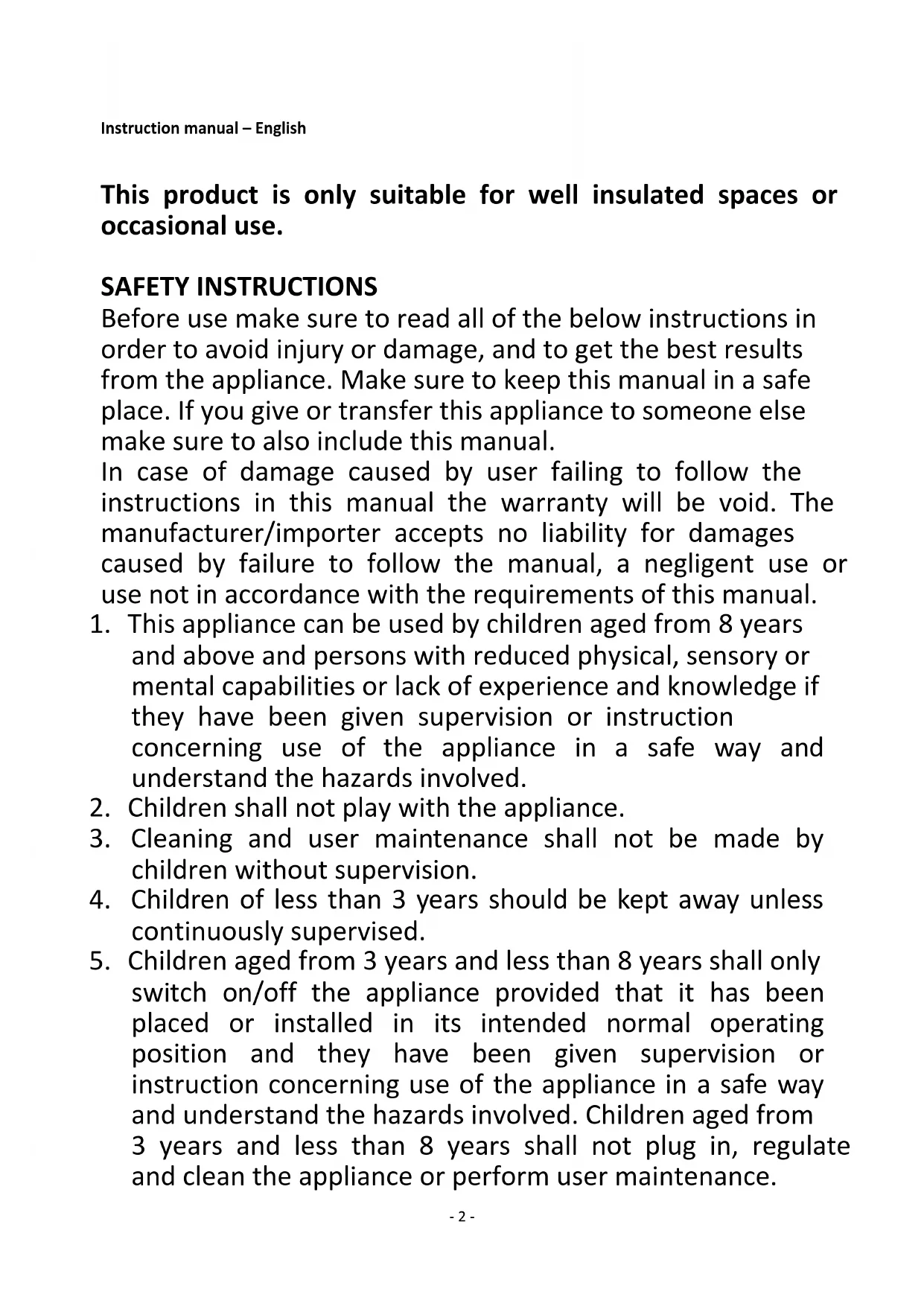

Instruction manual – English ...... - 2 -

This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. WARNING: In order to avoid overheating, do not cover the heater.

9. Do not use this heater in the immediate surrounding of a bath, a shower or a swimming pool.

10. The heater must not be located immediately below a socket outlet.

1. Means "DO NOT COVER".

2. Do not use this heater if it has been dropped.

3. Do not use if there are visible signs of damage to the heater.

4. Use this heater on a horizontal and stable surface.

5. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

6. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

7. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

8. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

9. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

10. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric

shock!

1. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

2. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

3. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

4. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

5. Never leave the appliance unattended during use.

6. This appliance is not designed for commercial use.

7. Do not use the appliance for other than intended use.

8. Do not wind the cord around the appliance and do not bend it.

9. The heater is not intended for use in bathrooms, laundry areas, near swimming pools or similar wet indoor locations. Never place the heater where it may fall into a bathtub or any other water container.

10. Do not use outdoors.

11. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.

12. Do not place the heater on carpets with a very deep pile.

13. Do not insert any object through the heat outlet or air intake grilles of the heater.

14. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.

15. Particular care should be taken when the heater is situated in areas occupied by children or disabled persons.

16. Always unplug the heater when moving it from one location to another.

17. This heating device is not suitable for assembling in vehicles and machines.

18. Regarding the information pertaining to the installation, please refer to the below paragraph of the manual.

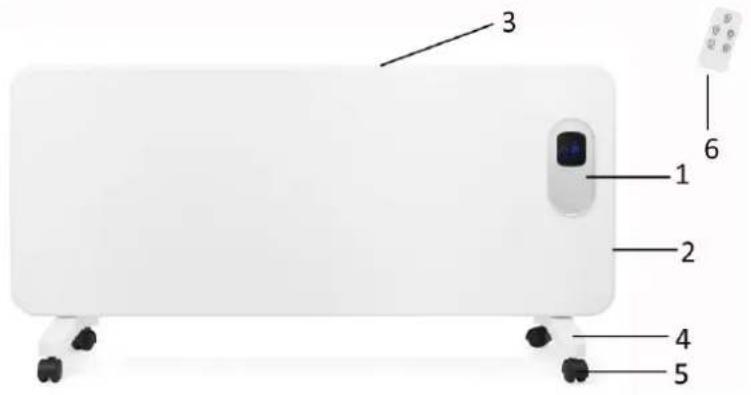

PARTS DESCRIPTION

1. Control panel and digital display
2. Main power switch
3. Warm air outlet
4. Feet
5. Wheel
6. Remote control

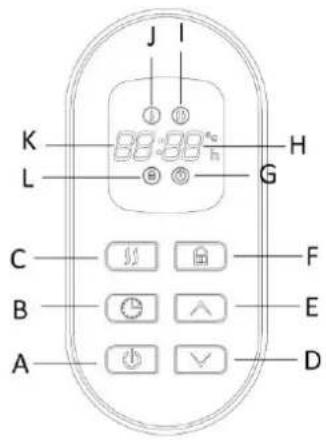

Control panel and digital display

A. On/off button
B. Timer button
C. Power setting
D. Temperature setting (-)
E. Temperature setting (+)
F. Child lock
G. Main power icon
H. Set temperature or timer display
I. High heat
J. Low heat
K. Room temperature display
L. Child lock icon

Remote control

Please use one piece of CR2025 battery for this remote control. Please insert the battery to the remote control tightly (Refer to the instruction behind the remote control). If it is not in use for a long time, please take the battery out of the remote control. Keep button cell batteries out of reach of small children.

A. On/off button
B. Power setting
C. Timer setting
D. Temperature setting
E. Child lock

FEET ASSEMBLY

Take the appliance upside down. Attach the two feet onto the bottom of the appliance and fix with the provided screws. Insert the four small wheels into the two feet.

OPERATION

Plug the appliance into an appropriate electrical outlet. Turn on the appliance by pressing the main power switch. A beep sound will be heard, and at the meantime the room temperature shows on the display. Press

button " 🔍", the heater is turned on.

1. Power setting

Press button “☐” to choose your desired power setting: the display of “☐” is on behalf of low heat (1000W); the display of “☐” is on behalf of high heat (2000W).

1. Temperature setting

Press button “☐” or “☐” on the control panel or button “℃” on the remote control to set the desired temperature. You can choose from 16℃ to 40℃. When you set your desired temperature, it will flash a few seconds, and then shows in the display.

1. Time setting

Press button “ [icon] ” to set the desired working time from 0h to 24h. The set working time will flash a few seconds, and then shows the set temperature again. Icon “h” will appear on the display and the time setting is done. The appliance will shut itself off automatically when the time is up.

Press button "☐" to set the time to "Oh" to cancel the time setting.

1. Child lock

Long press the child lock button (on the control panel) until a beep sound is heard, the child lock function is activated.

Long press the child lock button (on the control panel) again until a beep sound is heard, the child lock function is cancelled.

Or you can short press the child lock button on the remote control to trun on/off the child lock function.

1. Turn off

Press button “ [icon] ” again to turn off the appliance. Then, turn off the main power switch and unplug the appliance.

SAFETY SYSTEM

• The appliance has a safety system which automatically switches off the unit when overheated.
- If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 30 minutes. Put the plug in the socket and switch on the heater.

CLEANING THE HEATER

Always un-plug the heater from the wall socket and allow it to cool down completely before cleaning. Clean the outside of the heater by wiping with a damp cloth and with a dry cloth. Do not use any detergents or abrasives and do not allow any water to penetrate the heater.

STORING THE HEATER

When the heater is not used for a long time it should be protected from dust and stored in a clean dry place.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60 Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

ERP information (EN)

Supplier: Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,0	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1,0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	0	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	kW	single stage heat output and no room temperature control	No
In standby mode	el_SB	0,0006	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	Yes
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details	Emerio Switzerland AGOberneuhofstrasse 16340 BaarSwitzerland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
