USER MANUAL KD-R771BT JVC

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

10/8/2015 12:26:46 PM Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Declaration of Conformity with regard to the EMC Directive Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer: JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan EU Representative: JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Data Size: Book Size:

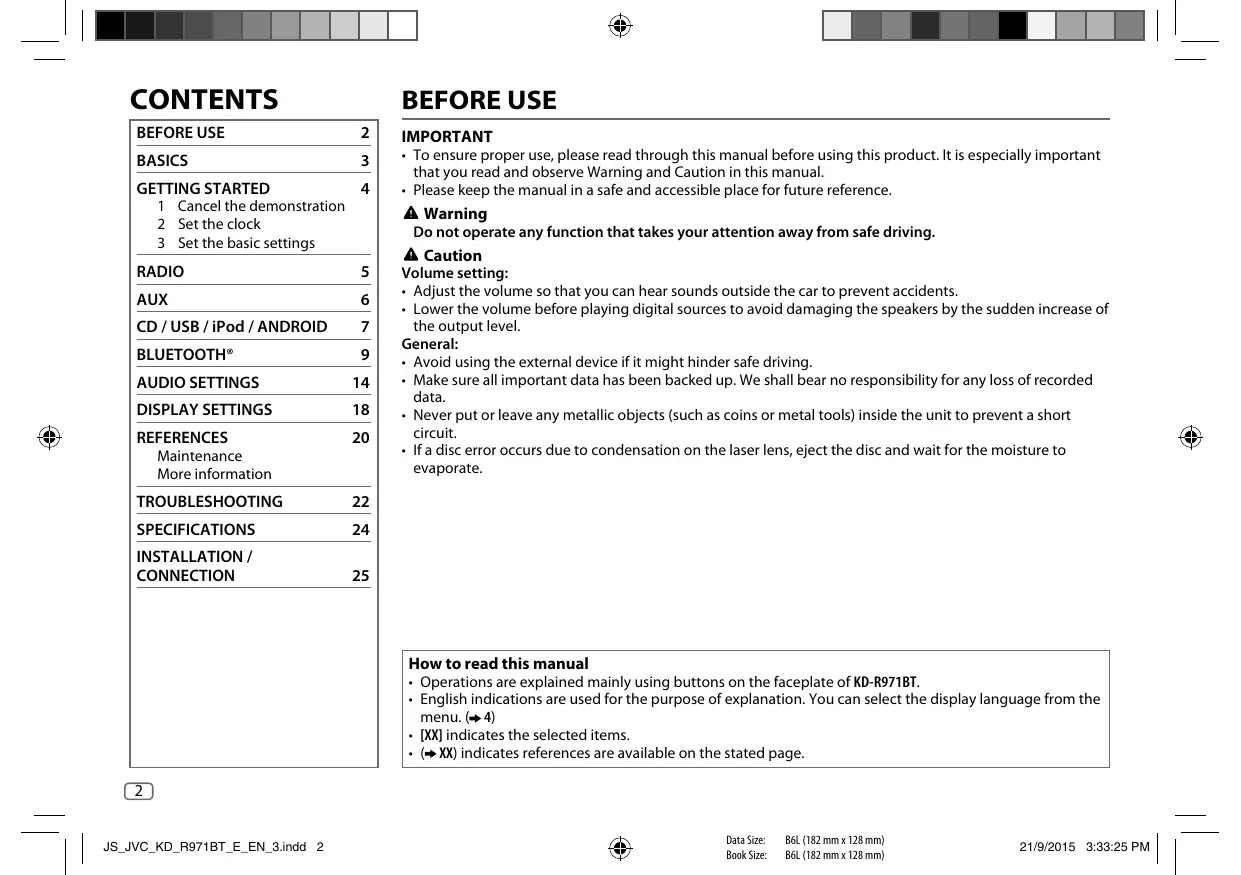

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual. • Please keep the manual in a safe and accessible place for future reference.

1 Cancel the demonstration 2 Set the clock 3 Set the basic settings

RADIO Warning Do not operate any function that takes your attention away from safe driving.

Volume setting: • Adjust the volume so that you can hear sounds outside the car to prevent accidents. • Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General: • Avoid using the external device if it might hinder safe driving. • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data. • Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit. • If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual • Operations are explained mainly using buttons on the faceplate of KD-R971BT. • English indications are used for the purpose of explanation. You can select the display language from the menu. ( 4) • [XX] indicates the selected items. • ( XX) indicates references are available on the stated page.

JS_JVC_KD_R971BT_E_EN_3.indd 2

Data Size: Book Size:

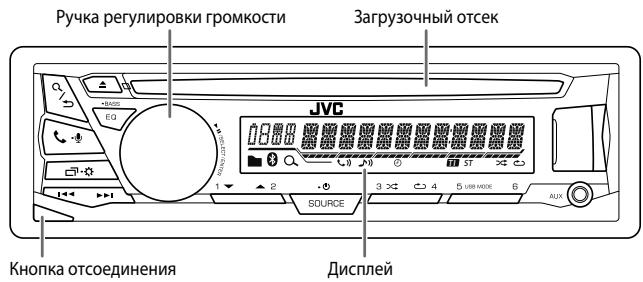

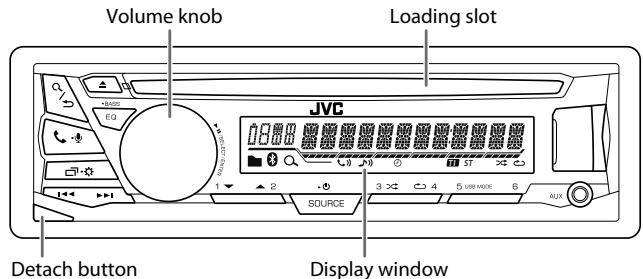

Display window Press the switch twice within 5 seconds after detaching the faceplate.

Press . • Press and hold to turn off the power.

repeatedly. , then turn the volume knob within 2 seconds. repeatedly. ( 21)

ENGLISH JS_JVC_KD_R971BT_E_EN_6.indd 3

Data Size: Book Size:

12/10/2015 10:57:31 AM GETTING STARTED 3

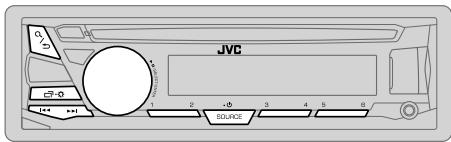

Set the basic settings . 1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

Cancel the demonstration

When you turn on the power for the first time (or [FACTORY RST] is set to [YES]), the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB” 1 Press the volume knob. [YES] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears.

(Not applicable when 3-way crossover is selected.) ON: Activates the keypress tone. ; OFF: Deactivates.

FACTORY RST YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>. YES: Resets the settings to default (except the stored station). ; NO: Cancels.

CLOCK CLOCK SYNC AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels.

CLOCK DISP ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.

Select the display language for menu and music information if applicable. By default, ENGLISH is selected.

JS_JVC_KD_R971BT_E_EN_4.indd 4

* Not displayed when the corresponding source is selected.

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

2/10/2015 3:18:07 PM RADIO Other settings . 1 Press and hold 2 Turn the volume knob to select [TUNER], then press the knob.

3 Turn the volume knob to select an item (see the following table), then press the knob. “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station repeatedly to select FM or AM. 1 Press 2 Press to search for a station automatically. (or) Press and hold station manually.

until “M” flashes, then press repeatedly to search for a

4 Repeat step 3 until the desired item is selected/ activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press .

Default: XX RADIO TIMER Turns on the radio at a specific time regardless of the current source. 1 ONCE/ DAILY/ WEEKLY/ OFF: Select how often the timer will be turned on. 2 FM/ AM: Select the band. 3 01 to 18 (for FM)/ 01 to 06 (for AM): Select the preset station. 4 Set the activation day *1 and time. “M” lights up when complete. Radio Timer will not activate for the following cases. • The unit is turned off. • [OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is selected. ( 4)

SSM SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18: Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12 / SSM 13 – 18 to store the following 12 stations.

Settings in memory You can store up to 18 stations for FM and 6 stations for AM.

Store a station While listening to a station.... Press and hold one of the number buttons (1 to 6). (or) 1 Press and hold the volume knob until “PRESET MODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears.

Select a stored station Press one of the number buttons (1 to 6). (or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to confirm.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.

ENGLISH JS_JVC_KD_R971BT_E_EN_3.indd 5

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21/9/2015 3:33:27 PM AUX RADIO Default: XX LOCAL SEEK ON: Searches only FM stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

IF BAND AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

MONO ON: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels.

ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.

ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.

ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.

ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels.

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

Use a portable audio player 1 Connect a portable audio player (commercially available). 3.5 mm stereo mini plug with “L” shaped connector (commercially available)

Auxiliary input jack

Portable audio player

2 Select [ON] for [AUX] in [SRC SELECT]. ( 4) 3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback. Use a 3-core plug head stereo mini plug for optimum audio output.

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT *2 Only for FM source.

JS_JVC_KD_R971BT_E_EN_3.indd 6

Data Size: Book Size:

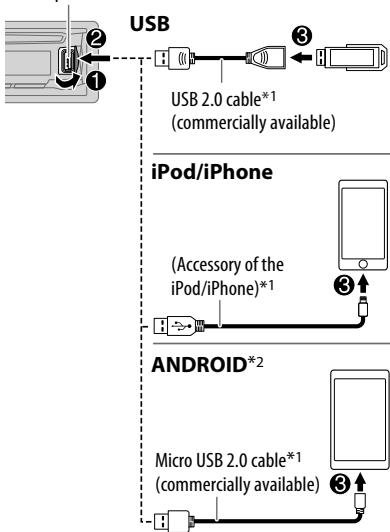

(Accessory of the iPod/iPhone)*1

*1 Do not leave the cable inside the car when not using. *2 When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. ( 20) 3 * For ANDROID: Applicable only when [AUTO MODE] is selected. ( 8) 4 * For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID. *5 For iPod/ ANDROID: Applicable only when [HEAD MODE]/ [AUTO MODE] is selected. ( 8)

ENGLISH JS_JVC_KD_R971BT_E_EN_6.indd 7

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

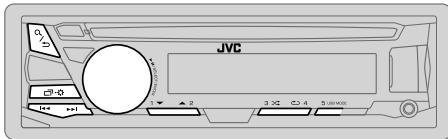

12/10/2015 10:59:14 AM CD / USB / iPod / ANDROID Select control mode While in USB-IPOD source, press repeatedly. HEAD MODE: Control iPod from this unit. IPHONE MODE: Control iPod using the iPod itself. However, you can still play/ pause or file skip from this unit.

Select a file from a folder/list . 1 Press 2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob.

While in ANDROID source, press repeatedly. AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device. AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Quick Search If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. – Not applicable for iPod. Alphabet search (applicable only for iPod): You can search for a file according to the first character. Press or turn the volume knob quickly to select the desired character (A to Z/ 0 to 9/ OTHERS). – Select “OTHERS” if the first character is other than A to Z, 0 to 9.

Select music drive Press repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drives device.

To return to the previous setting item, press . To cancel, press and hold . For iPod, applicable only when [HEAD MODE] is selected. For ANDROID, applicable only when [AUTO MODE] is selected.

JS_JVC_KD_R971BT_E_EN_6.indd 8

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

12/10/2015 10:59:37 AM BLUETOOTH® BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC)

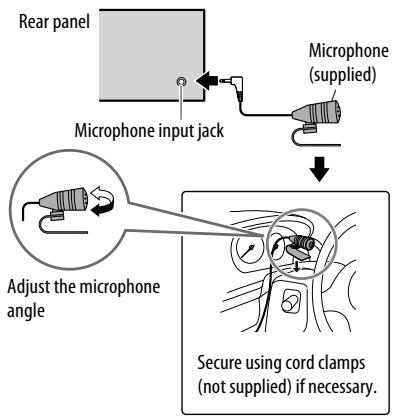

Connect the microphone Rear panel Microphone (supplied) Microphone input jack

Pair and connect a Bluetooth device for the first time 1 Press to turn on the unit. 2 Search and select “JVC UNIT” on the Bluetooth device. “BT PAIRING” flashes on the display. • For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Perform (A) or (B) depending on what scrolls on the display. For some Bluetooth devices, pairing sequence may vary from the steps described below. (A) “[Device Name]” “XXXXXX” “VOL – YES” “BACK – NO” “XXXXXX” is a 6-digit passkey randomly generated during each pairing. Ensure that the passkey which appears on the unit and Bluetooth device is the same. Press the volume knob to confirm the passkey. Operate the Bluetooth device to confirm the passkey. (B) “[Device Name]” “VOL – YES” “BACK – NO” Press the volume knob to start pairing. • If “PAIRING” “PIN 0000” scrolls on the display, enter the PIN code “0000” into the Bluetooth device. You can change to a desired PIN code before pairing. ( 13) • If only “PAIRING” appears, operate the Bluetooth device to confirm pairing. “PAIRING COMPLETED” appears when pairing is completed and “ ” will light up when the Bluetooth connection is established. Lights up to show the battery strength and signal strength.* * Functionality depends on the type of the phone used.

Adjust the microphone angle Secure using cord clamps (not supplied) if necessary.

• This unit supports Secure Simple Pairing (SSP). • Up to 10 devices can be registered (paired) in total. • Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 13, [DELETE PAIR]. • A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. • Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. • Refer to the instruction manual of the Bluetooth device for more information.

ENGLISH JS_JVC_KD_R971BT_E_EN_3.indd 9

Data Size: Book Size:

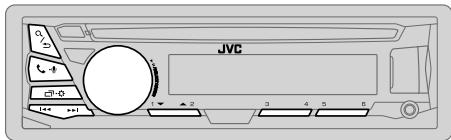

BLUETOOTH — Mobile phone

When you connect the following device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. KD-R971BT / KD-R871BT: iPhone/ iPod touch/ Android device KD-R774BT / KD-R771BT: Android device

Receive a call Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected devcie is turned on. – [AUTO CNNT] is set to [ON]. ( 13) – JVC MUSIC PLAY application is installed on the Android device ( 7) and [AUTO MODE] is selected ( 8).

When there is an incoming call: • For KD-R971BT: The buttons will blink in the color you have selected in [RING COLOR]. ( 11) For KD-R871BT / KD-R774BT / KD-R771BT: The buttons will blink in the blinking pattern you have selected in [RING ILLUMI]. ( 11) • The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. ( 11) During a call: • For KD-R971BT: The buttons stop blinking and illuminate in the color you have selected in [RING COLOR]. ( 11) For KD-R871BT / KD-R774BT / KD-R771BT: The buttons stop blinking. • If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected. To

First incoming call... Answer a call

While talking on the first incoming call... Answer another incoming call and hold the current call

Reject another incoming call

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

8/10/2015 10:30:58 AM BLUETOOTH® To

Make the settings for receiving a call to enter Bluetooth mode. 1 Press 2 Turn the volume knob to select an item (see the following

While having two active calls... End current call and activate held call

Swap between the current call and held call

Adjust the phone volume [00] to [35] (Default: [15]) Switch between hands-free and private talk modes

table), then press the knob.

3 Repeat step 2 until the desired item is selected or activated. To return to the previous setting item, press

Turn the volume knob during a call. • This adjustment will not affect the volume of the other sources. Press during a call. • Operations may vary according to the connected Bluetooth device.

Default: XX SETTINGS AUTO ANSWER

01 SEC — 30 SEC: The unit answers incoming call automatically in the selected time (in seconds). ; OFF: Cancels.

(For KD-R971BT) COLOR 01 — COLOR 49 (COLOR 08): Selects the notification light color for the buttons when there is an incoming call and during a call. ; OFF : Cancels.

(For KD-R871BT / KD-R774BT / KD-R771BT) BLINK 1 — BLINK 5 (BLINK 2): Selects the notification blinking pattern for the buttons when there is an incoming call. ; OFF : Cancels.

Improve the voice quality While talking on the phone.... 1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press .

Default: XX MIC LEVEL

–10 — +10 (–4): The sensitivity of the microphone increases as the number increased.

–5 — +5 (0): Adjust the noise reduction level until the least noise is being heard during a phone conversation.

–5 — +5 (0): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

ENGLISH JS_JVC_KD_R971BT_E_EN_5.indd 11

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

8/10/2015 10:30:59 AM BLUETOOTH® Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. To return to the previous setting item, press .

Make a call using voice recognition to activate the connected phone. 1 Press and hold 2 Speak the name of the contact you want to call or the voice command to control the phone functions. • Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details. • This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory RECENT CALL

(Applicable only if the phone supports PBAP) 1 Press the volume knob to select a name or a phone number. • “<” indicates call received, “>“ indicates call made, “M” indicates call missed. • “NO HISTORY” appears if there is no recorded call history or call number. 2 Press the volume knob to call.

(Applicable only if the phone supports PBAP) 1 Press to select the desired letter (A to Z, 0 to 9, and OTHERS). • “OTHERS” appears if the first character is other than A to Z, 0 to 9. 2 Turn the volume knob to select a name, then press the knob. 3 Turn the volume knob to select a phone number, then press the knob to call. • The phonebook of the connected phone is automatically transferred to the unit when pairing. • This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.)

1 Turn the volume knob to select a number (0 to 9) or character ( , #, +). 2 Press to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number. 3 Press the volume knob to call.

VOICE Speak the name of the contact you want to call or the voice command to control the phone functions. ( Make a call using voice recognition)

Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [RECENT CALL], [PHONEBOOK], or [DIAL NUMBER], then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “MEMORY P(selected preset number)” appears when the contact is stored. To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory to enter Bluetooth mode. 1 Press 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO PRESET” appears if there is no contacts stored.

JS_JVC_KD_R971BT_E_EN_3.indd 12

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21/9/2015 3:33:29 PM BLUETOOTH® Bluetooth mode settings 1 Press and hold . 2 Turn the volume knob to select [BLUETOOTH], then press the knob. 3 Turn the volume knob to select an item (see the following table), then press the knob.

4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. to exit. To return to the previous setting item, press

Default: XX PHONE*1 AUDIO*1 APPLICATION*1

Selects the phone or audio device to connect or disconnect. “ ” appears in front of the device name when connected.

Shows the connected phone name using the JVC Smart Music Control *2 app. “ ” appears in front of the device name when connected. DELETE PAIR 1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [YES] or [NO], then press the knob. SET PINCODE Changes the PIN code (up to 6 digits). 1 Turn the volume knob to select a number. (0000) 2 Press to move the entry position. Repeat steps 1 and 2 until you finish entering the PIN code. 3 Press the volume knob to confirm. AUTO CNNCT ON: The unit automatically reconnect when the last connected Bluetooth device is within range. ; OFF: Cancels. AUTO PAIR ON: The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; OFF: Cancels. INITIALIZE YES: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; NO: Cancels. INFORMATION MY BT NAME: Displays the unit name (JVC UNIT). ; MY ADDRESS: Shows address of this unit. *1 You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. *2 JVC Smart Music Control is designed to view JVC car receiver status and perform simple control operations on Android smart phones. For JVC Smart Music Control operations, visit JVC website: <http://www.jvc.net/cs/car/>.

Bluetooth compatibility check mode You can check the connectivity of the supported profile between the Bluetooth device and the unit. • Make sure there is no Bluetooth device paired. 1 Press and hold . “BLUETOOTH” “CHECK MODE” appears. “SEARCH NOW USING PHONE” “PIN IS 0000” scrolls on the display. 2 Search and select “JVC UNIT” on the Bluetooth device within 3 minutes. 3 Perform (A), (B) or (C) depending on what appears on the display. (A) “PAIRING” “XXXXXX” (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey. (B) “PAIRING” “PIN IS 0000”: Enter “0000” on the Bluetooth device. (C) “PAIRING”: Operate the Bluetooth device to confirm pairing. After pairing is successful, “PAIRING OK” “[Device Name]” appears and Bluetooth compatibility check starts. If “CONNECT NOW USING PHONE” appears, operate the Bluetooth device to allow phonebook access to continue. “TESTING” flashes on the display.

The connectivity result flashes on the display. “PAIRING OK” and/or “H.FREE OK”*1 and/or “A.STREAM OK”*2 and/or “PBAP OK”*3 : Compatible *1 Compatible with Hands-Free Profile (HFP) *2 Compatible with Advanced Audio Distribution Profile (A2DP) *3 Compatible with Phonebook Access profile (PBAP) After 30 seconds, “PAIRING DELETED” appears to indicate that pairing has been deleted, and the unit exits check mode. • To cancel, press and hold to turn off the power, then turn on the power again.

ENGLISH JS_JVC_KD_R971BT_E_EN_3.indd 13

Data Size: Book Size:

Audio player via Bluetooth repeatedly to select BT AUDIO. 1 Press 2 Operate the Bluetooth audio player to start playback. To

Select group or folder

Reverse / Fast-forward

GROUP RND, ALL RND, RND OFF Select a file from a folder/list

Refer to “Select a file from a folder/list” on page 8.

Operations and display indications may differ according to their availability on the connected device.

Select a preset equalizer Press repeatedly. (or) Press , then turn the volume knob within 5 seconds. Preset equalizer:

FLAT (default)/ HARD ROCK / POP / HIP HOP / R&B / JAZZ / CLASSICAL / USER Store your own sound settings to enter EASY EQ setting. 1 Press and hold 2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting ( 15) and the result is stored to [USER]. • To return to the previous setting item, press . • To exit, press .

Other settings . 1 Press and hold 2 Turn the volume knob to select an item ( 15), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. to exit. To return to the previous setting item, press .

Data Size: Book Size:

12/10/2015 10:59:53 AM AUDIO SETTINGS Default: XX SUB.W LEVEL *1

(Not applicable when 3-way crossover is selected.) 00 to +06 (+03): Adjusts the output level of the subwoofer connected via speaker lead. ( 27)

–50 to +10 (00): Adjusts the output level of the subwoofer connected to the lineout terminals (SW or REAR/SW) through an external amplifier. ( 27)

EQ SETTING EQ PRESET Select a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EASY EQ] or [PRO EQ].) FLAT / HARD ROCK / POP / HIP HOP / R&B / JAZZ / CLASSICAL /

USER EASY EQ Adjust your own sound settings. The settings are stored to [USER]. • The settings made may affect the current settings of [PRO EQ]. SUB.W SP *1*2: 00 to +06 (Default: 03 SUB.W *1*3: –50 to +10 00 BASS LVL: –09 to +09 00 MID LVL: –09 to +09 00 TRE LVL: –09 to +09 00)

ON / OFF: Turns on or off the subwoofer output.

(Not applicable when 3-way crossover is selected.) R15 — F15 (00): Adjusts the front and rear speaker output balance.

L15 — R15 (00): Adjusts the left and right speaker output balance.

–15 — +06 (00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust.

AMP GAIN LOW POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35.

(Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. ( 16, Speaker output settings)

SPK SIZE Depending on the crossover type you have selected (see [X ' OVER TYPE] below), 2-way crossover or 3-way crossover setting items will be shown. ( 17, Crossover settings) By default, 2-way crossover type is selected.

Adjust your own sound settings. The settings are stored to [USER]. • The settings made may affect the current settings of [EASY EQ].

62.5HZ LVL –09 to +09 (00): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) BASS EXT ON: Turns on the extended bass. ; BASS EXT OFF: Cancels. 100HZ / 160HZ / 250HZ / 400HZ / 630HZ / 1KHZ / 1.6KHZ / 2.5KHZ / 4KHZ / 6.3KHZ / 10KHZ / 16kHZ LVL –09 to +09 (00): (Refer above) Q FACTOR Q 1.35/ Q 1.50/ Q 2.00: Adjust the quality factor. AUDIO BASS BOOST

+01 — +05: Selects your preferred bass boost level. ; OFF: Cancels.

01 / 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ; OFF: Cancels.

X ' OVER X ' OVER TYPE Caution: Adjust the volume before changing the X ' OVER TYPE to avoid the sudden increase or decrease of the output level.

X ' OVER 2-WAY (Displayed only when [X ' OVER 3-WAY] is selected) YES: Selects two way crossover type. ; NO: Cancels. X ' OVER 3-WAY (Displayed only when [X ' OVER 2-WAY] is selected) YES: Selects three way crossover type. ; NO: Cancels. *1 Displayed only when [SUB.W] is set to [ON]. *2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. ( 16) *3 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/ SUB.W]. ( 16) *4 This adjustment will not affect the subwoofer output.

ENGLISH JS_JVC_KD_R971BT_E_EN_3.indd 15

Data Size: Book Size:

22/9/2015 3:50:56 PM AUDIO SETTINGS (For KD-R871BT)

SND EFFECT Audio signal through lineout terminal

(Not applicable for TUNER source.) SML/ MED/ LRG: Virtually enhances the sound space. ; OFF: Cancels.

Setting on [SPK/PRE OUT]

RESPONSE LV1/ LV2/ LV3: Virtually makes the sound more realistic. ; OFF: Cancels.

REAR/REAR Front speakers output

Rear speakers output

SOUND LIFT LV1/ LV2/ LV3: Virtually adjust the sound position heard from the speakers. ; OFF: Cancels.

ENHANCE VOL LINK EQ ON: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; OFF: Cancels.

(Not applicable for TUNER source and AUX source.) ON: Improve the sound quality of compressed music. ; OFF: Cancels.

Speaker output settings (Only for X ' OVER 2-WAY) Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

(For KD-R774BT / KD-R771BT) Audio signal through lineout terminal

Setting on [SPK/PRE OUT]

REAR/SW REAR/REAR Rear speakers output

SUB.W/SUB.W Subwoofer output

Connection via speaker leads Connection via lineout terminals

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. ( 27)

For connections through an external amplifier. ( 27)

Setting on [SPK/PRE OUT]

Audio signal through rear speaker lead

Setting on [SPK/PRE OUT]

Audio signal through lineout terminal

L (left): Subwoofer output R (right): (Mute)

REAR/SUB.W Rear speakers output

SUB.W/SUB.W Subwoofer output

If [SUB.W/SUB.W] is selected: – [HIGH 120HZ] is selected in [SUB.W LPF] and [THROUGH] is not available. – [R02] is selected in [FADER] and selectable range is [R15] to [00].

JS_JVC_KD_R971BT_E_EN_7_f.indd 16

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

15/10/2015 2:25:05 PM AUDIO SETTINGS Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover.

Caution Select a crossover type according to how the speakers are connected. ( 27) If you select a wrong type: • The speakers may damage. • The output sound level may be extremely high or low. SPK SIZE (speaker size) Selects according to the connected speaker size for optimum performance. • The frequency and slope settings are automatically set for the crossover of the selected speaker. • If [NONE] is selected for [TWEETER] of [FRONT], [REAR] and [SUBWOOFER] for [SPK SIZE], the [X ‘ OVER] setting of the selected speaker is not available. X ‘ OVER (crossover) [FRQ]/ [HPF FRQ]/ [LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter). • If [THROUGH] is selected, all signals are sent to the selected speakers. [SLOPE]/ [HPF SLOPE]/ [LPF SLOPE]: Adjusts the crossover slope. • Selectable only if a setting other than [THROUGH] is selected for the crossover frequency. [PHASE]: Selects the phase of the speaker output to be in line with the other speaker output. [GAIN LEFT]/ [GAIN RIGHT]/ [GAIN]: Adjusts the output volume of the selected speaker.

2-way crossover setting items

*1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR] or [REAR/SUB.W]. ( 16) *2 For KD-R871BT / KD-R774BT / KD-R771BT: Displayed only when [SPK/PRE OUT] is set to [REAR/ SUB.W] or [SUB.W/SUB.W]. ( 16) *3 Displayed only when [SUB.W] is set to [ON]. ( 15)

ENGLISH JS_JVC_KD_R971BT_E_EN_4.indd 17

Data Size: Book Size:

16CM/ 20CM/ 25CM/ 30CM/ 38CM OVER/ NONE (not connected)

1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. to exit. To return to the previous setting item, press .

Default: XX DISPLAY DIMMER Dim the display and buttons illumination. OFF: Dimmer is turned off. ON: Dimmer is turned on. Brightness changes to [NIGHT] setting. ( 19, [BRIGHTNESS]) DIMMER TIME: Set the dimmer on and off time. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. (Default: [ON]: 18:00 or 6:00 PM [OFF]:6:00 or 6:00 AM) AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights. *1

* Displayed only when [SUB.W] is set to [ON]. ( 15)

JS_JVC_KD_R971BT_E_EN_3.indd 18

Data Size: Book Size:

COLOR GUIDE COLOR (for KD-R971BT)

PRESET Select color for display and button illumination separately. Default color: ALL ZONE: [COLOR 08], DISP ZONE: [COLOR 01], ZONE 1: [COLOR 08], ZONE 2: [COLOR 46] 1 Select a zone. ( 18) 2 Select a color for the selected zone. • COLOR 01 to COLOR 49 • USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown. • COLOR FLOW01 to COLOR FLOW03: Color changes at different speeds. • GROOVE/ TECHNO/ EMOTION/ RELAX/ SPECTRUM/ SWEEP/ POP: The selected color pattern is shown.*3 (Selectable only when [ALL ZONE] is selected in step 1.)

NIGHT COLOR Store your own day and night colors for different zone. 1 Select a zone. ( 18) 2 RED / GREEN / BLUE: Select a primary color. 3 00 to 31: Select the level. Repeat steps 2 and 3 for all the primary colors. • Your setting is stored to [USER] in [PRESET]. • If [00] is selected for all primary colors for [DISP ZONE], nothing appears on the display. ON: Changes the button and display illumination when settings are performed on menu and list search. Display zone will automatically change depending on volume level. ; OFF: Cancels.

[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car’s headlight.

*1 The illumination control wire connection is required. ( 27) *2 Some characters or symbols will not be shown correctly (or will be blanked). *3 If one of these color pattern is selected, the [ZONE 1], [DISP ZONE], [ZONE 2] illumination color will change to the default color.

ENGLISH JS_JVC_KD_R971BT_E_EN_6.indd 19

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

13/10/2015 4:37:34 PM REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Connector (on the reverse side of the faceplate) Handling discs: • Do not touch the recording surface of the disc. • Do not stick tape etc. on the disc, or use a disc with tape stuck on it. • Do not use any accessories for the disc. • Clean from the center of the disc and move outward. • Clean the disc with a dry silicone or soft cloth. Do not use any solvents. • When removing discs from this unit, pull them out horizontally. • Remove burrs from the center hole and disc edge before inserting a disc.

More information Visit also the following website <http://www.jvc.net/cs/car/> for: – Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information

Playable files • Playable audio file: KD-R971BT / KD-R871BT: MP3 (.mp3)/ WMA (.wma)/ AAC (.aac) KD-R774BT / KD-R771BT: MP3 (.mp3)/ WMA (.wma) • Playable disc media: CD-R/CD-RW/CD-ROM • Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name. • Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit. Unplayable discs • Discs that are not round. • Discs with coloring on the recording surface or discs that are dirty. • Recordable/ReWritable discs that have not been finalized. • 8 cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices • This unit can play the following files stored on a USB mass storage class device: KD-R971BT / KD-R871BT: MP3/ WMA/ AAC/ WAV/ FLAC KD-R774BT / KD-R771BT: MP3/ WMA/ WAV/ FLAC • You cannot connect a USB device via a USB hub. • Connecting a cable whose total length is longer than 5 m may result in abnormal playback. • This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

General • This unit can only play the following CDs:

• DualDisc playback: The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended. • Detailed information and notes about the playable audio files are stated in an online manual on the following website <http://www.jvc.net/cs/car/>.

JS_JVC_KD_R971BT_E_EN_3.indd 20

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21/9/2015 3:33:31 PM REFERENCES About iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus • It is not possible to browse video files on the “Videos” menu in [HEAD MODE]. • The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone. • Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

Change the display information Each time you press , the display information changes. • If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information (eg. station name) appears.

FM or AM Available Cyrillic letters Available characters Display indications

(For FM Radio Broadcast Data System stations only) Station name (PS) Frequency Program type (PTY) Radio text+ Day/Clock Level meter Level meter with brightness synchronisation *1 or Level meter with color synchronisation *2 (back to the beginning)

CD or USB About Android device • This unit supports Android OS 4.1 and above. • Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0. • If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. About Bluetooth • Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit. • This unit may not work with some Bluetooth devices. • Signal conditions vary, depending on the surroundings.

*1 For KD-R871BT / KD-R774BT / KD-R771BT: The brightness of the button illumination changes and synchronises with the sound level. *2 For KD-R971BT: The color of the button illumination and display illumination changes and synchronises with the sound level.

ENGLISH JS_JVC_KD_R971BT_E_EN_3.indd 21

Data Size: Book Size:

• Adjust the volume to the optimum level. • Check the cords and connections.

“MISWIRING CHECK WIRING THEN PWR ON” appears.

Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE” appears.

Send the unit to the nearest service center.

Source cannot be selected.

Check the [SRC SELECT] setting. ( 4)

• Radio reception is poor. • Static noise while listening to the radio.

Connect the antenna firmly.

Disc cannot be ejected.

Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected.

Make sure nothing is blocking the loading slot when you eject the disc.

“PLEASE” and “EJECT” appear alternately.

Press , then insert the disc correctly.

Playback order is not as intended.

The playback order is determined by the file name (USB) or the order in which files were recorded (disc).

Elapsed playing time is not correct.

This depends on the recording process earlier.

“NOT SUPPORT” appears and track skips.

Check whether the track is a playable format. ( 20)

“READING” keeps flashing. • Do not use too many hierarchical levels and folders. • Reload the disc or reattach the USB device.

Sound cannot be heard.

“CANNOT PLAY” flashes and/or connected device cannot be detected.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats. ( 20) • Reattach the device.

The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone. • Detach and reset the iPod/iPhone using hard reset.

“LOADING” appears when you enter search mode by . pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.

Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols. • Depending on the display language you have selected ( 4), some characters may not be displayed correctly.

• Sound cannot be heard during playback. • Sound output only from the Android device.

• Reconnect the Android device. • If in [AUDIO MODE], launch any media player application on the Android device and start playback. • If in [AUDIO MODE], relaunch the current media player application or use another media player application. • Restart the Android device. • If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. ( 21)

Cannot playback at [AUTO MODE].

• Make sure JVC MUSIC PLAY APP is installed on the Android device. ( 7) • Reconnect the Android device and select the appropriate control mode. ( 8) • If this does not solve the problem, the connected Android device does not support [AUTO MODE]. ( 21)

“NO DEVICE” or “READING” • Switch off the developer options on the Android device. keeps flashing. • Reconnect the Android device. • If this does not solve the problem, the connected Android device does not support [AUTO MODE]. ( 21)

JS_JVC_KD_R971BT_E_EN_3.indd 22

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21/9/2015 3:33:33 PM TROUBLESHOOTING Bluetooth®

Playback is intermittent or sound skips. “CANNOT PLAY”

Turn off the power saving mode on the Android device.

• Make sure Android device contains playable audio files. • Reconnect the Android device. • Restart the Android device.

The number of registered devices has reached its limit. Retry after deleting an unnecessary device. ( 13, DELETE PAIR)

The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.

The connected phone does not support Voice Recognition feature.

Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.

Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.

No Bluetooth device is detected.

• Search from the Bluetooth device again. • Reset the unit. ( 3)

Pairing cannot be made.

• Make sure you have entered the same PIN code to both the unit and Bluetooth device. • Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. ( 9)

Echo or noise occurs.

• Adjust the microphone unit’s position. ( 9) • Check the [ECHO CANCEL] setting. ( 11)

Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth device. • Move the car to a place where you can get a better signal reception.

Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player. • Turn off, then turn on the unit and try to connect again. • Other Bluetooth devices might be trying to connect to the unit.

The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) • Disconnect and connect the Bluetooth player again.

If you still have troubles, reset the unit. ( 3)

ENGLISH JS_JVC_KD_R971BT_E_EN_4.indd 23

Data Size: Book Size:

USB 1.1, USB 2.0 (Full speed)

Quieting Sensitivity (DIN S/N = 46 dB)

Maximum Supply Current

Compliant with MPEG-1/2 Audio Layer-3

Stereo Separation (1 kHz)

Compliant with Windows Media Audio

AAC-LC “.aac” files (Except KD-R774BT / KD-R771BT)

MW Frequency Range Usable Sensitivity (S/N = 20 dB) LW Frequency Range

Usable Sensitivity (S/N = 20 dB)

87.5 MHz — 108.0 MHz (50 kHz step)

8 times over sampling

500 rpm — 200 rpm (CLV)

Below measurable limit

Total Harmonic Distortion (1 kHz)

+4 dBm (MAX), 0 dBm (AVE) Power Class 2

90 dB Channel Separation

Compliant with MPEG-1/2 Audio Layer-3

Compliant with Windows Media Audio

Maximum Communication Range

Line of sight approx. 10 m (32.8 ft)

SSP (Secure Simple Pairing)

Data Size: Book Size:

Maximum Output Power

50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)

Full Bandwidth Power (at less than 1 % THD)

Operating Voltage (10.5 V — 16 V allowable)

14.4 V Maximum Current Consumption

10 A Operating Temperature Range

–10°C — +60°C Installation Size (W × H × D)

Subject to change without notice.

Warning • The unit can only be used with a 12 V DC power supply, negative ground. • Disconnect the battery’s negative terminal before wiring and mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. • Insulate unconnected wires with vinyl tape to prevent a short circuit. • Be sure to ground this unit to the car’s chassis again after installation.

Caution • For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. • Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot. • Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel. • Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. ( 15) • Mount the unit at an angle of less than 30º. • If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key. • Keep all cables away from heat dissipate metal parts. • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. • If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating.

Basic procedure 1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.

2 Connect the wires properly. See Wiring connection. ( 27)

3 Install the unit to your car. See Installing the unit (in-dash mounting).

4 Connect the terminal of the car battery. 5 Press to turn on the power. 6 Detach the faceplate and reset the unit within 5 seconds. ( 3) ENGLISH JS_JVC_KD_R971BT_E_EN_6.indd 25

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

12/10/2015 11:00:16 AM INSTALLATION / CONNECTION Part list for installation

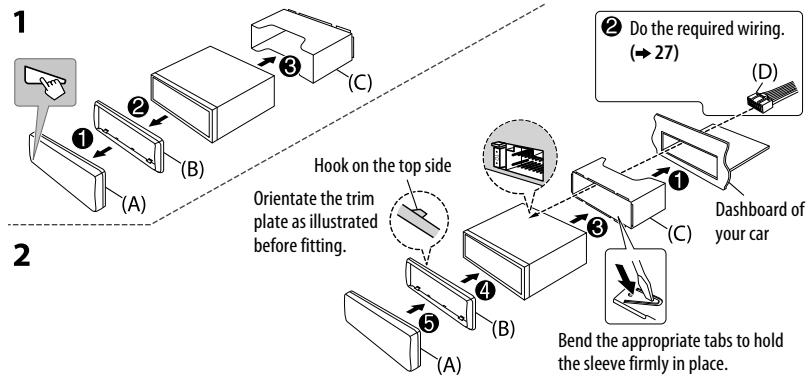

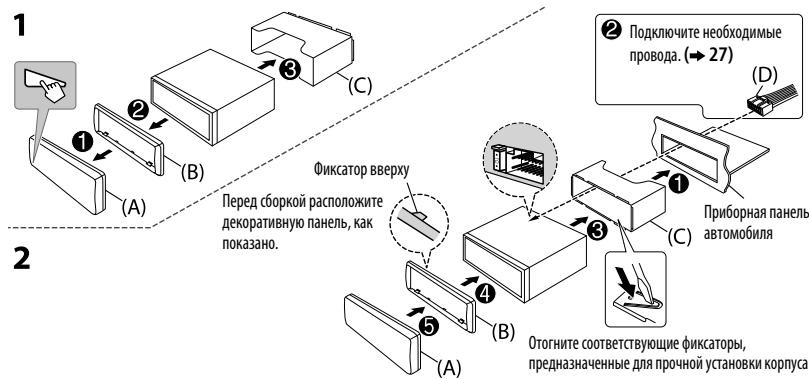

Installing the unit (in-dash mounting)

Do the required wiring. ( 27)

Hook on the top side Orientate the trim plate as illustrated before fitting.

Dashboard of your car (E) Extraction key Bend the appropriate tabs to hold the sleeve firmly in place.

Output terminals When installing without the mounting sleeve 1 Remove the mounting sleeve and trim plate

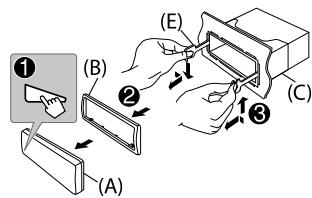

How to remove the unit

For 2-way crossover setting 3 pairs

2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit.

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21/9/2015 3:33:34 PM Wiring connection

Output terminals ( 26)

When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit.

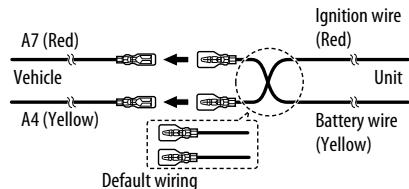

Connecting the ISO connectors on some VW/ Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below.

If no connections are made, do not let the wire come out from the tab.

Battery wire (Yellow) Default wiring

Red (A7) Yellow (A4)

* You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting, 16.

If your car does not have an ISO terminal We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

STEERING WHEEL REMOTE

Yellow Blue/White Orange/white Red Black Purple ] Purple/black [ Gray ] Gray/black [ White ] White/black [ Green ] Green/black [

To the steering wheel remote control adapter

Color and function : Battery : Power control : Car light control switch : Ignition (ACC) : Earth (ground) connection : Rear speaker (right) For 3-way crossover: Tweeter (right) : Front speaker (right) For 3-way crossover: Mid range speaker (right) : Front speaker (left) For 3-way crossover: Mid range speaker (left) : Rear speaker (left) * For 3-way crossover: Tweeter (left)

ENGLISH JS_JVC_KD_R971BT_E_EN_3.indd 27

Data Size: Book Size:

OFF: Annulation. RING COLOR

Data Size: Book Size:

+4 dBm (MAX), 0 dBm (AVE) Power Class 2

Ligne de vue approximative 10 m (32,8 ft)

SSP (Secure Simple Pairing)

Data Size: Book Size:

Tragbarer Audioplayer

Data Size: Book Size:

SSP (Secure Simple Pairing)

Data Size: Book Size:

EQ SETTING EQ PRESET

Data Size: Book Size:

20/10/2015 4:51:53 PM

libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. • iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. • Lightning is a trademark of Apple Inc. • Android is trademark of Google Inc. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

JS_JVC_KD_R971BT_E_C_00.indd v
