USER MANUAL Sineax U543 Camille Bauer

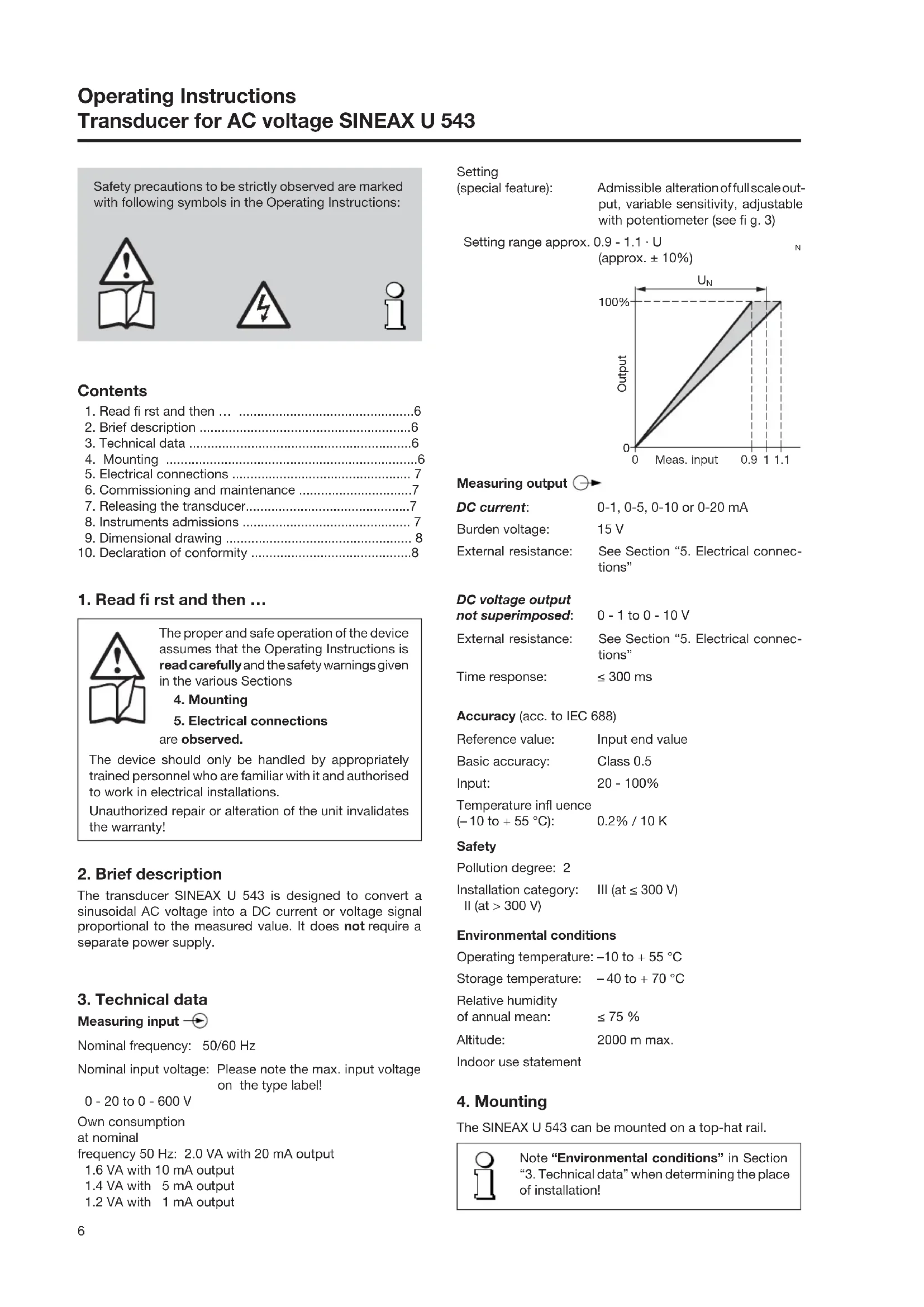

Operating Instructions
Transducer for AC voltage SINEAX U 543

U 543 B d-f-e 133 984-03 10.09
Camille Bauer AG
Aargauerstrasse 7
CH-5610 Wohlen/Switzerland
Telefon +41 56 618 21 11
Telefax +41 56 618 35 35
info@camillebauer.com
http://www.camillebauer.com
stockage: -40 a + 70 °C
Safety precautions to be strictly observed are marked with following symbols in the Operating Instructions:



Contents
- Read first and then .. 6
2.Brief description 6 - Technical data 6
- Mounting 6
- Electrical connections 7
- Commissioning and maintenance 7
- Releasing the transducer.. 7
8.Instruments admissions 7 - Dimensional drawing 8
10.Declaration of conformity 8
1. Read first and then ...

The proper and safe operation of the device assumes that the Operating Instructions is read carefully and the safety warnings given in the various Sections
4. Mounting
- Electrical connections
are observed.
The device should only be handled by appropriately trained personnel who are familiar with it and authorised to work in electrical installations.
Unauthorized repair or alteration of the unit invalidates the warranty!
2. Brief description
The transducer SINEAX U 543 is designed to convert a sinusoidal AC voltage into a DC current or voltage signal proportional to the measured value. It does not require a separate power supply.
3. Technical data
Measuring input
Nominal frequency: 50 / 60Hz
Nominal input voltage: Please note the max. input voltage on the type label!
0-20to0-600V
Own consumption
at nominal
frequency 50Hz : 2.0 VA with 20mA output
1.6 VA with 10mA output
1.4 VA with 5 mA output
1.2 VA with 1 mA output
Setting

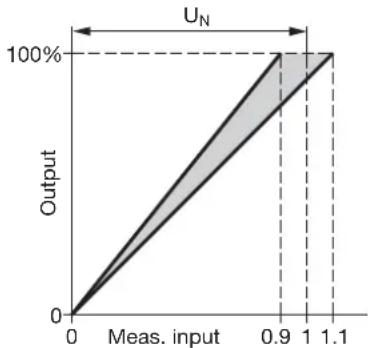

(special feature): Admissible alteration of full scale output, variable sensitivity, adjustable with potentiometer (see fig. 3)
Setting range approx. 0.9 - 1.1· U
$$ \left(\text {approx.} \pm 10 \% \right) $$
N

Measuring output
DC current: 0-1, 0-5, 0-10 or 0-20 mA
Burden voltage: 15 V
External resistance: See Section "5. Electrical connections"
DC voltage output
not superimposed: 0 - 1 to 0 - 10 V
External resistance: See Section "5. Electrical connections"
Time response: ≤ 300ms
Accuracy (acc. to IEC 688)
Reference value: Input end value
Basic accuracy: Class 0.5
Input: 20 - 100%
Temperature influence
(-10 to +55 °C): 0.2% / 10 K
Safety
Pollution degree: 2
Installation category: III (at ≤ 300V
II (at >300V
Environmental conditions
Operating temperature: -10 to +55^
Storage temperature: -40 to +70 °C
Relative humidity
of annual mean: ≤ 75%
Altitude: 2000 m max.
Indoor use statement
4. Mounting
The SINEAX U 543 can be mounted on a top-hat rail.

Note "Environmental conditions" in Section
- Technical data when determining the place of installation!

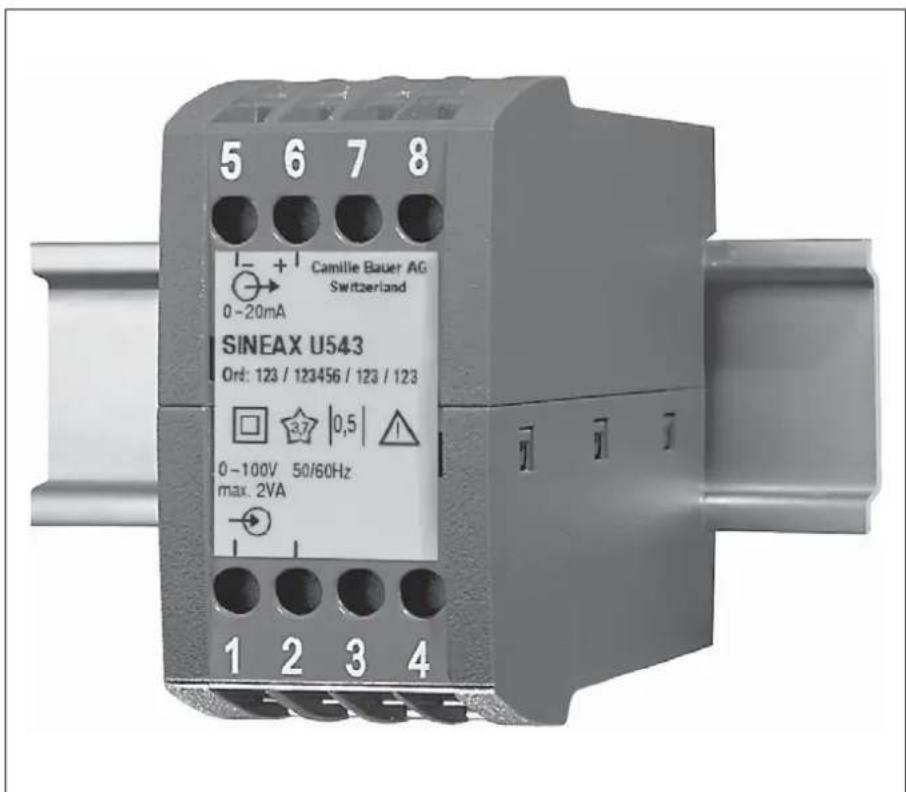

Simply clip the device onto the top-hat rail (EN 50 022) (see Fig. 1).

Fig. 1. Mounting on top-hat rail 35 × 15 or 35 × 7.5 ~mm .
5. Electrical connections
Connect the electrical conductors acc. to the instructions on type label.

Make sure that all input cables are not live (potential-free) when making the connections!

Also note that, ...
... the data required to carry out the prescribed measurement must correspond to those marked on the nameplate of the SINEAX U 543 (measuring input, measuring output, see Fig. 3)!
... the resistance in the output circuit
- may not overrange the value
$$ R _ {\text {e x t}} \max . [ k \Omega ] \leq \frac {1 5 V}{I _ {\mathrm {A N}} [ m A ]} $$
$$ \left(\mathrm {I} _ {\mathrm {A N}} = \text {c u r r e n t o u t p u t v a l u e}\right) $$
in the case of current output
and not underrange the value
Rmin. ≥ 200 kΩ
in the case of voltage output
... the measurement output cables should be twisted pairs and run as far as possible away from heavy current cables!
In all other respects, observe all local regulations when selecting the type of electrical cable and installing them!

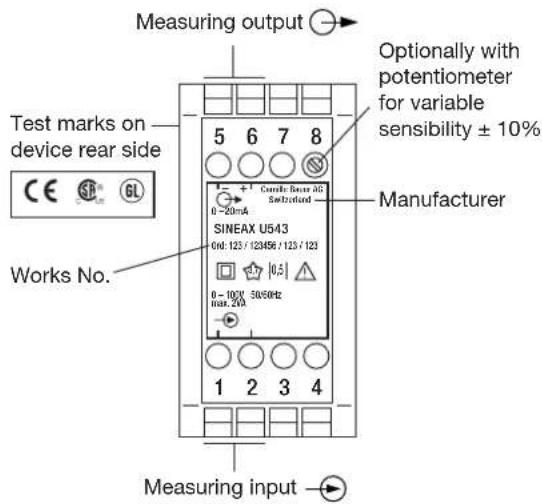

Fig.2.SINEAX U 543
for AC voltage measurement.

= Measuring input = Measuring output

Fig. 3.Declaration to type label.
6. Commissioning and maintenance
Switch on the measuring input. It is possible during the operation to disconnect the output line and to connect a check instrument, e.g. for a functional test.
No maintenance is required.
7. Releasing the transducer
Release the transducer from a top-hat rail as shown in Fig. 4.

Fig. 4
8. Instruments admissions

Germanischer Lloyd
Type approval certifi cate: 12 259-98 HH

CSA approved for USA and Canada
fille-ner.204767
C US
FCC Compliance and Canadian DOC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to both part 15 of the FCC Rules and the radio interference regulations of the Canadian Department of Communications: These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is like to cause harmful interference in which case the user will be required to correct the interference at his own expense.
9. Mass-Skizze / 9. Croquis d'encombrement / 9. Dimensional drawing

Hersteller/ Camille Bauer AG
Manufacturer: Switzerland
Anschrift / Aargauerstrasse 7
Address: CH-5610 Wohlen
The above mentioned product has been manufactured according to the regulations of the following European directives proven through compliance with the following standards:
EN/Norm/Standard IEC/Norm/Standard EN61010-1:2001 IEC 1010-1:2001
Ort. Datum / Place, date:
Qualitatsmanager / Quality manager

The instruments must only be disposed of in the correct way!
