USER MANUAL CME121523.1 Emerio

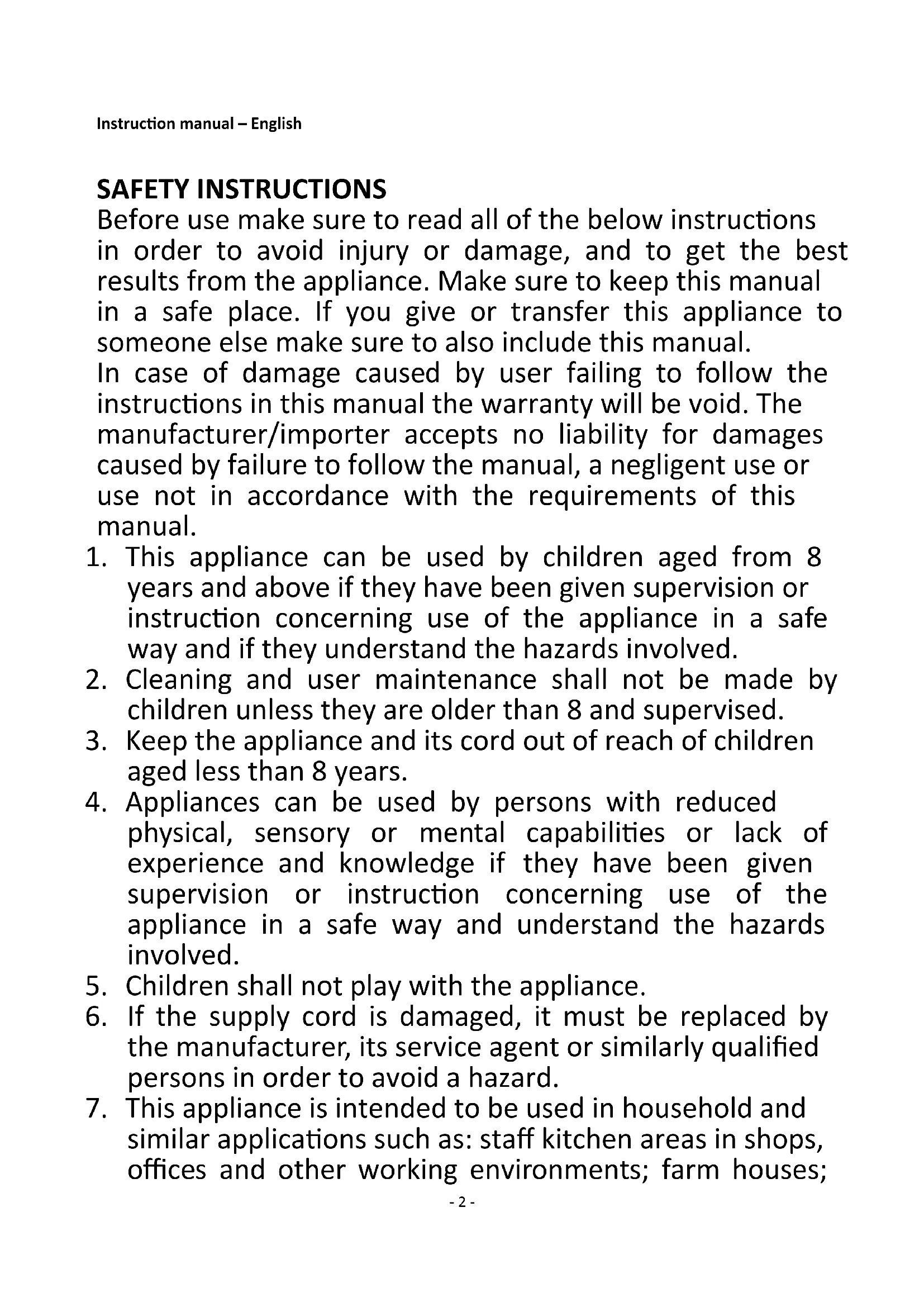

Content – Inhalt – Teneur – Inhoud – Treść Instruction manual – English ........................................................................................ - 2 - Bedienungsanleitung – German ................................................................................... - 8 - Mode d’emploi – French ............................................................................................ - 13 - Gebruiksaanwijzing – Dutch ....................................................................................... - 19 - Instrukcja obsługi – Polish .......................................................................................... - 26 -- 2 - Instruction manual – English SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8

years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

2. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children

aged less than 8 years.

4. Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses;- 3 - by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

8. Regarding the instructions for cleaning the surfaces

which come in contact with food, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

9. Warning: Avoid spillage on the connector.

10. There is a potential risk of injuries from misuse.

11. The heating element surface is subject to residual heat

12. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

13. Always plug the appliance into an earthed plug socket.

14. If an extension cord is used it must be suited to the

power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

15. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

16. Ensure that the mains cable is not hung over sharp

edges and keep it away from hot objects and open flames.

17. Do not immerse the appliance or the mains plug in

water or other liquids. There is danger to life due to electric shock!

18. To remove the plug from the plug socket, pull the plug.

Do not pull the power cord.

19. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

20. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

21. Never attempt to open the housing of the appliance, or- 4 -

to repair the appliance yourself. This could cause electric shock.

22. Never leave the appliance unattended during use.

23. This appliance is not designed for commercial use.

24. Do not use the appliance for other than intended use.

25. Do not wind the cord around the appliance and do not

26. Fill the reservoir with water only – not with any other

27. If you want to make coffee several times consecutively,

always switch off the device for about 5 minutes before operating again.

28. Use the appliance on a flat, dry and heat resistance

3. Control Panel (see below)

4. Reservoir with water level indication

OPERATION Before first-time use: Before using this device for the first time please carefully rinse all detachable components with warm water. Fill the reservoir with cold water to the maximum water level indication. Afterwards brew water twice without coffee powder. To percolate coffee:

1. Fill the reservoir with cold water.

2. Open the lid of the reservoir and fill it to the desired water level indication. The maximum capacity is 1.5L

(approximate 12 cups).

3. Place the reusable mesh filter into the filter basket and place the filter basket into the brewing chamber.

Use the measuring spoon to add the amount of coffee powder appropriate to the amount of cups you want to brew. Close the lid of the reservoir.

4. Now place the jug on the tray of the appliance.

5. Plug the power cord into an appropriate outlet. The LED display will show the default time “ 12:00 ”.

6. By pressing the button “ MODE ” once or more times, you can set the desired aroma intensity:

... . The more shown on the screen, the higher aroma intensity you will get in the coffee . If you don’t set this, the appliance works in the default setting with only one shown on the- 6 - screen. If you want to reset this when the appliance has started running or has been set automatic start, you have to first cancel the the appliance’s running or automatic start, then change the mode for aroma intensity.

7. Start brewing coffee by pressing the ON/OFF switch once. The red indicator light will illuminate then.

The lid of the jug needs to be closed in order to unlock the drip stop function.

8. If you leave the device switched on, the tray will keep the coffee warm after finishing brewing. The whole

working process will last 35 minutes. After 35 minutes the unit will be automatically shut off and stop working. You can manually press the ON/OFF switch again to switch on the appliance. Note: The appliance is designed with an Anti-drip function. You can temporarily remove the jug and pour out coffee during brewing cycle without coffee dripping from the appliance within 30 seconds. CAUTION! When pouring coffee from the jug, pour it slowly. Do not incline the jug suddenly in a large tilting angle, in case the hot coffee flows out from the lid rim and hurt people. Do not put an empty jug back on the hot warming tray.

AUTOMATIC START FUNCTION

If you do not want the coffee maker to start operation immediately, for example now it is 5:10 pm, you hope that the coffee maker will automatically start at 8:15 in the evening, first follow steps 1 to 6 of above section, and then you can set the automatic start function as follows:

1. Press PROG button one time, the word “CLOCK” is showed at the up-right corner of

2. Press the HOUR and MIN button continuously to set the current time (real clock), that is

17:10 (see Fig. 1). Note: the time cycle is 24 hours.

3. Press PROG button again and the word TIMER shows on up-left corner of display.

4. Set the delayed starting time by pressing HOUR and MIN button repetitively, that is 20:15

5. Press the “ON/OFF” button twice, the blue indicator light will illuminate. The LED display will show the

current clock. You may see the automatic start time by pressing PROG twice. Note: You may cancel the automatic start function by pressing “ON/OFF” button once to stop machine, or pressing “ON/OFF” button twice to start brewing immediately. You can reset the present time and automatic start time by pressing the PROG button once or twice. Remember when there is a “CLOCK” displayed, you can modify the current time, and when “TIMER” is displayed, you can modify the automatic start time. If there is no word marking on top, the display shows the set current time. If you need to change the time setting midway, you have to press “ON/OFF” button first to exit from the automatic start function first and then reset the time. When the time is due, the indicator light changes from the blue one to the red one and the unit starts brewing. When brewing is finished, the coffee maker will be automatically shut off after 35 minutes if it is not manually switched off. Descaling: Regularly descale the coffee maker. The intervals of descaling depend on the water hardness and frequency of operation. In case of average water hardness we suggest descaling every 3 or 4 months. Please use a commercially available decalcification agent. Fill 400 ml of water into the reservoir and add the necessary amount of decalcification agent in accordance with the dosing instructions. 20:15 TIMER Fig.2 Fig.1 CLOCK 17:10- 7 - Let the decalcification agent sink in the coffee maker for about one hour. Switch on the unit after one hour and let the water pass through. After that you should brew water several times and rinse all detachable components, in order to clean off any residue.

CLEANING AND MAINTENANCE

Before cleaning remove the mains plug and let the device cool down. Never immerse the device in water. Please use a slightly damp cloth to clean the surfaces. Avoid using acrid or scrubbing cleaning agents. Keep the coffee maker in a dry place out of reach from children when cooled off and cleaned. Do not wrap the cord around the device. TECHNICAL DATA Operating voltage: 220-240V ~ 50/60Hz Power: 900W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
