USER MANUAL VideoFlex G4 Arc Laserliner

Medical endoscopy device with digital display and control buttons (no visible text or symbols)

Laserliner

Laserliner

Aufnahmemodus Video

Empty rectangular frame with a small camera icon at top-left corner (no text or symbols)

Wiedergabemodus Video

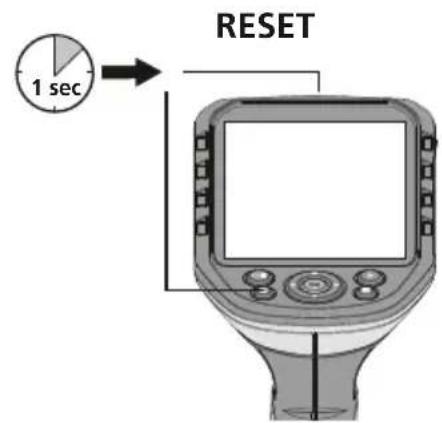

RESET

Diagram of a GPS navigation device with a sensor and control panel, showing no text or symbols.

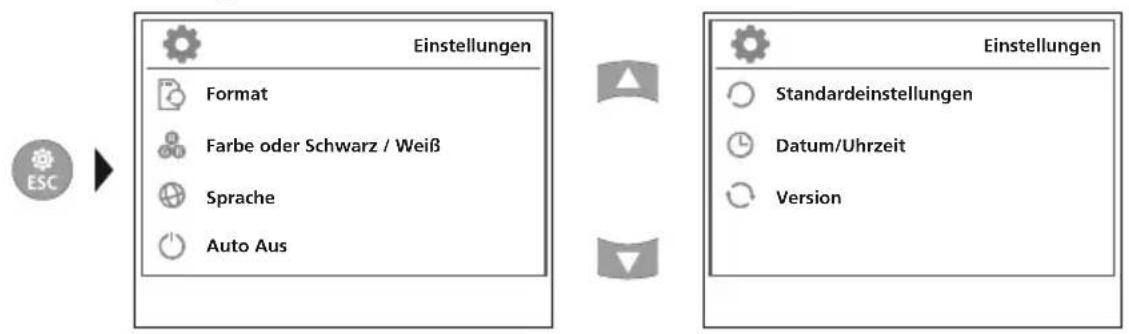

4 Einstellungsmodus

b. LED-Beleuchtung

c. Zoom

Laserliner

Illustration of a handheld electronic device with circular arrows indicating rotation or cycle (no text or symbols)

Illustration of a handheld electronic device with a screen displaying a stylized 'F' symbol and an arrow indicating direction (no text or labels)

Illustration of a handheld device with a display screen labeled 'F' (no additional text or symbols)

7 Wiedergabemodus

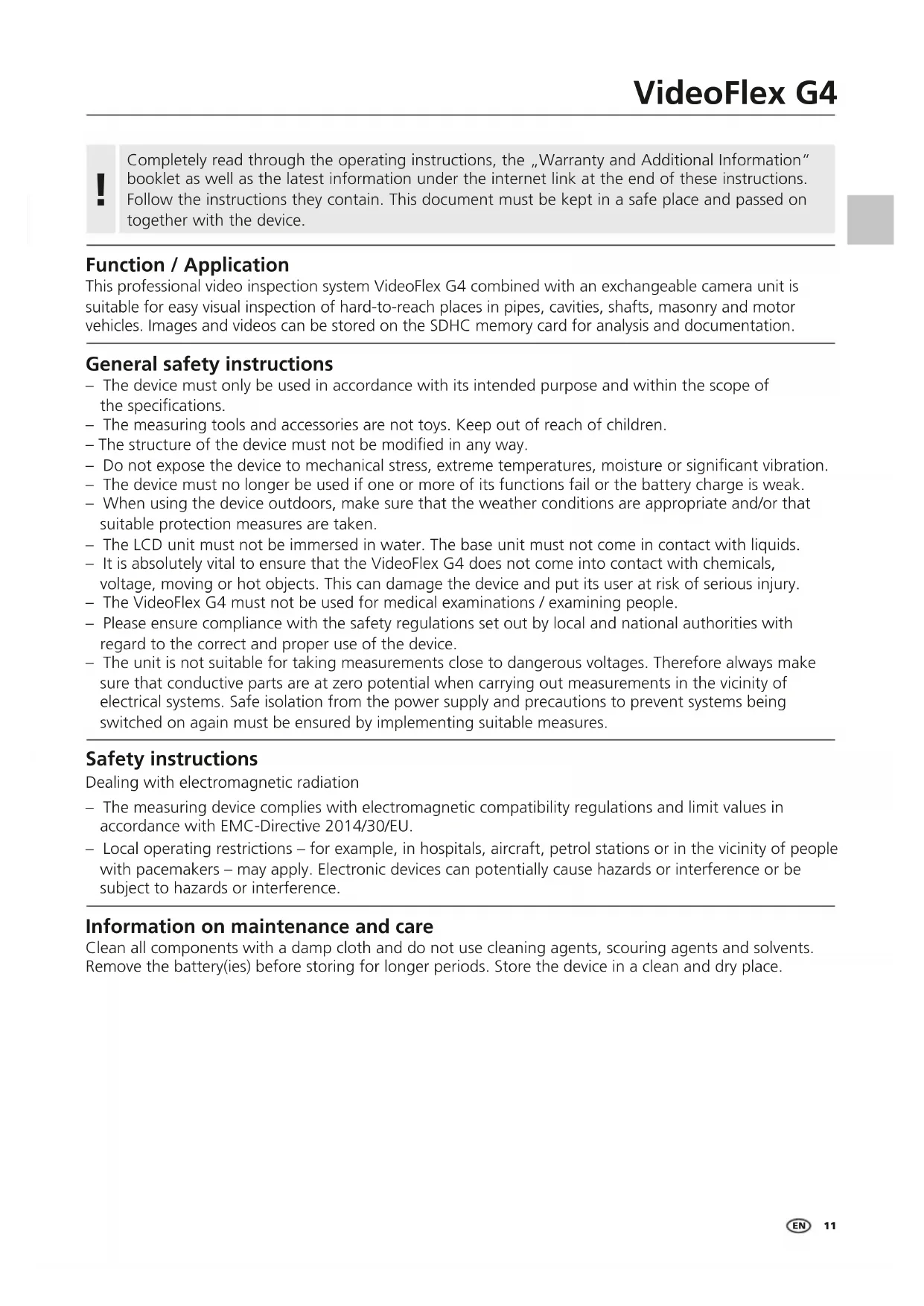

Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

This professional video inspection system VideoFlex G4 combined with an exchangeable camera unit is suitable for easy visual inspection of hard-to-reach places in pipes, cavities, shafts, masonry and motor vehicles. Images and videos can be stored on the SDHC memory card for analysis and documentation.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
  – The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
  – The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
  – The LCD unit must not be immersed in water. The base unit must not come in contact with liquids.
• It is absolutely vital to ensure that the VideoFlex G4 does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
  – The VideoFlex G4 must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Dealing with electromagnetic radiation

– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

3


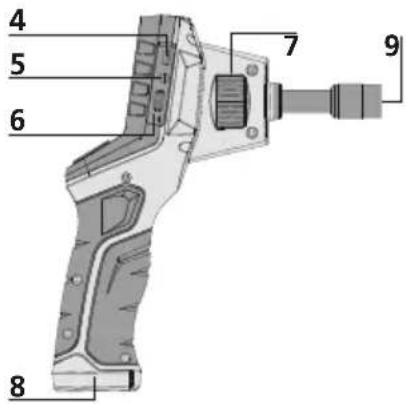

1 LCD
2 ON/OFF
3 Hot keys
4 Type C USB interface
5 Video output
6 Micro SD card slot
7 Camera unit with rotary control
8 Battery compartment
9 Camera unit connection

a Rotation 180° / Mirroring / Delete recording
b Menu control / LED lighting –
c Menu control / Zoom in
d Menu control / LED lighting +
e Media gallery

f Settings mode / Cancel
g Menu control / Zoom out
h Trigger / Record / Confirm
i Image / video selection

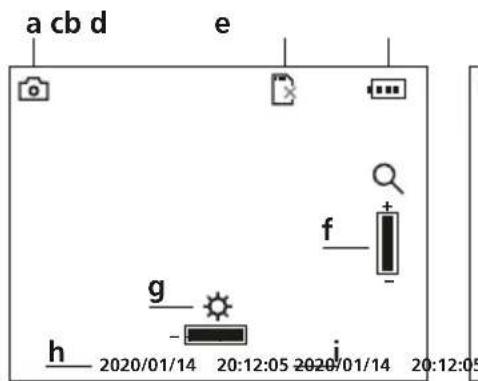

Image record mode

Video record mode

a Image recording
b Insert SD card
c Battery status
d Video recording
e REC: Recording
f Zoom
g LED lighting
h Current date
i Current time

Image playback mode

Empty rectangular frame with a small camera icon at top-left corner (no text or symbols)

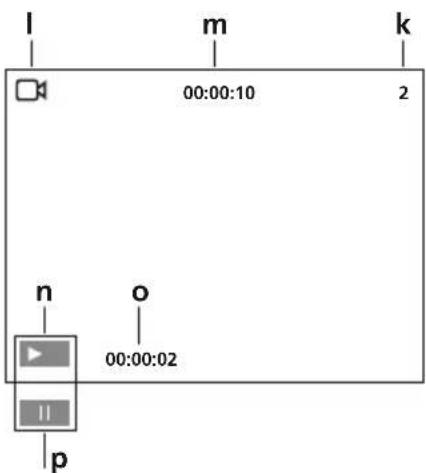

Video playback mode

j Image recording
k Number of image
I Video recording
m Recording time
n Play
o Play duration
p Pause

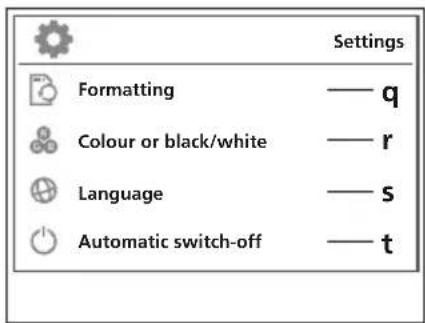

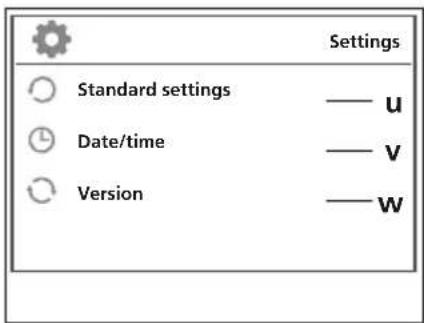

Settings mode

q Format data medium
r Select colour mode
s Select language (EN, JP, FR, DE, IT, PT, NL, ES)
t Auto shutdown
u Factory setting
v Set date/time
w Firmware version

First use

1 Connection for flex cable

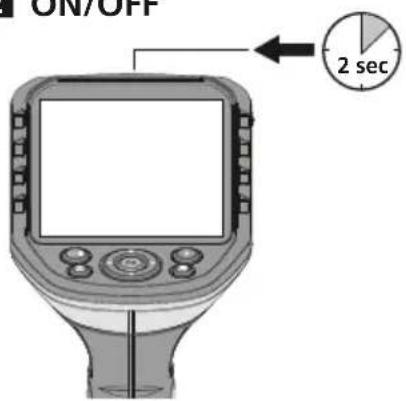

2 ON/OFF

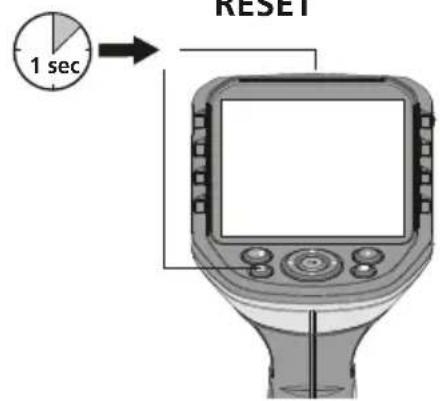

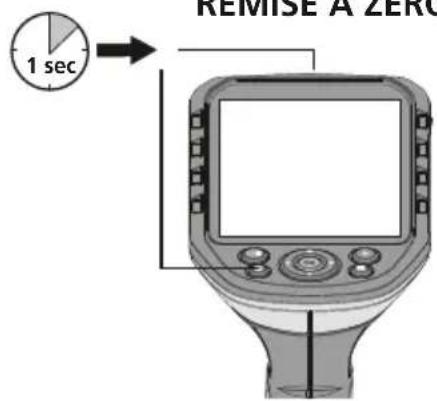

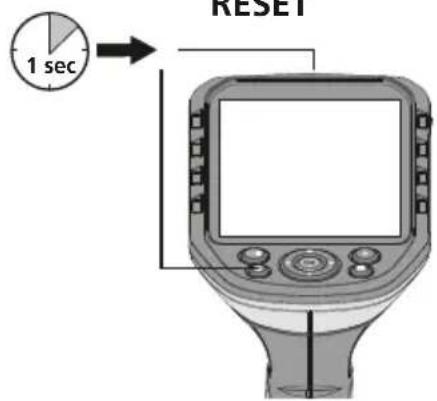

RESET

B Inserting micro-SD card

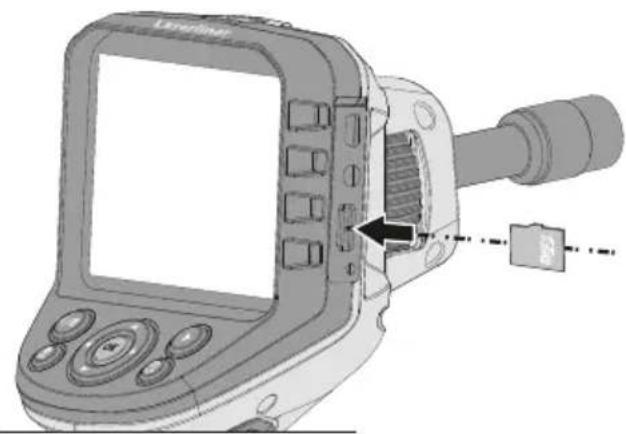

To insert a micro-SD card, first open the rubber cover and then insert the memory card as illustrated. You cannot record anything without a storage medium.

The device must be switched off before removing the micro-SD.

Diagram of a scientific instrument with labeled parts, showing a screen and mechanical component (no text or symbols present)

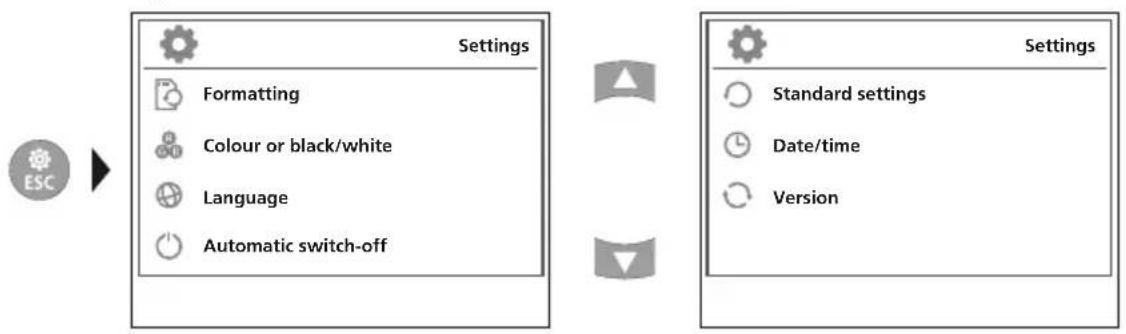

4 Settings mode

To return to recording mode, press the ESC button several times.

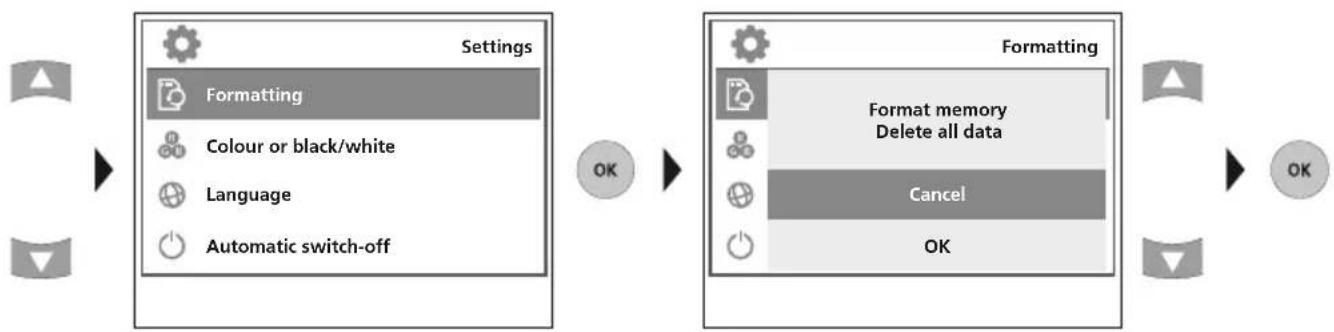

a. Format data medium

All data on the SD card will be deleted. This procedure cannot be undone. There is no further prompt to confirm deletion.

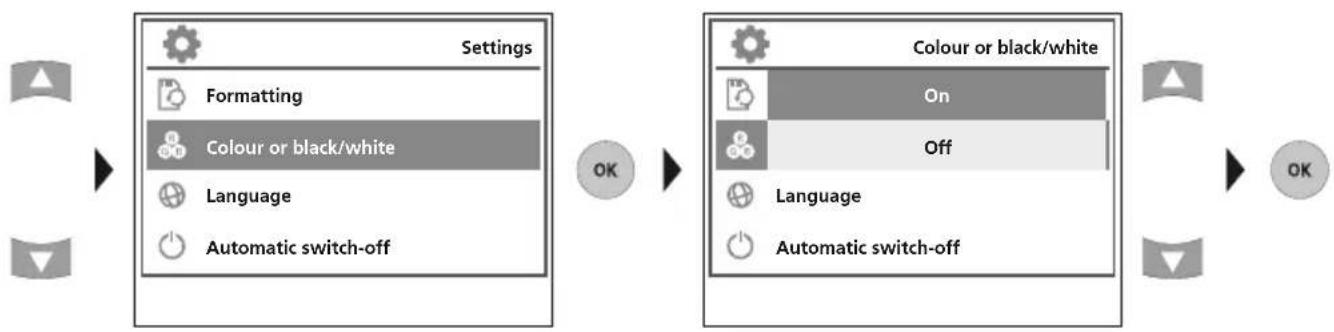

b. Select colour mode


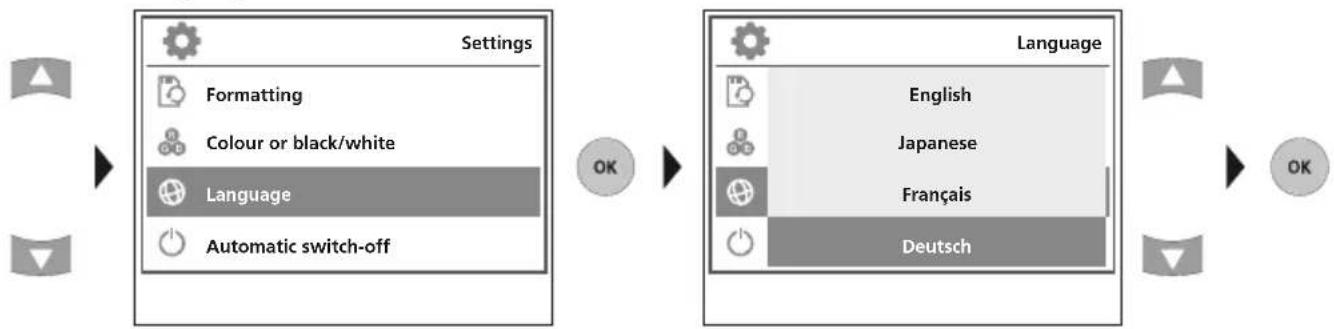

c. Select language (EN, JP, FR, DE, IT, PT, NL, ES)


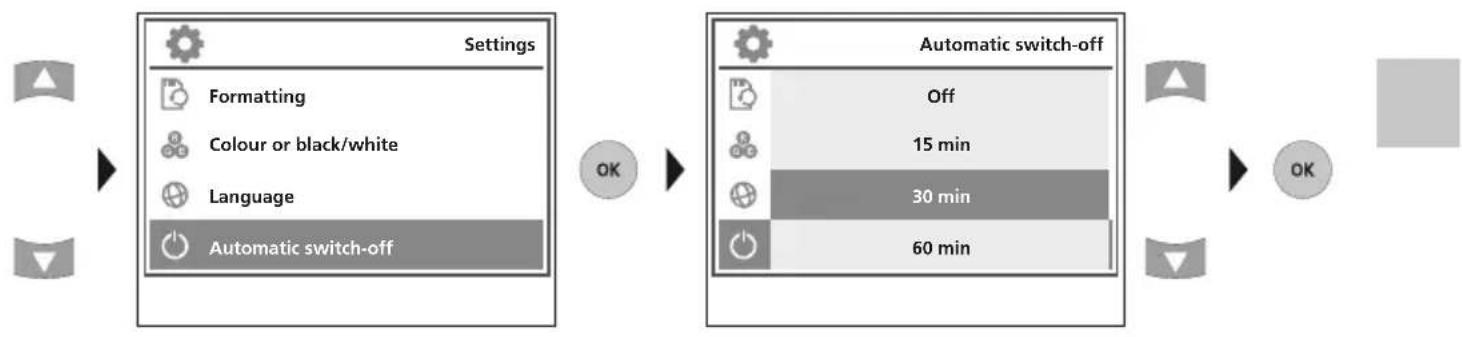

d. Auto shutdown


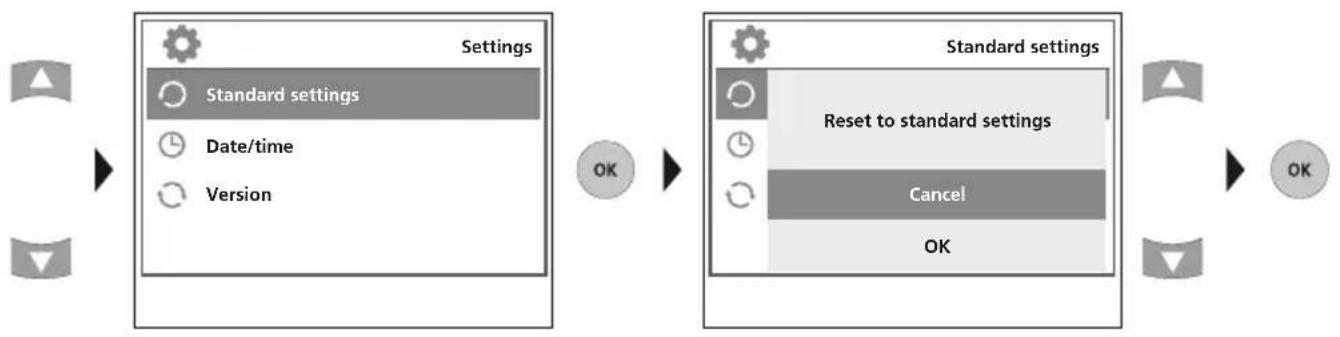

e. Factory setting


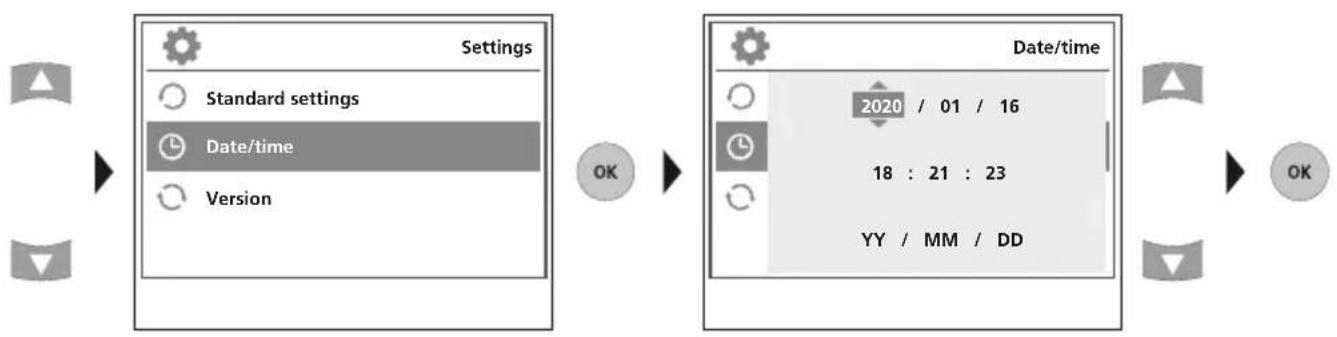

f. Set date/time


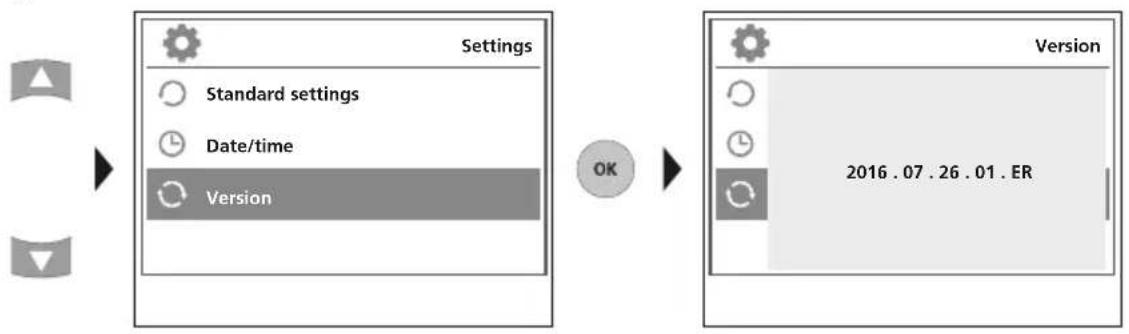

g. Firmware version

5 Record mode

Still images/Video recordings

Line up the camera head on the flex cable and move it to the required position. If lighting conditions are poor, switch on the LED lighting. Zoom in on distant or small objects. The manual image rotation function enables the image to be rotated by 180^ on the monitor. Briefly press the OK button to take a still image or make a video recording and save it to the SD card. Press the button again to stop recording.

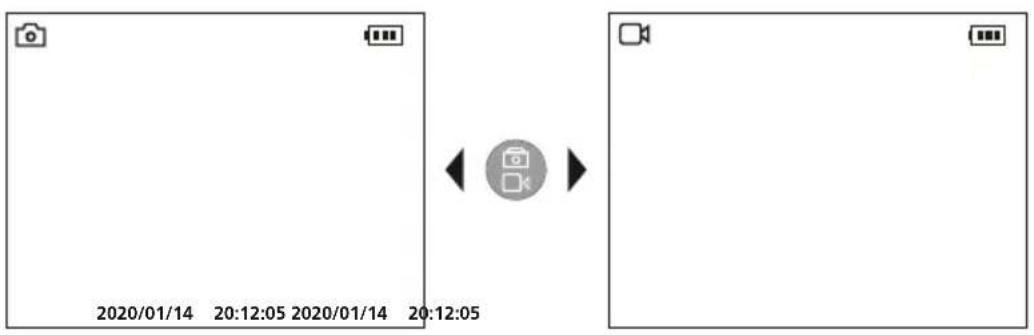

a. Image/video recording selection

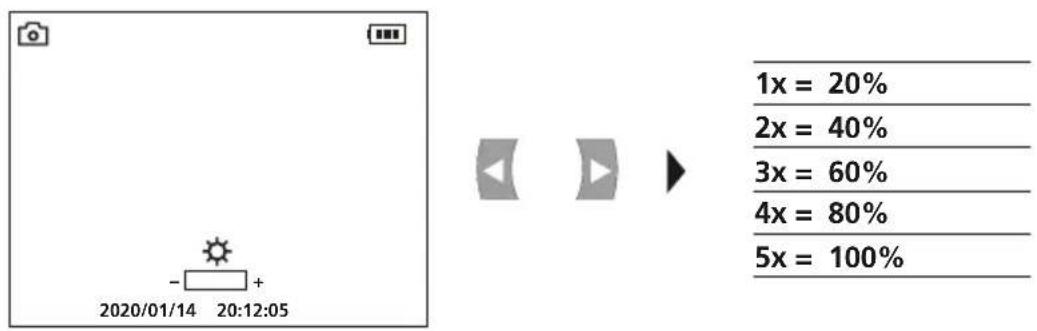

b. LED lighting

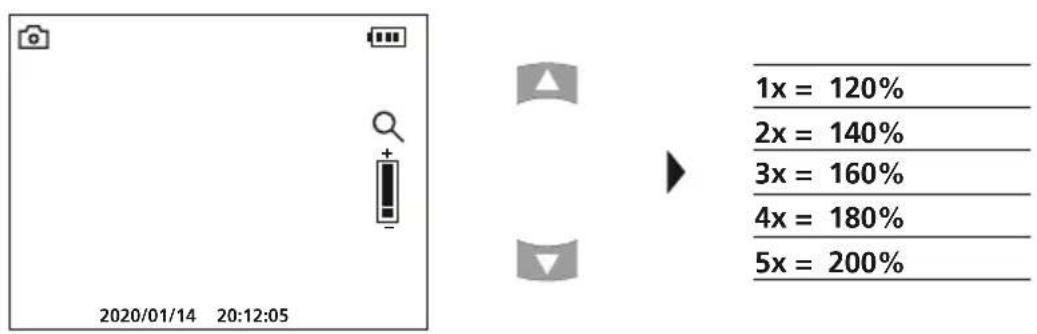

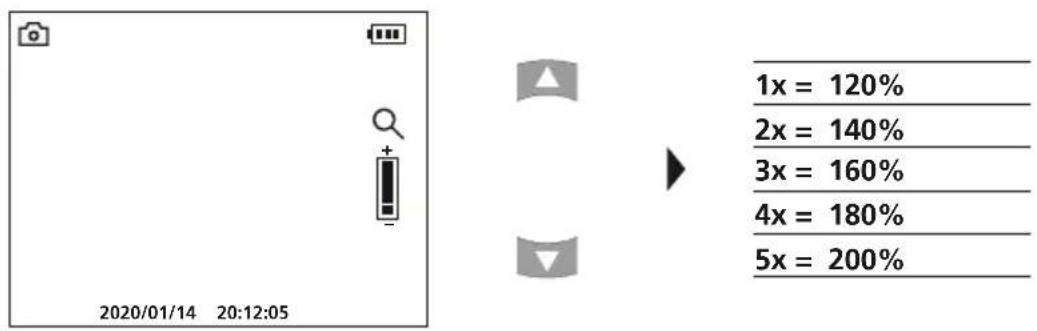

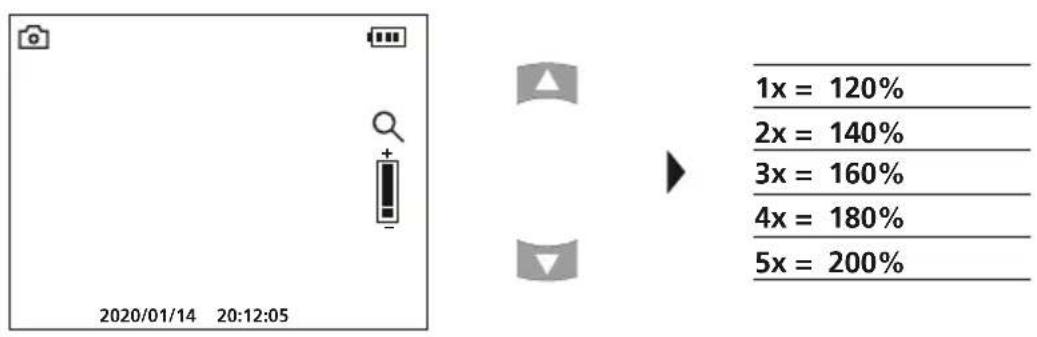

c. Zoom

d. Image rotation / Mirroring

From the original image

e. Record still image

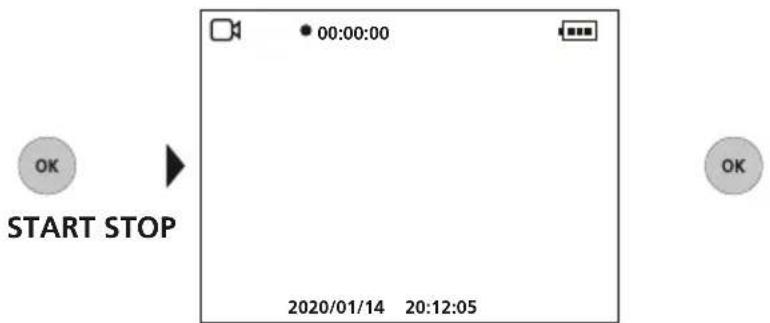

f. Start/stop video recording

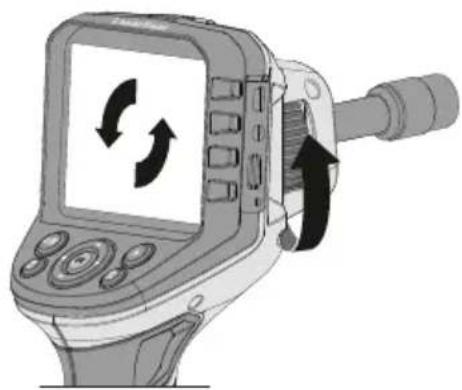

6 Manual image alignment

with fixed camera unit with flexible camera unit

Illustration of a handheld electronic device with a screen displaying a circular diagram and directional arrows indicating rotation or movement (no text or symbols present)

Illustration of a handheld electronic device with a screen displaying a stylized 'F' symbol and an arrow indicating direction (no text or labels)

7 Playback mode

Playback of still images/video recordings

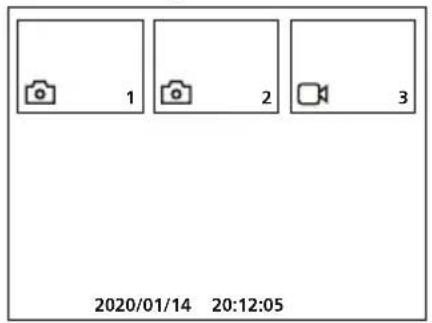

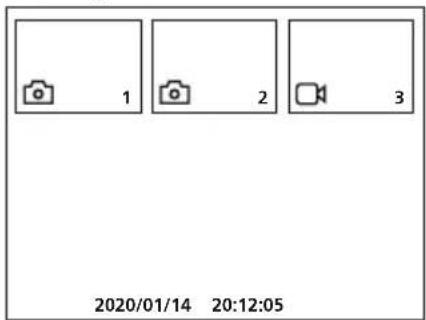

Press the „e“ button to call up the media gallery. Confirm with „OK“ to show the selected image or video in full screen mode. Use the arrow keys to navigate in the media gallery and full screen mode. Press the „f“ button to exit playback mode.

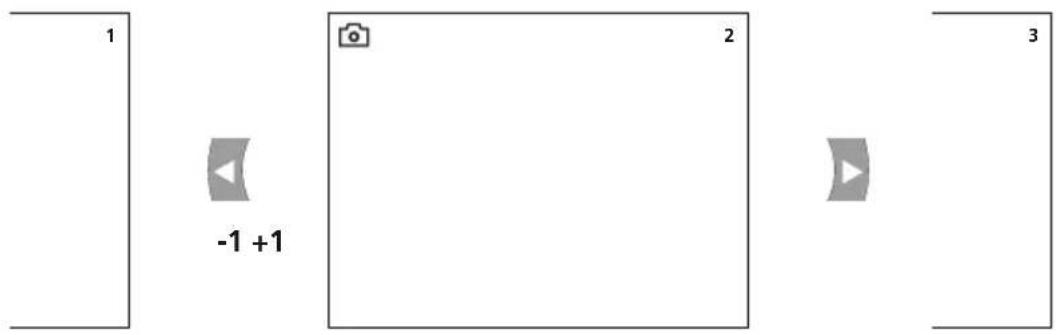

a. Navigation

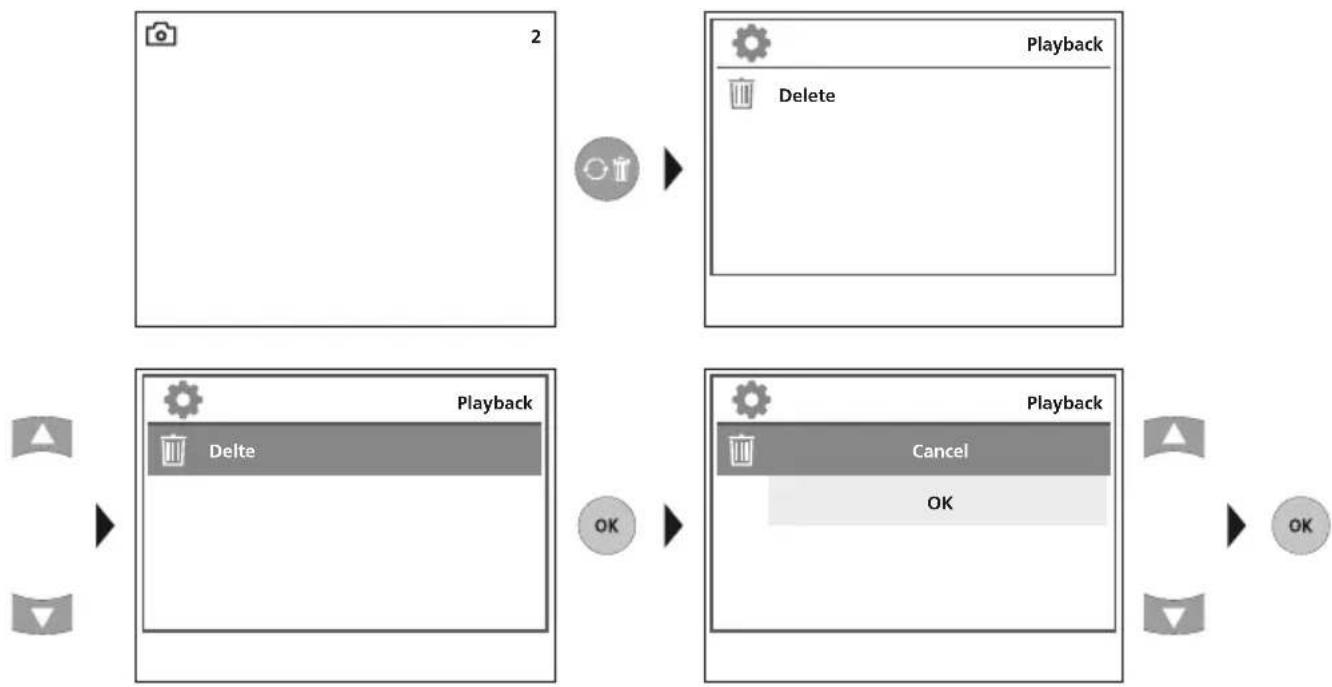

b. Delete recording

! Recordings can only be deleted in full screen mode. Deleting cannot be undone.

All files and folders can be deleted by reformatting the data medium. Refer to „4 a. Format Data Medium”.

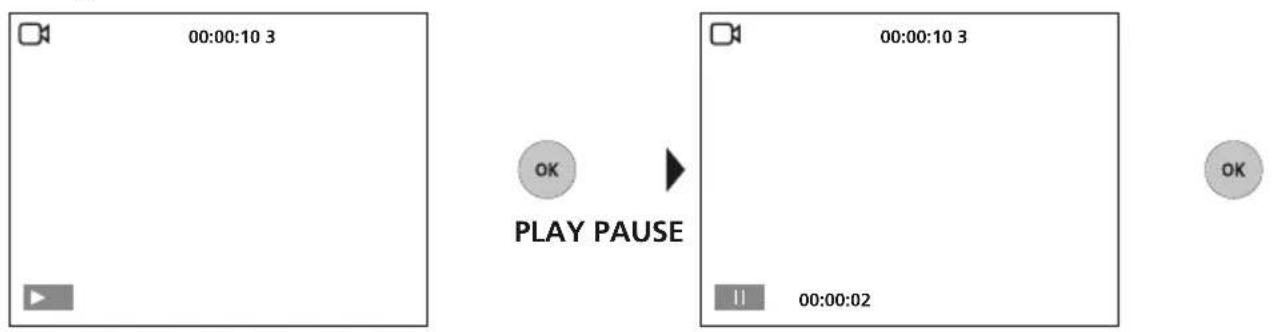

c. Playback

Press the „ESC“ button to stop playback.

USB data transfer

Data saved on the SD card can be transferred to PC either with a suitable card reader or directly via the USB port. Please refer to the manual supplied with your card reader for information about connecting your card adapter or card reader to a PC.

Connect power supply/battery charger

To charge the device, plug the supplied power supply/charger into the type C USB „4“ interface and connect it to a suitable power source.

Technical Data Technical revisions reserved. 21W09
Screen type 3.5" TFT colour display
Display resolution 320 x 240 pixels
Image/Video resolution 640 x 480 pixels
Image format/Video format JPEG / AVI
Memory Micro-SD memory card up to 16 GB
Connections USB type C, RCA video output
Power supply Li-ion battery pack 3.7V / 2.8Ah
Operating time approx. 5 hours
Operating conditions	0°C ... 45°C, max. humidity 20 ... 85% rH,no condensation, max. working altitude 4000 mabove sea level
Storage conditions -10°C ... 60°C, max. humidity 80% rH

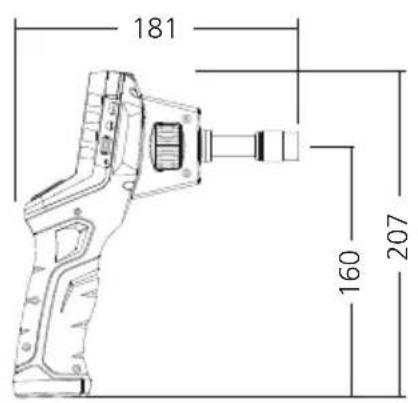

Dimensions (W x H x D) 181 x 207 x 96 mm
Weight 342 g (incl. battery pack)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=AGG

Laserliner

!

Opnamemodus video

Empty rectangular frame with a small camera icon at top-left corner and '1' at bottom-right corner (no text or symbols)

Weergavemodus video

RESET

Diagram of a landline GPS controller with a sensor and control panel, showing no text or symbols on the device itself.

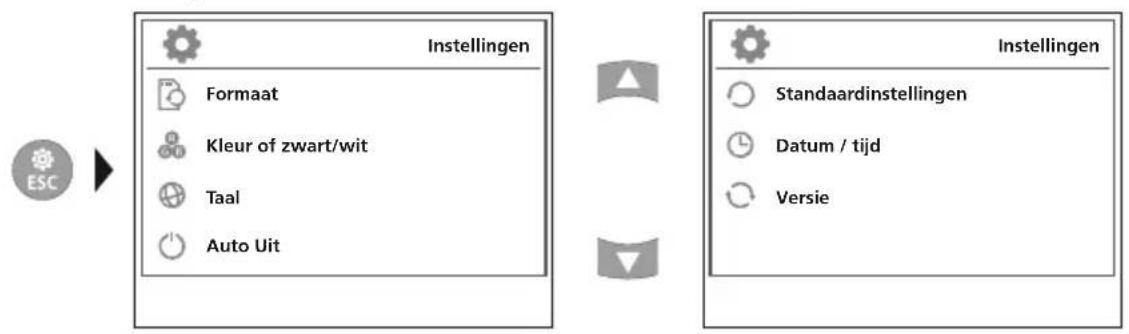

4 Instellingsmodus

Foto- / video-opnames

b. LED-verlichting

c. Zoom

Laserliner

f. Video-opname starten / stoppen

Illustration of a handheld electronic device with a screen displaying a circular diagram and directional arrows indicating rotation or movement (no text or symbols present)

Illustration of a handheld electronic device with a screen displaying a stylized 'F' symbol and an arrow indicating direction (no text or labels)

7 Weergavemodus

!

Optagelsesmodus video

Empty rectangular frame with a small camera icon at top and two vertical arrows labeled j and k above it (no text or symbols on the frame itself)

Gengivelsesmodus video

RESET

Diagram of a GPS navigation device showing the main screen, cable, and sensor components (no text or labels)

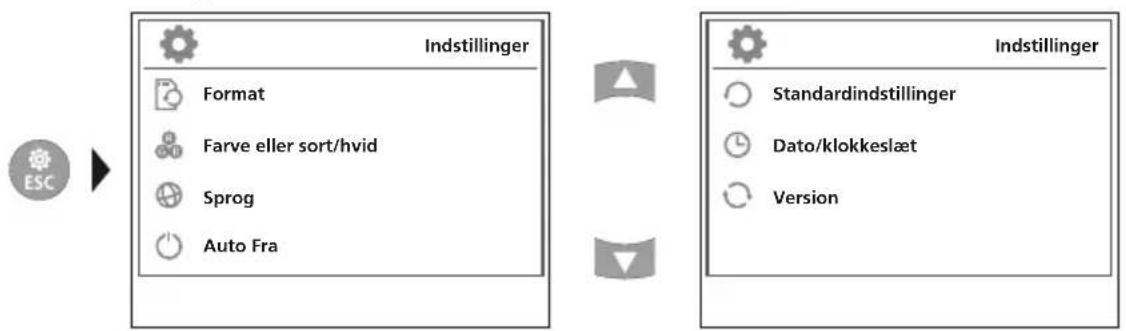

4 Indstillingsmodus

b. Diodelampe

c. Zoom

d. Billedrotation / Spejling

Fra udgangsbilledet

e. Optag billede

f. Start / afslut videooptagelse

6 Manuel billedjustering

Illustration of a GPS controller with bidirectional scroll arrows (no text or symbols)

Illustration of a handheld electronic device with a screen displaying a black right-pointing arrow and an upward arrow, no text or symbols present.

7 Gengivelsesmodus

Empty rectangular frame with a small camera icon at top-left corner and '1' at bottom-right corner (no text or symbols)

REMISE À ZÉRO

Diagram of a GPS navigation device showing the main screen, cable, and sensor components (no text or labels)

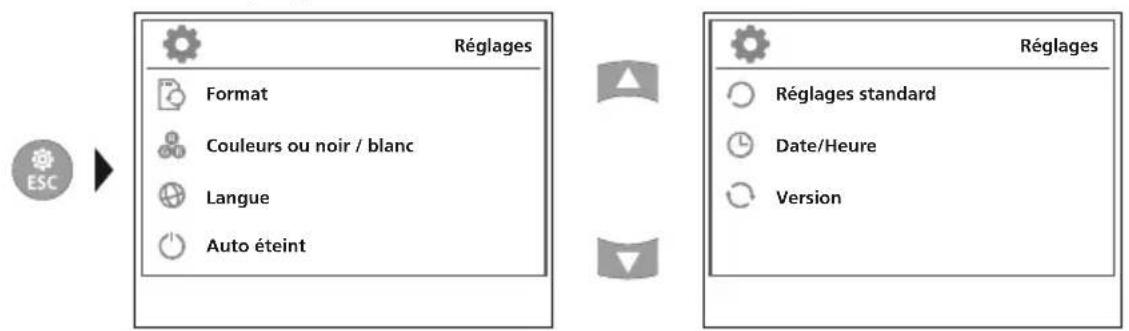

4 Mode de réglage

b. Éclairage DEL

c. Zoom

Laserliner

Illustration of a handheld electronic device with circular arrows indicating rotation or cycle (no text or symbols)

Illustration of a handheld electronic device with a screen displaying a stylized 'F' symbol and an arrow indicating direction (no text or labels)

Empty rectangular frame with a small camera icon at the top-left corner and numbers 1 and j above it (no text or symbols on the frame itself)

Diagram of a LevelBar device showing the internal components and a close-up view of its connector (no text or symbols present)

b. Iluminación LED

c. Zoom

Illustration of a handheld electronic device with a screen displaying a circular diagram and directional arrows indicating rotation or movement (no text or symbols present)

Illustration of a handheld electronic device with a screen displaying a stylized 'F' symbol and an arrow indicating direction (no text or labels)

Simple diagram with a camera icon at top-left corner and labeled points j and k (no text or symbols within the frame)

RESET

Diagram of a GPS navigation device showing the main screen, cable, and sensor port (no text or labels present)

c. Zoom

Laserliner

4x

1x

3x

2x

f. Start/stop ripresa video

Illustration of a handheld electronic device with a screen displaying a circular diagram and directional arrows indicating rotation or movement (no text or symbols present)

Illustration of a handheld electronic device with a screen displaying a right-pointing arrow and an upward arrow, no text or symbols present.

Illustration of a robotic device connected to an elevated ductwork panel inside a modern indoor space (no text or symbols visible)

SERVICE

Umarex GmbH & Co. KG

-Laserliner-
