Product Type	DMX/Art-Net Gateway
Brand	Chauvet
Model	DMXAN2
Dimensions (L x W x H)	120 x 64 x 39 mm
Weight	0.2 kg
External Power Supply	9 VDC, 500 mA (adapter included)
PoE Power	48 V, 0.4 A
Connectors	1 x RJ45 Ethernet, 2 x XLR 3-pin (DMX A and B)
Control Protocols	Art-Net™, sACN, DMX512
DMX Capacity	1024 channels max (512 per port)
Refresh Rate	10 to 40 Hz (configurable)
Configuration	Built-in Web Server
Firmware Update	Via Web Server
Factory Reset	Reset button (3 seconds)
LED Indicators	Power, Signal, Connection
Protection Rating	IP20 (indoor only)
Maximum Ambient Temperature	40 °C
Cooling	Convection
Included Accessories	Power adapter, reference manual
Warranty	Limited (see website)

Frequently Asked Questions - DMXAN2 Chauvet

How to configure the IP address of the DMX-AN2?

Connect the device to your network, then access its web server via the default IP address 2.0.0.1. In the IP Mode menu, choose DHCP IP or Manual IP. For a manual IP, enter the desired address and click Apply.

How to reset the DMX-AN2 to factory settings?

Press and hold the Reset button on the back of the device for at least 3 seconds. The power LED will blink to confirm the reset.

How to update the firmware?

Download the latest update file from www.chauvetdi.com. Log into the DMX-AN2 web server, click Browse next to File Path, select the file, and click Upload File.

What control protocols are supported?

The DMX-AN2 supports Art-Net™ and sACN for network transmission, as well as standard DMX512 for XLR connections.

How to connect the DMX-AN2 to my network?

Use the Ethernet RJ45 port on the back of the device. You can also power the device via PoE if your switch supports it. Then configure the IP address via the web server.

What is the required power supply voltage?

The device operates with an external power supply 9 VDC, 500 mA (included) or via Power over Ethernet (48 V, 0.4 A).

Can the DMX-AN2 be used outdoors?

No, the device is rated IP20 and must be used indoors only. Avoid any exposure to rain or moisture to prevent fire or electric shock hazards.

How to access the web server?

Make sure your computer is on the same network as the DMX-AN2, then enter the device's IP address (default 2.0.0.1) in a browser's address bar. Use 'Admin' as the username and password (default).

What if I forgot the web server password?

Use the backup credentials: username CHAUVETDJ and password CHAUVETDJ. This password cannot be changed.

How to configure a DMX port as input or output?

From the web server, for each port, open the Port Status dropdown and select Input or Output. Click Apply to save. Use a female-to-male DMX adapter for inputs.

USER MANUAL DMXAN2 Chauvet

Technical line drawing of a rectangular electronic device with two circular ports and mounting feet (no text or symbols)

Abstract black-and-white gradient pattern with no text or symbols

CHAUVET 3

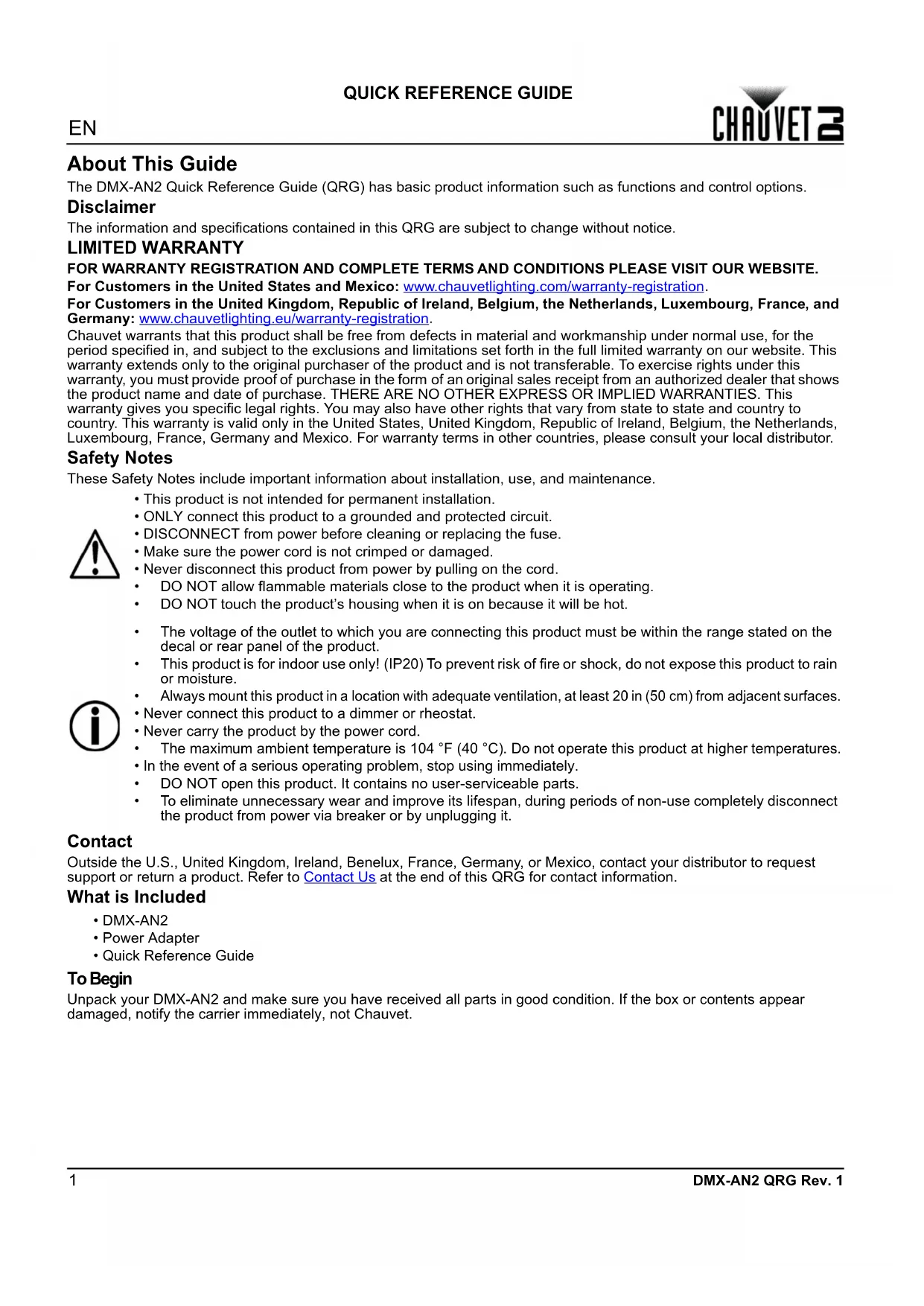

About This Guide

The DMX-AN2 Quick Reference Guide (QRG) has basic product information such as functions and control options.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.

• DO NOT allow flammable materials close to the product when it is operating.
DO NOT touch the product's housing when it is on because it will be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Never connect this product to a dimmer or rheostat.
• Never carry the product by the power cord.
  • The maximum ambient temperature is 104 °F ( 40 °C ). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
  • DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• DMX-AN2
• Power Adapter
• Quick Reference Guide

To Begin

Unpack your DMX-AN2 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Product Overview

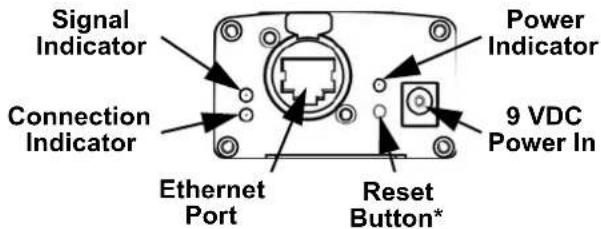

Signal Indicator Connection Indicator Ethernet Port Reset Button* Power Indicator 9 VDC Power In

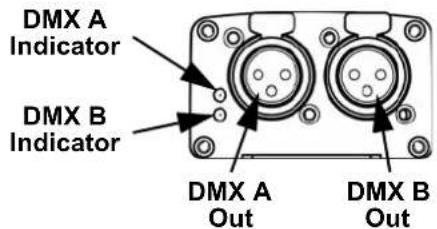

DMX A Indicator DMX B Indicator DMX A Out DMX B Out

*Press and hold the Reset Button for 3 seconds to reset the product to factory default settings. The Power Indicator will flash.

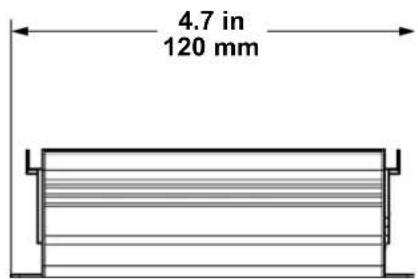

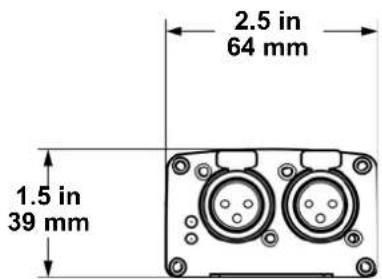

Dimensions

2.5 in 64 mm 1.5 in 39 mm

4.7 in 120 mm

DC Power

This product has an external auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Over Ethernet

This product can receive power through the ethernet port, from a Power over Ethernet device.

Web Server

The DMX-AN2 Web Server can be accessed by any computer on the same network as the product. It allows network access to configure settings such as the IP address and name of the product, and the individual settings for each DMX port. The firmware of the product can also be updated through the Web Server.

To access the Web Server:

1. Connect the DMX-AN2 to a computer via the ethernet port on the back of the product.
2. On the computer, set the IP address of the network to have the same first three digits as the IP address of the product. The default IP address of each DMX-AN2 is 2.0.0.1.
3. Enter the IP address of the product into the URL bar of a web browser application.
4. Press the Enter key.
5. Enter Admin in the User Name field, and Admin in the Password field. See New Password to change the password.

If a new password is forgotten, the DMX-AN2 Web Server can be accessed by typing CHAUVETDJ as both User Name and Password. This password cannot be changed.

Device Name

The device name for the DMX-AN2 can be changed through the Web Server, by clearing the Device Name field and typing a new name. Click Apply to confirm changes.

IP Mode

The IP mode for the DMX-AN2 can be set through the Web Server, by clicking on the IP Mode drop-down menu and selecting from DHCP IP or Manual IP. Click Apply to confirm changes.

IP Address

The IP address for the DMX-AN2 can be changed through the Web Server, by clearing the IP Address field and typing a new IP address. Click Apply to confirm changes.

Art-Net™ function is limited to IP addresses beginning with 2 or 10. If the first digit of the IP address of the DMX-AN2 is changed, the computer's network settings must be changed to match before the Web Server can be accessed again.

Net Mask

The Net Mask for the DMX-AN2 can be changed through the Web Server, by clicking on the Net Mask drop-down menu and selecting from 255.0.0.0, 255.255.0.0 or 255.255.255.0. Click Apply to confirm changes.

Default Gateway

If needed, the default gateway for the DMX-AN2 can be changed through the Web Server by clearing the Default Gateway field and typing the IP address of the new default gateway. Click Apply to confirm changes.

New Password

The password for the DMX-AN2 Web Server can be changed through the Web Server by typing a new password into the New Password field. Click Apply to confirm changes.

Port Status

Each DMX port of the DMX-AN2 can be set as an Out port or an In port through the Web Server, by clicking on the Port Status drop-down menu for the selected port and selecting from Input or Output. Click Apply to confirm changes.

A DMX Female to Male adapter (not included) must be used for DMX input to the DMX-AN2.

Protocol

The ethernet protocol for each DMX port of the DMX-AN2 can be selected through the Web Server, by clicking on the Protocol drop-down menu for the selected port and selecting from ArtNet or sACN. Click Apply to confirm changes. Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

Frame Rate

The signal frame rate for each DMX port of the DMX-AN2 can be set through the Web server, by clicking on the Frame Rate drop-down menu for the selected port and selecting from 40HZ, 35HZ, 30HZ, 25HZ, 20HZ, 15HZ, or 10HZ. Click Apply to confirm changes.

Universe

The Art-Net ^™ or sACN universe address for each DMX port of the DMX-AN2 can be set through the Web Server, by clearing the Universe field for the selected port and typing the desired universe address. Click Apply to confirm changes.

Firmware Update

The firmware of the DMX-AN2 can be updated through the Web Server, by clicking Browse next to the File Path field at the bottom of the Web Server, selecting the firmware update file, and then clicking Upload File. The latest firmware update file can be found on www.chauvetdj.com.

Technical Specifications

Dimensions and Weight

Length Width Height Weight

4.7 in (120 mm) 2.5 in (64 mm) 1.5 in (39 mm) 0.4 lb (0.2 kg)

Note: Dimensions in inches rounded to the nearest decimal digit.

Power

Parameter DMX-AN2 External Power Supply
Input Voltage Fixed Switching (internal)
Range	9 VDC, 500 mA (power adapter)48V, 0.4 A (Power over Ethernet)	100–240 VAC, 50/60 Hz
Voltage Selection Fixed Auto-Ranging
Power Input US/Canada	UK/Worldwide
IEC	Edison	Local Plug
Control
I/O Connectors	Control Protocol	Channel Range
1 RJ45 Ethernet	Art-NetTM, sACN	1024
2 3-pin XLR	DMX512	512 (per port)
Thermal
Maximum External Temp.	Cooling
104 °F (40 °C)	Convection
Ordering
Product	Item Code UPC Number
DMX-AN2	09081509	781462218577
