Product Type	Ellipsoidal Spotlight
Light Source	260W Warm White LED
Color Temperature	2,700 K
Beam Angle	15° - 30° (manual zoom)
Zoom Range	5:1
Power Consumption	260 W
Voltage	100-240 VAC, 50/60 Hz
DMX Channels	3
Dimensions (L x W x H)	8.0 x 11.5 x 18.0 in (203 x 292 x 457 mm)
Weight	22.0 lb (10.0 kg)
Housing Material	Aluminum
Cooling	Passive (fanless)
IP Rating	IP20
Control Options	DMX, Manual
Features	Flicker-free, silent operation, variable zoom
Accessories Included	Gel frame, safety cable
Maintenance	Clean lens with soft cloth; avoid solvents
Safety Certifications	CE, ETL
Warranty	2 years limited

Frequently Asked Questions - Ovation E-260CW Chauvet

How do I adjust the beam angle on the Ovation E-260CW?

Loosen the two locking knobs on the side of the fixture, rotate the lens barrel to the desired angle (15°-30°), then tighten the knobs.

Can I use a DMX controller with this fixture?

Yes, it supports DMX-512 with 3 channels. Connect via XLR 5-pin cable.

How do I clean the lens?

Use a soft, dry cloth to gently wipe the lens. Avoid using liquids or abrasives.

What is the recommended voltage?

It operates on 100-240 VAC, 50/60 Hz. Use a powerCON cable.

Does it produce audible noise?

No, the Ovation E-260CW is designed for silent operation with passive cooling.

How do I mount the fixture?

Use the included mounting bracket with a 1/4-turn or clamp. Ensure safety cable is attached.

What is the maximum ambient temperature?

The unit should not be used in environments exceeding 104°F (40°C).

Can I change the color temperature?

No, it has a fixed 2,700K warm white output. For color mixing, consider the Ovation E-260WW.

How do I reset the fixture?

Disconnect power for at least 10 seconds, then reconnect. Alternatively, use a DMX controller to send a reset command.

What is the maximum cable distance?

For DMX, keep cables under 1000 ft (300 m). For power, use appropriate gauge for length.

USER MANUAL Ovation E-260CW Chauvet

* Lens tubes sold separately

Model ID: OVATIONE260CW

CHAUVET

PROFESSIONAL

Edition Notes	The Ovation E-260CW User Manual includes a description, safety precautions, and installation, programming, operation, and maintenance instructions for the Ovation E-260CW as of the release date of this edition.
Trademarks	Chauvet, Chauvet Professional, the Chauvet logo, and Ovation are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
Copyright Notice	The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet.© Copyright 2023 Chauvet & Sons, LLC. All rights reserved.Electronically published by Chauvet in the United States of America.
Manual Use	Chauvet authorizes its customers to download and print this manual for professional information purposes only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this manual or its content for any other purpose without written consent from Chauvet.
Document Printing	For better results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4 paper (210 x 297 mm), configure your printer to scale the content accordingly.
Intended Audience	Any person in charge of installing, operating, and/or maintaining this product should completely read through the guide that shipped with the product, as well as this manual, before installing, operating, or maintaining this product.
Disclaimer	Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions.
Document Revision	Go towww.chauvetprofessional.comfor the latest version of this manual.

Table of Contents

1. Before You Begin .... 1

What Is Included....1

Claims....1

Manual Conventions....1

Symbols 1

FCC Compliance....1

Safety Notes....2

2. Introduction......3

Description ....3

Features 3

Lens Tube 3

Overview 4

Dimensions....5

3. Setup 6

AC Power 6

AC Plug....6

Power Linking 6

Fuse Replacement....6

DMX Linking....7

DMX Personalities ....7

Remote Device Management (RDM)....7

Master/Slave Connectivity ....7

Mounting....8

Manual Beam Focus Control 9

Rotating the Barrel Assembly 9

Accessory Slot....9

4. Operation 10

Control Panel Description....10

Control Options 10

Programming....10

Menu Map 10

Configuration (Standalone)....12

Manual Static Mode 12

Focus Mode 12

Auto Programs....12

Master/Slave....12

Dimmer Curve....12

Dimmer Profiles 12

LED Frequency....13

Fan Mode....13

Back Light 13

Run Time ....13

LED Time....13

Software Information....13

RDM....13

Configuration (DMX)....13

DMX Personalities ....13

DMX Control 13

DMX Values 14

1. Technical Information .... 15

Product Maintenance 15

1. Technical Specifications....16

Returns....17

Contact Us 18

1. Before You Begin

What Is Included

• Ovation E-260CW
• Seetronic Powerkon power cable
- Quick Reference Guide

Claims

Carefully unpack the product immediately and check the box to make sure all the parts are in the package and are in good condition.

If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Manual Conventions

Convention Meaning
1–512	A range of values in the text
50/60	A set of mutually exclusive values in the text
	A button on the product's control panel
Settings	A product function or a menu option
MENU>Settings	A sequence of menu options
1–10	A range of menu values from which to choose in a menu
Yes/No	A set of two mutually exclusive menu options in a menu
ON	A unique value to be entered or selected in a menu

Symbols

Symbols	Meaning
	Critical installation, configuration, or operation information. Failure to comply with this information may cause the product not to work, damage third-party equipment, or cause harm to the operator.
	Important installation or configuration information. Failure to comply with this information may keep the product from working.
	Useful information.

The term "DMX" used throughout this manual refers to the USITT DMX512-A digital data transmission protocol.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Safety Notes

Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product.

This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

Personal Safety

All applicable local codes and regulations apply to proper installation of this product.

Mounting And Rigging

• The luminaire is intended for professional use only.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 24.6 ft (7.5 m) is not expected.
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
- The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.
- Avoid direct eye exposure to the light source while the product is on.
• Always disconnect this product from its power source before servicing.
• Always connect this product to a grounded circuit to avoid the risk of electrocution.
- Do not touch this product's housing during operation because it may be very hot.
- This product is for indoor use only! To prevent risk of fire or shock, do not expose this product to rain or moisture. (IP20)

- Do not allow the product to remain pointed straight down.

- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Make sure there are no flammable materials close to this product while it is operating.

- When hanging this product, always secure to a fastening device using a safety cable.

- Use caution when loosening the barrel rotation knobs. If these knobs become too loose, the barrel assembly may inadvertently separate from the light engine.

Power And Wiring

- Always make sure you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product's specification label.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

- Never connect this product to a dimmer pack or rheostat.

- Never disconnect this product by pulling or tugging on the power cable.

- Do not operate this product if you see damage on the housing, lenses, or cables. Have the damaged parts replaced by an authorized technician at once.

- Do not cover the ventilation slots when operating to avoid internal overheating.

- The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature.

• In case of a serious operating problem, stop using this product immediately!

Expected LED Lifespan

In the unlikely event that your Chauvet product requires service, contact Chauvet Technical Support.

Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity.

2. Introduction

Description The Ovation E-260CW delivers an excellent white light with a cool color temperature and a beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals.

Features

• Cool white LED ERS-style lighting product
- Operating modes:

• 1-channel: dimmer control
• 2-channel: dimmer and fine dimmer control
• 3-channel: dimmer, fine dimmer, and strobe control
- 6-channel: dimmer, fine dimmer, strobe control, auto programs, auto speed, and dimmer mode

• Cool white ERS style fixture with output exceeding a tungsten 750w source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Lens Tube The following lens tubes are available for purchase.

• 5° w/ Gel frame (14 in/356 mm accessories)
• 10° w/ Gel frame (12 in/304 mm accessories)
  • 14° w/ Gel frame (7.5 in/191 mm accessories)
  • 19° w/ Gel frame (6.25 in/159 mm accessories)
• 26° w/ Gel frame (6.25 in/159 mm accessories)
  • 36° w/ Gel frame (6.25 in/159 mm accessories)
• 50° w/ Gel frame (6.25 in/159 mm accessories)
• 15°–30° w/ Gel frame (7.5 in/191 mm accessories)
• 25°–50° w/ Gel frame (7.5 in/191 mm accessories)

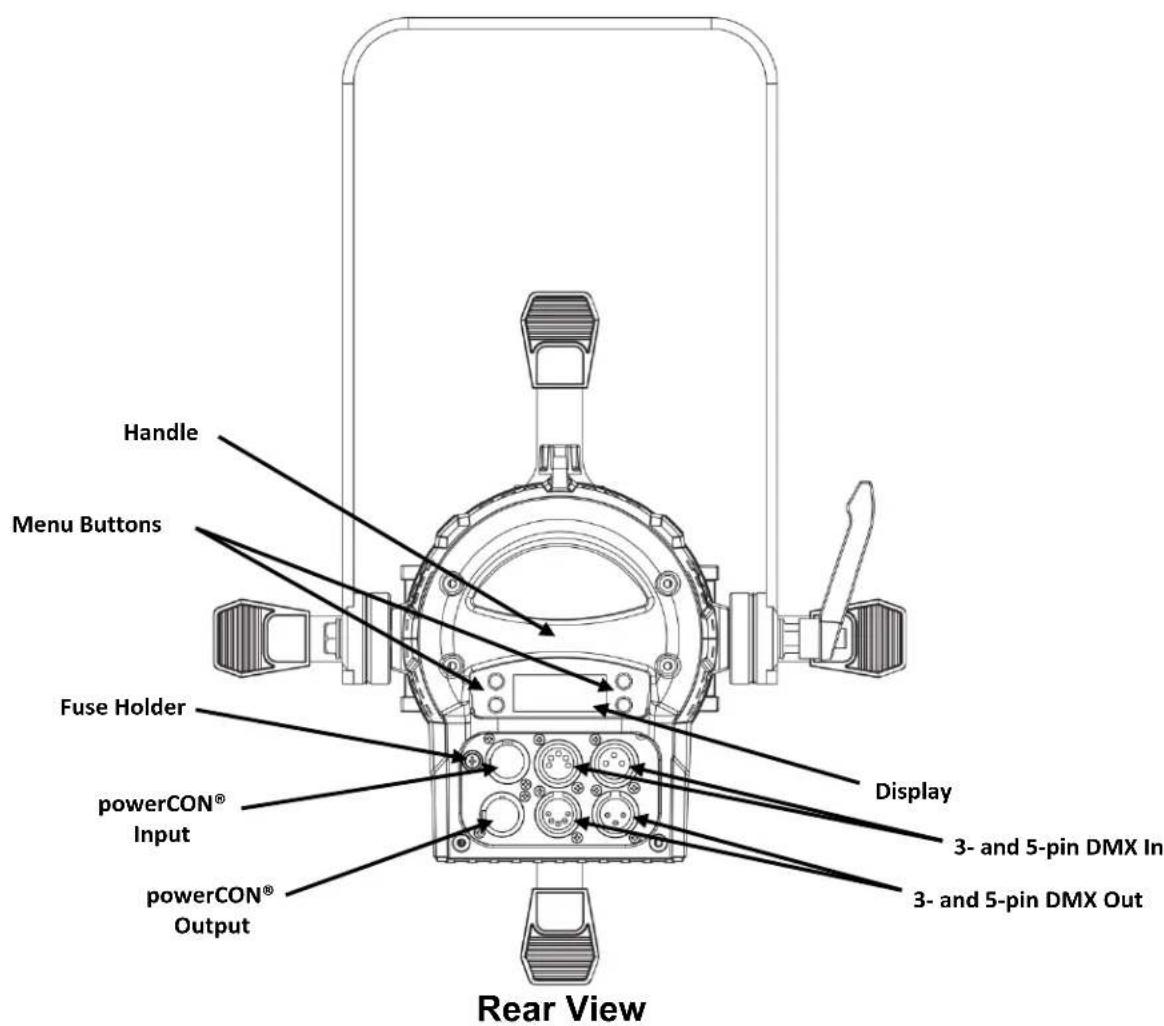

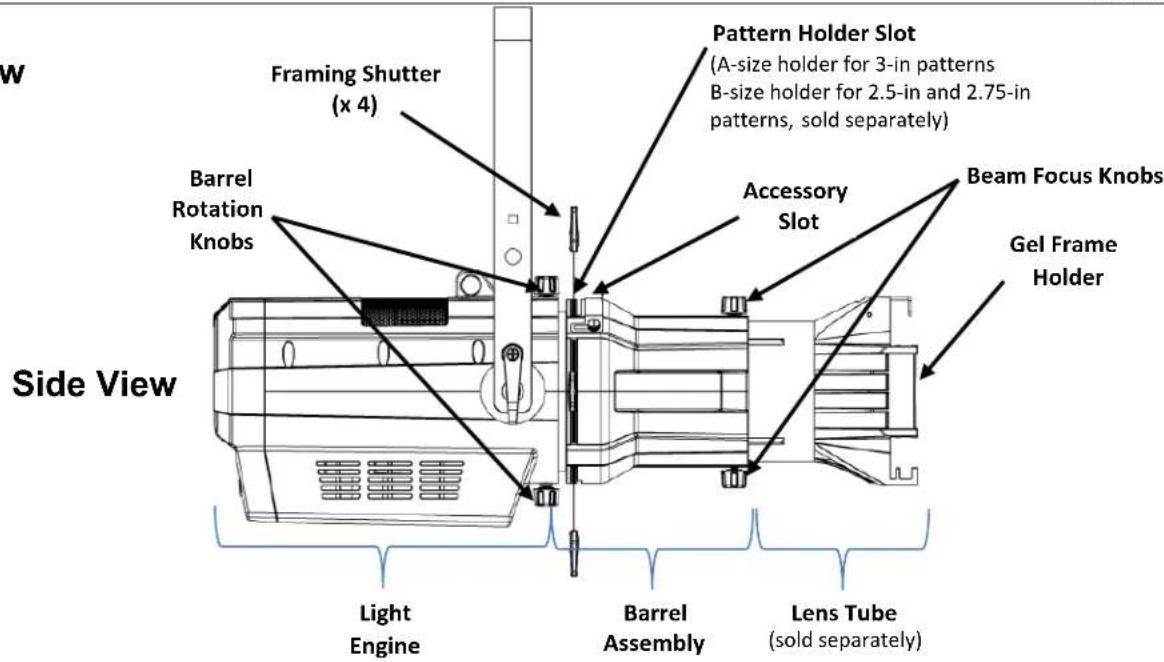

Overview

Dimensions

Top View

3. Setup

AC Power

Each Ovation E-260CW has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation E-260CW, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website: www.chauvetprofessional.com.

• Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

AC Plug

Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

The Ovation E-260CW comes with a power input cable terminated with a Neutrik powerCON A connector on one end and an Edison plug on the other end (U.S. market). If the power input cable that came with your product has no plug, or if you need to change the Edison plug, use the table below to wire the new plug.

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow or Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

Power Linking

The Ovation E-260CW supports power linking. It is possible to power link up to 6 products at 100 V, up to 7 at 120 V; up to 12 at 208 V; up to 13 at 230 V, or up to 14 at 240 V. Do not exceed this number.

This product comes with a power input cable. Power linking cables are available from Chauvet for purchase.

Fuse Replacement

1. Disconnect this product from the power outlet.
2. Using a Phillips-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (T 3.15 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.

Make sure to disconnect the product's power cable before replacing a blown fuse. Always replace the blown fuse with another of the same type and rating.

DMX Linking

You can link the Ovation E-260CW to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with the Ovation E-260CW, you can control each individually with a single DMX controller.

DMX Personalities

The Ovation E-260CW uses the standard DMX data connection for the 1-, 2-, 3- and 6-channel DMX modes.

• Refer to the Introduction chapter for a brief description of each DMX personality.
- Refer to the Operation chapter to learn how to configure the Ovation E-260CW to work in these personalities.
- The DMX Values section provides you with detailed information regarding the DMX personalities.

Remote Device Management (RDM)

If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com.

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation E-260CW supports RDM protocol that allows feedback to make changes to menu map options.

Master/Slave Connectivity

The Master/Slave mode allows a single Ovation E-260CW (the "master") to control the actions of one or more Ovation E-260CW products (the "slaves") without the need of a DMX controller to control the slaves. Once set and connected, the slaves will operate in unison with the master. For instructions on connecting and configuring this product, see Master/Slave Mode.

DO NOT connect a DMX controller to products operating in Master/Slave mode. The DMX controller signals may interfere with the signals from the master.

• The Operation section of this manual provides detailed instructions on how to configure the master and slaves.
• If you are not familiar with or need more information about DMX standards, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com.

Mounting

Before mounting this product, read and follow the Safety Notes. For our Chauvet Professional line of mounting clamps, go to http://trusst.com/products/.

Orientation

Always mount this product in a safe position and make sure there is adequate room for ventilation, configuration, and maintenance.

Rigging

Chauvet recommends using the following general guidelines when mounting this product.

• When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.
• Make sure to mount this product away from any flammable material as indicated in the Safety Notes.
• Never mount in places where rain, high humidity, extreme temperature changes, or restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can support the product's weight. See the Technical Specifications for the weight-bearing requirements of this product.
• When hanging this product, always secure to a fastening device using a safety cable. For our Chauvet Professional line of safety cables, go to http://trusst.com/products/.

Procedure

The Ovation E-260CW comes with a hanging/mounting bracket to which you can attach mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product where necessary.

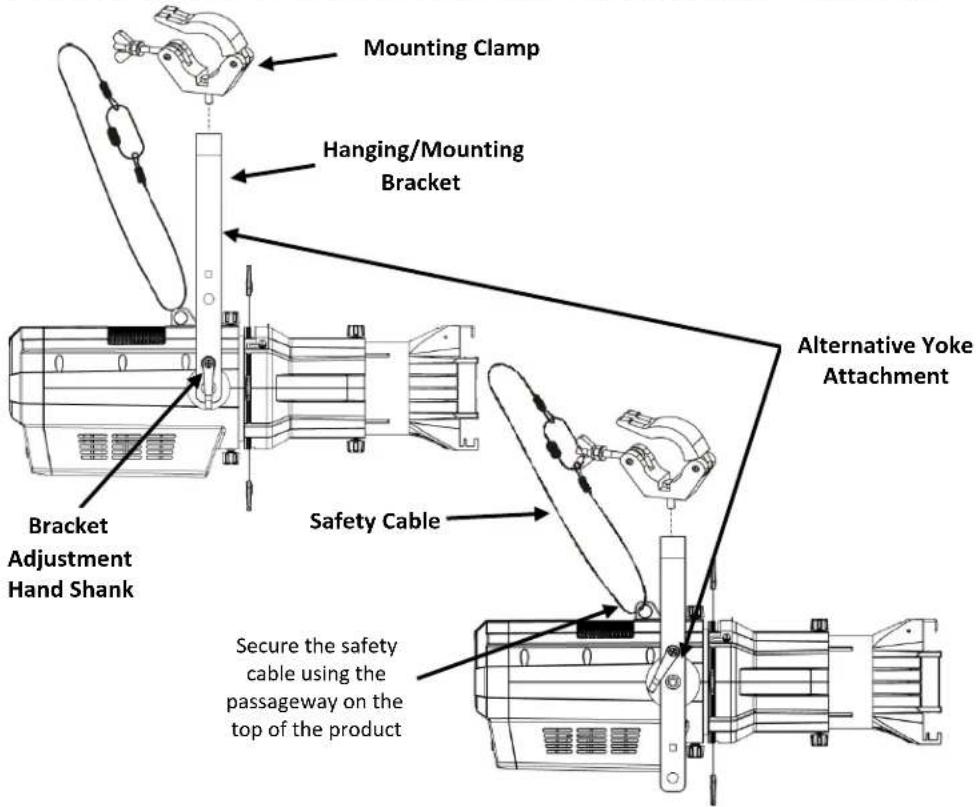

Mounting Diagram

Overhead Mounting
Alternate Short Mounting

Manual Beam Focus The Ovation E-260CW has a manual focus, which is adjusted as follows.

Control

1. Locate the beam focus knobs at the top and bottom of the barrel assembly.
2. Loosen the knobs by turning them counter-clockwise.
3. Slide the lens tube forward or backward until you achieve the desired focus or beam edge.
4. Tighten the knobs by turning them clockwise, which lock the lens tube's position.

To avoid changing menu settings while focusing the Ovation E-260CW, press and hold the button for 3 seconds. This will put the product in "Focus Mode" by increasing the intensity to 100%. To exit out of focus mode, press

.

Rotating the Barrel The Ovation E-260CW allows manual rotation of the barrel assembly, as follows.

Assembly

1. Locate the barrel rotation knobs at the top and bottom of the light engine.
2. Loosen the knobs by turning them counter-clockwise.
   • Note: Do not remove the knobs.
3. Rotate the barrel to the desired position, up to 25° in either direction from the centered position.
4. Tighten the knobs by turning them clockwise, which lock the barrel's position.

Make sure the barrel assembly is oriented with the pattern holder and accessory slots at the top of the product.

Accessory Slot The Ovation E-260CW has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately).

1. Loosen the thumbscrews on the slot cover.
   • Note: Do not remove the thumbscrews.
2. Slide to cover forward.
3. Insert an accessory.
4. Note: Make sure to insert the accessory correctly. For example, make sure the iris handle extends upward from the slot.
5. Slide the cover back. Make sure any handles or adjustment tools that stick out the top are able to function correctly.
6. Tighten the thumbscrews to secure the cover.

• When not using the accessory slot, replace and secure the slot cover to prevent light leakage during operation.
• When obtaining any optional accessories, be sure the items are compatible with the Ovation E-260CW.

4. Operation

Control Panel Description	Button	Function
		Exits from the current menu or function
		Enables the currently displayed menu or sets the currently selected value into the current function
		Navigates upward through the menu list or increases the numeric value when in a function
		Navigates downward through the menu list or decreases the numeric value when in a function

Control

Options

Set the Ovation E-260CW starting address in the 001–512 DMX range. This enables control of up to 85 products in the 6-channel 6CH personality.

Programming

Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.

• To go to the desired main level, press repeatedly until the option shows on the display. Press to select. This will take you to the first programming level for that option.
• To select an option or value within the current programming level, press or until the option shows on the display. Press to select. In this case, if there is another programming level, you will see that first option, or you will see the selected value.
• Press repeatedly to exit to the previous main level.

Menu Map

Main Level	Programming Levels		Description
DMX Address <001-512>			Selects DMX address (highest channel restricted to personality chosen)
DMX Channel	1Ch		1-channel: dimmer
	2Ch		2-channel: 16-bit dimmer
	3Ch		3-channel: 16-bit dimmer, strobe
	6Ch		6-channel: 16-bit dimmer, strobe, auto programs, auto speed, control
Static	Dimmer	0-255	Controls intensity
	Strobe		Controls strobe rate
Auto Show	Auto 1	<1-100>	Selects automatic programs and auto program speed
	Auto 2
	Auto 3
	Auto 4
Master/Slave	Master		DMX mode (Master)
	Slave		Slave mode
Dimmer Curve	SCurve		Sets the dimmer curve
	Linear
	Square
	Inverse Square
Dimmer Mode	Off		No dimmer
	Dimmer 1-3		Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
LED Frequency	600Hz		Selects the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto		Sets the fan to auto mode
	On		Sets the fan to always on
	Off		Sets the fan to always off
	Silent		Sets the fan to silent
Back Light	10S		Turns off display backlight after 10 sec of inactivity
	30S		Turns off display backlight after 30 sec of inactivity
	2Min		Turns off display backlight after 2 mins of inactivity
	Always On		Display backlight always on
Information	Fixture Hours _ _ H		Shows total hours the product has been powered on
	LED Hours _ _ H		Shows total hours the LED has been powered on
	Version	V_.	Shows installed software version
	UID:	_	Shows product UID

Configuration (Standalone)

Use standalone configuration to operate the product without a DMX controller.

Manual Static Mode The Manual Static mode allows for manual control of intensity and strobe rate without a DMX controller.

1. Go to the Static main level.
2. Select the Dimmer programming level.
3. Select the desired intensity value 0–255 (0–100%).
4. Go to the Strobe programming option.
5. Select the desired Strobe rate value 0–255 (0–25 Hz).

Focus Mode

Focus mode allows for focusing of the Ovation E-260CW without changing any menu settings.

1. Press and hold for 3 seconds. The intensity will increase to 100%.

2. Press

   to exit to previous settings.

3. Press and hold for 3 seconds. The intensity will increase to 100%.

4. Press to exit to previous settings.

Auto Programs

Auto programs allow for standalone dynamic mixing without a DMX controller.

1. Go to the Auto Show main level.
2. Select the desired auto (Auto 1-4)
3. Select the desired auto program speed (1–100)

You cannot edit any of the auto programs (Auto 1-4).

Master/Slave

The Master/Slave mode allows a group of Ovation E-260CWs (the slaves) to simultaneously duplicate the output of another Ovation E-260CW (the master) without a DMX controller.

1. Set each of the slaves:
   a. Go to the Master/Slave main level.
   b. Select Slave.
2. Set the master:
   a. Go to the Master/Slave main level.
   b. Select Master.

• The master is the one that runs a program whether in Auto Show or Static modes.
- Do not connect a DMX controller to the products configured for Master/Slave operation. The DMX controller may interfere with signals from the master.
• The master should be the first product in the daisy chain.

Dimmer Curve

To set the dimmer curve, follow the instructions below: Go to the Dimmer Curve main level. Select the desired option (SCurve, Linear, Square, or Inverse Square).

Dimmer Profiles

This setting determines how fast the output of the Ovation E-260CW changes when you modify the values of the white, and dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

1. Go to the Dimmer Mode main level.
2. Select a dimmer curve (Off, Dimmer 1, Dimmer 2, or Dimmer 3).

Off: The output is proportional (linear) to the dimmer and white channel values.

Dimmer 1–3: The output follows the dimmer and White channel values based on the corresponding dimmer curve, Dimmer 1 being the fastest and Dimmer 3 the slowest.

For optimum control of the 16-bit dimming channels in the 3Ch, and 6Ch personalities, be sure that the dimming curves in Dimmer Mode are set to Off.

LED Frequency This option changes the Pulse Width Modulation (PWM) frequency of the LEDs on the Ovation E-260CW.

1. Go to the LED Frequency main level.
2. Choose an output frequency. (600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, or 25KHz)

Fan Mode This option toggles the fan speed from being always on and auto control based on the product's temperature.

1. Go to the Fan Mode main level.
2. Select a fan mode (Auto, On, Off, or Silent).

Back Light This setting allows you to set the amount of time the backlight on the Ovation E-260CW's display stays on after the last button is pressed on the control panel.

1. Go to the Back Light main level.
2. Select Always On (remains on), 10S (10 seconds), 30S (30 seconds), or 2Min (2 minutes).

Run Time This option show how many total hours the product has been on.

1. Go to the Information main level.
2. Select Fixture Hours and the amount of hours will show on the screen.

LED Time This option show how many total hours the LED has been powered on.

1. Go to the Information main level.
2. Select LED Hours and the amount of hours will show on the screen.

Software This option shows what version of software the Ovation E-260CW is running.

1. Go to the Information main level.
2. Select Version and the version number will show on the screen.

RDM This option shows the product's UID #. The UID # is used when using the RDM functionality of this product.

1. Go to the Information main level.
2. Select UID: and the number will show on the screen.

Use DMX configurations to operate the product with a DMX controller.

Configuration (DMX)

DMX This setting allows you to choose a particular DMX personality.

Personalities 1. Go to the DMX Channel main level. 2. Select the desired personality (1Ch, 2Ch, 3Ch, or 6Ch).

• See the DMX Values section for the highest starting address you can select for each personality.
• Make sure that the starting addresses on the various products do not overlap due to the new personality setting.

DMX Control In this mode, each product will respond to a unique starting address from the DMX controller. All products with the same starting address will respond in unison.

1. Select a DMX personality as shown in DMX Personalities.

2. Set the running mode:
   a. Go to the Master/Slave main level.
   b. Select the Master programming level.

3. Set the starting address:

a. Go to DMX Address main level.
b. Select the starting address (001-512).

The highest recommended starting address for each DMX mode is as follows:

DMX Personality	DMX Address	DMX Personality	DMX Address
1Ch	512	2Ch	511
3Ch	510	6Ch	507

DMX Values

1Ch	2Ch	3Ch	6Ch	Function	Value	Percent/Setting
1	1	1	1	Dimmer	000⇔255	0–100%
-	2	2	2	Dimmer Fine	000⇔255	0–100%
--	3 3 Strobe				000⇔010011⇔255	No functionStrobe (slow to fast)
--	-4 Auto Programs				000⇔010011⇔070071⇔130131⇔190191⇔255	No functionAuto 1Auto 2Auto 3Auto 4
-	-	-	5	Auto Speed	000⇔255	Slow to fast
--	-6			Control(hold for 3 seconds)	000⇔007008⇔015016⇔023024⇔031032⇔039040⇔047048⇔055056⇔063064⇔071072⇔079080⇔087088⇔095096⇔103104⇔111112⇔255	No functionDimmer resetS-curve dimmerLinear dimmerSquare dimmer curveInverse square dimmer curveDimmer speed mode offDimmer speed mode 1 (fastest)Dimmer speed mode 2Dimmer speed mode 3 (slowest)Fan autoFan onFan offFan silentReserved for future use

5. Technical Information

Product Maintenance

To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency.

Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. This can lead to reduced light source life and increased mechanical wear.

To clean your product:

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external vents.
4. Clean all external surfaces with a mild solution of non-ammonia glass cleaner or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
6. Wipe any dirt or grime to the outside edges of the lens surface.
7. Gently polish the lens surfaces until they are free of haze and lint.

Always dry the external surfaces thoroughly and carefully after cleaning them.

Do not spin the cooling fans while blowing compressed air into them.

1. Technical Specifications

Dimensions and Weight	Length Width Height Weight
	19.49 in (495 mm)	11.22 in (285 mm)	19.17 in (487 mm)		15.40 lb (7.1 kg)
	Note: Dimensions in inches rounded to the nearest decimal digit.
Power	Power Supply Type	Range		Voltage Selection
	Switching (internal)	100–240 VAC, 50/60 Hz		Auto-ranging
	Parameter	100 V, 60 Hz	120 VAC, 60 Hz	208 VAC, 60 Hz	230 VAC, 50 Hz	240 V, 60 Hz
	Consumption	225 W	223 W	230 W	231 W	232 W
	Current	2.23 A	1.84 A	1.10 A	1.00 A	0.964 A
	Power linking current (products)	13.6 A(6 products)	13.6 A(7 products)	13.6 A(12 products)	13.6 A(13 products)	13.6 A(14 products)
	Fuse/Breaker	T 3.15 A, 250 V	T 3.15 A, 250 V	T 3.15 A, 250 V	T 3.15 A, 250 V	T 3.15 A, 250 V
	Power I/O	U.S./Canada		Worldwide
	Power input connector	Seetronic Powerkon		Seetronic Powerkon
	Power output connector	Seetronic Powerkon		Seetronic Powerkon
	Power cable plug	Edison (US)		Local plug
Light Source	Type	Power		Lifespan
	LED	230 W		50,000 hours
	Color Quantity Current
	Cool White	1		3.5 A
Photometrics	Parameter	5° Lens	10° Lens	14° Lens	19° Lens	26° Lens
	Illuminance @ 5 m	49,200 lux	26,600 lux	16,787 lux	10,674 lux	8,652 lux
	Beam angle	6°	7°	11°	13°	16°
	Field angle	7°	10°	14°	18°	25°
	Parameter	50° Lens	15°–30° Lens		25°–50° Lens
	Illuminance @ 5 m	2,181 lux	19,900 lux	10,159 lux	9,219 lux	3,468 lux
	Beam angle	28°	12°	14°	21°	22°
	Field angle	50°	15°	29°	26°	46°
Thermal	Max. External Temperature Cooling System
	113 °F (45 °C)	Fan-Assisted Convection
DMX	I/O Connectors	Connector Type		Channel Range
	3- and 5-pin XLR	Sockets		1, 2, 3, 6
Ordering	Product Name	Item Name	Item Code	UPC Number
	Ovation E-260CW	OVATIONE260CW	03121186	781462215347

Returns

Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags.

Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.

To submit a service request online, go to www.chauvetprofessional.com/service-request.

Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number.

DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.

Once you have received the RMA number, include the following information on a piece of paper inside the box:

• Your name
• Your address
• Your phone number
  • The RMA number

• A brief description of the problem(s)

Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer's responsibility. FedEx packing or double-boxing is recommended.

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Contact Us

General Information	Technical Support
Chauvet World Headquarters
Address: 3360 Davie Rd.	Voice: [phone]
Davie, FL 33314	Fax: [phone]
Voice: [phone]	Email: [e-mail]
Fax: [phone]
Toll free: [phone]	Website: www.chauvetprofessional.com
Chauvet U.K.
Address: Unit 1C
Brookhill Road Industrial Estate	Email: [e-mail]
Pinxton, Nottingham, UK
NG16 6NT	Website: www.chauvetprofessional.eu
Voice: [phone]
Fax: [phone]
Chauvet Benelux
Address: Stokstraat 18	Email: [e-mail]
9770 Kruishoutem
Belgium	Website: www.chauvetprofessional.eu
Voice: [phone]
Chauvet France
Address: S3, Rue Ampère	Email: [e-mail]
91380 Chilly-Mazarin
France	Website: www.chauvetprofessional.eu
Voice: [phone]
Chauvet Germany
Address: Bruno-Bürgel-Str. 11	Email: [e-mail]
28759 Bremen
Germany	Website: www.chauvetprofessional.eu
Voice: [phone]
Chauvet Mexico
Address: Av. de las Partidas 34 - 3B
(Entrance by Calle 2)	Email: [e-mail]
Zona Industrial Lerma
Lerma, Edo. de México, CP 52000	Website: www.chauvetprofessional.mx
Voice: [phone]
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
