Sola 95 - Laminating machine FELLOWES - Free user manual and instructions

Product type	Laminating machine
Brand	Fellowes
Model	Sola 95
Lamination width	240 mm
Max pouch thickness	5 mil (0.127 mm)
Warm-up time	4 minutes
Lamination speed	Approximately 30.5 cm/min (12 in/min)
Number of rollers	2
Auto shut-off	Yes, after 30 minutes
Release lever	Yes
Power supply	120 V AC, 60 Hz, 2.5 A, 300 W
Dimensions (L x W x H)	Approximately 36.1 x 11.2 x 6.1 cm
Weight	Approximately 1 kg
Recommended use	Light, up to 30 laminations per week
Warranty	1 year
Maintenance	Clean the exterior with a damp cloth after unplugging
Safety	Do not use near water, do not insert metal objects, avoid hot surfaces
Carrier sheet	Not needed

Frequently Asked Questions - Sola 95 FELLOWES

How to use the Fellowes Sola 95 laminator?

Turn on the machine with the switch. Wait for the green Ready light to come on. Insert the document into a suitable pouch, sealed edge first, well centered in the entry. The pouch will come out automatically. Remove it immediately and let it cool flat.

What to do in case of a paper jam?

Use the release lever located at the back of the machine to remove the pouch. Pull gently from the entry. If necessary, select reverse (if available) or unplug the machine if the jam persists.

How to remove a pouch during lamination?

Activate the release lever at the back of the machine. The pouch can then be removed from the entry slot by pulling gently.

Why doesn't the green Ready light come on?

The machine may be in a hot or humid location. Move it to a cooler, drier place. Otherwise, check that the machine is turned on and plugged in.

What does the blinking red light mean?

The red light blinks when the machine is in auto shut-off mode (after 30 minutes of inactivity). The green light goes off. Press the on/off switch to reset the machine.

How to clean the laminator?

Unplug the machine and let it cool. Clean the exterior with a damp cloth. Never use solvents or flammable products.

What is the warranty of the Fellowes Sola 95?

Fellowes warrants the machine against defects in material or workmanship for 1 year from the date of purchase by the original consumer.

Can I laminate metal objects like staples?

No. Do not insert metal or sharp objects (staples, paper clips) into the machine. Remove them before laminating.

Do I need to use a carrier sheet with this laminator?

No. The Fellowes Sola 95 is designed with a carrier-free mechanism. Insert the pouch directly.

What is the maximum document thickness the Sola 95 can laminate?

The maximum document thickness (including pouch) is 0.02 in (0.4 mm). Use 3 to 5 mil pouches for best results.

USER MANUAL Sola 95 FELLOWES

White and black product device labeled 'Fellowes' and 'Sola '95', showing no visible text or symbols on the device body.

E Please read these instructions before use.
F Veuillez lire ces instructions avant l'utilisation.
S Lea estas instrucciones antes del usarlo.

INDEX

LAMINATOR CONTROLS / QUICK START GUIDE 3

ENGLISH 4-6

FRANCAIS 7-9

ESPAÑOL 10-12

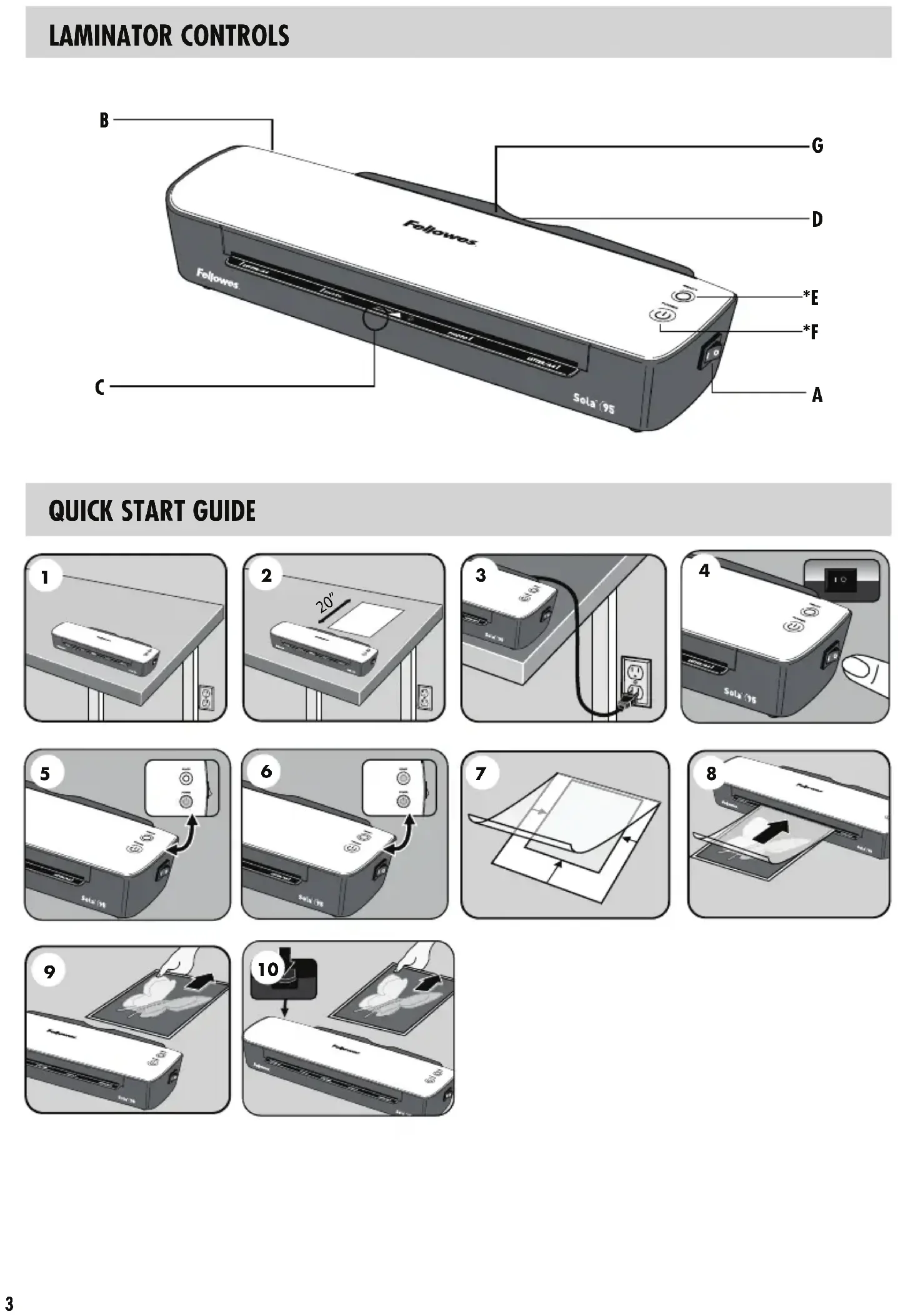

LAMINATOR CONTROLS

B G D *E *F C Followes SoLa® 95 G1 O1

QUICK START GUIDE

Illustration of a white electronic device mounted on a gray surface, with a numbered label '1' in the top-left corner (no text or symbols on the device itself)

2 20"

Illustration of a cable being inserted into an electrical outlet, showing a device and socket (no text or symbols)

4 © O1 Sola 75

5 Solar/10

6 Control Display 38

Diagram of a folded paper or sheet with arrows indicating direction, no text or symbols present

Illustration of a printer with an arrow indicating print direction (no text or symbols)

Illustration of a printer with a hand inserting a card into a screen (no text or symbols visible)

10

LAMINATOR CONTROLS

A On / off switch
B Release lever (
C Pouch / document entry slot
D Pouch / document exit

*Not push buttons; indicator lights only.

*E Ready LED (Green)
*F Power on LED (Red)

G Exit tray

CAPABILITIES

Performance

Entry width 9.5/240mm

Pouch thickness 3-5 mil

Warm up time (estimate) 4 minutes

Lamination speed approx. 12"/min(+/- 5%) (fixed speed)

Number of rollers 2

Ready indication Light (Green)

Release lever Yes

Auto Shut Off Yes

Technical Data

Voltage / Frequency /Current(Amps)	120V AC, 60Hz, 2.5A
Wattage	300 Watts
Dimensions (HxWxD):	2.4" x 14.2" x 4.4"
Net weight:	2.2lb
Max document thickness(laminating capacity)	0.02" / 0.4mm

Maximum recommended usage: Light Use, 30 laminations per week. Heavier paper materials may have an effect on quoted usage.

IMPORTANT SAFETY INSTRUCTIONS - KEEP FOR FUTURE USE

• The machine is for indoor use only. Plug the machine into an easily accessible wall socket.
• To prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or wall socket.

DO ensure the machine is on a stable surface.
DO test laminate scrap sheets and set the machine before final laminations.
DO remove staples and other metal articles prior to laminating.
DO keep the machine away from heat and water sources.
DO turn off the machine after each use.
DO unplug the machine when not in use for an extended period.
DO use pouches designed for use at the appropriate settings.
DO keep away from pets, while in use.
DO NOT leave the power cord in contact with hot surfaces.

DO NOT leave power cord hanging from cupboards or shelves.
DO NOT use appliance if the power cord is damaged.
DO NOT attempt to open or otherwise repair the machine.
DO NOT exceed the machines quoted performance.
DO NOT allow children to use this machine without adult supervision.
DO NOT laminate sharp or metal objects (eg: staples, paper clips).
DO NOT laminate heat-sensitive documents (eg: tickets, ultrasounds etc) on hot settings.
DO NOT laminate with self-adhesive pouches on hot settings.
DO NOT laminate an empty pouch.

FEATURES & TIPS

'Release' function

To remove or re-align a pouch during lamination, activate the release lever located on the back of the machine. The pouch can only be removed from the entry slot when the lever is activated.

Auto Shut Off

After 30 minutes, the machine will automatically go in to Auto Shut Off mode. The Power LED will flash red for 5 minutes and then turn off. The ready LED will turn off. To continue using the machine press the ON/OFF switch. The machine will reset itself.

• For best results, use Fellowes ^® brand pouches: 3-5 mil.
• This machine does not need a carrier to laminate. It is a carrier-free mechanism.
• Always put the item to be laminated into the appropriate sized pouch.
• Always test laminate with a similar size and thickness before final process.
• Prepare pouch and item for lamination. Place item within pouch centered and touching the leading sealed edge. Ensure the pouch is not too large for the item.
• If required, trim excess material from around the item after lamination and cooling.

SETTING UP THE LAMINATOR

1. Ensure the machine is on a stable surface.

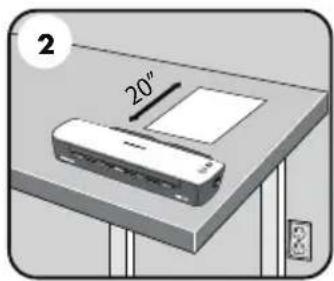

2. Check there is enough clear space (min 20") behind the machine to allow items to pass through freely.

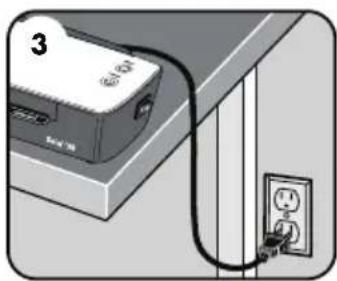

3. Plug the machine into an easily accessible main socket.

HOW TO LAMINATE

1. Switch the power on (located at the side of the machine).
2. The red 'Power on' lamp will light up. The machine is now heating up.
3. When the machine is ready, the green 'Ready' lamp will remain on.

4. Place the document into the open pouch. Ensure the document is centered against the sealed edge. Use the appropriate pouch size for the document.

5. Ensure the pouch enters the machine sealed edge first. Keep the pouch straight and central within the slot, not on an angle. Use the entry markings as a guide.

6. Upon exit, the laminated pouch may be hot and soft. To prevent jamming remove the pouch immediately. Place pouch on to a flat surface to cool. Take care when handling a hot pouch.
7. To release a pouch during lamination, activate the release lever located on the back of the machine. Gently pull pouch out of machine.

NEED HELP?

Let our experts help you with a solution.

Customer Service... www.fellowes.com

Always call Fellowes before contacting your place of purchase, see the rear cover for contact details.

TROUBLESHOOTING

Problem Possible cause Solution
No 'power on' lamp (red LED) Machine not switched on		Switch on machine at the side and at the wall socket
No 'ready' lamp after a long period (green LED)	Machine is in a hot or humid area Move the machine to a cooler and dry area
The Power LED is flashing red and the Ready LED (green) has turned off	The laminator has gone in to Auto Shut Off mode	Press the ON/OFF switch. The machine will reset itself
The ready lamp (green) and the Power LED (red) have turned off	The laminator is in Auto Shut Off mode	Press the ON/OFF switch. The machine will reset itself
Pouch is lost in the machine Pouch is jammed		Press release lever and pull out the item by hand
Jamming	Pouch was used 'open end' first
	Pouch was not centered on entry
	Pouch was not straight upon entry
	Empty pouch was used

STORAGE & CLEANING

Switch off the machine at the wall. Allow the machine to cool. The outside of the machine can be cleaned with a damp cloth. Do not use solvents or flammable materials to polish the machine.

PRODUCT REGISTRATION / WORLDWIDE WARRANTY

Thank you for purchasing a Fellowes product. Please visit www.fellowes.com/register to register your product and benefit from product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside of the machine. Fellowes warrants all parts of the laminator to be free of defects in material and workmanship for 1 year from the date of purchase by the original consumer. If any part is found to be defective during warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorized repair. Any implied warranty, including that of merchantability or fitness for particular purpose, is hereby limited in duration to the appropriate warranty period set forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty, please contact Fellowes or your dealer.

LES COMMANDES DE LA PLASTIFIEUSE

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CANADA CLASS B NOTICE - AVIS CANADA, CLASSE B

This Class B digital apparatus complies with Canadian ICES-003.

Any modifications made to this device that are not approved by Fellowes may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.
