USER MANUAL HWS31GGE HAIER

EN WARNING: Risk of fire/flammable material. The

symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

• Legend Warning – Important Safety information spit dna noitam rofni lareneG Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING! Risk of injury or suffocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance. Old appliances still have some residual value. An environmentally friendly method of dis- posal will ensure that valuable raw materials can be recovered and used again. the insulationg foam. By ensuring this product is disposed of corectly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the pro- duct, handled by the professionals. 2EN Content 1- Safety information p. 4
• 2- Safety tips p. 7
• 3- Maintenance p. 11
• 4-Accessories p. 13
• 5- Product description p. 14
• 6- Installation p. 15
• 7- Use p. 17
• 8- Energy saving tips p. 18
• 9 - Equipment p. 19
• 10- Care and cleaning p. 20
• 11- Troubleshooting p. 21
• 12- Technical data p. 25
• 13- Customer service p. 26
• 14- Wine bottle stacking #Safety information p. 27

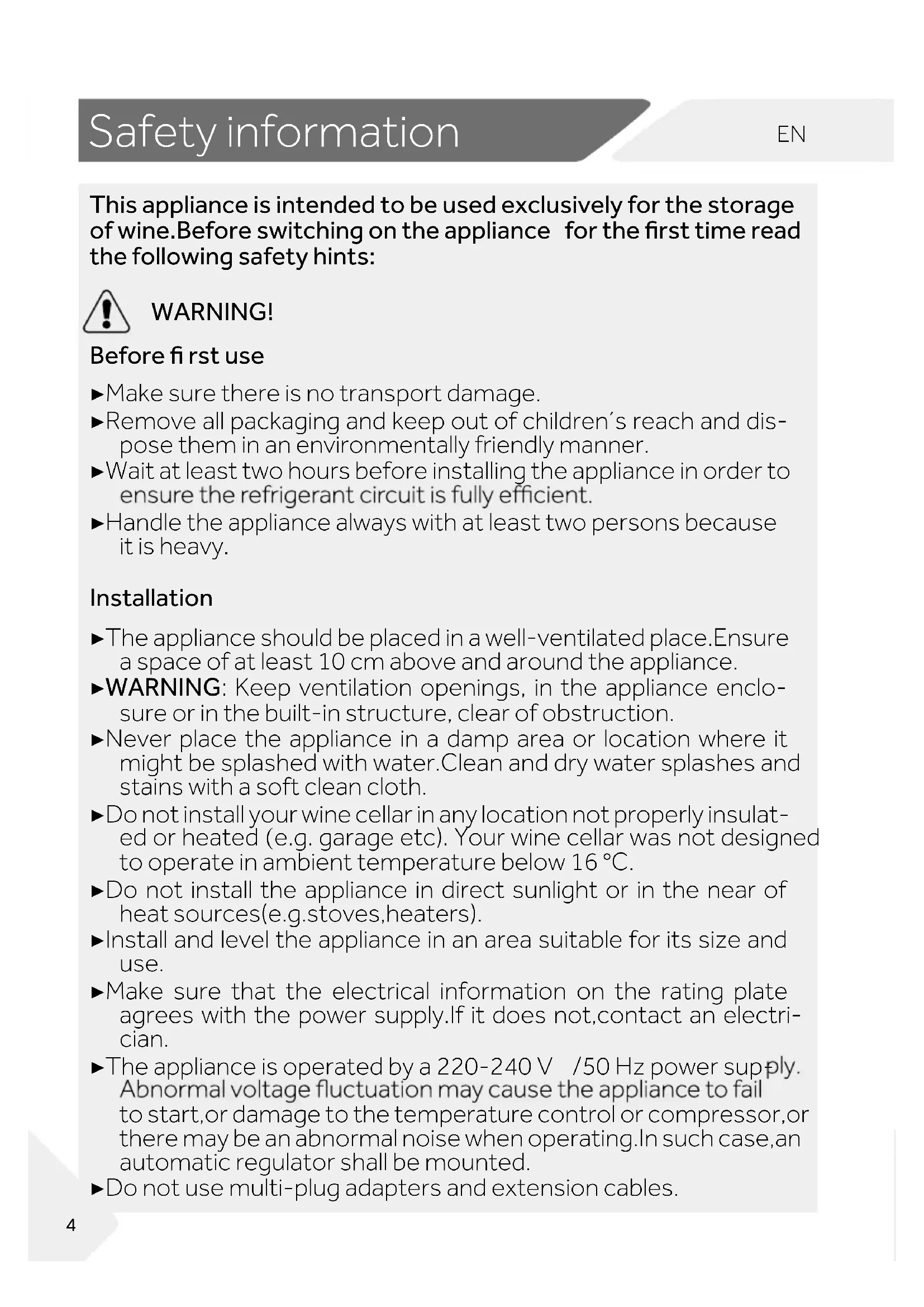

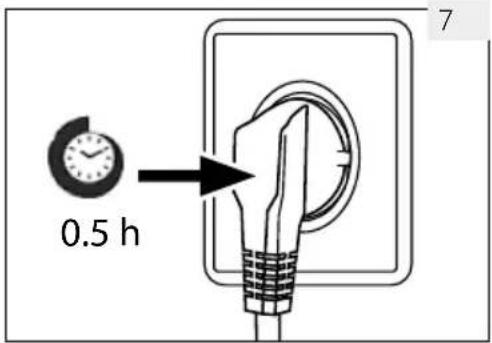

Ýëìöäóóïìäñæèìöìñ÷èñçèç÷òåèøöèçèûæïøöìùèïüéòõ÷ëèö÷òõäêè òéúìñèËèéòõèöúì÷æëìñêòñ÷ëèäóóïìäñæè éòõ÷ëèĨõö÷÷ìðèõèäç ÷ëèéòïïòúìñêöäéè÷üëìñ÷ö àÊÛ×Ò×Ð ËèéòõèĨõö÷øöè ▶ Make sure there is no transport damage. ▶ Remove all packaging and keep out of children´s reach and dis- pose them in an environmentally friendly manner. ▶ Wait at least two hours before installing the appliance in order to ▶ Handle the appliance always with at least two persons because it is heavy. Òñö÷äïïä÷ìòñ ▶ The appliance should be placed in a well-ventilated place.Ensure a space of at least 10 cm above and around the appliance. ▶ àÊÛ×Ò×Ð: Keep ventilation openings, in the appliance enclo- sure or in the built-in structure, clear of obstruction. ▶ Never place the appliance in a damp area or location where it might be splashed with water.Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install your wine cellar in any location not properly insulat- ed or heated (e.g. garage etc). Your wine cellar was not designed to operate in ambient temperature below 16 °C. ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g.stoves,heaters). ▶ Install and level the appliance in an area suitable for its size and use. ▶ Make sure that the electrical information on the rating plate agrees with the power supply.If it does not,contact an electri- cian. ▶ The appliance is operated by a 220-240 V /50 Hz power sup- to start,or damage to the temperature control or compressor,or there may be an abnormal noise when operating.In such case,an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. $EN Safety information WARNING! ▶ WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance. ▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ▶ Do not step on the power cable. ▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. ▶ Only for UK: appliance is installed, the plug should be accesible. ▶ WARNING: Do not damage the refrigerant circuit. Daily use ▶ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the ap- pliance in a safe way and understand the hazards involved. ▶ Children shall not play with the appliance. ▶ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances. ▶ Keep away children under 3 years of age from the appliance un- less they are constantly supervised. ▶ Cleaning and user maintenance shall not be made by children with out supervision. ▶ The appliance must be positioned so that the plug is accessible. ▶ If coal gas or other in ammable gas is leaking into vicinity of the appliance,turn o the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance . ▶ Wait at least 7 minutes to reconnect the power after the power has been disconnected. ▶ Do not lift the appliance by its door handles. 5EN àÊÛ×Ò×Ð

0.5EN Safety tips àÊÛ×Ò×Ð Öäìñ÷èñäñæè¦æïèäñìñê ▶ Make sure children are supervised if they carry out cleaning and maintenance. ▶ Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. Allow at least 7 minutes be- fore restarting the appliance, as frequent starting may damage the compressor. ▶ Hold the plug, not the cable, when unplugging the appliance. ▶ Do not clean the appliance with hard brushes, wire brushes, de- tergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special re- frigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with wa- ter and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher. ▶ àÊÛ×Ò×ÐDo not use mechanical devices or other means to ac- celerate the defrosting process, other than those recommended by the manufacturer. ▶ If the supply cord is damaged, it must be replaced by the manu- avoid a hazard. ▶ Do not try to repair, disassemble or modify the appliance by your- self. In case of repair please contact our customer service. ▶ If the illuminating lamps are damaged, it must be replaced by the

der to avoid a hazard. ▶ Eliminate the dust on the back of the unit at least once in the year 'EN Safety tips

▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass door with hot water. Sudden temper- ature change may cause the glass to break. ▶ If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside. Ûèéõìêèõäñ÷êäööìñéòõðä÷ìòñ àÊÛ×Ò×Ð (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse it imme- diately under running water and call immediately the eye specialist. àÊÛ×Ò×Ð The refrigeration system is under high pressure. Do not install, handle and service the appliance strictly according to the in- struction and contact the professional agent or our after-sales ser- vice to dispose of the appliance. (EN Safety tips Òñ÷èñçèçøöè This appliance is intended to be used in household and similar ap- plications such as

ments; - farm houses and by clients in hotels, motels and other residen- tial type environments; - bed and breakfast type environments; - catering and similar non-retail applications. ▶ To ensure the safe preservation of wine, please comply with this instruction for use. ▶ The details on the most appropriate part in the compartment of sidering the distribution of temperature that can be present in part of the manual. Changes or modi cations to the device are not allowed. Unin- tended use may cause hazards and loss of warranty claims. )EN Safety tips

Íìöóòöäï The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative con- sequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this prod- uct. For more detailed information about recycling of this product, service or the shop where you purchased the product. tact the professional agent or our after-sale service to dispose of the appliance. àÊÛ×Ò×Ð Ûìöîòéìñíøõüòéöø òæä÷ìòñ Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before be- ing properly disposed of. Disconnect the appliance from the mains and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance. !EN ▶ àÊÛ×Ò×Ð

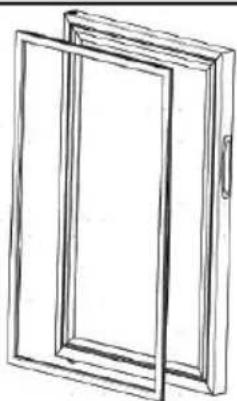

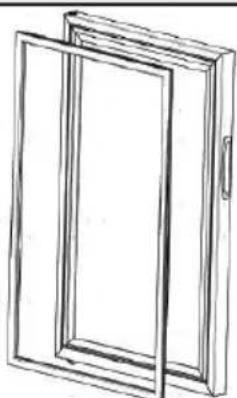

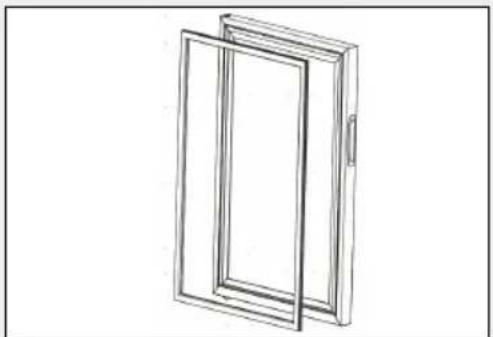

!!EN Maintenance Òñö÷äïïä÷ìòñçòòõêäöîè÷äé÷èõæïèäñìñê Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove , and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove. Ìïèäñìñê÷ëèöëèïùèö All shelves can be taken out for cleaning. Take out all bottles. Lift each shelf a little and take it out. Clean the shelf with a soft towel. Wait until the shelves are dry before putting them back in. !"Î× Êææèööòõìèö Check the accessories and literature in accordance with this list: without isolation.

Êææèööòõìèö Check the accessories and literature in accordance with this list: without isolation.

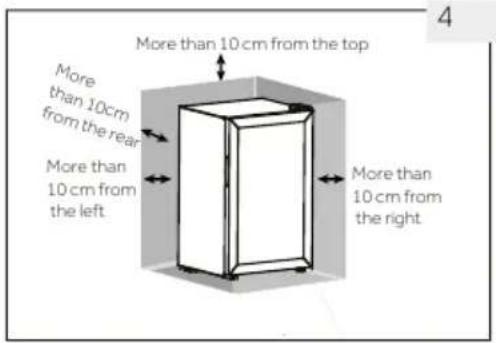

$ßèñ÷ìïä÷ìòñöóäæè For safety and energy reasons, the required ventilation distance of 10 cm in all directions must be observed (Fig. 4). àÊÛ×Ò×Ð ▶ Keep ventilation openings in the appliance or in the in-built structure clear of ob- struction. This refrigerating appliance is not intended to be used as a built-in appliance !Þñóäæîìñê ▶ Take the appliance out of the packaging. ▶ Remove all packaging materials including the foam base and all adhesive tape hold- ing the accessories. "Îñùìõòñðèñ÷äïæòñçì÷ìòñö the temperature inside the appliance and its energy consumption. Do not install the appli- ance near other heat-emitting appliances (ovens, refrigerators) without isolation.

2. Set the adjustable front feet to the desired level

3. The stability can be checked by alternately

bumping on the diagonals. The slight swaying should be the same in both directions. Other- wise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door. ðäû$%

1.2.3.3More than 10 cm from the top More than 10 cm from the leftMore than 10 cm from the rightMorethan 10cm

45EN Installation &Ïìñè÷øñìñêòé÷ëèçòòõ The appliance closes more easily if the levelling feet on the front are used:Rotate the adjustable feet (Fig. 6) to turn them up or down: ▶ Turning the feet clockwise raises the appliance. ▶ Turning the feet counterclockwise lower the appli-ance. àÊÛ×Ò×Ð To avoid risks a damaged power cord must be replaced by the customer service (see warranty card). (Îïèæ÷õìæäïæòññèæ÷ìòñ Ëèéòõèèäæëæòññèæ÷ìòñæëèæîìé ▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶Connect the plug to a properly installed household socket. ' àäì÷ìñê÷ìðè The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appli-ance is tilted. Before connecting the appliance to the power supply, wait 0.5 hours (Fig. 7) so that the oil runs back into the capsule.

Temperature AdjustmentsTemperature Adjustments

Control Panel The temperature range of display panel is 6 18 °CThe default setting temperature is 12°CYou can set the temperature according to your wine storage requirements. Interior LightInterior Light

3RZHURƩPHPRU\IXQFWLRQ3RZHURƩPHPRU\IXQFWLRQ

-&%CVUUPO ĎJDPO ĎJDPO ĎJDPO ĎJDPO ĎJDPO 5FNQFSBUVSFCVUUPOPress the "Temperature button" to light up the top icon of the current setting temperature level；Press the "Temperature button" again and set the temperature up by one step for a total of 5 steps.When the temperature reaches 18 ℃, if you continue to adjust, it will be 6 ℃, cycle in turn.When the desired gear is selected and the operation is stopped for 5 seconds, the system automatically defaults to the current setting parameters.Press the "Lighting button" once, the light in the cabinet will be on;Press the "Lighting button" again and the lights in the cabinet go out and cycle in turn.Cabinet temperature setting will be remembered.After re-plugging, it will return to the pre-power setting.Use

Îñèõêüöäùìñê÷ìóö ▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in- creases the lower the temperature in the appliance is set.

▶ Keep door seals clean so that the door always closes correctly. ▶ The most energy-sa ration requires shelves to be positioned in the appliance on factory-fresh condition, and wine to be placed without blocking the air outlet of the duct.

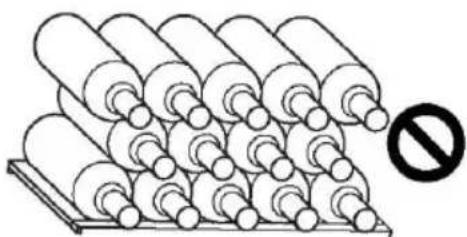

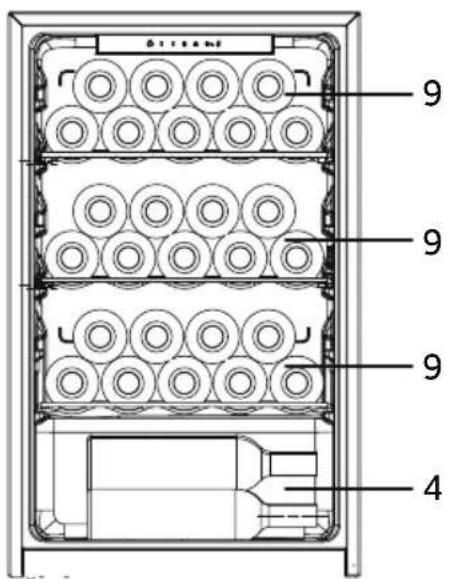

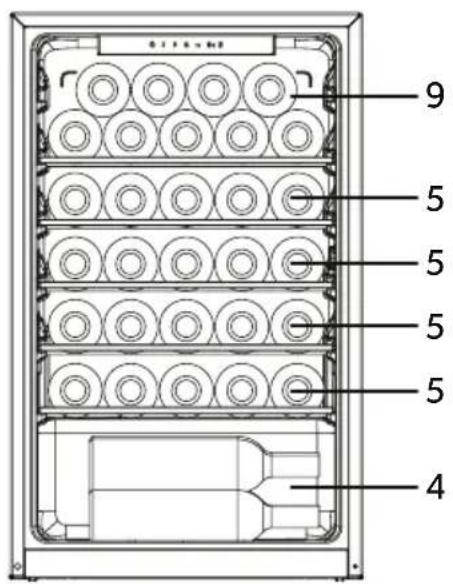

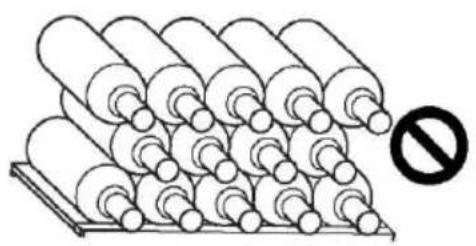

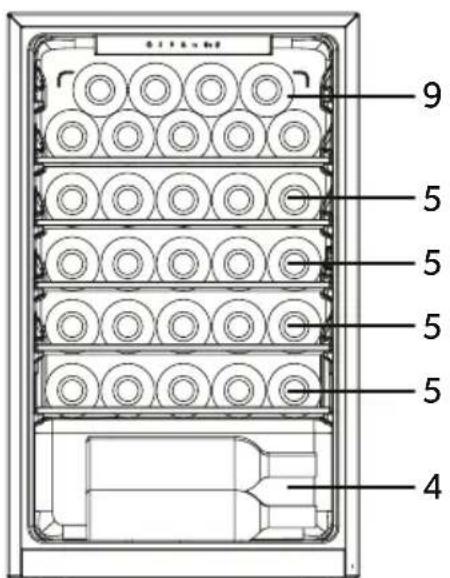

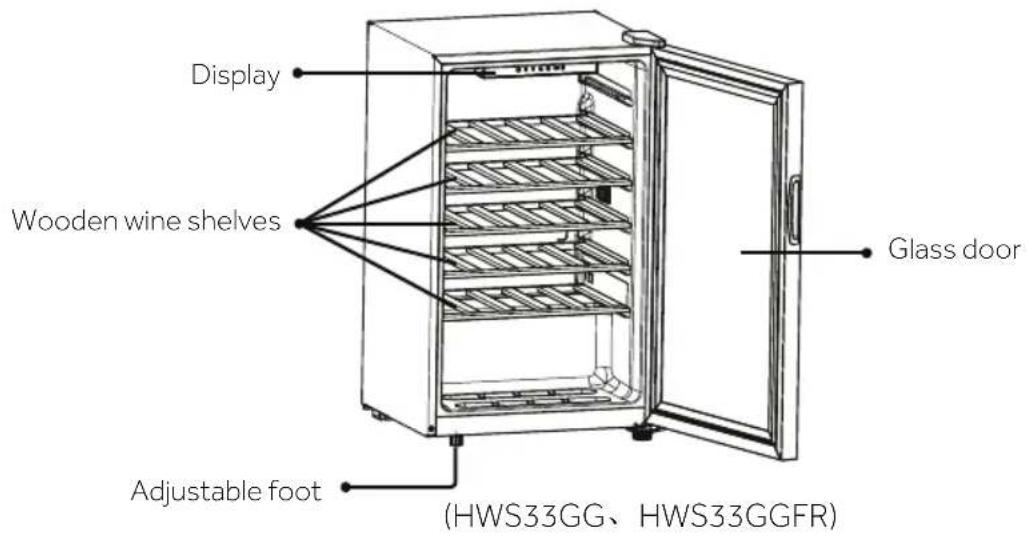

Equipment !Üëèïé "Ýëèïìêë÷ #Êø÷òðä÷ìæÍèéõòö÷ìñê Ùõèæäø÷ìòñöéòõÞöèòéàìñèÌèïïäõ Do not place too much wine in the cellar so as not to exceed the bearing capacity of the wine shelves. Do not place more than three layers of wine on each shelf. The number of wine bottles should not exceed three layers on each shelf, or the bearing capacity of the wine shelves should not exceed 15kg While the door is open,press the light button,turn on the light; press the light EXWWRQDJDLQWXUQRƩWKHOLJKW

This appliance has an automatic defrosting function. During use, ensure that the drainage hole is unblocked so as to force defrosting water to ow smoothly through the drainage hole into the water receiver inside the cellar cabin. Regularly clean water receivers at the bottom of the compartments; use a dry cloth to absorb water inside the water receivers and wipe down them (clean them every three months as suggested). Before placing the bottles inside not the wine shelves are completely stable.In addition, protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.

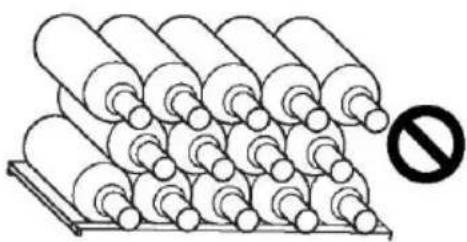

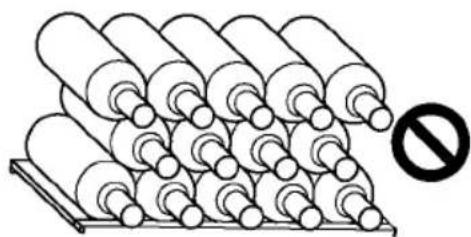

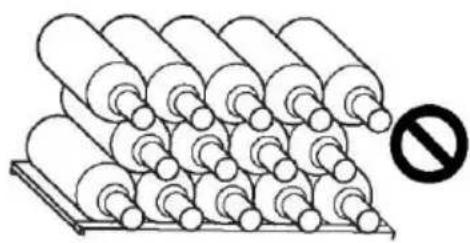

1. The shelves are designed for easy storage and easy removal of the wine.They

can be cleaned with a soft towel.

2. Regualr bottles with diameter of 76mm can be stacked.

3. Magnum bottles can be stacked on the bottom.

4. The quantitiy can vary from the depicted number or bottles if they are stackedEN

Care and cleaning The defrosting of the wine cellar is done automatically; no manual operation is needed. !Íèéõòö÷ìñê The lamp uses LED as its light source,featuring low energy consumption and long service life. If there is any abnormality,please contact the customer service.See CUSTOMER SERVICE. "Ûèóïäæìñê÷ëèÕÎÍïäðó Unplug the power cord. Clean the appliance and door gaskets as described above. Keep the door open to prevent the creation of bad odours inside. #×òñ¡øöèéòõäïòñêèõóèõìòç

1. Remove all bottles and unplug the appliance.

2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.

3. Do not tilt the wine cellar more than 45° to avoid damaging the refrigerating system.

$Öòùìñê÷ëèäóóïìäñæè Voltage12V; Max power:2W Ùäõäðè÷èõöòéÕÎÍïäðó àÊÛ×Ò×Ð Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent. LED LEDEN

Troubleshooting of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. Error Code Cause Solution Ĕ)ēìæòñåïìñîö Ĕ!"ēìæòñåïìñîö àÊÛ×Ò×Ð ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or Refrigeration sensor failure. Call after-sales service phone. Call after-sales service phone. Refrigeration sensor cryogenic alarm.EN

Troubleshooting Problem Possible Cause Possible Solution Frost on back of inner gallbladder? Too much noise? 6RXQGRIOLTXLGƫ owing in the cabi- net? Unstable Placement. Adjust the adjustable bottom foot to keep the cabinet stable. Make sure the cabinet does not touch other objects or walls. Refrigeration pipes are designed on the back of the inner liner of a wine cabinet. This is a normal phenomenon. The cabinet will automatically IURVWZLWKRXWDƩHFWLQJQRUPDO use. 6RXQGRIUHIULJHUDQWƫRZLQFLU culating pipeline of refrigeration system. This is a normal phenomenon. The wine cabinet is not working? Connection between wine ca- binet plug and power outlet. Protective mode of compressor. Make sure that the wine cabinet plug is properly connected to the power outlet;The power so- cket is live;Good fuse at home. The compressor has a protec- tive mode with an interval of 7 minutes. Why are there sli- ght ridges on both sides of the case? The phenomenon of expansion and contraction caused by heat. This is a normal phenomnon.The purpose is to ensure good heat GLVVLSDWLRQDQGKLJKZRUNLQJHƩ iciency of the wine cabinet. Door body not cl- osed tightly, air le- akage? After using the product for a per- iod of time, it is easy to make the door seal hard and distorted be- cause of the lower temperature in the cabinet. Bake the deformed area with hot air from a hairdryer or cover the deformed area with a hot towel. Close the door tightly when the door seal is soft. Compressor kee- ps running for a long time? Whether the door of the cabinet is not closed or opened too ma- ny times? Put too many drinks one time. Whether the cabinet is setting too low? Close the door tightly or reduce the number of times you open it. Do not put too many drinks one time, and leave a gap between drinks. The cabinet setting can be adju- sted appropriately.EN Troubleshooting

Problem Possible Cause Possible Solution When the wine ca- binet is running, d- oes it make a "click" sound? Can't the wine cabinet cool well? Due to temperature changes, var- ious materials due to thermal exp- ansion and contraction.During use, the action of relay and other elect- rical components causes. This is a normal phenomenon. Whether the temperatur setting is too high. Exposed to direct sunlight or heat sources nearby. There are hot drinks in the wine ca- binet. The drinks in the wine cabinet are too crowded. Whether the wine cabinet door is frequently opened or closed. Lower temperature setting. Avoid direct sunlight and keep away from heat sources. Drinks should not be overheat- ed. Drinks should not be too much one time. Please close the door tightly or reduce the number of times you open the door. Is there a peculiar smell in the wine cabinet? The newly bought wine cabinet smells of foaming agent or plastic. This is a normal phenomenon and will volatilize slowly in the follow-up. Please check the cabinet for deteriorated drinks in time. Odorous drinks shall be tightly wrapped in plastic bags. The wine cabinet should be cleaned regularly. Is there conden- sation on the wine cabinet door? Whether the door is opened too frequently or for a long time. Whether the temperature setting in the cabinet is too low. High ambient temperature and hu- midity. Please close the door tightly or reduce the number of times you open the door. The temperature in the cabinet should not be set too low. Please dry it with a dry cloth. The light is not bright? Whether the power is connected? Whether the lamp is damaged? Check the power supply. Inspection lamp.Troubleshooting

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section “website”, choose the brand of your product and your country. You will phone number and form to contact the technical assistance.EN Technical data

Explanations: 1)based on standard test results for 24 hours.The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc. 2)The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light and the air cyclye - extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; - temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; - subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; - tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; Ü÷äñçäõçöäñççìõèæ÷ìùèö This product meets the requirements of all applicable EC directives with the correspon- ding harmonised standards, which provide for CE marking. Brand Rated bottle capacity Household refrigeration category Annual energy consumption (kWh/year)

Storage volume (L) Climate class: This appliance is intended to be used at an ambient temperatur between 16 °C and 38 °C

Airborne acoustical noise emissions (db(A) re 1pW) Type of appliance This appliance is intended to be used exclusively for the storage of wine. Dimensions (D/W/H in mm) Haier HWS33GG
