Product Type	Toaster
Model	PC-TA 1194
Brand	ProfiCook
Power supply	220-240 V~, 50/60 Hz
Power	1370 - 1630 W
Protection class	I
Net weight	Approx 2.17 kg
Number of slots	2
Browning control	6 levels (1 to 6)
Special functions	Defrost (DEFROST), Reheat (REHEAT), Cancel (CANCEL)
Included accessories	Removable rolling support for rolls
Crumb tray	Removable drawer, 2 separate trays
Cable storage	Cable winder under the base
Safety	Automatic shut-off, hot surface indicator, burn protection
Maintenance	Do not immerse, clean the housing with a damp cloth, empty the crumb tray
Use	For bread and rolls, household use
Repairability	Contact an authorized technician; do not repair yourself

Frequently Asked Questions - PCTA 1194 PROFICOOK

How to use the ProfiCook PCTA 1194 toaster?

Plug in the appliance, set the browning level from 1 to 6, place the slices of bread into the slots, lower the lever until it locks. The appliance toasts automatically and ejects the bread. Use the DEFROST, REHEAT or CANCEL buttons for additional functions.

How to clean the toaster?

Unplug the appliance and let it cool down. Never immerse it in water. Clean the housing with a damp cloth. Remove the crumb tray and empty it. Do not use metal brushes or abrasive products.

What to do if bread gets stuck in the toaster?

Unplug the appliance and let it cool down. Use a non-conductive object (e.g. a wooden stick) to free the slice. Never use a metal fork or knife. If necessary, turn the appliance over to dislodge the bread.

How to use the roll support?

Place the rolling support on the toaster slots. Put at most one roll per support. Set the browning level to a maximum of 3. Do not butter the bread. Wait one minute between cycles.

Why is my bread too light or too dark?

Adjust the browning setting. For lighter toast, choose a low level (1-2); for darker, a high level (5-6). When in doubt, start with a low level.

The toaster does not turn on, what should I do?

Check that the plug is properly connected and that the outlet works. Check the main circuit breaker. If the appliance still does not turn on, contact customer service.

Can I use the toaster with an external timer?

No, the appliance must not be used with an external timer or a separate remote control system, according to safety instructions.

How to store the power cord?

The cable can be wound under the base of the appliance thanks to the integrated storage system. Let the appliance cool down before storing it in a dry place out of reach of children.

Is the appliance safe for children?

The appliance can be used by children aged 8 and above under supervision. Children must not play with the appliance. Keep the appliance and its cord out of reach of children under 8 years.

How to dispose of the toaster at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic appliances. Check with your local municipality.

USER MANUAL PCTA 1194 PROFICOOK

Red modern kitchen toaster with white body and black handle, featuring control knobs and a 2.5x speedometer (no visible text or symbols on the device itself)

Toaster PC-TA 1194

Broodrooster • Grille-pain • Tostadora

Tostapane • Toaster • Toster

Kenyérpirító · Тостер · محصة

CE

Labeled diagram of a kitchen toaster with numbered parts for identification

Bedienungsanleitung

Behuizing, broodjesrek

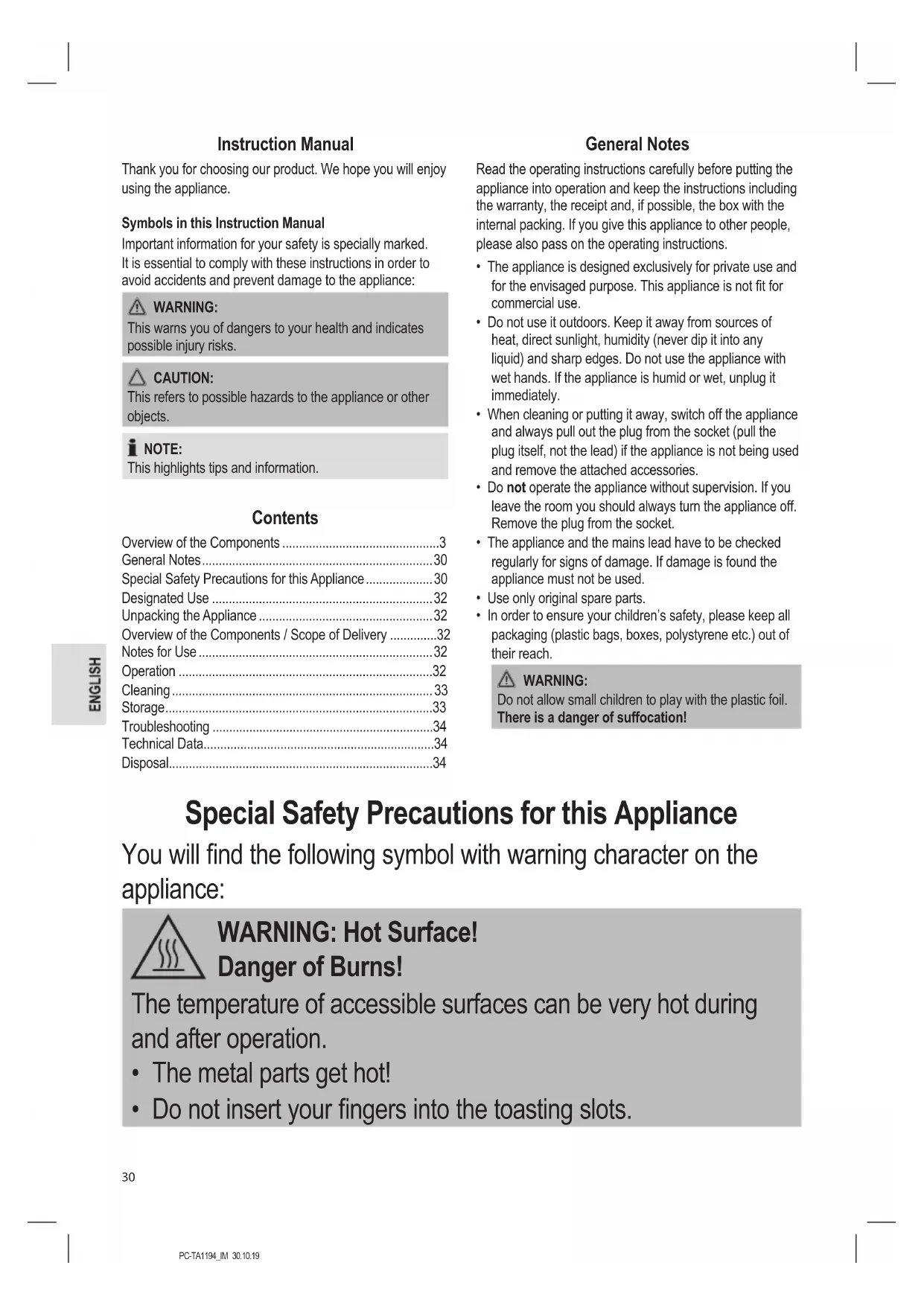

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

Contents

Overview of the Components ....3

General Notes......30

Special Safety Precautions for this Appliance....30

Designated Use 32

Unpacking the Appliance 32

Overview of the Components / Scope of Delivery ......32

Notes for Use 32

Operation 32

Cleaning 33

Storage....33

Troubleshooting ....34

Technical Data....34

Disposal....34

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot Surface! Danger of Burns!

The temperature of accessible surfaces can be very hot during and after operation.

• The metal parts get hot!
- Do not insert your fingers into the toasting slots.

WARNING: Hot Surface!

Danger of Burns!

- Do not carry or lift the appliance during operation, but turn it off first and then disconnect the mains plug. Wait until the appliance has cooled down.

• Always watch the appliance while it is being used!

WARNING:

Very dry bread can start to burn when being toasted!

- Do not operate the appliance without the crumb trays being inserted, as these also serve as heat protection.

- Do not insert forks, knives or other objects in the toasting slot.

- Do not set up the appliance next to inflammable objects (e.g. curtains, wood, etc.)!

- Do not operate the appliance with an external timer or separate remote control system.

- Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION:

This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”.

Designated Use

This appliance is designed to toast slices of bread and rolls by using the toasting attachment.

It is intended for domestic use and use of similar areas. It may only be used in the manner described in this instruction manual. The appliance may not be used for commercial purposes.

Any other use is considered as not intended and may lead to damage of property or even to personal injury.

The manufacturer assumes no liability for damage which may occur through incorrect use.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material such as plastic films, filler material, cable ties and cardboard packaging.
3. Check the content for any missing parts.
4. In the event that the packaging content should be incomplete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately.

NOTE:

There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under “Cleaning”.

Overview of the Components / Scope of Delivery

1 Toasting well
2 Removable bread roll attachment
3 Housing
4 Crumb tray
5 Carriage lever
6 "Degree of browning" display
7 "Degree of browning" controller
8 DEFROST button "Thawing" (with indicator light)
9 REHEAT button "Warming" (with indicator light)
10 CANCEL button "Stop" (with indicator light)

Notes for Use

Before Initial Use

CAUTION:

In order to remove the protective layer on the heating coil you should operate the appliance approximately three times when it is empty. Please select the maximum level of browning.

NOTE:

Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

Mains Lead

Unwind the mains lead completely. Pass the cord through the cable guide at the right side of the appliance.

Electrical Connection

Check whether the mains voltage that you want to use, corresponds with that of the appliance. You will find the information about it on the rating plate.

Operation

NOTE:

For independent use of the right and left pair of roasting slots, the appliance is equipped with two identical control panels.

1. Connect the appliance only to a correctly installed safety socket.
2. Use the controller to set the degree of browning to any level between 1 (lightest) and 6 (darkest). If you are not sure start with a lower setting. The degree of browning is displayed above the controller.

3. Insert the slices of bread in the toasting slot and lower the slide with the lever until it snaps into place. The indicator light at the CANCEL button lights up.

4. The appliance starts the toasting. When the set level of browning is reached, the appliance switches off automatically. The slide pops up automatically.

WARNING:

There is a danger of burns when removing small slices of bread!

1. Disconnect the power supply from the socket when you are not using the appliance.

Special Functions

The buttons on the appliance can only be used if the appliance has been turned on by using the carriage lever.

NOTE:

• Warming or thawing:
  The relevant LED indicates the function.
• The special functions REHEAT and DEFROST can only be activated about 20 seconds after the roasting process has started.

CANCEL = To stop toasting in process.

REHEAT = To warm bread already toasted.

DEFROST = To thaw and toast deep-frozen bread.

Bread Roll Attachment (Removable)

Want to warm up or toast some rolls?

Place the bread roll attachment onto the toasting slot.

CAUTION:

• Do not overload the bread roll attachment! Place a maximum of one roll on the bread roll attachment!
• Set the browning control to level 3 at maximum.
• Wait for one minute between two toasting cycles.
• Never coat the roll with fat or butter. Fat could drip down and ignite!

WARNING: Danger of Burns!

Let the bread roll attachment cool down before storing it again.

NOTE:

In addition, you can also serve toast slices in the bread roll attachment.

Cleaning

WARNING:

• Pull the mains plug out of the mains socket before you clean the appliance and allow the appliance to cool down.
• Do not immerse the appliance in water! Doing so may result in an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use abrasive or aggressive cleaners.

Housing, Bread Roll Attachment

Only use a slightly damp cloth to clean the outside of the appliance.

Crumb Trays

The appliance comes with two separate crumb trays. They are located on the opposite side of the carriage lever.

- Pull the crumb tray out by the handle, remove the small pieces of bread and push the tray back in place.

Storage

WARNING:

As the housing and the metal parts become hot during operation, allow the appliance to cool down before putting it away.

• Clean the appliance as described and allow to dry completely. We recommend to keep the appliance in the original packaging if the appliance will not be used for long periods.
• Always keep the appliance out of the reach of children in a dry, well ventilated place.

Mains Cable Take-Up Appliance

The mains cable can be wound up on the base.

Troubleshooting

Problem Possible Cause	Solution
The appliance does not function.	The appliance has no power supply. Test the	socket with another appliance.
		Plug in the mains plug correctly.
		Check the main circuit breaker.
	The appliance is faulty. Contact our service	centre or a specialist.
The bread is too dark. The	toaster setting was too high. Select a lower toaster setting.
The bread is too light. The	toaster setting was too low. Select a higher toaster setting.
The toasting slots no longer rise.	A slice of bread is trapped in the slot.	WARNING:Disconnect the plug from the socket! Allow the appliance to cool down!
		Free the slice of bread with an insulated object, e. g. a wooden stick. If necessary turn the toaster over so that the slice of bread falls out.

Technical Data

Model: PC-TA 1194

Power supply: 220 - 240 V\~, 50 / 60 Hz

Power consumption: 1370-1630W

Protection class:....I

Net weight: .... approx. 2.17 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
