PCTA 1252 - Toaster PROFICOOK - Free user manual and instructions

Product type	Toaster
Brand	ProfiCook
Model	PCTA 1252
Net weight	Approximately 2.2 kg
Power supply	220–240 V~, 50/60 Hz, 1260-1500 W
Protection class	I
Number of toasting slots	2 (with independent controls)
Browning levels	7 (1 = light, 7 = dark)
Special functions	Reheat, defrost, manual stop (cancel)
Included accessories	2 removable roll holders
Crumb tray	2 separate removable trays
Automatic shut-off	Yes, at end of toasting
Care and cleaning	Clean with a damp cloth; do not immerse; removable crumb tray
Safety	Do not insert metal utensils; use only under supervision
Storage	Store in a dry, well-ventilated place, out of reach of children

Frequently Asked Questions - PCTA 1252 PROFICOOK

How to use the toaster for the first time?

Before first use, run the appliance about three times without bread at the highest browning level to remove the protective layer. Light smoke and odor are normal. Ensure good ventilation.

How to adjust the browning level?

Use the browning level control knob (indicator from 1 to 7). For a light result, choose 1; for dark, choose 7. When in doubt, start with a low level.

How to use the reheat function?

After lowering the carriage, press the ≈ « reheat » button. The indicator lights up. The appliance reheats already toasted bread without further browning.

How to defrost frozen bread?

After lowering the carriage, press the ⚙ « defrost » button. The appliance defrosts and then toasts the bread automatically.

What to do if bread gets stuck in the slot?

Unplug the appliance and let it cool down. Use an insulated object (wooden stick) to dislodge the slice. Never use metal utensils.

How to clean the toaster?

Unplug and let cool. Clean the housing with a damp cloth. Remove the crumb trays and empty them. Never immerse the appliance in water.

Why does the toaster emit odor or smoke during first use?

This is normal: the protective layer on the heating elements is burning off. Run the appliance empty three times at maximum level to remove it. Ensure sufficient ventilation.

Can I toast rolls?

Yes, use the provided removable roll holders. Fold down the metal hooks, place the holder on the toasting slot and proceed as for bread. Place only one roll at a time and set browning to maximum 3.

How to wind the power cord?

The toaster is equipped with a cord winder underneath the appliance. Wind the cord around the designated lugs for tidy storage.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the power outlet works. If the problem persists, contact customer service. Do not attempt to repair the appliance yourself.

USER MANUAL PCTA 1252 PROFICOOK

Exterior view of a modern stainless steel PRAP Cook 100 grater with four side grates and control knobs (no text or symbols on the device itself)

Toaster PC-TA 1252

Toaster • Broodrooster • Grille-pain

Tostadora • Tostapane • Toster

Kenyérpirító · Тостер · محصة

CE

Bedienungsanleitung......Seite 4
Instruction Manual...... Page 7
Gebruiksaanwijzing......Pagina 10
Mode d'emploi.... Page 13
Manual de instrucciones ...... Página 17
Istruzioni per l'uso....Pagina 21
Instrukcja obsługi......Strona 24
Használati utasítás .... Oldal 28
Руководство по эксплуатации ...... стр. 31
37 صفحة دليل التعليمات

Be sure to read the separately enclosed safety instructions first.

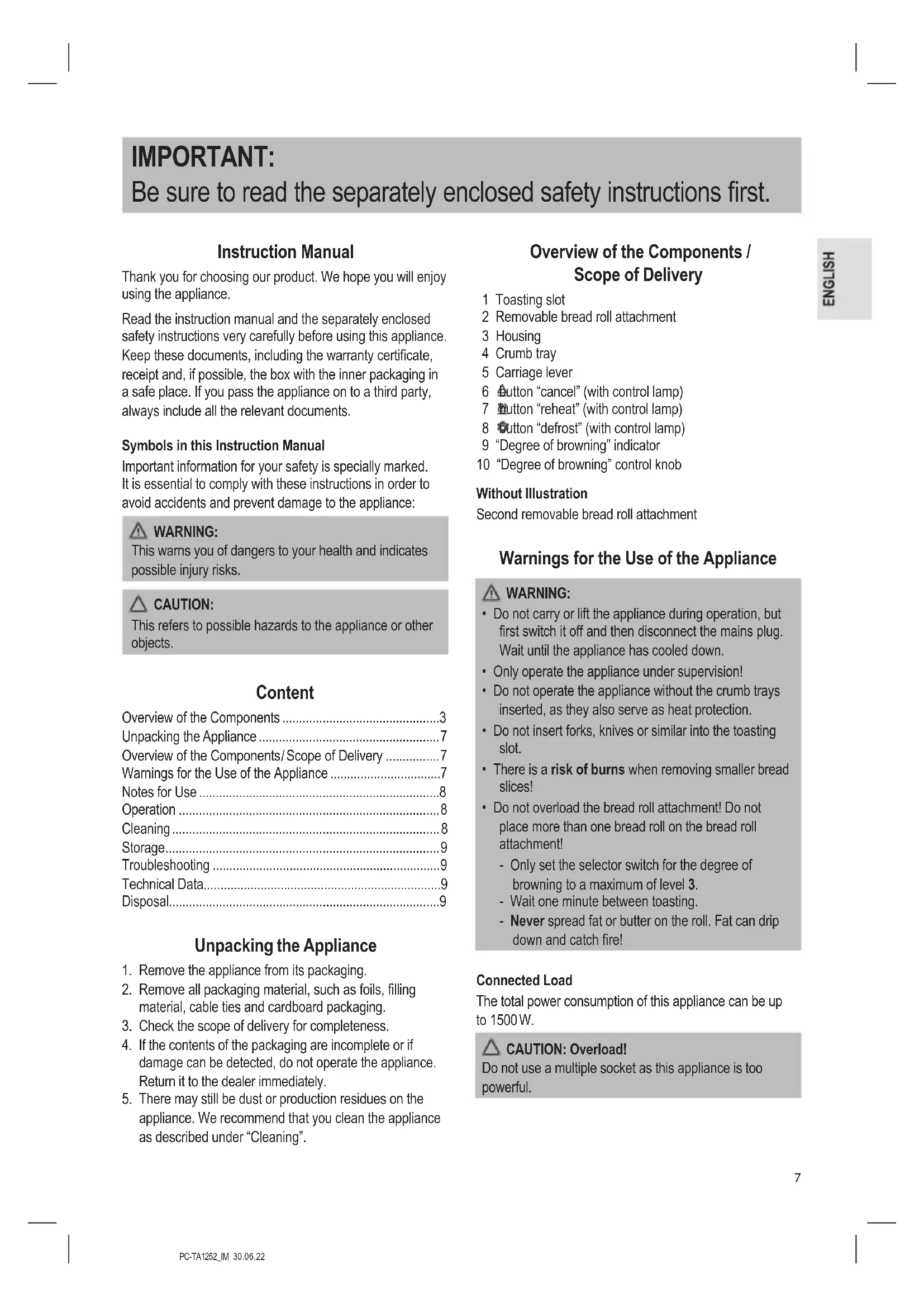

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Content

Overview of the Components ....3

Unpacking the Appliance 7

Overview of the Components/Scope of Delivery ....7

Warnings for the Use of the Appliance 7

Notes for Use 8

Operation 8

Cleaning 8

Storage....9

Troubleshooting 9

Technical Data....9

Disposal....9

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.
5. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Toasting slot
2 Removable bread roll attachment
3 Housing
4 Crumb tray
5 Carriage lever
6 Button "cancel" (with control lamp)
7 Button "reheat" (with control lamp)
8 button "defrost" (with control lamp)
9 "Degree of browning" indicator
10 "Degree of browning" control knob

Without Illustration

Second removable bread roll attachment

Warnings for the Use of the Appliance

WARNING:

• Do not carry or lift the appliance during operation, but first switch it off and then disconnect the mains plug. Wait until the appliance has cooled down.
• Only operate the appliance under supervision!
• Do not operate the appliance without the crumb trays inserted, as they also serve as heat protection.
• Do not insert forks, knives or similar into the toasting slot.
• There is a risk of burns when removing smaller bread slices!
• Do not overload the bread roll attachment! Do not place more than one bread roll on the bread roll attachment!
• Only set the selector switch for the degree of browning to a maximum of level 3.
• Wait one minute between toasting.
• Never spread fat or butter on the roll. Fat can drip down and catch fire!

Connected Load

The total power consumption of this appliance can be up to 1500 W.

CAUTION: Overload!

Do not use a multiple socket as this appliance is too powerful.

Notes for Use

Before First Use

To remove the protective layer on the heating coil, you should operate the appliance about three times without toasting food. Select the highest browning level.

Slight smoke and odours are normal during this process. Make sure there is sufficient ventilation.

Mains Cable

Unwind the mains cable completely. Pass the cable through the cable guide on the right side of the appliance.

Electrical Connection

Check that the mains voltage you want to use matches that of the appliance. You will find the information on the type plate.

Operation

For independent use of the right and left pair of roasting slots, the appliance has two identically equipped control panels.

1. Unwind the mains cable completely.
2. Only connect the appliance to a properly installed earthed socket.

3. Adjust the browning level with the control knob as desired from the lightest level 1 to the darkest level 7. If in doubt, start with a lower setting.

4. Place the bread slice(s) in the toast slot and pull the carriage down with the lever until it engages. The control lamp at the △ button lights up.

5. The appliance starts to toast. When the set browning level is reached, the appliance switches off automatically. The slide moves up automatically.
6. When you no longer need the appliance, disconnect the mains plug from the socket.

Special Functions

The special functions can only be selected after the appliance has been switched on with the lever.

Reheat or Defrost:

The corresponding control lamp indicates the function.

[0705]	To stop the toasting process prematurely.
[7ATY]	To reheat bread that has already been toasted.
[ABYA]	For defrosting and then toasting frozen bread.

Bread Roll Attachment (Removable)

Do you want to warm up or toast bread rolls?

1. Fold down the metal hooks from the bread roll attachment.
2. Place the bread roll attachment on the toasting slot.
3. Operate the appliance as described previously.

To store the bread roll attachment again to save space, simply fold up the metal hooks again.

Cleaning

WARNING:

• Always unplug the appliance from the mains and let it cool down before cleaning.
• Do not immerse the appliance in water! It could cause an electric shock or fire.

CAUTION:

• Do not use a wire brush or other abrasive objects.
• Do not use harsh or abrasive cleaners.

Housing and Bread Roll Attachment

To clean the outside of the appliance and the bread roll attachment, use only a moderately damp cloth.

Crumb Trays

The appliance has two separate crumb trays. These are located on the opposite side of the carriage lever.

- Pull out the crumb tray by the handle, remove the bread residues and push the tray back in.

Storage

• Clean the appliance as described.
• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place.

Winding Device for Mains Cable

You can wind up the mains cable at the bottom part.

Troubleshooting

Problem Possible Cause Remedy
The appliance has no function.	The appliance has no power supply. Check the power socket with another appliance.
	The appliance is defective. Contact our service or a specialist.
The bread is getting too dark. The toasting level is too high. Select a lower toasting level.
The bread is too light. The toasting level was set too low. Select a higher toasting level.
The toasting slide no longer moves up.	A slice of bread has jammed in the chute.	WARNING: Pull the mains plug out of the socket! Let the appliance cool down!
		Free the bread slice with an insulated object, e. g. a wooden stick. If necessary, turn the toaster over so that the bread slice falls out.

Technical Data

Model: PC-TA 1252

Power supply: 220-240 V\~, 50/60 Hz

Power consumption: 1260–1500W

Protection class: I

Net weight: .... approx. 2.2 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
