PCTA 1244 - Toaster PROFICOOK - Free user manual and instructions

Product type	Toaster
Brand	ProfiCook
Model	PCTA 1244
Power	770–920 W
Voltage	220–240 V~, 50/60 Hz
Protection class	I
Net weight	approx. 1.4 kg
Number of slots	2
Browning control	6 levels with indicator light
Special functions	Reheat, Defrost, Bagel and baguette, Cancel
Roll accessory	Removable, included
Crumb tray	Removable, serves as heat shield
Auto shut-off	Yes, at end of toasting
Control type	Push buttons and carriage lever
Indicator lights	For functions and browning level
Cable guide	Yes, at rear
Cable winder	Yes, under the appliance
Cleaning	Damp cloth, do not immerse
Safety	Do not use without tray, do not insert metal objects

Frequently Asked Questions - PCTA 1244 PROFICOOK

How to set the browning level?

After lowering the carriage lever, press the button ◀▶ multiple times to select the desired level, from lightest to darkest. If in doubt, start with a low level.

What to do if the bread is too dark or too light?

If the bread is too dark, reduce the browning level next time. If it's too light, increase the level. Adjust using the button ◀▶.

How to use the defrost function?

Place frozen bread in the slot, lower the lever, then press the ✉ (defrost) button. The indicator lights up. The appliance defrosts and then toasts automatically.

How to use the bagel/baguette function?

Cut the bagel or baguette in half. Place the halves in the toaster with the cut side facing outward. Lower the lever and press the bagel and baguette button. Only one side will be toasted.

How to use the roll accessory?

Fold down the metal hooks of the accessory, place it on the toasting slot, then operate the appliance normally. Place only one roll at a time and do not exceed browning level 3.

What to do if the carriage does not lift?

Unplug the appliance and let it cool down. A slice of bread may be stuck. Free it using an insulated object such as a wooden stick. If necessary, turn the toaster over to let it fall out.

How to clean the toaster?

Unplug the appliance and let it cool down. Remove the crumb tray and empty it. Clean the housing and the roll accessory with a slightly damp cloth. Never immerse the appliance in water.

Can I toast buttered bread?

No, never put grease or butter on the bread before toasting. The grease can drip and catch fire, damaging the appliance.

What to do if the appliance does not turn on?

Check that the power outlet works with another appliance. Ensure the carriage lever is fully lowered until it clicks. If the problem persists, contact a specialized service.

How to store the toaster?

Clean the appliance, wind the cable under the appliance using the cable winder, and store it in a dry, well-ventilated place out of reach of children. Preferably use the original packaging.

USER MANUAL PCTA 1244 PROFICOOK

Black rectangular toaster with digital display and control buttons (no visible text or symbols on device body)

Toaster PC-TA 1244

Toaster • Automatische broodrooster • Grille-pain

Tostadora • Tostapane • Toster

Automata kenyérpirító • Тостер • محصة

CE

Bedienungsanleitung......Seite 4
Instruction Manual...... Page 7
Gebruiksaanwijzing......Pagina 10
Mode d'emploi.... Page 13
Manual de instrucciones ...... Página 16
Istruzioni per l'uso....Pagina 20
Instrukcja obsługi......Strona 23
Használati utasítás .... Oldal 27
Руководство по эксплуатации ...... стр. 30
36 صفحة ____ دليل التعليمات

Be sure to read the separately enclosed safety instructions first.

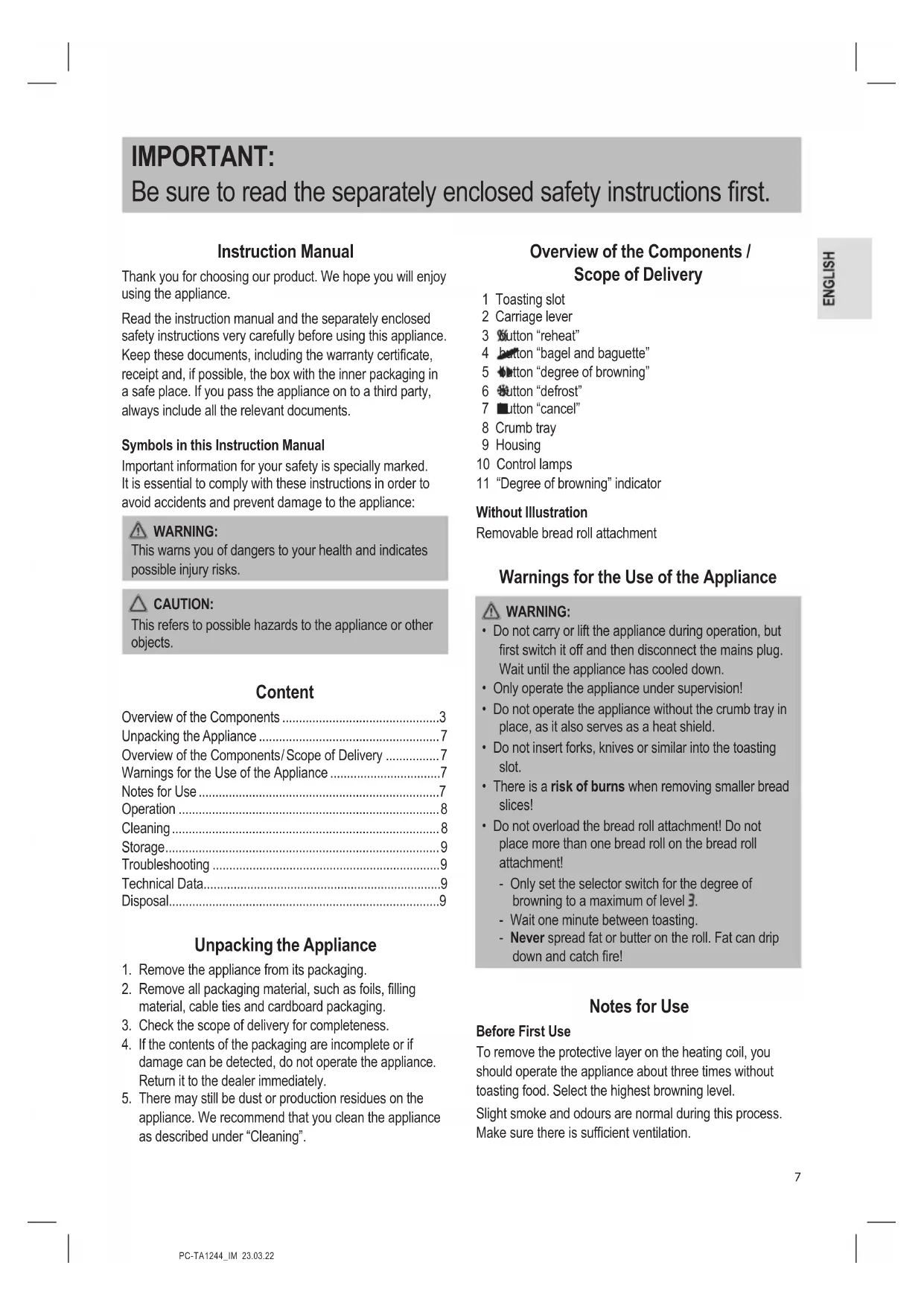

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Content

Overview of the Components ....3

Unpacking the Appliance 7

Overview of the Components/Scope of Delivery ....7

Warnings for the Use of the Appliance ....7

Notes for Use 7

Operation 8

Cleaning 8

Storage....9

Troubleshooting 9

Technical Data....9

Disposal....9

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.
5. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Toasting slot
2 Carriage lever
3 Button "reheat"
4 button "bagel and baguette"
5 button "degree of browning"
6 Button "defrost"
7 Button "cancel"
8 Crumb tray
9 Housing
10 Control lamps
11 "Degree of browning" indicator

Without Illustration

Removable bread roll attachment

Warnings for the Use of the Appliance

WARNING:

• Do not carry or lift the appliance during operation, but first switch it off and then disconnect the mains plug. Wait until the appliance has cooled down.
• Only operate the appliance under supervision!
• Do not operate the appliance without the crumb tray in place, as it also serves as a heat shield.
• Do not insert forks, knives or similar into the toasting slot.
• There is a risk of burns when removing smaller bread slices!
• Do not overload the bread roll attachment! Do not place more than one bread roll on the bread roll attachment!
• Only set the selector switch for the degree of browning to a maximum of level 3.
• Wait one minute between toasting.
• Never spread fat or butter on the roll. Fat can drip down and catch fire!

Notes for Use

Before First Use

To remove the protective layer on the heating coil, you should operate the appliance about three times without toasting food. Select the highest browning level.

Slight smoke and odours are normal during this process.

Make sure there is sufficient ventilation.

Mains Cable

Unwind the mains cable completely. Pass the cable through the cable guide at the back of the appliance.

Electrical Connection

Check that the mains voltage you want to use matches that of the appliance. You will find the information on the type plate.

Buttons

The buttons on the appliance cannot be used until the appliance has been switched on with the lever.

Operation

1. Unwind the mains cable completely.
2. Only connect the appliance to a properly installed earthed socket.
3. Place the bread slice(s) in the toast slot and pull the carriage down with the lever until it locks into place. The control lamps above the buttons and light up.
4. Press the ◀ button repeatedly to adjust the browning level as desired from the lightest level 1 to the darkest level 7. If in doubt, start with a smaller setting.
5. The appliance starts to toast. When the set browning level is reached, the appliance switches off automatically. The slide moves up automatically.
6. When you no longer need the appliance, disconnect the mains plug from the socket.

Special Functions

To use the desired special functions, press the respective button after pressing the lever down.

The corresponding control lamp indicates the function.

	Cancel To stop the toasting process prematurely.
	Defrost	For defrosting and then toasting frozen bread.
	Bagel and baguette	One-side toastingCut the bagel or baguette in half.Place the bagel or baguette in the toaster with the outside facing out.
$$$	Reheat	To reheat bread that has already been toasted.

Bread Roll Attachment (Removable)

Do you want to warm up or toast bread rolls?

1. Fold down the metal hooks from the bread roll attachment.
2. Place the bread roll attachment on the toasting slot.
3. Operate the appliance as described previously.

To fold the metal hooks back together, pull them apart slightly.

Cleaning

WARNING:

• Always unplug the appliance from the mains and let it cool down before cleaning.
• Do not immerse the appliance in water! It could cause an electric shock or fire.

CAUTION:

• Do not use a wire brush or other abrasive objects.
• Do not use harsh or abrasive cleaners.

Housing and Bread Roll Attachment

To clean the outside of the appliance and the bread roll attachment, use only a moderately damp cloth.

Crumb Tray

The crumb tray is located on the opposite side of the carriage lever.

- Pull out the crumb tray by the handle, remove the bread residues and push the tray back in.

Storage

• Clean the appliance as described.
• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place.

Winding Device for Mains Cable

You can wind up the mains cable at the bottom part.

Troubleshooting

Problem Possible Cause Remedy
The appliance has no function.	The appliance has no power supply. Check the power socket with another appliance.
	The appliance is defective. Contact our service or a specialist.
The bread is getting too dark. The toasting level is too high. Select a lower toasting level.
The bread is too light. The toasting level was set too low. Select a higher toasting level.
The toasting slide no longer moves up.	A slice of bread has jammed in the chute.	WARNING: Pull the mains plug out of the socket! Let the appliance cool down!
		Free the bread slice with an insulated object, e. g. a wooden stick. If necessary, turn the toaster over so that the bread slice falls out.

Technical Data

Model: PC-TA 1244

Power supply: 220–240 V\~, 50/60 Hz

Power consumption: 770–920 W

Protection class: I

Net weight: .... approx. 1.4 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
