| Brand | Livarno Lux |
| Model | IAN 290167 |
| Product Type | LED Strip |
| Usage | Indoor, dry enclosed rooms |
| Input Voltage | 100-240 V~, 50/60 Hz |
| Total Power | 16 W |
| Number of LEDs | 72 |
| Maximum Length | 1 m |
| Protection Class | II |
| Protection Rating | IP20 |
| Replaceable LEDs | No |
| Dimmer Compatible | No |
| Shortenable | Yes, at marked cutting points |
| Power Supply | Power adapter (included) |
| Delivery Contents | LED strip, power adapter, cable holder, adhesive tape, instruction manual |
| Mounting | Adhesive (on clean and dry surface) |
| Maintenance | Dry lint-free cloth |
| Warranty | 36 months |
| Certifications | CE |
| Article Number | 14125406L / 14125506L |
Frequently Asked Questions - IAN 290167 Livarno Lux
User questions about IAN 290167 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual IAN 290167 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 290167 by Livarno Lux.
USER MANUAL IAN 290167 Livarno Lux
Assembly, operating and safety instructions
NL BE
POWER-LED-BAND
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE


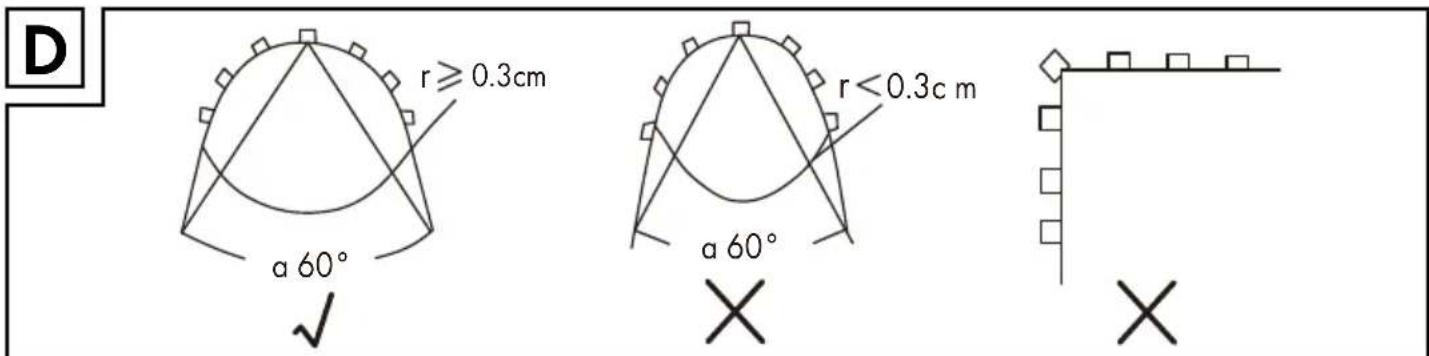

D r≥0.3cm α60° r<0.3cm α60° X XIntended use Page 12
Scope of delivery Page 13
Parts Description......Page 13
Technical Data Page 13
Safety Page 13
Safety instructions......Page 13
Initial use Page 14
Trimming the LED tape Page 14
Installing the LED strip Page 14
Switching the LED strip on/off......Page 14
Maintenance and Cleaning......Page 15
Disposal Page 15
Warranty and Service......Page 15
Warranty Page 15
Service address......Page 15
Declaration of Conformity Page 15

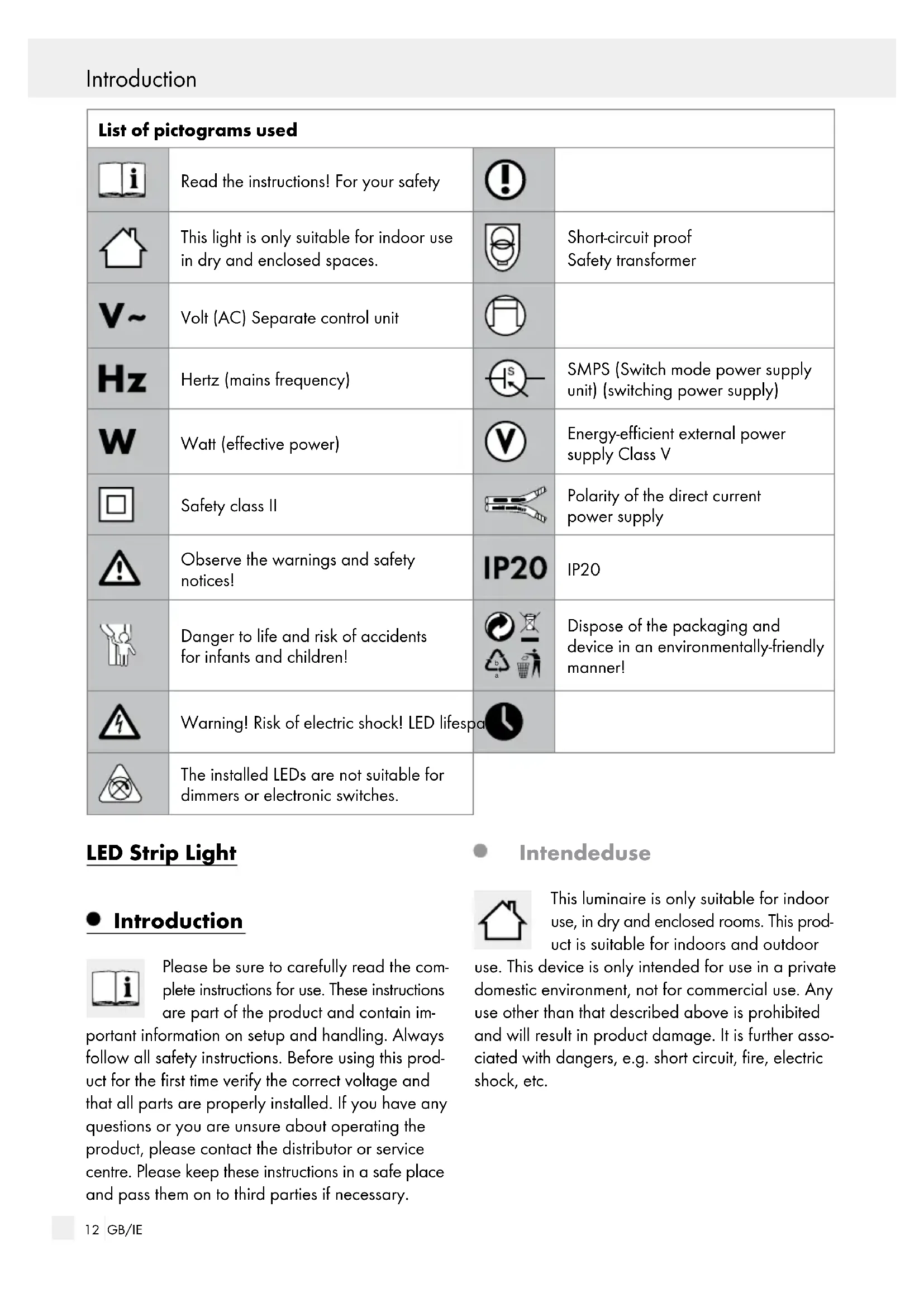

| List of pictograms used | |||
 | Read the instructions! For your safety |  | |
 | This light is only suitable for indoor use in dry and enclosed spaces. |  | Short-circuit proofSafety transformer |
 | Volt (AC) Separate control unit |  | |
 | Hertz (mains frequency) |  | SMPS (Switch mode power supply unit) (switching power supply) |
 | Watt (effective power) |  | Energy-efficient external power supply Class V |
 | Safety class II |  | Polarity of the direct current power supply |
 | Observe the warnings and safety notices! |  | IP20 |
 | Danger to life and risk of accidents for infants and children! |  | Dispose of the packaging and device in an environmentally-friendly manner! |
 | Warning! Risk of electric shock! LED lifespc |  | |
 | The installed LEDs are not suitable for dimmers or electronic switches. | ||
LED Strip Light
- Introduction
Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain imimportant information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.
Intendeduse
This luminaire is only suitable for indoor use, in dry and enclosed rooms. This product is suitable for indoors and outdoor
use. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.
Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED Strip Light
1 Cable holder
1 Adhesive strip
1 Set of instructions for use
PartsDescription
1 Mains adapter
2 LED strip
3 Cable holder
4 ON/OFF In-line switch
5 Supply cable
6 Protective film (LED strip)
7 Protective film (cable holder)
8 Adhesive strip
TechnicalData
Item No.: 14125406L/14125506L
LED Strip Light:
Operating voltage: 100-240V\~50/60Hz
Total wattage: 16 W
14125406L: 72 LED, max. length 1 m
14125506L: 72 LED, max. length 1 m
Protection class: II / ☐
LED non-replaceable
Safety
Safety instructions
Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!
DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!
Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate dangers. Please always keep the product out of the reach of children.
This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.
Avoid the risk of fatal injury from electric shock
- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.
WARNING!
A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician. The supply cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.
■ Make sure before use that the available supply voltage corresponds to the required operating voltage of the item (see "Technical Data").
■ Never allow the live power leads and contacts to come into contact with water or other liquids.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Do not install the lamp on damp or conductive surfaces.
This LED strip must not be connected electrically with other LED strips.
- Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not secure with sharp staples or nails.
■ Always unplug the mains plug from the socket before assembly, disassembly or cleaning.
■ Never catch hold of the mains plug or the LED strip with wet hands.
■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.
Prevent fire and injury hazards
This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.
The installed LEDs are not suitable for dimmers or electronic switches.
Do not look into the LED from a close distance during operation.
Do not look at the LED with an optical instrument (e.g. magnifier).
Safe working
- Install the light so that it is protected from dirt and excessive heating.
■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket.
- Initial use
☐ Remove all packaging materials before first use.
☐ The chain of lights should not be connected to the mains supply while it is still in its packaging.
- Trimming the LED tape
The LED strip can be trimmed.
WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!
Disconnect the lights from the power supply before performing any work on the LED strip 2. Unplug the mains adapter 1 from the socket to do so.
☐ Choose the desired LED strip length.
Note: Ensure that you cut the LED strip 2 at the right place. The cutting point lies exactly between the plus and minus pole and is marked with a black line (see Fig. B).
☐ Shorten the LED strip 2 using a pair of scissors.
☐ Be sure to cover the open end of the LED strip 2 with the adhesive strip 8 before use (see Fig. C).
- Installing the LED strip
Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.
Note: Ensure that a plug socket is located in close proximity to the installation area.
☐ Choose a suitable installation area (window etc.) (see Fig. B).
☐ Remove the protective foil 6 from the reverse side of the LED strip 2.
☐ Stick the LED strip 2 with the adhesive strip onto the installation area and press it on firmly.

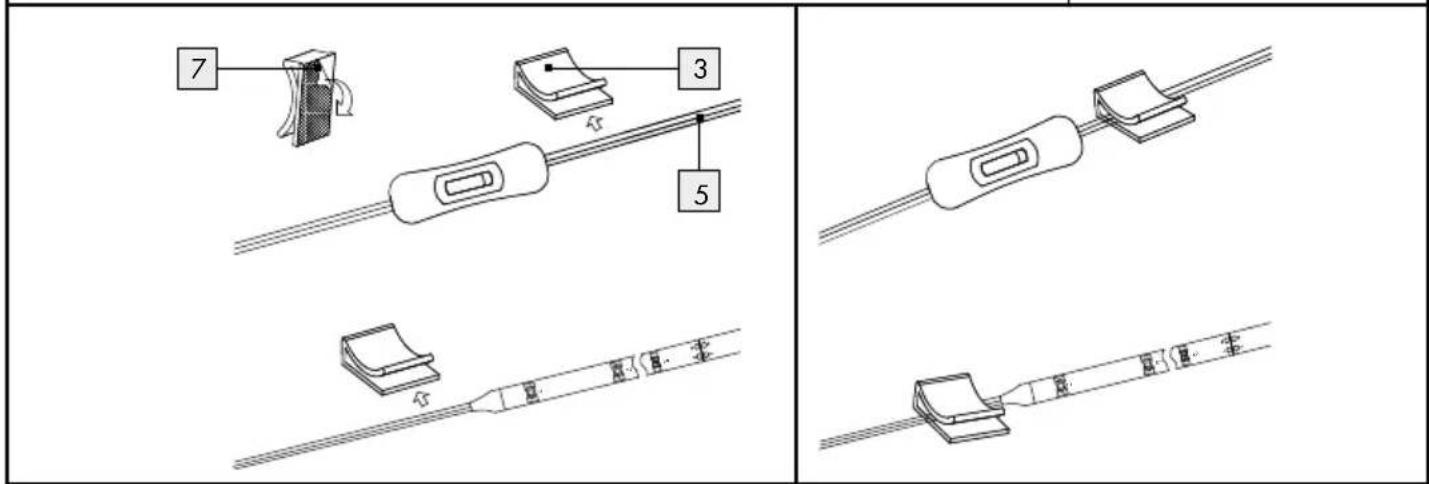

☐ Remove the protective foil 7 from the reverse side of the cable hold 3.
□ Stick the cable hold 3 onto the desired position.
☐ Squeeze the mains cable 5 into the cable hold 3.
☐ Insert the mains adapter ☐ into the plug socket.
Your light is now ready to use.
- Switching the LED strip ON/OFF
☐ Use the ON / OFF in-line switch 4 to switch the LED strip 2 on or off.
● Maintenance and Cleaning
WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!
Disconnect the lights from the power supply before performing any work on the LED strip 2. Unplug the mains adapter 1 from the socket to do so.
- Do not use solvents, benzene or similar substances. They could damage the light.
☐ Use a dry, lint-free cloth to clean the LED strip 2.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board/80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
● Warranty and Service
Warranty
You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14125406L/14125506L.
Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.
Serviceaddress
Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.
Declaration of Conformity
This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
CE
