PBRA 20Li A1 - Jobsite portable radio PARKSIDE - Free user manual and instructions

Product type	Wireless portable jobsite radio
Brand	Parkside
Model	PBRA 20Li A1
Dimensions (L × l × H)	226 × 170 × 305 mm
Weight (without battery)	Max. 2,5 kg
Power supply	Parkside X 12 V Team or X 20 V Team battery (not included) or mains adapter 12 V ⎓ 2 A
Protection	IP65 (with covers closed in battery mode)
Speaker power	2 × 5 W stereo
Radio frequency ranges	FM 87,5–108 MHz / DAB+ (Band III)
Bluetooth	Version 5.0, profiles A2DP/AVRCP, range ≈ 10 m (max. 30 m)
Station memory	30 FM presets + 30 DAB+ presets
USB players	Formats MP3/WAV/APE/FLAC, FAT32, max. 64 GB
AUX inputs	2 × 3,5 mm jacks (front + battery compartment)
TWS function	True Wireless Stereo to pair two speakers
Battery life	Up to 10 h with 4 Ah battery (12 V or 20 V)
Cleaning	Dry cloth or brush; do not use water jet or chemicals
Maintenance	No maintenance required; repairs by authorized service center
Warranty	3 years (France and Belgium)
Spare parts	Available at www.grizzlytools-service.eu

Frequently Asked Questions - PBRA 20Li A1 PARKSIDE

How to connect a smartphone via Bluetooth?

Press Source several times until Bluetooth appears on the screen. On your smartphone, select PBRA 20-Li A1 from the device list. An audio signal confirms pairing.

Which batteries are compatible with this radio?

All batteries from the Parkside X 12 V Team and X 20 V Team ranges (models PAP 20 A1/A2/A3, PAPK 12 A1/A2/B1/B2). The corresponding chargers are PLG 20 A1/A3, PDSLG 20 A1, PLGK 12 A1/A2/B2.

How to save a station as a preset?

In FM or DAB+ mode, press Preset for 2 seconds. Use NEXT/PREV or the dial to select a location, then press the dial to confirm.

Can I charge my phone via the USB port?

Yes, the front USB port (6) is only for charging external devices. Audio playback is not possible on this port. Use the USB port in the battery compartment (20) to play USB drives.

How to set the time manually?

Access the system menu by holding Info/Advanced. Select System > Time > Time/date. Use NEXT/PREV or the dial to adjust, confirm with the dial.

What to do if the radio does not turn on?

Check that the battery is properly inserted and charged, or plug in the mains adapter. If the problem persists, contact after-sales service (tel. [phone] in France).

How to clean the device?

Turn off the radio, remove the battery and unplug the mains. Clean with a dry cloth or brush. Never use water jet or chemicals.

FM reception is poor, what to do?

Fully extend the antenna (3) vertically. Start an automatic search by holding Tune for 2 seconds. You can also perform a semi-automatic search with NEXT.

What is the TWS function?

TWS (True Wireless Stereo) allows pairing two identical radios for stereo sound. In Bluetooth mode, press TWS on both devices; they connect automatically.

How to reset the radio to factory settings?

In the system menu, select Factory settings, then choose Yes. The radio restarts with the original settings.

USER MANUAL PBRA 20Li A1 PARKSIDE

PDF ONLINE www.lidl-service.com

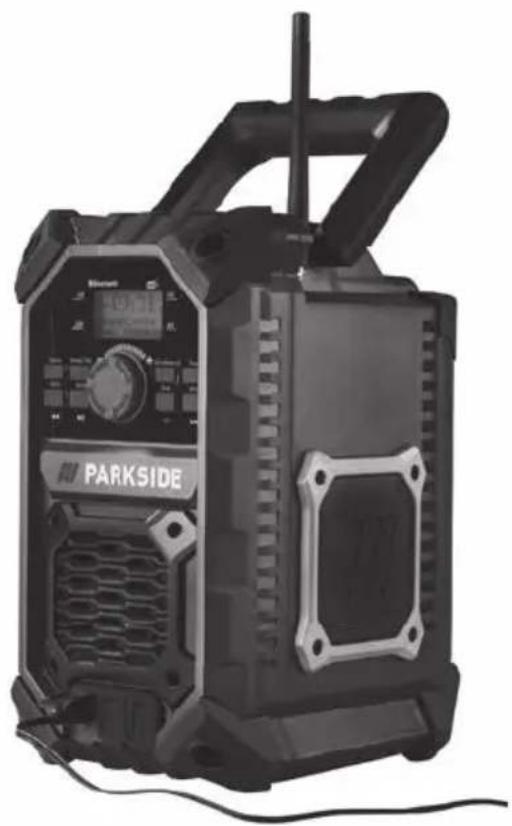

Exterior view of a black Parkside portable radio unit with control panel and antenna (no visible text or symbols on main body)

Akku-Baustellenradio / Rugged Radio / Radio de chantier sans fi l PBRA 20-Li A1

DE AT CH

Translation of the original instructions

NL BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Service-Center....20

Importeur 20

Fehlersuche....21

Original-EG-

Standard.....ca.10 m

Digital Audio Broadcasting

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grizzly Tools GmbH & Co. KG is under license. Other trademarks and trade

names are those of their respective owners.

General description......23

Scope of delivery 23

Overview....23

Description of functions....24

Technical data 24

Safety information 25

Graphical symbols 25

General Safety Instructions for Power Tools....26

Initial start-up 26

Removing/inserting the battery (12 V and 20 V) 26

Checking the charge level of the rechargeable battery (12 V)....27

Checking the charge level of the rechargeable battery (20 V) 27

Operating with mains power......27

Switching on/off....27

Operation 27

Setting the volume....27

Switching playback mode 28

Operating as a radio (FM)......28

Station search (FM) 28

Saving stations to the preset list......28

Retrieving stored stations from the preset list 29

Retrieving station information......29

Mute 29

Special settings for FM ......29

Search settings.... 29

Audio settings....29

Operating as a radio (DAB+)......29

Station search....30

Retrieving saved stations 30

Saving stations to the preset list......30

Retrieving stored stations from the preset list 30

Retrieving station information......30

Mute 31

Special settings for DAB+ ......31

Inactive stations 31

Setting Dynamic Range Control (DRC) 31

Operating via the 3.5 mm jack socket....31

Connecting via 3.5 mm jack socket on the front panel .... 31

Connecting via the 3.5 mm jack socket in the battery compartment....32

Mute 32

Operating via USB ......32

Connecting via USB 32

Pausing/continuing playback 32

Selecting tracks....32

Activating/deactivating Shuffle mode 32

Operating via Bluetooth®......32

Connecting via Bluetooth ^® ......32

Pausing/continuing playback 33

Selecting tracks....33

TWS – True Wireless Stereo ...... 33

System settings for all modes.....33

Setting the backlighting....34

Setting the date/time 34

Setting the language 34

Restoring factory settings....34

Software version 34

Cleaning and servicing......34

Cleaning....35

Maintenance 35

Transport 35

Storage....35

Disposal / Environmental protection ....35

Replacement parts/Accessories ..35

Guarantee 36

Repair Service....37

Service-Center......37

Importer 37

Troubleshooting 38

Translation of the original EC declaration of conformity ....166

Introduction

Congratulations on purchasing your new device. You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Before using the device, you should familiarise yourself with all operating and safety instructions. Use the device only as described and for the stated fields of application.

Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

The device is designed to play radio and external playback media via Bluetooth ^® , USB and AUX.

Any other use not expressly approved in the present instruction manual can damage the device and thus present a substantial risk for the user.

The manufacturer is not liable for damage caused by improper use or incorrect operation. This device is not suitable for commercial use. The warranty is void in the case of commercial use.

General description

The device is part of the Parkside X 12 V TEAM and X 20 V TEAM series and can be operated using Parkside X 12 V TEAM or X 20 V TEAM series batteries. The batteries may only be

charged using chargers from the Parkside X 12 V TEAM or X 20 V TEAM series.

An illustration of the most important functional components can be found on the front fold-out page.

Scope of delivery

Unpack the device, remove all transport protection film and packaging material from the device and check for completeness:

• Cordless jobsite radio
• Power adapter
• Instruction manual

The rechargeable battery and charger are not included in delivery. (See chapter "Disposal and environmental protection"

Overview

1 Carrying handle

2 Battery compartment cover

3 Antenna

4 Speaker

5 3.5 mm Jack socket (front)

6 USB port (front)

7 DC input

8 Display

9 Info/advanced button

10 Power button

11 NEXT button / Forward button

12 Tune button / Shuffle button

13 Volume control knob

14 Mute button / Play & Pause button

15 PREV button / Back button

16 Source button

17 Preset/TWS button

GB IE

18 Battery compartment lock
19 3.5 mm Jack socket (battery compartment)
20 USB port (battery compartment)
21 Power adapter
21a DC connector
22 Rechargeable battery
22a Release button
22b Guide rail
23 Charger
24 3.5 mm Jack cable (not included in delivery)
25 Signal display
26 Bluetooth display
27 Time display
28 Battery indicator

Description of functions

The cordless jobsite radio has an LCD display, an antenna and a carrying handle. The available radio frequency bands are FM and DAB.

In addition, the device has a connection option for a power adapter, two USB ports, two AUX sockets, and a Bluetooth interface®.

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Rugged Radio ...... PBRA 20-Li A1

Nominal input voltage U,
Battery type: PAP 20 A1, PAP 20 A2, PAP 20 A3 ....20 V==
Nominal input voltage U_2
Battery type: PAPK 12 A1, PAPK 12 A2,
PAPK 12 B1, PAPK 12 B2. ..... 12 V=
Nominal input voltage U_3
External plug-in power adapter from scope of delivery ..... 12 V---; 2 A
Protection type....IP65

Weight (without battery).....max. 2.5 kg
Speaker power 2x 5 W Stereo
Frequency range FM.....87.5-108 MHz
Frequency range
DAB+ 174.928 - 239.200 MHz
Operating time with battery
(12 V, 2 Ah)....5 hours
Operating time with battery
(12 V, 4 Ah)....10 hours
Operating time with battery
(20 V, 2 Ah)....5 hours
Operating time with battery
(20 V, 4 Ah)....10 hours
Bluetooth® version 5.0
Supported Bluetooth® profile.A2DP, AVRCP
Frequency band.....2.402 - 2.480 GHz
Transmission power ......Class 2
Bluetooth® transmission range
Standard......approx. 10 m
under optimal conditions .....max. 30 m
Integrated station memory
DAB+ 30
VHF....30
Dimensions
(L × W × H) .....226 × 170 × 305 mm
USB port....USB 1.1
Temperature.....max. 50 °C
Operation....-5 - 45 °C
Storage....-5 - 50 °C
Humidity: ....<= 75%

Caution! An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Power adapter....XH1200-2000WG

Nominal input voltage U .....220-240 V\~; 50 Hz, 0,8 A

Output power ......12 V==; 2.0A; 24.0W

Protection type IPXO

This device can only be operated with the following rechargeable batteries: PAP 20 A1, PAP 20 A2, PAP 20 A3, PAPK 12 A1, PAPK 12 A2, PAPK 12 B1, PAPK 12 B2. This type of battery may be charged with the following chargers: PLG 20 A1, PLG 20 A3, PDSLG 20 A1, PLGK 12 A1, PLGK 12 A2, PLGK 12 B2.

Safety information

This section describes the basic safety rules when working with the device.

Graphical symbols

Symbols on the device:

Digital Audio Broadcasting

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grizzly Tools GmbH & Co. KG is under license. Other trademarks and trade names are those of their respective owners.

Electrical devices must not be disposed of with domestic waste.

Symbols on the power adapter

Read the instruction manual

Polarity: Positive on the inside, negative on the outside.

The charger is only suitable for use indoors.

Safety transformer – short-circuit proof

Switched-mode power supply

Protection class II (double insulation)

Electrical devices must not be disposed of with domestic waste.

V=

Direct voltage

V\~ Alternating voltage

Symbols used in the instruction manual:

Hazard symbol with information on the prevention of personal injury or property damage

Hazard symbol with information on the prevention of personal injury caused by electric shock

Mandatory symbol with information on the prevention of personal injury and property damage

Advisory symbol with information on how to best use the device

General Safety Instructions for Power Tools

- The packaging material is not a toy. It poses a danger to life from suffocation.

- Children, individuals with limited physical, sensory or mental capabilities, those with insufficient experience or knowledge or individuals who are not familiar with the instructions must never be permitted to use the device. Local regulations may specify a restricted age limit for the user.

- In battery mode and with closed covers, dust-proof and protection against water jets (nozzle) according to IP65.

- LCD screens contain liquids that can cause skin irritation and poisoning. In case of contact with eyes, mouth or skin, rinse the affected sites with water and seek medical attention.

- Unplug the device from the mains during a lightning storm or when not in use for long periods of time.

- Do not install near any heat sources such as radiators, heaters or other appliances that produce heat.

- Do not use the device at a high volume for long periods of time. Select an appropriate volume to avoid hearing damage.

- Do not use the device near open flames (e.g. candles). This can result in fire.

- Prevent foreign objects from entering the device.

- Do not open the device or the plug-in power supply.

• Always place the device on an even, stable surface. Avoid subjecting the device to vibration.

- Do not pull on the cable. Instead, grasp the plug by the insulated grip surface.

- LCD screens contain liquid that can cause skin irritation and poisoning. In case of contact with the eyes, mouth or skin, rinse the affected areas with water and seek medical attention.

- Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V Team or X 12 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Initial start-up

Removing/inserting the battery (12 V and 20 V)

1 Loosen the lock of the battery compartment (18).

1. Open the battery compartment cover (2).

2. To remove the battery (22) from the device, press the release button (22a) on the battery and pull the battery (22) out.

3. To insert the battery (22), push the battery (22) along the guide rail (22b) into the device. You will hear it click into place.

4. Close the battery compartment cover (2).

5. Lock the lock of the battery compartment (18).

Caution: Be careful not to pinch your fingers when opening and closing the battery compartment cover.

Checking the charge level of the rechargeable battery (12 V)

Charge level indicator on the display

The battery indicator (28) on the display shows the charge status of the battery.

Checking the charge level of the rechargeable battery (20 V)

Charge level indicator on the battery

The battery charge level indicator signalises the state of charge of the battery.

The charge level of the battery is indicated by illumination of the corresponding LED light. To see this, press the soft button of the battery charge level indicator.

3 LEDs illuminated (red, orange and green): Battery charged

2 LEDs illuminated (red and orange): Battery partially charged

1 LED illuminated (red): Battery needs to be charged

Charge level indicator on the display

The battery indicator (28) on the display shows the charge status of the battery.

Operating with mains power

1. Connect the DC connector (21a) of the power adapter (21) to the DC input (7) on the front of the radio.
2. Insert the power adapter (21) into a wall socket.

When operating with mains power, the battery is automatically disconnected. Connected batteries do not charge when the device is operating with mains power.

Switching on/off

Switching on the device

1. Press the Power button (10). The display (8) lights up.

Switching off the device

1. Press the Power button (10). All play-backs stop and the display (8) switches off.

Operation

Ensure that the ambient temperature does not exceed 50°C or fall below -20°C during operation.

Setting the volume

When switching on/off and changing the playback mode, the volume automatically changes to a preset value.

Increasing the volume

1. Turn the volume knob (13) in a clockwise direction.

Reducing the volume

1. Turn the volume knob (13) in an anticlockwise direction.

Switching playback mode

Press the Source button (16) repeatedly. The radio will now cycle through the available playback modes (DAB+, FM and Bluetooth®).

AUX and USB are only available for selection if a playback medium is connected via the AUX sockets (5/19) or the USB port (battery compartment) (20).

Operating as a radio (FM)

Pull up the antenna (3) so that it is vertical.

Press the Source button (16) repeatedly until the time display (27) shows "FM".

The signal indicator (25) on the display (8) shows the signal strength. If this is low, it is advisable to initiate a channel search

Station search (FM)

Automatic search

1. Press and hold the Tune button (12) for approx. 2 seconds. All stored stations are deleted and the radio now automatically scans the frequency band for up to 30 receivable signals.
2. Press the Preset button (17). The signals which have been found are now shown on the display.
3. Press the NEXT / PREV button (11/15) to scroll through the list entries.
   Alternatively, you can also scroll through the list by turning the volume control knob (13).
4. Push the volume control knob (13) to confirm the station selection.

Semi-automatic search

Semi-automatic search Press and hold the NEXT button (11). The radio now automatically searches for the next receivable signal. If you press the NEXT button (11) again during the search, the search will stop early.

Setting stations manually

1. Press the volume control knob (13) briefly once.
2. Change the frequency by turning the volume control knob (13).
3. Push the volume control knob (13) to save the setting and to re-enable the volume control.

Or: Press the NEXT / PREV buttons (11/15) briefly once.

The frequency changes in 5 MHz increments.

Saving stations to the preset list

1. Press and hold the Preset button (17) for approx. 2 seconds.
2. Using the NEXT / PREV buttons (11/15), select a memory location to overwrite to.
   Alternatively, you can also scroll through the list by turning the volume control knob (13).
3. Push the volume control knob (13) to overwrite the selected station to the memory location.

Retrieving stored stations from the preset list

1. Press the Preset button (17) briefly once.
2. Scroll through the list using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to change to the selected station.

Retrieving station information

1. Press the Info/Advanced button (9).
2. Press the Info/Advanced button (9) to scroll through the station information

Frequency band	retrievable station information
FM (RDS) Station	nameFrequencyRadio textProgramme genreTime/dateMono/stereoSignal strength

Mute

The Mute function deactivates the sound output while playback continues.

To activate this, press the Mute button (14). To deactivate this, press the Mute button (14) again.

Special settings for FM

1. Press and hold the Info/Advanced button (9) for approx. 2 seconds to access the Settings menu.

2. Scroll using the NEXT / PREV buttons (11/15) or the volume control knob (13).

3. Push the volume control knob (13) to confirm the selection.

The settings in the "System" menu are described in the chapter "System settings"

Search settings

1. Select "Search settings" in the menu.
2. Using the NEXT / PREV buttons (11/15) or the volume control knob (13), select "All stations" to obtain a full list of stations or "Only strong stations" to obtain only stations with a strong signal.
3. Press the volume control knob (13) to confirm the settings.

Audio settings

1. Select "Audio settings" in the menu.
2. Using the NEXT / PREV buttons (11/15) or the volume control knob (13), select "Stereo possible" to play back stereo signals when available or "Mono only" to play back mono signals only.
3. Press the volume control knob (13) to confirm the settings.

Operating as a radio (DAB+)

Pull up the antenna (3) so that it is vertical.

Press the Source button (16) repeatedly until the time display (27) shows "DAB".

The signal indicator (25) on the display (8) shows the signal strength. If this is low, it is advisable to initiate a channel search

Station search

Press and hold the Tune button (12) for approx. 2 seconds. The radio now automatically searches for receivable stations.

Once the search is complete, a station list is generated which can be retrieved using the NEXT / PREV buttons (11/15).

Favourite stations can be stored in an additional preset list in the desired order.

Alternative

1. Press and hold the Info/Advanced button (9) for approx. 2 seconds.
2. Using the NEXT / PREV buttons (11/15) or the volume control knob (13), scroll to the list entry "Complete search".
3. Push the volume control knob (13) to confirm the selection.

Once the search is complete, a station list is generated which can be retrieved using the NEXT / PREV buttons (11/15).

Favourite stations can be stored in an additional preset list in the desired order.

Setting stations manually

1. Press and hold the Info/Advanced button (9) for approx. 2 seconds.
2. Using the NEXT / PREV buttons (11/15) or the volume control knob (13), scroll to the list entry "Set manually".
3. Change the frequency by turning the volume control knob (13).
4. Press the volume control knob (13) to save the setting and to re-enable the volume control.

Retrieving saved stations

1. Scroll through the list using the NEXT / PREV buttons (11/15).
2. Push the volume control knob (13) to change to the selected station.

Saving stations to the preset list

1. Press and hold the Preset button (17) for approx. 2 seconds.
2. Using the NEXT / PREV buttons (11/15), select a memory location to overwrite to.
   Alternatively, you can also scroll through the list by turning the volume control knob (13).
3. Push the volume control knob (13) to overwrite the selected station to the memory location.

Retrieving stored stations from the preset list

1. Press the Preset button (17) briefly once.
2. Scroll through the list using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to change to the selected station.

Retrieving station information

1. Press the Info/Advanced button (9).
2. Press the Info/Advanced button (9) to scroll through the station information

Frequency band	retrievable station information
DAB Station name	Programme genreMultiplex nameTime/dateFrequency/channelBitrate/audio typeSignal strengthRadio text

Mute

The Mute function deactivates the sound output while playback continues.

To activate this, press the Mute button (14). To deactivate this, press the Mute button (14) again.

Special settings for DAB+

1. Press and hold the Info/Advanced button (9) for approx. 2 seconds to access the Settings menu.
2. Scroll using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to confirm the selection.

The settings in the "System" menu are described in the chapter "System settings"

The settings in the "Complete search" and "set stations manually" menus are described in the chapter "Operating as a radio (DAB+)"

Inactive stations

1. Select "Inactive station" in the menu.
2. Using the NEXT / PREV buttons (11/15) or the volume control knob (13), select "Yes" to delete inactive stations or "No" to return to the Settings menu.
3. Press the volume control knob (13) to confirm the settings.

Setting Dynamic Range Control (DRC)

This function is only available if DAB+ is selected.

DRC ensures that quiet passages are amplified and can therefore be heard in noisy environments.

1. Select "DRC" in the menu.
2. Select the desired DRC setting using the NEXT / PREV buttons (11/15) or the volume control knob (13).

There are three possible options: off - No amplification of quiet passages low - Moderate amplification of quiet passages high - Maximum amplification of quiet passages

1. Press the volume control knob (13) to confirm the settings.

Operating via the 3.5 mm jack socket

Connecting via 3.5 mm jack socket on the front panel

1. Plug the jack cable (24) into the jack socket (5) on the front panel of the device.

GB IE

1. Connect the jack cable (24) to a storage medium.
2. Press the Source button (16) repeatedly until the time display shows "AUX2 Input".

Connecting via the 3.5 mm jack socket in the battery compartment

1. Plug the jack cable (24) into the jack socket (19) in the device's battery compartment.
2. Connect the jack cable (24) to a storage medium.
3. Press the Source button (16) repeatedly until the time display shows "AUX1 Input".

Mute

The Mute function deactivates the sound output while playback continues. To activate this, press the Mute button (14). To deactivate this, press the Mute button (14) again.

Operating via USB

Connecting via USB

1. Insert the USB storage medium (not included in delivery) into the USB port (20) in the device's battery compartment.

Only external devices can be charged via the USB port (6) on the front panel. This USB port (6) cannot be used to play back audio.

Playback of audio from mobile phones is not possible via USB. Use Bluetooth® or AUX for this.

Only USB sticks in FAT32 format up to a maximum size of 64 GB can be used.

Audio files in the following formats can be played back: MP3, WAV, APE, FLAC.

Pausing/continuing playback

Pausing playback

1. Press the Play & Pause button (14) during playback.

Continuing playback

1. Press the Play & Pause button (14).

Selecting tracks

1. Press the NEXT button (11) to move to the next track.
2. Press and hold the PREV button (15) for approx. 2 seconds to reset the current track to the beginning.
3. Press the PREV button (15) briefly once to go back to the previous track.

Activating/deactivating Shuffle mode

Activating Shuffle mode

1. Press the Tune button (12) briefly once. This will activate the Shuffle mode.

Deactivating Shuffle mode

1. Press the Tune button (12) briefly once. This will deactivate the Shuffle mode.

Operating via Bluetooth®

Connecting via Bluetooth®

1. Press the Source button (16) repeatedly until the time display shows "Bluetooth".

2. The display will flash.

3. Connect your external Bluetooth®-enabled device to the radio. Select "PBRA 20-Li A1" from the list.
4. As soon as the device is connected, a beep will sound, the display will stop flashing and the device will display "Connected".

Pausing/continuing playback

Pausing playback

1. Press the Play & Pause button (14) during playback.

Continuing playback

1. Press the Play & Pause button (14).

Selecting tracks

1. Press the NEXT button (11) to move to the next track.
2. Press and hold the PREV button (15) for approx. 2 seconds to reset the current track to the beginning.
3. Press the PREV button (15) briefly once to go back to the previous track.

TWS - True Wireless Stereo

With the Bluetooth® speaker, you can use the new TWS feature to connect two speakers together to form a stereo pair. This will allow you to enjoy a perfectly synchronised stereo sound.

1. Press the Source button (16) repeatedly until the time display shows "Bluetooth".
2. Press the TWS button (17) once on each device. The TWS indicator will flash on the display (8).

3. The devices will connect with one another and the TWS indicator on the display (8) of one device will stop flashing.

4. The device on which the TWS indicator continues to flash is the master device. The mobile phone is now connected to this device as described in the chapter "Operating via Bluetooth®".

5. To cancel the connection between the two speakers, press the TWS button (17) once.

System settings for all modes

Information on special settings for the different playback modes can be found in the corresponding chapters

In Radio mode (FM and DAB+)

1. Press and hold the Info/Advanced button (9) for approx. 2 seconds to access the Settings menu.
2. Scroll to the list entry "System" using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to confirm the selection.
4. Scroll to the desired entry using the NEXT / PREV buttons (11/15) or the volume control knob (13).
5. Push the volume control knob (13) to confirm the selection.

When playing back external media (USB, AUX and Bluetooth®)

1. Press and hold the Info/Advanced button (9) for approx. 2 seconds to access the Settings menu.
2. Scroll to the desired entry using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to confirm the selection.

Setting the backlighting

1. Select "Lighting" in the System menu.
2. Scroll through the list using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to confirm the selected list entry.

Setting the date/time

1. Select "Time" in the menu.

Setting the time automatically

1. Select "Autom. Update" in the Time menu.
2. Select the desired update behaviour using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to confirm the selection.

There are four possible options:

No update - time and date do not up- date automatically
Update all - time and date update automatically via FM and DAB
Update via FM - time and date update automatically via FM
Update via DAB - time and date update automatically via DAB

If the automatic update is active, the time and date will always update when the radio is in the corresponding playback mode.

Setting the time manually

1. Select "Set time/date" in the Time menu.
2. Set the time and date using the NEXT / PREV buttons (11/15) or the volume control knob (13). Press the

volume control knob (13) to confirm the settings.

Setting the language

1. Select "Language" in the System menu.
2. Scroll through the list using the NEXT / PREV buttons (11/15) or the volume control knob (13).
3. Push the volume control knob (13) to confirm the setting.

Restoring factory settings

1. Select "Factory settings" in the System menu.
2. Select "Yes" in the Factory settings menu. The radio will now automatically restore the factory settings.

Software version

1. Select "SW version" in the System menu.
2. This will display the installed software version.
3. Press the Preset button (17) to return to the Main menu

Cleaning and servicing

Switch off the device and remove the battery before carrying out any maintenance work and unplug the power adapter.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original parts.

Cleaning

The device must not be sprayed with water or placed in water. Otherwise there is a risk of electric shock.

Do not use any cleaning agents or solvents. They could damage the device irreparably. Chemical substances may attack the plastic parts of the machine.

- Keep the ventilation slits, speaker and carrying handle of the device clean. Use a dry cloth or brush to do this.

Maintenance

The device is maintenance free.

Transport

Fold in the antenna (3) before transporting the device

Storage

• Always store devices and accessories so that they are:

• dry.
• clean.
• protected against dust.
• out of the reach of children.

- Remove the rechargeable battery from the device before storing the device (see the separate operating instructions for the battery and charger).

- The storage temperature for the rechargeable battery and the device is between -5°C and 50°C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

Disposal / Environmental protection

Remove the battery from the device and recycle the device, battery, accessories and packaging in an environmentally-friendly manner. Please observe the regulations for disposal that are applicable in your area.

Electrical devices do not belong in domestic waste.

• Take the device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled. Please contact our Service Centre for more information.
  • We will dispose of any defective devices that you send to us free of charge.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 37).

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. rechargeable battery, push button) or to cover damage to breakable parts (e.g. display, antenna).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 356478_2004) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid

acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 356478_2004

IE Service Ireland Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 356478_2004

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Switch off the device and remove the battery before carrying out any maintenance work and unplug the power adapter.

Problem Possible cause	Error correction
Machine does not start	Battery (A 22) not inserted	Insert the battery (A 22) (see "Inserting/removing the battery")
	Rechargeable battery (A 22) discharged	Charge the battery (22)(observe the separate operating instructions for the rechargeable battery and charger)
	On/Off button (A 10) is faulty.	Repairs must be carried out by our Customer Service department.
Device works with interruptions	Internal loose contact	Repairs must be carried out by our Customer Service department.
	On/Off button (A 10) is faulty.
Faltering playback Noise during play-back	Poor signal	(FM and DAB+ only) Adjust antenna (3)
		(FM and DAB+ only) Adjust the frequency (see "Manual search" in the chapter "Station search (FM))"
		Place the radio where there is a better signal.
	Transmission range for Bluetooth connection exceeded	Place the connected device near the radio. Transmission ranges of up to 30 m are possible. The optimal range is approx. 10 m.

Sommaire

Introduction ....40

Utilisation conforme .... 40

Description générale ....40

Matériel livré 40

Aperçu 40

DAB+....174,928-239,200 MHz

Raccordement USB....USB 1.1

Température.....max. 50 °C

12 V==; 2,0 A; 24,0 W

Type de protection.....IPXO

Digital Audio Broadcasting

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grizzly Tools GmbH & Co. KG is under license. Other trademarks and trade names are those of their respective owners.

Service-Center....76

Importeur 76

Storingen oplossen......77

Digital Audio Broadcasting

Bluetooth

1 led brandt (rood):

Shuffle modus activeren/de-activeren

Shuffle modus activeren

Digital Audio Broadcasting

Service-Center....111

Dovozce....111

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grizzly Tools GmbH & Co. KG is under license. Other trademarks and trade names are those of their respective owners.

Service-Center....128

Dovozca....128

DAB+ ....174,928 - 239,200 MHz

Digital Audio Broadcasting

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grizzly Tools GmbH & Co. KG is under license. Other trademarks and trade names are those of their respective owners.

Indstilling of Dynamic Range Control (DRC) 139

Drift via 3,5 mm jackstick .....140

Forbind via 3,5 mm jackstick på forsiden.... 140

Forbind via 3,5 mm jackstick i batterirum .... 140

Mute 140

Drift via USB 140

Forbindelse via USB 140

Service-Center....145

Importør 145

Fejlsøgning 146

6 USB-bøsning (front)

7 DC-indgang
8 Display
9 Info/Advanced - knap
10 Power-knap
11 NEXT - knap / frem - knap
12 Tune - knap / Shuffle - knap

DK

Standard.....ca.10 m

under optimale betingelser . maks. 30 m

Integreret transmissionslager

DAB+ 30

UKW....30

Mål

Digital Audio Broadcasting

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Grizzly Tools GmbH & Co. KG is under license. Other

trademarks and trade names are those of their respective owners.

Indstilling of Dynamic Range Control (DRC)

Ajustar Dynamic Range Control (DRC) 157

Digital Audio Broadcasting

Bluetooth

Ajustar Dynamic Range Control (DRC)

GBIE	Translation of the originalEC declaration of conformity
We hereby confirm that theRugged RadioPBRA 20-Li A1 seriesSerial number000001 - 030000conforms with the following applicable relevant version of the EU guidelines:
2009/125/EC • 2019/1782(EU) • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 50563:2011+A1:2013 • EN 62087:2012-04IEC 60529:1989+A1:1999+A2:2013 • EN 62368-1:2014+AC:2017IEC 82079-1:2013 • EN ISO/IEC 17050-1:2010EN ISO/IEC 17050-2:2005
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 Großostheim,Germany, 05.02.2021	Christian FrankDocumentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

FSC® www.fsc.org MIX Paper from responsible sources FSC® C140878

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C140878

IAN 356478_2004
